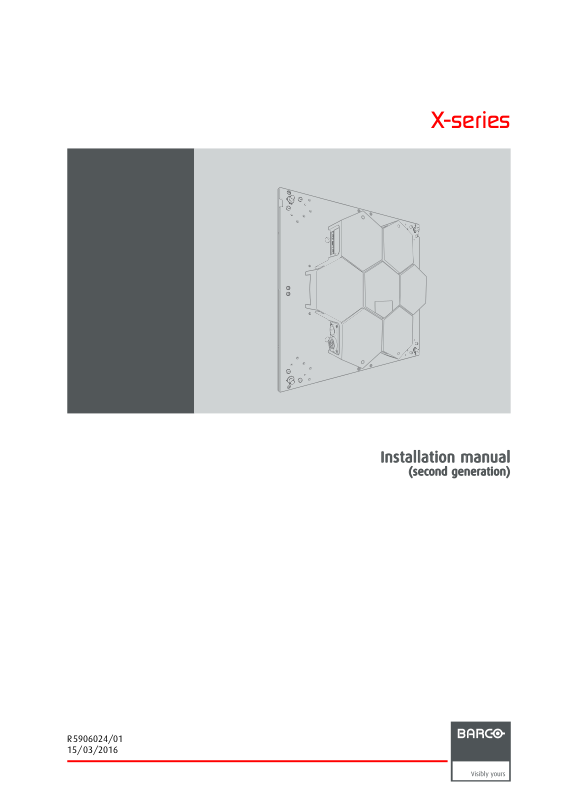

Page 1

X-ser ie s

Installation manual

(second generation)

R5906024/01 15/03/2016

Page 2

Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com

Printed in Belgium

Page 3

Changes

Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and ﬁtness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this publication; these changes are incorporated in new editions of this publication.

The latest edition of Barco manuals can be downloaded from the Barco web site w

ttps://www.barco.com/en/signin.

ww.barco.com or from the secured Barco web site

All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or stored in a retrieval system without the prior written consent of Barco.

Federal Communications Commission (FCC Statement)

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be responsible for correcting any interference at his own expense

Changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

EN55022/CISPR22 Class A ITE (Information Technology Equipment)

Class A ITE is a category of all other ITE which satisﬁes the class A IT be restricted in its sale but the following warning shall be included in the instructions for use:

Warning : This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

E limits but not the class B ITE limits. Such equipment should not

Safety regulation (Intertek S tatement)

This product is conforming to UL Std 60950–1 and CSA Std C22.2 NO. 60950–1.

Guarantee and Compensation

Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco must be informed immediately in writing of any complaints.

The period of guarantee begins on the date of trans at latest 30 days after the transfer of risks. In the event of justiﬁed notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellati indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties guaranteed in writing or due to the intent o

If the purchaser or a third party carries out modiﬁcations or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to inﬂuences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are system failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as well as normal maintenance are not subject to the guarantee provided by Barco either.

The environmental conditions as well as the servicing and maintenance regulations speciﬁed in this manual must be complied with by the customer.

fer of risks, in the case of special systems and software on the date of commissioning,

on of the contract. All other claims, in particular those relating to compensation for direct or

r gross negligence or part of Barco.

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products or their manufacturers.

Page 4

Page 5

Table of contents

TABLE OF CONTENTS

1. Safety................................................................................................................. 3

1.1 Safety guidelines ..................................................................................................................... 4

1.2 Important safety instructions ......................................................................................................... 5

1.3 Important warnings ................................................................................................................... 6

1.4 Proper usage ......................................................................................................................... 8

2. Installation requirements ....... ................ ................ ................ .................. ................ 9

2.1 Mechanical requirements for the X-series display.................................................................................. 10

2.2 Electrical requirements for the X-series display .................................................................................... 11

2.3 System requirements for the Control software .....................................................................................12

3. System overview ..................................................................................................13

3.1 Introduction ..........................................................................................................................14

4. Components of the X-series display.................. ................ ................ ................ .........15

4.1 X-series tile .......................................................................................................................... 16

4.2 X-series trusssetupaccessories....................................................................................................18

4.3 X-series base stand setup accessories............................................................................................. 19

4.4 Overview of standard connection piece types. . .................................................................................... 22

4.5 Overview of advanced (rental) connection piece types ............................................................................23

4.6 Inﬁnipix™Platform ..................................................................................................................24

4.7 Power boxes.........................................................................................................................26

4.8 Inﬁnipix™User Interface............................................................................................................27

4.9 Updates ..............................................................................................................................28

5. Setup process of the X-series display............ ................ ................ ................ .............29

5.1 Set up a hanging X-series display ..................................................................................................30

5.2 Setup a base stand X-series display...............................................................................................35

6. Basic Set up procedures.................... ................ ................ ................ ................ .....39

6.1 Installing an adjustable foot (option) on a foot beam............................................................................... 40

6.2 Joining multiple X-series truss/ﬂoor beams. ........................................................................................ 41

6.3 Installing X-series truss/ﬂoor beams upon foot beams . ............................................................................ 42

6.4 InstallingX-seriesstacker...........................................................................................................44

6.5 Installing X-series tiles with standard connection pieces...........................................................................46

6.6 InstallingX-seriestileswith advanced (rental)connectionpieces.................................................................47

7. Cabling of the X-series display .... ................ ................ ................ ................ .............49

7.1 X-series tile connectivity............................................................................................................. 50

7.2 Power cabling of theX-seriesdisplay...............................................................................................51

7.3 Data cabling ofthe X-seriesdisplay ................................................................................................ 53

A. Dimensions ..........................................................................................................55

A.1 Dimensions of an X-series tile ...................................................................................................... 56

A.2 Dimensions of the X-series truss/ﬂoor beams . . .................................................................................... 57

A.3 Dimensions of the X-series stacker.................................................................................................58

A.4 Dimensions of the foot beams ...................................................................................................... 59

B. Speciﬁcations .. ................ ................ ................ ................ ................ ................ .....61

B.1 X-series tile speciﬁcations...........................................................................................................62

B.2 Weight of individual parts of the X-series display ..................................................................................65

B.3 Ballastvalues for a basestandX-seriesX-seriesdisplay ......................................................................... 66

B.4 Ground pressure of a base stand X-series X-series display. . ..................................................................... 67

C. Order info ..... ................ ................ .................. ................ ................ ................ .....69

C.1 Spare part order info ................................................................................................................70

D. Environmental information ............ ................ ................ ................ ................ ...........73

D.1 Disposalinformation.................................................................................................................74

D.2 RoHS compliance ...................................................................................................................75

D.3 Production address . .................................................................................................................77

Index............... ................ ................ ................ ................ ................ ................ .......79

R5906024 X-SERIES 15/03/2016 1

Page 6

Table of contents

2 R5906024 X-SERIES 15/03/2016

Page 7

1. SAFETY

About this chapter

Read this chapter attentively. It contains important information to prevent personal injury while installing the X-series display. Furthermore, it includes several cautions to prevent damage to the X-series tiles. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the X-series tiles. After this chapter, additional “warnings” and “cautions” are given depending on the installation procedure. Read and follow these “warnings” and “cautions” as well.

Clariﬁcation of the term “X-series” used in this document

When referring in this document to the term “X-series” means that the content is applicable for following Barco products:

•X4

•X2

•X1.9

•X1.6

Overview

• Safety guidelines

• Important safety instructions

• Important warnings

• Proper usage

1. Safety

R5906024 X-SERIES 15/03/2016

Page 8

1. Safety

1.1 Safety guidelines

Personal protection

WARNING: Ensure you understand and follow a ll the safety guidelines, safety instructions, warnings and

cautions mentioned in this manual.

WARNING: Be aware of suspended loads.

WARNING: Wear a hard hat to reduce the risk o f person al injury.

WARNING: Be careful while wo rking with heavy loads.

WARNING: Mind your ﬁngers w hile working with heavy loads.

Installation personnel

This installation must be performed by authorized and qualiﬁed technical personnel only.

Accredited safety ofﬁcers must ensure the safety of the site, construction, assembly, connection, use, dismantling, transport etc. of such safety critical systems.

Notice on safety

This equipment is built in accordance with the requirements of the international safety standards IEC60950-1, EN60950-1, UL60950-1 and CAN/CSA C22.2 No.60950-1, which are the safety standards of information technology equipment including electrical business equipment. These safety standards impose important requirements on the use of safety critical components, materials and insulation, in order to protect the user or operator against risk of electric shock and energy hazard and having access to live parts. Safety standards also impose limits to the internal and external temperature rises, radiation levels, mechanical stability and strength, enclosure construction and protection against the risk of ﬁre. Simulated single fault condition testing ensures the safety of the equipment to the user even when the equipment’s normal operation fails.

Caution

Installation should be performed only after you are thoroughly familiar with all of the proper safetychecks and installation instructions. To do otherwise increases the risk of hazards and injury to the user.

Assembly parts are designed for intended use only in conjunction with X-series displays.

Do not modify and/or replicate any component. Barco uses speciﬁc materials and manufacturing processes in order to achieve part strength. Consult Barco for assistance with

Always follow Barco installation instructions. Contact Barco if you should have any question regarding the safety of an application.

The manufacturer assumes no liability for incorrect, inadequate, irresponsible or unsafe assembly of systems. The system must comply with the local safety regulations regarding environmental conditions, solidity ﬁnal construction, etc…

custom applications.

Product care

Structural & mounting components should be kept dry, clean, lubricated (only if recommended), coated properly, and otherwise maintained in a manner consistent with part design. Barco products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the load handling capability of the part.

Barco recommends inspections at r a part is found to have damage, which may cause a decrease in load capability, the part must be removed for service or replaced immediately.

Under no circumstances are Barco parts repairable by anyone other than Barco.

egular intervals for all installations and increasing in frequency for more critical installations. If

R5906024 X-SERIES 15/03/2016

Page 9

1.2 Important safety instructions

Instructions:

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Clean only with materials or chemicals that are inert, nonabrasive, noncorrosive and non-marking. Consult the manufacturer for further advice should any doubts exist regarding any cleaning procedure.

• Do not block ventilation openings. Install in accordance with the manufacturers instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding type plugs/sockets. If the provided sockets/plugs are damaged then replacement of the defective parts must be undertaken immediately.

• Protect the power/data cords from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Replace damaged power/data cords immediately.

• Only use attachments/accessories speciﬁed by the manufacturer.

• Disconnect the power to this apparatus during lightning storms or provide suitable additional lightning protection. Unplug this apparatus when unused for long period of time.

• Refer all servicing to qualiﬁed service technicians/personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, the apparatus does not operate normally, or has been dropped.

• Use only with systems or peripherals speciﬁed by the manufacturer, or sold with the apparatus. Use caution during lifting/moving or transporting to avoid damage by possible tipping.

• Do not use damaged LED tiles. Replace damaged parts immediately. Ensure that the spring of each locking mechanism (latch) is functioning properly. If not, replace immediately.

1. Safety

R5906024 X-SERIES 15/03/2016

Page 10

1. Safety

1.3 Important warnings

Important warnings:

Risk of electric shock:

Do not open. To reduce the risk of electric shock, do not remove LED board from tile. No user-serviceable parts inside. Refer servicing to qualiﬁed service personnel.

Maximum and minimu m ambient temperature:

The maximum ambient temperature for the LED wall is 40°C (104°F), the minimum temperature is 0°C (32°F).

X-series tiles have an internal temperature sensor that lowers the brightness of the tile when internal temperature is too high. The brightness will return to normal when the internal temperature has cooled sufﬁciently.

Low Voltage Surge Protection Device requ ired

Due to the damaging effects of lightning, utility switching and switching electric motors of other users on the mains, this product needs to be protected by means of a Surge Protection Device. If this product is connected to the mains through the power box from Barco this protection device is already incorporated and no extra measures need to be taken. If th the mains through a power distribution box from another party, please verify that a Low Voltage Surge Protection Device according EN61643-11 or UL 1449 is in place.

High leakage current:

The combination of multiple tiles in an installation results in increased levels of leakage current. In order to avoid risk of electric shock due to high leakage current, proper grounding of the installation is required.

Flammable materials:

Keep ﬂammable materials away from the installation (such as curtains). A lot of energy is transferred into heat. The installation should be such that the amount of air ﬂow required for safe operation of the be provided.

ESD and LED’s:

LED components used in X-series tiles are ESD (Electro-Static Discharge) sensitive. To prevent the possibility of destroying LED components do not touch either in operation or while switched off. Always use ESD-gloves.

Risk of electric shock / Risk of ﬁre:

To protect against risk of ﬁre caused by overloading of power cables, the number of tiles connected in parallel is limited. See table below.

Tile Power source

X1.6

X1.9

100-180 VAC

180-240 VAC

100-180 VAC

180-240 VAC

100-180 VAC

180-240 VAC

100-180 VAC

180-240 VAC

equipment is not compromised. Proper ventilation must

Maximum number of tiles per power source cable

8 tiles

15 tiles

10 tiles

17 tiles

11 tiles

21 tiles

11 tiles

21 tiles

is product is connected to

Each power source cable should be protected by a circuit breaker or fuses rated 16 A / 250 VAC (15 A / 250 VAC in the USA and Canada). Note that one tile requires 100-240 VAC, 16 A, 50-60 Hz, X2/X4: 0.55 A at 230 VAC, X1.6/X1.9: 0.85 A at 230 VAC

Disconnect device:

When the appliance inlets of the individ equipment and be easily accessible, or a readily accessible general disconnect device shall be incorporated in the ﬁxed wiring.

This equipment MUST be earthed :

In order to protect against risk of electric shock, the installation should be properly grounded. Defeating the purpose of the grounding type plug will expose you to the risk of electric shock.

Power system:

ual tiles are not accessible, the socket outlets supplying the rack shall be installed near the

n appropriately rated disconnect switch, circuitbreakers, over voltage protector and Ground Fault

R5906024 X-SERIES 15/03/2016

Page 11

1. Safety

should be given to HD 60364, Harmonization Document for electrical installation of buildings. In Germany VDE 0100 should be adhered to. In America, special attention should be given to the National Electrical Code, ANSI/NFPA 70.

Mains cords:

The power cords delivered with this system have special properties for safety. They are not user serviceable. If the power cords are damaged, replace them only with new ones. Never try to repair a power cord.

LED’s:

The LED’s used on the X-series tiles are fragile. Never push with a hard or sharp object onto the lens of the LED as this may cause damage to the LED. The maximum allowed load upon the lens of the LED is 300 gram/LED. Be careful when installing a shader upon the X-series tiles. Shaders only ﬁt in one direction and this should be veriﬁed before pushing into ﬁnal position. Use your bare ﬁngers (not nails) to press the shader over the LED’s. Use your ﬁnger nails to press upon the framework of the shader between the LED’s (not upon the LED’s) to push the shader in its ﬁnal position.

Do not hot plug:

Do not hot plug any cables. Damage to the connector pins may occur. Resulting damage is not covered under warranty.

Maximum allowed display height:

The maximum height of a X-series display in a base stand conﬁguration is 10 tiles X2/X4 or 9 tiles X1.6/X1.9. The maximum height of a X-series display in a hanging (truss) conﬁguration is 16 tiles.

R5906024 X-SERIES 15/03/2016

Page 12

1. Safety

1.4 Proper usage

Proper usage of X-series tiles

• No part of the X-series tile can come in contact with any type of moisture.

• No part of the X-series tile can come in contact with any type of abrasive.

• No part of the X-series tile can come in contact with any type of dust.

• No part of the X-series tile can come in contact with any type of corrosive substance.

• Using the LED product in an environment with high corrosive gasses (e.g. Sulphur) can lead to discoloration of the materials. This discoloration gives a change in brightness of the product. This could lead to uniformity differences and possibly also to failures. Each use of the product in this kind of environment needs to be checked up-front with the supplier.

• X-series tiles are to be used in environments meeting the operating speciﬁcations.

• X-series tiles are not to be used in environments that are subject to airborne contaminants such as that produced by smoke machines (cracked oil) or similar (these deposit a thin layer of greasy residue upon the LED’s optics, degrading performance).

• X-series tiles are not to be exposed to extreme localized heat or cold exceeding the temperature speciﬁcations.

• X-series tiles are not to be exposed to any element or situation that will cause any part ofthe display to heat beyond what occurs during normal operation. Such situations include but are not limited to lasers, ultrasonic vibration, or any type of substance that prevents proper ventilation and heat radiation of the X-series tiles.

• X-series tiles are not to be exposed to circumstances where moisture can condense or collect on any components.

• Power connected to the X-series tiles must meet the speciﬁcations outlined in the installation manual.

• Avoid any accidental bumping of the tile corners while installing or removing the X-series tiles. Since LED’s of the X-series tiles are mounted near by the edges of the LED boards, which is unavoidable in the design of a high resolution LED-wall, the corners of the X-series tiles become sensitive for mechanical damage. Because of that it is required to handle the X-series tiles with care at all times.

• Never place an X-series tile upon a surface with the LED’s facing downwards without protection. This to prevent damage to the LED’s and the soft lens of the LED’s.

• While removing or installing the X-series tile always keep the LED side of the X-series tile parallel with the LED side of the remaining neighboring X-series tiles. This to avoid any mechanical stress upon the corners of the X-series tiles.

• No force can be applied to the LED’s. Any LED’s damaged due to mechanical stress are not covered by the warranty.

• Safety and functional features of the display cannot be defeated.

• It is not allowed to climb or hang any additional equipment on the back of an X-series wall. Nothing is to be allowed to hang from the cables of an X-series tile.

• Any failures must be immediately and appropriately dealt with (equipment returned to Barco). Failing equipment cannot be left to run in a wall.

• No additional tools (hammers, pry-bars, etc.) are to be used to force handles or locks into place. All moving parts should be managed by hand.

• Only Barco cables speciﬁed to be used with the X-series display are to be used to connect components in the X-series wall. Further, care must be taken to connect signal only according to the installation manual.

• X-series tiles are not to be used in the vicinity of any equipment that is not CE and UL/ETL certiﬁed.

• X-series tiles are not to be transported for any distance in containers other than custom ﬂight cases or Barco single unit or multiple unit packaging. Further, even the use of custom ﬂight cases tiles against damage due to excessive force of impacts. X-series packing material can be ordered at Barco. All warranty claims regarding damaged X-seriess due to incorrect packing will be rendered invalid.

• X-series tiles are not to be connected to any non-Barco equipment.

• When hanging X-series tiles, only Barco X-series trusses can be used and they must be installed and connected according to the manual. Improper hanging of X-series tiles can result in excessive forces on the structural components of the X-series tiles.

• When stacking or hanging X-series tiles, theguidelines outlined in the installation manual mustbe followed to prevent movement of the display (including tipping). Further, X-series tiles are only to be installed vertically. Any tipping of a display will cause undue stress on the structural components of the X-series tiles, and could even allow the X-series wall to fall.

• When stacking X-series tiles, X-series tiles can be stacked up to 2 t

• When reconnecting components in an X-series tile, care must be taken to ensure that cables are carefully routed according to the installation manual to prevent damage to the cables or other parts of the X-series tile.

• X-series tiles can be cleaned only in accordance to the procedures deﬁned in the installation manual.

• The X-series display is an indoor product. Use the X-series tiles only in a dry area away from direct sunlight, dust and moisture. Never install and use the X-series tiles in an outdoor environment.

• Ensure rigging hardware is able to handle the weight of the

• External rigging hardware must be properly installed prior to hanging X-series tiles.

• Do not hang more than 16 tiles (X2: 6.4 m ; X1.6 / X1.9: 7.2 m) tall with the integral rigging hardware.

• Do not stack more than 10 tiles X2/X4 or 9 tiles X1.6/X1.9.

• Barco supplies a variety of stacking and hanging accessories for screens up to 16 tiles tiles hanging. Hanging displays > 6.4 m / 7.2 m tall require an auxiliary frame system not supplied by Barco.

• Handle is intended for carrying a single tile only. Do not use for safety, tie-off, climbing, or lifting.

• The small holes on the X-series frame can be used as a safety attachment point.

entire X-series with appropriate safety factors.

or packaging material does not guarantee the X-series

iles high before a Barco X-series stacker must be used.

R5906024 X-SERIES 15/03/2016

Page 13

2. Installation requirements

2. INSTALLATION REQUIREMENTS

About this chapter

This chapter enumerates the mechanical requirements for the X-series display, the electrical requirements to power up the X-series display and the system requirements to run the control software efﬁciently.

WARNING: The X-series display is an indoor product. Use the X-series tiles only in a dry area away from

direct su nlight, dust and moisture. Never install and use the X-series tiles in an o utdoor enviro

Overview

• Mechanical requirements for the X-series display

• Electrical requirements for the X-series display

• System requirements for the Control software

nment.

R5906024 X-SERIES 15/03/2016

Page 14

2. Installation requirements

2.1 Mechanical requirements for the X-series display

Weight

Do not underestimate the weight of a complete X-series display. Be sure that the truss installation on which the X-series tiles have to be installed is capable of handling ﬁve (5) times the complete load of the display. Note that one X-series tile weighs up to 6.5 kg (or 40 kg (88.2 lbs) per square meter display).

Truss installation

Be sure that the truss installation on which the X-series tiles have to be installed is capable of handli load of the display.

Base stand installation

Be sure that the ﬂoor is capable to bear the minimum exerted ground pressure. Do not forget to take into account the weight of the ballast required in case of a base stand X-series rental display. Use the “Ballast calculator” tool (for more information, see “Ballast” hereunder) to ﬁnd out the exerted ground pressure with the required ballast weight.

Ballast

Depending on the height of the display and the position of the LED-wall upon the foot beams (somewhere between front and middle) additional weight (ballast) will be required. Use the “Ballast calculator” tool available on Barco’s secured web site to calculate the minimum ballast you require for safe installation of your X-series display.

If the “Ballast calculator” tool is not available, the tables in this manual (see ....) can be consulted for indicative values of ballast and

ground pressure.

Levelled surface

The surface on which an X-series display has to be installed must be levelled. Never install an X-series display on an inclined surface.

ng ﬁve (5) times the complete

R5906024 X-SERIES 15/03/2016

Page 15

2. Installation requirements

2.2 Electrical requirements for the X-series display

Power requirements

One X-series tile requires 100-240 VAC, 16 A, 50-60 Hz, X2/X4: 0.55 A at 230 VAC, X1.6/X1.9: 0.85 A at 230 VAC. Note that one X2 tile corresponds with a display surface of 0.16 m² and one X1.6/1.9 tile corresponds with a display surface of 0.18 m². Power cables are used to link the power from tile to tile. However, MAXIMUM (see table under 7.2) may be connected in parallel. So, one power source cable has to be provided per (see table under 7.2). Every power source cable should be protected by a circuit breaker or fuses rated 16 A / 250 VAC (15 A / 250 VAC in the USA and Canada).

Low Voltage Surge Protection Device requ ired

Due to the damaging effects of lightning, utility switching and switching electric motors of other users on the mains, this product needs to be protected by means of a Surge Protection Device. If this product is connected to the mai from Barco this protection device is already incorporated and no extra measures need to be taken. If this product is connected to the mains through a power distribution box from another party, please verify that a Low Voltage Surge Protection Device according EN61643-11 or UL 1449 is in place.

Barco provides a range of power boxes, which meet the requirements of your X-series display. Contact Barco for more information abo ut power boxes and power requirements for your X-series display.

Power system:

It is recommended to use a TN-S power distribution system (a power distribution system with a separate neutral and grounding conductor) in order to avoid large ground current loops due to voltage differences in the neutral conductor. The total electrical installation should be protected by anappropriately rated disconnect switch, circuit breakers, overvoltage protector and Ground Fault Current Interrupters. The installation shall be done according to the local electrical installation codes. In Europe special attention should be given to EN 60364, the standard for electrical installation of buildings. In Germany VDE 0100 should be adhered to. In America, special attention should be given to the National Electrical Code, ANSI/NFPA 70.

Disconnect device:

When the appliance inlets of the individual tiles are not accessible, the socket outlets supplying the rack shall be installed near the equipment and be easily accessible, or a readily accessible general disconnect device shall be incorporated in the ﬁxed wiring.

This equipment MUST be earthed :

In order to protect against risk of electric shock, the installation should be properly grounded. Defeating the purpose of the grounding type plug will expose you to the risk of electric shock.

ns through the power box

R5906024 X-SERIES 15/03/2016

Page 16

2. Installation requirements

2.3 System requirements for the Control software

Before you begin

It is assumed you are familiar with the Windows operating system at your site.

System requirements

PC running Inﬁnipix™ Suite software. For system requirements see Inﬁnipix™ Suite user guide.

R5906024 X-SERIES 15/03/2016

Page 17

3. SYSTEM OVERVIEW

About this chapter

This chapter enumerates the fundamental elements of the X-series display.

Overview

• Introduction

3. System overview

R5906024 X-SERIES 15/03/2016

Page 18

3. System overview

3.1 Introduction

The fundamental elements of an X-series system are:

• X-series tiles.

• X-series truss installation or base stand installation.

• Power box.

•Inﬁnipix™ manager NM100.

•Inﬁnipix™ processor NP100.

Block diagram X-series system:

NM100

NP100

POWER BOX

Image 3-1 1Inﬁnipix™ Suite (Web based client interface) 2Inﬁnipix™ Manager NM100: Display Management Hardware 3Inﬁnipix™ Processor(s) NP100: Display Processor(s) + Source Input(s). 4 Display Module 5 Start of data path with SFP+ optical cable and modules 6 SFP+ optical cable and modules for data path redundancy 7 SFP+ DAC cable for connections between tiles

The redundancy data cable is optional. The redundancy feature helps to automatically solve a data interruption due to a missing link in the data cabli will be restored almost immediately.

ng. All tiles behind the interruption will receive their content via the redundancy data line. The complete image

R5906024 X-SERIES 15/03/2016

Page 19

4. Components of the X-series display

4. COMPONENTS OF THE X-SERIES DISPLAY

About this chapter

This chapter describes all the different components, peripherals and accessories, which are used in the setup of an X-series display.

Overview

•X-seriestile

• X-series truss setup accessories

• X-series base stand setup accessories

• Overview of standard connection piece types

• Overview of advanced (rental) connection piece types

•Inﬁnipix™ Platform

• Power boxes

•Inﬁnipix™ User Interface

• Updates

R5906024 X-SERIES 15/03/2016

Page 20

4. Components of the X-series display

4.1 X-series tile

Introduction to the X-series tile

Each corner of The X-series tile has pins and studs that precisely ﬁt the separate connection plates used to connect to the surrounding tiles. This allows for effortless alignment and fastening of the tile into a LED wall.

Image 4-1 1 Connection box 2 Alignment pin (8x) 3 Stud for mounting (4x)

Data link cables

A SFP+ cable with a length of 1 meter (R9801395B10) is used to connect the data ports between two tiles.

To connect the ﬁ rst tile with the Inﬁnipix™ output , optical cables are used.

Image 4-2 SFP+ cable 1m (Ordering number for 10 pieces: R9801395B10)

Power cable

This power cable is used to connect the power plugs between two tiles..

Image 4-3 Power cable (Z3403117)

Power spider cable

Barco has made a power spider cable which splits up the power circuit into several power branches.

R5906024 X-SERIES 15/03/2016

Page 21

4. Components of the X-series display

Image 4-4 Power spider cable (R9801137)

Multi pole powe r cable

This multi pole power cable is used to distribute power between power box and the power spi

der cable of an X-series display.

Image 4-5 Power cable (R9851260 (10 meter) / R9871024 (20 met

er))

Tile status indicator

The 4 status indicator LED’s (reference 1 image 4-6) located on the side of the X-series tile allow you to instantly see the data signal direction of each tile (either in normal or in redundancy mode).

The central button (reference 2 image 4-6) is used to generate internal patterns without an external signal.

1 12

Image 4-6

Cause Status LED action

Test button pressed 4 LED’s blinking in a criss-cross pattern

No data input 4 LED’s blinking in a cycling pattern

Data input OK Input port side LED’s are blinking while both output port side LED’s are continuously ON

R5906024 X-SERIES 15/03/2016 17

Page 22

4. Components of the X-series display

4.2 X-series truss setup accessories

Truss setup accessories

X-series truss beams are required to set up an X-series display in a hanging conﬁguration. Barco offers three sizes of X-series truss beams, namely the dual (2x), triple (3x) and quad (4x) truss beam. These truss beams cover a width of respectively two, three and four X-series tiles. Each truss beam is equipped with two or more lifting eyes.

In order to build the X-series display, the tiles must be connected using connection pieces. Four types of standard connection pieces are available as well as four types of advanced (rental) connection pieces(see also "Overview of standard connection piece types", page 22 and "Overview of advanced (rental) connection piece types", page 23).

Image 4-7 1 X-series dual truss/ﬂoor beam. 2 X-series triple truss/ﬂoor beam. 3 X-series quad truss/ﬂoor beam. 4 X-series connection pieces.

WARNING: Maximum weight limit of the triple truss/ﬂoor beam is 312 kg and the quad truss/ﬂoor beam can

maximum lift 416 kg. This weight corresponds with a maximum display height of 16 tiles X-series tiles. Do not put any additional weight on the truss/ﬂoor beam and use the truss/ﬂoor beams only in conjunction with Barco’s X-series tiles.

WARNING: Always secure all truss/ﬂoor beams of a hanging X-series display with the truss installation. The

safety cable has to be placed through the inner frame of the truss/ﬂoor beam. Secure each truss with an independent safety cable.

18 R5906024 X-SERIES 15/03/2016

Page 23

4. Components of the X-series display

4.3 X-series base stand setup accessories

Base stand setup accessories

TosetupanX-seriesdisplayinabasestandconﬁguration additional mounting accessories are required as well as foot beams, X-series truss/ﬂoor beams and stackers. These accessories are easy to install with a minimum of tools. X-series tiles are built upon the X-series truss/ﬂoor beams. Foot beams provide an interface between the truss/ﬂoor beams and the ﬂoor. Foot beams are available in two sizes. Depending on the height of the X-series display longer foot beams must be used. The maximum height of a base stand X-series display is 10 tiles X2/X4 or 9 tiles X1.6/X1.9 high. X-series truss/ﬂoor beams are available in three sizes: the dual, triple and quad truss/ﬂoor beam. These truss/ﬂoor beams cover a width of respectively two, three and four X-series tiles.

Image 4-8 1 X-series dual truss/ 2 X-series triple truss/ﬂoor beam with connection pieces. 3X-seriesquadt 4 X-series connection pieces.

ﬂoor beam with connection pieces.

russ/ﬂoor beam with connection pieces.

R5906024 X-SERIES 15/03/2016 19

Page 24

4. Components of the X-series display

Image 4-9 1 X-series stacker connection kit 2 X-series stacker 1,5m 3 X-series stacker 2 m (2 x 1m)

20 R5906024 X-SERIES 15/03/2016

Page 25

Image 4-10 1 X-series foot bracket kit 2 X-series foot beam 4 m 3 X-series foot beam 2,4 m 4 X-series foot beam 1,2 m

4. Components of the X-series display

R5906024 X-SERIES 15/03/2016 21

Page 26

4. Components of the X-series display

4.4 Overview of standard connection piece types

Overview of standard connection piece types

• Standard connection piece (1)

• Standard half connection piece (2)

• Truss connection piece (3)

• Truss side connection piece (4)

The following image illustrates where the connection pieces are used:

Image 4-11

The full connection pieces have a M8 threaded bu sh to attach extra support (i.e. a stacker construction).

22 R5906024 X-SERIES 15/03/2016

Page 27

4. Components of the X-series display

4.5 Overview of advanced (rental) c onnection piece types

Overview of advanced (rental) connection piece types

• Advanced (rental) connection piece (1)

• Advanced (rental) half connection piece (2)

• Truss connection piece (3)

• Truss side connection piece (4)

The following image illustrates where the connection pieces are used:

Image 4-12

The full connection pieces have a M8 threaded bu sh to attach extra support (i.e. a stacker construction).

R5906024 X-SERIES 15/03/2016 23

Page 28

4. Components of the X-series display

4.6 Inﬁnipix™ Platform

General

The Inﬁnipix™ Manager (NM100) is the next generation in LED Display Management hardware/software. It has a web interface that allows users to access information in the display hardware and offers the tools to view and manipulate settings on the hardware. The hardware is related to the Inﬁnipix™ processor (NP100) which comprises a number of Inﬁnipix™ receivers (NR100) that are integrated into the actual display cabinets.

About the Inﬁnipix™ system

The schematic below shows the system architecture of the Inﬁnipix™ system.

InnipixTM NP100

InnipixTM NM100

Image 4-13 System architecture of the Inﬁnipix™ platform

24 R5906024 X-SERIES 15/03/2016

Page 29

4. Components of the X-series display

Devices in the system:

• (1) Video source(s)

• (2) Client interface: via a web browser (currently only Google Chrome is supported) running on a device (laptop or desktop computer). The customer device must be connected to the LAN connection on the NM100.

• (3) NP100( s): Display Processor(s) (processing and retransmitting the connected video source(s) and the managing of the connected display modules).

• (4) NM100: Display Management Hardware (provides a web interface into the system).

• (5) Modular display(s)

• (6) NS100: Ambient Environment Controller

• (7) Eth e r net switch

Connections between the devices:

• (A) Video source connection

• (B) Client device connection

• (C) Device control connection

• (D) Display connection

In some system conﬁgurations (e.g. only 1 NS100, only 1 NP100) the Ethernet switch (7) is not necessary. Each NP100 has 2 control po rts which can be used to loop the device control connection.

The NS100 can be connected to a PoE adapter (the supplied indoor PoE adapter or the optional outd adapter) or to a por t of the Ethernet switc h (if used). Note that the Ethernet switch must be conform i ng to the IEEE 802.3af PoE standard.

The Inﬁn ipix Suite, NM100 and N P100 have a dedicated User or Installation man ual. These components are not d escribed in this document. Only the installation of the X-series comp onents are described in this document. Refer to the manuals of the Inﬁnipix Suite, NM100 and NP100 for more information. All manuals can be downloaded from the Barco web site.

oor PoE

R5906024 X-SERIES 15/03/2016 25

Page 30

4. Components of the X-series display

4.7 Power boxes

General

To ensure safe and reliable operation of the X-series display a suitable system for AC power distribution must be used. Though 3 party solutions may be used, several sizes and types of power distributions are available from Barco. For smaller system the “Mono Phase Power Box” can be used, medium sized system may use one of several custom power box solutions. We also offer power distribution systems in a ﬂight case for rental and touring applications.

rd.

Image 4-14 Mono phase power box for indoor use (R9851220).

CAUTION: Refer to the manual(s) of the used power box for more information about installation and usage

guidelines.

Image 4-15 Custom powerbox. (for orderinginfo see Barco website).

Image 4-16 Rental power box (R9850990).

26 R5906024 X-SERIES 15/03/2016

Page 31

4. Components of the X-series display

4.8 Inﬁnipix™ User Interface

General

The Inﬁnipix™ User Interface is a web based application that runs on the web server of the Inﬁnipix™ NM100. Just connect via an Ethernet connection to this web server to run the application.

Itcanbeusedtocontrolandconﬁgure the Inﬁnipix™ NM100 as well as the Barco LED wall.

Image 4-17 Home page of the Inﬁnipix™ Suite

CAUTION: Refer to the manual(s) of the used control software for more information about installation and

usage guidelines.

R5906024 X-SERIES 15/03/2016 27

Page 32

4. Components of the X-series display

4.9 Updates

Barco’s web site

• All product related information can be found on Barco’s web site. Login to myBarco to see partner related documents.

• The latest software and ﬁrmware can be downloaded and the procedure on how to install these can be found in the Director Toolset manual.

• Product changes and updates will always be incorporated in the latest manual and can be downloaded from the same location.

• It is possible to receive a notiﬁcation when updates are available. Your preferences can be entered under “my subscriptions”.

R5906024 X-SERIES 15/03/2016

Page 33

5. Setup process of the X-series display

5. SETUP PROCESS OF THE X-SERIES DISPLAY

About this chapter

This chapter roughly describes the installation process of the X-series display for a hanging or base stand conﬁguration.

Hanging X-series tiles

This conﬁguration is limited in height, maximum 16 tiles tiles high for a hanging conﬁguration.

Stacked X-series tiles

This conﬁguration is limited in height, maximum 10 tiles X2/X4 or 9 tiles X1.6/X1.9 tiles high for a base stand conﬁguration.

WARNING: Safety ﬁrst. Fence off the installation area before starting to install your X-series display. Ensure

you read, understand and follow all safety instructions mentioned in the safety chapter, of this installation manual. Furthermore, make sure that all installation requirements for your X-series display are fulﬁlled.

CAUTION: Cover up the LED-wall on-site, to protect from dust and dirt, until the start of the event.

Latest software

For optimal performance of the X-series display all tiles should have the latest ﬂash software installed. Flash software packages can be downloaded from the Barco secured website h

ttps://my.barco.com.

Overview

• Set up a hanging X-series display

• Set up a base stand X-series display

R5906024 X-SERIES 15/03/2016

Page 34

5. Setup process of the X-series display

5.1 Set up a hanging X-series display

WARNING: Make sure that the truss installation, o n which you want to hang the X-series display, complies

with the local regulations regarding such installations and that the truss installation will be able to support the complete load of the X-series display.

CAUTION: Use cotton gloves to handle t he X-series tiles.

Setup process

1. The ﬁrst stage in the process is the installation of the truss/ﬂoor beam on the truss installation. Join multiple truss/ﬂoor beams if

needed (see "Joining multiple X-series truss/ﬂoor beams", page 41).

Caution: Make sure an R-Clip is installed on both ends (left and right extremes) of the truss/ﬂoor beam assembly. In

case of mu ltiple truss/ﬂoor beams, remo ve all other R-Clips a t the joints between the truss/ﬂoor beam s. This is required to assure the good function of the truss/ﬂoor beam assembly.

Image 5-1

Tip: To prevent losing unused R-C lips, clip them on the truss/ﬂoor beam cable in the vicinity o f its original location.

2. The second stage in the process is attach

ing a ﬁrst row of X-series tiles with the truss/ﬂoor beams to form one solid row.

R5906024 X-SERIES 15/03/2016

Page 35

5. Setup process of the X-series display

Note: The truss connection pieces c an be installed either in the center position or front position of the tile suspension points.

Always c orrect the position of the truss lifting eyes to match the center of gravity (fully to the front for front installation or centered for centered installation).

Image 5-2 Center (left side of the illustra tion) or front (right side of the illustration ) installati on of t h e connection pieces

Warning: Do not use the pins when installation of the connection pieces in the front position. Use bolts and nuts instead.

a) For each truss/ﬂoor beam separately, place the 2, 3 or 4 tile(s) next to each other on a clean ﬂoor. b) Using connection pieces, connect the top and bottom corners of the tiles and then attach the truss/ﬂoor beam to the top of

the tiles.

c) Lift the truss/ﬂoor beam with tiles and joint the tiles of the neighboring truss/ﬂoor beam.

Caution: Take care the tiles do not fa ll over.

R5906024 X-SERIES 15/03/2016

Page 36

5. Setup process of the X-series display

Image 5-3

3. The next stage is the installation of the remaining X-series tiles one by one and row by row.

Warning: The maximum height of a hanging X-series display is 16 tiles tiles high.

Warning: Make sure that all hoist engines work in a synchronized way. When the wall is tilted too much or tension on a hoist

Tip: The full corner connection pieces have a M8 threaded bush to allow, if desired, the attachment of extra support points.

Tip: After installing two ro ws of tiles, realize the data and power connection before lifting the rows further up. These rows are

Tip: If possible, add tiles one by one starting fro

is remarkably lower, s top the installation and level the wall ﬁrst.

now accessible from the work ﬂoor.

m the middle to the sides.

R5906024 X-SERIES 15/03/2016

Page 37

5. Setup process of the X-series display

Image 5-4

4. The next stage is the power and data cabling of the X-

Warning: Risk of electric shock / Risk of ﬁre:

To protect a gainst risk of ﬁre caused by overloading of power cables, MAXIMUM (see table under 7.2) may be connected in parallel. Each power source cable supplying maximum (see table under 7.2) should be pr otected by a circuit breaker or fuses rated 16 A / 250 VAC (15 A / 250 VAC in the U SA and Canada). Note that one X-series tile requires 100- 240 VAC, 16 A, 50-60 Hz, X2/X4: 0.55 A at 230 VAC, X1.6/X1.9: 0.85 A at 230 VAC.

5. Installation of the Inﬁnipix™ system. Follow the installation guidelines in the manual of this product.

series display.

R5906024 X-SERIES 15/03/2016

Page 38

5. Setup process of the X-series display

6. Apply power to the X-series display and start up the controlsoftware. For more information about showing content on the X-series

display see manual of the Control software.

16 max

Image 5-5

WARNING: Never exceed the maximum allowable hoist en gine capacity. Do not combine truss beams on o ne

hoist hook: only one truss beam per hoist engine allowed.

WARNING: The maximum height of a hanging X-series display is 16 tiles tiles high.

34 R5906024 X-SERIES 15/03/2016

Page 39

5. Setup process of the X-series display

5.2 Set up a base stand X-series display

WARNING: The maximum height of a base stand X-se ries display is 10 tiles X2/X4 or 9 tiles X1.6/X1.9.

CAUTION: Use cotton gloves to handle t he X-series tiles.

For some applications it is not allowed that the foot beams stick out in front of the LED-wall. The illustrations below shows the possibility to built up the X-series display a t the front of the foot beams. Note that such a conﬁguration always requires extra ballast upon the other end of the foot beams to ensure the stability of the whole LED-wall. Nevertheless, a lot of applications allow to build up the LED-wall in the middle o f the foot beams. This conﬁguration requires less or no ballast upon the foot b eams. Consu lt the “Ballast calculator” on the secured Barco w eb site.

Setup process

1. The ﬁrst stage in the process is the assembly of a solid and level foot construction, which has to support the whole display. Such

a construction consists of foot beams, adjustable feet (optional) and truss/ﬂoor beams. Finally, ballast has to be placed upon the foot beams to prevent the wall from possible tipping. Assembly of the foot construction has to be done in following sequence:

a) Installation of the adjustable feet on the foot beams. Note that this is optional. See procedure "Installing an adjustable foot

(option) on a foot beam", page 40, for detailed installation instructions.

b) Installation of the truss/ﬂoor beams upon the foot beams. See procedure "Installing X-series truss/ﬂoor beams upon foot

beams", page 42.

c) Attach the foot beams to the ground with ﬁxings and/or place the necessary ballast upon the foot beams. Ensure that the

foot beams are supported every 50 centimeters. This to prevent bending of the beam. Note that the ballast has to be placed between the end and the last 30 cm of the foot beam. Consult the “Ballast calculator” on the secured Barco web site.

Caution: Make sure an R-Clip is installed on both ends (left and right extremes) of the truss/ﬂoor beam assembly. In

case of mu ltiple truss/ﬂoor beams, remo ve all other R-Clips a t the joints between the truss/ﬂoor beam s. This is required to assure the good function of the truss/ﬂoor beam assembly.

Image 5-6

Tip: To prevent losing unused R-C lips, clip them on the truss/ﬂoor beam cable in the vicinity o f its original location.

Tip: Place rubber mats between the foot beams of the LED wall and the smooth surface to increase friction. This will reduce

the ballast required to prevent sliding.

R5906024 X-SERIES 15/03/2016

Page 40

5. Setup process of the X-series display

Image 5-7

2. The second stage is the installation of the ﬁrst row of stacker

The following illustration shows the recommended stacker conﬁgurations for different display heights:

s. See procedure "Installing X-series stacker", page 44.

X2 X4

Image 5-8

3. The next stage in the process is the installation of the ﬁrst rows of X-series tiles upon the truss/ﬂoor beams. See detailed pro-

cedures "Installing X-series tiles with standard connection pieces", page 46 and "Installing X-series tiles with advanced (rental) connection pieces", page 47.

Note: The bottom row of the X-series tiles has to be secured to the X -series truss/ﬂoor beam. For a base stand, always us e

bolt/nut ﬁxations to attach the connection pieces to the truss/ﬂoor beam, instead of the pins that are used in a truss setup.

X1.x

R5906024 X-SERIES 15/03/2016

Page 41

5. Setup process of the X-series display

Note: The connection pieces can be installed either in the center pos ition or front position of the tile suspension points.

Image 5-9 Center (left side of the illustra tion) or front (right side of the illustration ) installati on of t h e connection pieces

Image 5-10

4. Repeat stage 2 and 3 until all rows of the X-series display are installed.

Warning: The maximum height of a base stand X-series rental display is 10 tiles X2/X4 or 9 tiles X1.6/X1.9 tiles high.

Note: The previous installed stacker proﬁles will act as stacker feet for the next stacker proﬁles.

5. The next stage is the power and data cabling of the X-series display.

Warning: Risk of electric shock

/Riskofﬁre:

6. Installation of the Inﬁnipix™ system. Follow the installation guidelines in the manual of this product.

R5906024 X-SERIES 15/03/2016

Page 42

5. Setup process of the X-series display

7. Apply power to the X-series display and start up the controlsoftware. For more information about showing content on the X-series

display see manual of the Control software.

WARNING: The maximum height of a base stand X-se ries display is 10 tiles X2/X4 or 9 tiles X1.6/X1.9.

38 R5906024 X-SERIES 15/03/2016

Page 43

6. Basic Set up procedures

6. BASIC SET UP PROCEDURES

About this chapter

This chapter contains all installation procedures necessary to handle the X-series components, to set up an X-series display and to remove the X-series tiles from an X-series display. These procedures describe, with detailed step by step actions and illustrations, how to install the X-series display in a hanging conﬁguration.

CAUTION: Never touch the LED side of the X-series tile. Avoid any accidental bumping of the X-serie

corners. Since LED’s of the X-series tiles are mounted near by the edges of the LED boards, which is unavoidable in the design of a high resolution LED-wall, the corners of the X-series tiles become sen sitive for mechanical damage. Because of that it is required to handle the X-series tiles with care at a

Overview

• Installing an adjustable foot (option) on a foot beam

• Joining multiple X-series truss/ﬂoor beams

• Installing X-series truss/ﬂoor beams upon foot beams

• Installing X-series stacker

• Installing X-series tiles with standard connection pieces

• Installing X-series tiles with advanced (rental) connection pieces

stile

ll times.

R5906024 X-SERIES 15/03/2016

Page 44

6. Basic Set up procedures

6.1 Installing an adjustable foot (option) on a foot beam

Necessary tools

• Allen wrench size 4 mm

• Hexagon socket size 10 mm

How to install an adjustable foot ?

1. Ensure there are no obstacles to smooth placement of the adjustable foot.

2. Slide an adjustable foot into the cross beam.

Image 6-1 A Attachment with foot beam. B Height adjustment.

3. Attach the adjustable foot to the foot beam using an Allen wrench of 4 mm.

4. Slide an adjustable foot into the other end of the foot beam.

5. Attach this adjustable foot also to the foot beam using an Allen wren

6. Adjust the height of the adjustable feet to level out the foot beam.

7. Place supporting blocks underneath the foot beam every 50 centimeters. This to prevent that the foot beam bends.

Caution: Never let the complete weight of the rental display rest on the adjustable foot.

ch of 4 mm

R5906024 X-SERIES 15/03/2016

Page 45

6. Basic Set up procedures

6.2 Joining multiple X-series truss/ﬂoor beams

Installation

1. Place two truss/ﬂoor beams in line. Make sure that the pins of one truss/ﬂoor beam are facing the holes of the other truss/ﬂoor

beam.

2. Join both truss/ﬂoor beams.

Image 6-2

3. At the joint, pivot the bolts (top and bottom) of one truss/ﬂoor beam into the slots of the other truss/ﬂoor beam.

Image 6-3

4. Tighten the bolts.

5. Repeat if necessary to obtain the desired length.

R5906024 X-SERIES 15/03/2016

Page 46

6. Basic Set up procedures

6.3 Installing X-series truss/ﬂoor beams upon foot beams

Installation

1. Place two foot beams parallel on a ﬂat surface.

2. Slide the two beam mount plates into the slots of each foot beam.

Image 6-4

3. Place the truss/ﬂoor beam(s) upon the foot beams. If more

multiple X-series truss/ﬂoor beams", page 41).

4. Place the foot mounting brackets upon the truss/ﬂoor beam(s) and the foot beams and align the mounting holes of each foot

mounting bracket with the threaded holes of the beam mount plates.

truss/ﬂoor beams are used, join the truss/ﬂoor beams (see "Joining

Image 6-5

5. Install the washers and bolts of the foot mounting brackets and fasten using a 10 mm Allen wrench. Ensure that the foot beams

remain aligned and parallel.

R5906024 X-SERIES 15/03/2016

Page 47

6. Basic Set up procedures

Image 6-6

CAUTION: It’s of great importance that the rental feet are perfectly aligned and leveled to avoid seams between

the rental tiles. The rental feet are the fundamentals of the LED display. So, before continue with installing the rental tiles ensure that the rental feet are perfectly aligned and leveled.

WARNING: Foot beams of LED walls must always be ﬁrmly secured to the ﬂ oor with ﬁxings (preferred) or

stabilized with b allast. This to prevent possible

It is the responsibility of the installer to en sure the stability o f the LED wall. N ote that the stability of the LED wall depends on different parameters like: weight of display, height of display, width of display, length of used foot beams and position of LED wall on foot beams (front - middle ?).

tip over and sliding of the LED wall due to external inﬂuences.

R5906024 X-SERIES 15/03/2016 43

Page 48

6. Basic Set up procedures

6.4 Installing X-series stacker

Installation

1. Install the stacker mount on the foot beam. Align the mounting holes with the threaded holes of the beam mount plates.

Note: In most cases the beam mount plate of the foot mounting bracket is used to ﬁx one mounting hole of the stacker mount.

The other mounting holes is then us ed exclusively with the other beam mount plate.

2. Fasten the stacker mount with two bolts and two washers.

Image 6-7

3. Install the stacker onto the stacker mount and secure using the conical pins and R-Clips.

Image 6-8

4. To connect multiple stackers, install couplers in between the stacker tubes and secure both sides of the coupler using the conical

pins and R-Clips.

R5906024 X-SERIES 15/03/2016

Page 49

Image 6-9

6. Basic Set up procedures

R5906024 X-SERIES 15/03/2016 45

Page 50

6. Basic Set up procedures

6.5 Installing X-series tiles with standard connection pieces

Installation

1. Put the tile in place using the correct type of connection plates on its four (three) corners.

Note: The alignment pins ensure proper positioning and provide s upport for easier installation of the tiles.

Image 6-10

2. Secure the tile to the connection plates on its four (three) corners by tightening the four (three) nuts with a hexagon Allen key 6

mm.

Image 6-11

Removal

1. Disconnect all cables from the tile (see 7.1).

2. Loosen the four (three) nuts with a hexagon Allen key 6 mm.

Note: Hold the tile in place by hand pressure from the front side (an assistant may be required for this task).

3. Carefully remove the tile from the front side.

R5906024 X-SERIES 15/03/2016

Page 51

6. Basic Set up procedures

6.6 Installing X-series tiles with advanced (rental) connection pieces

Installation

1. Put the tile in place using the correct type of connection plates on its four (three) corners.

Note: The alignment pins ensure proper positioning and provide s upport for easier installation of the tiles.

Image 6-12

2. Secure the tile to the connection plates on its four (three) corners by tightening the four (three) nuts by hand.

Note: If necessary, a hexagon Allen key 6 mm can be use d.

Image 6-13

Removal

1. Disconnect all cables from the tile (see 7.1).

2. Loosen the four (three) nuts by hand.

Note: If necessary, a hexagon Allen key 6 mm can be use d.

Note: Hold the tile in place by hand pressure from the front side (an assistant may be required for this task).

3. Carefully remove the tile from the front side.

R5906024 X-SERIES 15/03/2016

Page 52

6. Basic Set up procedures

48 R5906024 X-SERIES 15/03/2016

Page 53

7. Cabling of the X-series display

7. CABLING OF THE X-SERIES DISPLAY

About this chapter

This chapter describes how the power and data cabling is realized of the X-series display.

It’s recommended to realize the pow er and data cabling simultaneously while installing the X-series tile.

Overview

• X-series tile connectivity

• Power cabling of the X-series display

• Data cabling of the X-series display

R5906024 X-SERIES 15/03/2016

Page 54

7. Cabling of the X-series display

7.1 X-series tile connectivity

Connectivity

There are seven connection ports on the back of an X-series tile. Two power sockets (one input and one output) at the left and four bidirectional data ports. Two data ports at the left side and two data ports at the right side. There is also one USB port for service purposes.

Image 7-1 1 Power input socket. 2 Power output socket. 3 Dual data input/output port — Left. 4 Dual data input/output port — Right. 5 USB service port

The data ports consist of two dualSFP+ sockets. The tile automatic detects the incoming signal on one of the two dual SFP+ sockets. The other dual socket will automatically act as output port. So, it doesn’t matter on which data input socket, left or right, the data is coming in. The X-series tile switches the functionality of the SFP+ sockets spontaneously between input and output. Barco provides short data linking cables with SFP+ plugs, which are used to realize the dual data path from tile to tile in a daisy chain manner.

The power input connector consist in a circular socket type. Barco provides X-series power spider cables, which subdivide power from the power source to series of tiles of maximum (see table under 7.2) tiles each.

R5906024 X-SERIES 15/03/2016

Page 55

7. Cabling of the X-series display

7.2 Power cabling of the X-series display

Power boxes

Barco provides several types of power boxes. Depending on the size of the X-series display you can choose to use the mono phase power box or the custom made power box or the power box. The type of power box does not inﬂuence the power cabling of the X-series display. See installation manual of the concerned power box for installation instructions.

Low Voltage Surge Protection Device requ ired

Due to the damaging effects of lightning, utility switching and switching electric motors of other use needs to be protected by means of a Surge Protection Device. If this product is connected to the mains through the power box from Barco this protection device is already incorporated and no extra measures need to be taken. If this product is connected to the mains through a power distribution box from another party, please verify that a Low Voltage Su EN61643-11 or UL 1449 is in place.

WARNING: Risk of e lectric sho ck / Risk of ﬁ re:

To protect against risk of ﬁre caused by overloading of power cables, M AXIMUM (see table under 7.2) may be connected in parallel. Each p ow er source cable supplying maximum (see table under 7.2) should b e protected by a circuit breaker or fuses rated 16 A / 250 VAC (15 A / 250 VAC in the USA and Canada). Note that one X-series tile requires 100-240 VAC, 16 A, 50-60 Hz, X2/X4: 0.55 A at 230 VAC, X1.6/X1.9: 0.85 A at 230 VAC.

Maximum number of tiles per power source cable

Tile Power s ource Maximum number of tiles per power source cable

X1.6 100-180 VAC 8 tiles

X1.6 180-240 VAC 15 tiles

X1.9 100-180 VAC 10 tiles

X1.9

180-240 VAC

100-180 VAC

180-240 VAC

100-180 VAC

180-240 VAC

17 tiles

11 tiles

21 tiles

11 tiles

21 tiles

rs on the mains, this product

rge Protection Device according

Necessary parts

• Power box(es) with matching cables.

• Power spider connector.

How to realize the power cabling of the X-series display?

1. Install the power box nearby the X-series display. Ensure the power box provides as much power circuits as required to energize

the display in a safe manner. If necessary, install several power boxes. See manual of the used power box for installation instructions.

2. Connect a power source cable coming from the power box with the power spider cable.

Note: Depending on the type of used power box, a multi pow er cable in combination with a spider connector is inserted between

the power box and the power source cable lea the cabling between power box and X-series display.

3. Connect one output of the spider connector with one of the tiles in the LED-display. Start with a tile at the bottom.

4. Create a power branch of maximum (see table under 7.2) tiles.

Warning: Risk of electric shock / Risk of ﬁre:

Tip: Create as much as pos sible vertical power branches. Only include tiles of neighboring columns in case the power branch

is less than (see table under 7.2) high.

5. Repeat from step 2 until all X-series tiles are provided with power.

ding to the ﬁrst X-series tile. See manual of the used power box to realize

R5906024 X-SERIES 15/03/2016

Page 56

7. Cabling of the X-series display

Example of power cabling of the X-series display

16 max

Image 7-2

The example above shows the power c multi power cable (reference 2) with a spider connector (reference 3). Each spider output cable (reference 4) leads to a column of 15 tiles high (see table under 7.2).

abling of a 15 by 8 tiles X-series display. The power box (reference 1) is connected via a

R5906024 X-SERIES 15/03/2016

Page 57

7. Cabling of the X-series display

7.3 Data cabling of the X-series display

Purpose of redundancy loop

When a data cable between 2 tiles is removed or seriously damaged so that the data link is interrupted, all next tiles in the string will loose their data link. In other words, a part of the display fails. To prevent this a redundancy loop can be created. If a redundancy loop is created then the last tile will detect that there is data available on the other side (input from the redundant cable) and will change direction. All other tiles will change their direction too so that video signal is supplied from the last tile up to the tile that had the failure. The correct image is restored.

Note that the setup of a redundancy loop is optional.

Necessary parts

• Two short data linking cables per tile.

• One long data linking cable (maximum 5 meter) per Inﬁnipix™ NP100.

• One long data linking cable (maximum 5 meter) for the redundancy loop per Inﬁnipix™ NP100.

How to realize the data cabling of an X-series display?

1. Connect the ﬁber kit data linking cable coming from the Inﬁnipix™ NP100, with the data port of one of the tiles in the corner of

the X-series. Use one of the dual ports at the outer side of the display as input port.

2. Connect on of the dual ports on the other side of the tile with one of the dual data ports of the neighboring tile.

3. Continue to complete the data path of the display by connecting all following tiles with a data linking cable to each other in a daisy

chain manner. This daisy chain linking can be realized either in horizontal, which is recommended, or in vertical direction.

4. Specify in the setup controlling software how the data path is realized (horizontal or vertical) and which tile is the ﬁrst in the chain.

Example of data cabling of an X-series display

NM100

NP100

POWER BOX

Image 7-3 1Inﬁnipix™Suite (Web based client interface) 2Inﬁnipix™ Manager NM

R5906024 X-SERIES 15/03/2016 53

100: Display Management Hardware

Page 58

7. Cabling of the X-series display

3Inﬁnipix™ Processor(s) NP100: Display Processor(s) + Source Input(s). 4 Display Module 5 Start of data path with SFP+ optical cable and modules 6 SFP+ optical cable and modules for data path redundancy 7 SFP+ DAC cable for connections between tiles

The example above shows the data cabling of an X-series display. The data path is realized in horizontal direction and starts in the lower left corner, seen from the rear. The settings in the control software refer to the display seen from the front. So, the ﬁrst tile in the data path has to be indicated as the lower right tile of the display.

54 R5906024 X-SERIES 15/03/2016

Page 59

A. Dimensions

A. DIMENSIONS

About this chapter

This chapter contains mechanical drawings of the X-series tile and X-series accessories with the most important outer dimensions.

Overview

• Dimensions of an X-series tile

• Dimensions of the X-series truss/ﬂoor beams

• Dimensions of the X-series stacker

• Dimensions of the foot beams

R5906024 X-SERIES 15/03/2016

Page 60

A. Dimensions

A.1 Dimensions of an X-series tile

Dimensions of the X2 and X4 tiles

400 85

400

Image A-1 Dimensions given in millimeters.

Dimensions of the X1.9 and X1.6 tiles

400 85

450

Image A-2 Dimensions given in millimeters.

56 R5906024 X-SERIES 15/03/2016

Page 61

A.2 Dimensions of the X-series truss/ﬂoor beams

Dimensions of the dual truss/ﬂoor beam

826,5

236

800

A. Dimensions

Image A-3 Dimensions given in millimeters.

Dimensions of the triple truss/ﬂoor beam

1229,5

1200

Image A-4 Dimensions given in millimeters.

Dimensions of the quadruple truss/ﬂoor beam

1626,5

236

1600

Image A-5 Dimensions given in millimeters.

R5906024 X-SERIES 15/03/2016 57

Page 62

A. Dimensions

A.3 Dimensions of the X-series stacker

Dimensions of the 2 m stacker

1000 1000

Image A-6 Dimensions given in millimeters.

Dimensions of the 1.5 m stacker

1500

Image A-7 Dimensions given in millimeters.

290

58 R5906024 X-SERIES 15/03/2016

Page 63

A.4 Dimensions of the foot beams

Dimensions foot beams

1200 / 2400 / 4000 70

Image A-8 Dimensions given in millimeters.

A. Dimensions

0 6 1

R5906024 X-SERIES 15/03/2016 59

Page 64

A. Dimensions

60 R5906024 X-SERIES 15/03/2016

Page 65

B. SPECIFICATIONS

Overview

• X-series tile speciﬁcations

• Weight of individual parts of the X-series display

• Ballast values for a base stand X-series X-series display

• Ground pressure of a base stand X-series X-series display

B. Specifications

R5906024 X-SERIES 15/03/2016

Page 66

B. Specifications

B.1 X-series tile speciﬁcations

X1.6 speciﬁcations

Pixel pitch

Pixel density

Pixels per tile

LED type

Brightness 1,000 nits

LED lifetime 80,000 hrs (50% brightness)

Color Processing 16bit (input to output)

Colors

Processing

Source compatibility See Inﬁnipix

Data connection

3D ready

Hor. viewing angle

Vert. viewing angle

Tile size (WxHxD) in mm 400 x 450 x 91 mm / 15.75 x 17.72 x 3.58 inch

Weight / Tile 6.6 kg / 14.55 lbs

Serviceability Front/back

Max. hanging 15 tiles

Input voltage

Power con s umption

Max. p ower connection/power supply

Heat dissipation 3,599 BTU/h/sqm(max)

Operational temperature 0° - 40°C / 32° - 104°F

Operational humidity 10-80%

Cooling Passive cooling (active cooling for high-bri

IP rating Indoor only

Country of origin

Certiﬁcations

1.66 mm / 0.065 inch

360,000 px/sqm

240 x 270 px (H x V)

SMD RGB Black

281 trillion

Inﬁnipix

10G Inﬁnipix(TM), 2xIN/2xOUT SFP+ yes

+/-60° (min 50% brightness)

100-240V / 50-60Hz

1,055W/sqm - 98W/sqf max.

500 W/sqm - 46W/sqf typical

8 tiles (100-180V), 15 tiles (180-240V)

1,705 BTU/h/sqm (typical)

Belgium

CE, ETL/UL, FCC Class B, RoHS, TÜV, WEEE

ghtness mode)

X1.9 speciﬁcations

Pixel pitch

Pixel density

Pixels per tile

LED type

Brightness 1,000 nits

LED lifetime 80,000 hrs (50% brightness)

Color Processing 16bit (input to output)

Colors

Processing

Source compatibility see Inﬁnipix (TM)

Data connection

3D ready

62 R5906024 X-SERIES 15/03/2016

1.92 mm / 0.076 inch

270,400 px/sqm

208 x 234 px (H x V)

SMD RGB Black

281 trillion

Inﬁnipix (TM)

10G Inﬁnipix(TM), 2xIN/2xOUT SFP+ yes

Page 67

B. Specifications

Hor. viewing angle

Vert. viewing angle

Tile size (WxHxD) in mm 400 x 450 x 91 mm / 15.75 x 17.72 x 3.58 inch

Weight / Tile 6.6 kg / 14.55 lbs

Serviceability Front/back

Max. hanging 15 tiles

Input voltage

Power con s umption

Max. p ower connection/power supply

Heat dissipation

Operational temperature 0° - 40°C / 32° - 104°F

Operational humidity 10-80%

Cooling Passive cooling (active cooling for high brightness mode)

IP rating Indoor only

Country of origin

Certiﬁcations

+/-60° (min 50% brightness)

100-240V / 50-60Hz

917 W/sqm; - 85 W/sqft max.

420 W/sqm; - 39 W/sqft typical

10 tiles (100-180V), 17 tiles (180-240V)

3,126 BTU/h/sqm (max.)

1,421 BTU/h/sqm (typical)

Belgium

CE, ETL/UL, FCC Class B, RoHS, TÜV, WEEE

X2 speciﬁcations

Pixel pitch

Pixel density

Pixels per tile

LED type

Brightness 2,000 nits

LED lifetime 100,000 hrs (50% brightness)

Color Processing 16 bit (input to output)

Colors

Processing

Source compatibility see Inﬁnipix (TM)

Data connection

3D ready

Hor. viewing angle

Vert. viewing angle

Tile size (WxHxD) in mm 400 x 400 x 91 mm / 15.75 x 15.75 x 3.58 inch

Weight / Tile 6kg/13.23lbs

Serviceability Front/back

Max. hanging

Input voltage

Power con s umption

Max. p ower connection/power supply

Heat dissipation

Operational humidity 10-80%

Operational temperature 0° - 40°C / 32° - 104°F

2.7 mm / 0.109 inch

129.600 pixels/sqm

144 x 144 (H x V)

SMD RGB Black

281 trillion

Inﬁnipix (TM)

10G Inﬁnipix (TM), 2xIN/2xOUT SFP+

yes

+/-55° (min 50% brightness)

16 tiles (6.4 meter)

100-240V / 50-60Hz

820 W/sqm - 76 W/sqft max.

398 W/sqm - 37 W/sqft typical

11 tiles (100-180V), 21 tiles (180-240V)

2,792 BTU/h/sqm (max.)

1,357 BTU/h/sqm (typical)

R5906024 X-SERIES 15/03/2016 63

Page 68

B. Specifications

Cooling Passive cooling (Active cooling for high brightness mode)

IP rating Indoor only

Country of origin

Certiﬁcations

Belgium

CE, ETL/UL, FCC Class B, RoHS, TÜV, WEEE

X4 speciﬁcations

Pixel pitch

Pixel density

Pixels per tile

LED type

Brightness 2,000 nits

LED lifetime 100,000 hrs (50% brightness)

Color Processing 16 bit (input to output)

Colors

Processing

Source compatibility see Inﬁnipix (TM)

Data connection

3D ready

Hor. viewing angle

Vert. viewing angle

Tile size (WxHxD) in mm 400 x 400 x 91 mm / 15.75 x 15.75 x 3.58 inch

Weight / Tile 6kg/13.23lbs

Serviceability Front/back

Max. hanging

Input voltage

Power con s umption

Max. p ower connection/power supply

Heat dissipation

Operational humidity 10-80%

Operational temperature 0° - 40°C / 32° - 104°F

Cooling Passive cooling (Active cooling for high brightness mode)

IP rating Indoor only

Country of origin

Certiﬁcations

4.5 mm / 0.1787 inch

48,400 pixels/sqm

88 x 88 (H x V)

SMD RGB Black

281 trillion

Inﬁnipix (TM)

10G Inﬁnipix (TM), 2xIN/2xOUT SFP+

yes

+/-55° (min 50% brightness)

16 tiles (6.4 meter)

100-240V / 50-60Hz

820 W/sqm - 76 W/sqft max.

398 W/sqm - 37 W/sqft typical

11 tiles (100-180V), 21 tiles (180-240V)

2,792 BTU/h/sqm (max.)

1,357 BTU/h/sqm (typical)

Belgium

CE, ETL/UL, FCC Class B, RoHS, TÜV, WEEE

64 R5906024 X-SERIES 15/03/2016

Page 69

B.2 Weight of individual parts of the X-series display

Weight of individual parts

Standard connection piece

Standard half connection piece

Advanced (rental) connection piece

Advanced (rental) half connection piece

Quad truss/ﬂoor beam (R8768260)

Triple truss/ﬂoor beam (R8768250)

Dual truss/ﬂoor beam (R8767285)

Weight of the tiles

X4 6.1 Kg

X2 6.1 Kg

X1.9 6.5 Kg

X1.6 6.5 Kg

0,53 Kg

0,25 Kg

0,69 Kg

0,32 Kg

17.0 Kg

13.0 Kg

9Kg

B. Specifications

R5906024 X-SERIES 15/03/2016 65

Page 70

B. Specifications

B.3 Ballast values for a base stand X-series X-series display

Minimum ballast calculator

An online ballast calculator is available on the Barco web site.

Image B-1 Ballast calculator screen

66 R5906024 X-SERIES 15/03/2016

Page 71

B. Specifications

B.4 Ground pressure of a base stand X-series X-series display

Ground pressure values

Ground pressure is shown in the calculation results table, along with the minimum ballast value of the online ballast calculator.

Image B-2 Ballast calculator screen — ground pressure value

R5906024 X-SERIES 15/03/2016 67

Page 72

B. Specifications

68 R5906024 X-SERIES 15/03/2016

Page 73

C. ORDER INFO

About this chapter

This chapter contains the order numbers of all available X-series spare parts.

Overview

• Spare part order info

C. Order info

R5906024 X-SERIES 15/03/2016

Page 74

C. Order info

C.1 Spare part order info

Order info

R9052960B1 LD X1.6 TILE B1

R9052961 LD X1.9 TILE B1

R90529581 LD X2 TILE B1

Description

R9801387B1

R9801387B10

R9801388B10

R9801388B2

R9801402B1

R9801402B10

R9801403B10

R9801403B2

R9801420B1

R9801412B1

R9801413B1

R98013891

R9801469 X-series service tool kit

R9801468

R9801476

R9801467

R9850177

R9850176

R9801466 Foot bracket_– 2 pieces

X-series standard full corner piece –1 piece

X-series standard full corner piece – 10 pieces

X-series standard half corner piece –10 pieces

X-series standard half corner piece –2 pieces

X-series advanced (rental) full corner piece –1 piece

X-series advanced (rental) full corner piece – 10 pieces

X-series advanced (rental) half corner piece – 10 pieces

X-series advanced (rental) half corner piece – 2 pieces

X-series dual truss/ﬂoor beam

X-series triple truss/ﬂ oor beam

X-series quadruple truss/ﬂoor beam

X-series advanced (rental) front access kit

Stacker kit 1m – 4 pieces

Stacker kit 1,5m – 2 pieces

Stacker connection kit – 4 pieces

Rental foot beam 1200mm – 2 pieces

Rental foot beam 2400mm – 2 pieces

R9801395B10

R9004626 US LED distro with transient

R9801137 C/V spider power WP

R9801332 SFP+ TRx 10GB 850NM MM – 2 pieces

B1901542 CD RJ45/RJ45 FTP Cat5E LSZH 2m

R9850058 DLITE mono phase power box

R9801411 Powerconnector - NAC3FX-W – 6 pieces

R9850990 Rental power box

R9851260 POWER VEAM cable 10m

R9870156 V POWER IN cable WP 20M – 1 piece

R9871024 POWER VEAM cable 20m (US VERSION)

R7681172K X-series ULP 10G controller board

R8766206K X-series cover connection box

B557409K LD K X-SER TILE BOX SMPS

B4060021K LD K X1.6 LED BRD TOP

70 R5906024 X-SERIES 15/03/2016

SFP+ passive cable 1m – 10 pieces

Page 75

C. Order info

Order info

B4060022K

B4060023K

B4060024K

R7260038K

R5002021K

R5002023K

R7681181K

R7681201K

R5001526K

B40600161K LD K X2 LED BRD LEFT

B40600171K

The above order information was valid when this manual was created. See secured Barco website for the latest update regarding order information ( availability, obsolete, replaced by etc.)

Description

LD K X1.6 LED BRD BOTTOM

LD K X1.9 LED BRD TOP

LD K X1.9 LED BRD BOTTOM

LD K X2 SHADERS (100pcs)

LD K X1.6 SHADER KIT (100pcs)

LD K X1.9 SHADER KIT (100pcs)

LD K X2 INT LED BRD-ULP CTRL

LD K X1 INT LED BRD - ULP 10G

LD K X-SER FAN w CBLA 5pcs

LD K X2 LED BRD RIGHT

R5906024 X-SERIES 15/03/2016 71

Page 76

C. Order info

72 R5906024 X-SERIES 15/03/2016

Page 77

D. ENVIRONMENTAL INFORMATION

Overview

• Disposal information

• RoHS compliance

• Production address

D. Environmental information

R5906024 X-SERIES 15/03/2016

Page 78

D. Environmental information

D.1 Disposal information

Disposal Information

Waste Electrical and Electronic Equipment

This symbol on the product indicates that, under the European Directive 2012/19/EU governing waste from electrical and electronic equipment, this product must not be disposed of with other municipal waste. Please dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

For more information about recycling of this product, please contact your local city ofﬁce or your municipal waste disposal service.

For details, please visit the Barco website at: h

ttp://www.barco.com/en/AboutBarco/weee

74 R5906024 X-SERIES 15/03/2016

Page 79

D. Environmental information

D.2 RoHS compliance

中国大陆 RoHS (Chinese Mainland RoHS)

根据中国大陆《电器电子产品有害物质限制使用管理办法》（也称为中国大陆RoHS），以下部分列出了Barco产品中可能包含的有毒和/或有害物质的名称和含量。中国大陆RoHS指令包含在中国信息产业部MCV标准：“电子信息产品中有毒物质的限量要求”中。

According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

零件项目 (名称)

Component name

印制电路配件

Printed Circuit Assemblies

风扇

Fan

外接电( 线 )缆

External Cables

內部线路

Internal wiring

电源供应器

Power Supply Unit

塑胶外壳

Metal Enclosure

塑胶外壳

Plastic Enclosure

螺帽,螺钉(栓),螺旋( 钉),垫圈, 紧固件

Nuts, bolts, screws, washers, Fasteners

本表格依据SJ/T 11364的规定编制

This table is prepared in accordance with the provisions of SJ/T 11364.

O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下.

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in GB/T 26572.

X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in GB/T 26572.

有毒有害物质或元素

Hazardous substances and elements

铅

(Pb)

OOO O OO

汞

(Hg)

OOOOO

镉

(Cd)

六价铬

(Cr6+)

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

在中国大陆销售的相应电子信息产品（EIP）都必须遵照中国大陆《电子电气产品有害物质限制使用标识要求》标准贴上环保使用期限（EFUP）标签。Barco产品所采用的EFUP标签（请参阅实例，徽标内部的编号使用于指定产品）基于中国大陆的《电子信息产品环保使用期限通则》标准。

All Electronic Information Products (EIP) that are sold within Chinese Mainland must comply with the “Marking for the restriction of the use of hazardous substances in electrical and electronic product” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.

R5906024 X-SERIES 15/03/2016 75

Page 80

D. Environmental information

Turkey RoHS compliance

Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.

[Republic of Turkey: In conformity with the WEEE Regulation]

R5906024 X-SERIES 15/03/2016

Page 81

D.3 Production address

Representative ofﬁce

Barco NV

Noordlaan 5, 8520 Kuurne (BELGIUM)

D. Environmental information

R5906024 X-SERIES 15/03/2016

Page 82

D. Environmental information

78 R5906024 X-SERIES 15/03/2016

Page 83

INDEX

Index

Accessories 18–19

Base stand 19

Truss 18 Address 77 Adjustable foot 40 Advanced (rental) connection pieces 23, 47

Installation 47

Ballast 66 Base stand 35 Base stand display 35

Cabling 49, 51, 53

Data 53

Power 51 Components 15 Connectivity 50

Data 53

Cabling 53 Diagnostic 17

LED 17

Tile 17 Dimensions 55–59

Foot beams 59

Stacker 58

Truss/ﬂoor beam 57 Disposal information 74

Environmental information 73–74

Disposal information 74

Ground pressure 67

Hanging display 30

Notice on safety 4

Order info 69–70 Overview 22–23, 26–27

Inﬁnipix™ Suite User Interface 27 Power boxes 26

Power 51

Box 51

Cabling 51 Power boxes 26 Production address 77 Proper usage 8

Requirements 9–12

Electrical 11

Mechanical 10

Software 12 RoHS compliance 75

Safety 3–6, 8

Guidelines 4

Instructions 5

Proper usage 8

Warnings 6 Set up 30, 35, 39

Base stand display 35

Hanging display 30

Procedures 39 Setup process 29 Software 12

System requirements 12 Speciﬁcations 61–62 Stacker 44, 58

Dimensions 58

Installation 44 Standard connection pieces 22, 46

Installation 46 System overview 13

Inﬁnipix™ Platform 24 Inﬁnipix™ User Interface 27 Install 40

Adjustable foot 40

Installing 42, 44, 46–47

Advanced (rental) connection pieces 47 Stacker 44 Standard connection pieces 46 Truss/ﬂoor beams 42

Introduction 14

Joining 41

Multiple truss/ﬂoor beams 41

R5906024 X-SERIES 15/03/2016

Tile 17

Diagnostic 17

Status 17 Tile status 17 Truss 30 Truss/ﬂoor beam 57

Dimensions 57 Truss/ﬂoor beams 41–42

Installation 42

Joining 41

Updates 28

Weight 65

Page 84

Index

X-series tile 16

R5906024 X-SERIES 15/03/2016

Barco X1.6, X1.9 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
