TCD-361
High-Bright 24” Tower Control Display
The growing reliance on advanced software tools in today’s ATC towers creates a need
for larger HMI display surfaces. At the same time, ATC control towers are typically
characterized by strict spatial limitations and a wide scale of ambient light conditions,
ranging from bright daylight to dimmed night time.
In answer to this, Barco has created the TCD-361, a 24” wide-screen display that
brings optimum reading quality, reliability and user-comfort to the tower control
environment. The TCD-361 offers excellent brightness (more than 350 cd/m
2
, peak typ.
500 cd/m
2
) and a wide dimming ratio (up to 100:1). The display’s integrated Ambient
Light Compensation function automatically adjusts brightness settings in function
of the ambient light conditions. Barco’s unique Automatic Phase Adjust technology
guarantees artifact-free images over time.
The TCD-361 has a slimline, low-height design to allow for high spatial efficiency in the
tower and an excellent view outside. Built on Barco’s near-zero maintenance concept, the
display is easy to set up, and provides internal stabilization, calibration and several Built-In
Test (BIT) patterns for easy diagnostics. Thanks to its thermal management design, the
TCD-361 offers long-lifetime and low-noise operation. In addition, the optional health and
configuration software continuously checks the registered TCD-361 displays for their online
status and warns system administrators for preventive maintenance actions.
Main features:
• 24” wide-screen AMLCD
• 2.3 MegaPixel resolution
(1920 x 1200, WUXGA)
• Optically stabilized brightness
(up to 350 cd/m
2
/ max. 500 cd/m2)
• High contrast (typ. 450:1)
• High dimming ratio (up to 100:1)
• Continuous Automatic Phase Adjust
for artifact-free images over time
• Long lifetime backlight (typ. 40,000
hours in mixed tower use)
• Low noise and low heat design
• Multiple inputs for flexible control
• Sleek bezel design, maximizing
display surface in tower setup
Page 2
www.barco.com/airtrafficcontrol
ELECTRO OPTICAL
Panel type: Active Matrix LCD (Silicon TFT)
Panel diagonal: 24” / 61 cm
Image dimensions: 518 x 324 mm
20.4 x 12.76”
Pixel dimensions: 0.27 x 0.27 mm
Panel resolution: 1920 x 1200 pixels (WUXGA)
Screen specifications: 16 million colors /
256 grayscales per color
Protective front filter: Hard coated front panel: 3H
Reflection: Low reflective front panel:
haze type typ. 20%
Light output: stabilized up to 350 cd/m
2
(100 fL) at 10 to 35°C ambient
unstabilized typ. 500 cd/m2
(145 fL) at 10 to 30°C ambient
Dimming ratio: Up to 100:1
Panel contrast ratio: typ. 450:1
Color temperature: White point selectable between
6000° K - 10000° K
Automatic color calibration: Via optional external calibration tool
Calibration tool (USB) + software
required
Viewing angle: Horizontal and vertical > ± 80°
(CR = 10, dark room)
INTERFACES
3 selectable video inputs: One DVI – two analog inputs
(Automatic upscaling for typical
lower resolutions)
Auto-sync: Separate H&V / Ext. Combined /
Sync on Green
Connector type:
DB9 for RS232 link
2 x USB for optional tools & functions:
• Host function: connect to e.g.
optional control box for picture
and background settings
• Peripheral function: connects to
workstation for optional tools, e.g.
consistency management and
calibration tools
Mini Din for control purposes
Ethernet RJ45 for maintenance & control purposes
CONTROLS
On bezel: standard 5 control keys: UP; DOWN,
ENTER, EXIT, STANDBY
OSD: Menu driven On-Screen Display
Remote control: RS232 link (Barco Protocol) /
Barco keypad / USB control
POWER
Power supply: External power supply box
Input: 100 - 240 VAC - 2.5 A
Frequency limits: 45-65Hz
Power consumption: typical 80W (max. 130W)
GENERAL DATA
Bezel: sleek design
Weight: 8.3 kg / 18 lbs
MTTR: LRU based less than 0.5 hrs
ENVIRONMENTAL
Temperature:
Operating: 0°C/+35°C (+32°F/+95°F)
Storage: -20°C/+60°C (-4°F/+140°F)
Humidity: 10 - 85% max (non-condensing)
@ 35°C (95°F)
Altitude (pressure):
Operating: 15,000 ft (57.16 kPa)
Storage: 35,000 ft (23.84 kPa)
EMC
Emission: FCC class A vol. II part 15 subpart J
Immunity: EN50082-2, EN55022 limit A
APPROVALS
IEC 950, UL 1950, c-UL 950, CE 2001
OPTIONS
• Flexible remote control box for picture and background control via
2 rotary digitizers for “analog control touch and feel”. Might require
optional external software. Allows for a tracked control between
multiple TCD-361s.
• USB based color sensor for color calibrations
• VESA arm / foot
Please contact factory for more details.
Ref. K5906019SSE0308R001
Application photo by courtesy of Belgocontrol
Technical specifications are subject to change without prior notice
Barco
Pres. Kennedypark 35 - B-8500 Kortrijk, Belgium
Phone: +32 56 233 960 - Fax: +32 56 233 013
E-mail: sales.airtraffic@barco.com
BarcoView, LLC
3059 Premiere Parkway - Duluth, Georgia, 30097-4905, USA
Phone: +1 678 475 8000 - Fax: +1 678 475 8100
E-mail: sales.barcoview-a@barco.com
Technical specifications
In search of continuous improvement

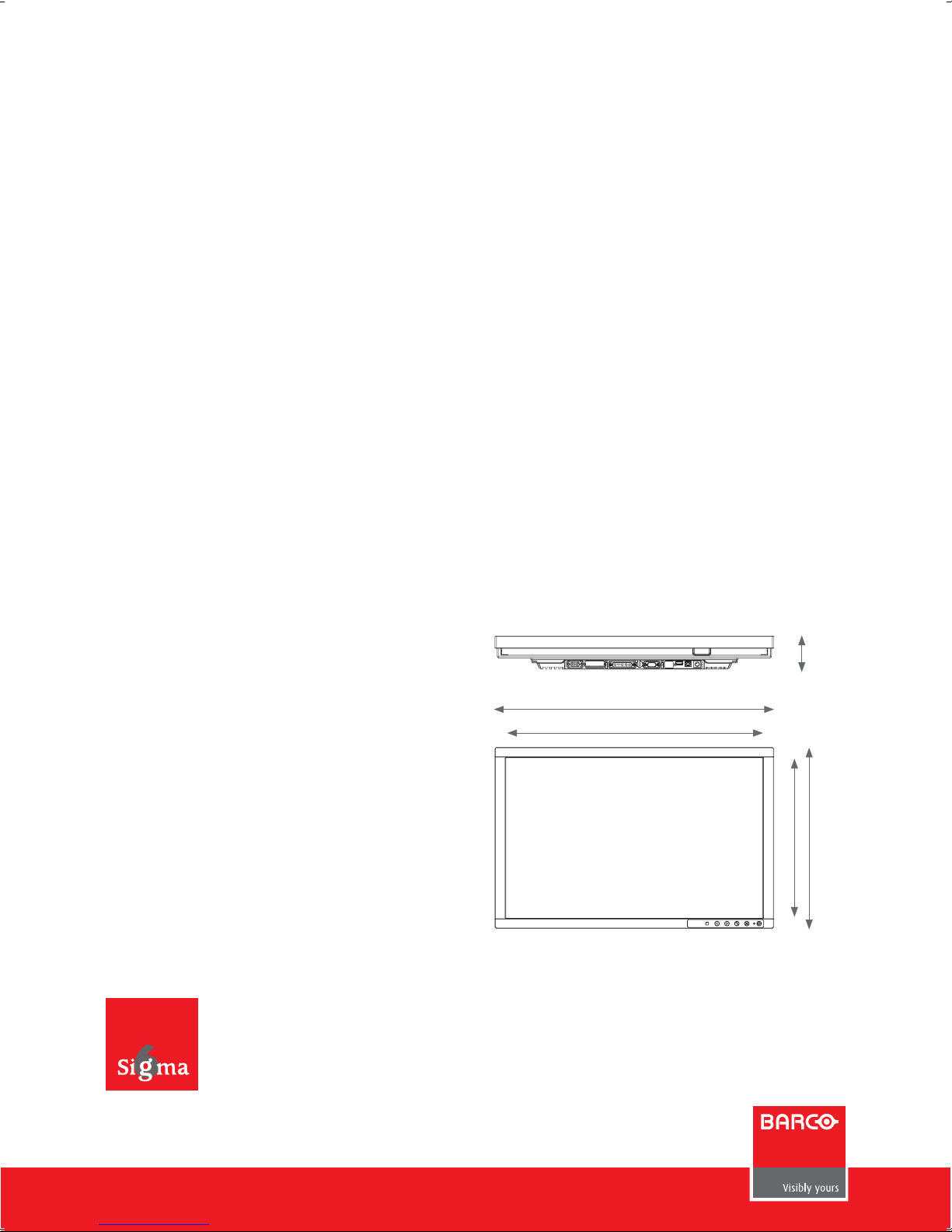

324 mm (Active area)
