Barco Sedomat 5800 Specifications

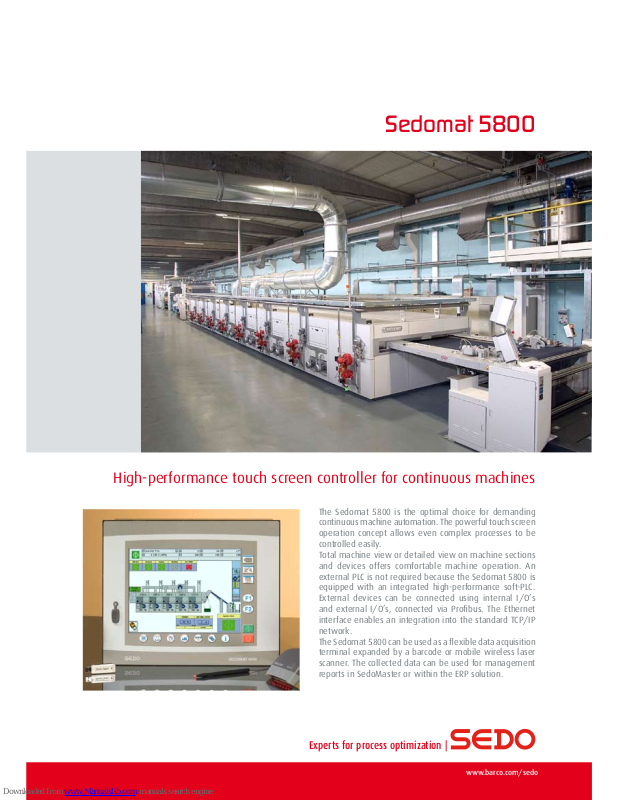

Sedomat 5800

High-performance touch screen controller for continuous machines

The Sedomat 5800 is the optimal choice for demanding
continuous machine automation. The powerful touch screen
operation concept allows even complex processes to be
controlled easily.
Total machine view or detailed view on machine sections
and devices offers comfortable machine operation. An
external PLC is not required because the Sedomat 5800 is
equipped with an integrated high-performance soft-PLC.
External devices can be connected using internal I/O’s

and external I/O’s, connected via Probus. The Ethernet

interface enables an integration into the standard TCP/IP
network.

The Sedomat 5800 can be used as a exible data acquisition

terminal expanded by a barcode or mobile wireless laser
scanner. The collected data can be used for management
reports in SedoMaster or within the ERP solution.

www.barco.com/sedo

Experts for process optimization |

Sedomat 5800

Applications and concept:

• Controls all continuous machines
such as singeing machines,
bleaching ranges, mercerizing ma­chines, washing machines, dryers,
continuous dyeing machines,
stenters, shrinking machines,
decating machines, calenders,
raising and emery machines, etc.

• Control of speed, residual mois

­ture, exhaust air humidity, fabric
temperature, dwell time, shrink­ing and stretching, pH, fabric
width, etc.

• By simultaneously executing two
batches and several functions, the
next batch can be prepared, while
the current batch is still active.

• Ethernet TCP/IP network: link to
SedoMaster and communication
with other systems.

• Integration with chemical dis

­pensing and automation of dye
kitchen.

• Storage of a virtually unlimited
number of recipes programs.

• Logging of recipe parameters,
alarms, etc. Visualization of
process information on Sedomat
5800 or on a remote PC.

• Support of different languages
and character sets, e.g. Chinese.

• Can be used as data acquisition
terminal.

• Options: Barcode reader for
tracking and data acquisition
purposes, USB memory stick,
Touch screen stylus

Barco Sedo GmbH, Germany

Neuwies 1, D-35794 Mengerskirchen

Phone: + 49 6476 31-0, Fax: [phone]

[e-mail]

BarcoVision, Belgium

Phone: + 32 56 26 26 11, Fax: [phone]

[e-mail]

Loepfe Brothers Ltd. - Treepoint, Switzerland

Phone: + 41 43 488 11 88, Fax: [phone]

[e-mail]

BarcoVision LTD, UK

Phone: [phone],

Fax: ++44 12 54 26 71 00

[e-mail]

BarcoVision LLC, USA

Phone: [phone], Fax: [phone]

[e-mail]

Technical specications are subject to change without prior notice.

Designed for continuous process automation

Applications and concept:

• Internet technology (integrated
web server): for remote access
from any PC in the plant network
via Microsoft Internet Explorer. A
mini central system is now pos­sible by using standard Microsoft
software only. Also remote service
via Internet (VPN) is possible.

• PC based: built around a high
performance state of the art PC­CPU board.

• Color touch screen: intuitive
user interface, easily adopted by
operators. Any recipe parameter

(heating, xation time, etc.) can

be activated by just touching this
parameter on the screen. Push
buttons on screen replace push
buttons on panel.

• OPC: OLE for Process Control:
integration with supervisory
systems.

• Windows CE: robust operating
system tailored for industrial
applications.

• USB interface: for inexpensive
devices like memory keys, (copy/
save programs) and other PC
peripherals.

References:

Babcock: Washing machines;
Brückner: Stenter, shrinking

machines; Canlar: Relax-dryers,
equalizing dryers; CIMI: Washing

and xing machines; Crosta:

Napping and shearing machines;
Krantz: Stenters; Küsters: PAD­Roll, continuous bleaching ranges,
mercerizing ranges, CPB (cold­pad-batch), calendars, singeing
machines, washing machines;
M-Tec: Decatizing machines,
shrinking machines, napping
machines; MAT: washing machines;
Montforts: Stenters, continuous
dyeing machines; Osthoff: Singeing
machines; Sucker-Müller:
Emerizing machines; etc.

Sedomat 5800 on dryer

Specications:

Display:

12.1“ TFT, color, 800 x 600 pixels,
touchscreen

Internal I/O (max.):
48 digital inputs,
48 digital outputs,
4 PT 100 inputs,
4 analogue inputs 0-20mA,
8 analogue outputs 0-20mA,
4 fast counter inputs

External I/O (option):

Pro 16/Pro 32 module connection
via Probus DP

Interfaces:

RS232 for PC programming tools,

Ethernet: link to SedoMaster
and other network systems, USB
for memory key and other PC
peripherals

Power supply: 24V DC, 2,0 A

Ambient temperature:

0 - 50°C (32 - 122°F)

Dimensions:

390 x 320 x 175 mm (w x h x d)

Panel cut out:

372 x 302 (w x h) ± 1mm
