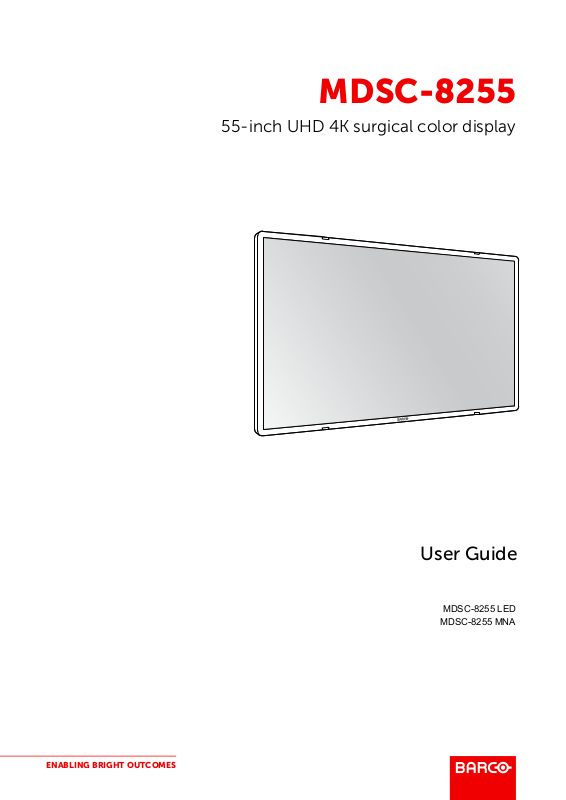

Barco MDSC-8255, MDSC-8255 LED, MDSC-8255 MNA User Manual

MDSC-8255

55-inch UHD 4K surgical color display

ENABLING BRIGHT OUTCOMES

User Guide

MDSC-8255 LED

MDSC-8255 MNA

Barco NV

Beneluxpark 21, 8500 Kortrijk, Belgium
www.barco.com/en/support
www.barco.com

Registered address: Barco NV

President Kennedypark 35, 8500 Kortrijk, Belgium
www.barco.com/en/support
www.barco.com

Table of contents

1 Welcome! ................................................................................................................................................................................................................5

1.1 About the product.................................................................................................................................................................................6

1.2 What's in the box..................................................................................................................................................................................6

1.3 About this user guide .........................................................................................................................................................................7

2 Parts, controls and connectors...............................................................................................................................................................9

2.1 Front view..............................................................................................................................................................................................10

2.2 Rear view............................................................................................................................................................................................... 11

2.3 Connector view .................................................................................................................................................................................. 11

2.3.1 MDSC-8255 LED version.......................................................................................................................................... 11

2.3.2 MDSC-8255 MNA version.........................................................................................................................................12

2.4 Connector pin assignments ........................................................................................................................................................12

2.4.1 DVI connector (DVI-D)................................................................................................................................................12

2.4.2 USB type A connector .................................................................................................................................................13

2.4.3 USB type B connector .................................................................................................................................................13

2.4.4 Micro-USB connector ..................................................................................................................................................13

2.4.5 DisplayPort connector .................................................................................................................................................14

2.4.6 HDMI connector..............................................................................................................................................................14

2.4.7 DC out connector ...........................................................................................................................................................15

3 Display installation .......................................................................................................................................................................................17

3.1 Interface connection........................................................................................................................................................................ 18

3.1.1 MDSC-8255 LED version..........................................................................................................................................18

3.1.2 MDSC-8255 MNA version.........................................................................................................................................19

3.2 Power connection ............................................................................................................................................................................. 20

3.3 VESA mount installation ............................................................................................................................................................... 21

4 Daily operation.................................................................................................................................................................................................23

4.1 On/Off switching ................................................................................................................................................................................24

4.2 Power mode LED .............................................................................................................................................................................24

4.3 OSD menu activation......................................................................................................................................................................24

4.4 OSD menu navigation .................................................................................................................................................................... 24

4.5 Shortkey functions............................................................................................................................................................................ 25

4.5.1 Main source selection.................................................................................................................................................. 26

4.5.2 Brightness adjustment ................................................................................................................................................26

4.6 Control lock: OSD menu locking/unlocking........................................................................................................................26

5 Advanced operation.....................................................................................................................................................................................29

5.1 Picture menu .......................................................................................................................................................................................30

5.1.1 Profile....................................................................................................................................................................................30

5.1.2 Brightness ..........................................................................................................................................................................30

K5902133 (451920612483)-02 MDSC-8255

3

5.1.3 Contrast...............................................................................................................................................................................30

5.1.4 Saturation ...........................................................................................................................................................................31

5.1.5 Color temperature.......................................................................................................................................................... 31

5.1.6 Color space .......................................................................................................................................................................31

5.1.7 Gamma ................................................................................................................................................................................32

5.1.8 Sharpness..........................................................................................................................................................................32

5.2 Picture advanced menu ................................................................................................................................................................32

5.2.1 Black Level ........................................................................................................................................................................ 32

5.2.2 Latency ................................................................................................................................................................................32

5.2.3 Input range.........................................................................................................................................................................33

5.2.4 Image Size .........................................................................................................................................................................33

5.2.5 Image Flip...........................................................................................................................................................................33

5.2.6 Screen Resolution.........................................................................................................................................................34

5.3 Input select menu..............................................................................................................................................................................34

5.3.1 Main Source......................................................................................................................................................................34

5.3.2 DisplayPort mode ..........................................................................................................................................................35

5.3.3 Auto search .......................................................................................................................................................................35

5.3.4 Failover input ....................................................................................................................................................................35

5.3.5 Picture and Picture input............................................................................................................................................36

5.3.6 Picture in Picture input ................................................................................................................................................37

5.3.7 Picture in Picture mode ..............................................................................................................................................37

5.3.8 Picture in Picture position..........................................................................................................................................37

5.3.9 Picture in Picture transparency ..............................................................................................................................38

5.4 Configuration menu .........................................................................................................................................................................38

5.4.1 Information.........................................................................................................................................................................38

5.4.2 Language ...........................................................................................................................................................................38

5.4.3 OSD Time-out..................................................................................................................................................................39

5.4.4 Recall Profile .................................................................................................................................................................... 39

5.4.5 Save Profile .......................................................................................................................................................................39

5.5 System menu ......................................................................................................................................................................................40

5.5.1 Power on DVI ...................................................................................................................................................................40

5.5.2 Power on DisplayPort..................................................................................................................................................40

5.5.3 OSD lock.............................................................................................................................................................................40

5.5.4 Power saving ....................................................................................................................................................................40

5.5.5 DVI output ..........................................................................................................................................................................41

5.5.6 Operating hours ..............................................................................................................................................................41

6 Important information.................................................................................................................................................................................43

6.1 Safety information.............................................................................................................................................................................44

6.2 Environmental information...........................................................................................................................................................47

6.3 Biological hazard and returns ....................................................................................................................................................48

6.4 Maintenance ........................................................................................................................................................................................49

6.4.1 Cleaning and disinfection ..........................................................................................................................................49

6.5 Regulatory compliance information ........................................................................................................................................49

6.6 Explanation of symbols..................................................................................................................................................................50

6.7 Legal disclaimer.................................................................................................................................................................................52

6.8 Technical specifications.................................................................................................................................................................53

4

K5902133 (451920612483)-02 MDSC-8255

Welcome! 1

K5902133 (451920612483)-02 MDSC-8255

5

Welcome!

1.1 About the product

Overview

Barco's MDSC-8255 is a 55-inch surgical display purpose-built for ultrahigh resolution, multi-image viewing in
the digital operating room.

Thanks to its high quality video performance and lightweight housing with shallow depth and thin bezel, it’s the
ideal complement of any advanced video distribution system in the OR.

Large screen UHD resolution display for referral imaging

A futureproof choice for referral imaging in the OR, the MDSC-8255 can present information previously shown
on four 27” monitors on one large screen, with all four images in full HD.

Thanks to the integrated 4K decoder (MNA version only) it offers seamless integration with Barco's Nexxis
video-over-IP solution.

Wallmount flexibility

With its shallow depth, thin bezel and light weight the MDSC-8255 is perfect for wall mounting.

Available without protective glass for in-wall installation as well.

Delivering image quality on large screens

Color-calibrated, artifact free images in 4K resolution: the MDSC-8255 presents surgeons with accurate,
realistic images and excellent depth perception.

Advanced video processing features and noise reduction algorithms, and a full 10-bit image processing chain
make this display ideal for consultation of any kind of medical referral images inside the OR.

Features

• 55-inch wide-screen LCD with UHD 4K resolution

• Wide viewing angle

• Wide color gamut and calibrated color spaces ITU709, DCI-P3 D65, BT. 2020

• High color depth with 10-bit per color

• Backlight Output Stabilization over time

• Advanced, full 10-bit image processing algorithms with 14-bit LUT

• UHD (3840x2160), FHD and legacy input accepted

• Available with or without front protection glass

Innovative features, such as Failover Mode, are also available to give maximum flexibility when installing the
display and ensures a backup signal is always available for safe surgery.

1.2 What's in the box

Overview

Your MDSC-8255 display comes with:

• MDSC-8255 user guide (booklet)

• 2x DisplayPort cable

• HDMI cable (only for MDSC-8255 LED)

• AC power cords

The user guide is available in other languages on www.barco.com/support

Keep your original packaging. It is designed for this display and is the ideal protection during
transport.

6

K5902133 (451920612483)-02 MDSC-8255

Welcome!

1.3 About this user guide

Overview

This manual provides support to the user during the installation, set up and utilization of the MDSC-8255
display. Depending on the specific version that has been purchased, some of the features and options
described in this document may not apply to the display in user’s hands.

K5902133 (451920612483)-02 MDSC-8255

7

Welcome!

8

K5902133 (451920612483)-02 MDSC-8255

Parts, controls and connectors

2

K5902133 (451920612483)-02 MDSC-8255

9

1

2

3

4

5

6

7

8 9

Parts, controls and connectors

2.1 Front view

Overview

Image 2-1

A 7-key keypad is located on the right side of the display.

1. Input selection key

2. Multi-image selection key / Down key

3. Image zoom key / Up key

4. OSD menu key / Enter key

5. Brightness decrease / Left key

6. Brightness increase / Right key

7. Stand-by key

8. Power mode LED

9. IR receiver (for remote control - future provision)

10

K5902133 (451920612483)-02 MDSC-8255

2.2 Rear view

1

2

2 6 8 129 10 111 13

3 4

5

7

Overview

Image 2-2

Parts, controls and connectors

1. VESA mount screw holes (VESA 200 mm and up)

2. Protective earth pin (for additional grounding)

2.3 Connector view

2.3.1 MDSC-8255 LED version

Overview

Image 2-3

1. SDI in

2. SDI out

3. HDMI2 2.0 in

4. HDMI1 2.0 in

5. +5 VDC – 2A power out

6. USB 2.0 type A interface

7. USB 2.0 micro-B interface

8. Main (Right) DisplayPort in

9. DVI-D in

10.DVI-D out

11. Potential Equalization pin (POAG)

nd

12.2

13.100-240 VAC (50-60 Hz) power in

(Left) DisplayPort in

K5902133 (451920612483)-02 MDSC-8255

11

11 5 13 1714 15 161096 8754321

Main

(1)

2nd

(2)

18

12

Parts, controls and connectors

2.3.2 MDSC-8255 MNA version

Overview

Image 2-4

1. Headphone out

2. Microphone in

3. Audio line out

4. Audio line in

5. USB 2.0 type A interface (4 x)

6. USB 2.0 micro-B interface (for service use only)

7. (2) Secondary SFP+ 10Gb optical Ethernet interface

8. (1) Main SFP+ 10Gb optical Ethernet interface

9. Identification button

10.SDI in

11. SDI out

12.+5 VDC – 2A power out

13.Main (Right) DisplayPort in

14.DVI-D in

15.DVI-D out

16.Potential Equalization pin (POAG)

nd

17.2

18.100-240 VAC (50-60 Hz) power in

(Left) DisplayPort in

Input and Output 1 to 9 are directly connected to the embedded Nexxis decoder.

2.4 Connector pin assignments

2.4.1 DVI connector (DVI-D)

Overview

Image 2-5

1. D2_Rx- (T.M.D.S.)

2. D2_Rx+ (T.M.D.S.)

3. GND (data 2 shield)

4. Not connected

5. Not connected

6. SCL (for DDC)

7. SDA (for DDC)

8. Not connected

12

K5902133 (451920612483)-02 MDSC-8255

1 2

3 4

12345

Parts, controls and connectors

9. D1_Rx- (T.M.D.S.)

10.D1_Rx+ (T.M.D.S.)

11. GND (data 1 shield)

12.Not connected

13.Not connected

14.+5V output (*)

15.GND (cable sense)

16.Hot plug detect (*)

17.D0_Rx- (T.M.D.S.)

18.D0_Rx+ (T.M.D.S.)

19.GND (data 0 shield)

20.Not connected

21.Not connected

22.GND (clock shield)

23.CK_Rx+ (T.M.D.S.)

24.CK_Rx- (T.M.D.S.)

(*) +5 VDC output selectable on either pin 14 or 16 via the OSD menu. (+5V ± 10% @ 500mA (max))

2.4.2 USB type A connector

Overview

Image 2-6

1. +5 VDC

2. Data -

3. Data +

4. GND

2.4.3 USB type B connector

Overview

Image 2-7

1. Data -

2. +5 VDC

3. Data +

4. GND

2.4.4 Micro-USB connector

Overview

Image 2-8

1. +5 VDC

2. Data -

3. Data +

4. GND

K5902133 (451920612483)-02 MDSC-8255

13

19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

1

24681012141618

35791113151719

Parts, controls and connectors

5. Not connected

2.4.5 DisplayPort connector

Overview

Image 2-9

1. ML_Lane 0 (p)

2. GND

3. ML_Lane 0 (n)

4. ML_Lane 1 (p)

5. GND

6. ML_Lane 1 (n)

7. ML_Lane 2 (p)

8. GND

9. ML_Lane 2 (n)

10.ML_Lane 3 (p)

11. GND

12.ML_Lane 3 (n)

13.CONFIG1

14.CONFIG2

15.AUX CH (p)

16.GND

17.AUX CH (n)

18.Hot Plug

19.Return

20.DP_PWR (+3.3 VDC @ 500 mA max)

2.4.6 HDMI connector

Overview

Image 2-10

1. T.M.D.S. Data2+

2. T.M.D.S. Data2 Shield

3. T.M.D.S. Data2-

4. T.M.D.S. Data1+

5. T.M.D.S. Data1 Shield

6. T.M.D.S. Data1-

7. T.M.D.S. Data0+

8. T.M.D.S. Data0 Shield

9. T.M.D.S. Data0-

10.T.M.D.S. Clock+

11. T.M.D.S. Clock Shield

12.T.M.D.S. Clock-

13.CEC

14

K5902133 (451920612483)-02 MDSC-8255

14.Not connected

1 2

15.DDC_SCL

16.DDC_SDA

17.DDC/CEC GND

18.+5VDC POWER

19.HDP

2.4.7 DC out connector

Overview

Image 2-11

1. +5 VDC

2. GND

Parts, controls and connectors

K5902133 (451920612483)-02 MDSC-8255

15

Parts, controls and connectors

16

K5902133 (451920612483)-02 MDSC-8255

Display installation 3

K5902133 (451920612483)-02 MDSC-8255

17

Display installation

3.1 Interface connection

About

The MDSC-8255 can have multiple video inputs connected. Switching between the different inputs can be
done easily with the Source shortkey (

Futhermore, if more than one video source is connected, the Picture in Picture (PiP) functionality becomes
available, allowing you to view two different video inputs at once. Please refer to “Picture and Picture input”,
page 36 and “Picture in Picture input”, page 37 for more information.

Beside the video input connections, the MDSC-8255 also has video output capabilities allowing you to loop­through or duplicate the screen content on the DVI output port, allowing an easy connection with another
display, projector, video recorder, ...

This chapter describes how to connect the different video interface types to the MDSC-8255.

CAUTION: When the display is assembled in the medical system, take care of the fixation of all
cables, to avoid unwanted detachment.

Nexxis OR

Connecting your MDSC-8255 to Barco's Nexxis OR system allows you to distribute video, graphics, audio and
computer data over the IP network, in raw uncompressed format, inside the operating room and even between
surgical suites.

To connect your MDSC-8255 to Barco's Nexxis OR system, connect the 10Gb Ethernet interface to your
Nexxis switch. More info about Nexxis OR and how to configure the MDSC-8255 in your network is available
in the dedicated user guides. Please visit www.barco.com to obtain these user guides.

).

Nexxis OR is only available on the MDSC-8255 MNA version.

3.1.1 MDSC-8255 LED version

To connect the interfaces

1. Connect one or more video source(s) to the corresponding video inputs of the display.

UHD 4K video can be connected in three ways:

• DisplayPort 1.2 MST connected to the Main DisplayPort input or,

• 2 x DisplayPort 1.1 connected to the Main and 2

(right/left) of the screen or,

• HDMI connected to HDMI1 or HDMI2 inputs.

2. When the SDI video input is connected, an additional SDI video sink can be connected to the SDI output (=

SDI input loop-through).

3. Screen image clone: The entire active image on the screen (including OSD) can be duplicated to a FHD

(1080p/1080i) signal on the DVI output connector, to which an additional DVI video sink can be connected.

4. Connect the micro-USB interface with a workstation to use the remote control protocol, to update the

display firmware, or to be able to connect any USB peripheral with the USB interfaces of the display.

5. Use any USB peripheral (keyboard, mouse, webcam, ...) by connecting it to the USB interface (a host PC

connected to micro USB-port is required).

6. Connector +5 VDC - 2A power out for accessory (Mating connector HIROSE RP34L-5PA- 2SC(1857)

(71)).

nd

DisplayPort input, where each input drives one half

18

K5902133 (451920612483)-02 MDSC-8255

2

3

1

5

4

6

+5VDC

Display installation

Image 3-1

WARNING: DisplayPort VESA DP 1.2 certified cables for 5.4 Gbps HBR2 are recommended.

The DVI output must be enabled in the OSD menu (please refer to “DVI output”, page 41).

3.1.2 MDSC-8255 MNA version

To connect the interfaces

1. Connect one or more video source(s) to the corresponding video inputs of the display.

UHD 4K video can be connected in three ways:

• 1 x DisplayPort 1.2 MST connected to the Main DisplayPort input or,

• 2 x DisplayPort 1.1 connected to the Main and 2

(right/left) of the screen or,

• Nexxis link: 2 x 10Gb Ethernet connected to the Main and Secondary SFP+ 10Gb optical Ethernet

interface, where each input drives one half (right/left) of the screen.

2. When the SDI video input is connected, an additional SDI video sink can be connected to the SDI output (=

SDI input loop-through).

3. Screen image clone: The entire active image on the screen (including OSD) can be duplicated to a FHD

(1080p/1080i) signal on the DVI output connector, to which an additional DVI video sink can be connected.

4. Use any USB peripheral (keyboard, mouse, webcam, ...) by connecting it to the available USB interfaces.

5. Connector +5 VDC - 2A power out for accessory (Mating connector HIROSE RP34L-5PA- 2SC(1857)(71))

6. Connect a headphone to the appropriate output to listen to audio sent over Nexxis.

7. Connect a microphone to the appropriate input to send spoken audio over Nexxis.

8. Connect a (set of) speaker(s) to the line out interface to listen to audio sent over Nexxis.

9. Connect any kind audio player to the line in interface to send audio over Nexxis.

10.Connect the display with Nexxis to use the remote control protocol or to update the display firmware.

nd

DisplayPort input, where each input drives one half

K5902133 (451920612483)-02 MDSC-8255

19

Main

(1)

2nd

(2)

2 1

3

4

MP3

1

4

6

7

8

9 10

5

+5VDC

Main

(1)

2nd

(2)

Display installation

Image 3-2

WARNING: DisplayPort VESA DP 1.2 certified cables for 5.4 Gbps HBR2 are recommended.

The DVI output must be enabled in the OSD menu (please refer to “DVI output”, page 41).

A subset of the commands of the remote control protocol is also available on a new DDC protocol
on DVI and DisplayPort1 auxiliary channel.

3.2 Power connection

To connect the power

Connect the power input of your display with a grounded power outlet by means of the proper power cord
delivered with your display.

Image 3-3

Potential equalization

When potential equalization between the display and other devices is required then connect the potential
equalization pin (POAG) to the potential equalization terminal of the equipment.

20

K5902133 (451920612483)-02 MDSC-8255

CAUTION: The display must be earthed.

Main

(1)

2nd

(2)

Display installation

Image 3-4

Additional protective earth

For additional grounding, earth the display by connecting the protective earth pin to a grounded outlet by
means of a wire with at minimum AWG18 size (according to national Regulation requirements regarding
maximum admitted cable length). Use the included M4 screw to attach the wire to the protective earth pin.

Image 3-5

3.3 VESA mount installation

To install the display on a VESA mounting solution

The display can be attached to a VESA 200 mm or VESA 600 mm arm or stand.

Image 3-6

The VESA mounting holes at the back of the display are provided with M6-type blind fasteners to fix the VESA
mounting plate. Depending on the VESA plate thickness (T) and the thickness of possible washers (W), a
different screw length (L) should be selected.

Please respect the following rule to select an appropriate screw length:

• L

• L

= T + W + 8 mm

min

= T + W + 11 mm

max

K5902133 (451920612483)-02 MDSC-8255

21

T

W

L

min

L

max

Display installation

Image 3-7

CAUTION: Use an arm that is in compliance with VESA requirements.

CAUTION: The monitor VESA interface has been designed for a safety factor 6 (to support 6 times

the monitor weight). In the medical system, use an arm with suitable safety factor (IEC60601–1).

22

K5902133 (451920612483)-02 MDSC-8255

Daily operation 4

K5902133 (451920612483)-02 MDSC-8255

23

Daily operation

4.1 On/Off switching

To switch on/off your display:

1. Power on/off your display using the mains switch located on the back of the display.

While your display is on, press and hold the stand-by key for approximately 1 second to put the
display in the stand-by mode.

While your display is in stand-by mode, press and hold the stand-by key for approximately 1 second
to activate the display.

4.2 Power mode LED

About the power mode LED

The behavior of the power LED shows the status of the unit:

OFF Hard power OFF (power unplugged or switched off through rocker

switch)

Amber slow
blinking

Full amber Display is in power save mode (backlight and LCD off)
Green/amber

blinking

Full green Display has a valid input signal.

Soft power OFF (switched off by using the stand-by key (

Searching for signal
Note: When Power save mode is enabled, the display will

automatically go into power save mode after 10 seconds of
searching without signal.

))

4.3 OSD menu activation

To activate the OSD menu

Press the key on the display.

As a result, the OSD main menu comes up in the bottom right corner of the screen. If no further actions are
taken within the following 30 seconds, the OSD menu will disappear again.

If after pressing the
enabled. Please refer to “Control lock: OSD menu locking/unlocking”, page 26for more information and
instructions to unlock the OSD menu.

The time-out of the OSD menu automatic close function can be adjusted or disabled in the OSD
menu (OSD Time-out).

The OSD menu position can be adjusted in the OSD menu (OSD Hor. Pos. and OSD Vert. Pos.).

key, the OSD lock window appears then this means that the OSD lock has been

4.4 OSD menu navigation

OSD menu structure explained

Below is an example of the OSD menu structure:

24

K5902133 (451920612483)-02 MDSC-8255


Brightness 50

Contrast 50

Saturation 30

Profile Factory

Color temperature 6500K

Gamma Native

Sharpness 10

Color space ITU709

1

4

2


System

Input

select


advanced

Configuration

3

5

1024x768@100 Hz

Image 4-1

1. Menu pages

2. Sub-menus (menu items)

3. Status bar

4. Selector/Slider

5. Item

Daily operation

Grayed out menu items are not available on the specific display version.

To navigate through the OSD menu

Image 4-2

• Press the key to open the OSD menu.

• Use the

• When the desired Menu page is highlighted, press the

or key to scroll to the desired menu page.

key to select the top menu item that will be

highlighted.

• Use the

• If the selected menu item is controlled by a slider use the

the

• If the selected menu item is a multiple choices menu use the

press the

• Press again

or keys to move to other Menu Items, then press the key to select it.

or keys to adjust the item value, then press

key to confirm.

or keys to select the desired option then

key to confirm.

or key to select other Menu items or exit from the Menu page by pressing the key.

4.5 Shortkey functions

About shortkey functions

The concept of shortkey functions is to present a selection of commonly used functions immediately available
without the need to navigate through the OSD menu.

The different available shortkey functions are:

• Main source selection

• Brightness adjustment

K5902133 (451920612483)-02 MDSC-8255

25

1 2 3

Brightness

50

OSD lock

Sequence: 5 - 6 - 6 - 3

Daily operation

Overview of shortkeys

Image 4-3

1. Main source selection

2. Brightness decrease

3. Brightness increase

4.5.1 Main source selection

To quickly select the main source

Press the key to scroll through all the possible input signals and quickly select the main source.

Available main source options may differ depending on display model.

To avoid unwanted or accidental activation of any function through the keyboard all keys,except the
Power On/Off, can be locked using a dedicated OSD Menu function (see “Control lock: OSD menu
locking/unlocking”, page 26).

4.5.2 Brightness adjustment

To quickly adjust the brightness

While no OSD menu is on the screen, press the or key to adjust the brightness as desired.

Image 4-4

4.6 Control lock: OSD menu locking/unlocking

About the OSD lock

As described in “OSD lock”, page 40, the OSD lock can be enabled to avoid unwanted access. When the OSD
is locked, pressing the
OSD lock window appear. The OSD menu can only be accessed after pressing a sequence of keys.

key after unlocking the keyboard will not activate the OSD menu, but will make the

Image 4-5

To lock/unlock the menu

When the OSD lock window appears, press the following key sequence to unlock the OSD menu:

26

K5902133 (451920612483)-02 MDSC-8255

Daily operation

, , ,

Each time a key is pressed an asterisk is shown in the square boxes.

After pressing the fourth key, if the sequence is correct, the OSD main menu is activated. After exit, the OSD
menu will automatically lock again.

K5902133 (451920612483)-02 MDSC-8255

27

Daily operation

28

K5902133 (451920612483)-02 MDSC-8255

Advanced operation 5

Not all features described in the chapter “Advanced operation” are available. The features not
available in specific software versions are shown on OSD menu in light-grey.

K5902133 (451920612483)-02 MDSC-8255

29

Advanced operation

5.1 Picture menu

5.1.1 Profile

About profiles

To select a profile means to load a set of predefined video parameters like Brightness, Contrast, Saturation,
Input selection (Primary & Secondary), Multi-image layout selection, etc.

The user can modify the default video parameters associated to each profile and save the new parameters
setting under the User 1, User 2 or User 3 profile. The Factory and X Ray profiles can be temporarily modified,
but the factory default can’t be overwritten and can always be recalled through the recall profile menu item.

The available profiles for your display are:

• Factory

• X Ray (by selecting this profile, Gamma and Color temperature will be automatically set to DICOM and

Native respectively)

• User 1

• User 2

• User 3

To select a profile

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Profile submenu.

4. Select one of the available profiles and confirm.

5.1.2 Brightness

To adjust the brightness level

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Brightness submenu.

The command bar Brightness is highlighted.

4. Set the brightness level as desired and confirm.

The selected brightness is maintained at a constant level by the automatic backlight stabilization
function.

The brightness level can also be adjusted through a shortkey function.

Brightness level is adjusted by controlling the backlight illumination only.

5.1.3 Contrast

To adjust the contrast level

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Contrast submenu.

The command bar Contrast is highlighted.

4. Set the contrast level as desired and confirm.

30

K5902133 (451920612483)-02 MDSC-8255

5.1.4 Saturation

To adjust the saturation level

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Saturation submenu.

The command bar Saturation is highlighted.

4. Set the saturation level as desired and confirm.

5.1.5 Color temperature

About color temperature presets

The available color temperature presets for your display are:

• 5600K

• 6500K

• 7600K

• 9300K

• Native

• User

Advanced operation

Factory calibration – White point:
The White Color points associated with the Color Temperature: 5600K, 6500K, 7600K or 9300K are
factory calibrated with a consequent reduction of the maximum luminance compared to Native
Color Temperature.

Only in case the User preset has been selected it is possible to get access to the color regulation
commands to adjust the gain and offset of red, green and blue primary colors.

To select a color temperature preset

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Color Temperature submenu.

4. Select one of the available color temperature presets and confirm.

If you selected the User color temperature preset, a new menu will be displayed allowing you to
manually adjust the gain and offset of red, green and blue.

5.1.6 Color space

About color space presets

The available color space presets for your display are:

• Native (LCD primaries uncalibrated)

• ITU709

• BT.2020

• DCI-P3 D65

Factory calibration – Color space:
RGB primary calibration, according to the selected standard, is performed within the physical
limitation of the LCD panel used.

To select a color space preset

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Color Space submenu.

K5902133 (451920612483)-02 MDSC-8255

31

Advanced operation

4. Select one of the available color space presets and confirm.

5.1.7 Gamma

About gamma presets

The available gamma presets for your display are:

• 1.8

• 2.2

• 2.4

• Video (transfer function adapted for video cameras with dark levels enhancement)

• Native (no correction curve is applied)

• DICOM (grayscale levels are following closely the DICOM curve – for reference only, not for diagnostic

purposes)

To select a gamma preset

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Gamma submenu.

4. Select one of the available gamma presets and confirm.

5.1.8 Sharpness

To adjust the sharpness level

1. Bring up the OSD main menu.

2. Navigate to the Picture menu.

3. Enter the Sharpness submenu.

The command bar Sharpness is highlighted.

4. Set the sharpness level as desired and confirm.

Sharpness control is not available when DisplayPort mode DP 1.1 dual is selected (see
“DisplayPort mode”, page 35).

5.2 Picture advanced menu

5.2.1 Black Level

About black level

This command allows to add or subtract an offset to the input video signal (available only on video formats).

To adjust the black level

1. Bring up the OSD main menu.

2. Navigate to the Picture advanced menu.

3. Enter the Black Level submenu.

The command bar Black Level is highlighted.

4. Set the black level as desired and confirm.

5.2.2 Latency

About latency

The video latency is defined as the delay between the time of a monitor input video transition to the
corresponding light output transition on screen.

32

K5902133 (451920612483)-02 MDSC-8255

Advanced operation

The available latency modes for your display are:

• Diagnostic: Best picture quality

• Surgical: Lowest latency, optimized for fast moving images

To select the latency mode

1. Bring up the OSD main menu.

2. Navigate to the Picture Advanced menu.

3. Enter the Latency submenu.

4. Select one of the available latency modes and confirm.

5.2.3 Input range

About input range

This command sets the RGB signal range for DVI and SDI inputs. Suggest to set the input range according to
the input signal range.

The available input ranges are:

• 0–255

• 16–235

• 16–255

To select the input range

1. Bring up the OSD main menu.

2. Navigate to the Picture Advanced menu.

3. Enter the Input range submenu.

4. Select one of the available input ranges and confirm.

Input range control is available only when the selected main source (see “Main Source”, page 34) is
DVI or SDI.

5.2.4 Image Size

About image size

The available image sizes for your display are:

• Aspect (fill the screen on largest dimension, no modification in image aspect-ratio)

• Native (input pixel to LCD pixel mapping, no scaling)

In both Aspect and Native, the image may be displayed with black bars on top/bottom or left/right.

To select the image size

1. Bring up the OSD main menu.

2. Navigate to the Picture Advanced menu.

3. Enter the Image Size submenu.

4. Select one of the available image sizes and confirm.

5.2.5 Image Flip

About image flip

This function allows you to flip the image on your display.

The available options are:

• Disabled (no image flip applied)

K5902133 (451920612483)-02 MDSC-8255

33

Advanced operation

• Mirror (flips the image horizontally, making the left content appear on the right and vice versa)

• Rotation (rotates the image 180°)

When image rotation is selected, the latency will increase with 20 msec. Image mirroring does not
cause any latency increase.

To enable/disable horizontal flip

1. Bring up the OSD main menu.

2. Navigate to the Picture Advanced menu.

3. Enter the Image Flip submenu.

4. Select one of the available options and confirm.

5.2.6 Screen Resolution

About screen resolution

This function allows you to adjust the image resolution of the preferred timing detailed in the EDID exposed to
the DP input and to the integrated Nexxis decoder.

The available options are:

• 4K (17:9) (for image resolution of 4096 x 2160)

• UHD (16:9) (for image resolution of 3840 x 2160)

Image resolution of the preferred timing detailed in the EDID exposed to HDMI-1 and HDMI-2 are
predefined as follows: HDMI-1 = 16:9; HDMI-2 = 17:9.

To enable/disable horizontal flip

1. Bring up the OSD main menu.

2. Navigate to the Picture Advanced menu.

3. Enter the Screen Resolution submenu.

4. Select one of the available options and confirm.

5.3 Input select menu

5.3.1 Main Source

About main sources

The available main sources for your display are:

• DVI

• SDI

• DisplayPort

• HDMI–1 (MDSC-8255 LED version only)

• HDMI–2 (MDSC-8255 LED version only)

• Nexxis (MDSC-8255 MNA version only)

Available main source options may differ depending on display model.

The main source can also be quickly selected through the Input selection key ( ), without the need
to navigate through the OSD menu.

To select the main source

1. Bring up the OSD main menu.

34

K5902133 (451920612483)-02 MDSC-8255

2. Navigate to the Input Select menu.

3. Enter the Main Source submenu.

4. Select one of the available main sources and confirm.

5.3.2 DisplayPort mode

About DisplayPort mode

The available DisplayPort (DP) modes for your display are:

• DP 1.2 MST

• DP 1.1 main

• DP 1.1 dual

Please refer to the technical specifications for an overview of accepted video formats.

To select the DisplayPort mode

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the DP mode submenu.

4. Select one of the available DisplayPort modes and confirm.

Advanced operation

5.3.3 Auto search

About auto search

By enabling the input selection auto search function, the display will automatically detect the connected
source and display it on the screen.

To enable/disable auto search

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the Auto search submenu.

4. Enable/Disable auto search as desired and confirm.

5.3.4 Failover input

About failover input

This function allows the display to automatically switch to a failover (backup) source in case the main source
(DisplayPort, HDMI, Nexxis) is missing. The display will automatically restore the main source once the signal
is back.

The available failover inputs for your display are:

• None

• DVI

• SDI

The failover input can only be selected when both

1. the Auto search function is disabled (see “Auto search”, page 35), and

2. the PiP/PaP Modes function is disabled (see“Picture and Picture input”, page 36 and “Picture in
Picture input”, page 37).

If any of both functions are enabled then failover will be disabled and made unavailable. As soon as
both functions are disabled again, failover will be enabled and made available again with the
selected failover input.

K5902133 (451920612483)-02 MDSC-8255

35

Advanced operation

The failover input will be activated within about 7 seconds after the main source has been lost.

During the transition from main to failover input and vice versa, a text message is visible to inform
the user.

The main source can be changed while the failover input remains unchanged. During the selection
and synchronization of a new main source the failover function is temporary (7 sec) disabled.

To select the failover input

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the Failover Input submenu.

4. Select one of the available failover inputs and confirm.

5.3.5 Picture and Picture input

About Picture and Picture input

This function allows the display to show a second input source on the left side of the display. The Primary input
(main source) is still displayed on the right half of the screen.

The possible Picture and Picture combinations between the Primary input (main source) and the Secondary
input (PaP image) is displayed in the following table.

Primary input Secondary input

DP 1.1 • HDMI 2.0–1

• HDMI 2.0–2

• DVI

• SDI

HDMI 2.0–1
HDMI 2.0–2

DVI
SDI

Both primary and secondary input are limited to FHD resolution max.

The Video Parameters applied to the Primary input Source are also applied to the Secondary input.

The 2nd source keeps the same image size (Native/Aspect) as the Primary input Source.

• DP 1.1 / Dual

• DVI

• SDI

• DP 1.1 / Dual

• HDMI 2.0–1

• HDMI 2.0–2

To select Picture and Picture input

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the PaP Input submenu.

4. Select one of the available PaP sources (or NONE) and confirm.

36

K5902133 (451920612483)-02 MDSC-8255

Advanced operation

5.3.6 Picture in Picture input

About Picture in Picture input

This function allows the display to show a second input source as an inset window inside the main source.

The possible Picture in Picture combinations between the Primary input (main source) and the Secondary
input (PiP image) is displayed in the following table.

Primary input Secondary input

DP 1.2 MST / 1.1 / Dual
HDMI 2.0–1
HDMI 2.0–2

Gamma and Color temperature for the PiP Source are always set to Native and 6500 K
independently from the Transfer Function applied to the Primary input Source.

• DVI

• SDI

To select Picture in Picture input

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the PiP Input submenu.

4. Select one of the available PiP inputs (or NONE) and confirm.

5.3.7 Picture in Picture mode

About Picture in Picture mode

The available Picture in Picture modes for your display are:

• Large PiP: 35% of display horizontal size in top or bottom of right corners

• Small PiP: 25% of display horizontal size in top or bottom of right corners

To select Picture in Picture mode

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the Picture in Picture Mode submenu.

4. Select one of the available Picture in Picture modes and confirm.

5.3.8 Picture in Picture position

About Picture in Picture position

The available Picture in Picture positions for your display are:

• Bottom right

• Top right

To select Picture in Picture position

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the PiP Position submenu.

4. Select one of the available PiP positions and confirm.

K5902133 (451920612483)-02 MDSC-8255

37

Advanced operation

5.3.9 Picture in Picture transparency

About Picture in Picture transparency

The available Picture in Picture transparencies range selectable for your display is between:

• 0: No transparency

• 10: Maximum transparency (roughly 37%)

To select Picture in Picture mode

1. Bring up the OSD main menu.

2. Navigate to the Input Select menu.

3. Enter the PiP transparency submenu.

4. Select one of the required PiP transparency value and confirm.

5.4 Configuration menu

5.4.1 Information

About information

The available information items for your display are:

• Model (commercial type identification)

• SW package (display firmware identification)

• Main board release (hardware and firmware identification)

• MNA release (firmware identification)

• Eth1 Main (IP address of Main ethernet (1) port of the monitor)

• Eth2 2nd (IP address of 2nd ethernet (2) port of the monitor)

• Keyboard release (hardware and firmware identification)

• SDI module release (hardware and firmware identification)

• Serial Number (unit serial number)

• Main FPGA release (firmware identification)

To access information

1. Bring up the OSD main menu.

2. Navigate to the Configuration menu.

3. Enter the Information submenu.

5.4.2 Language

About languages

The available languages for your display OSD menu are:

• English

• Français

• Deutsch

• Español

• Italiano

To select the language

1. Bring up the OSD main menu.

2. Navigate to the Configuration menu.

3. Enter the Language submenu.

4. Select one of the available languages and confirm.

38

K5902133 (451920612483)-02 MDSC-8255

Advanced operation

5.4.3 OSD Time-out

About OSD time-out

The OSD menu can automatically close after a certain time of inactivity after the last selection was made.

The available OSD time-out values for your display are:

• 10 Sec.

• 20 Sec.

• 30 Sec.

• 60 Sec.

• Disabled (=5 minutes)

To adjust the OSD time-out

1. Bring up the OSD main menu.

2. Navigate to the Configuration menu.

3. Enter the OSD setting submenu.

4. Select OSD Time-out

5. Select one of the available OSD time-out values and confirm.

5.4.4 Recall Profile

About recalling profiles

To recall a profile means to restore the default factory settings (Factory and X Ray profiles) or recall the user
defined profiles.

The available profiles to recall from your display are:

• Factory

• X Ray

• User 1

• User 2

• User 3

To recall a profile

1. Bring up the OSD main menu.

2. Navigate to the Configuration menu.

3. Enter the Recall Profile submenu.

4. Select one of the available profiles to recall and confirm.

5.4.5 Save Profile

About saving profiles

The user can modify the default video parameters associated to each profile and save the new parameter
settings under the User 1, User 2 or User 3 profile. The Factory and X Ray profiles can be modified, but the
factory default can’t be overwritten and can always be recalled through the recall profile menu item.

The available profiles to save in your display are:

• User 1

• User 2

• User 3

To save a profile

1. Bring up the OSD main menu.

2. Navigate to the Configuration menu.

3. Enter the Save Profile submenu.

K5902133 (451920612483)-02 MDSC-8255

39

Advanced operation

4. Select one of the available profiles to save and confirm.

5.5 System menu

5.5.1 Power on DVI

About power on DVI

This setting allows you to select the pin of the DVI connector on which the +5V DC supply is applied.

The available options are:

• Disabled

• +5V on Pin 14

• +5V on Pin 16

To select the power on DVI

1. Bring up the OSD main menu.

2. Navigate to the System menu.

3. Enter the Power on DVI submenu.

4. Select one of the available options and confirm.

5.5.2 Power on DisplayPort

About power on DisplayPort

This setting allows you to select if the +3V3 DC supply is applied on the DisplayPort connector or not.

The available options are:

• Disabled

• +3V3 on DP main

To select the power on DisplayPort

1. Bring up the OSD main menu.

2. Navigate to the System menu.

3. Enter the Power on DP submenu.

4. Select one of the available options and confirm.

5.5.3 OSD lock

About OSD locking

This setting allows you to avoid unwanted activation of any function through the keyboard. By enabling the
Control lock function, the front keyboard can only be accessed after pressing a sequence of keys. Please refer
to “Control lock: OSD menu locking/unlocking”, page 26.

To enable/disable OSD locking

1. Bring up the OSD main menu.

2. Navigate to the System menu.

3. Enter the Control Lock submenu.

4. Enable/Disable Control locking as desired and confirm.

5.5.4 Power saving

About power saving

When the selected input(s) is (are) missing (main, 2nd and failover), this setting allows the display to switch off
the backlight and enter a low power mode. As soon as the selected input(s) is (are) present again, the display

40

K5902133 (451920612483)-02 MDSC-8255

Advanced operation

will exit the power save mode and display the image. Also, by activating the OSD menu, the display will exit
power save mode.

When the Auto search function is enabled (see “Auto search”, page 35), the display will not enter
the power save mode, even when the input(s) is (are) missing.

To enable/disable power saving

1. Bring up the OSD main menu.

2. Navigate to the System menu.

3. Enter the Power Saving submenu.

4. Enable/Disable power saving as desired and confirm.

5.5.5 DVI output

About DVI output

This setting allows to enable or disable the DVI output function of your display. Enabling DVI output will
duplicate the entire image on the screen (including OSD) to a FHD (1080p/1080i) signal on the DVI output
connector. For 4K images, the center part of the image will be down-scaled to FHD resolution.

To enable/disable DVI output

1. Bring up the OSD main menu.

2. Navigate to the System menu.

3. Enter the DVI output submenu.

4. Enable/Disable DVI output as desired and confirm.

5.5.6 Operating hours

About operating hours

This information shows the operation hours of your display.

To consult operating hours

1. Bring up the OSD main menu.

2. Navigate to the System menu.

3. The operation hours of your display are shown at the bottom of the menu.

K5902133 (451920612483)-02 MDSC-8255

41

Advanced operation

42

K5902133 (451920612483)-02 MDSC-8255

Important information

6

K5902133 (451920612483)-02 MDSC-8255

43

Important information

6.1 Safety information

General recommendations

Read the safety and operating instructions before operating the device.

Retain safety and operating instructions for future reference.

Adhere to all warnings on the device and in the operating instructions manual.

Follow all instructions for operation and use.

Electrical Shock or Fire Hazard

To prevent electric shock or fire hazard, do not remove cover.

No serviceable parts inside. Refer servicing to qualified personnel.

Do not expose this apparatus to rain or moisture.

Modifications to the unit

Do not modify this equipment without authorization of the manufacturer.

Preventive maintenance

Performance of preventive maintenance is not essential. Periodic maintenance inspections are essential to
keep the monitor in optimum condition and ensure safe operation. We recommend a functional and safety test
of the monitor at regular intervals (e.g. at least once a year).

Type of protection (Electrical)

Equipment with external power supply: Class I equipment

Degree of safety (flammable anesthetic mixture)

Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or
nitrous oxide.

Non-patient care equipment

• Equipment primarily for use in a health care facility that is intended for use where contact with a patient is

unlikely (no applied part).

• The equipment shall not be used with life support equipment.

• The user should not touch the equipment, nor its signal input ports (SIP)/signal output ports (SOP) and the

patient at the same time.

Mission critical applications

We strongly recommend there is a replacement display immediately available in mission critical applications.

Use of electrical surgical knives

Provide as much distance as possible between the electrosurgical generator and other electronic equipment
(such as monitors). An activated electrosurgical generator may cause interference with them. The interference
can activate the OSD menu of the display and as such disrupt the functionality of the display.

Power connection – Equipment with internal power supply

• This equipment must be earthed.

• Power requirements: The equipment must be powered by the AC mains voltage.

• The equipment should be installed near an easily accessible outlet.

• The equipment is intended for continuous operation.

Power cords:

• Europe: H05VV-F or H05VVH2-F PVC cord with appropriate EU plug.

44

K5902133 (451920612483)-02 MDSC-8255

Important information

• US and Canada: “hospital grade” cord-set has to be used, provided with instructions to indicate that

grounding reliability can be achieved only when the equipment is connected to an equivalent receptacle
marked hospital only or hospital grade. These instructions need to be marked either on the equipment or
on a tag on the power cord.

Transient over-voltage

If the device is not used for a long time, disconnect it from the AC inlet to avoid damage by transient over­voltage.

To fully disengage the power to the device, please disconnect the power cord from the AC inlet.

Connections

Any external connection with other peripherals must follow the requirements of clause 16 of IEC60601-1 3rd
ed. or Table BBB.201 of IEC 60601-1-1 for the medical electrical systems.

Connection of PEMS by network/data coupling to other equipment (MDSC-8255 MNA
version only)

• Connection of the PEMS to a network/data coupling that includes other equipment could result in

previously unidentified risks to patients, operators or third parties.

• The responsible organization should identify, analyze, evaluate and control these risks.

• Subsequent changes to the network/data coupling could introduce new risks and require additional

analysis.

• Changes to the network/data coupling include:

- changes in network/data coupling configuration;

- connection of additional items to the network/data coupling configuration;

- disconnecting items from the network/data coupling configuration;

- update of equipment connected to the network/data coupling configuration;

- upgrade of equipment connected to the network/data coupling configuration

Water and moisture

The equipment is IP20 compliant. The monitor front side is IPX5 compliant (for versions with front protection
glass only).

Moisture condensation

Do not use monitor under rapid temperature and humidity change condition or avoid cold air from air­conditioning outlet directly.

Moisture may condense on the surface or inside of the unit, or create a mist residue inside the protection
plate, this is not a malfunction of the product itself, although it may cause damage to the monitor.

If condensation happens, let the monitor stand unplugged until there is no condensation.

Ventilation

Do not cover or block any ventilation openings in the cover of the set. When installing the device in a cupboard
or another enclosed location, heed the necessary space between the set and the sides of the cupboard.

Installation

• Place the equipment on a flat, solid and stable surface that can support the weight of at least 3 units. If you

use an unstable cart or stand, the equipment may fall, causing serious injury to a child or adult, and serious
damage to the equipment.

• Do not allow to climb or rest on the equipment.

• When adjusting the angle of the equipment, move it slowly so as to prevent the equipment from moving

from or slipping off its stand or arm.

• When the equipment is attached to an arm, do not use the equipment as a handle or grip in order to move

the equipment. Please refer to the instruction manual of the arm for instructions on how to move the arm
with the equipment.

• Provide full attention to safety during installation, periodic maintenance and examination of this equipment.

K5902133 (451920612483)-02 MDSC-8255

45

Important information

• Sufficient expertise is required for installing this equipment, especially to determine the strength of the wall,

arm or ceiling suspension for withstanding the display's weight. Be sure to entrust the attachment of this
equipment to the wall to a duly skilled technician and pay adequate attention to safety during the
installation and usage.

• The manufacturer is not liable for any damage or injury caused by mishandling or improper installation.

Malfunctions

Disconnect the equipment’s power cord from the AC inlet and refer servicing to qualified service technicians
under the following conditions:

• If the power cord or plug is damaged or frayed.

• If liquid has been spilled into the equipment.

• If the equipment has been exposed to rain or water.

• If the equipment does not operate normally when the operating instructions are followed. Adjust only those

controls that are covered by the operating instructions since improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product to
normal operation.

• If the equipment has been dropped or the cabinet has been damaged.

• If the product exhibits a distinct change in performance, indicating a need for service.

General warnings

• All devices and complete setup must be tested and validated before taking into operation.

• At end user application level it is necessary to foresee a backup unit in case the monitor fails.

Technical data

• The monitor is intended for indoor use

• The monitor has been designed to be used in landscape position

• Class I Equipment, according to the type of protection against electric shock

• The monitor is not intended to be sterilized

• The monitor has no applied parts.

• The enclosure has to be checked upon collision damage, refer to qualified service personnel

This apparatus conforms to:

Medical Equipment:

• IEC 60601-1: 2012 Edition 3.1 (Medical electrical equipment – Part 1: General requirements for basic

safety and essential performance)

• EN 60601-1: 2006 +A1:2013 (Medical electrical equipment”. Part 1: General requirements basic safety and

essential performance)

• ANSI/AAMI ES 60601-1: 2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012 - Med. El.

Equip., Part 1: general req. for basic safety and essential performance.

• CAN/CSA-C22.2 No. 60601-1: 14 Medical Electrical Equipment - Part 1: General Requirements for Basic

Safety and Essential Performance (Harmonized with Ed. 3.1)

EMC:

• IEC 60601-1-2 (4th Ed)

• EN 55011 / CISPR11 (MDSC-8255: Class B)

National Scandinavian Deviations for CL. 1.7.2

Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan"

Norway: "Apparatet må tilkoples jordet stikkontakt"

Sweden: "Apparaten skall anslutas till jordat uttag"

46

K5902133 (451920612483)-02 MDSC-8255

Important information

6.2 Environmental information

Disposal Information

Waste Electrical and Electronic Equipment

This symbol on the product indicates that, under the European Directive (EU) 2015/863 governing waste
from electrical and electronic equipment, this product must not be disposed of with other municipal waste.
Please dispose of your waste equipment by handing it over to a designated collection point for the recycling of
waste electrical and electronic equipment. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.

For more information about recycling of this product, please contact your local city office or your municipal
waste disposal service.

For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee

Turkey RoHS compliance

Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.

[Republic of Turkey: In conformity with the WEEE Regulation]

中国大陆 RoHS

Chinese Mainland RoHS
根据中国大陆《电器电子产品有害物质限制使用管理办法》（也称为中国大陆RoHS）， 以下部分列出了

Barco产品中可能包含的有毒和/或有害物质的名称和含量。中国大陆RoHS指令包含在中国信息产业部MCV标

准：“电子信息产品中有毒物质的限量要求”中。

According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical
and Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and
contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese
Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit
Requirements of toxic substances in Electronic Information Products”.

零件项目(名称)
Component name

印制电路配件

Printed Circuit Assemblies

液晶面板

LCD panel
外接电(线)缆
External Cables

內部线路

Internal wiring

金属外壳

Metal enclosure

塑胶外壳

Plastic enclosure
散热片(器)

Heatsinks

有毒有害物质或元素

Hazardous substances and elements

铅

Pb

X O O O O O

X O O O O O

X O O O O O

O O O O O O

O O O O O O

O O O O O O

O O O O O O

汞

Hg

镉

Cd

六价铬

Cr6+

多溴联苯

PBB

多溴二苯醚

PBDE

K5902133 (451920612483)-02 MDSC-8255

47

10

Important information

零件项目(名称)
Component name

风扇

Fan

电源供应器

Power Supply Unit

文件说明书

Paper Manuals

光盘说明书

CD manual
本表格依据SJ/T 11364的规定编制

This table is prepared in accordance with the provisions of SJ/T 11364.
O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下.
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part

is below the limit requirement in GB/T 26572.
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials

used for this part is above the limit requirement in GB/T 26572.

在中国大陆销售的相应电子信息产品（EIP）都必须遵照中国大陆《电子电气产品有害物质限制使用标识要
求》标准贴上环保使用期限（EFUP）标签。Barco产品所采用的EFUP标签（请参阅实例，徽标内部的编号使
用于指定产品）基于中国大陆的《电子信息产品环保使用期限通则》标准。

All Electronic Information Products (EIP) that are sold within Chinese Mainland must comply with the “Marking
for the restriction of the use of hazardous substances in electrical and electronic product” of Chinese
Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP
logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly
use period of electronic information products” of Chinese Mainland.

有毒有害物质或元素

Hazardous substances and elements

铅

Pb

O O O O O O

X O O O O O

O O O O O O

O O O O O O

汞

Hg

镉

Cd

六价铬

Cr6+

多溴联苯

PBB

多溴二苯醚

PBDE

RoHS

Directive 2011/65/EC on the restriction of certain hazardous substances in electrical and electronic
equipment.

According to what declared by our components suppliers, this product is RoHS compliant.

6.3 Biological hazard and returns

Overview

The structure and the specifications of this device as well as the materials used for manufacturing makes it
easy to wipe and clean and therefore suitable to be used for various applications in hospitals and other
medical environments, where procedures for frequent cleaning are specified.

However, normal use shall exclude biological contaminated environments, to prevent spreading of infections.

Therefore use of this device in such environments is at the exclusive risk of Customer. In case this device is
used where potential biological contamination cannot be excluded.

Customer shall implement the decontamination process as defined in the latest edition of the ANSI/AAMI
ST35 standard on each single failed Product that is returned for servicing, repair, reworking or failure
investigation to Seller (or to the Authorized Service Provider). At least one adhesive yellow label shall be

48

K5902133 (451920612483)-02 MDSC-8255

Important information

attached on the top site of the package of returned Product and accompanied by a declaration statement
proving the Product has been successfully decontaminated.

Returned Products that are not provided with such external decontamination label, and/or whenever such
declaration is missing, can be rejected by Seller (or by the Authorized Service Provider) and shipped back at
Customer expenses.

6.4 Maintenance

6.4.1 Cleaning and disinfection

Instructions

• Be sure to unplug the power cord from the mains when cleaning your LCD monitor.

• Take care not to scratch the front surface with any hard or abrasive material.

• Dust, finger marks, grease etc. can be removed with a soft damp cloth (a small amount of mild detergent

can be used on the damp cloth).

• Wipe off water drop immediately.

Possible cleaning solutions

• 250 ppm chlorine solution

• NaCI solution 0.9% – Sodim chloride 00-236

• Bacillol AF

• 1.6 percent aqueous ammonia

• Cidex® (2.4 percent glutaraldehyde solution)

• Sodium hypochlorite (bleach) 10 percent

• “Green soap” (USP)

• Like Cleansafe® optical cleaning liquid

• Isopropanol

• Haemosol solution (1% in 1 liter water)

• Chlorehexidine 0,5% in 70% Ethanol

6.5 Regulatory compliance information

Indications for use

This device is intended to be used in operation rooms, to display images from endoscopic cameras, room and
boom cameras, ultrasound, cardiology, PACS, anesthesiology and patient information. It is not intended for
diagnosis.

Manufacturing country

The manufacturing country of the product is indicated on the product label (“Made in …”).

Importers contact information

To find your local importer, contact one of Barco’s regional offices via the contact information provided on our
website (www.barco.com).

FCC class B

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If

K5902133 (451920612483)-02 MDSC-8255

49

S&E

Important information

this device does cause harmful interference to radio or television reception, which can be determined by
turning the device off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

Canadian notice

CAN ICES-1/NMB-1

6.6 Explanation of symbols

Symbols on the device

On the device or power supply, you may find the following symbols (nonrestrictive list):

Indicates the device meets the requirements of the applicable EC directives.

Indicates compliance with Part 15 of the FCC rules (Class A or Class B)

Indicates the device is approved according to the UL Recognition regulations

MEDICAL – GENERAL MEDICAL EQUIPMENT
AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY
IN ACCORDANCE WITH ANSI/AAMI AS60601-1:2005/(R)2012, CSA CAN/CSA-

C222.2 NO. 60601-1:14
Indicates the device is approved according to the UL Demko regulations

Indicates the device is approved according to the CCC regulations

Indicates the device is approved according to the VCCI regulations

Indicates the device is approved according to the KC regulations

Indicates the device is approved according to the BSMI regulations

50

Indicates the device is approved according to the PSE regulations

Indicates the device is approved according to the RCM regulations

K5902133 (451920612483)-02 MDSC-8255

IS 13252 (Part 1)

IEC 60950-1

R-xxxxxxxx

yy

xx

SN

REF

Important information

Indicates the device is approved according to the EAC regulations

Caution: Federal law (United Stated of America) restricts this device to sale by or on
the order of a licensed healthcare practitioner.

Indicates the device is approved according to the BIS regulations

Indicates the USB connectors on the device

Indicates the DisplayPort connectors on the device

Indicates the legal manufacturer

Indicates the manufacturing date

Indicates the temperature limitations1for the device to safely operate within specs.

Indicates the device serial number

Indicates the device part number or catalogue number

Warning: dangerous voltage

Caution

Consult the operating instructions

Indicates this device must not be thrown in the trash but must be recycled, according
to the European WEEE (Waste Electrical and Electronic Equipment) directive

Indicates Direct Current (DC)

Indicates Alternating Current (AC)

Stand-by

1: Values for xx and yy can be found in the technical specifications paragraph.

K5902133 (451920612483)-02 MDSC-8255

51

15

n

n

xx-yy Kg

xx-yy

xx-yy

-20 °C

+60 °C

xx

yy

85 %

5 %

x

yy

106 kPa

50 kPa

xx

yyy

Important information

Equipotentiality

Protective earth (ground)

or

Symbols on the box

On the box of the device, you may find the following symbols (nonrestrictive list):

Indicates a device that can be broken or damaged if not handled carefully when being
stored.

Indicates a device that needs to be protected from moisture when being stored.

Indicates the storage direction of the box. The box must be transported, handled and
stored in such a way that the arrows always point upwards.

Indicates the maximum number of identical boxes which may be stacked on each
other, where “n” is the limiting number.

or

Indicates the weight of the box and that it should be carried with two persons.

or

Indicates that the box should not be cut with a knife, a cutter or any other sharp object.

Indicates the temperature limits2to which the device can be safely exposed when
being stored.

Indicates the range2of humidity to which the device can be safely exposed when being
stored.

Indicates the range2of atmospheric pressure to which the device can be safely
exposed when being stored.

6.7 Legal disclaimer

Disclaimer notice

Although every attempt has been made to achieve technical accuracy in this document, we assume no
responsibility for errors that may be found. Our goal is to provide you with the most accurate and usable
documentation possible; if you discover errors, please let us know.

Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco
Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc.
and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is
authorized.

2: Values for xx and yy can be found in the technical specifications paragraph.

52

K5902133 (451920612483)-02 MDSC-8255

Important information

The specifications of Barco products are subject to change without notice.

Trademarks

All trademarks and registered trademarks are property of their respective owners.

Copyright notice

This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may be
reproduced or copied in any form or by any means - graphical, electronic, or mechanical including
photocopying, taping or information storage and retrieval systems - without written permission of Barco.

© 2018 Barco NV all rights reserved.

6.8 Technical specifications

MDSC-8255 LED

Screen technology TFT AM LCD / IPS technology / LED backlight
LCD panel active screen size

(diagonal)
LCD panel active screen size (H

x V)
LCD panel aspect ratio (H:V) 16:9
LCD panel resolution 3840 x 2160
Pixel pitch 0.315
Color support 1073 million (10-bit)
Color gamut Native: Wide color gamut (96% DCI-P3)

Viewing angle (H, V) 178° Hor / 178° Ver
Luminance Native: 500 cd/m² (Typical)

Backlight sensor Automatic backlight stabilization
Contrast ratio 1400:1 (typical)
LCD response time (Tr + Tf) 8 ms (typical)
White point Native: 10000K (Typical)

Gamma Native, 1.8, 2.0, 2.2, 2.4, DICOM, Video
Housing color RAL 9003
Screen protection 2-side anti-reflective alkali-aluminosilicate glass (no screen protection on

Keyboard Membrane keyboard
Video input signals 4K-UHD input

Video output signals 1x 3G-SDI (3G-SDI input loopthrough)

Video formats • Display Port 1.2 MST (10 bit) up to 3840x2160 @60Hz RGB 30bits/pixel

54.6” / 1388 mm

1210 x 640 mm

Calibrated color space: ITU 709 (default), BT. 2020, DCI-P3 D65

Default setting: 380 cd/ m² @6500K stabilized

Calibrated: 5600K, 6500K, 7600K, 9300K

NG versions)

• 1x DP 1.1 up to 3840 x 2160 @30Hz

• 2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz

• 1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz

• 2 x HDMI 2.0 up to 3840 x 2160 @50Hz/60Hz

FHD input (upscaled to UHD)

• 1x DVI

• 1x 3G-SDI

1x DVI (image on screen downscaled to FHD)

• Dual stream DP 1.1 (10-bit) up to 1920x2160 x2 @60Hz RGB 30bits/

pixel

• HDMI 2.0 up to 3840x2160 @60Hz RGB/YCbCr (4:2:0/4:2:2/4:4:4) with

HDCP 2.2 and 1.4

K5902133 (451920612483)-02 MDSC-8255

53

Important information

• HDMI 1.4 up to 3840x2160 @30Hz RGB/YCbCr (4:2:2/4:4:4) with HDCP

1.4

Remote control Use Type B port for FW download & DDC protocol on DVI and DP auxiliary

channel (on DP main connector)

Power consumption (Max) 145 W ± 10%

Power requirements 100-240 VAC / 50-60 Hz / 1.3-0.7 A

DC power output DVI connector: +5V on pin 14 & 16 / 500mA

DP connector: +3.3V / 500mA
DC out connector: +5V / 2A

Power management Low power mode: 18 W (typical)

Power-off: ~ 1 W

Dimensions display (W x H x D) 1265 x 770 x 85 mm (49.8 x 30.3 x 3.3 in)
Net weight display With front protection glass: 33.0 kg (72.8 lbs)

Without front protection glass : 24.0 kg (52.9 lbs)

Net weight packaged With front protection glass: 39.5 kg (87.1 lbs)

Without front protection glass : 30.5 kg (67.2 lbs)

Mounting standard VESA (200 mm, 600 mm)
Certifications • ANSI/AAMI ES 60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012

and A2:2010/(R)2012 - Med. El. Equip., Part 1: general req. for basic
safety and essential performance

• CAN/CSA-C22.2 No. 60601-1: 14 Medical Electrical Equipment - Part 1:

General Requirements for Basic Safety and Essential Performance
(Harmonized with Ed. 3.1)

• IEC 60601-1: 2012 Edition 3.1 (Medical electrical equipment – Part 1:

General requirements for basic safety and essential performance)

• EN 60601-1: 2006 + A1:2013 (Medical electrical equipment - Part 1:

General requirements for safety)

• Electromagnetic Compatibility: EMC Medical EMC Standards:

IEC60601-1-2 (4th Ed), EN55011 /CISPR 11, FCC CFR47 part 15 & 18/
Class B

• Approvals/Marking: CE, c-UL-us, DEMKO, KCC, CCC

• ROHS-2, REACH, WEEE, CEL compliant

Operating temperature 0 ÷ 35 °C (for performance); 0 ÷ 40 °C (for safety)
Storage temperature -20 ÷ +60°C
Operating humidity 10 ÷ 90% (non-condensing)
Storage humidity 5 ÷ 90% (non-condensing)

MDSC-8255 MNA

Screen technology TFT AM LCD / IPS technology / LED backlight
LCD panel active screen size

(diagonal)
LCD panel active screen size (H

x V)
LCD panel aspect ratio (H:V) 16:9
LCD panel resolution 3840 x 2160
Pixel pitch 0.315
Color support 1073 million (10-bit)
Color gamut Native: Wide color gamut (96% DCI-P3)

Viewing angle (H, V) 178° Hor / 178° Ver
Luminance Native: 500 cd/m² (Typical)

Backlight sensor Automatic backlight stabilization

54

K5902133 (451920612483)-02 MDSC-8255

54.6” / 1388 mm

1210 x 640 mm

Calibrated color space: ITU 709 (default), BT. 2020, DCI-P3 D65

Default setting: 380 cd/ m² @6500K stabilized

Important information

Contrast ratio 1400:1 (typical)
LCD response time (Tr + Tf) 8 ms (typical)
White point Native: 10000K (Typical)

Calibrated: 5600K, 6500K, 7600K, 9300K
Gamma Native, 1.8, 2.0, 2.2, 2.4, DICOM, Video
Housing color RAL 9003
Screen protection 2-side anti-reflective alkali-aluminosilicate glass (no screen protection on

NG versions)
Keyboard Membrane keyboard
Video input signals 4K-UHD input

• 1x DP 1.1 up to 3840 x 2160 @30Hz

• 2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz

• 1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz

2x FO SFP+ for 4K-UHD Nexxis link

FHD input (upscaled to UHD)

• 1x DVI

• 1x 3G-SDI

Video output signals 1x 3G-SDI (3G-SDI input loopthrough)

1x DVI (image on screen downscaled to FHD)
Video formats • Display Port 1.2 MST (10 bit) up to 3840x2160 @60Hz RGB 30bits/pixel

• Dual stream DP 1.1 (10-bit) up to 1920x2160 x2 @60Hz RGB 30bits/

pixel

• HDMI 2.0 up to 3840x2160 @60Hz RGB/YCbCr (4:2:0/4:2:2/4:4:4) with

HDCP 2.2 and 1.4

• HDMI 1.4 up to 3840x2160 @30Hz RGB/YCbCr (4:2:2/4:4:4) with HDCP

1.4

Integrated Nexxis 4k decoder MNA-240 decoder integrated
Remote control FW download, DDC protocol on DVI and DP auxiliary channel (on DP main

connector) & control protocol through network connection
Power consumption (Max) 170 W ± 10%

Power requirements 100-240 VAC / 50-60 Hz / 1.8-0.9 A

DC power output DVI connector: +5V on pin 14 & 16 / 500mA

DP connector: +3.3V / 500mA

USB connector: +5V / 1A

DC out connector: +5V / 2A
Power management Low power mode: 52 W (typical)

Power-off: ~ 1 W

Dimensions display (W x H x D) 1265 x 770 x 85 mm (49.8 x 30.3 x 3.3 in)
Net weight display With front protection glass: 33.6 kg (74.1 lbs)

Without front protection glass : 24.6 kg (54.2 lbs)
Net weight packaged With front protection glass: 40.1 kg (88.4 lbs)

Without front protection glass : 31.1 kg (68.6 lbs)
Mounting standard VESA (200 mm, 600 mm)
Certifications • ANSI/AAMI ES 60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012

and A2:2010/(R)2012 - Med. El. Equip., Part 1: general req. for basic
safety and essential performance

• CAN/CSA-C22.2 No. 60601-1: 14 Medical Electrical Equipment - Part 1:

General Requirements for Basic Safety and Essential Performance
(Harmonized with Ed. 3.1)

• IEC 60601-1: 2012 Edition 3.1 (Medical electrical equipment – Part 1:

General requirements for basic safety and essential performance)

• EN 60601-1: 2006 + A1:2013 (Medical electrical equipment - Part 1:

General requirements for safety)

K5902133 (451920612483)-02 MDSC-8255

55

Important information

• Electromagnetic Compatibility: EMC Medical EMC Standards:

IEC60601-1-2 (4th Ed), EN55011 /CISPR 11, FCC CFR47 part 15 & 18/
Class B

• Approvals/Marking: CE, c-UL-us, DEMKO, KCC, CCC

• ROHS-2, REACH, WEEE, CEL compliant

Operating temperature 0 ÷ 35 °C (for performance); 0 ÷ 40 °C (for safety)
Storage temperature -20 ÷ +60°C
Operating humidity 10 ÷ 90% (non-condensing)
Storage humidity 5 ÷ 90% (non-condensing)

Timings full-HD & 4MP

Format SDI DVI HDMI DP 1.1

720x487i@59.94Hz (NTSC) Y N N N

720x480p@59.94Hz N Y Y Y

720x480p@60.00Hz N Y Y Y

720x576i@50.00Hz (PAL I) Y N N Y

720x576p@50.00Hz N Y Y Y

800x600p@56.25Hz N Y N Y

800x600p@60.317Hz N Y N Y

800x600p@72.19Hz N Y N Y

800x600p@75.00Hz N Y N Y

1024x768p@60.004Hz N Y N Y

1024x768p@70.069Hz N Y N Y

1024x768p@75.029Hz N Y N Y

1024x768p@85.00Hz N Y N Y

1152x864p@75.00Hz N Y N Y

1280x720p@29.97Hz N Y N Y

1280x720p@30.00Hz N Y N Y

1280x720p@50.00Hz Y Y Y Y

1280x720p@59.94Hz Y Y Y Y

1280x720p@60.00Hz Y Y Y Y

1280x1024p@60.013Hz N Y N Y

1280x1024p@75.025Hz N Y N Y

1280x1024p@85.00Hz N Y N Y

1400x1050p@60.00Hz N Y N Y

1600x1200p@60.00Hz N Y N Y

1680x1050p@59.95Hz N Y N Y

1920X1080i@50Hz Y Y Y Y

1920X1080i@59.94Hz Y Y Y Y

56

K5902133 (451920612483)-02 MDSC-8255

Important information

1920X1080i@60Hz Y Y Y Y

1920x1080p@25Hz Y Y Y Y

1920x1080p@29.97Hz Y Y Y Y

1920x1080p@30.00Hz Y Y Y Y

1920x1080p@50.00Hz Y Y Y Y

1920x1080p@59.94Hz Y Y Y Y

1920x1080p@60.00Hz Y Y Y Y

1920x1200p@60.00Hz Y Y Y Y

2048x1536p@60.00Hz N N N Y

2560x1440p@60.00Hz N N Y Y

2560x1600p@60.00Hz N N Y Y

Timings UHD / 4K

Format HDMI DP 1.1 DP 1.2 MST

3840x2160@25.00Hz Y Y Y

3840x2160@30.00Hz Y Y Y

3840x2160@50.00Hz Y N Y

3840x2160@60.00Hz Y N Y

K5902133 (451920612483)-02 MDSC-8255

57

K5902133 (451920612483)-02 | 06/09/2018

Barco NV
President Kennedypark 35
8500 Kortrijk
Belgium

Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium
Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium

www.barco.com
