Barco LED-PRO User Manual

ibaJmol

rлЙкЫл=dмбЗЙ

qj

• Manual # 26-0501000-00

• Revision B

ibaJmol==rлЙкЫл=dмбЗЙ

`зйукбЦЬн

© Barco, Inc. May 1, 2006

All rights reserved. No part of this document may be copied, reproduced or translated. It
shall not otherwise be recorded, transmitted or stored in a retrieval system without the prior
written consent of Barco.

kзнбЕЙ

Barco provides this manual “as is” without warranty of any kind, either expressed or
implied, including but not limited to the implied warranties or merchantability and fitness for
a particular purpose. Barco may make improvements and/or changes to the product(s) and/
or the program(s) described in this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors. Changes are
periodically made to the information in this publication; these changes are incorporated in
new editions of this publication.

cЙЗЙк~д=`зггмебЕ~нбзел=`зггбллбзе=Ec``F=pн~нЙгЙен

This equipment has been tested and found to comply with the limits for a class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area may cause harmful interference, in which case the user will be responsible for
correcting any interference.

dм~к~енЙЙ=~еЗ=`згйЙел~нбзе

Barco provides a guarantee relating to perfect manufacturing as part of the legally
stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all
delivered goods for damage incurred during transport, as well as for material and
manufacturing faults Barco must be informed immediately in writing of any complaints.

The period of guarantee begins on the date of transfer of risks, in the case of special
systems and software on the date of commissioning, at latest 30 days after the transfer of
risks. In the event of justified notice of compliant, Barco can repair the fault or provide a
replacement at its own discretion within an appropriate period. If this measure proves to be
impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or
cancellation of the contract. All other claims, in particular those relating to compensation for
direct or indirect damage, and also damage attributed to the operation of software as well
as to other services provided by Barco, being a component of the system or independent
service, will be deemed invalid provided the damage is not proven to be attributed to the
absence of properties guaranteed in writing or due to the intent or gross negligence or part
of Barco.

If the purchaser or a third party carries out modifications or repairs on goods delivered by
Barco, or if the goods are handled incorrectly, in particular if the systems are commissioned
operated incorrectly or if, after the transfer of risks, the goods are subject to influences not

ii LED-PRO • User’s Guide

agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
Not included in the guarantee coverage are system failures which are attributed to
programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal
wear as well as normal maintenance are not subject to the guarantee provided by Barco
either.

The environmental conditions as well as the servicing and maintenance regulations
specified in this manual must be complied with by the customer.

qê~ÇÉã~êâë

Brand and product names mentioned in this manual may be trademarks, registered
trademarks or copyrights of their respective holders. All brand and product names
mentioned in this manual serve as comments or examples and are not to be understood as
advertising for the products or their manufactures.

`згй~еу=^ЗЗкЙлл

Barco Media and Entertainment

11101 Trade Center Drive
Rancho Cordova, California 95670
USA

• Phone: [phone]

• Fax: [phone]

• Websites:

Barco N.V.

Noordlaan 5
8520 Kuurne
BELGIUM

• Phone: [phone]

• Fax: [phone]

• Website: www.barco.com

~ www.folsom.com

~ www.events.barco.com

LED-PRO • User’s Guide iii

léÉê~íçêë=p~ÑÉíó=pìãã~êó

The general safety information in this summary is for operating personnel.

aз=kзн=oЙгзоЙ=`зоЙкл=зк=m~еЙдл

There are no user-serviceable parts within the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate
the unit without the cover installed.

mзпЙк=pзмкЕЙ

This product is intended to operate from a power source that will not apply more than 230
volts rms between the supply conductors or between both supply conductor and ground. A
protective ground connection by way of grounding conductor in the power cord is essential
for safe operation.

dкзмеЗбеЦ=нЬЙ=mкзЗмЕн

This product is grounded through the grounding conductor of the power cord. To avoid
electrical shock, plug the power cord into a properly wired receptacle before connecting to
the product input or output terminals. A protective-ground connection by way of the
grounding conductor in the power cord is essential for safe operation.

rлЙ=нЬЙ=mкзйЙк=mзпЙк=`зкЗ

Use only the power cord and connector specified for your product. Use only a power cord
that is in good condition. Refer cord and connector changes to qualified service personnel.

rлЙ=нЬЙ=mкзйЙк=cмлЙ

To avoid fire hazard, use only the fuse having identical type, voltage rating, and current
rating characteristics. Refer fuse replacement to qualified service personnel.

aз=kзн=lйЙк~нЙ=бе=bсйдзлбоЙ=^нгзлйЬЙкЙл

To avoid explosion, do not operate this product in an explosive atmosphere.

iv LED-PRO • User’s Guide

qЙкгл=fе=qЬбл=j~ем~д=~еЗ=bимбйгЙен=j~квбеЦ=

t^okfkd

Highlights an operating procedure, practice, condition, statement, etc., which, if not strictly
observed, could result in injury to or death of personnel.

Note

Highlights an essential operating procedure, condition or
statement.

`^rqflk

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.

^sboqfppbjbkq>

Le point d´exclamation dans un triangle equilatéral signale à alerter l´utilisateur qu´il y a
des instructions d´operation et d´entretien tres importantes dans la litérature qui
accompagne l´appareil.

slopf`eq

Ein Ausrufungszeichen innerhalb eines gleichwinkeligen Dreiecks dient dazu, den
Benutzer auf wichtige Bedienungs-und Wartungsanweisungen in der Dem Great
beiliegenden Literatur aufmerksam zu machen.

LED-PRO • User’s Guide v

`Ь~еЦЙ=eблнзку

The table below lists the changes to the LED-PRO User’s Guide.

Table 0-1. Change History

Rev Date ECO # Description Approved By

A 8/1/05 1478 Release Jim Wickenhiser

B 5/1/06 1620 Change summary:

• Added new features including Setup Wizard, Input

Wizard, diagonal test pattern scrolling and 50/60Hz
refresh rate selection.

• Restructured system menus by adding LED Menu,

Source Alignment Menu and Expert Mode Menu.

• Revised document template.

In Chapter 1, refer to the “What’s New in Firmware Version

2.0” section on page 5 for full details on all new features.

Jim Wickenhiser

vi LED-PRO • User’s Guide

q~ДдЙ=зС=`зенЙенл

`Ü~éíÉê=N fенкзЗмЕнбзе =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K= N

In This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

How to Use This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Navigating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table of Contents and Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About the LED-PRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

What’s New in Firmware Version 2.0. . . . . . . . . . . . . . . . . . . . . . . . . . . 5

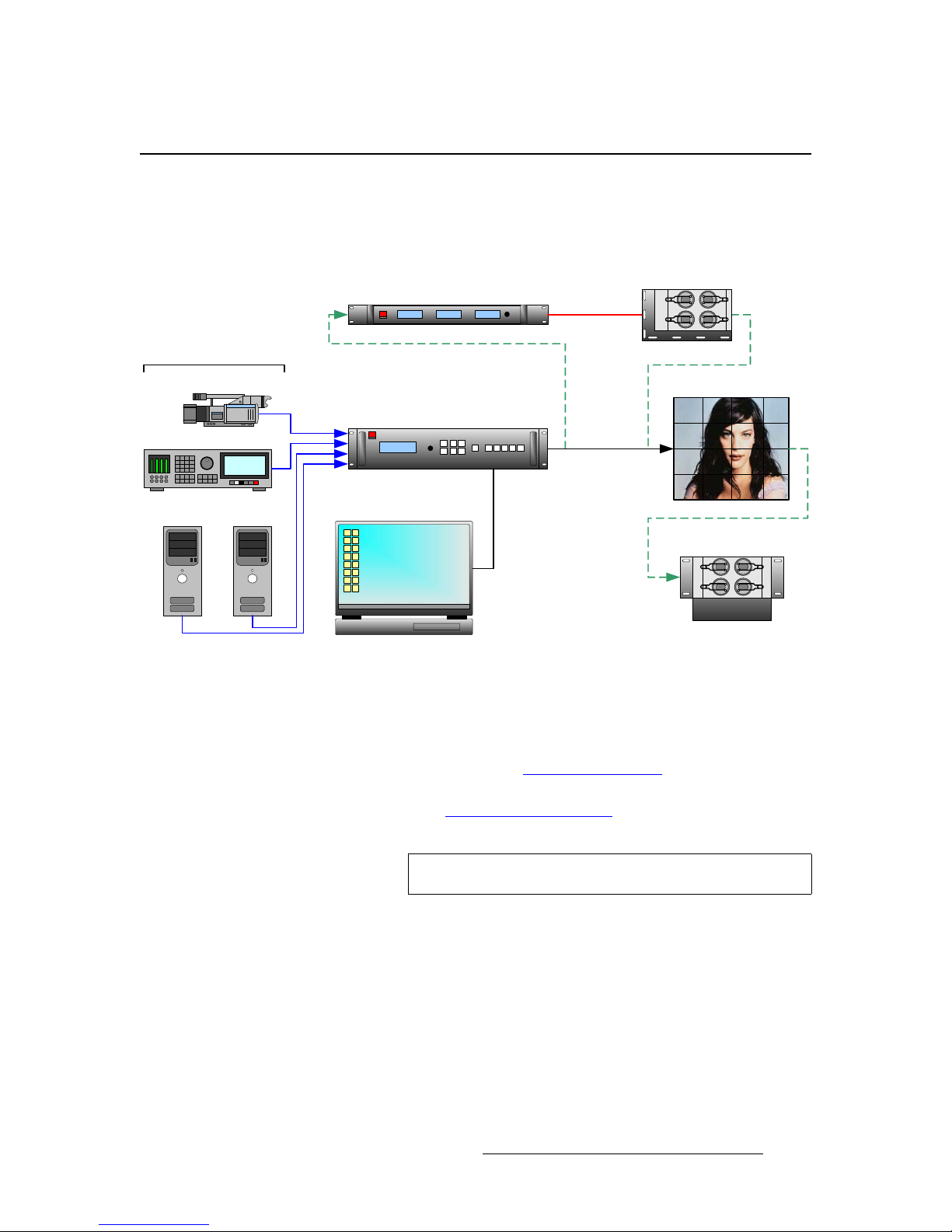

Connectivity Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Application Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

`Ü~éíÉê=O e~кЗп~кЙ=lкбЙен~нбзе =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K= V

In This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

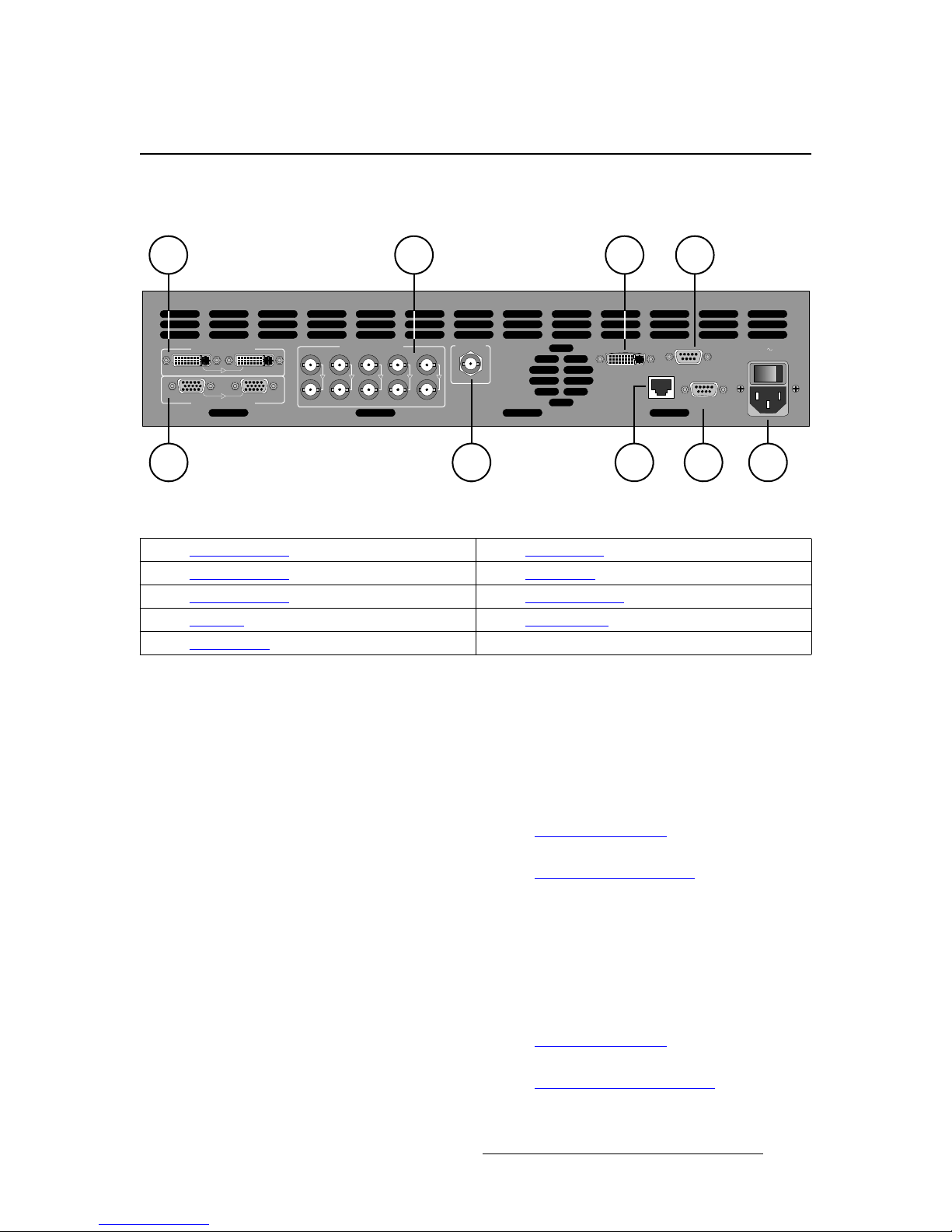

LED-PRO Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Display Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Menu Keys Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Inputs Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

About the LOGO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LED-PRO Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

`Ü~éíÉê=P fåëí~ää~íáçå =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=NT

In This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cable and Adapter Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Rack-Mount Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Power Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Power Cord/Line Voltage Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Signal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Format Connection Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

`Ü~éíÉê=Q léÉê~íáçåK=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=OR

In This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Control Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Power-Up Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Standard Bootup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Bootup in Ethernet Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

LED-PRO • User’s Guide vii

Table of Contents

Bootup with a Stored LOGO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Quick Setup and Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Quick Function Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the Status Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Status Menu Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Status Menu Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Using the Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Setup Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Setup Menu Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Input Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Source Alignment — Analog . . . . . . . . . . . . . . . . . . . . . . . . . 43

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Red Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Red Bright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Grn Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Grn Bright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Blue Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Blue Bright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Sharpness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Clip to SubBlk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Luma Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

EDID DVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Source Alignment — SDI . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Hue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Saturation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Sharpness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Clip to SubBlk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Luma Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

EDID DVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Source Alignment — DVI . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Sharpness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

EDID DVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

RS232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Save System State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Programming EDID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Using the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using the Input Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Using the Expert Mode Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Expert Mode Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Expert Mode Menu Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

viii LED-PRO • User’s Guide

Table of Contents

Input Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Sampling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Timing Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Colorspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Source Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Custom In Format . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Letterbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Save Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Reset Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Recall Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Delete Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Unsaved Changes . . . . . . . . . . . . . . . . . . . . . . . . . 79

Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Timing Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Refresh Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

LED Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

LED Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

LED Gamma . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

LED Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Lock to Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Minimum Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Save Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Reset Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Trans With. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Trans Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Capture Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Delete Logo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Logo Present. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

In Auto Acquire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

VFD Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Diagnostic RS232 . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

EDID DVI In Frmt . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Lock Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Save System State . . . . . . . . . . . . . . . . . . . . . . . . . 92

Unsaved Changes . . . . . . . . . . . . . . . . . . . . . . . . . 92

Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Using the Test Pattern Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Test Pattern Menu Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Test Pattern Menu Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Raster Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Diagonal Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Using the Pan & Zoom Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Pan & Zoom Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

LED-PRO • User’s Guide ix

Table of Contents

Pan & Zoom Menu Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Pan H . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Pan V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Save Preset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Recall Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Using the LED Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

LED Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

LED Menu Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

LED Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

LED Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

LED Gamma . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

LED Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

LED Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Tile Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

LED-PRO ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

LED Wall ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Fiber Tx ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Fiber Rx ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

LED Test Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

LED OSD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Boost Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Creative Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Tile Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

RS232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Save Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Reset Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Using the Input Position Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Input Position Menu Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Input Position Menu Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

H Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

H Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

V Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

V Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Save Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Reset Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Recall Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

`Ü~éíÉê=R réÖê~ÇáåÖ=pçÑíï~êÉK=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=KNNN

x LED-PRO • User’s Guide

In This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Software Upgrade Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Hardware Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Downloading Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Via FTP Site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Via Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Table of Contents

Serial Upgrade Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

^ййЙеЗбс=^= pйЙЕбСбЕ~нбзелK=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=KNNT

In This Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

User Control Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Physical and Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Communications Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Agency Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Analog 15-pin D Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

DVI-I Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Ethernet Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Serial and Diagnostic Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

^ййЙеЗбс=_= oЙгзнЙ=`зенкзд=mкзнзЕздK=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=KNOR

In This Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Default Serial Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Diagnostics Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

RS-232 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Default IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

RS-232 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

LED-PRO Remote Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Resolution Remote Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Input Remote Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Output Remote Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Custom Format Remote Commands . . . . . . . . . . . . . . . . . . . . . . . . . 132

System and Ethernet Remote Commands . . . . . . . . . . . . . . . . . . . . 133

Logo Remote Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Effects Related Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Pan/Zoom/View Remote Commands . . . . . . . . . . . . . . . . . . . . . . . . 134

LED-PRO Serial Command Descriptions . . . . . . . . . . . . . . . . . . . . . 135

RESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

RESI nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

ACQ mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

DINT in mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

PCOMP in mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

FREEZ mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

IAR in n cn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

IAUTOC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

IBRT in nnn.n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

ICNT in nnn.n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

ICPHO in nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

ICLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

ICDEL filename . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

ICREC in filename. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

ICRST in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

ICSAV in filename . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

LED-PRO • User’s Guide xi

Table of Contents

ICSP in mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

ICUSE in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

IEDGE in edge nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

IGM in n. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

IHATV nnnn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

IHPOS nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

IHTOTAL nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

IHUE in nnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

ILB in mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

IRBRT in c nn.n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

IRCNT in c nnn.n. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

ISAT in nnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

ISMP in n. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

ISYNC in mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

ISYNCSLICE in nnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

ITYPE in mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

IVATV nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

IVPOS nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

IVTOTAL? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

IVREC in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

IVSAV in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

LCK? in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

RTE in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

ICLIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

ILUMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

ISHRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

LCKMODE mode type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

LCKPHASE h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

OCNT nnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

OCRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

OCSAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

OGM mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

OHATV nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

OHPOS nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

OHSYNC nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

OHTOTAL nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

OTPM type raster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

OVATV nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

OVPOS nnnn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

OVSYNC nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

OVTOTAL nnnn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

EFLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

EFRES nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

EFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

EFINT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

EFHTOTAL nnnn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

EFHATV nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

EFHFP nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

EFHSYNC nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

EFHRATE? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

EFVTOTAL nnnn. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

EFVATV nnnn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

xii LED-PRO • User’s Guide

Table of Contents

EFVFP nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

EFVSYNC nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

EFVRATE nnn.n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

EFSAV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

EFDEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

DMSG mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

ENETM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

EDHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

EECHO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

EIP xxx.xxx.xxx.xxx yyy.yyy.yyy.yyy zzz.zzz.zzz.zzz. . . . . 154

EMAC? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

SBAUD n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

SYSAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

HELP [op] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

LOADR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

WALLSTANDBY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

MINMODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

MINSTAT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

LOCKOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

LOGOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

LOGOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

LOGOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

LOGOI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

TRN type n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

PANH nnn.n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

PANV nnn.n. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

VIEW? nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

VIEWD nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VIEWR nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VIEWS nn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VIEWI? in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VIEWIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VIEWIS in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

ZOOM nnn.n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

^ййЙеЗбс=`= `зен~Ен=fеСзкг~нбзе=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=KNSN

fåÇÉñ =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=KNSP

LED-PRO • User’s Guide xiii

In This Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Return Material Authorization (RMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Table of Contents

xiv LED-PRO • User’s Guide

NK==fенкзЗмЕнбзе

få=qÜáë=`Ü~éíÉê

This chapter is designed to introduce you to the LED-PRO™ User’s Guide. Areas to be
covered are:

• Chapter Structure

• How to Use This Guide

• Conventions

• About the LED-PRO

• Features

• What’s New in Firmware Version 2.0

• Connectivity Diagram

• Application Questions

LED-PRO • User’s Guide 1

NK==fенкзЗмЕнбзе

Chapter Structure

`Ь~йнЙк=pнкмЕнмкЙ

The following chapters provide instructions for all aspects of LED-PRO operations:

• Chapter 1, “Introduction” provides a system overview, a list of features, and a

system connectivity diagram.

• Chapter 2, “Hardware Orientation” on page 9 provides detailed diagrams of the

system’s front and rear panels.

• Chapter 3, “Installation” on page 17 provides comprehensive system installation

instructions.

• Chapter 4, “Operation” on page 25 provides menu tress, plus comprehensive

system operating instructions.

• Chapter 5, “Upgrading Software” on page 111 outlines procedures for upgrading

system software components.

• Appendix A, “Specifications” on page 117 lists the LED-PRO’s specifications.

• Appendix B, “Remote Control Protocol” on page 125 provides detailed

information regarding external remote control protocol.

• Appendix C, “Contact Information” on page 161 lists important Barco contact,

RMA, warranty and technical support details.

2 LED-PRO • User’s Guide

eçï=íç=rëÉ=qÜáë=dìáÇÉ

Following are important tips for streamlining your use of this User’s Guide in its electronic
“PDF” form.

k~îáÖ~íáåÖ

Use Acrobat Reader’s “bookmarks” to navigate to the desired location. All chapter files
have the same bookmark structure for instant navigation to any section. Please note:

• Extensive hyperlinks are provided within the chapters.

• Use Acrobat’s “Go to Previous View” and “Return to Next View” buttons to trace

your complete navigational path.

• Use the “Previous Page” and “Next Page” buttons to go to the previous or next

page within a file.

• Use Acrobat’s extensive search capabilities, such as the “Find” tool and “Search

Index” tool to perform comprehensive searches as required.

NK==fенкзЗмЕнбзе

How to Use This Guide

q~ДдЙ=зС=`зенЙенл=~еЗ=fеЗЙс

Use the Table of Contents bookmarks to navigate a desired topic. Click any item to
instantly jump to that section of the guide. You can also use the Index to jump to specific
topics within a chapter. Each page number in the Index is a hyperlink.

`зеоЙенбзел=

The following conventions are used throughout this guide:

• The symbol  denotes an operations procedure.

• The symbol S denotes an example.

• Entries written in bold-face capital letters denote physical buttons or chassis

connectors.

S Press TEST PAT to ...

• The term “select” is used as an abbreviation for “scroll to a selected menu line

and press the SEL button.”

• A sequence of menu steps is represented by the menu names, separated by

arrows (>).

S SETUP > Expert Mode > System

... indicates the following sequence:

a. Press SETUP to display the Setup Menu.

b. Scroll to the Expert Mode line and press SEL to display the Expert

Mode Menu.

c. Scroll to the System line and press SEL to display the System Menu.

LED-PRO • User’s Guide 3

NK==fенкзЗмЕнбзе

About the LED-PRO

^Äçìí=íÜÉ=ibaJmol

The LED-PRO is a powerful all-in-one signal processor that accepts a wide range of video
input signals, and processes them to drive Barco LED displays. The LED-PRO allows you
to scale visual sources and mix them in multiple ways while still maintaining superb picture
quality.

LED-PRO is the ideal solution for converting RGB, HDTV, component, S-video, composite
(NTSC, PAL and SECAM), SDI, DVI, and HDSDI for use with Barco LED walls.

LED-PRO has an advanced feature set that includes universal inputs, aspect ratio
conversion, memory presets, test patterns, source lock, picture adjustments, motion
adaptive de-interlacing, and 3:2 and 2:2 pulldown detection. Refer to the “Features
section on page 4 for full details.

Please note:

• To ensure trouble-free operation, please follow all procedures in the Installation

and Operation sections of this manual. Refer to Chapter 3, “Installation” on
page 17 and Chapter 4, “Operation

• Should you have any questions regarding the installation or operation of the LED-

=system, please consult with the factory. Refer to Appendix C, “Contact

PRO

Information” on page 161 for information.

”

” on page 25 for details.

cЙ~нмкЙл

The LED-PRO utilizes the proprietary Athena scaler, for high performance image
processing. The following features are provided:

• Three universal inputs accept:

~ RGBHV/RGBS/RGsB computer video

~ Component video (STD or HDTV)

~ S-Video

~ Composite video with loop-through

• SD SDI/HD SDI input.

• DVI-I connectors support both universal analog and DVI input with loop-through.

• DVI output connector for Barco LED Display interface.

• Input video detection and auto-acquisition. LED-PRO will auto detect and match

input video to stored formats or user configurations.

• Aspect ratio conversion and adjustments.

• Freeze, pan and zoom.

• 10-Bit processing, plus motion adaptive and field-to-frame de-interlacing modes.

• 3:2 pulldown detection for NTSC, 2:2 film detection for PAL video sources

• Decodes NTSC, PAL, and SECAM.

• Ethernet connector for remote control.

• Vertical lock (lock to source) eliminates image tears and other artifacts in scaled

motion video by eliminating frame rate conversion.

4 LED-PRO • User’s Guide

NK==fенкзЗмЕнбзе

Features

• 60 independent input configuration memory presets.

• Low video delay (3 input fields max., 20 lines min.)

• Logo image capture and recall.

• Dissolve to/from stored logo.

tЬ~нЫл=kЙп=бе=cбкгп~кЙ=sЙклбзе=OKM

This section lists the new features that have been implemented since the last revision of
the LED-PRO User’s Guide. Reference links are provided for additional details.

• Setup Wizard

The Setup Wizard allows users to set up and configure a basic LED display
without the need of the Director Toolset. The Wizard automatically guides the
user through the entire setup process, including:

~ Wall detection (tile resolution)

~ Addressing and positioning tiles

~ Aligning LED-PRO’s output resolution to match the wall

~ Wall contrast and gamma adjustment

Please note the following important points:

~ The Wizard can only be used with standard LED Tiles. MiPIX,

MiSPHERE and creative OLite displays require the Director Toolset.

~ The Director Toolset is still required for wall color calibration, tile firmware

updates, and for creating and applying custom gamma curves.

In Chapter 4, refer to the “Using the Setup Wizard” section on page 56 for
details.

• Input Wizard

The Input Wizard allows users to easily setup and configure input sources. It
automatically detects and re-scales the selected input source to match the
physical size of the LED display. In Chapter 4, refer to the “Using the Input

Wizard” section on page 62 for details.

• Input Source Alignment

This new menu enables you to adjust the input sources as well as the typical LED
related adjustments, such as Clip to Sub-black and Luma Tracking. In
Chapter 4, refer to the “Source Alignment — Analog” section on page 43 for
details. Additional sections are provided for SDI and DVI sources.

• Expert Mode

This mode gives experienced LED-PRO users the ability to perform more in-depth
alignments. In Chapter 4, refer to the “Using the Expert Mode Menu” section on
page 66 for details.

• 50/60 Hz

This new function enables you to select either a 50Hz (PAL) or 60Hz (NTSC/PC)
refresh rate. The selection can be made in both the Expert mode and while using
the Wizard. The tile timings will also be adapted automatically when using the
Wizard. In Chapter 4, refer to the “Using the Setup Wizard
for details.

” section on page 56

LED-PRO • User’s Guide 5

NK==fенкзЗмЕнбзе

Features

• Test Pattern — Diagonal Scrolling Mode

This new feature enables users to enable “diagonal scrolling” of any selected test
pattern. In Chapter 4, refer to the “Using the Test Pattern Menu” section on
page 93 for details.

• LED Menu

This improved menu provides access to many LED-related features:

~ LED Status (ON/OFF)

~ LED contrast and gamma

~ LED information (type, size)

~ LED internal test patterns (turn on/off, select primary colors)

~ LED OSD (full OSD access)

~ Boost and Creative modes (OLite only)

~ Tile mode (virtual — real mode selection)

In Chapter 4, refer to the “Using the LED Menu” section on page 98 for details.

• Director Toolset Patch

Important

Please note the following important points regarding the
Director Toolset:

~ Customers using LED-PRO with the Director Toolset version 1.04 do not

require any software patches.

~ Customers that downloaded Director Toolset version 1.03 must

download a new patch (version 1.03.01) to ensure proper LED-PRO

operation. The patch is located on the Barco website, at the following

location:

Link: Director Toolset Patch

Scroll down to the LED-PRO section and follow the directions to install

the patch.

6 LED-PRO • User’s Guide

`зееЙЕнбобну=aб~Цк~г

The figure below provides a sample connectivity diagram:

Up to 4 Inputs

(Optional)

Fiberlink Transmitter

Fiber Optics

NK==fенкзЗмЕнбзе

Connectivity Diagram

(Optional)

Fiberlink Receiver

Camera (Composite)

DVR (SDI)

PC (RGB)

LED-PRO

PC (DVI)

Figure 1-1. LED-PRO System Diagram (sample)

Laptop PC (Director T oolset)

Ethernet or

RS-232

Please note the following points regarding the diagram:

• The maximum of four inputs are shown, one each in RGB, DVI, Composite and

HD-SDI formats.

• Two different paths from LED-PRO to the LED wall are shown:

~ Via DVI, direct between the LED-PRO and the wall.

~ Via DVI and fiber optics, via the optional Barco Fiberlink Transmitter and

Receiver.

~ An optional Barco AEC (Ambient Environment Controller) is shown.

~ The (customer supplied) laptop PC is required for LED wall calibration,

via Director Toolset.

LED Wall

DVI (Direct)

(Optional) AEC

Note

LED-PRO • User’s Guide 7

Contact your Barco sales representative for information on
Fiberlink and AEC systems. These products are not
discussed in this user’s guide.

NK==fенкзЗмЕнбзе

Application Questions

^ййдбЕ~нбзе=nмЙлнбзел

At Barco, we take pride in offering unique solutions to demanding technical problems. If
you have application questions, require further information or would like to discuss your
application requirements in more detail, please call [phone]. Our Customer
Support Engineers will be happy to supply you with the support you need. Refer to
Appendix C, “Contact Information

” on page 161 for details.

8 LED-PRO • User’s Guide

OK==e~кЗп~кЙ=lкбЙен~нбзе

få=qÜáë=`Ü~éíÉê

This chapter provides detailed diagrams of the system’s front and rear panels. The
following topics are discussed:

• LED-PRO Front Panel

• LED-PRO Rear Panel

LED-PRO • User’s Guide 9

2. Hardware Orientation

LED-PRO Front Panel

ibaJmol=cêçåí=m~åÉä

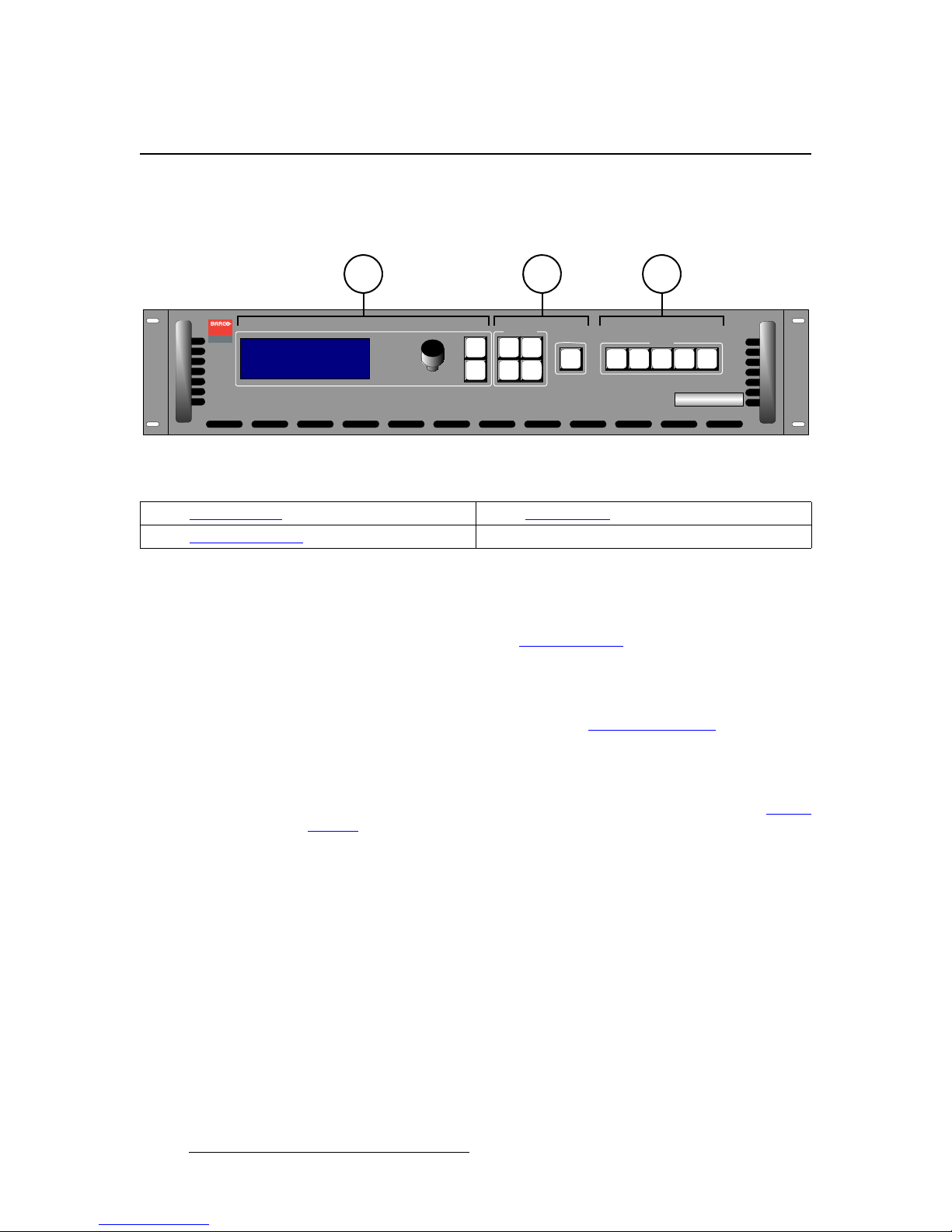

The figure below illustrates the LED-PRO front panel:

21 3

Visibly yours

IN:

OUT:

1024x768@59.94

Freerun

Wall: Enabled

ADJUST

MENU KEYS

SETUP

PAN &
ZOOM

TEST

PAT

INPUT

POS

LED

SEL

ESC

Figure 2-1. LED-PRO Front Panel

1) Display Section 3) Inputs Section

2) Menu Keys Section

Following are descriptions of each front panel section:

1) Display Section

The Display Section includes the display, the ADJUST knob and two “menu
navigation” buttons. Refer to the “Display Section” heading on page 11 for
complete details.

2) Menu Keys Section

The Menu Keys Section includes five buttons that take you directly to the top
level of various system menus. Refer to the “Menu Keys Section” heading on
page 12 for details.

3) Inputs Section

The Inputs Section includes four buttons for selecting various system inputs, plus
the LOGO button that enables you to access a stored image. Refer to the “Inputs

Section” heading on page 13 for details.

1 2 3

INPUTS

SD/HD

LOGO

SDI

LED-PRO

TM

10 LED-PRO • User’s Guide

aблйд~у=pЙЕнбзе

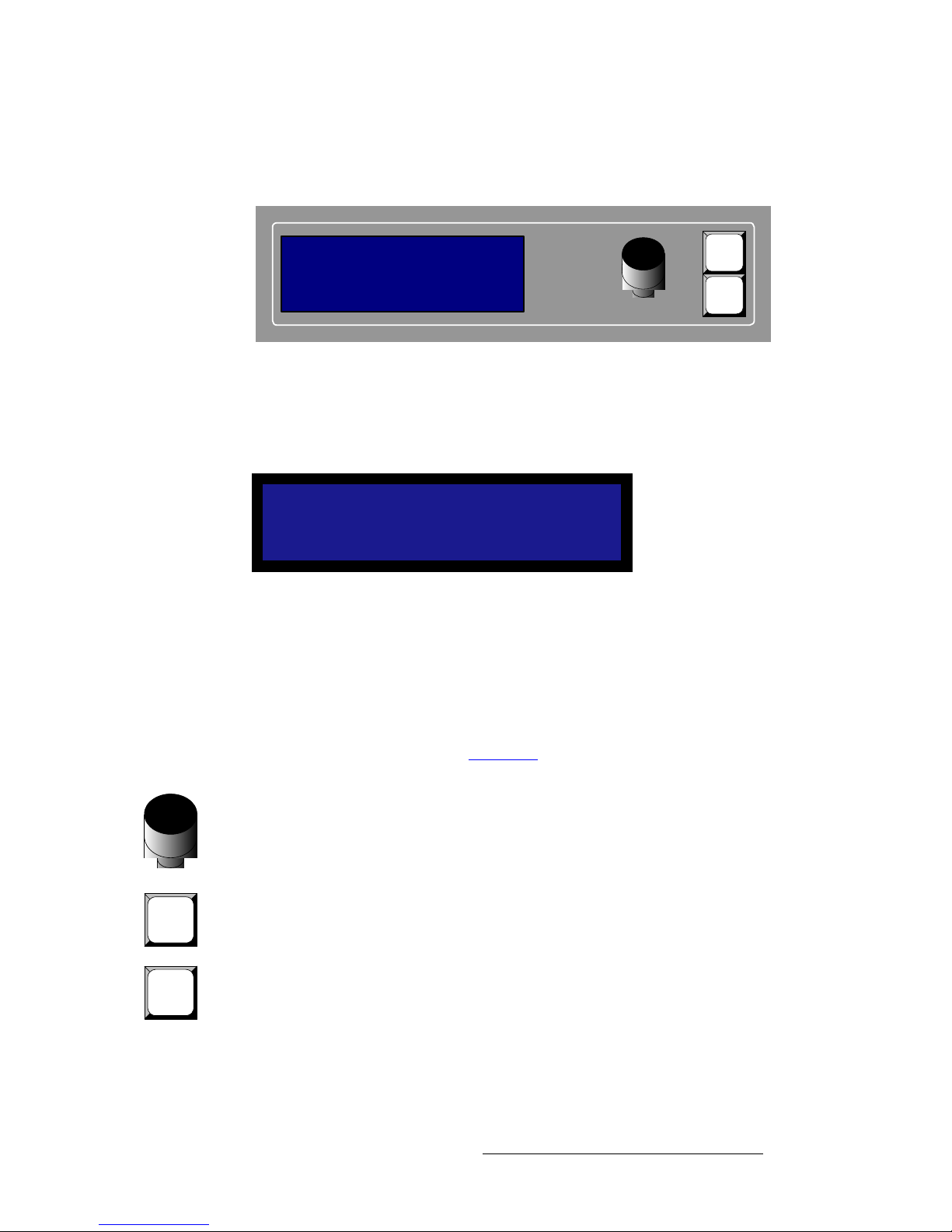

The figure below illustrates the Display Section:

2. Hardware Orientation

LED-PRO Front Panel

IN:

1024x768@59.94

OUT:

Wall: Enabled

Figure 2-2. Display Section

Descriptions of each button and control are provided below:

Freerun

ADJUST

SEL

ESC

• The Menu Display is a 4 line x 20 character Vacuum Fluorescent Display (VFD)

that shows all LED-PRO menus and sub-menus. Brightness is adjustable.

SETUP
> Setup Wizard >>

Input Wizard >>
Source Alignment >>

Figure 2-3. Sample Menu Display (Setup Menu)

Please note:

~ The top line names the current menu, in all capital letters.

~ The navigation cursor (>) in the left-hand column indicates the current

line on which action can be taken.

~ The double arrow (>>) indicates that a sub-menu is available.

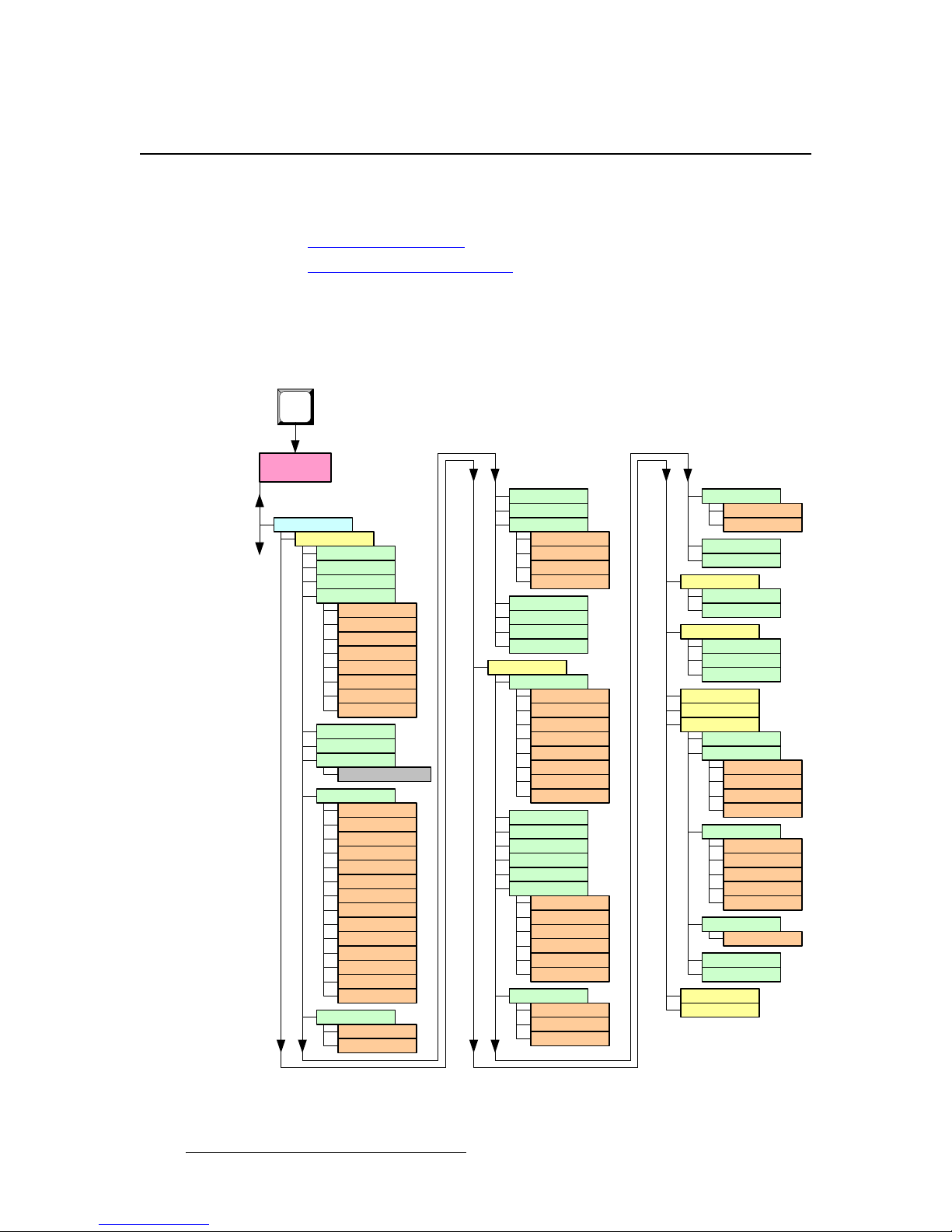

In Chapter 4, refer to the “Menu Tree” section on page 30 for complete menu
structure details.

• ADJUST — use the Adjust Knob to scroll through all system menus.

~ Turn the knob counter-clockwise (CCW) to scroll down.

~ Turn the knob clockwise (CW) to scroll up.

• SEL — press to enter a sub-menu, to change a parameter, to accept a parameter,

SEL

or to answer “Yes ” to certain menu queries.

• ESC — press to exit a menu without making changes, to cancel an operation, or

ESC

LED-PRO • User’s Guide 11

to answer “No” to certain menu queries. Each press takes you back up the menu
tree by one level.

2. Hardware Orientation

LED-PRO Front Panel

jЙем=hЙул=pЙЕнбзе

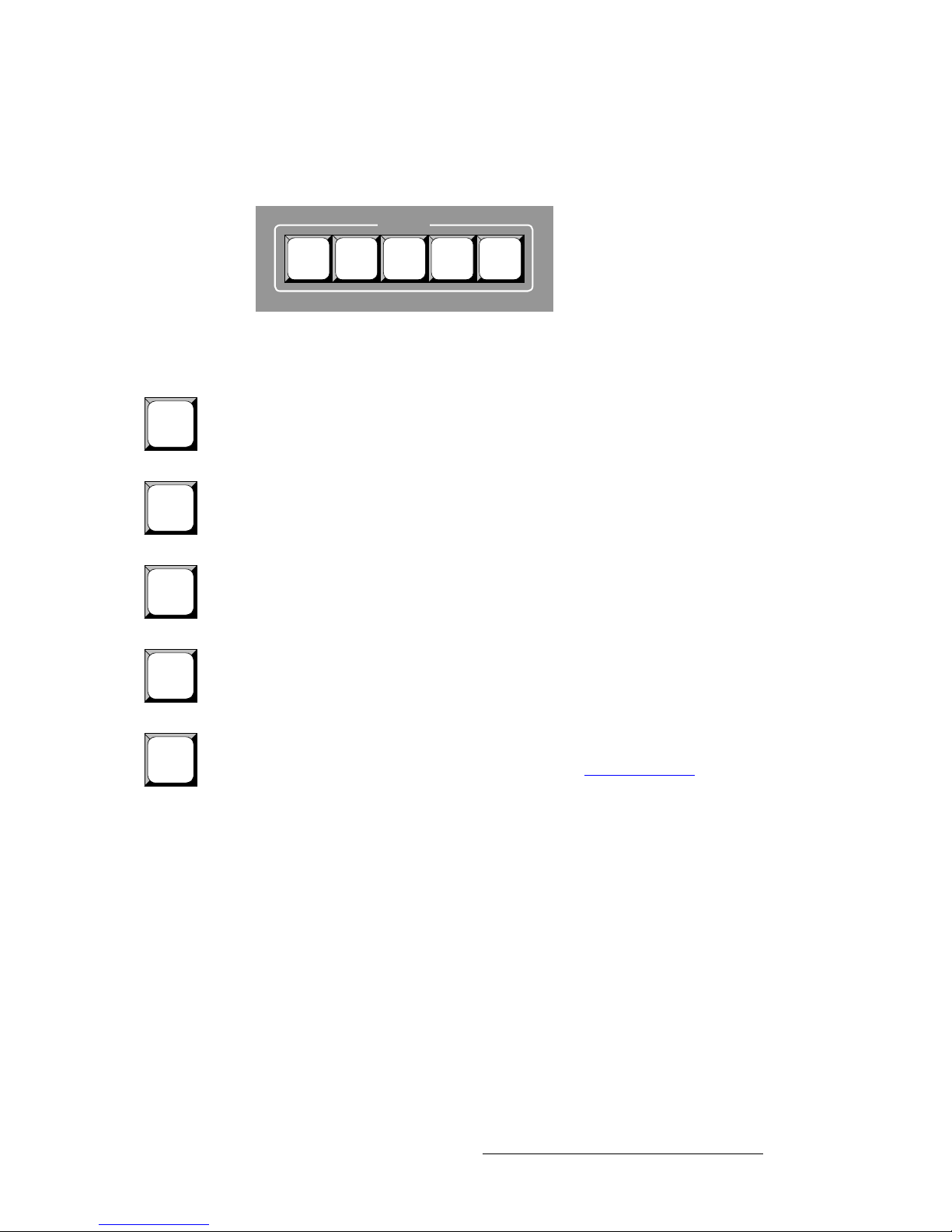

The figure below illustrates the Menu Keys Section:

MENU KEYS

SETUP

TEST

PAT

PAN &
ZOOM

LED

INPUT

POS

SETUP

PAN &
ZOOM

Figure 2-4. Menu Keys Section

TEST

PAT

LED

INPUT

POS

Descriptions of each button and control are provided below:

• SETUP — press to access the top level of the Setup Menu, which enables you to

perform complete system setup procedures. The button lights to indicated that
the menu is active. Toggle the button off to access the Status Menu. In
Chapter 4, refer to the “Using the Setup Menu

” section on page 39 for menu

details.

• TEST PAT — press to access the top level of the Test Pattern Menu, which

enables you to select system test patterns and the raster box. The button lights to
indicated that the menu is active, or that a test pattern is enabled. Toggle the
button off to access the Status Menu. In Chapter 4, refer to the “Using the Test

Pattern Menu” section on page 93 for menu details.

• PAN & ZOOM — press to access the top level of the Pan & Zoom Menu, which

enables you to pan and zoom the selected source. The button lights to indicated
that the menu is active. Toggle the button off to access the Status Menu. In
Chapter 4, refer to the “Using the Pan & Zoom Menu

” section on page 95 for

menu details.

• LED — press to access the top level of the LED Menu, which enables you to

perform various LED-specific functions. The button lights to indicated that the
menu is active. Toggle the button off to access the Status Menu. In Chapter 4,
refer to the “Using the LED Menu

” section on page 98 for menu details.

• INPUT POS — press to access the top level of the Input Position Menu, which

enables you to perform “simple” input setup functions within the LED wall window,
such as H and V size and position. (For more comprehensive input setups, use
the Setup Menu.) The button lights to indicated that the menu is active. Toggle
the button off to access the Status Menu. In Chapter 4, refer to the “Using the

Input Position Menu” section on page 105 for menu details.

Please note:

• If you are within a particular menu, but you have not made any changes, pressing

one of the five buttons in the Menu Keys Section takes you directly to the
selected menu.

• If you have made a change within a particular menu and you press one of the five

buttons in the Menu Keys Section, you will be prompted to save your changes.

12 LED-PRO • User’s Guide

fеймнл=pЙЕнбзе

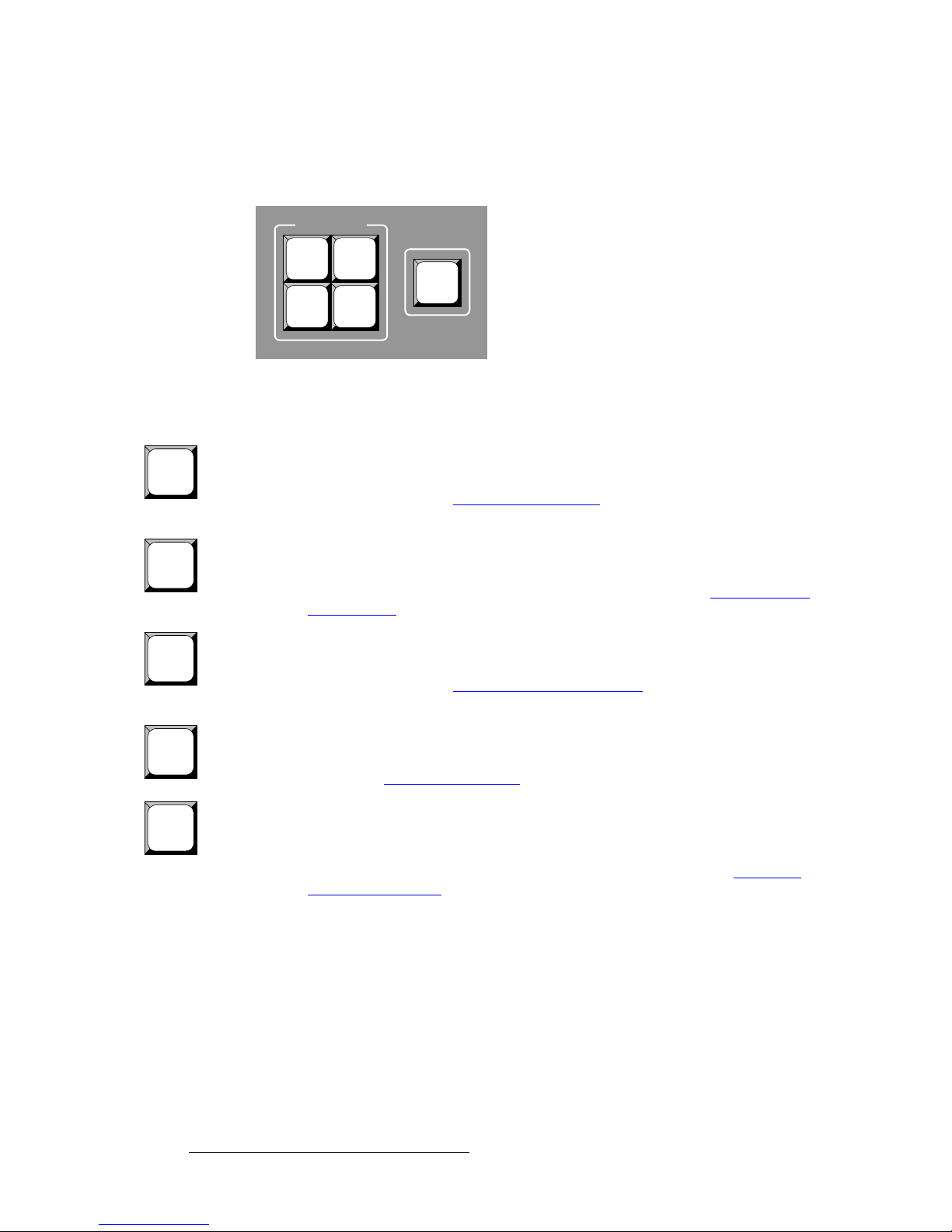

The figure below illustrates the Inputs Section:

INPUTS

2. Hardware Orientation

LED-PRO Front Panel

1

2

3

SD/HD

SDI

1 2 3

Figure 2-5. Inputs Section

Descriptions of each button and control are provided below:

SD/HD

SDI

LOGO

• 1 — selects universal input 1 (the rear panel DVI connector) as the LED wall’s

source. When pressed, the input is routed to the output using the transition type
specified in the Effects Menu.

• 2 — selects universal input 2 (the rear panel HD-15 connector) as the LED wall’s

source. When pressed, the input is routed to the output using the transition type
specified in the Effects Menu.

• 3 — selects universal input 3 (the rear panel BNC connectors) as the LED wall’s

source. When pressed, the input is routed to the output using the transition type
specified in the Effects Menu.

• SD/HD SDI — selects the SD/HD input (the rear panel SDI Input BNC connector)

as the LED wall’s source. When pressed, the input is routed to the output using
the transition type specified in the Effects Menu.

• LOGO — selects the LOGO (as stored in flash memory) as the LED wall’s source.

LOGO

LED-PRO • User’s Guide 13

When pressed, the LOGO is routed to the output using the transition type
specified in the Effects Menu. Refer to the “About the LOGO
page 14 for additional details.

” section on

2. Hardware Orientation

LED-PRO Front Panel

^Äçìí=íÜÉ=ildl

The LOGO button can be thought of as an additional input video source which can be

LOGO

selected and transitioned in the normal manner. The button allows you to capture a still
frame from any input (1, 2, 3 or SD/HD), and store that image in flash memory. When
selected, the LOGO button lights and the output displays either a stored image (typically a
company logo) or black.

 To capture a LOGO (control panel method):

1. Press and hold the desired input button

2. Press LOGO.

The system temporarily freezes the output, captures a frame from the selected
input, and stores the frame in non-volatile memory. A “progress bar” and related
messages will be shown on the display during the capture process.

 To capture a LOGO (menu method):

1. Manually freeze the desired image (SETUP > Expert Mode > Freeze > On).

2. Manually capture the logo (SETUP > Expert Mode > Logo > Capture Logo).

Please note the following important points regarding the LOGO:

• The LOGO can be de-selected by pressing one of the other four input sources.

• When LOGO is selected, the PAN & ZOOM button is not operational.

• When no logo is stored internally, the output displays black, and the Status Menu

indicates "Internal Black" as the format.

• When the LOGO is selected and there is a logo stored, the Status Menu indicates

"LOGO" as the input format.

• If a LOGO is stored in flash memory, the image remains through a power cycle.

• The LOGO can be overwritten by capturing a new image.

• If you perform a factory reset, the LOGO is cleared from flash memory.

• You can delete the LOGO manually from flash memory using the Logo Menu. In

Chapter 4, refer to the “Logo” section on page 86 for menu details.

14 LED-PRO • User’s Guide

ibaJmol=oÉ~ê=m~åÉä

The figure below illustrates the LED-PRO rear panel:

2. Hardware Orientation

LED-PRO Rear Panel

1

UNIVERSAL INPUT 1

IN LOOP

IN LOOP

UNIVERSAL INPUT 2

2

R/R-Y/C

R/R-Y/C

IN

LOOP

G/Y/COMPOSITE

G/Y/COMPOSITE

UNIVERSAL INPUT 3

IN

LOOP

3 5 7

B/B-Y

H/C

IN

IN

LOOP

LOOP

B/B-Y

H/C

SDI INPUT

V

IN

LOOP

V

4

LED INTERFACE

Figure 2-1. LED-PRO Rear Panel

1) Universal Input 1 6) Ethernet Port

2) Universal Input 2 7) RS-232 Port

3) Universal Input 3 8) Diagnostics Port

4) SDI Input 9) AC Connector

5) LED Interface

Following are descriptions of each rear panel connector:

1) Universal Input 1

Two DVI-I connectors are provided for Universal Input 1 — one for the input and
the other for a buffered loop-through. The input corresponds to Button 1 in the
front panel’s Inputs Section.

This input accepts DVI signals, and via a DVI-I to HD-15 adaptor, also accepts
RGB, YUV, S-Video (Y/C), or composite (NTSC, PAL or SECAM) signals.

~ In Appendix A, refer to the “Input Specifications” section on page 118

for input video details.

~ In Appendix A, refer to the “DVI-I Connector Pinouts” section on

page 122 for pinout specifications.

2) Universal Input 2

Two HD-15 connectors are provided for Universal Input 2 — one for the input
and the other for a buffered loop-through. The input corresponds to Button 2 in
the front panel’s Inputs Section.

This input accepts RGB, YUV, S-Video (Y/C), or composite (NTSC, PAL or
SECAM) signals.

~ In Appendix A, refer to the “Input Specifications” section on page 118

for input video details.

~ In Appendix A, refer to the “Analog 15-pin D Connector” section on

page 121 for pinout specifications.

RS-232

100-240 V 50-60 Hz

2.3 A

DIAGNOSTICSETHERNET

986

LED-PRO • User’s Guide 15

2. Hardware Orientation

LED-PRO Rear Panel

3) Universal Input 3

Five BNC connectors are provided for Universal Input 3 — each with a buffered
loop-through. The input corresponds to Button 3 in the Inputs Section, and
accepts RGB, YUV, S-Video (Y/C), or composite (NTSC, PAL or SECAM) signals.

~ In Appendix A, refer to the “Input Specifications” section on page 118

4) SDI Input

One BNC connector is provided for the SDI Input. The input corresponds to the
SD/HD SDI button in the Inputs Section, and accepts SD-SDI or HD-SDI signals.

~ In Appendix A, refer to the “Input Specifications” section on page 118

5) LED Interface

One DVI-I connector is provided for the system’s output to an LED wall. The
output is digital only.

~ In Appendix A, refer to the “Output Specifications” section on page 119

~ In Appendix A, refer to the “DVI-I Connector Pinouts” section on

6) Ethernet Port

One RJ-45 connector is provided for 10/100BaseT Ethernet communications with
LED-PRO.

~ The port is typically used for diagnostics, or command-line operations via

~ Telnet is via port 10001.

In Appendix A, refer to the “Ethernet Connector
pinouts.

7) RS-232 Port

One 9-pin D connector is provided for RS-232 serial communications with LED­PRO. The port is typically used for communications with Barco’s Director
Toolse t Graphical User Interface (GUI).

In Appendix A, refer to the “Serial and Diagnostic Connector” section on
page 124 for pinouts.

8) Diagnostics Port

One 9-pin D connector is provided for RS-232 serial communications with LED­PRO. Similar to the Ethernet port, this port is typically used for diagnostics,
uploading code or command-line operations via HyperTerminal or the Flash
Loader.

In Chapter 4, refer to the “Diagnostic RS232
operations. In Appendix A, refer to the “Serial and Diagnostic Connector”
section on page 124 for pinouts.

9) AC Connector

One AC Connector is provided for connecting LED-PRO to your facility’s AC
power source. The integral switch turns the chassis on and off.

for input video details.

for input video details.

for output video details.

page 122 for pinout specifications.

Te ln e t.

S telnet 192.168.1.100 10001

” section on page 123 for

” section on page 88 for port setup

16 LED-PRO • User’s Guide

PK==fåëí~ää~íáçå

få=qÜáë=`Ü~éíÉê

This chapter provides detailed instructions for installing the LED-PRO hardware. The
following topics are discussed:

• Safety Precautions

• Unpacking and Inspection

• Site Preparation

• Cable and Adapter Information

• Rack-Mount Installation

• Power Installation

• Signal Installation

• Format Connection Table

LED-PRO • User’s Guide 17

3. Installation

Safety Precautions

p~СЙну=mкЙЕ~мнбзел=

For all LED-PRO installation procedures, observe the following important safety and
handling rules to avoid damage to yourself and the equipment:

• To protect users from electric shock, ensure that the power supplies for each unit

connect to earth via the ground wire provided in the AC power Cord.

• The AC Socket-outlet should be installed near the equipment and be easily

accessible.

rей~ЕвбеЦ=~еЗ=fелйЙЕнбзе=

Before opening the LED-PRO box, inspect it for damage. If you find any damage, notify the
shipping carrier immediately for all claims adjustments. As you open the box, compare its
contents against the packing slip. If you find any shortages, contact your Barco sales
representative.

Once you have removed all the components from their packaging and checked that all the
listed components are present, visually inspect each unit to ensure there was no damage
during shipping. If there is damage, notify the shipping carrier immediately for all claims
adjustments.

páíÉ=mêÉé~ê~íáçå=

The environment in which you install your LED-PRO(s) should be clean, properly lit, free
from static, and have adequate power, ventilation, and space for all components.

`~ДдЙ=~еЗ=^З~йнЙк=fеСзкг~нбзе

The table below provides information regarding supplied cables and adapters:

Table 3-1. LED-PRO System Cables and Adapters

Cable / Adapter Description Quantity

VGA to DVI Adapter DVI to HD-15 adapter for analog inputs 1

RS-232 Cable 15 meter, connects customer supplied laptop to LED-PRO 1

DVI to DVI Cable 5 meter, connects LED-PRO output to LED wall (DVI input) 1

DVI to MDR26 Cable 5 meter, standard, connects LED-PRO output to LED wall (MDR input) 1

DVI to MDR26 Cable 5 meter, waterproof, connects LED-PRO output to LED wall (MDR input) 1

AC Power Cord 7 foot, 10A 1

18 LED-PRO • User’s Guide

o~ÅâJjçìåí=fåëí~ää~íáçå

LED-PRO units are designed to be rack mounted and are supplied with front rack-mount
hardware. Please note the following important points:

• Rear rack-mount brackets are available as a kit, and are recommended for use

when units are mounted in transit cases.

• When rack mounting the unit, remember that the maximum ambient operating

temperature for the unit is 40 degrees C.

• Leave sufficient front and rear space to make sure that the airflow through the fan

and vent holes is not restricted.

• When installing equipment into a rack, distribute the units evenly to prevent

hazardous conditions that may be created by uneven weight distribution.

• Connect the unit only to a properly rated supply circuit.

• Reliable grounding (earthing) of rack-mounted equipment should be maintained.

• Rack mount the unit from the front rack ears using four rack screws (not supplied).

Rack threads may be metric or otherwise — depending upon the rack type.

• Install the lower of the two mounting holes first.

3. Installation

Rack-Mount Installation

mçïÉê=fåëí~ää~íáçå

 Use the following steps to install power to the LED-PRO:

1. Connect an AC power cord to the AC Power Connector on the rear of the LED­PRO, and then to an AC outlet.

2. Connect AC Power cords (or AC adapters) to all peripheral equipment, such as
video sources and PCs. Please note:

3. Ensure that your LED wall is properly assembled, and that all power cords are
distributed and connected to all tiles — in the proper sequence. Refer to your
specific LED tile’s “User’s Guide” for details.

~ Connect each unit only to a properly rated supply circuit.

~ Reliable grounding of rack-mounted equipment should be maintained.

LED-PRO • User’s Guide 19

3. Installation

Power Installation

mзпЙк=`зкЗLiбеЙ=sздн~ЦЙ=pЙдЙЕнбзе

LED-PRO is rated to operate with the following supplies:

• Input Power: 100-240 VAC, 47-63 Hz

• Power Consumption: 150 watts maximum

LED-PRO performs line voltage selection automatically, and no user controls are required.
The AC power cords must be accessible so that they can be removed during field servicing.

Warning

Figure 3-1. Tandem Prong-type Plug

Avertissement

When the LED-PRO is used in the 230-volt mode, a UL listed
line cord rated for 250 volts at 15 amps must be used and
must conform to IEC-227 and IEC-245 standards. This cord
will be fitted with a tandem prong-type plug.

The rear panel ON/OFF switch does not disconnect the unit
from input AC power. To facilitate disconnection of AC power,
the power cord must be connected to an accessible outlet
near the unit.

Building Branch Circuit Protection: For 115 V use 20 A, for
230 V use 8 A.

La choix de la ligne de voltage se réalise automatiquement
par le LED-PRO Transformateur Graphique. On n'a pas
besoin du controller usager pour la choix de la ligne de
voltage.

20 LED-PRO • User’s Guide

Warnung

Das LED-PRO gerät mu beim Anschlu an 240V ~ mit einer
vom VDE auf 250V/10A geprüften Netzleitung mit einem
Schukostecker ausgestattet sein.

páÖå~ä=fåëí~ää~íáçå

The figure below illustrates a sample LED-PRO system diagram. Use this figure for
reference during the signal installation process.

Up to 4 Inputs

(Optional)

Fiberlink Transmitter

Fiber Optics

3. Installation

Signal Installation

(Optional)

Fiberlink Receiver

Camera (Composite)

DVR (SDI)

PC (RGB)

LED-PRO

DVI (Direct)

PC (DVI)

Figure 3-2. LED-PRO System Diagram (sample)

Laptop PC (Director T oolset)

Ethernet or

RS-232

 Use the following steps to install signals to/from the LED-PRO:

1. Connect outputs from your selected source devices to LED-PRO’s inputs. A
maximum of four devices can be connected.

~ In Chapter 2, refer to the “LED-PRO Rear Panel” section on page 15 for

details on all rear panel universal input connectors.

~ Refer to the “Format Connection Table” section on page 23 for

connection details using a customer supplied breakout cable.

LED Wall

(Optional) AEC

Note

2. Connect a laptop PC to LED-PRO via either RS-232 or Ethernet.

LED-PRO • User’s Guide 21

All inputs except the SDI Input can be looped.

~ Ensure that the Director Toolset is properly installed on the laptop PC.

~ Director Toolset is required for LED wall calibration, but it is not required

for initial setup. LED-PRO’s “Setup Wizard” is used for this purpose.

3. Installation

Signal Installation

~ If you are using RS-232 communications, connect the laptop to LED-

PRO’s RS-232 Port.

Note

A 15 meter RS-232 cable is provided, which will assist you in
viewing the LED wall while simultaneously using your laptop
for calibration purposes.

~ If you are using Ethernet communications, a totally “local” network is

recommended, without IP connections to the outside world:

• Use a crossover Ethernet cable for a direct connection, or

• Use a standard Ethernet cables in conjunction with an Ethernet
hub or switch.

3. Ensure that your LED wall is properly assembled, and that all data cables are
connected to all tiles — in the proper sequence. Refer to your specific LED tile’s
“User’s Guide” for details.

4. Connect LED-PRO’s LED Interface output to the data input of your LED wall.
Please note:

~ Use the proper cable, depending upon your LED wall’s input connector

(e.g., DVI or MDR). Refer to the “Cable and Adapter Information” on
page 18 for details on all connection cables.

~ (Option) If you are using a fiber optic link:

• Ensure that power is properly connected to all Fiberlink units.

• Connect LED-PRO’s LED Interface output to the input of the
Fiberlink Transmitter.

• Connect a fiber optic cable from the output of the Fiberlink
Transmitter to the input of the Fiberlink Receiver.

• Connect the output of the Fiberlink Receiver to the data input of
your LED wall.

5. (Option) If you are using the Barco AEC:

~ Ensure that power is properly connected to the AEC.

~ Connect the data output of your LED wall to the input of the AEC.

Please continue with system setup, menu orientation and operations, as outlined in
Chapter 4, “Operation” on page 25.

22 LED-PRO • User’s Guide

cзкг~н=`зееЙЕнбзе=q~ДдЙ

3

3

3

3 3

3 3

3

3 3 3

3

3 3 3

3 3

3

Use the following table to connect various source formats to LED-PRO, using the system’s
universal input connectors in conjunction with a customer supplied VGA to 5 x BNC
breakout cable. Please note:

• RGB format — typical devices: Computers

• S-Video (Y/C) format — typical devices: S-Video DVD or VCR

• YUV or YP

• Composite format — typical devices: NTSC/PAL DVD or VCR

Using a customer supplied VGA to 5 x BNC breakout cable, multiple input combinations
are possible. Cells with checks denote the connections required for the indicated format.

(Betacam) format — typical devices: DVD player, Betacam deck

bPr

3. Installation

Format Connection Table

Note

Table 3-2. Analog Input Combinations using Breakout Cable

Breakout Cable

Wire Color

R

G

B

H Sync

V Sync

Composite

Video

Please contact Barco Technical Support for information on obtaining breakout cables. In
Appendix C, refer to the “Contact Information” section on page 162 for details.

S-Video

(Y/C)

(Chrom)

(Lum)

For RGB with H and V sync, use the VGA connector directly.

YUV

(YP

(Pr)

(Lum)

(Pb)

RGB

Sync on Green

)

bPr

RGB

Comp Sync

RGB

Separate H V

LED-PRO • User’s Guide 23

3. Installation

Format Connection Table

24 LED-PRO • User’s Guide

QK==léÉê~íáçå

få=qÜáë=`Ü~éíÉê

This chapter provides comprehensive menu descriptions and detailed operating
instructions for the LED-PRO. The following topics are discussed:

• Control Overview

• Power-Up Initialization

• Quick Setup and Operations

• Menu Tree

• Using the Menu System

• Quick Function Reference

• Using the Status Menu

• Using the Setup Menu

• Using the Setup Wizard

• Using the Input Wizard

• Using the Expert Mode Menu

• Using the Test Pattern Menu

• Using the Pan & Zoom Menu

• Using the LED Menu

• Using the Input Position Menu

LED-PRO • User’s Guide 25

4. Operation

Control Overview

`зенкзд=lоЙкобЙп

There are several ways to control the LED-PRO:

• The front panel is available for status and control using the display, the ADJUST

knob and the two menu “navigation” buttons (SEL and ESC). In conjunction with
other dedicated buttons, these controls enable you to configure the system, to
adjust all system parameters, and to utilize the “wizards.”

• The unit can be controlled remotely via RS-232 or Ethernet interface. In

Appendix B, refer to the “LED-PRO Remote Commands
for remote control command details.

• The Director Toolset is a software application that is used to detect the LED-

PRO and provide it with information concerning the LED tiles. Operations of the
Director Toolset are not covered in this guide. Please refer to the “Director
Toolset User’s Guide” for more information.

” section on page 128

mçïÉêJré=fåáíá~äáò~íáçå

After connecting power to the LED-PRO, locate the power switch on the back of the
chassis, and turn the power ON. The LED button lights, and the display shows a series of
initialization screens. The screens vary depending upon the last state of the system:

• Standard Bootup

• Bootup in Ethernet Mode

• Bootup with a Stored LOGO

pн~еЗ~кЗ=_ззнмй

While the main board is initializing, the following screens are shown on the display

• Initialization Screen 1 displays the “Program Loading” message.

Program Loading

Figure 4-1. Initialization Screen 1

• Initialization Screen 2 displays the “Transferring” message.

Please Wait

Figure 4-2. Initialization Screen 2

26 LED-PRO • User’s Guide

Transferring to

main program

4. Operation

Power-Up Initialization

• Initialization Screen 3 displays the software version that is currently being

loaded. Note that the software version changes as upgrades are released.

LED-PRO

Barco Folsom LLC

Version 2.00

Initializing ...

Figure 4-3. Initialization Screen 3

At the conclusion of the boot-up procedure, the Input 1 button will light and the Status
Menu is shown:

IN:

1024x768@59.94

OUT: Freerun

Wall: Enabled

Figure 4-4. Status Menu (sample)

Note

Refer to the “Using the Status Menu” section on page 36 for complete details.

By default, LED-PRO boots up with Input 1 selected from a
“factory reset” operation. However, if you perform the “Save
System State” procedure with a different input selected, the
system will acquire and select that input.

_ззнмй=бе=bнЬЙкеЙн=jзЗЙ

If Ethernet mode was enabled (on the Ethernet Menu) and saved during your last session,
it will be restored during initialization.

• If DHCP was enabled, LED-PRO will attempt to contact the DHCP server for an IP

address. During this process, the following message is shown:

Searching for

DHCP server

Please wait ...

Figure 4-5. Initialization Screen — Connect to DHCP Server

Note

• If DHCP is off and a static IP address was saved (e.g., any address other than

000.000.000.000), LED-PRO sets the Ethernet port with the selected address.

LED-PRO • User’s Guide 27

It takes approximately 40 seconds for the system to connect
to the DHCP server.

4. Operation

Power-Up Initialization

During this process, the following message is shown:

Setting Ethernet

with static IP addr

Please wait ...

Figure 4-6. Initialization Screen — Set IP Address

Note

At the conclusion of the boot-up procedure, the Input 1 button will light and the Status
Menu is shown.

Note

It takes approximately 40 seconds for the system to set the IP
address.

By default, LED-PRO boots up with Input 1 selected from a
“factory reset” operation. However, if you perform the “Save
System State” procedure with a different input selected, the
system will acquire and select that input.

_ззнмй=пбнЬ=~=pнзкЙЗ=ildl

During your last session, if a LOGO was stored in non-volatile memory, it will be loaded into
memory during initialization. During the loading process, the following message is shown
along with a progress bar (on the third line):

Loading Logo

Please wait ...

Figure 4-7. Initialization Screen — Load Logo

At the conclusion of the procedure, the Input 1 button light and the Status Menu is shown.

Note

28 LED-PRO • User’s Guide

By default, LED-PRO boots up with Input 1 selected from a
“factory reset” operation. However, if you perform the “Save
System State” procedure with a different input selected, the
system will acquire and select that input.

nмбЕв=pЙнмй=~еЗ=lйЙк~нбзел

For the optimum speed in system setup and operations, use the following steps.

1. Run the Setup Wizard. Refer to the “Using the Setup Wizard
page 56 for instructions.

2. Run the Input Wizard. Refer to the “Using the Input Wizard” section on
page 62 for instructions.

3. Select your inputs and roll your video.

Please note:

• For advanced system operations and specific “tweaks,” start with the “Quick

Function Reference” section on page 33, and select the function that you wish to

perform.

• For a complete overview of all system operating procedures, start with the “Menu

Tree” section on page 30 and review the entire chapter.

4. Operation

Quick Setup and Operations

” section on

LED-PRO • User’s Guide 29

4. Operation

Menu Tree

jÉåì=qêÉÉ

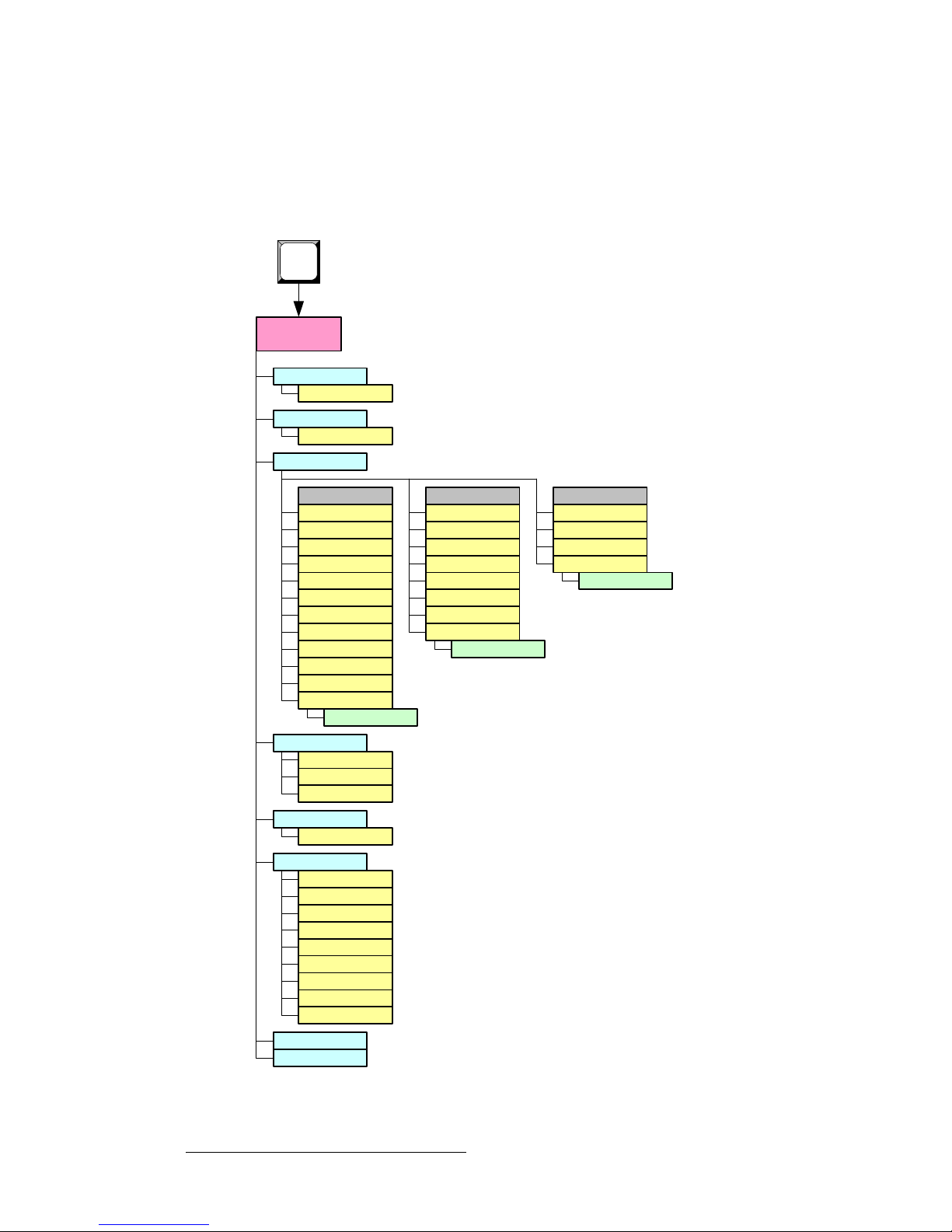

The figure below illustrates a simplified view of the LED-PRO Menu Tree. Use this
diagram for reference throughout this chapter. Please note:

• In the diagram, only “top level” menus are shown.

• The symbol >> denotes additional sub-menus.

• In the sections describing each individual tree, expanded menus are provided.

Status

Menu

SETUP

Setup
Menu

Setup Wizard >>

Input Wizard >>
Source Align >>
Presets >>

RS-232 >>
Expert Mode >>
Save State

Factory Rst

TEST

PAT

Test Pattern

Menu

Type

Raster Box
Diagonal

PAN &
ZOOM

Pan & Zoom

Menu

Pan H

Pan V
Zoom
Save Preset

Recall Preset
Reset

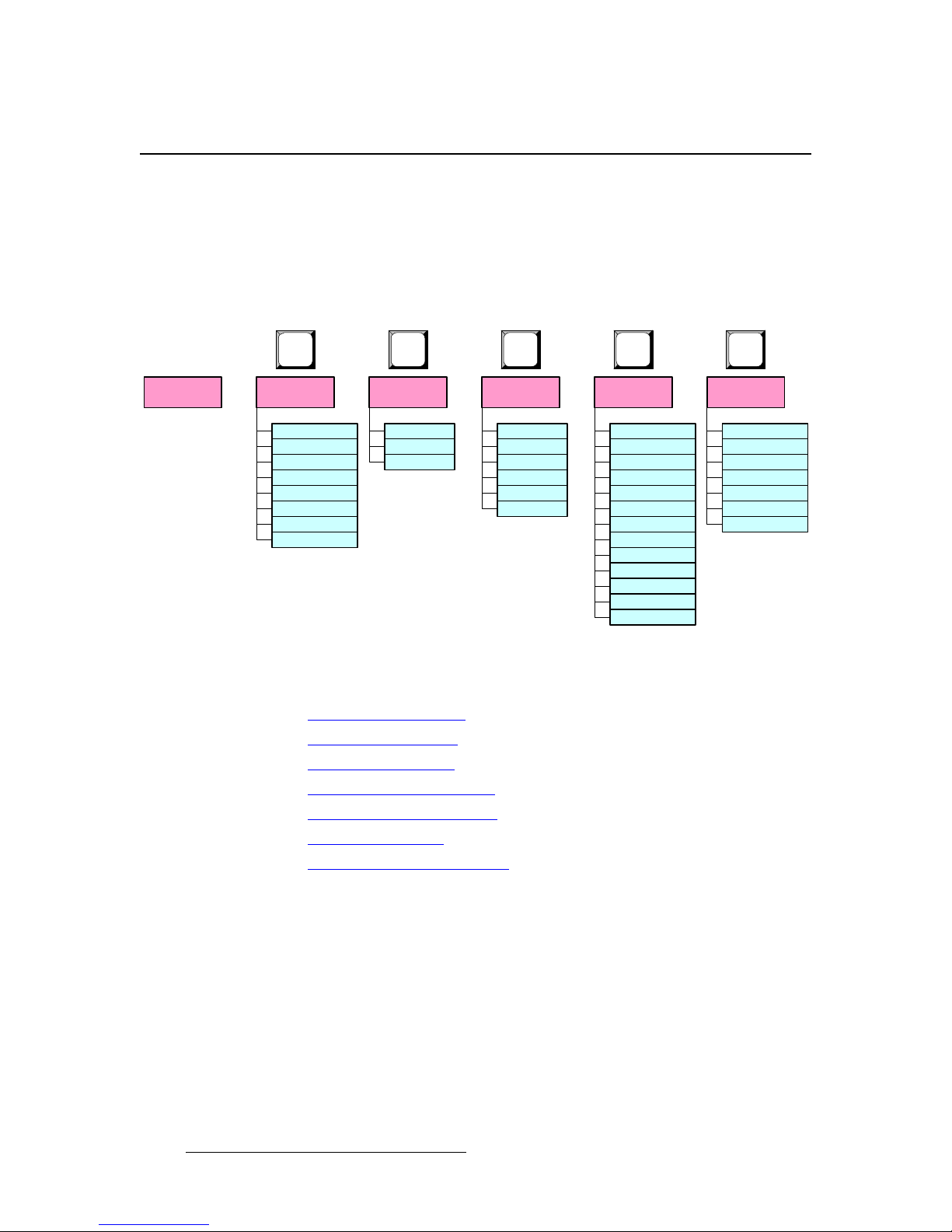

Figure 4-8. LED-PRO Menu Tree

Each menu is explained in the following sections:

• Using the Menu System

• Using the Status Menu

• Using the Setup Menu

• Using the Test Pattern Menu

• Using the Pan & Zoom Menu

• Using the LED Menu

• Using the Input Position Menu

LED

LED

Menu

LED Control

LED Status
LED Contrast
LED Gamma

LED Info >>
LED Test Pat >>
LED OSD >>

Boost Mode
Creative
Tile Mode

RS-232 >>
Save Cfg
Reset Cfg

INPUT

POS

Input Position

Menu

H Position

H Size
V Position
V Size

Save Cfg >>
Reset Config
Recall Config >>

30 LED-PRO • User’s Guide

rлбеЦ=нЬЙ=jЙем=pулнЙг

This section lists the rules and conventions for using LED-PRO’s menu system. The figure
below illustrates a sample menu:

TEST PATTERN

Type Burst

> Raster Box Off

Diagonal Motion Off

Figure 4-9. Test Pattern Menu (sample)

Please note the following important rules and conventions:

• Pressing any of the buttons in the Menu Keys Section takes you directly to the

top level of the selected menu.

• The top line names the current menu, in all capital letters.

• Subsequent lines typically display two fields:

~ For a listed function, the left-hand field names the function and the right-

hand field is the function’s current parameter or value.

~ For a listed sub-menu, the left-hand field names the sub-menu that you

can access, and the right-hand field displays the double arrow (>>),
indicating that a sub-menu is available.

• The “navigation” cursor (>) in the left-hand column indicates the current line on

which action can be taken. This arrow “scrolls” as you rotate the knob.

• Scrolling:

~ Turn the ADJUST knob counter-clockwise (CCW) to scroll down.

~ Turn the ADJUST knob clockwise (CW) to scroll up.

• To enter a sub-menu, scroll to the desired line and press SEL.

4. Operation

Using the Menu System

Note

• To change a parameter, scroll to the desired line and press SEL. The cursor

changes to the “edit” cursor (#). Use the ADJUST knob to modify the parameter.

• To accept a parameter or value, press SEL. The edit cursor changes back to the

navigation cursor.

Note

• In the “edit” mode, to exit (or cancel) without changing the original parameter,

press

LED-PRO • User’s Guide 31

Throughout this chapter, the term “select” is used as an
abbreviation for “scroll to a selected menu line and press the
SEL button.”

S Select the Raster Box field to ...

You must press SEL to activate an LED wall function.
Processor functions generally update as you adjust them.

ESC.

4. Operation

Using the Menu System

• To navigate back up the menu structure, press ESC. Each press takes you back

up the menu tree by one level.

• The SEL button is also used to answer “Yes” to certain menu queries. The ESC

button is also used to answer “No” to certain menu queries.

Note

The display itself is four lines high, and the ADJUST knob is
used to scroll through the various menu lines. Throughout
this chapter, entire menus will be shown for clarity — rather
than a series of four-line sections.

32 LED-PRO • User’s Guide

4. Operation

Quick Function Reference

nмбЕв=cмеЕнбзе=oЙСЙкЙеЕЙ

Use the following table to quickly access the proper menu for a specific function. Both
hyperlinks and page numbers are provided.

Table 4-1. LED-PRO Quick Function Reference Table

How to: Use the Following: Page

Adjust 1:1 timing 1:1 Timing Adjust Menu 70

Adjust diagonal motion Diagonal Motion

Adjust display brightness VFD Brightness

Adjust input position (abbreviated procedure) Using the Input Position Menu

Adjust LED wall contrast LED Contrast

Adjust LED wall gamma curve LED Gamma

Adjust output refresh rate Refresh Rate

Adjust output timing parameters Timing Adjust

Adjust oversample timing OverSample Timing Adjust Menu

Align or adjust a DVI source Source Alignment — DVI

Align or adjust an analog source Source Alignment — Analog

Align or adjust an SDI source Source Alignment — SDI

Capture a LOGO Capture Logo

Change LED wall status from Standby to Enabled LED Status

Change the input format Input Format

Change the sampling mode Sampling

Change the transition time (rate) Trans Tim e

Change the transition type Trans Wit h

94

88

105

82

82

81

81

71

48

43

46

86

82

69

69

85

85

Delete a “global” preset (or “View”) Delete

Delete a custom input format Custom In Format

Delete a LOGO Delete Logo

Delete an input configuration Delete Config

Display software version Software Version

Enable or disable a test pattern Type

Enable or disable an LED test pattern LED Test Pattern

Enable or disable auto-acquire In Auto Acquire

Enable or disable freeze mode Freeze

Enable or disable letterbox Letterbox

LED-PRO • User’s Guide 33

50

72

86

79

92

94

102

87

87

76

4. Operation

Quick Function Reference

Table 4-1. LED-PRO Quick Function Reference Table (Continued)

How to: Use the Following: Page

Enable or disable the LED boost mode Boost Mode 103

Enable or disable the LED creative mode Creative Mode

Enable or disable the LED OSD (on screen display) LED OSD

Enable or disable the LED tile mode Tile Mode

Enable or disable the raster box Raster Box

Get information (status) about the current input and output Using the Status Menu

Get information on LED wall and fiber communications LED Information

Lock or unlock the front panel Lock Front Panel

Pan (tilt) image vertically Pan V

Pan image horizontally Pan H

Program EDID Programming EDID

Recall a “global” preset (or "View") Recall

Recall a “local” preset from memory Recall Preset

Recall an input configuration Recall Config

Reset “local” preset settings to default values Reset

Reset an input configuration Reset Config

Reset output configuration Reset Config

Reset to factory default Factory Reset

103

102

103

94

36

82

91

96

96

53

49

97

78

97

78

84

51

Run the Input Wizard Using the Input Wizard

Run the Setup Wizard Using the Setup Wizard

Save “local” preset Save Preset

Save a “global” preset (or "View") Save

Save a custom input format Custom In Format

Save all system, input and output settings Save System State

Save an input configuration Save Config

Save output configuration Save Config

Select (configure) a custom input format Custom In Format

Select an input signal type Typ e

Select colorspace Colorspace

Select sync, de-interlace, pulldown comp and sync slice Processing

Set “lock to source” parameters Lock to Source

Set Diagnostic Port RS-232 parameters Diagnostic RS232

Set Ethernet parameters (mode, DHCP, IP address) Ethernet

62

56

97

50

72

51

107

84

72

72

72

77

83

88

89

34 LED-PRO • User’s Guide

4. Operation

Quick Function Reference

Table 4-1. LED-PRO Quick Function Reference Table (Continued)

How to: Use the Following: Page

Set LED wall control to local or remote LED Control 82

Set minimum delay Minimum Delay

Set the display mode to crop or scale Display Mode

Set the input’s aspect ratio Aspect Ratio

Set the RS-232 baud rate RS232

Verify if LOGO is present in memory Logo Present

Zoom the image in and out Zoom

83

76

76

51

86

97

LED-PRO • User’s Guide 35

4. Operation

Using the Status Menu

rëáåÖ=íÜÉ=pí~íìë=jÉåì

The figure below illustrates a sample Status Menu:

IN:

OUT: Freerun

Figure 4-10. Status Menu (sample)

The Status Menu is a “standalone” menu without any sub-menus. In addition, the “cursor”
does not appear.

• Status Menu Access

• Status Menu Description

1024x768@59.94

Wall: Enabled

pн~нмл=jЙем=^ЕЕЙлл==

To access the Status Menu:

• Automatic access after system boot-up.

• Press ESC once for each level that you are down within a menu tree.

S On the LED Menu, the cursor is on LED Information. Press ESC once to

access the Status Menu. From within the LED Information Menu, press
ESC twice to access the Status Menu.

• Toggle a selected menu button off — from any level down the menu tree.

S You are several levels down the Setup Menu. Press SETUP to access the

Status Menu directly.

36 LED-PRO • User’s Guide

4. Operation

Using the Status Menu

pн~нмл=jЙем=aЙлЕкбйнбзе

The Status Menu provides information about the currently selected system input (as
determined by the input buttons) and the selected output. If the input is changed, the fields
change accordingly. Other pertinent changes that you make within the menu system are
shown, once you return to the Status Menu.

IN: <type>

<in_format>

OUT <gen1_mode+src>

<wall status>

Figure 4-11. Status Menu Fields

Following are descriptions of each variable field:

• <type>

Specifies the type of input signal being processed. Choices include NTSC/PAL/
SECAM, SDI, HD-SDI, RGB, YPbPr, or DVI.

• <in_format>

Indicates the current input video format in the following form:

Hact x Vact @ Vr Hz

S 1280x1024@60

Please note:

~ If a “saved” user input configuration is used for the current input (as

saved with the Save Config or Save System State functions), the field
shows the name of the user input configuration — instead of the format.
In this case, to view the format’s parameters, use the Input Menu
(SETUP > Expert Mode > Input).

~ If the format itself is displayed, the input has not been saved.

~ If the currently selected input does not have a valid input signal, the

message "Invalid Signal" is shown.

• <genl_mode+src>

Indicates the current “Lock to Source” mode and type (if locked), as set on the
Lock to Source Menu (SETUP > Expert Mode > Output > Lock to Source).
Refer to the “Lock to Source

Choices include:

~ Freerun — Not locked, freerun timing

~ HV Lock, Input — horizontal and vertical lock to input video

~ V Lock, Input — vertical lock to input video

If the unit is set for a particular “Lock to Source” mode and type, but that source is
missing (or lock can not be achieved), the unit periodically attempts to lock. While

” section on page 83 for details.

LED-PRO • User’s Guide 37

4. Operation

Using the Status Menu

lock has not been reestablished, the display changes to "Lost Input," and the
source field remains unchanged.

Important

When Lock to Source is enabled, LED-PRO does not allow
you to switch input channels. You can only switch to/from the
current input and the Black/Logo channel.

• <wall status>

Indicates the status of the Barco LED wall that is currently connected to LED­PRO. Choices include:

~ No Wall detected— no Barco LED wall is connected to LED-PRO

~ Wall: Enabled — Barco LED wall detected and enabled

~ Wall: Standby — Barco LED wall detected and in standby mode

If no wall is detected, ensure that the Barco LED Wall is properly connected to the
LED-PRO connector labeled "LED Interface."

38 LED-PRO • User’s Guide

rëáåÖ=íÜÉ=pÉíìé=jÉåì

The following topics are discussed in this section:

• Setup Menu Tree

• Setup Menu Description

• Programming EDID

• Using the Setup Wizard

• Using the Input Wizard

• Using the Expert Mode Menu

4. Operation

Using the Setup Menu

LED-PRO • User’s Guide 39

4. Operation

Using the Setup Menu

pÉíìé=jÉåì=qêÉÉ

Press SET UP to access the Setup Menu. The figure below illustrates a simplified menu
tree. The symbol >> denotes additional sub-menus. The menu trees for the Setup
Wizard, Input Wizard and Expert Mode are provided in their respective sections.

SETUP

Setup
Menu

Setup Wizard

Setup Wizard >>

Input Wizard

Input Wizard >>

Source Alignment

Contrast
Brightness

Red Contrast
Red Bright

Grn Contrast

Grn Bright
Blue Contrast

Blue Bright

Sharpness
Clip SubBlk

Luma Track

EDID DVI

EDID Format

Presets

Recall
Save

Delete

RS-232

RS-232

Expert Mode

Input >>

Output >>
Effects >>

Logo >>

Auto Acquire
Freeze

System >>

Software Version

Factory Reset

Save Sys State

Factory Reset

Contrast
Brightness

Hue
Saturation

Sharpness

Clip SubBlk
Luma Track

EDID DVI

EDID Format

DVISDIAnalog

Contrast
Brightness

Sharpness
EDID DVI

EDID Format

Figure 4-12. Setup Menu Tree

40 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

pЙнмй=jЙем=aЙлЕкбйнбзе

The Setup Menu enables you to set up all LED-PRO input, output and system parameters.
If desired, all setup information can be stored in non-volatile memory (using the “Save
System State” function). Once saved, all settings will be automatically recalled each time
the unit is turned on.

The figure below illustrates the Setup Menu:

SETUP
> Setup Wizard >>

Input Wizard >>
Source Alignment >>
Presets >>
RS232 >>
Expert Mode >>
Save System State
Factory Reset

Figure 4-13. Setup Menu

Following are descriptions of each menu function:

• Setup Wizard

• Input Wizard

• Source Alignment — Analog

• Source Alignment — SDI

• Source Alignment — DVI

• Presets

• RS232

• Expert Mode

• Save System State

• Factory Reset

Note

The Source Alignment Menu changes depending upon the
format of the selected source — analog, SDI or DVI.

LED-PRO • User’s Guide 41

4. Operation

Using the Setup Menu

pÉíìé=táò~êÇ

From the Setup Menu, select Setup Wizard to display the Setup Wizard Start Menu
which enables you to quickly and conveniently configure an LED wall along with the
system’s output.

Refer to the “Using the Setup Wizard” section on page 56 for full instructions.

fåéìí=táò~êÇ

From the Setup Menu, select Input Wizard to display the Input Wizard Start Menu, which
enables you to quickly and conveniently set up all inputs and position them on the LED
wall. This wizard also enables you to set the wall’s contrast and gamma.

LED-PRO FULL WIZARD
Connect all power
and video cables.
Press <SEL> to start

Figure 4-14. Setup Wizard Start Menu

LED-PRO INPUT WIZARD
Connect all power
and video cables.
Press <SEL> to start

Figure 4-15. Input Wizard Start Menu

Refer to the “Using the Input Wizard” section on page 62 for full instructions.

42 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

pзмкЕЙ=^дбЦегЙен=Ф=^е~дзЦ

From the Setup Menu (for an analog input source), select Source Alignment to display
the Analog Source Alignment Menu. This menu enables you to adjust all aspects of the
source’s “visible” parameters.

SOURCE ALIGNMENT
> Contrast 100.0

Brightness 100.0
Red Contrast +0.0%
Red Bright +0.0%
Grn Contrast +0.0%
Grn Bright +0.0%
Blue Contrast +0.0%
Blue Bright +0.0%
Sharpness +0
Clip to SubBlk +0
Luma Tracking +0
EDID DVI >>

Figure 4-16. Analog Source Alignment Menu (sample)

Following are descriptions of each Analog Source Alignment Menu function:

• Contrast

• Brightness

• Red Contrast

• Red Bright

• Grn Contrast

• Grn Bright

• Blue Contrast

• Blue Bright

• Sharpness

• Clip to SubBlk

• Luma Tracking

• EDID DVI

`çåíê~ëí

From the Analog Source Alignment Menu, select Contrast to adjust the overall contrast
of the selected analog input.

• The adjustment range is 75.0% to 125.0%.

• 100% is the default setting.

LED-PRO • User’s Guide 43

4. Operation

Using the Setup Menu

_кбЦЬнеЙлл

From the Analog Source Alignment Menu, select Brightness to adjust the overall
brightness of the selected analog input.

oÉÇ=`çåíê~ëí

From the Analog Source Alignment Menu, select Red Contrast to adjust the contrast of
the selected input’s red channel.

oЙЗ=_кбЦЬн

From the Analog Source Alignment Menu, select Red Bright to adjust the brightness of
the selected input’s red channel.

• The adjustment range is 75.0% to 125.0%.

• 100% is the default setting.

• The adjustment range is -25.0% to +25.0%.

• 0.0% is the default setting.

• The adjustment range is -25.0% to +25.0%.

• 0.0% is the default setting.

dêå=`çåíê~ëí

From the Analog Source Alignment Menu, select Grn Contrast to adjust the contrast of
the selected input’s green channel.

• The adjustment range is -25.0% to +25.0%.

• 0.0% is the default setting.

dке=_кбЦЬн

From the Analog Source Alignment Menu, select Grn Bright to adjust the brightness of
the selected input’s green channel.

• The adjustment range is -25.0% to +25.0%.

• 0.0% is the default setting.

_äìÉ=`çåíê~ëí

From the Analog Source Alignment Menu, select Blue Contrast to adjust the contrast of
the selected input’s blue channel.

• The adjustment range is -25.0% to +25.0%.

• 0.0% is the default setting.

_дмЙ=_кбЦЬн

From the Analog Source Alignment Menu, select Blue Bright to adjust the brightness of
the selected input’s blue channel.

• The adjustment range is -25.0% to +25.0%.

• 0.0% is the default setting.

44 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

pЬ~кйеЙлл

From the Analog Source Alignment Menu, select Sharpness to adjust the sharpness of
the selected input. This selection sets the scaler's sharpening (or softening) value.

• The sharpening range extends from -10 (softest) to +10 (sharpest).

• 0 is the default setting (which sets the scaler to its optimum sharpness).

`äáé=íç=pìÄ_äâ

From the Analog Source Alignment Menu, select Clip to SubBlk to eliminate low level
noise in black regions of the image.

• The adjustment range is 0 to -15.

• 0 is the default setting.

iмг~=qк~ЕвбеЦ

From the Analog Source Alignment Menu, select Luma Tracking to prevent green haze
from appearing in regions of low light.

• The adjustment range is 0 to -15.

• 0 is the default setting.

bafa=asf

From the Analog Source Alignment Menu, select EDID DVI to display the EDID DVI In
Format Menu, which enables you to update LED-PRO's preferred EDID resolution. Refer

to the “Programming EDID

” section on page 53 for instructions.

LED-PRO • User’s Guide 45

4. Operation

Using the Setup Menu

pзмкЕЙ=^дбЦегЙен=Ф=paf

From the Setup Menu (for an SD-SDI or HD-SDI input source), select Source Alignment
to display the SDI Source Alignment Menu. This menu enables you to adjust all aspects
of the source’s “visible” parameters.

Following are descriptions of each SDI Source Alignment Menu function:

SOURCE ALIGNMENT
> Contrast 100.0

Brightness 100.0
Hue +0
Saturation 100
Sharpness +0
Clip to SubBlk +0
Luma Tracking +0
EDID DVI >>

Figure 4-17. SDI Source Alignment Menu (sample)

• Contrast

• Brightness

• Hue

• Saturation

• Sharpness

• Clip to SubBlk

• Luma Tracking

• EDID DVI

`çåíê~ëí

From the SDI Source Alignment Menu, select Contrast to adjust the overall contrast of
the selected SDI input.

• The adjustment range is 75.0% to 125.0%.

• 100% is the default setting.

_кбЦЬнеЙлл

From the SDI Source Alignment Menu, select Brightness to adjust the overall brightness
of the selected SDI input.

• The adjustment range is 75.0% to 125.0%.

• 100% is the default setting.

eìÉ

From the SDI Source Alignment Menu, select Hue to adjust the hue of the selected input.
Note that Hue is not applicable for YPbPr inputs.

• The adjustment range (in degrees) is -180 to +180.

• 0 is the default setting.

46 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

p~íìê~íáçå

From the SDI Source Alignment Menu, select Saturation to adjust the saturation of the
selected input.

• The adjustment range is -75 to +125.

• 100 is the default setting.

pЬ~кйеЙлл

From the SDI Source Alignment Menu, select Sharpness to adjust the sharpness of the
selected input. This selection sets the scaler's sharpening (or softening) value.

• The sharpening range extends from -10 (softest) to +10 (sharpest).

• 0 is the default setting (which sets the scaler to its optimum sharpness).

`äáé=íç=pìÄ_äâ

From the SDI Source Alignment Menu, select Clip to SubBlk to eliminate low level noise
in black regions of the image.

• The adjustment range is 0 to -15.

• 0 is the default setting.

iмг~=qк~ЕвбеЦ

From the SDI Source Alignment Menu, select Luma Tracking to prevent green haze
from appearing in regions of low light.

• The adjustment range is 0 to -15.

• 0 is the default setting.

bafa=asf

From the SDI Source Alignment Menu, select EDID DVI to display the EDID DVI In
Format Menu, which enables you to update LED-PRO's preferred EDID resolution. Refer

to the “Programming EDID” section on page 53 for instructions.

LED-PRO • User’s Guide 47

4. Operation

Using the Setup Menu

pзмкЕЙ=^дбЦегЙен=Ф=asf

From the Setup Menu (for a DVI input source), select Source Alignment to display the
DVI Source Alignment Menu. This menu enables you to adjust all aspects of the source’s

“visible” parameters.

Following are descriptions of each DVI Source Alignment Menu function:

SOURCE ALIGNMENT
> Contrast 100.0

Brightness 100.0
Sharpness +0
EDID DVI >>

Figure 4-18. DVI Source Alignment Menu (sample)

• Contrast

• Brightness

• Sharpness

• EDID DVI

`çåíê~ëí

From the DVI Source Alignment Menu, select Contrast to adjust the overall contrast of
the selected DVI input.

• The adjustment range is 75.0% to 125.0%.

• 100% is the default setting.

_кбЦЬнеЙлл

From the DVI Source Alignment Menu, select Brightness to adjust the overall brightness
of the selected SDI input.

• The adjustment range is 75.0% to 125.0%.

• 100% is the default setting.

pЬ~кйеЙлл

From the DVI Source Alignment Menu, select Sharpness to adjust the sharpness of the
selected input. This selection sets the scaler's sharpening (or softening) value.

• The sharpening range extends from -10 (softest) to +10 (sharpest).

• 0 is the default setting (which sets the scaler to its optimum sharpness).

bafa=asf

From the DVI Source Alignment Menu, select EDID DVI to display the EDID DVI In
Format Menu, which enables you to update LED-PRO's preferred EDID resolution. Refer

to the “Programming EDID

” section on page 53 for instructions.

48 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

mкЙлЙнл

From the Setup Menu, select Presets to display the Global Preset Menu, which enables
you to store, recall or delete up to 16 Presets (or "Views"). Each Preset is essentially a
“global” combination of pan and zoom settings which can be applied to any input. Whereas
the Presets in the Pan & Zoom Menu are input specific, “global” Presets in the Setup
Menu are independent of any specific input.

S You can define a global Preset that maps the entire input image to the upper

left quarter of the output image.

Please note:

• A global Preset is defined by first creating the desired image settings in the Pan &

Zoom Menu.

• Once created, the settings may be saved (and named) in the Global Preset

Menu under the Setup Menu heading. (Presets cannot be named in the Pan &
Zoom Menu.)

• A stored global Preset can be recalled and applied to the currently selected input.

The figure below illustrates the Global Preset Menu:

PRESET
> Recall >>

Save >>
Delete >>

Figure 4-19. Global Preset Menu

Following are descriptions of each menu function:

• Recall

• Save

• Delete

oÉÅ~ää

From the Global Preset Menu, select Recall to display the Recall Preset Menu, which
enables you to choose a stored Preset and assign it to the currently selected input.

RECALL PRESET
> Preset Default

Recall

Figure 4-20. Recall Preset Menu

 To recall a global preset:

1. On the Preset line, press SEL. The navigation cursor (>) changes to the edit
cursor (#).

2. Choose a Preset by turning the knob, and “accept” it by pressing SEL. Note that
15 Presets are listed, along with the “Default” preset which contains default pan
(0%) and zoom (100%) settings.

LED-PRO • User’s Guide 49

4. Operation

Using the Setup Menu

p~îÉ

From the Global Preset Menu, select Save to display the Save Preset Menu, which
enables you to save the current pan and zoom settings using one of 15 predefined names
(Preset 1 through Preset 15).

 To save a global preset:

3. Scroll to the Recall line and press SEL. The global Preset is recalled and applied
to the selected input.

SAVE PRESET
> Preset Preset 4

Save

Figure 4-21. Save Preset Menu

1. On the Preset line, press SEL.

2. Choose the desired Preset file by turning the knob, and “accept” it by pressing
SEL. All 15 global Presets are listed.

3. Scroll to the Save line and press SEL.

~ If the Preset file is empty, the message “Preset Saved” appears to

confirm the procedure.

~ If the file is already in use, a confirmation menu appears:

• Press SEL to overwrite the Preset.

• Press ESC to return to the Save Preset Menu, enabling you to
change the filename.

aЙдЙнЙ

From the Global Preset Menu, select Delete to display the Delete Preset Menu, which
enables you to delete the contents of a selected Preset.

DELETE PRESET
> Preset Preset 4

Delete

Figure 4-22. Delete Preset Menu

 To delete a global preset:

1. On the Preset line, press SEL.

2. Choose the desired file by turning the knob, and “accept” it by pressing SEL.

3. Scroll to the Delete line and press SEL to display a confirmation menu.

~ Press SEL to delete the Preset.

~ Press ESC to return to the Delete Preset Menu, enabling you to select a

different file to delete.

50 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

opOPO

From the Setup Menu, select RS232 to display the RS232 Menu, which enables you to set
the baud rate for the rear panel RS-232 connector.

RS232
> Baud 19200

Figure 4-23. RS232 Menu (sample)

 To set the RS-232 connector’s baud rate:

1. On the Baud line, press SEL. The navigation cursor (>) changes to the edit
cursor (#).

2. Choose the desired baud rate with the knob, and “accept” it by pressing SEL.
Choices include 19200, 38400, 57600 and 115200. Note that the selected Baud
rate is not updated until the SEL button is pressed.

Note

Note

Most operations will be performed at 19200.

If LED-PRO is placed in Remote mode and Director Toolset
is connected, the Director Toolset may update the RS232
Menu with a different setting, such as 115200.

bсйЙкн=jзЗЙ

From the Setup Menu, select Expert Mode to display the Expert Mode Menu, which
provides extensive “advanced” system setup functions. Refer to the “Using the Expert

Mode Menu” section on page 66 for full instructions.

p~оЙ=pулнЙг=pн~нЙ

From the Setup Menu, select Save System State to perform the following functions:

• Save all input, output and system settings in non-volatile memory — so they can

be restored at power up.

Note

When the Status Menu is next selected, the message “Last
Saved [1, 2, 3 or 4]” appears on line 2, depending upon which

input is selected.

• Save a specific input so that it will be acquired and selected at power up. By

default, input 1 is selected at bootup and after a factory reset.

Note

LED-PRO • User’s Guide 51

If you do not perform the “Save System State” function,
some system information may not be restored upon the next
system power up.

4. Operation

Using the Setup Menu

 To save the system state:

1. Select the input button (in the front panel Inputs Section) that you want to be
acquired and selected at power-up.

2. Press SETUP to display the Setup Menu.

3. Select the Save System State line and press SEL. The “Saving System State”

message appears, confirming the process.

Note

This procedure is identical to the Save System State
procedure located in the System Menu (SETUP > Expert
Mode > System).

c~Ензку=oЙлЙн

From the Setup Menu, select Factory Reset to display the Factory Reset Menu, which
enables you to reset LED-PRO to its "factory default" condition.

Clear all configs,
formats, presets?

<SEL> = Yes
<ESC> = No

Figure 4-24. Factory Reset Menu

Note that this procedure deletes all saved user information, input configurations, output
configuration, custom formats, presets and the LOGO (if stored in flash memory).

 To perform a factory reset:

1. Select the Factory Reset line and press SEL.

~ Press SEL to perform a factory reset. A confirmation menu is shown,

and the system is rebooted.

~ Press ESC to return safely to the previous menu.

Note

52 LED-PRO • User’s Guide

This procedure is identical to the Factory Reset procedure
located in the Expert Mode Menu (SETUP > Expert Mode).

4. Operation

Using the Setup Menu

mкзЦк~ггбеЦ=bafa

The EDID DVI Input Format Menu enables you to update LED-PRO's preferred EDID
resolution. The menu can be accessed from several points within the menu tree, but all
programming procedures are identical.

Important

EDID (Extended Display Identification Data) is a VESA standard data format that contains
information about a display device and its capabilities, including the preferred (and the
allowed) resolutions of the device.

Please note:

This menu is designed for advanced users only. Do not
reprogram the EDID unless it is necessary.

• LED-PRO’s EDID file is stored in non-volatile memory.

• The EDID file is read by a computer's DVI graphic card when its DVI output is

connected to LED-PRO's channel 1 DVI-I input connector during boot-up.

• LED-PRO must be powered on first for the EDID information to be read.

 Use the following steps to program EDID:

1. Ensure that there are no cables connected to LED-PRO's DVI-I input and loop
through connectors.

Important

2. From the Source Alignment Menu, select EDID DVI to display the EDID DVI In
Format Menu, a sample of which is shown below. Line 2 (the “Format” line)

displays LED-PRO’s current EDID resolution:

If a DVI input is connected to LED-PRO, it will interfere with
the programming operation, and cause it to fail. If a Flat
Panel monitor is connected on the loop through, it's own
EDID information will also be changed.

EDID DVI IN FORMAT
> 1280x1024 @60

Program EDID

Figure 4-25. EDID DVI In Format Menu (sample)

3. Scroll to the Format line and press SEL.

4. Rotate the ADJUST knob and select the preferred resolution. Press SEL to

“accept” the selection.

LED-PRO • User’s Guide 53

4. Operation

Using the Setup Menu

5. Scroll to the Program EDID line and press SEL. The following warning message
is shown:

WARNING! MAKE SURE
DVI IN & LOOP THRU
ARE NOT CONNECTED
SEL=Cont, ESC=Abort

Figure 4-26. EDID Warning Message

~ Press SEL to proceed with the non-volatile memory programming.

~ Press ESC key to cancel the operation.

As an additional precaution, LED-PRO verifies that no cables are connected to
the DVI-I input and loop through connectors. If a DVI source or display device is
detected, the following message appears:

ERROR! DVI INPUT AND
LOOP THRU CONNS MUST
BE DISCONNECTED!
<ESC> = Continue

Figure 4-27. EDID DVI Input Detection Error Message

~ Disconnect all cables from the DVI input connectors, then press ESC to

continue with programming.

Once the system detects that no DVI source or display is connected, LED-PRO
proceeds with programming. The following message is shown:

Programming EDID
Please wait ...

Figure 4-28. EDID Programming Message

~ If programming is successful, please continue with step 6.

~ If programming fails, the following message is shown:

EDID Prog Failed!
Disconnect DVI in
& loop thru conns
<ESC> = Continue

Figure 4-29. EDID Programming Failed Message

54 LED-PRO • User’s Guide

4. Operation

Using the Setup Menu

If this error message persists and there is no DVI source or display device
connected to LED-PRO, please contact Barco customer service. In Appendix C,
refer to the “Contact Information” section on page 162 for details.

6. If programming is successful, the following message is shown:

EDID Prog Done
Connect DVI input
and reboot the PC
<ESC> = Continue

Figure 4-30. EDID Programming Successful Message

Press ESC to return to the EDID DVI In Format Menu.

7. Reconnect the DVI cable from your computer to LED-PRO.

8. Reboot the computer in order for the new EDID information to be read, and for the

new preferred resolution to become available.

LED-PRO • User’s Guide 55

4. Operation

Using the Setup Wizard

rëáåÖ=íÜÉ=pÉíìé=táò~êÇ

The Setup Wizard allows users to quickly set up and align a basic LED display — without
the need of the Director Toolset. The Wizard automatically guides the user through the
entire setup process, including:

• Wall detection (type and size)

• Addressing and positioning tiles

• Aligning LED-PRO’s output resolution to match the wall

• Wall contrast and gamma adjustment

Please note the following important points:

• The Wizard can only be used with standard LED Tiles. MiPIX, MiSPHERE and

creative OLite displays require the Director Toolset.

• The Director Toolset is still required for wall color calibration, tile firmware

updates, and for creating and applying custom gamma curves.

 Use the following steps to run the Setup Wizard:

1. Please note the following important Setup Wizard prerequisites:

~ Ensure that your LED wall is properly connected to LED-PRO, and that

power is enabled to all devices.

~ Ensure that you know how your LED wall is cabled (e.g., horizontally or

vertically), as shown below:

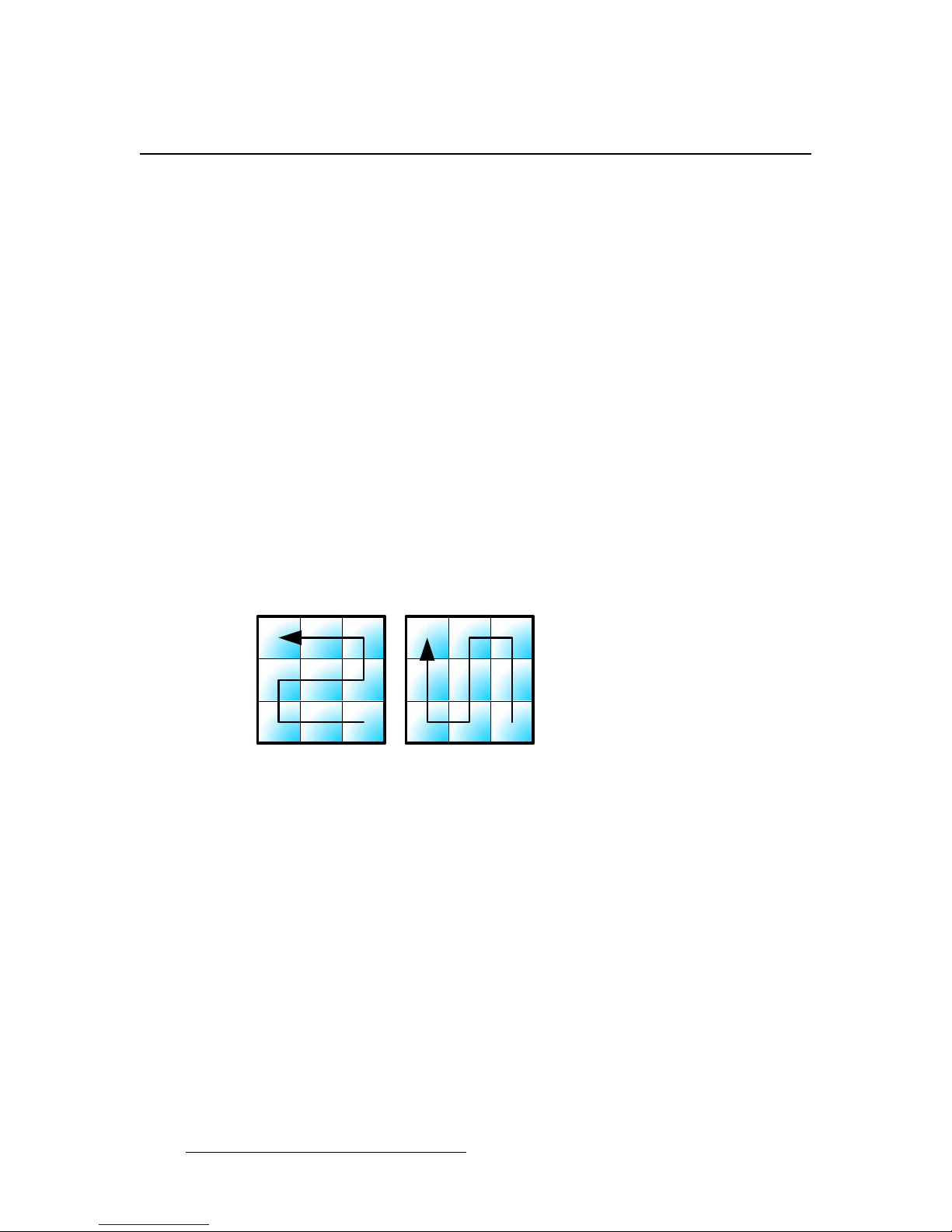

Horizontal Cabling Vertical Cabling

Figure 4-31. LED Tile Cabling Examples

~ Ensure that you know where your “first” LED tile is located, as viewed

from the front of the wall (e.g., the bottom left). This is the tile to which
LED-PRO (or Fiberlink) is connected.

2. From the Setup Menu, select Setup Wizard to display the Setup Wizard Start
Menu.

56 LED-PRO • User’s Guide

4. Operation

Using the Setup Wizard

3. Press SEL to launch the wizard and display the Setup Wizard Start Message.

LED-PRO FULL WIZARD
Connect all power
and video cables
Press <SEL> to start

Figure 4-32. Setup Wizard Start Message

Note

4. Press SEL to continue. During this interval, LED-PRO will detect the tiles, query

the tiles and count the number of tiles. The larger the LED wall, the longer the
interval.

An error message will be shown if the LED wall is not
connected.

~ If no errors are detected, at the conclusion of this “detection” interval, the

Wall Information Menu is displayed as shown below.

~ If errors were detected, please continue with step 5 below.

WALL INFORMATION
> Type: ILite 3

Count: 20
Fiber Tx ID 0002
Fiber Rx ID 0003
Next

Figure 4-33. Wizard - Wall Information Menu (sample)

Following are descriptions of each menu field:

~ Type — displays the type of LED tile detected.

~ Count — displays the number of LED tiles detected.

~ Fiber Tx ID — displays the address of the Fiberlink transmitter, if used.

~ Fiber Rx ID — displays the address of the Fiberlink receiver, if used.

If no errors were detected during the “detection” interval, continue with step 6.

5. If errors were found during the “detection” interval, the Wall Information Menu

will not be shown. Instead, one of four possible messages will be shown:

~ If no tiles were detected, you will be asked to “Check cabling and

power.” When complete, press SEL to continue.

~ If the Fiberlink Transmitter is detected but the Receiver is not, you will

be asked to “Check cabling and power.” During this interval, a white
test pattern will appear. Press SEL to continue, and then verify that wall
is powered up.

~ If both the Fiberlink Transmitter and Receiver are detected, but no tiles

are detected, you will be asked to “Check cabling and power.” During
this interval, a white test pattern will appear. Press SEL to continue, and
then verify that wall is powered up.

LED-PRO • User’s Guide 57

4. Operation

Using the Setup Wizard

~ If the system detects “creative” LED tiles, such as MiSPHERE and

MiPIX, the message “Tile type not supported” will appear. Because
these tile types are not supported by the Wizard, please use Director
Toolset for setup.

Note

6. From the Wall Information Menu, select Next to display the Set Wall
Dimensions Menu, which allows you to set the number of horizontal and vertical

tiles in the wall:

If any of the errors listed above are detected more than once,
the system will request that you contact Technical Support.

Set Wall Dimensions:
> Horizontal tiles: 4

Vertical tiles: 5
Next

Figure 4-34. Set Wall Dimensions Menu (sample)

7. Enter the number of horizontal and vertical tiles, and press NEXT.

~ If the LED tile count is correct, the Wall Data Connection Menu will be

shown. Please continue with step 8.

~ If the LED tile count (as entered) is incorrect, the Tile Count Mismatch

Menu is shown.

Tile Count Mismatch.

Detected Count: 20
Entered Count: 16
Press <SEL> to fix

Figure 4-35. Tile Count Mismatch Menu (sample)

Press SEL to return to the Set Wall Dimensions Menu, and enter the
correct number of horizontal and vertical tiles. Please note:

• If you enter fewer tiles than are actually detected, the system
“loops” back to the Set Wall Dimensions Menu.

• If you enter more tiles than are actually detected (and you do
this three times), a test pattern will appear to enable you to
visually check the wall for errors. At this point, check all power
and data cabling, and press SEL to continue with a repeat of
the “detection” process.

58 LED-PRO • User’s Guide

4. Operation

Using the Setup Wizard

8. From the Set Wall Dimensions Menu, the Wall Data Connection Menu
appears.

> How do the wall data

cables connect?
Horizontally
Vertically
Previous

Figure 4-36. Wall Data Connection Menu

~ Select Horizontally if cables are connected horizontally.

~ Select Vertically if cables are connected vertically.

~ Select Previous to return to the previous menu in the wizard.

9. After selecting the correct data cable connection, the Tile Connection Menu
appears.

> Looking at the wall

from the front, the
first tile connected
to the LED-PRO is
the:
Bottom Right
Next
Previous

Figure 4-37. Tile Connection Menu (sample)

Highlight the correct connection point, and press SEL. Please note:

~ In a standard tile array, choices are Bottom Right, Bottom Left, Top

Right, and Top L e ft.

~ In a horizontal tile array that is one tile in height, choices are Left or

Right.

~ If a vertical tile array that is one tile wide, choices are Top or Bottom.

10. Select Next to display the Rolling Grid Test Menu. During this interval, the

system configures the wall, and displays a test pattern with diagonal motion.

LED-PRO • User’s Guide 59

4. Operation

Using the Setup Wizard

The figure below illustrates the Rolling Grid Test Menu.

ROLLING GRID TEST
> Is the grid Test

Pattern rolling
smoothly through
the picture?
Yes
No

Figure 4-38. Rolling Grid Test Menu

Note

The raster box may flash on and off, on the left and top edges
of the image. This is normal.

~ Select Yes if the grid test pattern rolls smoothly through the picture.

Please continue with step 11.

~ Select No if the grid does not roll smoothly through the picture. In this

case, the system asks you to check data cabling.

• Press SEL to return to the Wall Data Connection Menu.

• Re-enter the proper horizontal or vertical cabling, and press

SEL to continue again with the Tile Connection Menu and
Rolling Grid Test Menu.

11. From the Rolling Grid Test Menu, the Position Output Menu appears.

Position Output:
> Adjust the white box

until the top,
bottom, and sides
can all be seen.
H Position 38
H Size 288
V Position 28
V Size 270
Next
Previous

Figure 4-39. Position Output Menu (sample)

If required:

Note

60 LED-PRO • User’s Guide

~ Select H Position and adjust the raster box for a perfect outline.

~ Select H Size and adjust the raster box for a perfect outline.

~ Select V Position and adjust the raster box for a perfect outline.

~ Select V Size and adjust the raster box for a perfect outline.

Typically, there should not be a need to adjust the sizes.

4. Operation

Using the Setup Wizard

12. Select Next to display the Input Type Menu:

What is the primary

input source type?

> PAL

Next

Figure 4-40. Input Type Menu (sample)

~ Select PAL if your primary inputs are PAL.

~ Select NTSC/PC if your primary inputs are NTSC or a PC.

This completes the Setup Wizard procedure.

13. Select Next to save the new output configuration. The system displays the Input
Wizard Query.

Would you like to

setup Input(s)?

> Yes

No

Figure 4-41. Input Wizard Query

~ Select Yes to launch the Input Wizard. Refer to the “Using the Input

Wizard” section on page 62 for details.

~ Select No to exit and display the Status Menu.

Please note the following important points regarding special “automatic” Wizard settings:

• OLite LED Tiles

If you are using OLite tiles, the Setup Wizard has automatically set the “Creative
Mode” (on the LED Menu) to Normal.

~ To perform a complete “creative” setup instead, use the Director

Toolse t, and then enable the creative mode on the LED Menu.

~ Refer to the “Creative Mode” section on page 103 for additional details.

• SLite and DLite LED Tiles

If you are using SLite and DLite tiles, the Setup Wizard has automatically set the
“Tile Mode” (on the LED Menu) to Virtual.

~ If you want to enable the “Real” mode instead:

• Select the Tile Mode function on the LED Menu, and select
Real.

• Use the Expert Mode to set up H and V sizes on the output.

~ Refer to the “Tile Mode” section on page 103 for additional details.

LED-PRO • User’s Guide 61

4. Operation

Using the Input Wizard

rëáåÖ=íÜÉ=fåéìí=táò~êÇ

The Input Wizard allows users to easily setup and align input sources. It automatically
detects and re-scales the selected input source to match the physical size of the LED
display.

 Use the following steps to run the Input Wizard:

1. Please note the following important Input Wizard prerequisites:

~ Ensure that your inputs are properly connected to LED-PRO.

~ Ensure that you have run the Setup Wizard, to properly configure your

LED wall.

2. From the Setup Menu (or from the last step in the Setup Wizard), select Input
Wizard to display the Input Wizard Start Menu.

3. Press SEL to launch the wizard and display the Input Wizard Start Message.

LED-PRO INPUT WIZARD
Connect all power
and video cables.
Press <SEL> to start

Figure 4-42. Input Wizard Start Message

Note

4. Press SEL to display the Select Input Menu. Note that the Raster Box appears

on the LED wall.

An error message will be shown if the LED wall is not
connected.

Select Input:
> Input 1: DVI

Next

Figure 4-43. Select Input Menu (sample)

On the menu, there are two ways to select the input that you want to adjust:

~ Press the desired input button in the Inputs Section of the front panel.

~ Select the Input line, and use the ADJUST knob to select the desired

input.

If selected input is invalid, the “No Input Detected” message is shown. In this
case, select another input, or check the cable connections on the input that
caused the error.

62 LED-PRO • User’s Guide

4. Operation

Using the Input Wizard

5. After selecting the desired input, select Next to display the Position & Size
Menu.

Position & Size
> H Position 216

H Size 800
V Position 27
V Size 600
Next
Previous

Figure 4-44. Position and Size Menu (sample)

Tip

On the selected input source, use a full screen output signal
such as a test pattern or a “freeze frame.” In this mode, you
want to see all edges of the image clearly, with video other
than black.

~ Select H Position and adjust the input to fill the raster box precisely.

~ Select H Size and adjust the input to fill the raster box precisely.

~ Select V Position and adjust the input to fill the raster box precisely.

~ Select V Size and adjust the input to fill the raster box precisely.

6. Select Next to display the Wall Contrast Menu, which enables you to set the LED
wall contrast — for all inputs.

Wall Contrast
> 100%

Next
Previous

Figure 4-45. Wall Contrast Menu (sample)

~ Select the Value line, and adjust for the desired wall contrast — from 0 to

100. Press SEL to enable.

7. Select Next to display the Wall Location Menu, which enables you to set the LED

wall’s gamma — for all inputs.

Wall Location
> Inside

Next
Previous

Figure 4-46. Wall Location Menu (sample)

LED-PRO • User’s Guide 63

~ Select the gamma curve line, and choose the desired mode: Inside,

Outside, or Custom.

4. Operation

Using the Input Wizard

Please note the following important points regarding the gamma curve:

~ If you previously selected (and stored) a custom gamma curve with the

Director Toolset, LED-PRO will query the tiles and recognize the curve
as “custom.”

~ If you have used the “Expert Mode” to set up a gamma curve, four

values are available: Indoor 1, Indoor 2, Outdoor 1 and Outdoor 2.

• The Expert Mode’s Indoor 2 setting is recognized by the
Wizard as the Inside mode.

• The Expert Mode’s Outdoor 2 setting is recognized by the
Wizard as the Outside mode.

• Indoor 1 and Outdoor 1 settings are recognized by the Wizard
as the Custom mode.

8. Select Next to display the Save Config As Menu, which enables you to save the
input configuration for the selected input only.

Save Config As
> File1

Save Config
Previous

Figure 4-47. Save Config As Menu (sample)

 To save an input configuration:

a. Scroll to the filename field (e.g., File1) and press SEL. The navigation

cursor (>) changes to the edit cursor (#), allowing you to edit the first
character.

b. Choose a character by turning the knob, and “accept” it by pressing SEL.

This action also selects the next character for editing.

c. Repeat step b for all desired characters.

d. When data entry is complete, press SEL again. The filename will be

truncated up to the current character position.

e. To save the input configuration under the selected filename, scroll to the

Save Config line and press SEL.

• If the selected filename has never been used, the message
"Config Saved" appears.

• If the selected filename is already in use, the Overwrite File
Menu appears.

Overwrite File1 ?

<SEL> = Yes
<ESC> = No

Figure 4-48. Overwrite File Menu (sample)

64 LED-PRO • User’s Guide

• Press SEL to overwrite the file, or ...

• Press ESC to return to the Save Config As Menu, enabling
you to change the filename.

9. When the Setup Another Input Query is shown:

~ Select Yes to return to the Select Input Menu. Repeat steps 4 through

8 for each additional input.

~ Select No to exit the wizard, and return to the Status Menu. After you

exit, the system performs an automatic “Save System State” procedure
to save all inputs, outputs and system configurations.

4. Operation

Using the Input Wizard

LED-PRO • User’s Guide 65

4. Operation

Using the Expert Mode Menu

rлбеЦ=нЬЙ=bсйЙкн=jзЗЙ=jЙем

The following topics are discussed in this section:

• Expert Mode Menu Tree

• Expert Mode Menu Description

bсйЙкн=jзЗЙ=jЙем=qкЙЙ

From the Setup Menu, select Expert Mode to display the Expert Mode Menu. The figure
below illustrates the complete Expert Mode Menu Tree.

SETUP

Setup

Menu

Expert Mode

Input

Input
Format
Sampling
Timing Adjust

Auto Config
Sample Phase
H Total
H Position
H Active
V Total
V Position
V Active

Type
Colorspace

Source Alignment

Source Alignment >>

Custom In

Select Custom
Save As
Delete
H Total
H Active
H Front Porch
H Sync
H Rate

V Total
V Active
V Front Porch
V Sync
V Rate
Interlaced

Aspect Ratio

Mode
Ratio

Display Mode
Letterbox
Processing

Save Config
Reset Config
Recall Config
Delete Config

Output

Timing Adjust

Refresh Rate
LED Control
LED Status
LED Contrast
LED Gamma
LED Info

Lock to Src

Sync Sel
Delntlc
Pulldown Cmp
Sync Slice

H Total
H Position
H Size
H Sync
V Total
V Position
V Size
V Sync

LED Type
Tile Count
LED-PRO ID
LED Wall ID
Fiber Tx ID
Fiber Rx ID

Mode
Type
H Phase

Min Delay

Mode
Status

Save Config
Reset Config

Effects

Trans With

Trans Time

Logo

Capture Logo
Delete Logo
Logo Present

Auto Acquire
Freeze
System

VFD Bright
Diag RS-232

Baud
Parameters
Handshaking
Reset

Ethernet

Mode
DHCP
Set Static IP
IP
Mac

EDID DVI

Program EDID

Lock Panel
Save State

Software Vsn
Factory Rst

Figure 4-49. Expert Mode Menu Tree

66 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

bсйЙкн=jзЗЙ=jЙем=aЙлЕкбйнбзе

The Expert Mode Menu provides extensive “advanced” system setup functions. A sample
menu is shown below.

EXPERT MODE
> Input >>

Output >>
Effects >>
Logo >>
In Auto Acquire On
Freeze Off
System >>
Software Version >>
Factory Reset

Figure 4-50. Expert Mode Menu (sample)

Following are descriptions of each menu function:

• Input

• Output

• Effects

• Logo

• In Auto Acquire

• Freeze

• System

• Software Version

• Factory Reset

LED-PRO • User’s Guide 67

4. Operation

Using the Expert Mode Menu

fåéìí

From the Expert Mode Menu, select Input to display the Input Setup Menu for the
selected source. A sample menu is shown below.

Note

The Input Setup Menu changes dynamically as you switch
input sources. The top menu line always reflects the selected
input number and format.

INPUT 1: DVI
> 1024x768 @59,94

Sampling 1:1
Timing Adjust >>
Type RGB
Colorspace RGB
Source Alignment >>
Custom In Format >>
Aspect Ratio >>
Display Mode Scale
Letterbox Off
Processing >>
Save Config >>
Reset Config
Recall Config >>
Delete Config >>

Figure 4-51. Input Setup Menu (sample)

Following are descriptions of each menu function:

• Input Format

• Sampling

• Timing Adjust

• Type

• Colorspace

• Source Alignment

• Custom In Format

• Aspect Ratio

• Display Mode

• Letterbox

• Processing

• Save Config

• Reset Config

• Recall Config

• Delete Config

• Unsaved Changes

68 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

fåéìí=cçêã~í

On the Input Setup Menu, the top “Input Format” line indicates the current input video
format in the following form:

Hact x Vact @ Vr Hz

S 1024x768 @75 Hz

Please note:

• If the currently selected input does not have a valid input signal, the message

"Invalid Signal" is shown.

• When “In Auto Acquire” is enabled, the input video format will be detected in the

following search order:

~ Last used configuration for the selected input channel

~ Any saved input configuration

~ Any custom library formats created by the user

~ Standard library formats

~ “Best guess” format, to the closest format in library

• If the video format is a “best guess,” it will be displayed within asterisks.

S *1024x768 @60.11*

• If the video format is recalled from a saved input configuration, a “c” is displayed

as the right most character.

S 1024x768 @59.94 c

• When “In Auto Acquire” is off, LED-PRO attempts to lock to the input video

format selected by the user. If the currently selected format does not match the
input signal for the selected channel, the display remains black and the menu
indicates "Invalid Signal."

 To change the input video format:

1. Select the input that you wish to change.

2. On the Input Setup Menu, select the top “Input Format” line. The navigation
cursor (>) changes to the edit cursor (#).

3. Use the knob to select the desired format. Press SEL to accept.

4. Repeat from step 1 for additional inputs, as required.

Note

p~гйдбеЦ

In order to scale an image, it must first be digitized. This is the process of changing the
analog graphics signals (e.g., Red, Green, and Blue) into pixels that are stored in LED­PRO’s image memory. Two modes are available:

• The “oversample” mode produces more samples than are present in the original

input image. The oversampled image is then scaled to the final output resolution.

• The “1:1 Sampling” mode produces a superior image by sampling the analog

video signal at exactly the same rate as the original source. This method allows
the image to be re-constructed with reduced digitizing artifacts.

LED-PRO • User’s Guide 69

If “In Auto Acquire” is enabled, LED-PRO may change a
manually selected format back to a format that it
automatically detects.

4. Operation

Using the Expert Mode Menu

Please note:

• The 1:1 mode requires very accurate settings, as even a small sampling error can

cause noise on the output image.

• Both the sample clock frequency and phase must be correct to obtain a properly

sampled image.

• LED-PRO incorporates automatic adjustments in the 1:1 sampling mode.

 To change the sampling mode:

1. On the Input Setup Menu, select Sampling.

2. Choose either OverSample or 1:1, and press SEL to accept.

Please note:

• 1:1 is the default setting.

• The OverSample option is only available for RGB and YPbPr analog inputs. All

other input types have defined sample clocks that are inherently 1:1. If the input is
set to one of the other types, the value for this selection will be “n/a.”

qбгбеЦ=^Замлн

From the Input Setup Menu, select Timing Adjust to display either the 1:1 Timing Adjust
Menu or the OverSample Timing Adjust Menu — depending on your selected sampling

mode. Each menu allows for exact positioning of the input signal's active area.

• 1:1 Timing Adjust Menu

• OverSample Timing Adjust Menu

NWN=qбгбеЦ=^Замлн=jЙем

When 1:1 sampling is selected, the 1:1 Timing Adjust Menu is shown:

1:1 TIMING ADJUST
> Auto Config

Sample Phase 0
H Total 2160
H Position 496
H Active 1600
V Total 1250
V Position 49
V Active 1200

Figure 4-52. 1:1 Timing Adjust Menu (sample)

Following are descriptions of each menu function, which are only available when 1:1
Sampling is selected, and the input is analog RGB or YPbPr.

• Auto Config — causes the system to run the “1:1 active area acquisition”

procedure.

Note

For the Auto Config procedure to function correctly, the input
source for the selected channel must have 50% gray or
brighter pixels around all four edges of the active area.

70 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

• Sample Phase — enables you to fine-tune the image by adjusting the sample

clock phase. Please note:

~ The adjustment range is -16 to 15.

~ Zero is the default setting.

~ The value is initially filled in by the Auto Config command, or set to the

default.

• H Total — enables you to adjust (in pixels) the total pixel count per line.

Note

H Total cannot be adjusted if the input type is DVI or SDI.

• H Position — adjusts (in pixels) the offset of the start of active area from H sync.

• H Active — adjusts (in pixels) the size of the active area.

• V Total — adjusts (in lines) the total line count per frame.

• V Position — adjusts (in lines) the offset of the start of active area from V sync.

• V Active — adjusts (in lines) the size of the active area.

Tip

lоЙкp~гйдЙ=qбгбеЦ=^Замлн=jЙем

When OverSample is selected, the Oversample Timing Adjust Menu is shown:

OVRSMP TIMING ADJUST
> Right Edge 2096

Left Edge 496
Top Edge 49
Bottom Edge 1249

When adjusting input timing, turn on the Output Raster Box,
and adjust the input image to align with all four edges of the
raster box.

Figure 4-53. OverSample Timing Adjust Menu (sample)

Following are descriptions of each menu function, which are only available when
OverSample is selected.

• Right Edge — adjusts (in pixels) the right edge location, relative to the start of H

Sync.

• Left Edge — adjusts (in pixels) the left edge location, relative to the start of H

Sync.

• Top Edg e — adjusts (in lines) the top edge, relative to the start of V Sync.

• Bottom Edge — adjusts (in lines) the bottom edge, relative to the start of V Sync.

Tip

LED-PRO • User’s Guide 71

When adjusting input timing, turn on the Output Raster Box,
and adjust the input image to align with all four edges of the
raster box.

4. Operation

Using the Expert Mode Menu

qóéÉ

From the Input Setup Menu, select Type to choose among the possible signal types
available at the current input channel. Please note:

• Values are: RGB, YPbPr, NTSC/PAL/SECAM, SDI, and DVI.

• When “In Auto Acquire” is enabled, the “type” selections will be limited

depending on the signal present on the currently selected input.

S If input 1 is connected to a DVI source, DVI will be the only choice — which

• When “In Auto Acquire” is off, the “type” selections are expanded to allow you to

manually select the Video type.

`здзклй~ЕЙ

From the Input Setup Menu, select Colorspace to choose among the possible component
video standards for YPbPr. Please note:

• Values are: RGB, SMPTE, BETA and M-II.

• For all other video types, color space is set to RGB and cannot be changed.

• The default selection for YPbPr is SMPTE. You may change this setting to BETA

or M-II to allow the LED-PRO to correctly sample the Y, Pb and Pr components
across their full dynamic range.

cannot be changed. Similarly, SDI will be the only choice whenever the SDI
input is selected.

pзмкЕЙ=^дбЦегЙен

From the Input Setup Menu, select Source Alignment to display one of three Source
Alignment menus — depending upon the format of the selected source — analog, SDI or
DVI. These procedures are identical to those located on the Setup Menu.

• For analog input sources, refer to the “Source Alignment — Analog” section on

page 43 for instructions.

• For SDI input sources, refer to the “Source Alignment — SDI” section on

page 46 for instructions.

• For DVI input sources, refer to the “Source Alignment — DVI” section on

page 48 for instructions.

`млнзг=fе=cзкг~н

From the Input Setup Menu, select Custom In Format to display the Custom Input
Formats Menu, which enables you to define and save a new input video format — or to

edit and save a previously-defined format. Please note:

• Saved formats are stored in a user library, which is searched (after the standard

system library is searched) during the auto-acquisition process.

• All saved formats are available as input formats on any input channel.

• A maximum of 32 custom formats may be stored.

72 LED-PRO • User’s Guide

The figure below illustrates the Custom Input Formats Menu:

CUSTOM INPUT FORMATS
> 720x480p

Save As >>
Delete >>
H Total 858
H Active 720
H Front Porch 16
H Sync 63
H Rate (KHz) 31.47
V Total 525
V Active 483
V Front Porch 6
V Sync 6
V Rate (Hz) 59.94
Interlaced Off

Figure 4-54. Custom Input Formats Menu (sample)

4. Operation

Using the Expert Mode Menu

Following are descriptions of each menu function:

• Custom Format — enables you to select a custom format. The choices consist

of the formats within the standard formats library (excluding TV standard formats)
plus any previously-defined formats. The initial value is 720x480p.

• Save As — enables you to save custom parameters in non-volatile memory — to

an existing or new name. If the “Save As” function is not selected, the information
will not be restored upon the next system power up.

 To save a custom format:

a. From the Custom Input Formats Menu, select Save As to display the

Save Custom Format As menu.

SAVE FORMAT AS
> Format1

Save

Figure 4-55. Save Custom Format As Menu (sample)

b. Scroll to the format name field (e.g., Format1) and press SEL. The

navigation cursor (>) changes to the edit cursor (#), allowing you to edit
the first character.

c. Choose a character by turning the knob, and “accept” it by pressing SEL.

This action also selects the next character for editing.

d. Repeat step c for all desired characters.

e. When data entry is complete, press SEL again.

f. To save the format under the selected name, scroll to the Save line and

press SEL.

LED-PRO • User’s Guide 73

4. Operation

Using the Expert Mode Menu

Figure 4-56. Overwrite Custom Format Menu (sample)

Please note:

• Delete — enables you to delete any saved user formats from the library.

 To delete a custom format:

• If the selected filename has never been used, the message
"Format Saved" appears.

• If the selected filename is already in use, the Overwrite
Custom Format Menu appears.

Special1
Overwrite Format?
<SEL> = Yes
<ESC> = No

– Press SEL to overwrite the file.
– Press ESC to return to the Save Format As Menu,

enabling you to change the filename.

~ If the format library is full, the “Library Full” message will be shown. In

this case, it is recommended that you press ESC, scroll through the
names already in the library, and replace one of them.

~ If you attempt to save a new format with a reserved name (one that is

already used in the standard library), the “Reserved Name” message
will be shown. In this case, it is recommended that you press ESC, and
re-edit the name.

a. From the Custom Input Formats Menu, select Delete to display the

Delete Format Menu.

DELETE FORMAT
> Special1

Delete

Figure 4-57. Delete Format Menu (sample)

b. Scroll to the format name field and press SEL. The navigation cursor

(>) changes to the edit cursor (#).

c. Choose a format by turning the knob, and “accept” it by pressing SEL.

d. To delete the format, scroll to the Delete line and press SEL.

e. When the “confirmation” screen appears,

• Press SEL to delete the file.

• Press ESC to return to the Delete Format Menu, enabling you
select a different file, or cancel the procedure (via ESC).

Please note:

~ If the selected format is the current output format in use, or the output

format currently saved in the output configuration, the “Output Format
In Use” message will be shown. Press ESC to continue.

74 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

~ If the selected format is the current input format in use, or the input

format currently saved in an input configuration, the “Input Format In
Use” message will be shown. Press ESC to continue.

• H Total — enables you to adjust (in pixels) the total pixel count per line.

Note

For this function and the following H and V functions, the
possible range for any one is determined in part by the values
of the others. Changing one value will not change any other
values, but it will limit the range available for other values.

Total = Front Porch + Sync Width + Back Porch + Active

• H Active — adjusts (in pixels) the size of the active area.

• H Front Porch — adjusts (in pixels) the width of the horizontal front porch.

• H Sync — adjusts (in pixels) the width of the sync pulse.

• H Rate (KHz) — indicates the horizontal rate in KHz, as computed from the other

parameters.

• V Total — adjusts (in lines) the total line count per frame.

• V Active — adjusts (in lines) the size of the active area.

• V Front Porch — adjusts (in lines) the number of lines that comprise the vertical

front porch.

• V Sync — adjusts (in lines) the number of lines that comprise the vertical sync

pulse.

• V Rate (Hz) — sets the vertical sync rate of the format in Hz.

• Interlaced — allows you enable or disable interlacing. When enabled, the V

Tota l value will be forced to an odd number.

Please note the following important point regarding custom formats:

• If you change any parameter within the Custom Input Formats Menu, but you do

not save the format (using the Save As function), the “Save Custom Format”
message will be shown when you attempt to exit the menu:

Save Custom Format?

<SEL> = Yes
<ESC> = No

Figure 4-58. Save Custom Format Message

LED-PRO • User’s Guide 75

~ Press SEL to save the changes. The Save Format As Menu will be

shown.

~ Press ESC to continue operations without saving changes.

4. Operation

Using the Expert Mode Menu

^лйЙЕн=o~нбз

From the Input Setup Menu, select Aspect Ratio to display the Input Aspect Ratio
Menu. This menu enables you to set the input source’s aspect ratio to a predefined or

custom ratio. LED-PRO selects and displays the source’s aspect ratio according to the
input format detected.

S Computer video at 1280x1024@60Hz defaults to 5:4.

S NTSC video default to 4:3.

S HDTV1080i video defaults to 16:9.

The figure below illustrates the Input Aspect Ratio Menu:

INPUT ASPECT RATIO
> Mode 4:3

Figure 4-59. Input Aspect Ratio Menu

Following are descriptions of each menu function:

• Mode — enables you to select an aspect ratio. Choices are 1:1, 3:2, 4:3, 5:4,

16:9 and Custom.

• Ratio — this function is only selectable when Custom is selected as the mode.

The ratio is a decimal number ranging from 0.750 to 3.000. The default value
depends on the last predefined ratio selected, prior to selecting Custom.

Ratio n/a

aáëéä~ó=jçÇÉ

From the Input Setup Menu, select Display Mode to select one of two display modes:

• Crop — select this option to map the input (or a portion of the input) to the output

with no scaling (1:1). For proper results, the Input Horizontal and Vertical

Actives (size) must match the Output Actives. Then, using the Vertical and
Horizontal Position, locate the desired portion of the video to be displayed

• Scale — select this option to map an entire input video into the LED display.

Typically, this means that image will be down-scaled:

S 1600x1200 input video mapped into an 800x600 LED display.

Note that Input Position adjustments may still be required.

iЙннЙкДзс

From the Input Setup Menu, select Letterbox to enable or disable the letterbox function:

• Off — the image fills the entire output raster.

• On — the top and bottom edges of the raster are cropped to a 16:9 ratio. This

feature is especially useful with widescreen DVDs, enabling you to process them
without seeing the black bars at the top and bottom of the image.

76 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

mкзЕЙллбеЦ

From the Input Setup Menu, select Processing to display the Processing Menu which
enables you to adjust a variety of image processing parameters.

PROCESSING
> Sync Sel Auto

DeIntlc n/a
Pulldown Comp n/a
Sync Slice (mV) n/a

Figure 4-60. Processing Menu (sample)

Following are descriptions of each menu function:

• Sync Sel — this function applies to analog RGB inputs only. The digital input

sources have embedded syncs, and the composite, S-video, and YPbPr inputs
always will take the sync from the Y (or composite) channel. For these inputs, the
value field will indicate n/a.

~ Choices are: Auto, H/V, CSync and SOG.

~ In Auto mode, the system will find sync in any of the three possible

sources. If one of the sources is explicitly chosen, the system uses only
that input as a sync source, unless it finds there is no sync input present
— in which case it acts as if Auto mode is enabled.

• DeIntlc — in order to process an interlaced source, LED-PRO must first de-

interlace the image. De-interlacing is the process by which interlaced video is
converted to progressive format. Please note:

~ Interlaced video — even lines are scanned during one field and odd

lines are scanned during the next field.

~ Progressive video — lines in the frame are sequentially scanned.

LED-PRO utilizes an advanced Motion Adaptive De-interlacing (MAD)
techniques to de-interlace most video sources up to HDTV (1920 x 1080i) rates.
When the MAD de-interlacing mode is selected, maximum video processing delay
is 2 input fields (or 3 fields, if the output is not frame-locked to the input).

An alternate mode, Field to Frame (Fld->Frm), avoids motion artifacts by
converting individual input fields to progressive output frames. While vertical
resolution will be reduced in this mode, a significant reduction in video processing
delay is achieved.

• Pulldown Comp — this function allows you to enable or disable 3:2 Pulldown

Detection. The function should be enabled to process video derived from film
source material. Please note:

~ The function only applies to standard video inputs (composite,

component, and s-video).

~ The default mode is off.

• Sync Slice (mV) — this function enables you to select the sync comparator

threshold for RGsB (RGB with Sync on Green) or YPbPr analog component video
sources. Please note:

~ The value ranges from 20mV to 280mV, adjustable in steps of 10mV.

~ The default value is 160mV.

LED-PRO • User’s Guide 77

4. Operation

Using the Expert Mode Menu

~ When LED-PRO detects Macrovision copy protection on the incoming

YPbPr NTSC/PAL video, the value is automatically repositioned to 60mV
to account for the reduced amplitude sync pulse.

Note

The default Sync Slice level has been optimized for virtually
all sources that will be encountered and should rarely, if ever,
require adjustment. However, the ability to adjust the level is
provided to improve sync detection and synchronization in
cases of extremely noisy RGsB or YPbPr video signals.

p~оЙ=`зеСбЦ

From the Input Setup Menu, select Save Config to display the Save Config As Menu,
which allows you to save and name up to 60 input configurations.

Note

The Save Config function (in the Input Setup Menu) is

identical to that found in the Input Position Menu. Refer to
the “Save Config

” section on page 107 for instructions.

oЙлЙн=`зеСбЦ

From the Input Setup Menu, select Reset Config to remove all user-entered configuration
settings from the current input.

Note

The Reset Config function (in the Input Setup Menu) is

identical to that found in the Input Position Menu. Refer to
the “Reset Config

” section on page 108 for instructions.

oЙЕ~дд=`зеСбЦ

From the Input Setup Menu, select Recall Config to display the Recall Config Menu,
which enables you to recall input configurations that were previously saved for the currently
selected input format and type.

Note

The Recall Config function (in the Input Setup Menu) is

identical to that found in the Input Position Menu. Refer to
the “Recall Config

” section on page 109 for instructions.

78 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

aЙдЙнЙ=`зеСбЦ

From the Input Setup Menu, select Delete Config to display the Delete Config Menu,
which enables you to delete any input configurations that were previously saved.

DELETE CONFIG
> File 1

Delete Config

Figure 4-61. Delete Config Menu (sample)

 To delete an input configuration:

1. Scroll to the filename field (e.g., File1) and press SEL. The navigation cursor (>)
changes to the edit cursor (#), allowing you to browse the file list.

2. Choose a file by turning the knob, and “accept” it by pressing SEL.

3. Scroll to the Delete Config line and press SEL to display the Delete
Confirmation Menu.

~ Press SEL to delete the configuration.

~ Press ESC to return to the Delete Config Menu, enabling you to select a

different file, or return safely to the Input Setup Menu (via ESC).

Note

If the deleted input configuration is currently used by any
input channel, the system restores the format parameters to
the default library values for those channels.

råë~îÉÇ=`Ü~åÖÉë

If you change any parameter within the Input Setup Menu, but you do not save the input
configuration (using the Save Config function), the “Save Input Configuration” message
will be shown when you attempt to exit the menu:

Save Input Cfg?

<SEL> = Yes
<ESC> = No

Figure 4-62. Save Input Configuration Message

~ Press SEL to save the changes. The Save Configuration As Menu will

be shown. Refer to the “Save Config
instructions.

” section on page 107 for

~ Press ESC to continue operations without saving changes.

LED-PRO • User’s Guide 79

4. Operation

Using the Expert Mode Menu

lмнймн

From the Expert Mode Menu, select Output to display the LED Output Menu which
enables you to configure the LED-PRO output.

LED OUTPUT
> Timing Adjust >>

Figure 4-63. LED Output Menu

Refresh Rate 60 Hz
LED Control Local
LED Status Enabled
LED Contrast 100%
LED Gamma Indoor 2
LED Information >>
Lock To Source >>
Minimum Delay >>
Save Config
Reset Config

Following are descriptions of each menu function:

• Timing Adjust

• Refresh Rate

• LED Control

• LED Status

• LED Contrast

• LED Gamma

• LED Information

• Lock to Source

• Minimum Delay

• Save Config

• Reset Config

80 LED-PRO • User’s Guide

4. Operation

Using the Expert Mode Menu

qбгбеЦ=^Замлн

From the LED Output Menu, select Timing Adjust to display the Output Timing Adjust
Menu, which enables you to make adjustments to the currently selected output format’s

timing parameters. A sample menu is shown below.

TIMING ADJUST
> H Total 840

H Position 38
H Size 800
H Sync 10
V Total 636
V Position 28
V Size 600
V Sync 10

Figure 4-64. Output Timing Adjust Menu (sample)

Following are descriptions of each menu function:

• H Total — adjusts (in pixels) the total pixel count per line — for the selected

output.

• H Position — adjusts (in pixels) the offset of the start of active area from H sync.

• H Size — adjusts (in pixels) the size of the active area.

• H Sync — adjusts (in pixels) the H sync width.

• V Total — adjusts (in lines) the total line count per frame.

• V Position — adjusts (in lines) the offset of the start of active area from V sync.

• V Size — adjusts (in lines) the size of the active area.

• V Sync — adjusts (in lines) the V sync width.

Note

When the output format is NTSC or PAL, H Total and V Total
cannot be changed.

oЙСкЙлЬ=o~нЙ

From the LED Output Menu, scroll to the Refresh Rate function and press SEL to adjust
the output’s refresh rate. If the LED tile type is known, this function also sets the refresh
rate for the wall.

• Values are 60 Hz or 50 Hz.

Important

LED-PRO • User’s Guide 81

The 60 Hz setting is actually 59.94 Hz. This setting is
intended for use with NTSC and PC inputs.

4. Operation

Using the Expert Mode Menu

iba=`зенкзд

From the LED Output Menu, select LED Control to choose whether the Barco LED wall is
controlled by LED-PRO or by an external application such as Director Toolset.

• When set to Remote, the Director Toolset GUI has full control of the RS-232 port

and can communicate with LED-PRO and the LED Wall.

• When set to Local, LED-PRO is communicating with the LED wall, and any

commands from the GUI are ignored.

Note

In local mode, LED-PRO is capable of setting up and
configuring an LED wall. However, custom gamma values
and wall calibration must be performed with Director Toolset.

iba=pí~íìë

From the LED Output Menu, select LED Status to change the connected Barco LED Wall
(and/or Fiberlink) from “Standby” to “Enabled” mode.

• Selecting Standby powers down the LED wall.

• Selecting Enabled powers up the LED wall.

Note

iba=`çåíê~ëí

From the LED Output Menu, select LED Contrast to adjust the overall contrast of the LED
wall. Please note:

When Standby mode is enabled, the connected Barco LED
wall will be non-responsive — and changes (or updates)
cannot be performed.

• The selected value is not updated until SEL is pressed.

• This command is only applicable when LED Control is set to Local.

iba=d~ãã~

From the LED Output Menu, select LED Gamma to specify the Gamma curve associated
with the current output. There are several types of gamma curves selectable: Indoor1,
Indoor2, Outdoor1, Outdoor2 and Custom (if present). Please note:

• The selected Gamma is not updated until SEL is pressed.

• This command is only applicable when LED Control is set to Local.

iba=fеСзкг~нбзе

From the LED Output Menu, select LED Information to display the LED Information
Menu which displays data about the LED wall and fiber communications (if utilized).

Note

82 LED-PRO • User’s Guide

The LED Information Menu (in the LED Output Menu) is

identical to that found in the LED Menu. Refer to the “LED

Information” section on page 101 for instructions.

4. Operation

Using the Expert Mode Menu

iзЕв=нз=pзмкЕЙ

From the LED Output Menu, select Lock to Source to display the Lock To Source Menu,
which enables you to set “lock to source” parameters:

LOCK TO SOURCE
> Mode Disable

Type n/a
H Phase n/a

Figure 4-65. Lock to Source Menu

In order to eliminate video processing delay associated with frame rate conversion, it is
recommended that you lock the LED-PRO to the input source frame rate, using this
function. Following are descriptions of each menu function:

• Mode — enables or disables the Lock to Source mode.

Important

When Lock to Source is enabled, LED-PRO does not allow
you to switch input channels. You can only switch to/from the
current input channel and the Black/Logo channel.

• Type — selects the Lock to Source type. The choices depend on the selected

mode. If the mode is disabled, the type is n/a. The available types are:

~ V Lock — vertical lock only. This mode is always available for all input

and output resolutions.

~ HV Lock — both horizontal and vertical lock. This mode is available only

if the input and output V Totals are the same.

• H Phase — allows the output H timing to be adjusted relative to the Lock to

Source mode. Please note:

~ This selection is n/a when the type is set to V lock.

~ The range is +/- one-half the H Total.

jбебгмг=aЙд~у

From the LED Output Menu, select Minimum Delay to display the Minimum Delay
Menu, which enables you to minimize delay through the system if desired.

MINIMUM DELAY
> Mode On

Status: Active

Figure 4-66. Minimum Delay Menu (sample)

Please note the following important points:

• Disable the “minimum delay” mode when LED-PRO is performing scaling and

deinterlacing — in order to convert a video format.

LED-PRO • User’s Guide 83

4. Operation

Using the Expert Mode Menu

• Enable the “minimum delay” mode when an another image processor (such as an

Encore or ScreenPRO-II) is used to process the video and create multiple
windows. The external processor then feeds LED-PRO in a progressive 800x600
format. In this case, LED-PRO does not need to scale the image, and operates in
a “minimum delay” mode so as not to introduce additional delay into the system.

For the “minimum delay” function to work properly:

• V Lock or HV Lock must be enabled on the Lock to Source Menu.

• V Size on your input must match V Size on the output.

Note

On the Mode line, enable or disable Minimum Delay.

If either of the two prerequisites are not met, an error
message will be shown.

• When Off, status is n/a, and the delay through the system is no greater that 1.5

frames.

• When On, delay through the system is a maximum 20 lines, and status reads

“Active.”

p~оЙ=`зеСбЦ

From the LED Output Menu, select Save Config to save all current output configuration
settings in non-volatile memory. The message “Saving Configuration” is shown. Note
that there is only one output configuration file.

Once saved, the output values are retained across power cycles. If you do not save the
parameters, the information will not be restored upon the next system power up.

Please note the following important point regarding the LED Output Menu:

• If you change any parameter in the LED Output Menu, but you do not save the

changes (using the Save Config function), the “Save Output Configuration”
message will be shown when you attempt to exit the menu:

Save Output Cfg?

<SEL> = Yes
<ESC> = No

Figure 4-67. Save Output Configuration Message

oЙлЙн=`зеСбЦ

From the LED Output Menu, select Reset Config to remove all user-entered configuration
settings, and restore the default values for the current output format. The message
“Resetting Configuration” is shown.

Note that this command also clears the saved configuration (if any), so that the system will
not restore the unwanted configuration at power up.

84 LED-PRO • User’s Guide

~ Press SEL to save the changes.

~ Press ESC to continue operations without saving changes.

4. Operation

Using the Expert Mode Menu

bССЙЕнл

From the Expert Mode Menu, select Effects to display the Effects Menu which enables
you to select the transition effect that is used when switching between input channels.

EFFECTS
> Trans With Blk Fade

Trans Time 1.0

Figure 4-68. Effects Menu (sample)

Following are descriptions of each menu function:

• Trans With

• Trans Time

qê~åë=táíÜ

Scroll to the Trans With function and press SEL to change the desired transition type. Use
the knob to select, and press SEL to accept. Choices are:
