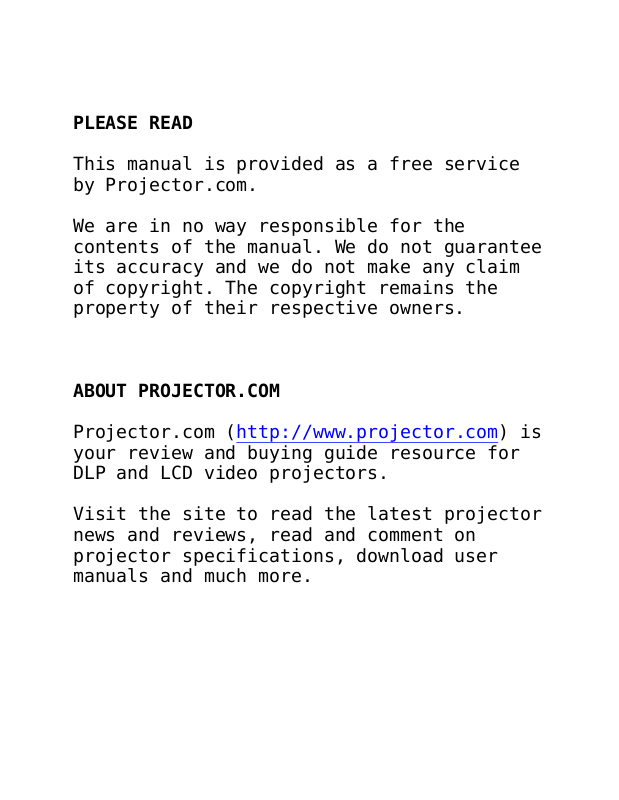

PLEASE READ
We are in no way responsible for the
contents of the manual. We do not guarantee
its accuracy and we do not make any claim
of copyright. The copyright remains the
property of their respective owners.
Visit the site to read the latest projector
news and reviews, read and comment on
projector specifications, download user
manuals and much more.
DATA
1209s
R9002250
R9002259
OWNER'S MANUAL
BARCO PROJECTION SYSTEMS
DATA
1209s
R9002250
R9002259
OWNER'S MANUAL
Date :
040698
Rev. :
00
Art. No. :
R5975708
Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO NV, June 1998.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCO nv/Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : +32/56/368211
Fax : +32/56/351651
E-mail : sales.bps@barco.com
Visite Barco at the web : http://www.barco.com
Printed in Belgium
Table of Contents
Table of contents ................................................................................................................................................................................. i
Safety instructions ......................................................................................................................................................................... 1-1
On safety ................................................................................................................................................................................... 1-1
On installation ............................................................................................................................................................................. 1-2
On servicing ............................................................................................................................................................................... 1-2
On cleaning ................................................................................................................................................................................ 1-2
On repacking .............................................................................................................................................................................. 1-2
On illumination ............................................................................................................................................................................. 1-2
Location and Functions of Control .............................................................................................................................................. 2-1
Rear panel terminology .............................................................................................................................................................. 2-1
Front panel terminology.............................................................................................................................................................. 2-1
Control panel terminology .......................................................................................................................................................... 2-2
a. The Local Keypad .................................................................................................................................................................. 2-2
b. RCU control panel terminology ............................................................................................................................................... 2-2
Connections ..................................................................................................................................................................................... 3-1
AC Power (mains) Cord Connection ......................................................................................................................................... 3-1
Power Check.............................................................................................................................................................................. 3-1
Switching On/Off ....................................................................................................................................................................... 3-1
Signal Input Connection to the Projector : .................................................................................................................................. 3-2
Connecting a Composite Video source to port 1. ..................................................................................................................... 3-3
Connecting a S-Video or Video source to port 2...................................................................................................................... 3-3
Connecting a RGB Analog source to port 3. ............................................................................................................................. 3-4
Connecting a RGB Analog source to port 4/5. .......................................................................................................................... 3-4
Connecting a RGB Analog source with Tri-level sync to port 4/5.(option) .............................................................................. 3-5
Connecting a Component Video source to port 4/5. ................................................................................................................. 3-5
Connecting a Component Video source with Tri-level sync to port 4/5.(Opion) ..................................................................... 3-5
Peripheral equipment .................................................................................................................................................................. 3-6
Connecting a RCVDS 05 switcher to the projector .................................................................................................................. 3-6
Connecting a VS05 switcher to the projector. ......................................................................................................................... 3-6
Connecting an IR Remote Receiver to the projector ................................................................................................................. 3-6
Controlling ........................................................................................................................................................................................ 4-1
Battery installation in the RCU. ................................................................................................................................................... 4-1
How to use your RCU ................................................................................................................................................................ 4-2
Projector Address ...................................................................................................................................................................... 4-2
How to display a projector address? ........................................................................................................................................ 4-3
How to program an address into the RCU? .............................................................................................................................. 4-3
Input selection ............................................................................................................................................................................ 4-3
Analog Picture Controls ............................................................................................................................................................. 4-4
Controlling chained projectors. .................................................................................................................................................. 4-4
Start up of the Adjustment Mode ............................................................................................................................................... 5-1
Adjustment Mode ....................................................................................................................................................................... 5-1
Random Access Adjustment Mode ............................................................................................................................................ 6-1
Starting-Up the Random Access Adjustment mode.................................................................................................................. 6-1
Overview 'Random Access Adjustment' mode ........................................................................................................................ 6-1
Selecting Setup Pattern.............................................................................................................................................................. 6-3
Internal Cross Hatch Pattern ...................................................................................................................................................... 6-3
Random access adjustment mode selection menu. .................................................................................................................. 6-4
Picture Tuning............................................................................................................................................................................. 6-4
Color Balance ............................................................................................................................................................................. 6-4
Sync Fast/Slow Adjustment ...................................................................................................................................................... 6-5
Peaking ....................................................................................................................................................................................... 6-5
Clamp Tuning .............................................................................................................................................................................. 6-5
Port 2 : Video or S-Video ........................................................................................................................................................... 6-6
Line Doubler ............................................................................................................................................................................... 6-6
Color Select ................................................................................................................................................................................ 6-6
Focusing ..................................................................................................................................................................................... 6-7
Focusing color select. ................................................................................................................................................................ 6-7
Blue on source ........................................................................................................................................................................... 6-7
Geometry Adjustments .............................................................................................................................................................. 6-8
Horizontal Phase Adjustment ..................................................................................................................................................... 6-8
Raster Shift Adjustment ............................................................................................................................................................. 6-9
Left-Right (east-west) Adjustments ....................................................................................................................................... 6-10
Seagull correction .................................................................................................................................................................... 6-11
Left Side Correction ................................................................................................................................................................. 6-11
Top-Bottom (north-south) Adjustments ................................................................................................................................... 6-12
Seagull Correction .................................................................................................................................................................... 6-13
Horizontal Size Adjustment ...................................................................................................................................................... 6-13
Vertical Linearity Adjustment ................................................................................................................................................... 6-14
Vertical Size Adjustment ......................................................................................................................................................... 6-14
5975708 BARCODATA 1209s 050698
i-1
Table of Contents
Blanking Adjustments ............................................................................................................................................................... 6-15
Convergence Adjustment ........................................................................................................................................................ 6-16
Service mode ................................................................................................................................................................................... 7-1
Starting up the Service mode. ................................................................................................................................................... 7-1
Overview flowchart 'Service' mode. ........................................................................................................................................ 7-1
Identification ............................................................................................................................................................................... 7-2
Copy a block ............................................................................................................................................................................... 7-2
Deletion of blocks ....................................................................................................................................................................... 7-3
Deleting block by block............................................................................................................................................................... 7-3
Deletion of all blocks .................................................................................................................................................................. 7-3
Change password ..................................................................................................................................................................... 7-4
Change Language ...................................................................................................................................................................... 7-4
Run time ...................................................................................................................................................................................... 7-4
Set to midposition ....................................................................................................................................................................... 7-5
Undo Midposition ........................................................................................................................................................................ 7-5
Convergence Mid ....................................................................................................................................................................... 7-5
Undo Convergence Mid(position) .............................................................................................................................................. 7-5
Dynamic Astigmatism (spot shape adjustment) ........................................................................................................................ 7-6
G2 Adjust ................................................................................................................................................................................... 7-7
Gamma corrections .................................................................................................................................................................... 7-7
CRT run in cycle ......................................................................................................................................................................... 7-7
Projector Warm Up ..................................................................................................................................................................... 7-8
CRT Drive Mode ......................................................................................................................................................................... 7-8
Memory Banks............................................................................................................................................................................ 7-9
Messages, warnings and failures .............................................................................................................................................. 8-1
Options .............................................................................................................................................................................................. 9-1
Appendix A : Orbiting .......................................................................................................................................................................... A-1
Appendix B : Adjsutment Blocks and Source Numbers 90-99 .......................................................................................................... B-1
i-2 5975708 BARCODATA 1209s 050698
Safety Instructions
1
SAFETY INSTRUCTIONS
Notice on Safety
This equipment is built in accordance with the requirements of the
international safety standards EN60950, UL 1950 and CSA C22.2
No.950, which are the safety standards of information technology
equipment including electrical business equipment.
These safety standards impose important requirements on the use
of safety critical components, materials and isolation, in order to
protect the user or operator against risk of electric shock and energy
hazard, and having access to live parts.
Safety standards also impose limits to the internal and external
temperature rises, radiation levels, mechanical stability and strength,
enclosure construction and protection against the risk of fire.
Simulated single fault condition testing ensures the safety of the
equipment to the user even when the equipment's normal operation
fails.
INSTALLATION INSTRUCTIONS
Before operating this equipment please read this manual
thoroughly, and retain it for future reference.
Installation and preliminary adjustments should be
performed by qualified BARCO personnel or by author-
ized BARCO service dealers.
OWNERS RECORD
The part number and serial number are located at the back side of the
projector. Record these numbers in the spaces provided below.
Refer to them whenever you call upon your BARCO dealer regarding
this product.
PART NUMBER :
SER. NUMBER :
DEALER :
WARNING
TO PREVENT FIRE OR ELECTRICAL SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE
FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)
This equipment has been tested and found to comply with the limits
of a class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Instructions to the user :
If this equipment does cause interference to radio or television
reception, the user may try to correct the interference by one or more
of the following measures :
- Re-orientation of the receiving antenna for the radio or television.
- Relocate the equipment with respect to the receiver.
- Plug the equipment into a different outlet so that the equipment and
receiver are on different branch circuits.
- Fasten cables connectors to the equipment by mounting screws.
Note :
The use of shielded cables is required to comply within the limits
of Part 15 of FCC rules and EN55022.
* All the safety and operating instructions should be read before using
this unit.
* The safety and operating instructions manual should be retained for
future reference.
* All warnings on the equipment and in the documentation manuals
should be adhered to.
* All instructions for operating and use of this equipment must be
followed precisely.
On safety
1. This product should be operated from an AC power source.
This projector may be connected to an IT-power system.
Operating AC power voltage of the projector:
BARCODATA 1209s
Art.No. R9002250 (230V AC)
The lightning flash with an arrowhead within a
triangle is intended to tell the user that parts
inside this product may cause a risk of electrical
shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating
and/or servicing instructions are included in the
technical documentation for this equipment.
5975708 BARCODATA 1209S 050698
Art. No R9002259 (120V AC)
Consult your dealer to switch over from 230Vac to 120 Vac or from
120Vac to 230 Vac.
If you are not sure of the type of AC power available, consult your
dealer or local power company.
2. This product is equipped with a 3-wire grounding plug, a plug
having a third (grounding) pin. This plug will only fit into a groundingtype power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the purpose of the grounding-type plug.
1-1
Safety Instructions
WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE
GROUNDED (EARTHED) via the supplied 3 conductor AC power
cable. (If the supplied power cable is not the correct one, consult your
dealer.)
A. Mains lead (Power cord) with CEE 7 plug:
The wires of the mains lead are colored in
accordance with the following code.
Green and yellow:earth (safety earth)
Blue: neutral
Brown: line (live)
B. Power cord with ANSI 73.11 plug:
The wires of the power cord are colored in
accordance with the following code.
Green/yellow:ground
White: neutral
Black: line (live)
3. Do not allow anything to rest on the power
cord. Do not locate this product where persons will walk on the cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
4. If an extension cord is used with this product, make sure that the
total of the ampere ratings on the products plugged into the extension
cord does not exceed the extension cord ampere rating. Also make
sure that the total of all products plugged into the wall outlet does not
exceed 15 amperes.
5. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid
object fall into the cabinet, unplug the set and have it checked by
qualified service personnel before resuming operations.
6. Lightning - For added protection for this video product during a
lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent damage
to the projector due to lightning and AC power-line surges.
Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the equipment.
C.If the product has been exposed to rain or water.
D. If the product does not operate normally when the operating
instructions are followed.
Note : Adjust only those controls that are covered by the operating
instructions since improper adjustment of the other controls may
result in damage and will often require extensive work by a
qualified technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance, indicating
a need for service.
Replacement parts - When replacement parts are required, be
sure the service technician has used original BARCO replacement
parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions
may result in degraded performance and reliability, fire, electric shock
or other hazards. Unauthorized substitutions may void warranty.
Safety check - Upon completion of any service or repairs to this
projector, ask the service technician to perform safety checks to
determine that the product is in proper
operating condition.
On cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
- To keep the cabinet looking brand-new, periodically clean it with a
soft cloth. Stubborn stains may be removed with a cloth lightly
dampened with mild detergent solution. Never use strong solvents,
such as thinner or benzine, or abrasive cleaners, since these will
damage the cabinet.
- To ensure the highest optical performance and resolution, the
projection lenses are specially treated with an anti-reflective
coating, therefore, avoid touching the lens. To remove dust on the
lens, use a soft dry cloth. Do not use a damp cloth, detergent
solution, or thinner.
On installation
1. Do not place this equipment on an unstable cart, stand, or table.
The product may fall, causing serious damage to it.
2. Do not use this equipment near water.
3. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating, these openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register.
The projector should not be placed in a built-in installation or enclosure
unless proper ventilation is provided.
4. Do not block the projector cooling fans or free air movement under
and around the projector. Loose papers or other objects may not be
nearer to the projector than 4" on any side.
On servicing
Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage potentials
and risk of electric shock!
1-2 5975708 BARCODATA 1209S 050698
On repacking
Save the original shipping carton and packing material; they will come
in handy if you ever have to ship your equipment. For maximum
protection, repack your set as it was originally packed at the factory.
On illumination
In order to obtain the best quality for the projected image, it is essential
that the ambient light which is allowed to fall on the screen be kept
to an absolute minimum.
When installing the projector and screen, care must be taken to avoid
exposure to ambient light directly on the screen. Avoid adverse
illumination on the screen from direct sunlight or fluorescent lighting
fixtures.
The use of controlled ambient lighting, such as incandescent spot light
or a dimmer, is recommended for proper room illumination. Where
possible, care should also be taken to ensure that the floors and walls
of the room in which the projector is to be installed are non-reflecting,
dark surfaces. Brighter surfaces will tend to reflect and diffuse the
ambient light and hence reduce the contrast of the projected image
on the screen.
Location and Function of Controls
2
LOCATION AND FUNCTION OF CONTROLS
REAR PANEL TERMINOLOGY
3257
5*%+9
&RPS+V\QF
5 *
9V\QF
%
32575(027(
&20081,&$7,21
Communication Port (800 peripherals)
* allows communication between the RCVDS switcher and
1
the projector.
* allows connection of a remote IR receiver unit to the
projector.
Port 3
RGB Analog Input (9 pin female sub D connector). Allows
2
a character generator, microcomputer, etc. having analog
RGB outputs to be connected to the projector.
Port 4/5 : RGB-S Input (5x BNC connector):
RGB-S input : allows a character generator, microcom-
3
puter, video camera, etc. having analog RGB output to be
connected to the projector.
Line inputs: - signals RED-GREEN-BLUE
VIDEO Input (Composite video, 2x loop-through BNC
4
connector): allows a video tape recorder, video camera,
color receiver/monitor, etc. having video line output to be
connected to the projector.
75 ohm Termination Switch for Video signals
3257
- COMPOSITE sync. signal
- Tri level sync signal (option)
3257
9,'(2
2)) 21
RKP
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
RKP
32:(50$,16
212))
Projector Pilot Lamp : indicates the status of the projector.
5
- unlit : mains (power) switch is not pressed.
- lit : mains (power) switch is pressed and the indicated
color shows the projector mode:
Green color : operational mode of the projector.
Red color : standby mode of the projector.
Important : projector ("Operational" or "Standby") mode is
defined during the installation of the projector. (Refer to a
qualified technician for change).
S-VIDEO Input: S-Video or Video in, depending on the
priority setting in the Picture Tuning menu.
6
For S-Video : Separated Y/C (luma-chroma) signal inputs
and outputs for higher quality playback of Super VHS
signals (4-pin S-VIDEO connector loop-through).
75 ohm Termination Switch for S-Video signals
For Video : Composite video inputs on pin 1 and 3.
Power Switch : press the switch to turn the projector ON.
7
Depending on the hardware set-up of the projector during
installation, the projector switches to Standby or to
Operational' mode. If in standby, the standby LED lights
up.
120/230 Volt
V NOM
7/5Amp
I MAX
50/60Hz
FREQ
FRONT PANEL TERMINOLOGY
1
RS 232 Input Port
Connection between the projector and an IBM PC (or
compatible) or MAC (RS422) for remote computer control
and data communication.
2
RS 232 Output Port
RS 232 Input Port allows a communication link for PC or MAC
to the next projector in a series of projector.
5975708 BARCODATA 1209S 050698
56,1
56,1
56287
,5
5(027(
56287
5(027(
,5
3
4
5
IR Sensor
receiver for control signals transmitted from the RCU.
IR Remote
Connector for remote input for hard wired remote control
AC Power input
2-1
Location and Function of Controls
Control panel terminology
a. The Local Keypad (built in RCU)
Gaining Access
The local keypad is built in into the rear of the projector. Push once
32575(027(
&20081,&$7,21
3257
5 * %
2)) 21
RKP
3257
3257
9,'(2
5*%+9
&RPS+V\QF
9V\QF
*5((1RSHUDWLRQDO
5('VWDQGE\
352-(&72502'(
69,'(2
3257
212))
RKP
32:(50$,16
EXLOWLQ5&8
on the door cover and it will open. It is possible to turn it 90°.
This local keyboard has the same functions as the Remote Control
Unit (RCU)
b. RCU control panel terminology
This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely.
This remote control is used for source selection, control, adaptation
and set-up. It includes automatic storing of :
- picture controls (Brightness, Sharpness,....)
- picture geometry adjustments
- convergence adjustments
Other functions of the remote control are:
- switching between standby and operational modes
- switching to "pause" (blanked picture, full power for immediate
restarting)
- direct access to all connected sources
- variable adjustment speed : when pushing continuously on the
control stick or the picture keys, the adjustment will be executed in
an accelerated fashion.
Barco key : not active
1
stand-by
$'-
67%<
3$86(
(;,7
(17(5
7(;7
-
6+$531(66
-
7,17
-
&2/25
-
%5,*+71(66
-
&2175$67
+
+
+
+
+
0
9
7
8
6
5
43
21
pause/park
sharpness
tint
color
brightness
contrast
ADJ. : adjust key, to enter or exit the adjustment mode.
2
Address key (recessed key), to enter the address of the
3
projector (between 0 and 9). Press the address key,
followed by pressing one digit button between 0 and 9.
STBY : stand by button :
4
- to initiate remote power up operation
- to stop projection without main power off.
Pause :to blank the image, press PAUSE. The image
5
disappears but full power is retained for immediate restarting.
6
Digit buttons : direct input selection.
Picture controls : use these buttons to obtain the desired
7
level (see also 'Controlling') for each picture function.
TEXT : when adjusting one of the image controls during a
8
meeting, the displayed bar scale can be removed by
pressing 'TEXT' key first. To re-display the bar scale on the
screen, press 'TEXT' key again. 'TEXT' key is only active in
operational mode. When 'TEXT' is off, no warning message
will be displayed.
32a
ENTER : to start up the adjustment mode or to confirm an
9
adjustment or selection in the adjustment mode.
EXIT : to leave the adjustment mode or to scroll upwards
10
when in the adjustment mode.
11
Control disk : to make menu selections when in the
adjustment mode. Also allows to increment or decrement an
adjustment in the adjustment mode.
control disk up = up arrow in the menus
control disk down = down arrow in the menus
control disk to the right = arrow to the right on the menus
control disk to the left = arrow to the left on the menus
12
RC operating indication : lights up when a button on the
remote control is pressed. (This is a visual indicator to check
the operation of the remote control)
2-2 5975708 BARCODATA 1209S 050698
Connections
3
CONNECTIONS
AC Power (mains) Cord Connection
Use the supplied power cord to connect your projector
to the wall outlet. Plug the female power connector into
the male connector at the frontside of the projector.
Power Check
Power voltage indication on sticker on the rear side of the projector.
The power voltage is indicated by the art. no.
V NOM
I MAX
FREQ
120/230 Volt
7/5Amp
50/60Hz
56,1
56287
5628756,1
,5
5(027(
5(027(
,5
Warning !
Check if the indicated power voltage corresponds to that of the wall
outlet.
Art. No. R9000972 must be connected to a 230 VAC power source.
Art. No. R9000977 must be connected to a 120 VAC power source.
If the wall outlet voltage is different, call a qualified technician for
power adaptation of the projector.
Switching On/Off
The projector is switched ON and OFF using the power (mains)
switch ON/OFF.
Pressed : ON
Not pressed : OFF
The projector can start now in the 'operational mode' (image displayed) or in the 'stand by mode', depending on the position of the
'power up' dip switch on the controller unit. This DIP switch must be
set during installation by a qualified technician. If you want to change
this start up mode, call a qualified technician.
Stand by indication lamp :
no light up : projector switched off
green color : projector in Operational mode
red color : projector is in Standby mode.
21
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
32:(50$,16
212))
RKP
When starting up the projector, with the power switch or via the
stand-by key, the projector can start up in two ways if the "CRT run
in" cycle option is switched OFF.
- full white image (projector warm up) or
- immediately image display.
The way of starting up can be set in the service mode.
5975708 BARCODATA 1209S 050698
3-1
Connections
Start up with full white image.
The next menu will be displayed for 30 seconds.
a. Start up with warm up period.
If no action is taken, a white image will be displayed for 20 minutes.
This white image will be shifted on the faceplate of the CRT to avoid a CRT burn in.
During this warm up period, it is possible to interrupt this white image projection by
pressing the EXIT key. The previous menu will be repeated for another 30 seconds
but the remaining time will be indicated.
If EXIT is pressed, the remaining warm up period will be shipped.
During the warm up period, every 30 seconds a text box with the remaining time will
be displayed on the screen for 2 seconds. This text box will be displayed every time
on another place.
If another key, different from EXIT, is pressed, a text box with following text will be
displayed :
Please use <EXIT> to leave this procedure.
b. Start up without warm up period.
If the EXIT key is pressed, the warm up period will be skipped and the projector is
immediately ready for use.
Warning : skipping this warm up procedure can reduce the initial picture
quality of the projected image.
PROJECTOR WARM UP
A FULL WHITE PATTERN
WILL BE GENERATED FOR
20 MINUTES;
FOR IMMEDIATE USE OF
THE PROJECTOR, PRESS
<EXIT>
WARNING : SKIPPING THIS
PROCEDURE CAN REDUCE
THE INITAL PROJECTED
IMAGE.
THIOS OPTION CAN BE
DISABLED IN THE SERVICE
MENU
REMAINING
PROJECTOR
WARM UP
TIME
18.5 MIN
PLEASE USE
<EXIT> TO
LEAVE THIS
PROCEDURE
Signal Input Connection to the Projector :
- Composite Video
- S-Video
- RGBS or RGsB
32575(027(
&20081,&$7,21
- RGB3S or RG3sB (option)
- Component Video
Port No Projector input Press Digit Button
1 Comp. Video 1
1
2 S-Video
3 RGB
4/5 RGB
4/5 Component video
4/5 RGB with Tri level sync
/Comp. Video* 2
2
2
3
4
3
4 or 5
6
7
4/5 Component video
with Tri-level sync
5
Only available when the optional Tri-level sync module is installed.
8
3257
&RPS+V\QF
5
3257
5*%+9
3257
9V\QF
*
9,'(2
2)) 21
RKP
%
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
2))
RKP
32:(50$,16
21
1
Input signal Y/C (luma/chroma)
2
Input signal : R, G and B with automatic sync
detection between seperate sync (separate
composite sync or with separate Hor and Vert.
sync) or sync on green (composite sync).
3
Input signal : R-Y, Y and B-Y with separate
composite sync or with separate Hor and Vert.
sync or with composite sync on Y.
4
Input signal : R, G and B with separate Tri level
sync or with Tri-level sync on green.
5
Input signal : R-Y, Y and B-Y with separate Tri
level sync or with composite Tri-level sync.
* Video or S-Video : switchable in the Picture
Tuning menu.
3-2 5975708 BARCODATA 1209S 050698
Connecting a Composite Video source to port 1.
Connections
Composite video signals from a VCR, OFF air signal decoder, etc..
32575 (027(
&2008 1,&$7,21
3257
5 * %
Video input selection :
with the RCU or the build in RCU : press digit button 1
79WXQH UHJ79 '0 VWHUHR
* Note : if using the loop-through Video output, then set the
Termination Switch to the "OFF" position.
9&5
Connecting a S-Video or Video source to port 2.
Separate Y-luma/C-chroma signals for higher quality playback of Super VHS signals.
3257
5 *
/X PD &K URP D
4 pin connector configurations:
For S-video:
Pin 1: earth(ground) luminance
Pin 2: earth(ground) chrominance
Pin 3: luminance signal(Y)
1Vpp ±3dB
Pin 4: chrominance signal(C)
300mVpp ±3dB
3257 5(0 27(
&2008 1,&$ 7,21
For video:
3
4
Pin 1: earth(ground) video
Pin 2: not connected
1
Pin 3: video signal
Pin 4: not connected
2
3257
5*%+9
&RPS +V\QF
&RPSRVL WH
YLGHR
3257
5*%+9
&RPS+ V\Q F
9V\QF
9V\QF
3257
9,'(2
2)) 21
RKP
352-(& 725 02' (
*5((1 RSHUDWLRQ DO
5('VWDQ GE\
3257
69,'(2
2))
RKP
32:(5 0$,16
21
7RQH[ WSURMHF WRU
$XGLRD PSOLI LHU
3257
9,'(2
2)) 21
RKP
%
352-( & 725 02'(
*5((1 RSHUD WLRQD O
5('V WDQGE\
3257
69,'( 2
WRQ H[ WSUR MHFWR URU
WRD PR QLWR U
32:(5 0$,1 6
212))
RKP
Input selection
with the RCU or the build in RCU : press digit button 2
Depending on the priority setting in the Picture Tuning menu,
Video or S-Video can be displayed.
If the setting is not correct, start up the adjustment mode by
pushing on th ADJUST key.
Select 'Random Access' and press ENTER.
Select 'Selected source' and press ENTER.
Highlight 'Picture Tuning' and press ENTER.
Highlight Port 2 : Video and press ENTER to toggle between VIDEO
or S-VIDEO.
Press EXIT to return.
Press ADJUST to return to operational mode.
9& 56 9 +6
ADJUSTMENT MODE
Select a path from below :
GUIDED
RANDOM ACCESS
INSTALLATION
SERVICE
IRIS
Source 02
Choose a setup pattern
Select with or
from below :
then <ENTER>
<EXIT> to return.
SELECTED SOURCE
GENLOCKED PATTERN
INTERNAL # PATTERN
Select with or
then <ENTER>
<EXIT> to return.
$X GLR DP SOLILH U
Source 02
RANDOM ACCESS
ADJUSTMENT MODE
PICTURE TUNING
GEOMETRY
CONVERGENCE
FOCUSING
COLOR SELECT
ORBITING
CONTR. MODULATION
Select with or
<EXIT> to return.
SOFT EDGE
COLOR BALANCE
then <ENTER>
LINE DOUBLER : ON
PICTURE TUNING
SYNC : FAST
PORT2 : S-VIDEO
* Note: When using the Port 2 loop-through output, set the Termination
Switch in the "OFF" position.
5975708 BARCODATA 1209S 050698
Select with or
<ENTER> to accept
<EXIT> to return.
3-3
Connections
Connecting a RGB Analog source to port 3.
Connect your RGB source via an interface to Port 3.
Always use an interface when a computer and local monitor have
to be connected to the projector.
Barco interfaces which can be applied :
Universal analog interface R9826100
RGB 120 MHz analog interface R9826570
VGA interface 120V R9828079
32575(027(
&20081,&$7,21
230V R9828070
MAC interface 120V R9828059
230V R9828050
MAGIK interface 120V R9828129 & R9828128
230V R9828120 & R9828121
RGB analog input with automatic sync detection. (Separate H and
V sync inputs, with composite sync input or with sync signals on
green)
Pin configuration D9 connector of the Analog input.
1 not connected
2 ground RGBS
3 RED
4 GREEN
5 BLUE
6 ground RGBS
7 ground RGBS
8 Hor/comp. sync
9 Vert. sync
Analog Input Selection :
with the RCU or build in RCU, press digit button 3.
Connecting a RGB Analog source to port 4/5.
21
2))
$1$/2*,17(5)0+]
5
3257
5*%+9
&RPS+V\QF
5 * %
+
9
,13 ,13
RKPWHUP
LQYHU
9V\QF
3257
,1387
%
*
3257
9,'(2
2)) 21
RKP
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
32:(50$,16
212))
RKP
361
RGB analog input terminals with separate H and V sync inputs, with
composite sync input or with sync signals on green (automatic sync
detection).
Always use an interface when a computer and local monitor have
to be connected to the projector. See 'Connecting a RGB Analog
source to port 3' for a list of BARCO interfaces which can be applied.
32575(027(
&20081,&$7,21
RGB input selection :
(RGB : R, G, B signals with automatic sync detection)
with the RCU or the build in RCU : press digit
button 4 or 5
21
2
3257
$1$/2*,17(5)0+]
5 *
&RPS+V\QF
5
3257
5*%+9
,1387
9V\QF
*
% +
3257
9,'(2
2)) 21
RKP
%
9
,13
,13
LQYHURKPWHUP
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
RKP
32:(50$,16
212))
3-4 5975708 BARCODATA 1209S 050698
Connecting a RGB Analog source with Tri-level
sync to port 4/5.
(option)
RGB analog input terminals with Tri level sync input or with
Tri-level sync on green. The projector detects automatically where the sync signal is located.
RGB input selection :
(RG3sB : R, G, B signals with automatic Tri-level sync detection)
with the RCU or the build in RCU : press digit button 7
32575(027(
&20081,&$7,21
Connecting a Component Video source to
port 4/5.
3257
9&5+'79SOD\HU
5*%+9
&RPS+V\QF
5 *
3257
9V\QF
Connections
3257
9,'(2
2)) 21
RKP
%
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
$ XG LR DP SO LIL HU
32:(50$,16
212))
RKP
A component video (R-Y, Y, B-Y) with sync signals can be connected to the projector via the Port 4/5. The projector detects
automatically where the sync signal is located.
32575(027(
&20081,&$7,21
To select the component video input :
with the RCU or the build in RCU : press digit button 6.
Connecting a Component Video source with Trilevel sync to port 4/5.
(Opion)
A component video (R-Y, Y, B-Y) with Tri-level sync signals can be
connected to the projector via the Port 4/5. The projector detects
automatically where the sync signal is located.
32575(027(
&20081,&$7,21
3257
9&5+'79SOD\HU
3257
5*%+9
&RPS+V\QF
5 *
5*%+9
&RPS+V\QF
5 *
3257
3257
9V\QF
9V\QF
3257
9,'(2
2)) 21
RKP
%
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
32:(50$,16
212))
RKP
$ XG LR DP SO LIL HU
3257
9,'(2
2)) 21
RKP
%
352-(&72502'(
*5((1RSHUDWLRQDO
5('VWDQGE\
3257
69,'(2
32:(50$,16
212))
RKP
To select the component video input :
with the RCU or the build in RCU : press digit button 8.
$ XG LR DP SO LIL HU
9&5+'79SOD\HU
5975708 BARCODATA 1209S 050698
3-5
Connections
PERIPHERAL EQUIPMENT
Connecting a RCVDS 05 switcher to the projector
- Up to 20 inputs with the RCVDS 05 switcher and up to 90 inputs
when 10 RCVDS switchers are linked via the expansion modules.
- Serial communication with the projector.
- Remote control buttons on the RCVDS to control the
projector (source selection and analog settings)
- The selected source number will be displayed on a 2 digit display
and the selected input modules will be indicated with a LED on the
rear.
For more information about the use of tje RCVDS, consult the Owner's
Manual of the RCVDS.
Order number : RCVDS05 : R5975765
Connecting a VS05 switcher to the projector.
The VS05 can switch up to 5 Composite Video sources, 3 S-Video
Sources and 1 RGB analog or component Video source to the
projector. In addition, an audio signal associated with the source,
can be switched to an audio amplifier.
Order number : R9827890.
For more information about the use of the VS05, consult the VS05
Owner's Manual, order number : R5975245.
Connecting an IR Remote Receiver to the
projector.
This infra-red receiver unit makes it possible to control the projector
from another room. There is a communication line cable between the
IR receiver and the projector or the RCVDS. The infrared control
information from the Remote Control Unit is sent to the IR Remote
Receiver. The IR Remote Receiver 800 displays the selected source
on a 7-segment display.
Order number : R9827515.
3-6 5975708 BARCODATA 1209S 050698
Controlling
4
CONTROLLING
Caution : Do not display a stationary image with full brightness
and contrast for longer than 20 min., otherwise you risk damage
to the CRT's.
Battery installation in the RCU.
A new battery is delivered inside the plastic bag with the power cord. Before using the RCU, install
first the battery.
Remove the battery cover on the backside of the RCU by pushing the indicated handle a little to the
bottom of the RCU. Lift up the top side of the cover at the same time (fig. 1).
Insert the new 9 V battery (type 6F22S or equivalent) in the lower compartment and connect the battery
to the contact plate.
Insert the battery into the lower compartment and put the cover back.
Contact
plate
Battery
fig.2
310a.DRW
Insert here,
behind the
plastic cover, the
'Insert card for
RCU'. You can
cut out the
correct insert
card on one of
the last pages of
this manual.
fig.1
5975708 BARCODATA 1209S 050698
4-1
Controlling
The BARCOVISION 1609s can be controlled with
a. the RCU
b. the hardwired RCU (cable not included)
c. the built-in RCU (local keypad)
The procedure and results of controlling the projector with either of
these RCU options is essentially the same.
How to use your RCU
a) Point the front of the RCU towards the reflective screen surface
Ceiling
IR sensor
Screen
RCU
c) RCU used in a hardwired configuration.
5628756,1
5(027(
,5
Plug one end of the remote cable in the connector on the bottom of
the RCU and the second side in the connector in the rear panel of the
projector labelled 'REMOTE'.
d) Built-in RCU (local keypad)
To gain access to the built-in RCU, see paragraph 'The local keypad'
Projector Address
b) Point the front of the RCU towards one of the IR sensors in the
projector.
When using the wireless remote control, make sure you are within the
effective operating distance (30m, 100ft in a straight line). The
remote control unit will not function properly if strong light strikes the
sensor window or if there are obstacles between the remote control
unit and the projector's IR sensor.
IR Receiver Locations on the Projector:
a. Software set up of the projector address.
See 'Change Projector Address' in chapter 'Service Mode'.
Every projector requires an individual address between 0 and 255
which is set in the Service mode. Only projectors with addresses
between 0 and 9 can be controlled with the RCU.
b. How to control the projector.
The projector's address may be set to any value between 0 and 255.
When the address is set, the projector can be controlled now with :
- the RCU for addresses between 1 and 9.
- computer, e.g. IBM PC (or compatible), Apple MAC, etc. for
addresses between 0 and 255.
Note : a projector will respond to a RCU set to an address of '0'
regardless of what address is set in the projector itself. Address "0"
is therefore a universal address.
c. Using your RCU.
Before using your RCU, it is necessary to enter the projector address
into the RCU (only when that address is between 1 and 9). The
projector with the corresponding address will listen to that specific
RCU.
When address 0, 'zero address' is programmed into the RCU, every
projector, without exception will listen to the commands given by this
RCU.
ADJ
ADJ
EXIT
ADDR
(17(5
STBY
MUTE TEXT
+
SHARPNESS
0
9
-
+
TINT
7
8
-
+
COLOR
65
+
BRIGHTNESS
43
-
+
CONTRAST
2
1
EXIT
ADDR
(17(5
STBY
MUTE TEXT
+
SHARPNESS
0
9
-
+
TINT
7
8
-
+
COLOR
65
+
BRIGHTNESS
-
43
+
-
CONTRAST
2
1
4-2 5975708 BARCODATA 1209S 050698
