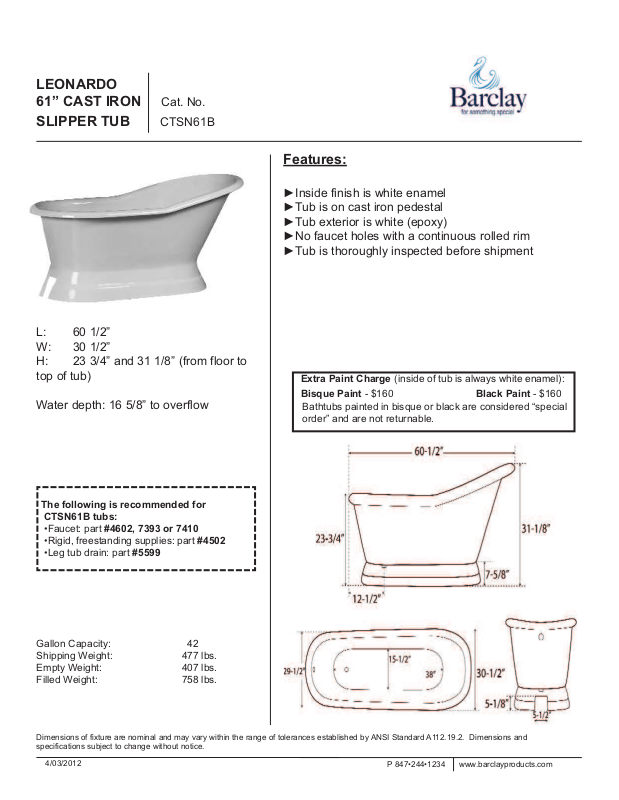

Barclay CTSN61BWH Specifications

LEONARDO
61” CAST IRON Cat. No.

SLIPPER TUB CTSN61B

L: 60 1/2”
W: 30 1/2”
H: 23 3/4” and 31 1/8” (from floor to
top of tub)

Water depth: 16 5/8” to overflow

Features:

►Inside finish is white enamel
►Tub is on cast iron pedestal
►Tub exterior is white (epoxy)
►No faucet holes with a continuous rolled rim
►Tub is thoroughly inspected before shipment

Extra Paint Charge (inside of tub is always white enamel):
Bisque Paint - $160 Black Paint - $160

Bathtubs painted in bisque or black are considered “special
order” and are not returnable.

The following is recommended for

CTSN61B tubs:

•Faucet: part #4602, 7393 or 7410

•Rigid, freestanding supplies: part #4502

•Leg tub drain: part #5599

Gallon Capacity: 42
Shipping Weight: 477 lbs.
Empty Weight: 407 lbs.
Filled Weight: 758 lbs.

Dimensions of fixture are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2. Dimensions and
specifications subject to change without notice.

4/03/2012

P 847•244•1234 www.barclayproducts.com
