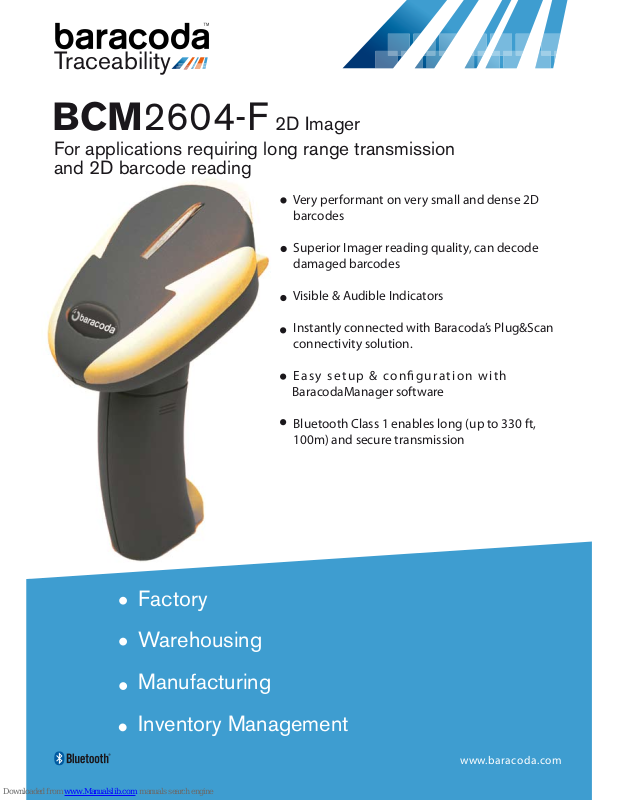

Baracoda BCM 2604, BCM2604-F Specifications

Traceability

www.baracoda.com

Very performant on very small and dense 2D
barcodes

Superior Imager reading quality, can decode
damaged barcodes

Visible & Audible Indicators

Instantly connected with Baracoda’s Plug&Scan
connectivity solution.

Easy setup & conguration with
BaracodaManager software

Bluetooth Class 1 enables long (up to 330 ft,
100m) and secure transmission

BCM2604-F

2D Imager

Factory

Warehousing

Manufacturing

Inventory Management

For applications requiring long range transmission
and 2D barcode reading

© Baracoda™ - November 2007 - Preliminary specifications are subject to change without notice. Non contractual photographs.

General features

Available accessory

Package Content

BCM2604-F Specifications

STANDARD - REGULATORY

Bluetooth

®

1.2

Gap & SPP profiles

CE - FCC - Bluetooth qualified

Class 1 Laser Product

USER INTERFACE

Green LED
Buzzer

BLUETOOTH RANGE

Class 1: 230ft - 330 ft (70m - 100m)

OPERATING MODES

Real Time
Master

SCAN ENGINE

Reading technology Imager
Reading distance 2 to 7 in (5 to 18 cm)
Scan angle 40°

DECODING CAPABILITIES

Codabar, Code 39, Interleaved 2 of 5, Code 93,

Code 2 of 5, IATA Code 2 of 5, Matrix 2 of 5, Code
11, Code 128, Telepen, UPC A, UPC-A/EAN-13 with
Extended Coupon Code, EAN/JAN 13, EAN/JAN 8, MSI,
Plessey Code, RSS-14, RSS Limited, RSS Expanded,
PosiCode A and B.

Code49, Code 16K, PDF417, Micro PDF417, EAN/UCC

composite codes, RSS stacked and composite, Trioptic,
TLC39, Codablock F

Postnet, Planet Code, British Post, Canadian Post, Kix

(Netherlands)Post, Australian Post, Japanese Post, China
Post, Korea Post.

QR Code, Data Matrix, MaxiCode, Aztec Code

POWER

2 x AAA NimH - 2100 mAh rechargeable
Battery life: about 4000 scans

PHYSICAL

Lenght 5.63 in (143 mm)
Width 3.10 in (78.8 mm)
Height 6.08 in (154.5 mm)
Weight 6.35 oz (180 g) without batteries

ENVIRONMENT

Operating temperature 32°F (0°C) - 104°F (40°C)
Storage temperature 14°F (-10°C) - 140°F (60°C)
Operating humidity 5 - 95% (Non condensing)
Shock Several 3.3ft (1m) drops onto concrete
Ambient light Full darkness to sunlight

1 BCM2604-F

2 rechargeable batteries

1 Charger

1 CD with all the documentation and software needed.

Superior reading quality:

Can complete 240 scan per second and
decode damaged or low quality barcodes.
Thanks to its HD technology, it is very
aggressive on very small 2D barcodes.

One click connectivity and Auto­Reconnection:

Just switch on your scanner or just come back
within the Bluetooth range of your host device
to get connected! The connection process,
thanks to the BaracodaManager or thanks
to the Plug&Scan dongles, is automatic and
completely transparent to the user.

Auto Reconnection:

If you scan barcodes out of the radio range,
they will be stored in memory and automatically
downloaded when getting back into range.

Intuitive user interface:

• Only one button to switch on, connect
and scan barcodes

• Multi color led for connection and battery

status

• Sound beeps for successful scanning.

Platforms compatibility:

Baracoda provides users with user-friendly
software (BaracodaManager) and provides
developers with state of the art APIs to
ease the integration on the following mobile
platforms:

• PC

• PPC 2002/2003; WM5; CE.NET; Palm OS

• Symbian and Java Mobile Phones + RIM

(Blackberry)

• Most Bluetooth devices (printers, access

points, ...)

Plug and Scan Solution :

Real Plug & Scan solution with Baracoda Serial
Dongle (compatible with all devices equipped
with a RS232 port) and Baracoda USB
Plug&Scan Dongle. Just plug it into your host,
read the related pairing barcode and use it. The
easiest way to use a Bluetooth scanner.

Protective boot:

The protective boot for the 2604 Serie is made of ruggedised high density foam. It is made by two sepa­rate units -one covering the hood and the second covering the base of the handle of the scanner- linked
together by an elastic rope. While the protective boot does add some bulk to the scanner, its shock pro­tection value compensates for this size increase. The protective boot also offers a small ring that can be
attached to a lanyard or a retractable badge reel. It is ideal for mobile workers who need a rugged product.

Linear Barcodes

Stacked Barcodes

Postal Barcodes

Matrix Barcodes
