Banner Wireless Network User Manual

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™ wireless from the most reliable name in sensing.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Process

Contents

SureCross Sensing Unplugged™ 4

SureCross Advantages 6

System Overview 8

Factory

Agriculture and Water

Trac

Process Control and Monitoring 10

Factory Automation 12

Agriculture and Water Management 14

Trac Monitoring and Control 16

Commercial and Consumer Monitoring 18

SureCross Options 20

SureCross Conguration 21

SureCross Congured Kits 22

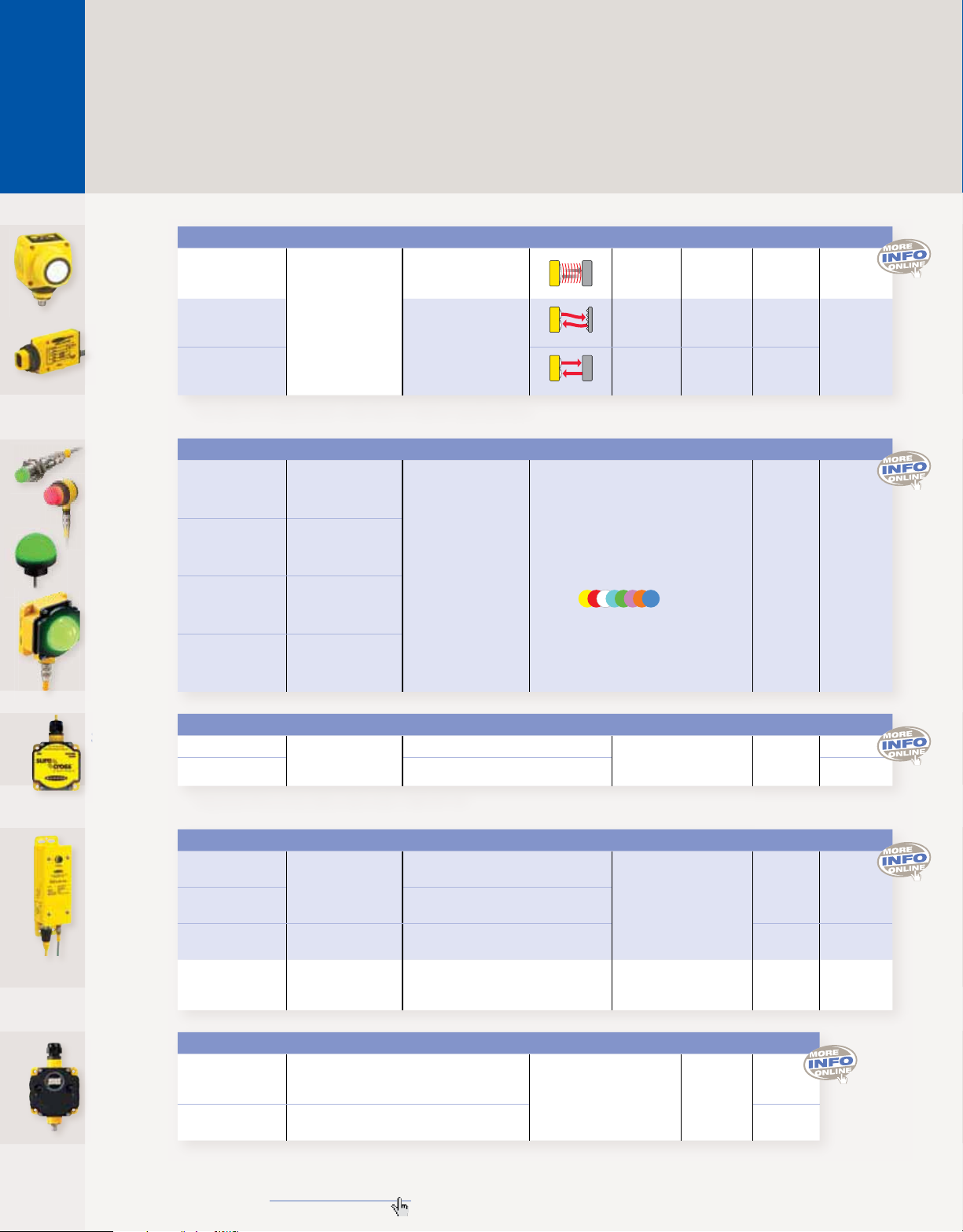

SureCross Gateway and Node Models 23

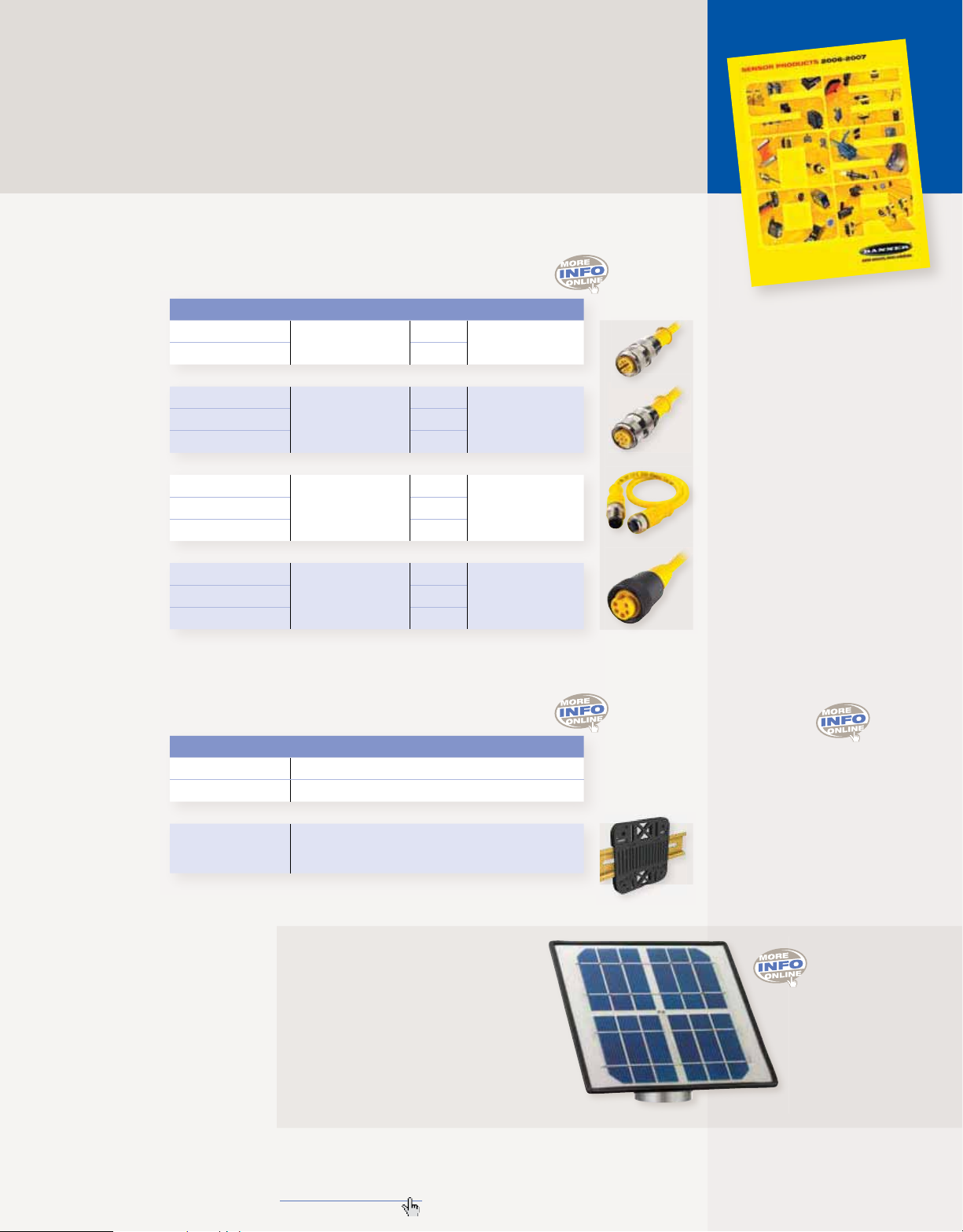

SureCross Accessories 24

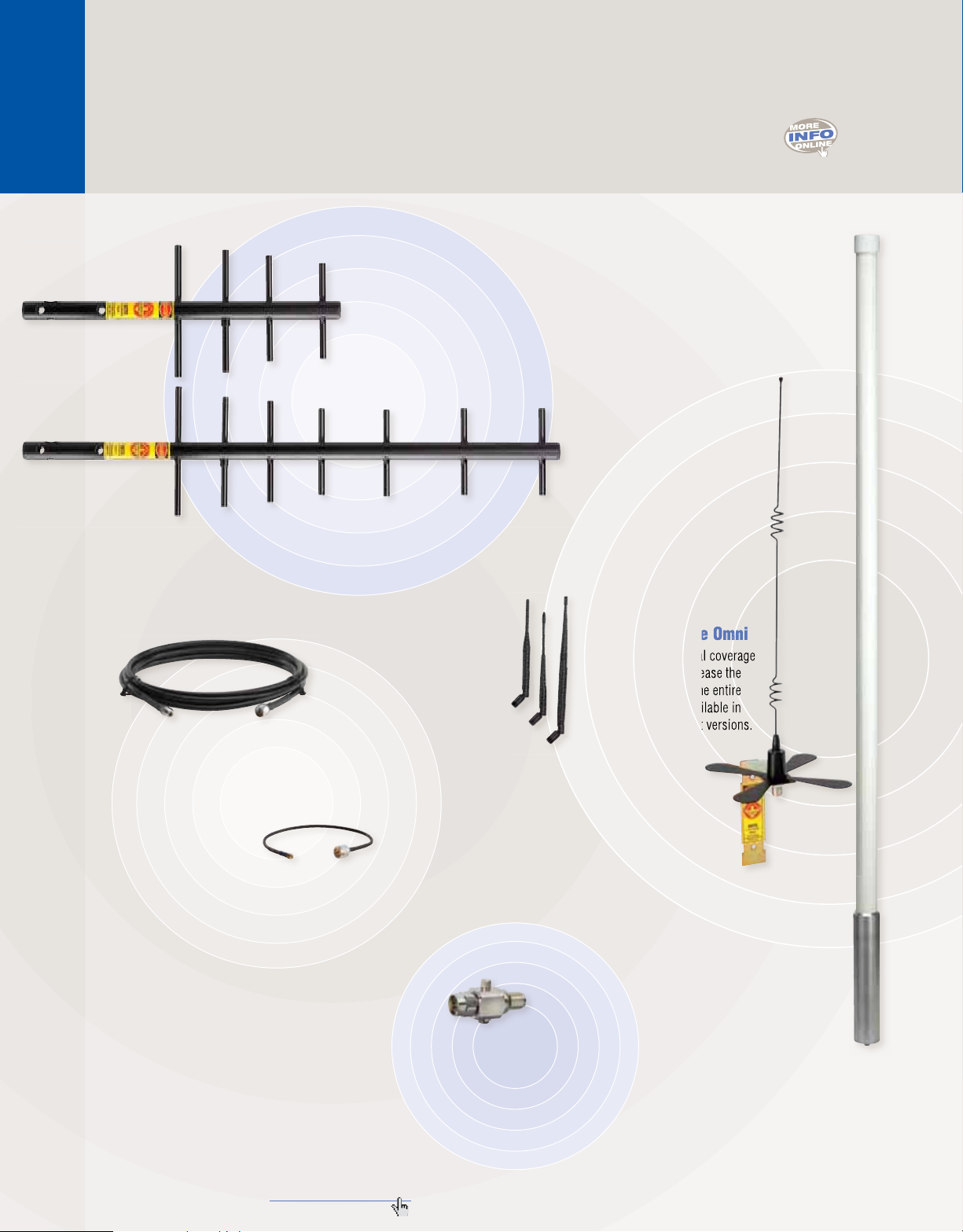

SureCross Antenna Options 26

SureCross Specications
and Dimensions 27

Commercial

2

When the world thinks of sensors, it thinks of Banner.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

With more than 17,000 photoelectric, ultrasonic and vision
sensors, and safety products available worldwide, Banner is the
most innovative, most experienced name in sensors. For simple to
complex applications, Banner has more sensor solutions than any
other manufacturer.

The innovation leader with more than 40 years of sensor
development and application expertise, Banner understands the
challenges of sensing in manufacturing and process industries.
Banner has more than 3,000 factory and eld representatives
worldwide, as well as the largest force of application engineers in
the industry who solve thousands of the most challenging
applications every year.

iKnow

Key

Glossary

Wireless Terms

FHSS - Frequency Hopping Spread
Spectrum. A method for generating
spread spectrum transmissions
where the signal is switched
between dierent frequency
channels in a pseudorandom
sequence known by both the
transmitter and the receiver pair.
FHSS is useful for sending small,
redundant packets of data in a high
interference environment.

FlexPower™ systems allow for a true
wireless solution as the Node can be
powered by line power (10-30V dc),
solar panels, or battery power (3.6-

5.5V dc). A SureCross™ FlexPower
battery module and unique power
management system runs the
Node and a device for up to ve
years, depending upon the power
requirements of the device. Battery
life is application specic.

RF - Radio Frequency. Electro­magnetic signals in the radio band.

Rx/Tx - Receive. Transmit.

TDMA - Time Division Multiple

Access. A wireless network
communication architecture that
provides a given slot of time for each
device on the network. Provides
guaranteed opportunity for each
device to transmit to the gateway.

3

Introducing SureCross™. Sensing unplugged™.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

A New Wireless Horizon from the
Most Reliable Name in Sensors.

To satisfy the performance demands for reliable
sensing and actuation, Banner has reinvented wireless.
The SureCross™ Wireless Network is the rst wireless
platform built from the ground up for industry—
featuring proprietary RF design, power management
with battery and solar options, and a host of low-power
sensors designed to deliver robust remote monitoring
and control capabilities.

With SureCross, Banner’s comprehensive sensor
capabilities are extended through wireless connectivity,
often to locations and applications never before
possible. Plant and process visibility becomes
panoramic. Orphaned monitoring resources are
integrated into existing control systems. Assets are
unlocked. Vast new monitoring and actuating
capabilities can be easily created. SureCross provides
the means to fulll the promise of comprehensive,
facility-wide integrated management.

Add Monitoring. Add Control.
Where You Need it Most.

The exibility of the SureCross network
lets you add a host of monitoring and control
capabilities across widespread areas and to
inaccessible areas, and enhances existing
control and data acquisition systems without
new conduit, wiring runs and associated labor
and downtime. Consolidate comprehensive
system status at a single location using
multiple SureCross networks, delivering
single or multiple eld measurements
interfaced to your control room PC,
PLC or DCS system. The SureCross
wireless network is as powerful as
your imagination.

NODE

1

SENSOR

NODE

6

SENSORS

FlexPower

MODULE

SENSORS

NODE

8

SERIAL

INTERFACE

PRIMARY

GATEWAY

4

900MHz

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Easy to Apply Wireless Modules Go Where Other Systems Can’t.

The Banner SureCross Wireless System is a radio device network with integrated I/O
that can operate in extreme environments while eliminating the need for costly wiring
runs. The most basic SureCross network includes a Gateway system controller and one or
more Nodes that monitor and/or control I/O in remote locations. Nodes are easily deployed
throughout a facility, for gathering data to be concentrated at the Gateway. Installation is
fast and easy with exible mounting and power options. Nodes can be either line-powered
(10 to 30V dc) or FlexPowered with multi-year battery life providing power for communications
and to external sensors.

The Gateway can act as a master device in a star topology autonomously controlling
input to output mapping, or a Modbus Slave in a host control system using RS-485 Modbus
RTU. To relay mapped I/O longer distances, a Gateway can be positioned between two
Nodes to increase transmission range of the network.

SureCross is distinctly superior to conventional wireless networks, facilitating sensing
and actuation on the same network. Not to mention its ability to transmit the status of
each I/O point and continuously monitor the health of each Node’s operational status and
signal integrity.

NODE

12

SENSORS

2.4GHz

SureCross oers easy, reliable
communication between
disparate products and
processes in a single scalable
and unied platform.

• Access hard-to-reach
locations; install where
wiring and conduit are not
practical

• Accommodates digital and
analog I/O in a single unit

• Integrates with existing
process or control networks

• Easy to retrot, expand and
relocate as needed

• 900 MHz and 2.4 GHz
models accommodate
worldwide communication
standards

• Reliable and secure
Frequency Hopping Spread
Spectrum (FHSS) protocol

• Bidirectional Rx/Tx
communications between
Gateway and Nodes

• Mobile, scalable and exible

• Easy plug-and-play
deployment

• Rugged IP67/NEMA 6 design

• FlexPower™ supply options
including battery and solar

NODE

13

SENSORS

FlexPower

MODULE

5

6

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™. Purpose-built by Banner.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

While wireless monitoring is far from new, Industry has had to wait patiently for robust
bidirectional network devices that oer a feature set designed specically to meet the demands of
manufacturing, processing and challenging commercial applications.

The wait is over.

Banner designed and built the SureCross network using over 40 years of application expertise and
sensor innovation. Unlike other wireless devices, Banner started with the high-performance needs of
Industry and developed a system that meets those needs. The result is a superior network with exclusive
features, engineered and built by the sensor experts trusted worldwide.

Proprietary Radio

Communications

Advanced

Power

Management

Reliable

Response

Communications
Integrity Assured

In industrial applications, there can be no compromise for truly robust, secure
communication that ensures system operational integrity. That’s why Banner built its
own RF model based on essential sensing requirements with bidirectional Rx/Tx
communication capabilities.

True wireless operation means integrated power not only for communications, but
also for operating the attached sensor. Banner developed an innovative FlexPower™
solution that oers years of continuous operation. Innovation in wireless power
management combines ideally with Banner’s ability to design advanced sensors that
consume less power. SureCross also accommodates DC line, battery or solar power for
complete application exibility.

SureCross represents a quantum leap in wireless capabilities with deterministic
response—a system that lets you define actions and system responses to
communication interruptions or failures. Each SureCross device features a bidirectional
transceiver to fully acknowledge data transmission. The Gateway directs Nodes in the
network to respond with specic actions to a communication failure by driving user­dened outputs to a default condition. Once the RF link is re-established, the network
automatically returns to normal operation.

SureCross uses a Frequency Hopping Spread Spectrum (FHSS) transmission
method to minimize radio interference, ensuring that the message gets
through and providing integral security. Time Division Multiple Access (TDMA)
slots provide guaranteed bandwidth to each connected Node. Polling and Site
Survey capabilities ensure communication integrity. SureCross oers both 900 MHz
and 2.4 GHz models, allowing you to deploy advanced wireless capabilities
anywhere in the world.

All-in-One

Packaged Solution

with Plug-and-Play

Connectivity

Versatile

Congurations

Gateways and Nodes are rugged, completely integrated and packaged solutions designed
for mounting exibility, extreme durability and plug-and-play installation. Wiring terminals
are readily accessible without removal from mounting. The compact housings come
equipped with quick-disconnect connectors for power and communication, four cable
glands and a large threaded 1/2-inch NPT port for added exibility.

Congure your SureCross wireless network with Gateway and Node components set to
your specications. Or choose SureCross Kits that are congured for a number of common
applications. Either way, Banner can help you select the exact components, tailor your
solution, or help you choose a kit that delivers the performance you need. Banner
Application Engineers are available to provide SureCross congurations that integrate
seamlessly into your legacy systems and solve your most demanding applications.

7

SureCross™. Powerful Capabilities. Sophisticated Functionality.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Robust. Reliable. Secure.

The SureCross network uses a Frequency
Hopping Spread Spectrum (FHSS) methodology in
either the 900 MHz frequency band or 2.4 GHz
frequency band. FHSS architecture periodically
“hops” in a random sequence from frequency to
frequency. This technique not only prevents
interference from competing RF signals, it also
enhances security. Multiple user-selectable hop
codes are easily congured by setting the Network
ID using a convenient rotary switch. FHSS innovation
also enables multiple SureCross networks to coexist
within range of one another.

To further ensure reliable communications,
SureCross uses Cyclical Redundancy Checking (CRC)
of both data message acknowledgement and data
error checking to verify message receipt and data
integrity. If the Gateway does not accurately
receive a data packet, the Node resends that
packet until a transmission is successful. Finally,
communication is enhanced through TDMA,
ensuring each Node a time slot for transmission.

A)

B)

C)

D)
E)

F)

(G

(H

(I

(J

(K

GATEWAY

Tests Signal Integrity Locally.

Every SureCross network includes an embedded Site Survey
feature. The Site Survey which is conducted between the Gateway
and each Node, is a fast, simple and reliable way to ensure that
every device is installed for optimal RF performance. Signal results
are displayed in a red, green, yellow and missed format. Identied
using a ashing LED of the corresponding color and an alpha
character on the LCD screen, green, yellow and red indicate
successful data transmission. No ashing LED and an M on the
LCD indicates a missed packet has occurred and the data was not
received successfully on the rst transmission. The message is
resent until it is received successfully.

Green = Excellent

Yellow = Good

Red = Marginal

Missed = Data not received on the rst transmission

8

Engineered Simplicity.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

A) External Antenna Interface—external exible

antennas rotate for mounting and positioning
versatility; optional internal and remote, standard
and high-gain antennas available

B) Network Identity and Device Address Rotary

Switches—easy-to-set and change; with
screw-on cover

C) Menu and Conguration Access Push Buttons—

click through menu-driven conguration

D) LED Status Indicators—give real-time feedback of RF

link status, serial communication activity and error state

E) LCD Display—six-character display provides run

mode user information and shows enabled I/O
point status; lets user conduct Site Survey, assign
network ID and modify other conguration
parameters locally without a PC or external
software interfaces

F) Internal Wiring Terminal—

16 spring-clip type terminals
(AWG 12-28); are accessible
without removal from mount

1

G)

/2-inch NPT Threaded Port—accepts large cables for

exible wiring options or glands; plug provided

H) IEC IP67; NEMA 6 Rated Housing—ensures reliable,

long-lasting performance in rugged environments

I) Four PG-7 Gland Ports—threaded ports accept

provided cable glands or blanks

J) Versatile Mounting—#10/M5 hardware included with

optional DIN-rail mount adapter

K) 5-Pin M12 Euro-style Quick-Disconnect Fitting—

simplies installation with industry-standard
connectors

A)

B)

C)

D)
E)

F)

(G

(H

(I

(J

(K

NODE

FlexPower™ SYSTEMS

Predictable. Reliable. Repeatable.

SureCross FlexPower options create a truly wireless sensing
system. Users can choose from battery, solar or line power
options. Ecient power management technology enables the
FlexPower battery system to briey step up the switch power
voltage to activate a sensor device. Once activated, the input
reads the sensor then the switch power shuts o to prolong
battery life—up to 5 years. The actuation voltage, time on and
sample are congurable parameters, with voltage up to
24V dc. These unprecedented capabilities provide a reliable
solution for remote power and hard-to-access locations.

FlexPower™ BATTERY CONSERVATION

CYCLE ON

MULTI-YEAR
BATTERY LIFE

CYCLE OFF

POWER CONSUMPTION

0V

123 45

0

TIME

6. . .

FlexPower SUPPLY

9

Enhancing monitoring or control in legacy process environments is now simple

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

and aordable. Banner SureCross™ Nodes and Gateways can be easily deployed
wherever additional monitoring is desired, without hardwiring and conduit.
Control capabilities featuring Banner sensors and a wide range of industrial
communication protocols can also be added.

10

The Versatile, Robust Wireless Network

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Designed for Process Applications.

Process Control and Monitoring

Monitoring and control in processing applications are limited only by
imagination. From tank levels to line pressure, from temperature to voltage—
anywhere along the line, the versatile SureCross™ Wireless Network can be deployed,
scaled and redeployed. Adding new Nodes or establishing multiple networks
within the same environment is turnkey. Bidirectional transmission with reliable
performance capabilities make SureCross the rst robust wireless network suited for
a host of process applications.

The SureCross Wireless Network features a congurable default output condition
that denes what happens if the system loses the RF signal. This unique network
characteristic lets you dene how all outputs on the network respond to a communication
interruption or failure. The network can automatically return to normal operational
status as the RF link is re-established.

A SureCross Gateway can be positioned as a repeater to increase the transmission
range. Data can be consolidated and monitored from a central location, enhancing
production decision-making and response.

Wireless Monitoring Retrot in a Pre-Certied Facility

New regulations in a pharmaceutical production facility stipulate the
liquid level of all uids must be closely monitored and logged. SureCross
Nodes with FlexPower™ and Banner U-GAGE® QT50U analog sensors
quickly and easily facilitate this monitoring requirement without new
construction and hardwiring.

Applications

EXAMPLE APPLICATIONS

Motor Temperature Monitoring and Control

Monitoring motor temperature in a high-friction application is controlled by
a line-powered SureCross Node and a Banner T-GAGE® temperature sensor.
The SureCross Gateway transmits operational conditions to the plant control
room using a digital output related to temperature setpoints within the
sensor. The motor is powered down or up based on these temperatures.

Monitoring of Rotating Equipment

The SureCross wireless network eliminates complexities associated with
data acquisition from rotating and moving machinery such as a rotating
kiln. Crucial temperature data is acquired using a thermocouple and
transmitted from the FlexPowered SureCross Nodes to a remote Gateway
in the plant’s control center. Excessive heat triggers an alarm. Data is
always concentrated in the same location for processing or analysis, and
physical risks to personnel are eliminated.

Remote and Tank Farm Monitoring

Monitoring levels, pressure, ow rates or temperatures from dicult-to­access platforms, towers and large tank farms has historically been a
signicant challenge. Today, FlexPowered SureCross Wireless Nodes
equipped with low-powered sensors can monitor and acquire data
remotely, overcoming logistical hurdles and eliminating risk to personnel.

11

Factory Automation

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Applications

EXAMPLE APPLICATIONS

The Gateway to Error-Proong Manufacturing.

The Banner Wireless Network is the cost-eective
key to making existing manufacturing facilities and
process tasks align with ecient lean production
principles. Hosts of Wireless Nodes can be deployed
across the production oor to add new remote
monitoring and control capabilities to existing
machinery, as well as to implement systems that
optimize inventory, reduce errors and minimize waste.

At the heart of lean production is the ability to
make small changes and renements. Lean is not a
single solution, but a combination of small steps that contribute to continuous
improvement. The versatile Banner Wireless Network oers the ability to quickly
implement, move, change, expand and rene processes as your needs change.

Where new wiring for power or communications is impractical, a Banner Wireless
Network can be implemented with battery-driven FlexPower™ Nodes that provide
both power for connected or integrated sensors, as well as communication to a
remote Gateway. Now entire error-proong and monitoring systems become portable
for redeployment at will, and installing sensors in locations and on equipment is now
possible where never before.

Banner Wireless Nodes and Gateways reliably orchestrate Banner EZ-LIGHT™
pick-to-light sensing systems to virtually eliminate human error from parts picking
and assembly processes. Wireless parts-call automation keeps line inventories
replenished and saves oor space. Manufacturing, assembly, kitting and verication
processes run more eciently with greatly reduced errors.

Rotating Equipment Monitoring

Battery-powered Banner Wireless Nodes remotely transmit data without hardwired power
cables to monitor and control rotating machines while eliminating costly and cumbersome
slip rings.

Automated Parts Call

Remote, self-contained push buttons attached to Banner Wireless Nodes can be placed at
assembly line workstations to signal a Wireless Gateway-equipped automated guided vehicle
(AGV) for replenishment of assembly parts.

Error-Proong Manufacturing

Applying lean manufacturing principles in existing assembly facilities is easily and economically
facilitated by Banner EZ-LIGHT operator indicator lights and pick-to-light systems applied across
a Banner Wireless Network.

Robot End Eector

To eliminate frequent and unpredictable slip rings or ex cable failure on robotic arms, a
SureCross Wireless Node with FlexPower Module monitors the end eector. Two NAMUR
proximity sensors, each powered by the FlexPower Module, are characterized for power draw,
allowing predictable, scheduled replacement of the battery.

12

Wireless Conveyor Monitoring. Banner Wireless Nodes with optional FlexPower™

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

and low-power Banner sensors combine to create a portable monitoring system
that instantly integrates into a legacy overhead conveyor without new hardwiring.
Nodes travel with the product, providing remote monitoring and control using
the Wireless Gateway.

13

Agriculture and Water Management

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Monitoring operational status
in critical systems such as barn

ventilation or temperature control
equipment can prevent loss of
livestock or spoilage of other
resources that can occur within
minutes of a power loss. A
SureCross™ Wireless Node
equipped with FlexPower™
and a ow sensor is isolated
from the power grid to
monitor system status, issue
alarms and notications,
and/or to trigger backup
power systems to restore
environmental conditions.

Remote and Field-Based Monitoring is Now a Reality.

Field-based agribusiness and water management applications have long suered

from the inability to monitor operational status, levels, temperature and other crucial
information. Now the convergence of the powerful SureCross™ Wireless Network and the
longevity of SureCross FlexPower™ supplies provide easy-to-apply solutions to the toughest
monitoring challenges.

A host of SureCross antennas, power options, connectivity solutions and a complete range of
sensors oer capabilities never before available. Solutions can be easily integrated within, or provide
output to, existing operations and management software.

Banner has taken the robust RF performance and bidirectional Rx/Tx communication capabilities of
SureCross to deliver the rst practical, wireless network for monitoring and control. FHSS communication
protocol plus fully-acknowledged data transfer provide unprecedented communications reliability, but
only Banner’s congurable default output condition can provide the predictable response needed for critical
control applications. With congurable default output conditions, your system’s response to wireless signal
interruption is in your control, allowing an actuator, valve or similar device to engage, disengage or hold—
returning the system to a known status and/or triggering other system events
until transmission integrity is re-established.

Rugged IP67 SureCross Nodes are built to perform in the most severe
environments and outdoor locations, including agricultural and agribusiness
applications. Temperature extremes, dust, moisture and remote locations
demand rugged, self-contained monitoring solutions. And SureCross solutions
are built to handle it. Continuous, reliable monitoring of resources, status,
temperature, ow, levels and more help to optimize ag-based operations and
maximize yields while reducing losses and waste.

14

EXAMPLE APPLICATIONS

Applications

Environmental Temperature and Humidity Monitoring

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™ Wireless Nodes equipped with FlexPower™ and a
thermocouple or RTD can be easily implemented for monitoring
optimal barn temperature ranges or dairy bulk tank temperatures,
triggering a setpoint alarm if the acceptable range is exceeded.
Specialized Nodes can accommodate temperature and humidity
sensors for monitoring and alarm output on one device.

Air Flow/Ventilation Monitoring

The ventilation system is monitored with a ow meter attached
to a Flex Node. An alarm is sent if the system fails, enabling the
sta to take action in the case of a lightning strike or other
unpredictable events that can lead to the loss of livestock.

Ethanol Plant Water Monitoring

Ethanol processing facilities can
use millions of gallons of water
per day. SureCross Wireless
Nodes equipped with FlexPower
and pressure sensors can precisely
monitor critical water holding tank levels, sending
data to a SureCross Gateway and Banner EZ-LIGHT™
status indicator in a remote control center location.

Municipal Water Monitoring
Monitoring multiple data points including ll level, pH,

conductivity and ow—often from varied locations in a large
water treatment plant—can be a challenge. With four analog
inputs, a single SureCross Node can easily centralize and
transmit critical monitoring information.

15

Rail Transport Car Positioning

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

M-GAGE™ Wireless Sensor Nodes embedded into tracks signal the arrival and
facilitate positioning of hoppers, tank and freight cars for loading and unloading.
EZ-LIGHT™ signals indicate rail car position to optimally align cars to spouts,
elevators and nozzles for more ecient transfers.

16

Trac Monitoring and Control

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

A More Dependable and Rugged Sensing Solution for the Demands
of Trac Management.

Applications

Conventional embedded solutions for trac management
and control, such as fragile inductive loop detection (ILD) systems,
are signicantly prone to failure. High failure rates associated with
ILD systems not only create inaccurate data that can lead to
inecient trac management, but make frequent and dicult
replacement of in-pavement inductive loops and weakened
pavement integrity a harsh reality.

Banner SureCross™ Wireless Networking greatly improves the
performance and reliability of embedded trac management and
control sensors. By doing away with the fragile inductive loop,
installation, service and operational life are exponentially increased.

Instead, ILDs are replaced by a wireless Banner M-GAGE™ sensor and integrated
FlexPower™ battery supply, encapsulated in a rugged IP67 SureCross Node housing.
The M-GAGE vehicle detection sensor is a passive, non-contact magnetic receiver that
reliably detects 3-dimensional changes in the Earth’s natural magnetic eld caused by
the presence of large ferrous objects.

The SureCross Wireless M-GAGE sensor replaces inductive loop systems and can
be used in applications such as car wash entry/exit, opening and closing high-trac
doors and detecting vehicles at drive-thru systems and turn lanes. This dedicated
solution—developed specically for wireless presence sensing—simplies in-ground
installation and oers quick and easy access for battery replacement after up to ten
years of trouble-free operation.

EXAMPLE APPLICATIONS

Automated Car Wash Detection

Vehicle presence is detected by an in-ground embedded M-GAGE Wireless
Sensor Node that activates the automated car wash system to power up
and trigger the entry door. The payment system and the car wash remain
in a low-power consumption standby mode until a customer arrives. It also
eliminates the inevitability of complex and costly inductive loop repair.

Loading Dock Occupancy Monitoring

For optimum workow and loading dock trac management, it’s
essential for dock workers to know of arrivals immediately. M-GAGE
Wireless Sensor Nodes mounted on each loading bay signal the arrival of
vehicles by illuminating remotely mounted Banner EZ-LIGHT™ indicators
that are visible throughout the facility. Supervisors can also be alerted to
arrivals using their PC or PDA. Workers assemble quicker at the appropriate
dock, cargo security and facility access are greatly enhanced and docks
are freed-up faster. Best of all, no through-wall wiring installation is
required to implement the system.

Parking Kiosk Access and Control

An embedded M-GAGE Wireless Sensor Node detects approaching
vehicles to activate automated parking control systems, payment kiosks
and automated access control barriers.

Train Yard Marshalling

Rugged IP67 M-GAGE Wireless Sensor Nodes embedded at various points
in tracks can be used for accurate remote monitoring of train car location
and marshalling. As cars pass from one sensor to another at changeover
locations, track controls can be activated to handle switching of
subsequent cars.

17

To monitor and control access of secure or supply areas, Banner SureCross™ provides turnkey wireless solutions. Highly

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

reliable security and response systems are easily retrotted into existing facilities to monitor access and control entry,
providing alarms or notications if doors are opened or left unclosed, or if emergency exits have been opened.

Modular Monitoring Capabilities.

Whether facility-wide or with a single-node, the SureCross™ Wireless Network
facilitates adding capabilities for monitoring, security and essential control with ease,
low cost and little-to-no disruption of existing systems. Easy-to-apply SureCross
Wireless Kits oer a complete, modular system that you can apply and move as
needed to dierent locations and for diverse applications. FlexPower™ battery options
create a completely portable system that is sensing unplugged. Systems can be
expanded as needed, and networks can be combined or divided as needs change.

Continuous, reliable facilities monitoring—whether for security, operational
eciency or condition—ensures smooth operation 24/7/365. Rudimentary security
and access challenges can be quickly addressed with any number of photoelectric
proximity sensors, contact closures, switches and detection sensors that, when
connected to a Node, can communicate wirelessly to the
Gateway in facility control centers or security oces.
Alarms and signal output to switches can trigger desired
responses within larger integrated systems. With the
SureCross Wireless Network, monitoring capabilities and
responses can be embedded wherever needed.

18

Commercial and Consumer Monitoring

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

EXAMPLE APPLICATIONS

Applications

Energy Monitoring/Management

A rooftop HVAC system can be activated based on facility requirements through a Wireless Gateway
located inside a facility’s physical plant. With this monitoring system, industry managers identify
opportunities where their facility could be more energy ecient and conserve plant resources.

Security/Access Monitoring

To monitor and control the entry to storage rooms in the back of a large facility, a proximity
sensor is used with a FlexPower Node. When the door is opened or closed an EZ-LIGHT™
connected to the Gateway signals the main oce.

Retail Trac Analysis

To understand trac ow and consumer habits in a retail environment, a SureCross FlexPower
Node and a Banner MINI-BEAM® sensor provide a discrete, peel-and-stick monitoring and
counting solution. Moved about the location to assess retail trac and optimal store layout, this
versatile system provides data to the Gateway located in the management oces.

Refrigeration System Temperature Monitoring

A SureCross FlexPower Node used with an RTD ensures an optimal temperature is maintained
within large cold chain storage systems for refrigeration, walk-in coolers, freezers or standard
grocery cases. The remote Gateway is located o the oor and issues an alarm to management
personnel if the temperature exceeds acceptable limits.

19

SureCross™ Gateway and Node Possibilities

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

• I/O can be tailored to accommodate up to 12 functions per device.

• Open design supports inputs from sensors and devices from Banner and other manufacturers.

• Multiple network and protocol options make it easy to link to industrial host systems.

• FlexPower™ devices enable sensing solutions never before possible.

What type of sensors
need to be wireless?

SureCross works with:

• Photoelectric

• Ultrasonic

• Inductive

• Capacitive

• Contact Closures

• Thermocouple

• Pressure

• Thermistor

• Distance

• RTD

• Level

• Flow

Do you use
Serial Comms?

SureCross supports:

• Modbus RTU RS-485

• Modbus RTU RS-232

• Modbus TCP/IP

• EtherNet/IP

How much I/O?

SureCross can provide:

• Up to 4 Analog IN

(current, voltage)

• Up to 8 Discrete IN

(sinking, sourcing)

• Up to 4 Analog OUT

(current, voltage)

• Up to 8 Discrete OUT

(sinking, sourcing)

20

More information online at bannerengineering.com

What types of power
are available?

SureCross power options:

• 10 to 30V dc

• AC options

• FlexPower supply options:

-FlexPower Battery Modules

-FlexPower Solar Modules

SureCross™ Configuration: Engineered Your Way

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

• Configured Kits are only a starting point; add Nodes through the configurable Gateway to

expand an application solution.

• Custom setup of I/O function, timing and network health monitoring is handled through a

configurable Gateway.

APPLICATION

SureCross™ Congured Kits.

Banner oers a large number of SureCross
wireless kits that are congured with
everything you need to solve many
common applications quickly and easily.
Preset functionality makes the network
easy to deploy and operate.

SureCross™ Unlimited Solutions.

Whatever the demands of your application,
congurable Gateways and Nodes can be set
to solve your most challenging remote sensing
scenarios. Conguration allows the assembly
of wireless networks using the exact SureCross
components required.

Modify

Alter Presets

Expand Conguration

FlexPower™ Settings

Custom Solution

ENGINEERED APPLICATIONS

SureCross™ Congured Kit

This application employs two NAMUR proximity sensors that interface with the FlexPower Node. Based on the power consumptive properties of
the sensors and the required sample interval of 250 milliseconds it was calculated that the DX81 FlexPower supply would last one year. Banner is
continuously building a library of characterized sensors from dierent manufacturers to make FlexPower solutions plug-and-play.

Cable Method

Robot Work Cell

Control Panel

To Robot’s

Sensors

Junction Box

18'

More information online at bannerengineering.com

SureCross™ Method

Robot Work Cell

To Robot’s

Sensors

Junction Box

DX81
Battery Box

DX80 NODE

Control Panel

DX80 GATEWAY

21

SureCross™ Plug-and-Play: Configured Kits

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

• One box houses the preset Gateway, Node(s), accessories and hardware to get you up and running quickly.

• The Gateway is configured to independently control I/O mapping for all devices within the kit.

• Network traits are preset to provide discrete I/O on change of state and periodic reporting of analog I/O.

Discrete

Analog &
Discrete

Flex

Power

Systems

†

Model Number Frequency Icon* Gateway I/O Node 1 I/O Node 2 I/O Node 3 I/O Node 4 I/O Data Sheet

DX80K9M6DP1

DX80K2M6DP1

DX80K9M6DP4

DX80K2M6DP4

Model Number Frequency Icon* Gateway I/ O Node 1 I/O Node 2 I/O Data Sheet

†

DX80K9M6MP1

DX80K2M6MP1

DX80K9M6MP2

DX80K9M6MP2

™

Model Number Frequency Icon* Gateway I/O Node 1 I/O Notes Data Sheet

DX80K9M3PE1

DX80K2M3PE1

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

G N

G N

G

G

NNN

N

NNN

N

G N

G N

G NN

G NN

G N

G N

Discrete

4 IN & 4 OUT

Discrete

4 IN & 4 OUT

Modbus Enabled

Discrete

2 IN & 2 OUT

Analog

2 IN & 2 OUT

Discrete

2 IN & 2 OUT

Modbus Enabled

Analog

2 IN & 2 OUT

Discrete

2 OUT

(sinking)

Discrete

4 IN & 4 OUT

Discrete

1 IN & 1 OUT

2 IN & 2 OUT

2 IN & 2 OUT

1 IN & 1 OUT

1 IN & 1 OUT

(FlexPower™ supply

configured for MINI-BEAM)

Discrete

1 IN & 1 OUT

Discrete

Analog

Discrete

Analog

Discrete

1 IN

1 IN

(passive)

Discrete

1 IN & 1 OUT

DX81
included; provides power
for

1 IN & 1 OUT

Discrete

1 IN & 1 OUT

Analog

1 IN & 1 OUT

Flex

Power supply

Flex

Power Node and

MINI-BEAM

Discrete

129306

129308

129312

129313

129318

Discrete

DX80K9M3GE1

DX80K2M3GE1

* = Gateway = Node † = Discrete outputs are sourcing unless otherwise noted. Analog outputs are 0-20 mA.

G

ENGINEERED APPLICATIONS

SureCross™ Unlimited Solutions

900 MHz

2.4 GHz

N

G N

G N

Discrete

Modbus Enabled

2 OUT

(sinking)

Analog

2 OUT

(0-20 mA)

2 IN (passive)

Analog

1 IN

Flex

Power supply

(1

configured to provide 15V for

500 ms every 15 minutes)

1 IN

(passive)

Flex

Power supply

DX81
included; provides power

Flex

Power Node and

for

one analog sensor

129320

This application employs a congurable Gateway, a FlexPower Node and a 10 to 30V dc Node. The Gateway provides two functions: rst to
determine the appropriate valve control actuation and second, to extend transmission range for the application up to 6 miles. The FlexPower
Node is located in a remote location without access to power and cycles periodically to collect ow data for media. Based on this data, the
Gateway dictates the open and close action of the valve to the output on the 10 to 30V dc Node, which is located on the valve.

Flow

Sensor

OFF

To

Control

Valv e

DX80
Node

3 miles

DX80

Gateway

3 miles

DX80
Node

DX81
Battery
Module

10-30V DC

22

More information online at bannerengineering.com

10-30V DC

SureCross™ Gateway and Node Models

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

• A network consists of one Gateway and one or more Nodes that operate in the same frequency band.

• Each Network accommodates one Gateway and any combination of Nodes shown in the table below.

• Input-to-output mapping is controlled by a configured Gateway or supported through serial communication.

• Multiple antenna options available; internal antenna recommended for ranges less than 500 ft, external antennas enable ranges up to 3 miles.

Gateways

10 to 30V dc

Line­Powered

Nodes

10 to 30V dc

Flex

Power
Nodes with
Switched
Power
Outputs

FlexPower
Supply

Model Number Frequency I/O Antenna Data Sheet

DX80G9M6W4P4

DX80G9M6S4P4

DX80G2M6W4P4

DX80G2M6S4P4

DX80G9M6W2P2M2M2

DX80G9M6S2P2M2M2

DX80G2M6W2P2M2M2

DX80G2M6S2P2M2M2

Model Number Frequency I/O Antenna Data Sheet

DX80N9X6W4P4

DX80N9X6S4P4

DX80N2X6W4P4

DX80N2X6S4P4

DX80N9X6W2P2M2M2

DX80N9X6S2P2M2M2

DX80N2X6W2P2M2M2

DX80N2X6S2P2M2M2

™

Model Number Frequency I/O Notes Antenna Data Sheet

DX80N9X2W2N2M2X

DX80N9X2S2N2M2X

DX80N2X2W2N2M2X

DX80N2X2S2N2M2X

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

4 IN & 4 OUT

(sourcing)(sourcing)

Discrete

Modbus Enabled

2 IN & 2 OUT

(sourcing)(sourcing)

4 IN & 4 OUT

(sourcing)(sourcing)

Discrete

2 IN & 2 OUT

(sourcing)(sourcing)

Discrete

2 IN & 2 OUT

(sinking)(NMOS)

Discrete

Analog

2 IN & 2 OUT

(0-20 mA)(0-20 mA)

Discrete

Analog

2 IN & 2 OUT

(0-20 mA)(0-20 mA)

Analog

2 IN

(0-20 mA)

FlexPower supply

Internal

External

Internal

External

Internal

External

Internal

External

Internal

External

Internal

External

Internal

External

Internal

External

Configurable

switched power

outputs provide

sensor actuation

voltage up to

24V dc from the

Internal

External

Internal

External

131291

131292

131293

131295

131296

Power

™

Model Number Frequency I/O Antenna Data Sheet

DX80N9X2W2N2T

DX80N9X2S2N2T

DX80N2X2W2N2T

DX80N2X2S2N2T

DX80N9X2W0P0R

DX80N9X2S0P0R

DX80N2X2W0P0R

DX80N2X2S0P0R

DX80N9X2W2N2M4

DX80N9X2S2N2M4

DX80N2X2W2N2M4

DX80N2X2S2N2M4

DX80N9X2S0P0Z0

DX80N2X2S0P0Z0

* Thermocouple units default to J-type. Other types configurable
** RTD units default to 3-wire 100 Ohm. Other types configurable

900 MHz

(3 Thermocouple*

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz

900 MHz

2.4 GHz Internal

& 1 Thermistor)

(sinking)(NMOS)

(Internal sensor, internal battery, multi-year life)

Temperature

4 IN

Discrete

2 IN & 2 OUT

Discrete

2 IN & 2 OUT

(sinking)(NMOS)

Temperature

4 IN

(3 wire RTD**)

Analog

4 IN

(0-20 mA)

M-GAGE™

Internal

External

Internal

External

Internal

External

Internal

External

Internal

External

Internal

External

Internal

131297

131597

131762

131598

Flex

Nodes

FlexPower
Supply

More information online at bannerengineering.com

23

SureCross™ Accessories

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

QT50U

MINI-BEAM

M18

T30

K50L

K80L

Sensors

Optimized for
use with
FlexPower™
Systems

EZ-LIGHT
Indicators

Multi-Color,
7-f unc tio n

Model Number Supply Voltage Description Sensing Mode Range Output Type Connection Data Sheet*

Other Colors
Available

Selectable:

0 to 10V dc or

4 to 20 mA

Bipolar

NPN/PNP

Bipolar

NPN/PNP

QT50ULBQ6-75390

SM312LPQD-76885

SM312DQD-75904

* Data sheets are for standard product, contact factory for additional supporting literature.

™

Model Number Construction Connection LED Function Inputs Data Sheet

M18GRY2PQ

T30GRY2PQ

K50LGRY2PQ

K80LGRY2PQ

FlexPower™

MINI-BEAM

18 mm mount

Nickel-plated brass

30 mm mount

Thermoplastic polyester

30 mm mount

Thermoplastic polyester

Flat or DIN mount

Thermoplastic polyester

®

U-GAGE

Ultrasonic 200 mm - 8 m

P

®

Photoelectric

4-pin Euro QD

POLAR RETRO

DIFFUSE

3 m

380 mm

Choose Red, Yellow

or Green ON, flashing

or alternating

5-pin

Euro QD

4-pin

Euro QD

4-pin

Euro QD

PNP 121902

70137

69943

DX81

DX85

EZAC

Flex

Power

Supplies

AC Power
Supply
Options

Expandable
Remote I/O

™

Model Number Voltage Supplied Description Connection Housing Data Sheet

DX81

DX121

**Replacement lithium primary battery model number is BWA-BATT-001

Model Number Voltage Supplied Description Connection Housing Data Sheet

SPS101Q

SPS101SQ

EZAC-E-QE5-QS5

PS24W

Model Number I/O Functionality Description Housing Data Sheet

DX85-4P4M2M2

DX85-6P6

FlexPower Battery
Module to supply

FlexPower Node

12V dc @ 120 mA max

24V dc @ 700 mA

24V dc @ 500 mA

2 Analog IN, 2 Analog OUT (0-20 mA);

4 Discrete IN (sourcing),

4 Discrete OUT (sourcing)

6 Discrete IN (sourcing),

6 Discrete OUT (sourcing)

Module driven by one lithium primary battery**

Module driven by six lithium primary batteries** 131628

Converts 105 - 130V ac, 60 Hz to 12V dc

(SPST e/m Relay Output)

Converts 105 - 130V ac, 60 Hz to 12V dc

(Optically Isolated SPST Solid-state Output)

Converts 100 - 230V ac to 24V dc

(no output)

Converts 100 - 240V ac to 24V dc

North America (wall plug)

Modbus RTU Slave
Expansion I/O Modules;
used to expand Gateway

I/O capacity

5-pin Euro QD IP67

Sensor Connection:

5-pin Euro QD

AC Power Connection:

5-pin Mini QD

5-pin Euro QD

IP67

IP54 66959

IP65 120321

Non-

industrial

(not sealed)

131629

131599

131596

–

24

18

More information online at bannerengineering.com

SureCross™ Accessories

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Quick-Disconnect (QD)
Cables and Cordsets

4-Pin
Euro-Style
Cables

5-Pin
Euro-Style
Cables

5-Pin
Euro-Style
Cordsets

Double Ended

5-Pin
Mini-Style
Cables

Model Number Style Length Used With

MQDC-406

MQDC-415

MQDC1-506.5

MQDC1-506

MQDC1-515

DEE2R-51D

DEE2R-53D

DEE2R-515D

MBCC-506

MBCC-512

MBCC-530

Hardware

Mounting
Hardware

Model Number Description

BWA-HW-001

BWA-HW-002

Female Straight/

Unterminated

Female Straight/

Unterminated

Female Straight/

Male Straight

Female Straight/

Unterminated

Replacement mounting hardware packet

Replacement access hardware pack (5 plugs & 4 glands)

2 m

5 m

0.5 m

2 m

5 m

0.3 m

1 m

2.4 m

2 m

4 m

9 m

• MINI-BEAM

• EZ-LIGHT™

• DX80

• DX85

• DX81

• DX121

• FlexPower™ Module

• Expandable I/O Module

• AC Power Supplies

Cordsets

Banner oers the most

®

complete and integrated
line of sensing products.
No matter what industry
you’re in—or products you
manufacture—Banner has
the right sensors to automate
your plant, improve overall
eciency, quality and safety.
Choose from thousands of
standard DC sensing products
for line-powered (10 to 30V dc)
applications, or low-power
sensors—ideal for FlexPower
applications. Whatever your
need, we have the correct
sensor to solve your toughest
challenges.

Hardware

Request
Catalog

Bracket

SMBDX80DIN

DIN-rail flat mounting

FlexPower Solar Modules

Create a SureCross network completely
independent of line power with solar panels
and rechargeable batteries.

More information online at bannerengineering.com

FlexPower
Options

25

SureCross™ Antennas & Cabling Options

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

• Choose from a variety of direct and remote-mount and high-gain model options to get the best antenna for your application.

• A complete offering of cables and accessories is available for virtually every SureCross module and antenna location challenge.

High-Gain Yagi

Directional Yagi antenna can greatly
extend the range of any SureCross device.

Antenna
Options

Remote Antenna Cables

Offered in various lengths, low-loss cables can be
used to mount the antenna outside the SureCross
device installation location.

Antenna Adapter Cables

Various cables with many connector types
can be used to interface antennas and other
accessories to SureCross devices.

High-Performance Omni

Provide Omni directional coverage
and can be used to increase the
transmission range of the entire
SureCross network: available in

Direct-Mount

direct- or remote-mount versions.

Lightning Protectors

Safeguard your SureCross
network with simple maintenance
free lightning protection devices.

Remote-Mount

26

More information online at bannerengineering.com

SureCross™ Specifications & Dimensions

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Product Specifications and Modifications Disclaimer

All specifications published in this document are subject to change. Banner reserves the right to modify the specifications of products,
prior to their order, without notice. Visit bannerengineering.com for up-to-date product information before ordering.

General

Radio

Environmental

Power

Power Consumption

Mounting

M5 Fasteners – Max. Tightening Torque

Case Material

Weight

Indicators

Switches

Display

External Cable Glands

Cable Glands – Max. Tightening Torque

Range, with Standard 2dB Antenna

Frequency

Transmit Power

Spread Spectrum Technology

Antenna Connector

Antenna – Max. Tightening Torque

* Depending upon the environment and line-of-sight, high gain antennas are available to increase the range.

Environmental Rating

Operating Temperature

Operating Humidity

Shock and Vibration

** Please refer to the SureCross™ DX80 Quick Start Guide, Banner part number 128185, for installation and waterproofing instructions.

+10 - 30V dc or 3.6 - 5.5V dc low power option

< 1.4 W at 24V dc

#10 or M5 (M5 hardware included)

0.56 N/m (5 in/lbf)

Polycarbonate

0.26 kg (0.57 lb.)

Two LED, bi-color

Two push buttons

Six character LCD

Four PG-7 type, one 1/2-inch NPT type

0.56 N/m (5 in/lbf)

900 MHz 2.4 GHz

Up to 4.8 kilometers (3 miles)* Up to 3.2 kilometers (2 miles)*

902 - 928 MHz ISM band 2.4 - 2.4835 GHz ISM band

21 dBm conducted 18 dBm conducted, b 20 dBm EIRP

FHSS (Frequency Hopping Spread Spectrum) FHSS (Frequency Hopping Spread Spectrum)

Ext. reverse polarity SMA - 50 7 Ext. reverse polarity SMA - 50 7

0.45 N/m (4 in/lbf) 0.45 N/m (4 in/lbf)

NEMA 6 / IEC IP67**

-40 to +85° C (electronics); -20 to +80° C (LCD)

95% max. relative (non-condensing)

IEC 68-2-6 and IEC 68-2-7
Shock: 30g, 11 milliseconds half sine wave, 18 shocks
Vibration: 0.5 mm p-p, 10 - 60 Hz

Compliance

Dimension Drawings

900 MHz Models

2.4 GHz Models

Gateway

FCC ID TGUDX80 - This device complies with FCC Part 15, Subpart C, 15.247

FCC ID UE300DX80-2400 - This device complies with FCC Part 15, Subpart C, 15.247
ETSI/EN: In accordance with EN 300 328: V1.7.1 (2006-05)

Node

60.0 mm

Detailed
Dimensions

127.0 mm

127.0 mm

80.8 mm

80.8 mm

60.0 mm

More information online at bannerengineering.com

27

Banner Engineering Corp., 9714 Tenth Avenue North, Minneapolis, MN 55441 U.S.A.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

Phone [phone] Fax [phone] bannerengineering.com email: [e-mail]

1.888.3.SENSOR (1.888.373.6767)

PRINTED IN U.S.A. Copyright, 2007 Banner Engineering Corp.

P/N 131620

Supplemental Information

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™ DX80 Wireless Devices - Changing IP Address in Windows 2000

Overview: To use Ethernet communication with the DX80 Gateway Pro, configure the IP address of your computer.

Default IP Address:

192.168.0.1

Typical IP Address:

192.168.0.2

Procedure: To change the IP address of a Windows 2000 computer, do the following:

• Click Start > Network and Dial-up Connections > Local Area Connection

43

21

• Click Properties

• Choose Internet Protocols (TCP/IP) and click Properties

• Write down the existing address of your PC before changing it:

• Choose Use the following IP Address

• Change the IP Address to 192.168.0.2

• Change the Subnet Mask to 255.255.255.0

• Click OK

©2007 Banner Engineering Corp. • 9714 Tenth Avenue North • Minneapolis, MN 55441 USA

763.544.3164 • Fax [phone] • Toll Free 1.888.3.SENSOR (1.888.373.6767) • www.bannerengineering.com/training

. . .

Supplemental Information

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™ DX80 Wireless Devices - Changing IP Address in Windows XP

Overview: To use Ethernet communication with the DX80 Gateway Pro, configure the IP address of your computer.

Default IP Address:

192.168.0.1

Typical IP Address:

192.168.0.2

Procedure: To change the IP address of a Windows XP computer, do the following:

1
3

5

• Click Start > Connect To >
Show All Connections

4

• Click Properties

• Choose your

2

• Choose Internet Protocol (TCP/IP) and click Properties

Local Area Connection

• Write down the existing address of your PC before changing it:

• Choose Use the following IP Address

• Change the IP Address to 192.168.0.2

• Change the Subnet Mask to 255.255.255.0

• Click OK

©2007 Banner Engineering Corp. • 9714 Tenth Avenue North • Minneapolis, MN 55441 USA

763.544.3164 • Fax [phone] • Toll Free 1.888.3.SENSOR (1.888.373.6767) • www.bannerengineering.com/training

. . .

Supplemental Information

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™ DX80 Wireless Devices - Changing IP Address in Windows NT

Overview: To use Ethernet communication with the DX80 Gateway Pro, configure the IP address of your computer.

Default IP Address:

192.168.0.1

Typical IP Address:

192.168.0.2

Procedure: To change the IP address of a Windows NT computer, do the following:

1

• Click Start > Settings > Control Panel

3

2

• Double-click the Network icon

4

• Write down the existing address of your PC before changing it:

• Click the Protocols tab > TCP/IP Protocol > Properties

©2007 Banner Engineering Corp. • 9714 Tenth Avenue North • Minneapolis, MN 55441 USA

763.544.3164 • Fax [phone] • Toll Free 1.888.3.SENSOR (1.888.373.6767) • www.bannerengineering.com/training

• Choose Specifiy an IP Address

• Change the IP Address to 192.168.0.2

• Change the Subnet Mask to 255.255.255.0

• Click OK

. . .

Supplemental Information

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: [phone] ● www.stevenengineering.com

SureCross™ DX80 Wireless Devices - Changing IP Address in Windows 95, 98 & ME

Overview: To use Ethernet communication with the DX80 Gateway Pro, configure the IP address of your computer.

Default IP Address:

192.168.0.1

Typical IP Address:

192.168.0.2

Procedure: To change the IP address of a Windows 95, 98, or ME computer, do the following:

• Double-click the Network icon

1

• Click Start > Settings > Control Panel

3

2

4

• Click the IP Address tab

• Scroll down the components list

• Click on your Network Card after TCP/IP

• Click on Properties
NOTE: There may be more than one TCP/IP component
on the list, so choose one that is similar to the
description of your Network Card.

©2007 Banner Engineering Corp. • 9714 Tenth Avenue North • Minneapolis, MN 55441 USA

763.544.3164 • Fax [phone] • Toll Free 1.888.3.SENSOR (1.888.373.6767) • www.bannerengineering.com/training

• Write down the existing address of your PC before changing it:

. . .

• Choose Specify an IP Address

• Change the IP Address to 192.168.0.2

• Change the Subnet Mask to 255.255.255.0

• Click OK

• Reboot the PC
