Q10 Series
Miniature self-contained dc photoelectric sensors
Features
Q10 Opposed Mode Emitter (E) and Receiver (R)
Models Range Cable
Supply
Voltage
NPN/
PNP Excess Gain Beam Pattern
Q106E
Q106EQ
1.8 m
(70 in)
2 m (6.5 ft)
3-pin Pico QD
10-30V dc
—
Q10AN6R
Q10AN6RQ
2 m (6.5 ft)
3-pin Pico QD
NPN
Q10AP6R
Q10AP6RQ
2 m (6.5 ft)
3-pin Pico QD
PNP
Q10 Diffuse Mode
Q10AN6D
Q10AN6DQ
0.5 m
(20 in)
2 m (6.5 ft)
3-pin Pico QD
10-30V dc
NPN
Models Range Cable
Supply
Voltage
NPN/
PNP
Excess Gain Beam Pattern
Q10AP6D
Q10AP6DQ
2 m (6.5 ft)
3-pin Pico QD
PNP
1
10
100
.1 m
.33 ft
1 m
3.3 ft
10 m
33 ft
.01 m
.033 ft
1000
E
X
C
E
S
S
G
A
I
N
DISTANCE
Q10 Series
Opposed Mode
m
Note: A model with a QD connector requires an optional mating cable.
Performance based on 90% reflectance white test card
—
L.O./
D.O.
L.O.
L.O.
Q10RN6R
Q10RN6RQ
2 m (6.5 ft)
3-pin Pico QD
D.O.
D.O.
Q10RP6R
Q10RP6RQ
2 m (6.5 ft)
3-pin Pico QD
L.O.
L.O./
D.O.
L.O.
Q10RN6D
Q10RN6DQ
2 m (6.5 ft)
3-pin Pico QD
D.O.
Q10RP6D
Q10RP6DQ
2 m (6.5 ft)
3-pin Pico QD
D.O.
Effective Beam: 5 mm
• Self-contained dc sensors in
miniature right-angle housings;
only 11 mm (0.43 in) thick
• Epoxy-encapsulated circuitry;
IP54 (NEMA5) construction;
hermetically-sealed optics
• 1.8 m (70 in) opposed range or
0.5 m (20 in) diffuse range;
diffuse models have sensitivity
adjustment
• Choose models for light operate
or dark operate; choose either
NPN (sinking) or PNP (sourcing)
output models
Q10 Series
300 mm
Opposed Mode
200 mm
100 mm
0
100 mm
200 mm
300 mm
1.5 m
1.0 m
.5 m
0
20 in
40 in
DISTANCE
60 in
2.0 m
80 in
2.5 m
100 in
12 in
8 in
4 in
0
4 in
8 in
12 in
Printed in P/N 45725 rev. B
1000
E
X
C
100
E
S
S
10
G
A
I
N
1
1 mm
.04 in
10 mm
.4 in
DISTANCE
Q10 Series
Diffuse mode
100 mm
4 in
1000 m
40 in
60 mm
40 mm
20 mm
20 mm
40 mm
60 mm
0
0
Q10 Series
Diffuse Mode
125 mm
5 in
250 mm
10 in
DISTANCE
375 mm
15 in
500 mm
20 in
625 mm
25 in
2.4 in
1.6 in
0.8 in
0
0.8 in
1.6 in
2.4 in
Q10 Series
page 2 Banner Engineering Corporation
Quick Disconnect (QD) Cables
The following is the selection of cables available for the Q10 QD models
DImensionsStyle Model Length For use with
3-pin
Pico Style
straight
PKG3-2 2 m (6.5 ft)
All Q10 sensors with
quick-disconnect fitting
Pinout
3-pin
Pico Style
right-angle
PKW3-2 2 m (6.5 ft)
Product Specifications
Sensing Beam
Adjustments Diffuse models (only); single-turn, top-mounted SENSITIVITY control for adjustment of system gain (turn
clockwise to increase)
Supply Protection Circuitry Protected against reverse polarity
Output Configuration SPST solid-state dc switch;
Choose NPN (current sinking) or PNP (current sourcing) models
Choose light operate (N.O.) or dark operate (N.C.) models
Output Rating 150 mA maximum
Off-state leakage current: <10 microamps at 30V dc;
On-state saturation voltage: <0.5V at 10 mA dc; <1.5V at 150 mA dc
Output Protection Circuitry Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Overload trip point ≥220mA, typical, at 20ºC
Output Response Time Opposed mode: 8 ms "on", 4 ms "off"; Diffuse mode: 3 ms "on" and "off"
Indicators Opposed mode receivers and diffuse mode sensors have two LEDs: Green and Yellow
GREEN glowing steadily = power to sensor is "on"
GREEN flashing = output is overloaded
YELLOW glowing steadily = light is sensed
YELLOW flashing = marginal excess gain (1-1.5x) in light condition
Emitters have one Green LED to indicate when power to sensor is "on"
Repeatability Opposed mode: 1.0 ms; Diffuse mode: 0.75 ms
Construction Housings are black ABS; Rated UL 94V0
Lenses are hermetically-sealed glass; lens covers are clear acrylic
Circuitry is epoxy-encapsulated and completely sealed
Stainless steel M2.5 mounting hardware is included
Environmental Rating
Connections 2 m (6-1/2 ft) attached cable, or 3-pin pico-style quick-disconnect fitting;
Cables for QD models are purchased separately
Operating Temperature -40º to +70ºC (-40º to 158ºF); Maximum relative humidity 90% at 50ºC (non-condensing)
Infrared, 880 nm
Supply Voltage and Current 10 to 30V dc (10% maximum ripple); Emitter or receiver: 15 mA; Diffuse models: 20 mA
(exclusive of load)
IP54 (NEMA 5)
28 mm max.
ø12 mm max.
(1.1 in)
25 mm max.
(1.0 in)
(0.5 in)
ø10 mm max.
(0.4 in)
20 mm
(0.8 in)
Black Wire
Blue Wire
Brown Wire
Q10 Series
Banner Engineering Corporation page 3
Sensors with NPN Outputs Sensors with PNP Outputs
Cabled Emitters Quick-Disconnect Emitters
bu
+
–
10-30V dc
bn
bk
Load
bn
+
–
10-30V dc
bu
bk
Load
bu
+
–
10-30V dc
bn
bk
Load
bn
+
–
10-30V dc
bu
bk
Load
bn
bu
+
-
10-30V dc
bn
10-30V dc
bu
+
–
bk
Dimensions
Hookup Diagrams
2.8 mm
(0.11 in)
2.8 mm
(0.11 in)
20.0 mm
(0.79 in)
21.6 mm
(0.85 in)
2X Clearance
for M2.5 Screw
14.5 mm
(0.57 in)
Yellow LED
Signal Indicator
(Receiver, Only)
15.2 mm
(0.60 in)
11.0 mm
(0.43 in)
10.0 mm
(0.39 in)
Green LED
Power Indicator
28.9 mm
(1.14 in)
Opposed Mode Models Diffuse Mode Models
2.8 mm
(0.11 in)
2.8 mm
(0.11 in)
20.0 mm
(0.79 in)
35.0 mm
(1.38 in)
2X Clearance
for M2.5 Screw
14.5 mm
(0.57 in)
Yellow LED
Signal Indicator
(Receiver, Only)
18.0 mm
(0.70 in)
11.0 mm
(0.43 in)
Green LED
Power Indicator
Gain
(Sensitivity)
Adjustment
42.4 mm
(1.67 in)
Cabled HookupCabled Hookup
Quick-Disconnect HookupQuick-Disconnect Hookup
QD Models QD Models
Banner Engineering Corp., 9714 Tenth Ave. No., Minneapolis, MN 55441 Telephone: (612) 544-3164 FAX (applications) (612) 544-3573
Q10 Series
WARRANTY: Banner Engineering Corporation warrants it products to be free from defects for one year. Banner Engineering
Corporation will repair or replace, free of charge, any product of its manufacture found to be defective at the time it is returned
to the factory during the warranty period. This warranty does not cover damage or liability for the improper application of
Banner products. This warranty is in lieu of any other warranty either expressed or implied.
WARNING
These photoelectric presence sensors do NOT include the self-checking redundant circuitry
necessary to allow their use in personnel safety applications. A sensor failure or malfunction can result in either
an energized or a de-energized sensor output condition.
Never use these products as sensing devices for personnel protection. Their use as a safety device may create
an unsafe condition which could lead to serious injury or death.
Only MINI-SCREEN™, MULTI-SCREEN™, MACHINE-GUARD and PERIMETER-GUARD Systems, and other systems so
designated, are designed to meet OSHA and ANSI machine safety standards for point-of-operation guarding devices. No other
Banner sensors or controls are designed to meet these standards, and they must NOT be used as sensing devices for
personnel protection.

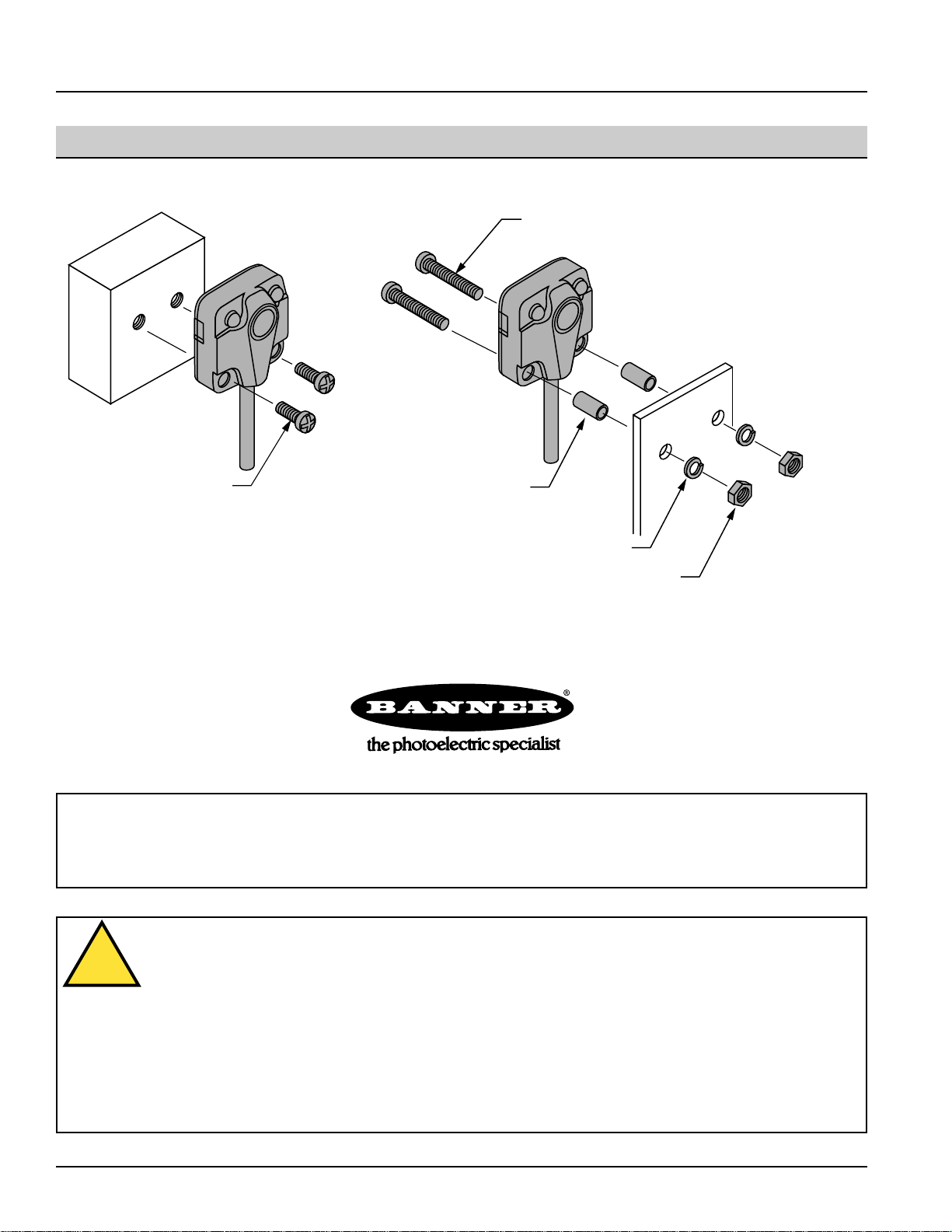

Mounting Specifications
Flat Mounting Stand-off Mounting
M2.5 x 0.45
Machine Screw
12mm Long
Nylon Spacer
M2.5 x 0.45 Machine Screw
25 mm (1.0 in) long
Split Lockwasher
Hex Nut
All hardware shown is supplied with each sensor.
!
