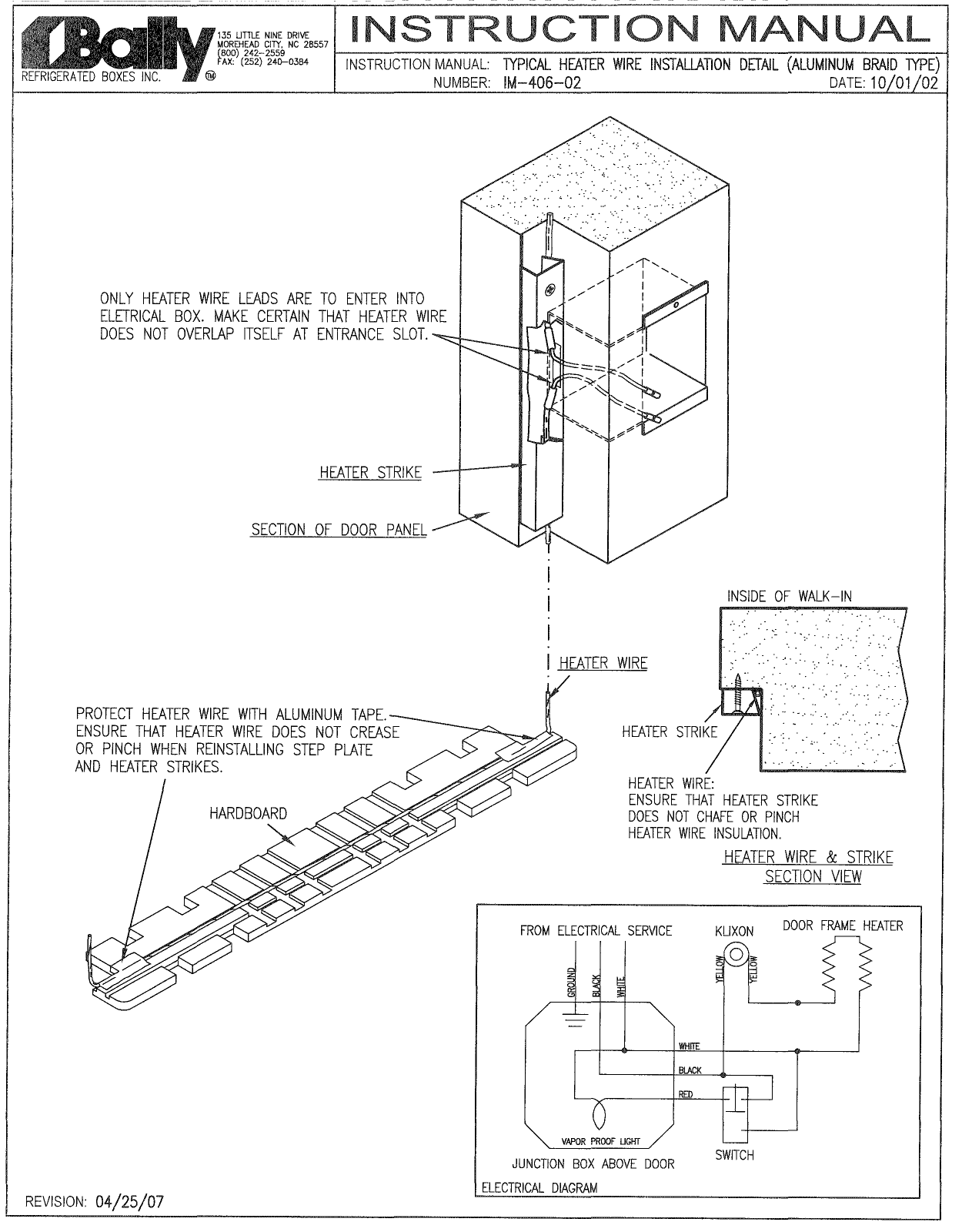

INSTRUCTION MANUAL: TYPICAL HEATER WIRE INSTAUATION DETAIL (ALUMINUM BRAID TYPE)

NUMBER: IM-406-02 DATE: 10 01 02

ONLY HEATER WIRE LEADS ARE TO ENTER INTO
ELETRICAL BOX. MAKE CERTAIN THAT HEATER WIRE
DOES NOT OVERLAP ITSELF AT ENTRANCE SLOT.

HEATER STRIKE

CTI

L

SECTION OF DOOR PANEL

PROTECT HEATER WIRE WITH ALUMINUM TAPE.
ENSURE THAT HEATER WIRE DOES NOT CREASE
OR PINCH WHEN REINSTALLING STEP PLATE

AND HEATER STRIKES.

HEATER WIRE:
ENSURE THAT HEATER STRIKE
DOES NOT CHAFE OR PINCH
HEATERWIRE INSULATION.

FROM ELECTRICAL SERVICE

INSIDE OF WALK-IN

'. 0 •

.

'.

..

.

~

...

.

"

.

.

• " o.

HEATER WIRE&STRIKE

SECTION VIEW

KLiXON

DOOR FRAME HEATER

O~

~

~

REVISION: 04/25/07

VAPORPROOFUGHT

JUNCTION BOX ABOVE DOOR

ELECTRICAL DIAGRAM

WHITE

BlACK

RED

SWITCH
