VBL3510T
Product Information Sheet
13 pgs325.18 Kb0

Baldor VBL3510T Product Information Sheet

Download
Product Information Packet
VBL3510T
1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Part Detail
Revision: E Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 35WGN676 CD Diagram: CD0055 Mfg Plant: Mech. Spec: 35E692 Layout: 35LYE692 Poles: 04 Created Date: 01-14-2013 Base: N Eff. Date: 07-17-2018 Leads: 6#18
Specs
Catalog Number: VBL3510T Enclosure: TEFC Frame: 143TC Frame Material: Steel Output @ Frequency: 1.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: CSA
UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: No Mounting Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Insulation Class: F Inverter Code: Not Inverter KVA Code: K Lifting Lugs: No Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 6 @ 18 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 3522LC Mounting Arrangement: F1 Power Factor: 92 Product Family: General Purpose Product Type: BRAKE MOTOR Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None
Current @ Voltage: 4.500 A @ 230.0 V
Shaft Extension Location: Pulley End
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
5.500 A @ 208.0 V
9.000 A @ 115.0 V Design Code: L Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Brake Mounting Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Nameplate NP1256L
CAT.NO. VBL3510T
SPEC. 35E692N676G1
HP 1
VOLTS 115/230
AMP 9/4.5 RPM 1725
FRAME 143TC HZ 60 PH 1
SER.F. 1.15 CODE K DES L CLASS F
NEMA-NOM-EFF 76.5 PF 92
RATING 40C AMB-CONT
CC USABLE AT 208V 5.5 DE 6205 ODE 6203
ENCL TEFC SN
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Parts List
Part Number Description Quantity SA256846 SA 35E692N676G1 1.000 EA RA243633 RA 35E692N676G1 1.000 EA OC3060C09SP CAPACITOR 60 MFD 240 VAC 1.000 EA EC1645A06SP ELEC CAP, 645-774 MFD, 125V, 2.06D X 4. 1.000 EA WD3006A01 RSS-2-103JT 2W 10K RES. METAL OXIDE 5% 1.000 EA NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA 35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA 36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA 51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 35EP3900T69 FREP ENCL 35M&L, 203 BRG, W/ GRSR, TAP F 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA 35CB3801 CAPACITOR COVER, CAST 1.000 EA HA7010 CAPACITOR RETENTION CLAMP 1.000 EA 34GS3002 GASKET, CAPACITOR BOX 1.000 EA NS2501A02 INSULATOR, CAPACITOR BOX 1.000 EA 51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA HW5100A03 WAVY WASHER (W1543-017) 1.000 EA 35EP3307D00 MASTER DE,205 BRG,.998SH,#26 DRN,GRSR 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA 51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA HA1014A02SP SPL SPACER FOR FAN COVER MTD ON BRAKE 3.000 EA 51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 3.000 EA
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Parts List (continued)
Part Number Description Quantity BR1003A01 BRAKE RELEASE LEVER 1.000 EA HW2501D08 KEY, 3/16 SQ X .875 AUTO 1.000 EA 35FN3002A01SP EXFN, PLASTIC, 6.376 OD, .625 ID W/FLAT 1.000 EA 51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA 35FH5000A08 FAN COVER ASSY FOR BRAKE MTRS,W/ PRIMER 1.000 EA 12XF1032A06 10-32X3/8 TY F HEX HD SLT 3.000 EA 35CB4521GX CONDUIT BOX LID KIT **ORDER INDIV PARTS 1.000 EA 51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA WD1000A15 3-520132-2 AMP FLAG (4M/RL NON-CANC/NON- 4.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA HA3100A15 THRUBOLT 10-32 X 8.375 4.000 EA 76BK2100BPF 1-056-021-00-BPF BRAKE TDR# 79345 1.000 EA 84XN3816J28 HEX SOC HD, 3/8-16 X 1.75 LONG 2.000 EA SP5181A01 MODEL 35 LC TORQ STAT SWITCH LEAD ASSY 1.000 EA LC0001A01 CONN LABEL / WARNING LABEL (LC0001 / LB1 1.000 EA LB1185 LABEL,BRAKE CONNECTION (ON ROLLS) 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA G7PA1000 PKG GRP, PRINT PK1034A06 1.000 EA PK3082 STYROFOAM CRADLE 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
AC Induction Motor Performance Data
Record # 41128 - Typical performance - not guaranteed values
Winding: 35WGN676-R001 Type: 3522LC Enclosure: TEFC
Nameplate Data
115 V, 60 Hz:
Low Voltage Connection Rated Output (HP) 1 Full Load Torque 2.94 LB-FT Volts 115/230 Start Configuration direct on line Full Load Amps 9/4.5 Breakdown Torque 10.5 LB-FT R.P.M. 1725 Pull-up Torque 8.98 LB-FT Hz 60 Phase 1 Locked-rotor Torque 10.9 LB-FT NEMA Design Code L KVA Code K Starting Current 76.9 A Service Factor (S.F.) 1.15 No-load Current 4.04 A
NEMA Nom. Eff. 76.5 Power Factor 92 LinelineRes.@25ºC
0.61441ΩAPh
1.4548ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 65°C S.F. Amps 10.2/5.1 Temp. Rise @ S.F. Load 73°C
Load Characteristics 115 V, 60 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 69 82 88 92 94 94 93 Efficiency 48.6 66.1 73.5 77 77.6 76.5 77.4 Speed 1787 1775.7 1762.5 1747.7 1731.1 1711.1 1738 Line amperes 4.52 5.72 7.27 8.99 11 13.3 10.2
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Performance Graph at 115V, 60Hz, 1.0HP Typical performance - Not guaranteed values
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
AC Induction Motor Performance Data
Record # 41129 - Typical performance - not guaranteed values
Winding: 35WGN676-R001 Type: 3522LC Enclosure: TEFC
Nameplate Data
208 V, 60 Hz:
High Voltage Connection Rated Output (HP) 1 Full Load Torque 2.95 LB-FT Volts 115/230 Start Configuration direct on line Full Load Amps 9/4.5 Breakdown Torque 8.55 LB-FT R.P.M. 1725 Pull-up Torque 7.31 LB-FT Hz 60 Phase 1 Locked-rotor Torque 8.88 LB-FT NEMA Design Code L KVA Code K Starting Current 34.7 A Service Factor (S.F.) 1.15 No-load Current 1.335 A
NEMA Nom. Eff. 76.5 Power Factor 92 LinelineRes.@25ºC
2.458ΩAPh
1.43ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 69°C S.F. Amps Temp. Rise @ S.F. Load 81°C
Load Characteristics 208 V, 60 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 77 87 91 94 94 95 94 Efficiency 54.2 70.8 76.2 78.4 77.9 75.4 78.1 Speed 1785 1771 1755 1737 1716 1689 1724 Line amperes 2.01 2.815 3.75 4.77 6 7.45 5.51
Page 10 of 13
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F

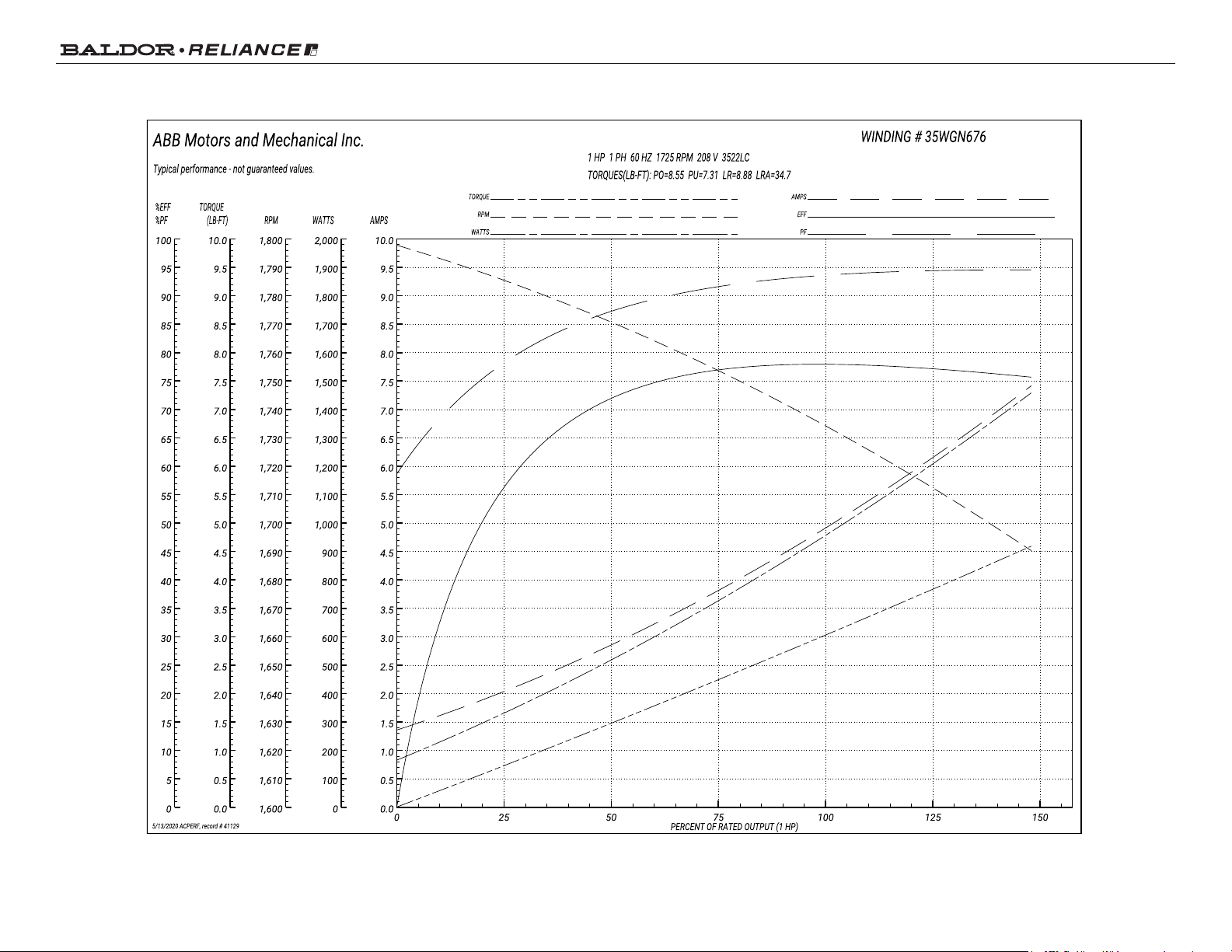

Performance Graph at 208V, 60Hz, 1.0HP Typical performance - Not guaranteed values
Page 11 of 13
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Page 12 of 13
Product Information Packet: VBL3510T - 1HP,1725RPM,1PH,60HZ,143TC,3522LC,TEFC,F
Page 13 of 13
