Product Information Packet
CDRX18324T
3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Part Detail
Revision: - Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 06WGY471 CD Diagram: CD0005 Mfg Plant: Mech. Spec: Layout: 06LYH515 Poles: 02 Created Date: 05-29-2019 Base: Eff. Date: 05-31-2019 Leads: 9#16
Specs
Catalog Number: CDRX18324T Enclosure: XPFC Frame: 182TC Frame Material: Iron Output @ Frequency: 3.000 HP @ 60 HZ
2.000 HP @ 50 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 190.0 V @ 50 HZ
460.0 V @ 60 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: UR
CSA EEV CSA
Auxillary Box: No Auxillary Box
Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: NONE KVA Code: K Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Termination: Flying Leads Motor Type: 0618M Mounting Arrangement: F1 Power Factor: 89 Product Family: General Purpose Pulley Face Code: C-Face Rodent Screen: None
Auxillary Box Lead Termination: None
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Constant Torque Speed Range: 6 Current @ Voltage: 7.600 A @ 230.0 V
6.400 A @ 190.0 V
3.800 A @ 460.0 V
3.200 A @ 380.0 V Design Code: B Drip Cover: No Drip Cover
Shaft Rotation: Reversible Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Nameplate NP1401XPSLEV
NO. CC 010A
S/N TEMP CODE T3C
SPEC. 06-0000-0132 INV.TYPE PWM
CAT.NO. CDRX18324T C HP FR 60 C HP TO 90
HP 3//2 CT HZ FROM 6 CT HZ TO 60
VOLTS 230/460//190/380 VT HZ FROM 6 VT HZ TO 60
AMPS 7.6/3.8//6.4/3.2 MAG CUR 3/1.5
RPM 3470//2890 MX RPM 5400
HZ 60//50 PH 3 CL B NOM.EFF. 86.5
SER.F. 1.00 DES B SL HZ 2 WK2 0.0795
FRAME 182TC RATING 40C AMB-CONT
1.15 SF SINEWAVE 55C AMB @ 1.0SF NEMA MG-1 PT 5,IP55
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Parts List
Part Number Description Quantity SA370103 SA 06-0000-0132 1.000 EA RA359737 RA 06-0000-0132 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0145B01 CONNECTION LABEL 1.000 EA NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1081F ALUM XP CAUTION LABEL (FS PLANT ONLY- 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 06FH1003A06G FAN COVER, X-PROOF--MACHINING W/GRAY EPO 1.000 EA 51XN1032A14 10-32 X 0.875 HX WS SL SR 4.000 EA 34FN3002B02 EXTERNAL FAN, PLASTIC, .905/.907 HUB W/ 1.000 EA 51XB0818A12 8-18X3/4 HXWSSLD SERTYB 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 06EP1709A07G FRONT XPFC 205 BRG GRP C W/ DRAIN (HW450 1.000 EA 10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Parts List (continued)
Part Number Description Quantity 06EP1707A17G PUEP 182-4TC M GRP-C DRAIN(HW4506A02), G 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4.000 EA HA2071A01 SLINGER ALUM (AUTO) 1.000 EA 80XN1032A06 10-32 X 3/8 SET SC HEX SOCK 2.000 EA 51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA HW4001A01 1/4 HX SOC PIPE PLG (F/S) ALLOY STEEL W/ 2.000 EA 60XN1032A07 10-32 X .4375 TRUSS HEAD, TORX SERRATED 2.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA 07CB1000A02G CONDUIT BOX, MODEL 306,EXP. PROOF,W/MG10 1.000 EA 84XN2520J16 1/4-20 X 1 SOC HD CAP SCREW 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 07CB1502A01G CONDUIT BOX LID MACH (DUCTILE IRON) GRAY 1.000 EA 84XN2520J16 1/4-20 X 1 SOC HD CAP SCREW 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA MG1500Y02 WILKOPON (use 004824003CAH) 0.022 GA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA HW2501E17 .250 SQUARE X 1.875 LONG LOW CARBON STEE 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
AC Induction Motor Performance Data
Record # 69211 - Typical performance - not guaranteed values
Winding: 06WGY471-R002 Type: 0618M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 3//2 Full Load Torque 4.51 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 7.6/3.8//6.4/3.2 Breakdown Torque 25.5 LB-FT R.P.M. 3470//2890 Pull-up Torque 9.08 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 11.9 LB-FT NEMA Design Code B KVA Code K Starting Current 29.3 A Service Factor (S.F.) 1 No-load Current 1.64 A NEMA Nom. Eff. 86.5 Power Factor 89 LinelineRes.@25ºC 6.24Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 45°C S.F. Amps Temp. Rise @ S.F. Load 56°C
Locked-rotor Power Factor 59.2
Rotor inertia 0.0795 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 47 70 81 87 90 91 Efficiency 81.1 86.6 87.4 86.6 85.2 83.1 Speed 3568 3538 3505 3468 3430 3382 Line amperes 1.82 2.29 2.94 3.71 4.53 5.5
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC

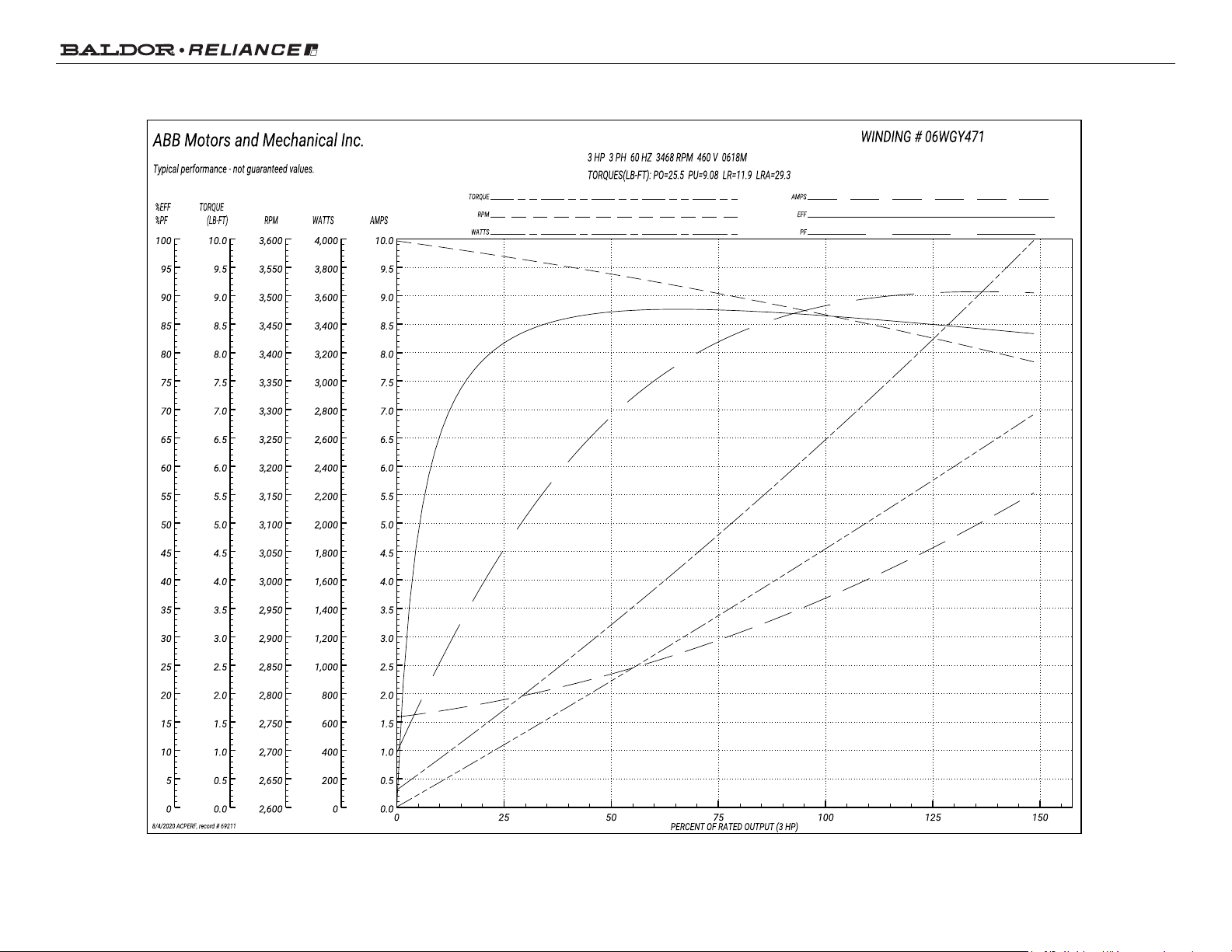

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
AC Induction Motor Performance Data
Record # 69212 - Typical performance - not guaranteed values
Winding: 06WGY471-R002 Type: 0618M Enclosure: TEFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 3//2 Full Load Torque 3.61 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 7.6/3.8//6.4/3.2 Breakdown Torque 23.13 LB-FT R.P.M. 3470//2890 Pull-up Torque 9.15 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 11.99 LB-FT NEMA Design Code B KVA Code K Starting Current 27.03 A Service Factor (S.F.) 1 No-load Current 1.6 A NEMA Nom. Eff. 86.5 Power Factor 89 LinelineRes.@25ºC 6.24Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 36°C S.F. Amps Temp. Rise @ S.F. Load 43°C
Locked-rotor Power Factor 65.7
Rotor inertia 0.0795 LB-FT2
Load Characteristics 380 V, 50 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 44 65 78 84 88 90 Efficiency 73.4 81.5 84.1 84.1 83.2 81.7 Speed 2972 2947 2921 2890 2860 2821 Line amperes 1.73 2.09 2.58 3.18 3.82 4.57
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Performance Graph at 380V, 50Hz, 2.0HP Typical performance - Not guaranteed values
Page 10 of 13
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Page 11 of 13
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Page 12 of 13
Product Information Packet: CDRX18324T - 3//2HP,3470//2890RPM,3PH,60//50HZ,182TC
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 13 of 13
