Baldor CD1803R Product Information Sheet
Product Information Packet
CD1803R
DC1811ATCZ,3HP,1750RPM,180,200,TENV,F3
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CD1803R - DC1811ATCZ,3HP,1750RPM,180,200,TENV,F3
Part Detail
Revision: A Status: PRD/A Change #: Proprietary: No

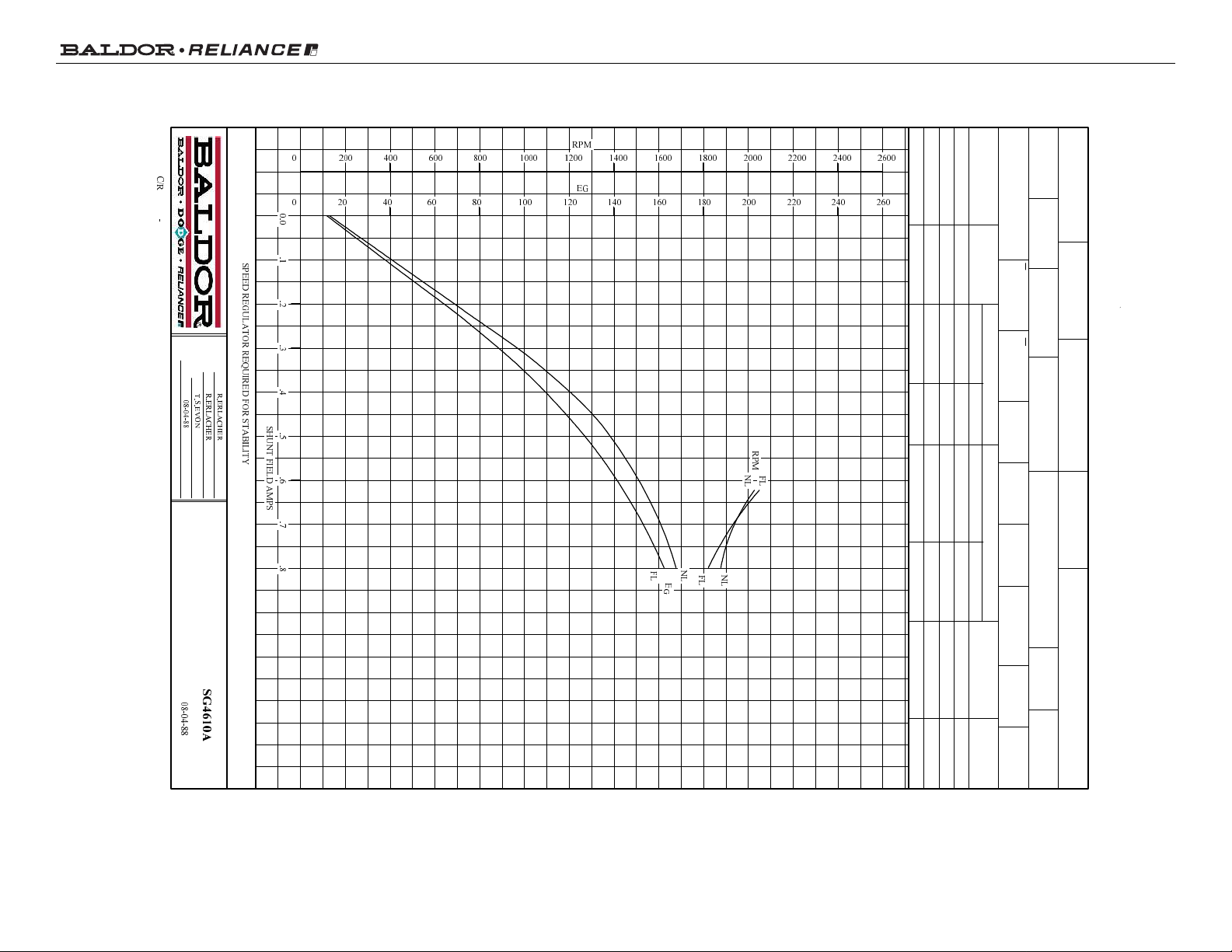

Type: DC Prod. Type: Elec. Spec: G4610A CD Diagram: 406770-007

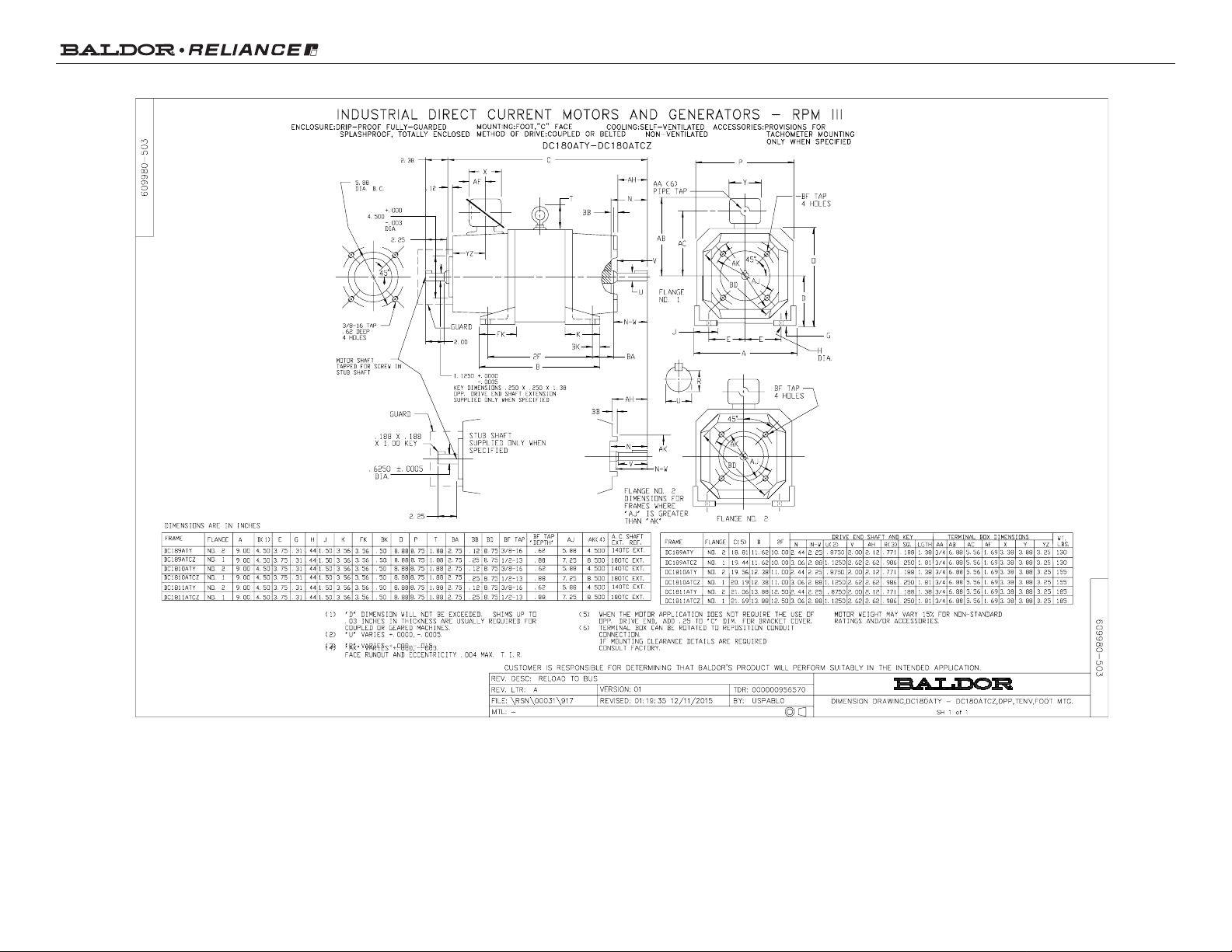

Enclosure: TENV Mfg Plant: Mech. Spec: Layout: 609980-503
Frame: DC181 Mounting: F3 Poles: 00 Created Date: 11-12-2019
Base: Rotation: R Insulation: F Eff. Date: 12-02-2019
Field Type: Literature: Elec. Diagram: Replaced By:
Specs
Enclosure: TENV
Frame: DC1811ATCZ
Frame Material: Exposed Laminations
Agency Approvals: CCSA US
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Drip Cover: No Drip Cover
Duty Rating: CONT
Feedback Device: NO FEEDBACK
Field Winding Type: STR. SHUNT
Frame Prefix: DC
Heater Indicator: No Heater
Insulation Class: F
Lifting Lugs: Standard Lifting Lugs
Mounting Arrangement: F3
Shaft Extension Location: Pulley End
Page 2 of 12
Product Information Packet: CD1803R - DC1811ATCZ,3HP,1750RPM,180,200,TENV,F3
Shaft Ground Indicator: No Shaft Grounding
Shaft Slinger Indicator: No Slinger
Motor Standards: NEMA
Thermal Device - Bearing: None
Page 3 of 12
Product Information Packet: CD1803R - DC1811ATCZ,3HP,1750RPM,180,200,TENV,F3
Nameplate 000613006HP
CAT.NO. CD1803R SPEC NO. T18S1102
FR DC1811ATCZ HP 3 DUTY CONT
ENCL. TENV RPM 1750 S.F. 1.0
ENCL MOD VOLTS 180 INSUL F
MAX SAFE SPEED 04500 AMPS 14.10 AMB. 40
FIELD DATA SER.NO.
WINDING STR. SHUNT POWER CODE 2/2-230-60-0
VOLTS 200/100 D.E. BRG. 30BC02JPP30A
MAX AMPS @ 25 C 1.17 O.D.E. BRG. 30BC02JPG30A
HOT AMPS .80 MIN. AMB. 0 TYPE TR
BRUSH:419904050A
SP; FLD. DATA FOR HIGH VOLTS
