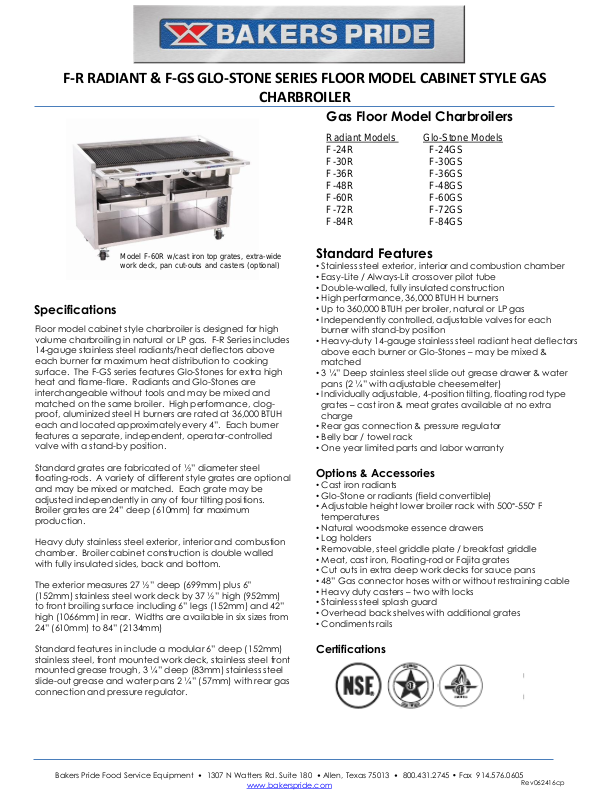

Bakers Pride F-24GS User Manual

Specifications

Standard Features

• Stainless steel exterior, interior and combustion chamber

• Easy-Lite / Always-Lit crossover pilot tube

• Double-walled, fully insulated construction

• High performance, 36,000 BTUH H burners

• Up to 360,000 BTUH per broiler, natural or LP gas

• Independently controlled, adjustable valves for each

burner with stand-by position

• Heavy-duty 14-gauge stainless steel radiant heat deflectors
above each burner or Glo-Stones – may be mixed &
matched

• 3 ¼” Deep stainless steel slide out grease drawer & water
pans (2 ¼” with adjustable cheesemelter)

• Individually adjustable, 4-position tilting, floating rod type

grates – cast iron & meat grates available at no extra
charge

• Rear gas connection & pressure regulator

• Belly bar / towel rack

• One year limited parts and labor warranty

Options & Accessories

• Cast iron radiants

• Glo-Stone or radiants (field convertible)

• Adjustable height lower broiler rack with 500°-550° F

temperatures

• Natural woodsmoke essence drawers

• Log holders

• Removable, steel griddle plate / breakfast griddle

• Meat, cast iron, Floating-rod or Fajita grates

• Cut outs in extra deep work decks for sauce pans

• 48” Gas connector hoses with or without restraining cable

• Heavy duty casters – two with locks

• Stainless steel splash guard

• Overhead back shelves with additional grates

• Condiments rails

Certifications

F-R RADIANT & F-GS GLO-STONE SERIES FLOOR MODEL CABINET STYLE GAS

CHARBROILER

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax [phone]

www.bakerspride.com

Rev062416cp

Floor model cabinet style charbroiler is designed for high
volume charbroiling in natural or LP gas. F-R Series includes
14-gauge stainless steel radiants/heat deflectors above
each burner for maximum heat distribution to cooking

surface. The F-GS series features Glo-Stones for extra high

heat and flame-flare. Radiants and Glo-Stones are
interchangeable without tools and may be mixed and
matched on the same broiler. High performance, clog­proof, aluminized steel H burners are rated at 36,000 BTUH

each and located approximately every 4”. Each burner

features a separate, independent, operator-controlled
valve with a stand-by position.

Standard grates are fabricated of ½” diameter steel

floating-rods. A variety of different style grates are optional
and may be mixed or matched. Each grate may be
adjusted independently in any of four tilting positions.

Broiler grates are 24” deep (610mm) for maximum

production.

Heavy duty stainless steel exterior, interior and combustion
chamber. Broiler cabinet construction is double walled
with fully insulated sides, back and bottom.

The exterior measures 27 ½” deep (699mm) plus 6”
(152mm) stainless steel work deck by 37 ½” high (952mm)
to front broiling surface including 6” legs (152mm) and 42”

high (1066mm) in rear. Widths are available in six sizes from

24” (610mm) to 84” (2134mm)

Standard features in include a modular 6” deep (152mm)

stainless steel, front mounted work deck, stainless steel front

mounted grease trough, 3 ¼” deep (83mm) stainless steel

slide-out grease and water pans 2 ¼” (57mm) with rear gas
connection and pressure regulator.

Gas Floor Model Charbroilers

Radiant Models Glo-Stone Models
F-24R F-24GS
F-30R F-30GS
F-36R F-36GS
F-48R F-48GS
F-60R F-60GS
F-72R F-72GS
F-84R F-84GS

Model F-60R w/cast iron top grates, extra-wide
work deck, pan cut-outs and casters (optional)

F-R RADIANT & F-GS GLO-STONE SERIES FLOOR MODEL CABINET STYLE GAS

CHARBROILER

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax [phone]

www.bakerspride.com

Rev062416cp

SHIPPING

INFORMATION

Shipping

Weights

Carton Dimensions Crate Size

Model

Lbs. Kilos

Width inches /

(mm)

Depth

inches / (mm)

Height

inches / (mm)

Cubic Feet

Cubic Meter

F

-24R/GS 320 146 51 ½” / 1308 35 ¾” / 908

71 ½” / 1816

76.2 2.2

F

-30R/GS 380 173 51 ½” / 1308 35 ¾” / 908

71 ½” / 1816

76.2 2.2

F

-36R/GS 460 209 51 ½” / 1308 35 ¾” / 908

71 ½” / 1816

76.2 2.2

F

-48R/GS 696 316 51 ½” / 1308 35 ¾” / 908

71 ½” / 1816

76.2 2.2

F

-60R/GS 770 359 66 / 1676 38 / 965 53 / 1346 76.9 2.2

F

-72R/GS 960 436 78 / 1981 38 / 965 53 / 1346 90.9 2.6

F

-84R/GS 1234 561 92 / 2341 38 / 965 53 / 1346 107.2 3.0

All Dimensions Nominal

SPECIFICATIONS

Broiling Area Overall Dimensions

Model In. (mm)

#

Top

Grates

# of

Burners

Width

inches / (mm)

Depth*

inches /

(mm)

Height*

Inches /

(mm

)

F

-24RF-24GS

21 x 24

534 x 610 4 3 24 / 610 33 ½” / 851 42 / 1066

F

-30RF-30GS

27 x 24

686 x 610 5 3 30 / 762 33 ½” / 851 42 / 1066

F

-36RF-36GS

33 x 24

838 x 610 6 4 36 / 915 33 ½” / 851 42 / 1066

F

-48RF-48GS

45 x 24

1143 x 610 8 5.5 48 / 1219 33 ½” / 851 42 / 1066

F

-60RF-60GS

57 x 24

1448 x 610 10 7 60 / 1524 33 ½” / 851 42 / 1066

F

-72RF-72GS

69 x 24

1753 x 610 12 8.5 72 / 1829 33 ½” / 851 42 / 1066

F

-84RF-84GS

81 x 24

2057 x 610 14 10 84 / 2134 33 ½” / 851 42 / 1066

GAS SUPPLY

Model BTUH KW CONNECTION

F

-24R/GS

108,000

21.98

1”

F

-30R/GS

108,000

26.37

1”

F

-36R/GS

144,000

35.16

1”

F

-48R/GS

198,000

48.35

1”

F

-60R/GS

252,000

61.53

1”

F

-72R/GS

306,000

74.72

1”

F

-84R/GS

360,000

87.90

1”

MINIMUM

CLEARANCES

Noncombustible

Construction

Combustible
Construction

Inches MM Inches MM

Right

0 / 0 10 / 254

Left

0 / 0 10 / 254

Rear

0 / 0 10 / 254

Height includes 6” (152mm) standard legs with optional casters
Depth includes 6” (152mm) work deck
