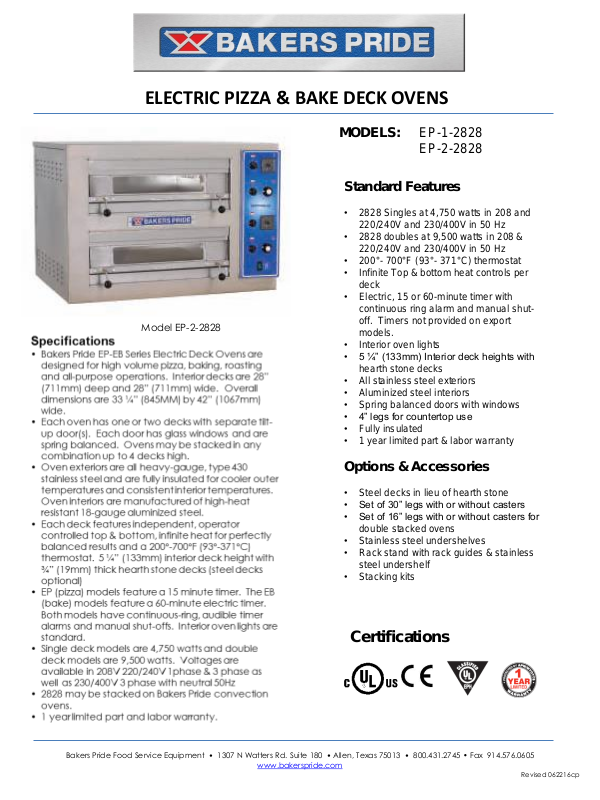

Bakers Pride EP-1-2828, EP-2-2828 User Manual
ELECTRIC PIZZA & BAKE DECK OVENS
Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax 914.576.0605
www.bakerspride.com
Model EP-2-2828
Revised 062216cp
Certifications
Standard Features
• 2828 Singles at 4,750 watts in 208 and
220/240V and 230/400V in 50 Hz
• 2828 doubles at 9,500 watts in 208 &
220/240V and 230/400V in 50 Hz
• 200°- 700°F (93°- 371°C) thermostat
• Infinite Top & bottom heat controls per
deck
• Electric, 15 or 60-minute timer with
continuous ring alarm and manual shutoff. Timers not provided on export
models.
• Interior oven lights
• 5 ¼” (133mm) Interior deck heights with
hearth stone decks
• All stainless steel exteriors
• Aluminized steel interiors
• Spring balanced doors with windows
• 4” legs for countertop use
• Fully insulated
• 1 year limited part & labor warranty
Options & Accessories
• Steel decks in lieu of hearth stone
• Set of 30” legs with or without casters
• Set of 16” legs with or without casters for
double stacked ovens
• Stainless steel undershelves
• Rack stand with rack guides & stainless
steel undershelf
• Stacking kits
MODELS: EP-1-2828
EP-2-2828
ELECTRIC PIZZA & BAKE DECK OVENS
Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax 914.576.0605
www.bakerspride.com
Revised 062216cp
SHIPPING INFORMATION
SHIPPING
WEIGHT
CARTON DIMENSIONS Crate size
Model Lbs Kilos Width Depth Height Cubic
Feet
Cubic
Meter
In mm In mm In mm
E-1-2828 310 141 43.5 1105 46 1168 24.5 616 29 .80
E-2-2828 600 273 43.5 1105 46 1168 37.5 952 43.5 1.23
POWER SUPPLY
Model Watts Voltage Phase Amps
L1 L2 L3
EP/EB-1-2828 4,750 208 1 22
EP/EB-1-2828 4,750 208 3 15 15 16
EP/EB-1-2828 4,750 230 1 20
EP/EB-1-2828 4,750 220/240 1 19
EP/EB-1-2828 4,750 220/240 3 11 12 12
EP/EB-1-2828 4,750 400 3 6 7 6
EP/EB-2-2828 9,500 208 1 44
EP/EB-2-2828 9,500 208 3 30 31 32
EP/EB-2-2828 9,500 230 1 39
EP/EB-2-2828 9,500 220/240 1 38
EP/EB-2-2828 9,500 220/240 3 22 23 23
EP/EB-2-2828 9,500 400 3 13 12 13
SPECIFICIATIONS
DECK SIZE OVERALL DIMENSIONS
Model In mm *Height # of
Decks
Width Depth Height
In mm In mm In mm In mm
EP-1-2828 28x28 711x711 5 ¼ 133 1 42 1067 33 ¼ 845 15 ¾ 400
EP-2-2828 28x28 711x711 5 ¼ 133 2 42 1067 33 ¼ 845 29 737
EB-1-2828 28x28 711x711 5 ¼ 133 1 42 1067 33 ¼ 845 15 ¾ 400
EB-2-2828 28x28 711x711 5 ¼ 133 2 42 1067 33 ¼ 845 29 737
MINIMUM CLEARANCES
Non-Combustible
Construction*
Combustible Construction**
Inches mm Inches mm
Left Side 1 25 1 25
Right Side 1 25 1 25
Rear 1 25 1 25
*In European Community countries and North America in NON-COMBUSTABLE locations only
**In European Community only in COMBUSTABLE locations. NOT for North America
Shipping Class #85 each oven ships separately
*Height excludes legs
Each oven requires separate electrical connection . Specify 1 or 3
phase when ordering.
