Specifications

Standard Features

• DS Series at 70,000 BTUH per deck natural gas or LP gas

• 300°-650° F (149°-343°C) throttling thermostat

• Top & bottom heat control dampers & micro-slides

• Combination gas controls with valve, regulator and

safety pilot

• Heavy-duty, slide-out flame diverters

• 6 ¾” (171mm) interior deck heights with 1 ½” (38mm)

thick Cordierite hearth decks

• All stainless steel exteriors

• Aluminized steel interiors

• Spring balanced, fully insulated doors finished in black

powder coat with custom hardwood handles or stainless
steel with tubular steel handles

• Front or side mounted controls with large, hinged access

door in black powder coat or stainless steel

• Riser top removable for field installations

• Side or rear gas connections on models with front

mounted controls – rear gas connections only on models
with side mounted controls

• 7-Gauge legs finished in Bakertone Gray

• Fully insulated throughout

• 2 Year limited part & labor warranty

Options & Accessories

• Steel decks in lieu for hearth decks

• Lightstone hearth decks

• 150°-550° F (65°-288°C) Bake thermostat

• Set of 4 casters – two with locks

• Stainless steel legs covers

• Special height legs

• Automatic oven starter

• Draft flue for direct vent (not available on CE units)

• Without dome/riser and/or without skirts

Certifications

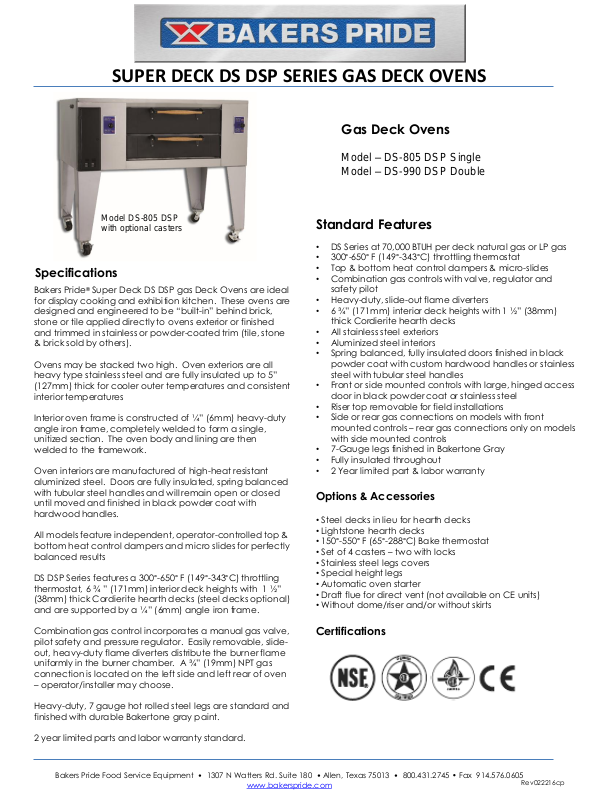

SUPER DECK DS DSP SERIES GAS DECK OVENS

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax [phone]

www.bakerspride.com

Rev022216cp

Bakers Pride®Super Deck DS DSP gas Deck Ovens are ideal

for display cooking and exhibition kitchen. These ovens are

designed and engineered to be “built-in” behind brick,
stone or tile applied directly to ovens exterior or finished
and trimmed in stainless or powder-coated trim (tile, stone
& brick sold by others).

Ovens may be stacked two high. Oven exteriors are all

heavy type stainless steel and are fully insulated up to 5”

(127mm) thick for cooler outer temperatures and consistent
interior temperatures

Interior oven frame is constructed of ¼” (6mm) heavy-duty
angle iron frame, completely welded to form a single,
unitized section. The oven body and lining are then

welded to the framework.

Oven interiors are manufactured of high-heat resistant
aluminized steel. Doors are fully insulated, spring balanced
with tubular steel handles and will remain open or closed
until moved and finished in black powder coat with
hardwood handles.

All models feature independent, operator-controlled top &
bottom heat control dampers and micro slides for perfectly
balanced results

DS DSP Series features a 300°-650° F (149°-343°C) throttling

thermostat, 6 ¾ ” (171mm) interior deck heights with 1 ½”

(38mm) thick Cordierite hearth decks (steel decks optional)

and are supported by a ¼” (6mm) angle iron frame.

Combination gas control incorporates a manual gas valve,
pilot safety and pressure regulator. Easily removable, slide­out, heavy-duty flame diverters distribute the burner flame

uniformly in the burner chamber. A ¾” (19mm) NPT gas

connection is located on the left side and left rear of oven
– operator/installer may choose.

Heavy-duty, 7 gauge hot rolled steel legs are standard and
finished with durable Bakertone gray paint.

2 year limited parts and labor warranty standard.

Gas Deck Ovens

Model – DS-805 DSP Single
Model – DS-990 DSP Double

Model DS-805 DSP
with optional casters

SUPER DECK DS DSP SERIES GAS DECK OVENS

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax [phone]

www.bakerspride.com

Rev022216cp

SHIPPING INFORMATION

Shipping
Weights

Carton Dimensions Crate Size

Model

Lbs. Kilos

Width

inches /

(mm

)

Depth

inches / (mm)

Height

inches /

(mm

)

Cubic

Feet

Cubic

Meter

DS-805

1073 487 31 / 787 60 / 1365 86 / 2184 78 2.8

ALL DIMENSIONS NOMINAL

SPECIFICATIONS

Deck

Sizes

Overall Dimensions

Model In. (mm)

#

Decks

Width

inches / (mm)

Depth

inches / (mm)

Height

Inches / (mm)

DS

-805 48 x 36 1219 x 914 1 65 ¼ / 1651 43 / 1092

54

7/8

/ 1394

DS

-990 48 x 36 1219 x 914 2 65 ¼ / 1651 43 / 1092 65 ¾ / 1670

GAS SUPPLY

Model BTUH KW

CONNECTION

DS

-805 70,000 20.5

¾”

DS

-990 140,000 41.0

¾”

CE Certification not

available in LP Gas

MINIMUM

CLEARANCES

Noncumbistable

Construction

Combustible

Construction

Inches MM Inches MM

Right

0 / 0 1 / 25

Left

0 / 0 3 / 76

Rear

2 / 51 3 / 76

Each oven ships separately
Hearth Decks and Legs ship in separate cartons
Shipping Class #85

Height includes 30” (762mm) standard legs on D -125 Height includes 12” (305mm) standard legs on D-250
CE approved units may only be stacked two high

Continuous product improvement is a policy of Bakers Pride Oven Company. Therefore, specifications and design are subject to change without notification
