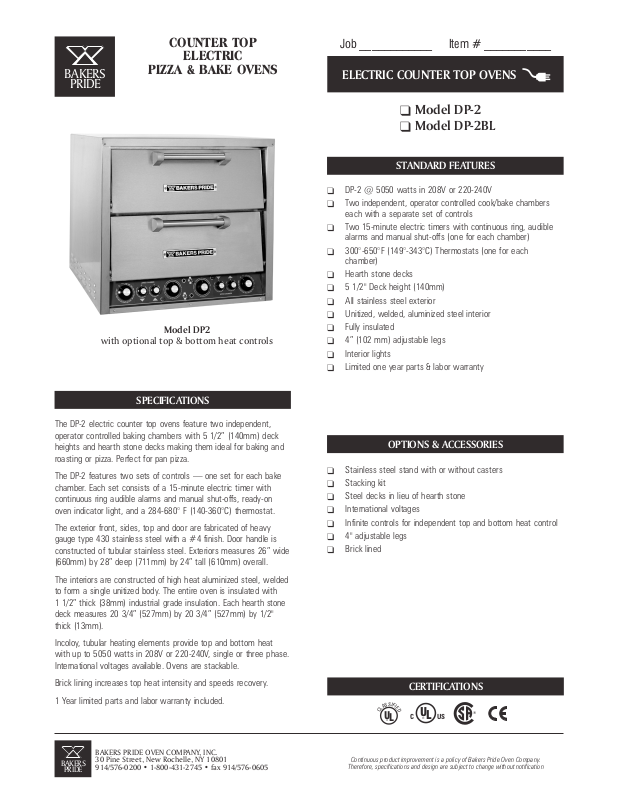

Bakers Pride DP-2BL User Manual

BAKERS

PRIDE

COUNTER TOP

ELECTRIC

PIZZA & BAKE OVENS

Model DP2

with optional top & bottom heat controls

Job ____________ Item # ___________

ELECTRIC COUNTER TOP OVENS

q Model DP-2
q Model DP-2BL

STANDARD FEATURES

q

DP-2 @ 5050 watts in 208V or 220-240V
Two independent, operator controlled cook/bake chambers

q

each with a separate set of controls
Two 15-minute electric timers with continuous ring, audible

q

alarms and manual shut-offs (one for each chamber)

q

300°-650°F (149°-343°C) Thermostats (one for each
chamber)

Hearth stone decks

q

5 1/2" Deck height (140mm)

q

All stainless steel exterior

q

Unitized, welded, aluminized steel interior

q

Fully insulated

q

4” (102 mm) adjustable legs

q

Interior lights

q

Limited one year parts & labor warranty

q

SPECIFICATIONS

The DP-2 electric counter top ovens feature two independent,
operator controlled baking chambers

and hearth stone decks making them ideal for baking and

heights
roasting or pizza. Perfect for pan pizza.

The DP-2 features two sets of controls — one set for each bake
chamber. Each set consists of a 15-minute electric timer with
continuous ring audible alarms and manual shut-offs, ready-on
oven indicator light, and a 284-680° F (140-360°C) thermostat.

The exterior front, sides, top and door are fabricated of heavy
gauge type 430 stainless steel with a #4 finish. Door handle is
constructed of tubular stainless steel. Exteriors measures 26” wide
(660mm) by 28” deep (711mm) by 24” tall (610mm) overall.

The interiors are constructed of high heat aluminized steel, welded
to form a single unitized body. The entire oven is insulated with
1 1/2” thick (38mm) industrial grade insulation. Each hearth stone
deck measures 20 3/4” (527mm) by 20 3/4” (527mm) by 1/2"
thick (13mm).

Incoloy, tubular heating elements provide top and bottom heat
with up to 5050 watts in 208V or 220-240V, single or three phase.
International voltages available. Ovens are stackable.

Brick lining increases top heat intensity and speeds recovery.

1 Year limited parts and labor warranty included.

with 5 1/2” (140mm) deck

OPTIONS & ACCESSORIES

q

Stainless steel stand with or without casters
Stacking kit

q

Steel decks in lieu of hearth stone

q

International voltages

q

Infinite controls for independent top and bottom heat control

q

4" adjustable legs

q

Brick lined

q

CERTIFICATIONS

S

I

F

S

I

E

A

D

L

C

U

L

®

U

CUS

L

®

CANADIANGASAS SOCIATION

®

BAKERS

PRIDE

BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax [phone]

Continuous product improvement is a policy of Bakers Pride Oven Company.

Therefore, specifications and design are subject to change without notification

Bake Chamber

22 1/4"

(565mm)

26"

(660mm)

BAKERS PRIDE

28"

(711mm)

1 1/2"

(38mm)

9-1/2"

[241mm]

6-3/4"

[171mm]

TOP VIEW

21 3/4"

(552mm)

5-1/2"

[140mm]

5-1/2"

[140mm]

24"

(610mm)

7-1/2"

[191mm]

[533mm]

7-1/2"

[191mm]

21"

MINUTESMINUTES0

1

2

3

15

4

14

5

13

6

12

7

11

8

10

9

FRONT VIEW

°F

°C

550

280

280

260

500

240

450

220

400

BAKERS PRIDE

150

80

200

100

120

250

140

300

160

180

200

350

MINUTESMINUTES0

150
°F
°C

80

200

550

100

280

120

250

260

500

140

240

300

300

160

450

220

180

180

200

350

400

1

2

3

15

4

14

5

13

6

12

7

11

8

10

9

1”

[25mm]

SIDE VIEW / SECTION

ALL DIMENSIONS NOMINAL

SHIPPING INFORMATION

Shipping Weight Crate SizeCarton Dimensions

Lbs.

Model

DP-2

Under 500 lbs = Shipping Class # 70

SPECIFICATIONS

Model

DP-2

BAKERS

PRIDE

Kilos

Inches

278 17.736 32 1/2 32

126

Deck Size

Inches mm

20 3/4 x 20 3/4 527x527 2 2

6-30P US & Canada

BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax [phone]

Width Depth Height

Inches Inches

mm mm mm

#

Decks

826 813

# Cook

Chambers

914

Cubic

Cubic

Feet

Meter

.51

Overall Dimensions

Width Depth Height*

Inches

Inches Inchesmm mm mm

28 2426

711 610660

* Height without legs

POWER SUPPLY

Model

DP2

DP2

Each oven requires a separate electrical connection.
1 Phase and Canada include cord and plug
3 Phase and International voltages has no line cord

VOLTAGEWATTS PHASE AMPS

208

5050

220-240

5050

1&3

1&3

MINIMUM CLEARANCES

Left Side

Right Side

Rear

* In European Community Countries and North America. In NON- COMBUSTABLE locations only.
** In European Community Countries only in COMBUSTIBLE locations. NOT for North America.

Continuous product improvement is a policy of Bakers Pride Oven Company.

Therefore, specifications and design are subject to change without notification

LINE CORD

REAR VIEW

NEMA Plug #

USA Canada UK Europe

24.5 & 14.0

22.0 & 12.7

Non-Combustible Construction* Combustible Construction**

Inches Inches

0

0

0

6-30P

6-30P

6-30P

6-30P

mm mm

0

0

0

1

1

1

25

25

25

5-1/2"

[140mm]

TSW:10/06
