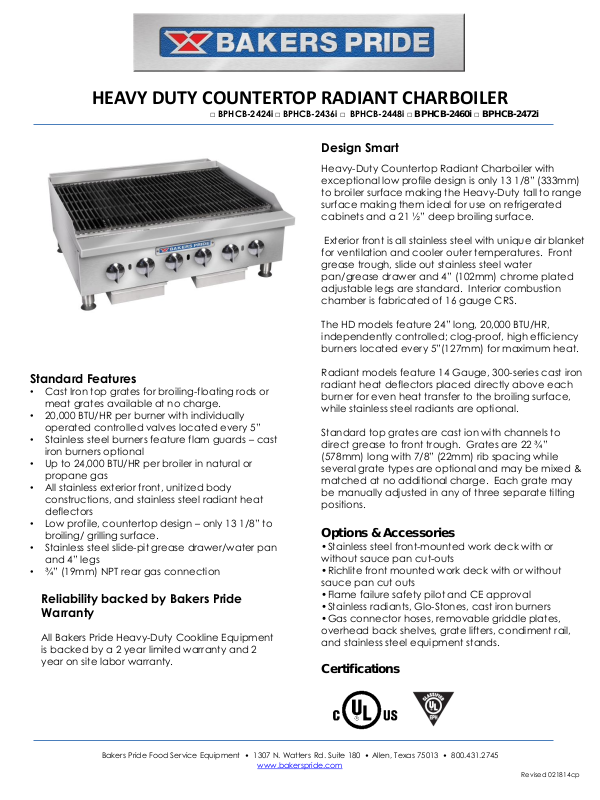

Page 1
HEAVY DUTY COUNTERTOP RADIANT CHARBOILER
□ BPHCB-2424i □ BPHCB-2436i □ BPHCB-2448i □ BPHCB-2460i □ BPHCB-2472i
Standard Features
• Cast Iron top grates for broiling-floating rods or
meat grates available at no charge.
• 20,000 BTU/HR per burner with individually
operated controlled valves located every 5”
• Stainless steel burners feature flam guards – cast
iron burners optional
• Up to 24,000 BTU/HR per broiler in natural or
propane gas
• All stainless exterior front, unitized body
constructions, and stainless steel radiant heat
deflectors
• Low profile, countertop design – only 13 1/8” to
broiling/ grilling surface.
• Stainless steel slide-pit grease drawer/water pan
and 4” legs
• ¾” (19mm) NPT rear gas connection
Reliability backed by Bakers Pride
Warranty
All Bakers Pride Heavy-Duty Cookline Equipment
is backed by a 2 year limited warranty and 2
year on site labor warranty.
Design Smart
Heavy-Duty Countertop Radiant Charboiler with
exceptional low profile design is only 13 1/8” (333mm)
to broiler surface making the Heavy-Duty tall to range
surface making them ideal for use on refrigerated
cabinets and a 21 ½” deep broiling surface.
Exterior front is all stainless steel with unique air blanket
for ventilation and cooler outer temperatures. Front
grease trough, slide out stainless steel water
pan/grease drawer and 4” (102mm) chrome plated
adjustable legs are standard. Interior combustion
chamber is fabricated of 16 gauge CRS.
The HD models feature 24” long, 20,000 BTU/HR,
independently controlled; clog-proof, high efficiency
burners located every 5”(127mm) for maximum heat.
Radiant models feature 14 Gauge, 300-series cast iron
radiant heat deflectors placed directly above each
burner for even heat transfer to the broiling surface,
while stainless steel radiants are optional.
Standard top grates are cast ion with channels to
direct grease to front trough. Grates are 22 ¾”
(578mm) long with 7/8” (22mm) rib spacing while
several grate types are optional and may be mixed &
matched at no additional charge. Each grate may
be manually adjusted in any of three separate tilting
positions.
Options & Accessories
•Stainless steel front-mounted work deck with or
without sauce pan cut-outs
•Richlite front mounted work deck with or without
sauce pan cut outs
•Flame failure safety pilot and CE approval
•Stainless radiants, Glo-Stones, cast iron burners
•Gas connector hoses, removable griddle plates,
overhead back shelves, grate lifters, condiment rail,
and stainless steel equipment stands.
Certifications
Bakers Pride Food Service Equipment • 1307 N. Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745
www.bakerspride.com
Revised 021814cp
Page 2
HEAVY DUTY COUNTERTOP GAS OPEN BURNER RANGES
PRODUCT SPECIFICATIONS
Construction:
Stainless steel top skirt, grease trough, grease collector
drawer, and front panel. Stainless steel radiant. Aluminized
steel sides and back panel. 4” adjustable legs. Welded
construction. Field convertible and adjustable gas regulator.
Gas Information:
Natural or LP.
Must specify type of gas and elevation if over 2000 ft. when
ordering.
Gas Specifications:
BPHCB-2424i 4 burners, 80,000 BTUH total
BPHCB-2436i 6 burners, 120,000 BTUH total
BPHCB-2448i 8 burners, 160,000 BTHU total
BPHCB-2460i 10 burners, 200,000 BTHU total
BPHCB-2472i 12 burners, 240,000 BTUH total
Overall Dimensions:
BPHCB-2424i 15 7/32”H x 24”W x 33 7/8”D
BPHCB-2436i 15 7/32”H x 36”W x 33 7/8”D
Radiant
BPHCB-2424i
BPHCB-2448i 15 7/32”H x 48”W x 33 7/8”D
BPHCB-2460i 15 7/32”H x 60”W x 33 7/8”D
BPHCB-2472i 15 7/32”H x 72”W x 33 7/8”D
Grilling Area Dimensions
BPHCB-2424i 15 7/32”H x 24”W (38.7cm x61cm)
BPHCB-2436i 15 7/32”H x 36”W (38.7cm x 91.5cm)
BPHCB-2448i 15 7/32”H x 48”W (38.7cm x 121.9cm)
BPHCB-2460i 15 7/32”H x 60”W (38.7cm x 152.4cm)
BPHCB-2472i 15 7/32”H x 70”W (38.7cm x 182.9cm)
Shipping:
BPHCB-2424i 193 lbs (88kg)
BPHCB-2436i 264 lbs (120kg)
BPHCB-2448i 335 lbs (176kg)
BPHCB-2460i 543 lbs (246kg)
BPHCB-2472i 613 lbs (373kg)
Freight Class: 85
FOB: Standex Dock
Continuous product improvement is a policy of Bakers Pride Oven Company. Therefore,
specifications and design are subject to change without notification
Bakers Pride Food Service Equipment • 1307 N. Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745
www.bakerspride.com
Revised 021814cp
