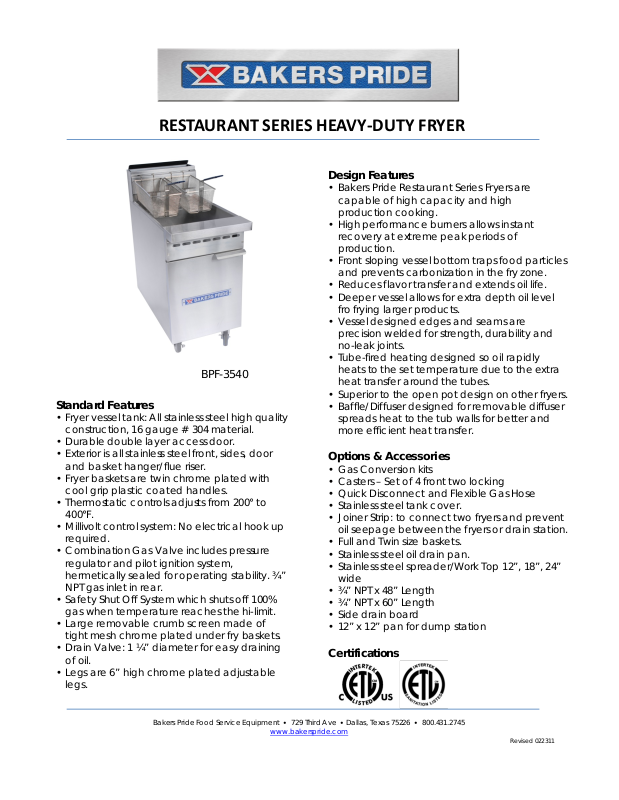

RESTAURANTSERIESHEAVY‐DUTYFRYER

BPF-3540

Standard Features

• Fryer vessel tank: All stainless steel high quality

construction, 16 gauge # 304 material.

• Durable double layer access door.

• Exterior is all stainless steel front, sides, door

and basket hanger/flue riser.

• Fryer baske ts a re twin ch ro me pl ate d with

cool grip plastic coated handles.

• Thermostatic controls adjusts from 200° to

400°F.

• Millivolt control system: No electrical hook up

required.

• Combination Gas Valve includes pressure

regulator and pilot igniti on system ,
hermetically sealed for operating stability. ¾”
NPT gas inlet in rear.

• Safety Shut Off System which shuts off 100%

gas when temperature reaches the hi-limit.

• Large removable crumb screen made of

tight mesh ch r o me p la ted un d er fr y bask ets .

• Drain Valve: 1 ¼” diameter for easy draining

of oil.

• Legs are 6” high chrome plated adjustable

legs.

Design Features

• Bakers Pride Restaurant Series Fryers are

capable of high capacity and high
production cooking.

• High performance burners allows instant

recovery at extreme peak periods of
production.

• Front sloping vessel bottom traps food particles

and prevents carbonization in the fry zone.

• Reduces flavor transfer and extends oil life.

• Deeper vessel allows fo r extra d epth oi l level

fro frying larger products.

• Vessel designed edges and seams are

precision welded for strength, durability and
no-leak joints.

• Tube-fired heating designed so oil rapidly

heats to the set te mpe ra tur e du e to the ex tra
heat transfer around the tubes.

• Superior to the open pot design on other fryers.

• Baffle/Diffuser designed for removable diffuser

spreads hea t to the tub walls for better a n d
more efficient heat transfer.

Options & Accessories

• Gas Conversion kits

• Casters – Set of 4 front two locking

• Quick Disconnect and Flexible Gas Hose

• Stainless steel tank cover.

• Joiner Strip: to connect two fryers and prevent

oil seepage between the fryers or drain station.

• Full and Twin size baskets.

• Stainless steel oil drain pan.

• Stainless steel spreader/Work Top 12”, 18”, 24”

wide

• ¾” NPT x 48” Length

• ¾” NPT x 60” Length

• Side drain board

• 12” x 12” pan for dump station

Certifications

Bakers Pride Food Service Equipment • 729 Third Ave • Dallas, Texas 75226 • 800.431.2745

www.bakerspride.com

Revised 022311

RESTAURANTSERIESHEAVY‐DUTYFRYER

PRODUCT SPECIFICATIONS

Construction:

Heavy duty stainless steel body. Twin Fry baskets are chrome
plated. 6” adjustable chrome legs.

Gas Information:

Natural or LP.

Must specify type of gas and elevation if over 2000 ft. when
ordering.

Oil Capacity:

BPF-3540: 35-40 lbs, 76,000 BTU
BPF-4050: 40-50 lbs, 114,000 BTU
BPF-6575: 65-75 lbs, 152,000 BTU

Overall Dimensions:

BPF-3540: 15 ½”W x 45 ¾” H x 31” D
BPF-4050: 15 ½”W x 45 ¾” H x 30 ½” D
BPF-6575: 22 ½”W x 45 ¾” H x 34 ¼”D

Shipping:

BPF-3540: 175 lbs
BPF-4050: 225 lbs
BPF-6575: 305 lbs

Freight Class: 85
FOB: Standex Dock
