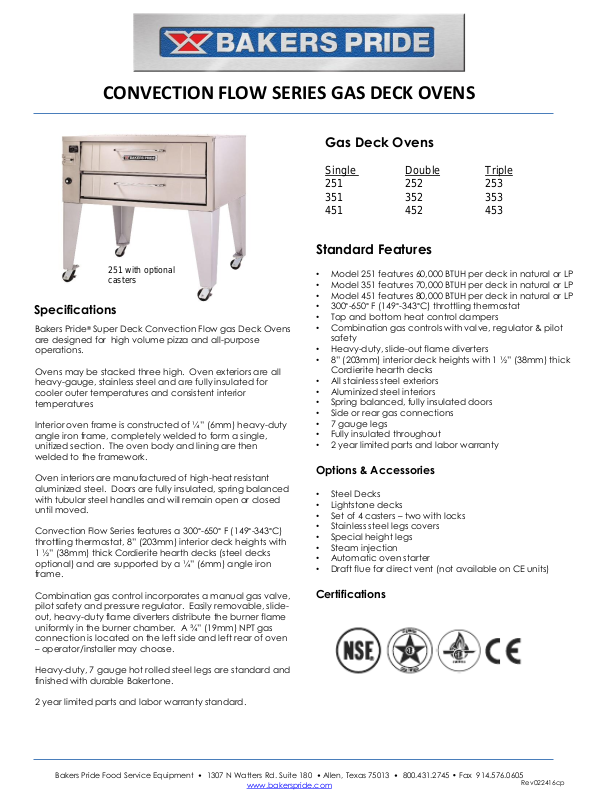

Bakers Pride 251 User Manual

Specifications

Standard Features

• Model 251 features 60,000 BTUH per deck in natural or LP

• Model 351 features 70,000 BTUH per deck in natural or LP

• Model 451 features 80,000 BTUH per deck in natural or LP

• 300°-650° F (149°-343°C) throttling thermostat

• Top and bottom heat control dampers

• Combination gas controls with valve, regulator & pilot

safety

• Heavy-duty, slide-out flame diverters

• 8” (203mm) interior deck heights with 1 ½” (38mm) thick

Cordierite hearth decks

• All stainless steel exteriors

• Aluminized steel interiors

• Spring balanced, fully insulated doors

• Side or rear gas connections

• 7 gauge legs

• Fully insulated throughout

• 2 year limited parts and labor warranty

Options & Accessories

• Steel Decks

• Lightstone decks

• Set of 4 casters – two with locks

• Stainless steel legs covers

• Special height legs

• Steam injection

• Automatic oven starter

• Draft flue for direct vent (not available on CE units)

Certifications

CONVECTION FLOW SERIES GAS DECK OVENS

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax [phone]

www.bakerspride.com

Rev022416cp

Bakers Pride®Super Deck Convection Flow gas Deck Ovens
are designed for high volume pizza and all-purpose
operations.

Ovens may be stacked three high. Oven exteriors are all

heavy-gauge, stainless steel and are fully insulated for
cooler outer temperatures and consistent interior
temperatures

Interior oven frame is constructed of ¼” (6mm) heavy-duty
angle iron frame, completely welded to form a single,
unitized section. The oven body and lining are then
welded to the framework.

Oven interiors are manufactured of high-heat resistant
aluminized steel. Doors are fully insulated, spring balanced
with tubular steel handles and will remain open or closed
until moved.

Convection Flow Series features a 300°-650° F (149°-343°C)

throttling thermostat, 8” (203mm) interior deck heights with
1 ½” (38mm) thick Cordierite hearth decks (steel decks
optional) and are supported by a ¼” (6mm) angle iron

frame.

Combination gas control incorporates a manual gas valve,
pilot safety and pressure regulator. Easily removable, slide­out, heavy-duty flame diverters distribute the burner flame

uniformly in the burner chamber. A ¾” (19mm) NPT gas

connection is located on the left side and left rear of oven
– operator/installer may choose.

Heavy-duty, 7 gauge hot rolled steel legs are standard and

finished with durable Bakertone.

2 year limited parts and labor warranty standard.

Gas Deck Ovens

Single Double Triple
251 252 253
351 352 353
451 452 453

251 with optional
casters

CONVECTION FLOW SERIES GAS DECK OVENS

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745 • Fax [phone]

www.bakerspride.com

Rev022416cp

SHIPPING

INFORMATION

Shipping

Weights

Carton Dimensions Crate Size

Model

Lbs. Kilos

Width

inches /

(mm

)

Depth

inches /

(mm

)

Height

inches /

(mm

)

Cubic

Feet

Cubic

Meter

251

943 428 40 / 1016 53 / 1346 37 /940 46 1.3

351

1078 493 36 / 915 52 / 1321 72 / 1829 78 2.3

451

1259 571 36 / 915 52 / 1321 72 / 1829 78 2.3

All Dimensions Nominal

SPECIFICATIONS

Deck

Sizes

Overall Dimensions

Model In. (mm)# Decks

Width

inches /

(mm

)

Depth

inches / (mm)

Height

Inches /

(mm)

251

36 x 34 ½ 914 x 876 1 48 / 1219 43 / 1092

55 ¼ / 1403

252

36 x 34 ½ 914 x 876 2 48 / 1219 43 / 1092

66

½ /

1689

253

36 x 34 ½ 914 x 876 3 48 / 1219 43 / 1092

81 ¾ / 2076

351

45 x 34 ½ 1143 x 876 1 57 / 1448 43 / 1092

55 ¼ / 1403

352

45 x 34 ½ 1143 x 876 2 57 / 1448 43 / 1092

66

½ /

1689

353

45 x 34 ½ 1143 x 876 3 57 / 1448 43 / 1092

81 ¾ / 2076

451

54 x 34 ½ 1371 x 876 1 66 / 1676 43 / 1092

55 ¼ / 1403

452

54 x 34 ½ 1371 x 876 2 66 / 1676 43 / 1092

66

½ /

1689

453

54 x 34 ½ 1371 x 876 3 66 / 1676 43 / 1092

81 ¾ / 2076

GAS SUPPLY

Model BTUH KW CONNECTION

251

60,000 17.6 ¾”

351

70,000 20.5 ¾”

451

80,000 23.4 ¾”

MINIMUM

CLEARANCES

Noncombustible

Construction

Combustible
Construction

Inches MM Inches MM

Right

0 / 0 1 / 25

Left

0 / 0 3 / 76

Rear

2 / 51 3 / 76

Each oven ships separately
Hearth Decks and Legs ship in separate cartons
Shipping Class #85

Height includes 30” (762mm) standard legs on models 251, 351, 451 Height includes 6” (1152mm) legs on models 253, 353, 453
Height includes 16” (406mm) standard legs on models 252, 352, 452 CE approved units may only be stacked two high
