BMPM012

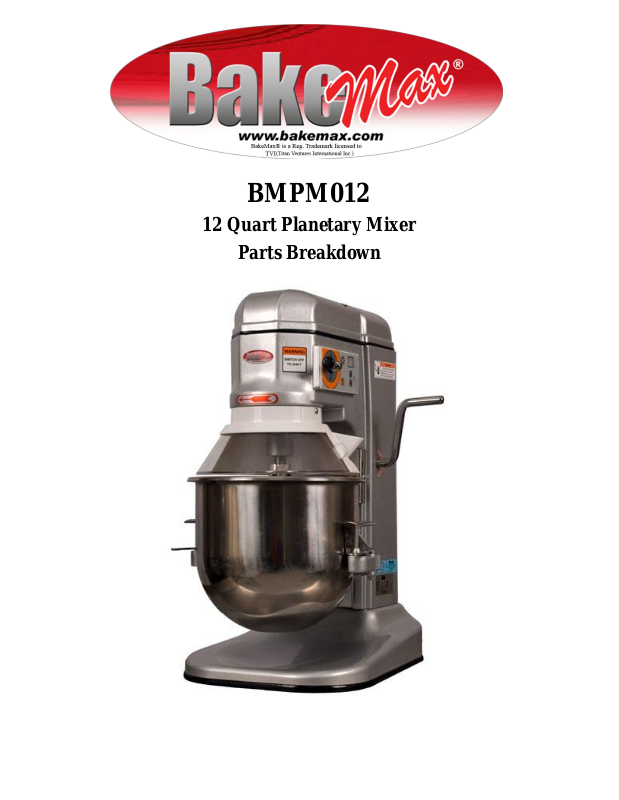

12 Quart Planetary Mixer
Parts Breakdown
Page 2
Image: BM12-01
Image BM12-01
Description or Name
Qty 1 Upper Lid
1
2
Control Panel with box
1
2A
Sticker of Control Panel
1
3
Oil Baffle
1
4
Gear Housing Cover
1
5
Mixer Head and Column
1
6
Cover Plate
1
7
U-Type Seal
1 8 Plate of Electrical Box
1
9
Front Cover
1
10
Base
1
11
Rear Cover
1
12
Plastic Plug
1
13
Mach Screw 5/32*3/8
14
Internal Wires
1
15
Internal Wires (Panel to control box)
1
16
Wires of Bowl Switch
1
17
Wires of Safety Guard Switch
1
18
IC Board(llOV) W/BOX
1 IC Board(220V)W/BOX
19
CABLE
1
20
CABLE TIE
1
Page 3
BM12-02
Description or Name
Qty 1 Planetary Shaft
1 2 Detain-Fixed Cover
1 3 Washer
1 4 C-Type Snap Ring R35
1
5
High Speed Gear (32 T)
1
6
Clutch Copper Bushing
7
Key 5*5*20
1
8
Middle Speed Gear (42 T)
1
9
Washer
1
10
Spacer
1
11
Nut 1/2*20NF
1
12
Spring Washer 1/2"
1
13
Oil Seal TC25*38*07
1
14
Ball Bearing 6004Z
1
15
Pin
8
16
Spring Sheet
8
17
Ball Bearing 6202Z
1
18
Gear (49T)
1
19
Key5*5*30
1
20
Clutch
1
21
Sleeve Drive
1
22
Key 5*5*15
1
Image: BM12-02
Page 4
BM12-03
Description or Name
Qty
1
3-Lay Shaft Gear
1
2
Worm Gear Shaft
1
3
Worm Gear
1
4
26T Gear
1
5
Ball Bearing 6001Z
4
6
Key 4*4*25
1 7 C-Type Snap Ring S16
1 8 C-Type Snap Ring R28
2 9 C-Type Snap Ring S12
1
Image: BM12-03
Page 5

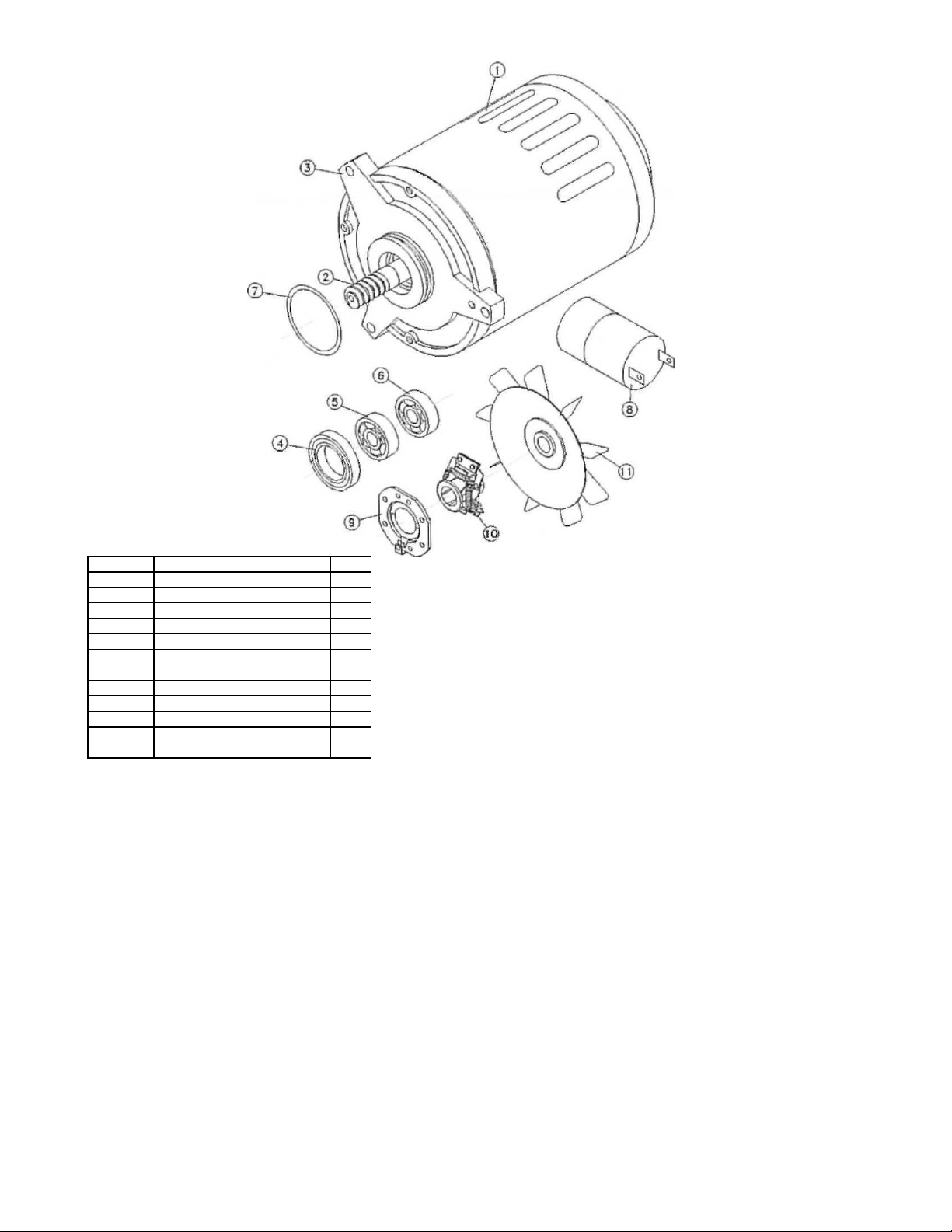

Image: BM12-04
BM12-04
Description or Name
Qty 1 Motor-110V(50/60HZ)
1 Motor-220V(50/60HZ)
1
2
Motor Shaft
1
3
Top cover of Motor
1
4
Oil Seal TC17*30*07
1
5
Ball Bearing 6203ZZ
1
6
Ball Bearing 6202ZZ
1
7
O Snap Ring G45
1
8
Capacitor
1
9
GOVERNOR
10
GOVERNOR PLATE
1
11
FAN-MOTOR
1
Page 6

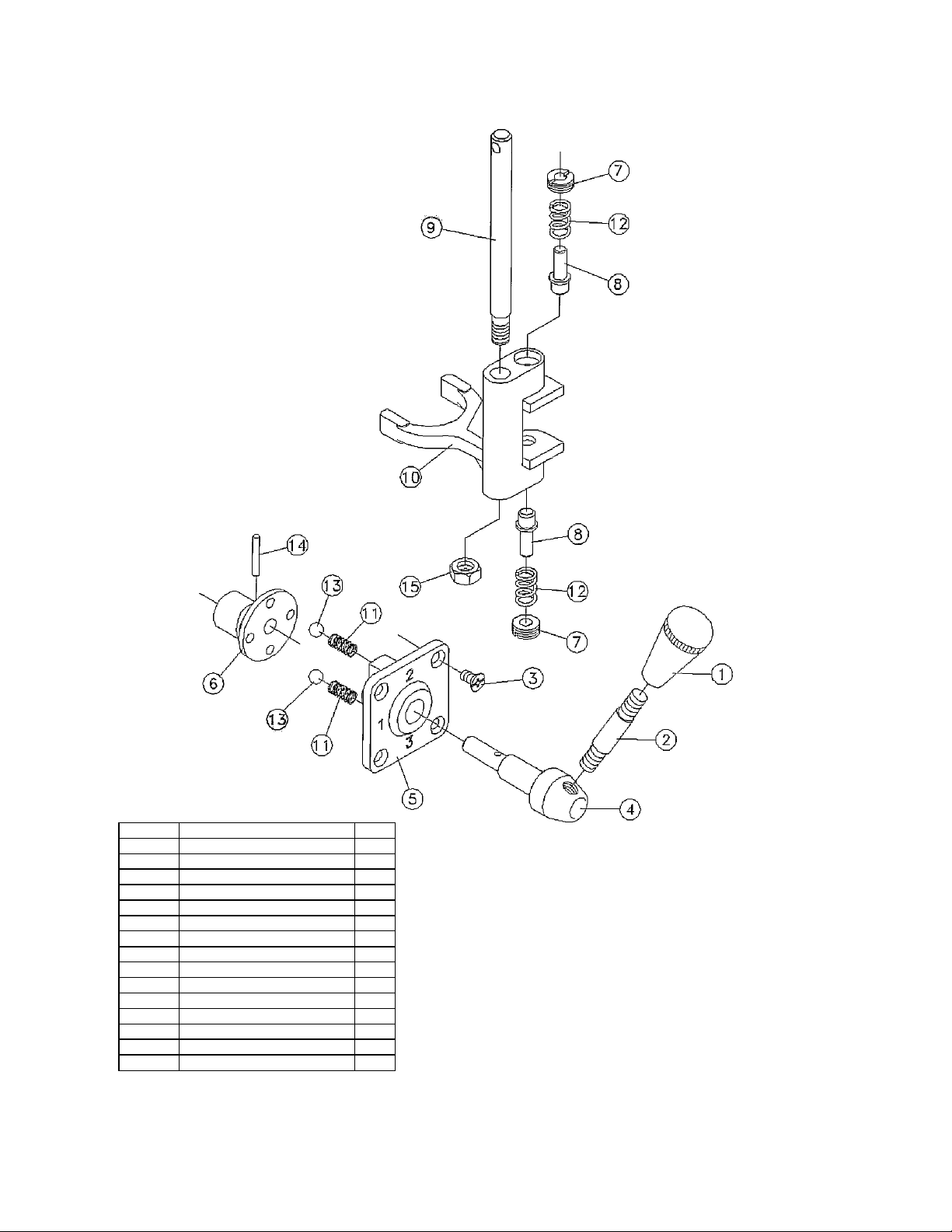

Image: BM12-05
BM12-05
Description or Name
Qty
1
Knob For Shift Handle
1 2 Shift Handle
1 3 Mach Screw 3/16*1/2
4 4 Eccentric Shift Shaft
1 5 Shift Selector
1 6 Eccentric Shaft
1
7
Screw
2
8
Shift Fork Plunger
2
9
Shifter Fixed Shaft
1
10
Shift Fork
1
11
Compression Spring
2
12
Compression Spring
2
13
Steel Ball 6
2
14
Spring Pin 3*22
1
15
Nut 5/16*18NC
1
Page 7
BM12-06
Description or Name
Qty
1
Internal Pinion(19 T)
1
2
Internal Drive Gear(62T)
1
3
Head Ring
1
4
Planetary Head
1
5
Agitating Shaft
1
6
Oil SealTC20*35*07
1
7
Tapered Pin
1
8
Cap Screw 1/4*1
9
C-Type Snap Ring S I 5
1
10
Ball Bearing 6003Z
1
11
Ball Bearing 6202Z
1
12
Key 5*5*15
1
Image: BM12-06
Page 8
BM12-07
Description or Name
Qty 1 Bowl Support
1 2 Bowl Pin
2 3 Spring Washer 5/16"
2
4
Nut5/16*18NC
2
5
Bowl Fixed Plate
2
6
Bolt 1/4*2
2
7
Spring Washer 1/4"
2
8
Spring Washer 1/4"
2
9
Nut 1/4*20NC
2
Image: BM12-07
Page 9
Image: BM12-08
BM12-08
Description or Name
Qty
1
Lifting Bar
1
2
Fixed Angle Bar
1
3
Lifting Handle Bracket
1
4
Lift Handle
1
5
Compression Spring
1
6
Washer 5/16"
4 7 Set Screw 5/16*3/8
2 8 Spring Pin 3*16
1
8A
Spring Pin 3*24
1
9
Nut 5/16*18NC
2
10
Mach Screw 1/4*5/8
2
11
Spring Washer 1/4
2
Page 10
Image: BM12-09
BM12-09
Description or Name
Qty 1 SS Bowl
1 R
2
AL Flat Beater
1 R
3
AL Dough Hook
1 R 4 AL Wire Whip
1 R

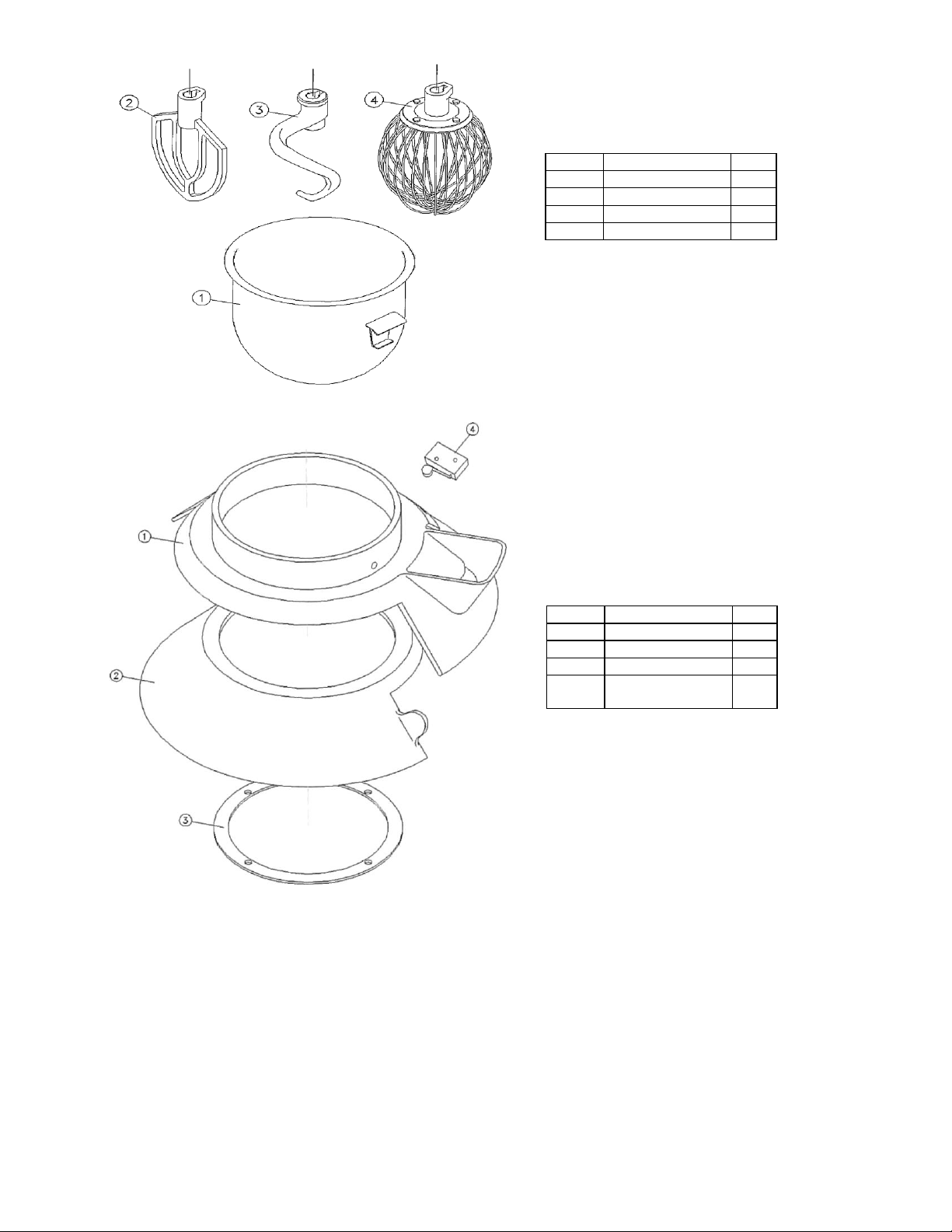

BM12-10
Description or Name
Qty
1
Head Ring
1 2
Moving Ring
1 3
Fixed Ring
1
4
Limit Switch of
Guard
1
Image:BM12-10
Page 11
WARNING:

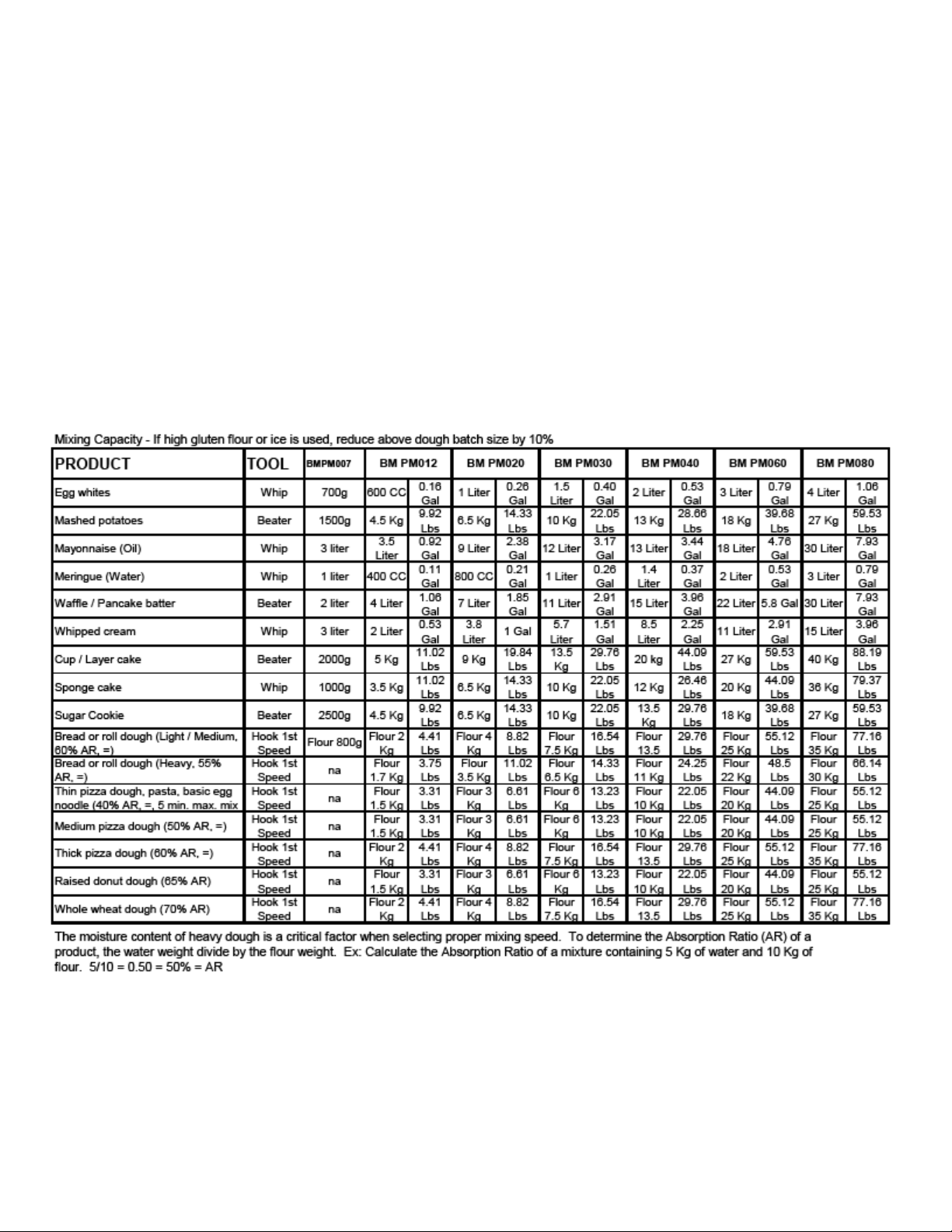

Ensure your recipe meets mixers capacity.
Ensure water is 70 Degrees Fahrenheit or reduce
capacity.
Ensure flour is at room temperature.
Ensure mixer is turned off when changing gears.
FAILURE TO COMPLY VOIDS ALL WARRANTY.
