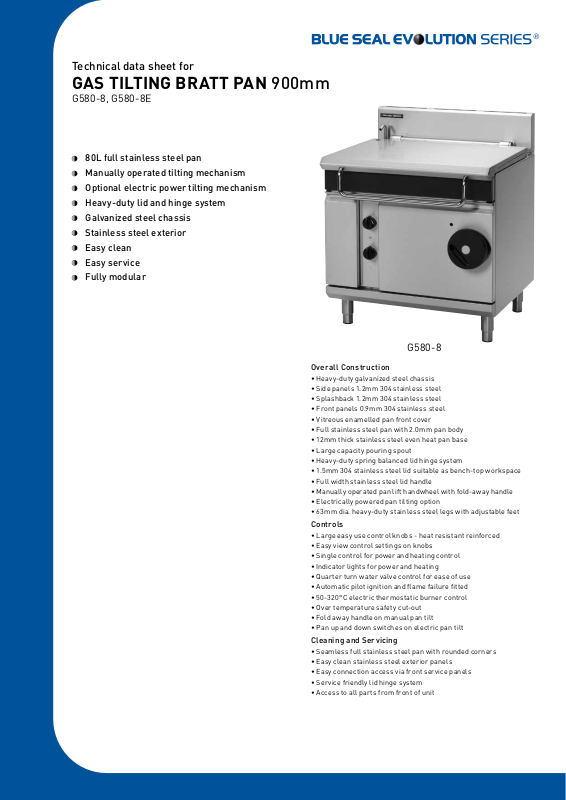

Technical data sheet for

GAS TILTING BRATT PAN 900mm

G580-8, G580-8E

80L full stainless steel pan

Manually operated tilting mechanism

Optional electric power tilting mechanism

Heavy-duty lid and hinge system

Galvanized steel chassis

Stainless steel exterior

Easy clean

Easy service

Fully modular

G580-8

Overall Construction

• Heav y-duty galvanized steel chassis

• Side panels 1.2mm 304 stainless steel

• Splashback 1.2mm 304 stainless steel

• Front panels 0.9mm 304 stainless steel

• Vitreous enamelled pan front cover

• Full stainless steel pan with 2.0mm pan body

• 12mm thick stainless steel even heat pan base

• Large capacity pouring spout

• Heav y-duty spring balanced lid hinge system

• 1.5mm 304 stainless steel lid suitable as bench-top workspace

• Full width stainless steel lid handle

• Manually operated pan lift handwheel with fold-away handle

• Electrically powered pan tilting option

• 63mm dia. heavy-duty stainless steel legs with adjustable feet

Controls

• Large easy use control knobs - heat resistant reinforced

• Easy view control settings on knobs

• Single control for power and heating control

• Indicator lights for power and heating

• Quarter turn water valve control for ease of use

• Automatic pilot ignition and ame failure tted

• 50-320°C electric thermostatic burner control

• Over temperature safety cut-out

• Fold away handle on manual pan tilt

• Pan up and down switches on electric pan tilt

Cleaning and Servicing

• Seamless full stainless steel pan with rounded corners

• Easy clean stainless steel exterior panels

• Easy connection access via front service panels

• Service friendly lid hinge system

• Access to all parts from front of unit

Technical data sheet for

GAS TILTING BRATT PAN 900mm

Specifications

Burner

Single 6 bar stainless steel burner 72MJ/hr

Gas power

72MJ/hr, 20kW

Pan

Cooking surface 780mm x 450mm, 3510cm2
215mm deep

Gas connection

3

/4 (BSP) male

R

All units supplied with Natural and LP gas
regulator

Water connection

Cold water connection

1

/2” tube connection via 15mm crox tting

550kpa, 80psi max water pressure

Electrical connection

220-240Vac, 50/60Hz, 1A, 1P+N+E
3 pin 10A plug cordset tted

Dimensions

Width 900mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm
With lid open 1566mm

Nett weight

170kg

Packing data

1.03m3, 236kg
Width 945mm
Depth 870mm
Height 1255mm

Gas types

Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conversion kits
Other gas types on request

Options

Joining caps

G58 0-8

G58 0-8E

G58 0-8, G5 80-8E

Cert 6923
