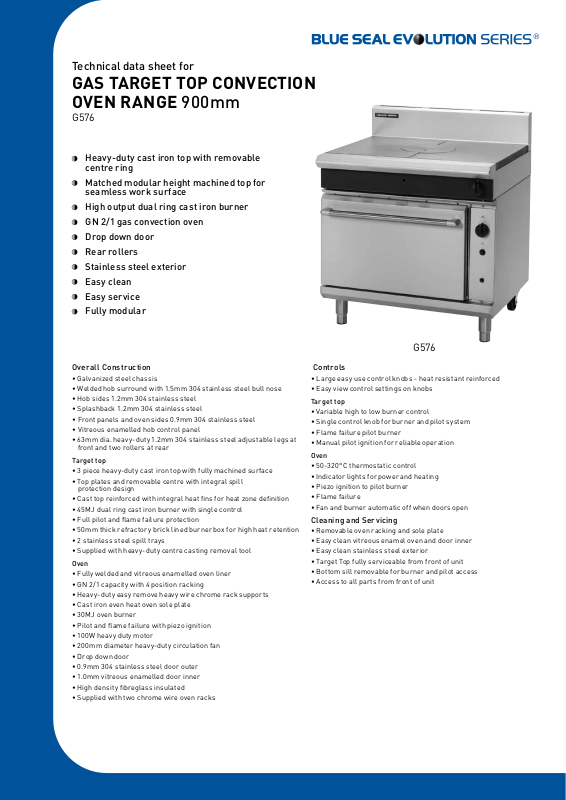

Technical data sheet for
GAS TARGET TOP CONVECTION
OVEN RANGE 900mm
G576
Heavy-duty cast iron top with removable
centre ring
Matched modular height machined top for
seamless work surface
High output dual ring cast iron burner
GN 2/1 gas convection oven
Drop down door
Rear rollers
Stainless steel exterior
Easy clean
Easy service
Fully modular
Overall Construction
• Galvanized steel chassis
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Hob sides 1.2mm 30 4 stainless steel
• Splashback 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• Vitreous enamelled hob control panel
• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at
front and two rollers at rear
Target top
• 3 piece heavy-dut y cast iron top with fully machined sur face
• Top plates and removable centre with integral spill
protection design
• Cast top reinforced with integral heat ns for heat zone denition
• 45MJ dual ring cast iron burner with single control
• Full pilot and ame failure protection
• 50mm thick refractory brick lined burner box for high heat retention
• 2 stainless steel spill trays
• Supplied with heav y-duty centre casting removal tool
Oven
• Fully welded and vitreous enamelled oven liner
• GN 2/1 capacity with 4 position racking
• Heav y-duty easy remove heavy wire chrome rack suppor ts
• Cast iron even heat oven sole plate
• 30MJ oven burner
• Pilot and ame failure with piezo ignition
• 100W heavy duty motor
• 200mm diameter heav y-duty circulation fan
• Drop down door
• 0.9mm 304 stainless steel door outer
• 1.0mm vitreous enamelled door inner
• High density breglass insulated
• Supplied with two chrome wire oven racks
G576
Controls
• Large easy use control knobs - heat resistant reinforced
• Easy view control settings on knobs
Target top
• Variable high to low burner control
• Single control knob for burner and pilot system
• Flame failure pilot burner
• Manual pilot ignition for reliable operation
Oven
• 50-320°C thermostatic control
• Indicator lights for power and heating
• Piezo ignition to pilot burner
• Flame failure
• Fan and burner automatic off when doors open
Cleaning and Servicing
• Removable oven racking and sole plate
• Easy clean vitreous enamel oven and door inner
• Easy clean stainless steel exterior
• Target Top fully serviceable from front of unit
• Bottom sill removable for burner and pilot access
• Access to all parts from front of unit
Technical data sheet for
GAS TARGET TOP CONVECTION
OVEN RANGE 900mm
Specifications
Burners
45MJ dual ring cast iron - Target Top
30MJ tubular - Oven
Gas power
75MJ/hr, 20.8kW
Oven Fan Motor
100W
Electrical requirements
230-240Vac, 50/60hz, 1P+N+E, 0.13kW, 0.6A
3 pin 10A plug cordset tted
Target Top
Cooking surface 900mm x 625mm, 5625cm2
Centre 280mm diameter
Oven Dimensions
Width 665mm
Depth 590mm
Height 385mm
Rack size 660mm x 540mm
Rack positions 4
Gas connection
3
/4 (BSP) male
R
Optional underside connection, please specify
when ordering
All units supplied with Natural and LP gas
regulator
Dimensions
Width 900mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm
Nett weight
265kg
Packing data
1.03m3, 330kg
Width 945mm
Depth 870mm
Height 1255mm
Gas types
Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conversion kits
Other gas types on request
Options
Adjustable feet at rear
Joining caps
Castors
G576
Cert 6918
Moffat / 7.09 / 1140
