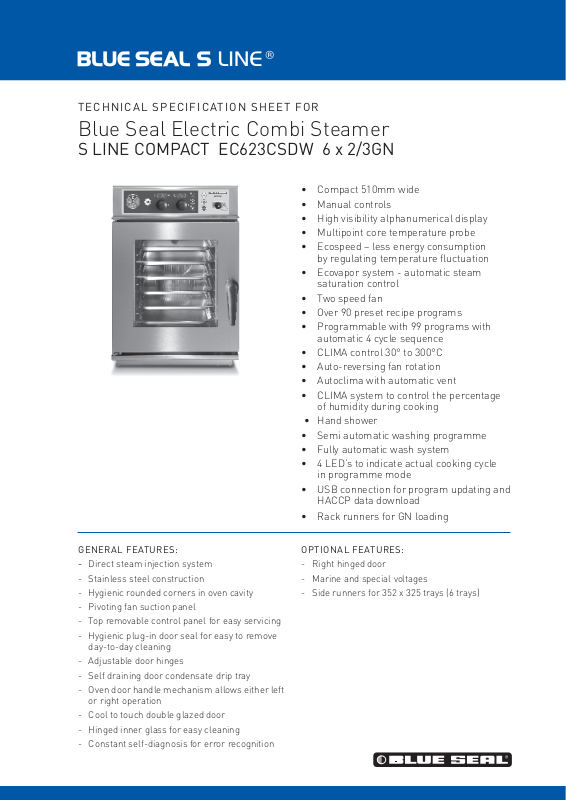

TECHNICAL SPECIFICATION SHEET FOR

Blue Seal Electric Combi Steamer

S LINE COMPACT EC623CSDW 6 x 2/3GN

• Compact 510mm wide

• Manual controls

• High visibility alphanumerical display

• Multipoint core temperature probe

• Ecospeed – less energy consumption

by regulating temperature fluctuation

• Ecovapor system - automatic steam

saturation control

• Two speed fan

• Over 90 preset recipe programs

• Programmable with 99 programs with

automatic 4 cycle sequence

• CLIMA control 30° to 300°C

• Auto-reversing fan rotation

• Autoclima with automatic vent

• CLIMA system to control the percentage

of humidity during cooking

• Hand shower

• Semi automatic washing programme

• Fully automatic wash system

• 4 LED’s to indicate actual cooking cycle

in programme mode

• USB connection for program updating and

HACCP data download

• Rack runners for GN loading

GENERAL FEATURES:

- Direct steam injection system

- Stainless steel construction

- Hygienic rounded corners in oven cavity

- Pivoting fan suction panel

- Top removable control panel for easy servicing

- Hygienic plug-in door seal for easy to remove
day-to-day cleaning

- Adjustable door hinges

- Self draining door condensate drip tray

- Oven door handle mechanism allows either left
or right operation

- Cool to touch double glazed door

- Hinged inner glass for easy cleaning

- Constant self-diagnosis for error recognition

OPTIONAL FEATURES:

- Right hinged door

- Marine and special voltages

- Side runners for 352 x 325 trays (6 trays)

TECHNICAL SPECIFICATION SHEET FOR

Blue Seal Electric Combi Steamer

S LINE COMPACT EC623CSDW 6 x 2/3GN

Dimensions

Width 510mm

Height 730mm
Depth 625mm
Weight 57kg

Packed Dimensions

Width 570mm

Height 890mm

Depth 760mm
Weight 68kg

Shelves

2/3 GN 6

Shelf Spacings 60mm

Installation requirements

(for precise installation
instructions, please refer to

the unit’s installation

manual).

Power connection
requirements

Multi pole circuit breaker
and all pole disconnection
isolator switch installed
near the appliance.

Supply line voltage;

400-415V ~ 50Hz, 3P+N+E

Special voltage options
available on request.

Power Connection

Total (kW) 5.25
Convection power (kW) 5

Rated Current (A) (400V) 8

IPX5 spray-proof and hose

proof.

Installation clearances

- rear 50mm

- right 500mm

- left 100mm

*Clearance required on
fixed installations for
service accessibility.

If heat sources are located

near the RH side of the
combi, ensure that a
minimum distance of
500mm is maintained.

Install in accordance with

local body regulations only
on horizontal surfaces and
not against combustible
walls.

Water connection
requirements

- cold water

- flow pressure
(200-500kPa)

- soft water connection*

- shut-off valve with return
flow inhibitor and dirt filter

- water supply 2 x R3/4

- R40 waste water
connection

(*Water softener may be
required. Please refer to
installation manual for
water treatment values.)
