Bakbar E7SDW User Manual

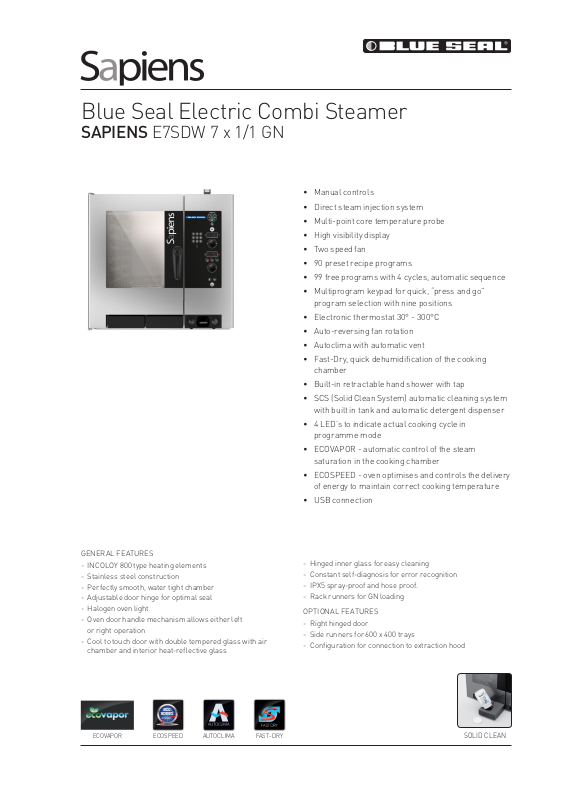

Blue Seal Electric Combi Steamer

SAPIENS E7SDW 7 x 1/1 GN

• Manual controls

• Direct steam injection system

• Multi-point core temperature probe

• High visibility display

• Two speed fan

• 90 preset recipe programs

• 99 free programs with 4 cycles, automatic sequence

• Multiprogram keypad for quick, “press and go”
program selection with nine positions

• Electronic thermostat 30° - 300°C

• Auto-reversing fan rotation

• Autoclima with automatic vent

• Fast-Dry, quick dehumidification of the cooking
chamber

• Built-in retractable hand shower with tap

• SCS (Solid Clean System) automatic cleaning system
with built in tank and automatic detergent dispenser

• 4 LED’s to indicate actual cooking cycle in
programme mode

• ECOVAPOR - automatic control of the steam
saturation in the cooking chamber

• ECOSPEED - oven optimises and controls the delivery
of energy to maintain correct cooking temperature

• USB connection

GENERAL FEATURES

- INCOLOY 800 type heating elements

- Stainless steel construction

- Perfectly smooth, water tight chamber

- Adjustable door hinge for optimal seal

- Halogen oven light

- Oven door handle mechanism allows either left
or right operation

- Cool to touch door with double tempered glass with air
chamber and interior heat-reflective glass

ECOVAPOR ECOSPEED AUTOCLIMA FAST-DRY

- Hinged inner glass for easy cleaning

- Constant self-diagnosis for error recognition

- IPX5 spray-proof and hose proof.

- Rack runners for GN loading

OPTIONAL FEATURES

- Right hinged door

- Side runners for 600 x 400 trays

- Configuration for connection to extraction hood

SOLID CLEAN

820

Blue Seal Electric Combi Steamer

SAPIENS E7SDW 7 x 1/1 GN

Dimensions

Width 875mm
Depth 825mm
Height 820mm
We ight 117kg

Packed Dimensions

Width 950mm
Depth 990mm
Height 1000mm
Weight 135kg

Shelves

1/1 GN 7
Shelf Spacings 70mm

Installation requirements

(for precise installation
instructions, please refer to
the unit’s installation
manual).

Power connection
requirements

Multi pole circuit breaker
and all pole disconnection
isolator switch installed
near the appliance.

295 10 570

Supply line voltage

400-415V ~ 50Hz, 3P+N+E
Special voltage options

available on request.

Power Connection

Total (kW) 10.5
Convection power (kW) 10
Rated Current (A) (400V) 15

Installation clearances

- rear 25mm

- right 500mm*

- left 50mm
*Clearance required on

fixed installations for
service accessibility.

If heat sources are located
near the RH side of the
Sapiens combi, ensure that a
minimum distance of
400mm is maintained.

Install in accordance with
local body regulations only
on horizontal surfaces and
not against combustible
walls.

40 765 60

Water connection
requirements

- cold water

- flow pressure
(200-500kPa)

- soft water connection*

- shut-off valve with return
flow inhibitor and dirt
filter

- water supply R¾

- R50 waste water
connection

(*Water softener may be
required. Please refer to
installation manual for
water treatment values.)

Australia
www.moffat.com.au

New Zealand
www.moffat.co.nz

Australia
Moffat Pty Limited

Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Ph 03-9518 3888
Fax [phone]
[e-mail]
www.moffat.com.au

New South Wales
Ph 02-8833 4111
[e-mail]

South Australia
Ph 03-9518 3888
[e-mail]

Queensland
Ph 07-3630 8600
[e-mail]

Western Australia
Ph 08-9202 6820
[e-mail]

800 20

825

875

660 160

ø3/4" ø3/4"

ø50

New Zealand
Moffat Limited

Christchurch
16 Osborne Street

73

50

37,5

73 80

200

139

75

AC 230V n°3x6mmq
3AC 230V n°4x2.5mmq

41

110

ø50

495

ø50

150

3NAC 400V n°5x1.5mmq

Christchurch 8011
Ph [phone]
Fax [phone]
[e-mail]

Auckland
Ph [phone]
[e-mail]

In line with policy to continually develop
and improve its products, Moffat
Limited reserves the right to change
specifications and design without notice.

© Copyright Moffat Ltd
Moffat 7.14 / 1413
