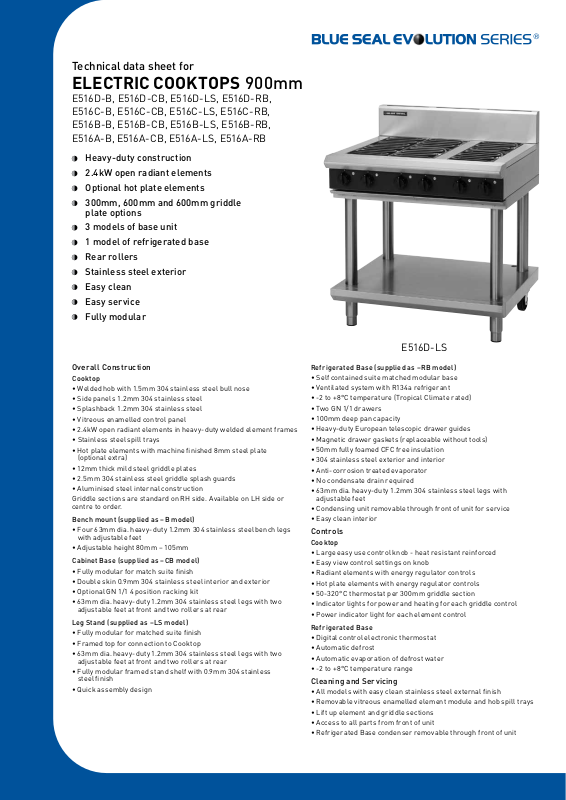

Technical data sheet for
ELECTRIC COOKTOPS 900mm
E516D-B, E516D-CB, E516D-LS, E516D-RB,
E516C-B, E516C-CB, E516C-LS, E516C-RB,
E516B-B, E516B-CB, E516B-LS, E516B-RB,
E516A-B, E516A-CB, E516A-LS, E516A-RB
Heavy-duty construction
2.4kW open radiant elements
Optional hot plate elements
300mm, 600mm and 600mm griddle
plate options
3 models of base unit
1 model of refrigerated base
Rear rollers
Stainless steel exterior
Easy clean
Easy service
Fully modular
Overall Construction
Cooktop
• Welded hob with 1.5mm 304 stainless steel bull nose
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Vitreous enamelled control panel
• 2.4kW open radiant elements in heavy-duty welded element frames
• Stainless steel spill trays
• Hot plate elements with machine nished 8mm steel plate
(optional extra)
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
Griddle sections are standard on RH side. Available on LH side or
centre to order.
Bench mount (supplied as –B model)
• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs
with adjustable feet
• Adjustable height 80mm – 105mm
Cabinet Base (supplied as –CB model)
• Fully modular for match suite nish
• Double skin 0.9mm 30 4 stainless steel interior and exterior
• Optional GN 1/1 4 position racking kit
• 63mm dia. heav y-duty 1.2mm 304 stainless steel legs with two
adjustable feet at front and two rollers at rear
Leg Stand (supplied as –LS model)
• Fully modular for matched suite nish
• Framed top for connection to Cooktop
• 63mm dia. heav y-duty 1.2mm 304 stainless steel legs with two
adjustable feet at front and two rollers at rear
• Fully modular framed stand shelf with 0.9mm 304 stainless
steel nish
• Quick assembly design
E516D-LS
Refrigerated Base (supplied as –RB model)
• Self contained suite matched modular base
• Ventilated system with R134a refrigerant
• -2 to +8°C temperature (Tropical Climate rated)
• Two GN 1/1 drawers
• 100mm deep pan capacity
• Heav y-duty European telescopic drawer guides
• Magnetic drawer gaskets (replaceable without tools)
• 50mm fully foamed CFC free insulation
• 304 stainless steel ex terior and interior
• Anti-corrosion treated evaporator
• No condensate drain required
• 63mm dia. heav y-duty 1.2mm 304 stainless steel legs with
adjustable feet
• Condensing unit removable through front of unit for ser vice
• Easy clean interior
Controls
Cooktop
• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob
• Radiant elements with energy regulator controls
• Hot plate elements with energy regulator controls
• 50-320°C thermostat per 300mm griddle sec tion
• Indicator lights for power and heating for each griddle control
• Power indicator light for each element control
Refrigerated Base
• Digital control electronic thermostat
• Automatic defrost
• Automatic evaporation of defrost water
• -2 to +8°C temperature range
Cleaning and Ser vicing
• All models with easy clean stainless steel external nish
• Removable vitreous enamelled element module and hob spill trays
• Lift up element and griddle sections
• Access to all par ts from front of unit
• Refrigerated Base condenser removable through front of unit
Technical data sheet for
ELECTRIC COOKTOPS 900mm
Specifications
Cooktop
2.4 kW Open Radiant elements
2.0 kW Hot Plate elements
3.4 kW Griddle elements
(per 300mm griddle sec tion)
Griddle Plate
300mm Griddle cooking surface
292mm x 475mm, 1387cm2
600mm Griddle cooking surface
592mm x 475mm, 2812cm2
900mm Griddle cooking surface
892mm x 475mm, 4237cm2
Electrical requirements
E516D
14.4 kW, 400-415Vac, 50/60hz, 3P+N+E, 20A/phase
E516C
13 kW, 400-415Vac, 50/60hz, 3P+N+E,
20A /phase max
E516B
11.6 kW, 400-415Vac, 50/60hz, 3P+N+E,
20A /phase max
E516A
10.2 kW, 400-415Vac, 50/60hz, 3P+N+E,
15A/phase max
Refrigerated Base
Type
Ventilated system
Refrigerant
R134a (160grams)
Climate cl assification
T – tropical
Electrical connection
220-240Vac, 50Hz, 1.8A, 1P+N+E
3 pin plug 10A cordset tted
Dimensions
Bench models
Width 900mm
Depth 812mm
Height 315mm
Incl. splashback 485mm
All models (excluding Bench model)
Width 900mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm
Nett weight
Bench and Leg Stand models
90kg
Cabinet Base and Refr iger ated Base models
130kg
Packing data
Bench and Leg Stand models
0.55m3, 135kg
Width 945mm
Depth 870mm
Height 665mm
Cabinet Base and Refr iger ated Base models
1.03m3, 195kg
Width 945mm
Depth 870mm
Height 1255mm
Options
Adjustable feet at rear
Hot plate elements
(replace individual open radiant elements)
Ribbed griddle plates
E516-B
E516-LS
E516-CB
E516-RB
E516D
E516B
E516C
