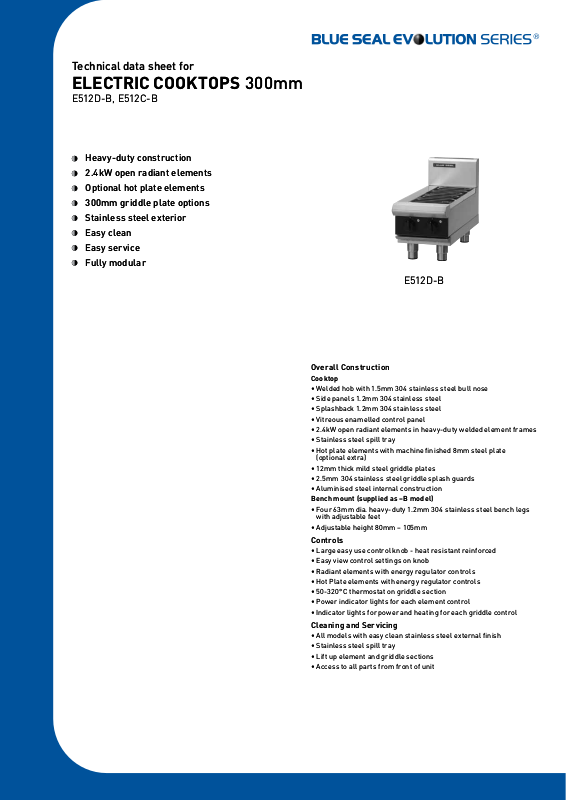

Technical data sheet for
Technical data sheet for
ELECTRIC COOKTOPS 300mm
ELECTRIC COOKTOPS 300mm
E512D-B, E512C-B
E512D-B, E512C-B
Heavy-duty construction
Heavy-duty construction
2.4kW open radiant elements
2.4kW open radiant elements
Optional hot plate elements
Optional hot plate elements
300mm griddle plate options
300mm griddle plate options
Stainless steel exterior
Stainless steel exterior
Easy clean
Easy clean
Easy service
Easy service
Fully modular
Fully modular
E512D-B
E512D-B
Overall Construction
Overall Construction
Cooktop
Cooktop
• Welded hob with 1.5mm 304 stainless steel bull nose
• Welded hob with 1.5mm 304 stainless steel bull nose
• Side panels 1.2mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Vitreous enamelled control panel
• Vitreous enamelled control panel
• 2.4kW open radiant elements in heavy-duty welded element frames
• 2.4kW open radiant elements in heavy-duty welded element frames
• Stainless steel spill tray
• Stainless steel spill tray
• Hot plate elements with machine nished 8mm steel plate
• Hot plate elements with machine nished 8mm steel plate
(optional extra)
(optional extra)
• 12mm thick mild steel griddle plates
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
• Aluminised steel internal construction
Bench mount (supplied as –B model)
Bench mount (supplied as –B model)
• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs
• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs
with adjustable feet
with adjustable feet
• Adjustable height 80mm – 105mm
• Adjustable height 80mm – 105mm
Controls
Controls
• Large easy use control knob - heat resistant reinforced
• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob
• Easy view control settings on knob
• Radiant elements with energy regulator controls
• Radiant elements with energy regulator controls
• Hot Plate elements with energy regulator controls
• Hot Plate elements with energy regulator controls
• 50-320°C thermostat on griddle section
• 50-320°C thermostat on griddle section
• Power indicator lights for each element control
• Power indicator lights for each element control
• Indicator lights for power and heating for each griddle control
• Indicator lights for power and heating for each griddle control
Cleaning and Ser vicing
Cleaning and Ser vicing
• All models with easy clean stainless steel external nish
• All models with easy clean stainless steel external nish
• Stainless steel spill tray
• Stainless steel spill tray
• Lift up element and griddle sections
• Lift up element and griddle sections
• Access to all par ts from front of unit
• Access to all par ts from front of unit
Technical data sheet for
ELECTRIC COOKTOPS 300mm
Specifications
Cooktop
2.4 kW Open Radiant elements
2.0 kW Hot Plate elements
3.4 kW Griddle elements
(per 300mm griddle sec tion)
Griddle Plate
300mm Griddle cooking surface
292mm x 475mm, 1387cm2
Electrical requirements
E512D
4.8 kW, 230-240Vac, 50/60hz, 1P+N+E, 20A
E512C
3.4 kW, 230-240Vac, 50/60hz, 1P+N+E, 14.2 A
Dimensions
Width 300mm
Depth 812mm
Height 315mm
Incl. splashback 485mm
Nett weight
32kg
Packing data
0.20m3, 55kg
Width 870mm
Depth 350mm
Height 665mm
Options
Hot plate elements
(replace individual open radiant elements)
Ribbed griddle plates
E512
E512D E512C
