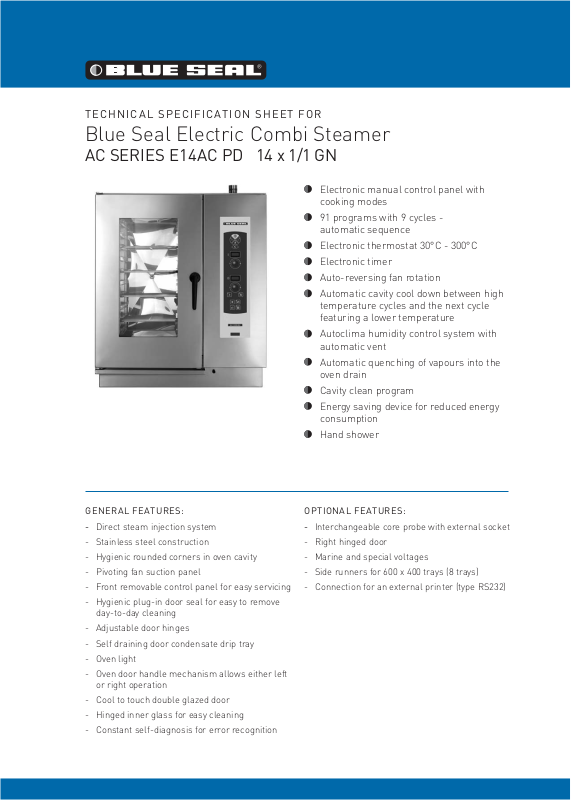

Bakbar E14ACPD User Manual

TECHNICAL SPECIFICATION SHEET FOR

Blue Seal Electric Combi Steamer

AC SERIES E14AC PD 14 x 1/1 GN

Electronic manual control panel with

cooking modes
91 programs with 9 cycles -

automatic sequence
Electronic thermostat 30°C - 300°C
Electronic timer
Auto-reversing fan rotation
Automatic cavity cool down between high

temperature cycles and the next cycle

featuring a lower temperature
Autoclima humidity control system with

automatic vent
Automatic quenching of vapours into the

oven drain

GENERAL FEATURES:

- Direct steam injection system

- Stainless steel construction

- Hygienic rounded corners in oven cavity

- Pivoting fan suction panel

- Front removable control panel for easy servicing

- Hygienic plug-in door seal for easy to remove
day-to-day cleaning

- Adjustable door hinges

- Self draining door condensate drip tray

- Oven light

- Oven door handle mechanism allows either left
or right operation

- Cool to touch double glazed door

- Hinged inner glass for easy cleaning

- Constant self-diagnosis for error recognition

Cavity clean program
Energy saving device for reduced energy

consumption

Hand shower

OPTIONAL FEATURES:

- Interchangeable core probe with external socket

- Right hinged door

- Marine and special voltages

- Side runners for 600 x 400 trays (8 trays)

- Connection for an external printer (type RS232)

TECHNICAL SPECIFICATION SHEET FOR

Blue Seal Electric Combi Steamer

AC SERIES E14AC PD 14 x 1/1 GN

Dimensions

Width 950mm
Depth 825mm
Height 1090mm
Weight 155kg

Packed Dimensions

Width 1040mm
Depth 980mm
Height 1320mm
Weight 175kg

Shelves

1/1 GN 14
Shelf Spacings 45mm

Installation requirements

(for precise installation
instructions, please refer to
the unit’s installation manual).

Power connection
requirements

Multi pole circuit breaker and
all pole disconnection isolator
switch installed near the
appliance.

Supply line voltage;
400-415V ~ 50Hz, 3P+N+E

Special voltage options
available on request.

Power Connection

Total (kW) 16
Convection power (kW) 15
Rated Current (A) (400V) 23

IPX5 spray-proof and hose
proof.

Installation clearances

- rear 25mm

- right 500mm*

- left 50mm

*Clearance required on fixed
installations for service
accessibility.

If heat sources are located
near the RH side of the AC
combi, ensure that a
minimum distance of 400mm
is maintained.

Install in accordance with
local body regulations only on
horizontal surfaces and not
against combustible walls.

Water connection
requirements

- cold water

- flow pressure (200-500kPa)

- soft water connection*

- shut-off valve with return
flow inhibitor and dirt filter

- water supply R3/4

- R50 waste water connection

(*Water softener may be
required. Please refer to
installation manual for water
treatment values.)

A = WATER CONNECTION R3/4

(SOFTENED WATER) refer to installation

manual for water treatment values.
B = WATER CONNECTION R
C = DRAIN CONNECTION Ø50
D = ELECTRICAL CONNECTION ENTRY
E = HIGH/LOW PRESSURE RELIEF VENT
F = OVEN VENT Ø80
