Bailey 375 Specifications and Instructions

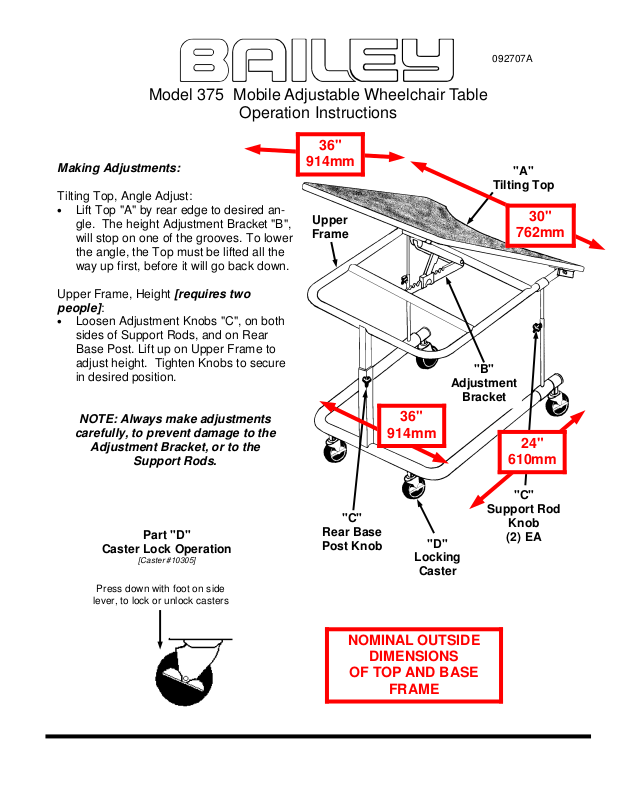

Model 375 Mobile Adjustable Wheelchair Table

Operation Instructions

Making Adjustments:

Tilting Top, Angle Adjust:

•

Lift Top "A" by rear edge to desired an­gle. The height Adjustment Bracket "B",
will stop on one of the grooves. To lower
the angle, the Top must be lifted all the
way up first, before it will go back down.

Upper Frame, Height [requires two
people]:

•

Loosen Adjustment Knobs "C", on both
sides of Support Rods, and on Rear
Base Post. Lift up on Upper Frame to
adjust height. Tighten Knobs to secure
in desired position.

NOTE: Always make adjustments

carefully, to prevent damage to the

Adjustment Bracket, or to the

Support Rods.

36"

914mm

Upper
Frame

092707A

"A"

Tilting Top

30"

762mm

"B"

Adjustment

Bracket

36"

914mm

24"

610mm

Support Rod

Part "D"

Caster Lock Operation

[Caster #10305]

Press down with foot on side

lever, to lock or unlock casters

"C"

Rear Base

Post Knob

"D"

Locking

Caster

NOMINAL OUTSIDE

DIMENSIONS

OF TOP AND BASE

FRAME

BAILEY MANUFACTURING COMPANY • 800-321-8372 • (FAX: [phone])

"C"

Knob

(2) EA
