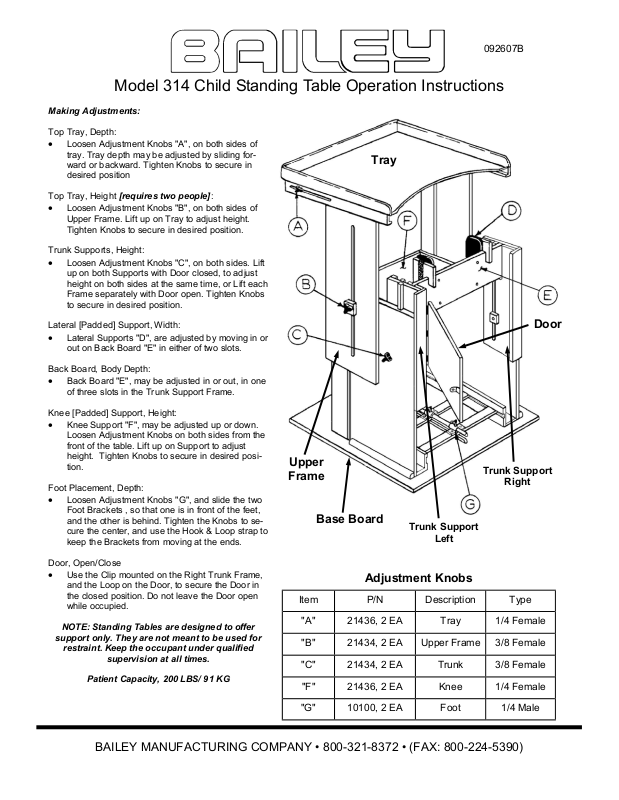

Model 314 Child Standing Table Operation Instructions
Making Adjustments:
Top Tray, Depth:
• Loosen Adjustment Knobs "A", on both sides of
tray. Tray depth may be adjusted by sliding forward or backward. Tighten Knobs to secure in
desired position
Top Tray, Height [requires two people]:
• Loosen Adjustment Knobs "B", on both sides of
Upper Frame. Lift up on Tray to adjust height.
Tighten Knobs to secure in desired position.
Trunk Supports, Height:
• Loosen Adjustment Knobs "C", on both sides. Lift
up on both Supports with Door closed, to adjust
height on both sides at the same time, or Lift each
Frame separately with Door open. Tighten Knobs
to secure in desired position.
Lateral [Padded] Support, Width:
• Lateral Supports "D", are adjusted by moving in or
out on Back Board "E" in either of two slots.
Back Board, Body Depth:
• Back Board "E", may be adjusted in or out, in one
of three slots in the Trunk Support Frame.
Knee [Padded] Support, Height:
• Knee Support "F", may be adjusted up or down.
Loosen Adjustment Knobs on both sides from the
front of the table. Lift up on Support to adjust
height. Tighten Knobs to secure in desired position.
Foot Placement, Depth:
• Loosen Adjustment Knobs "G", and slide the two
Foot Brackets , so that one is in front of the feet,
and the other is behind. Tighten the Knobs to secure the center, and use the Hook & Loop strap to
keep the Brackets from moving at the ends.
Door, Open/Close
• Use the Clip mounted on the Right Trunk Frame,
and the Loop on the Door, to secure the Door in
the closed position. Do not leave the Door open
while occupied.
NOTE: Standing Tables are designed to offer
support only. They are not meant to be used for
restraint. Keep the occupant under qualified
supervision at all times.
Patient Capacity, 200 LBS/ 91 KG
092607B

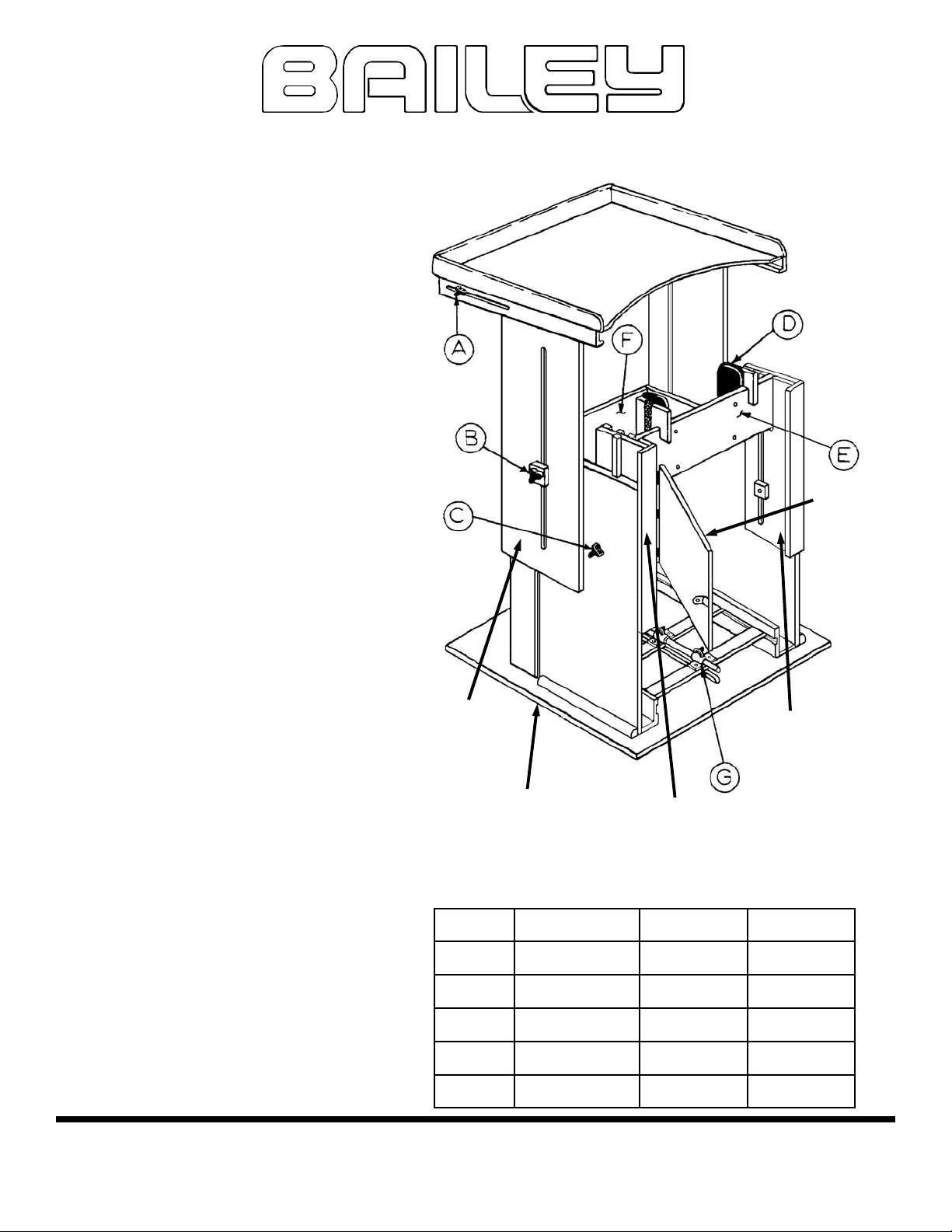

Tray
Upper
Frame
Base Board
Trunk Support
Left
Trunk Support
Right
Adjustment Knobs
Item P/N Description Type
"A" 21436, 2 EA Tray 1/4 Female
"B" 21434, 2 EA Upper Frame 3/8 Female
"C" 21434, 2 EA Trunk 3/8 Female
"F" 21436, 2 EA Knee 1/4 Female
Door
"G" 10100, 2 EA Foot 1/4 Male
BAILEY MANUFACTURING COMPANY • 800-321-8372 • (FAX: 800-224-5390)
