Combustion Gas Analyzer
Configuration and Operation Manual
Instruction 0024-9486
Revision 2
December 27, 2012
Product Leadership • Training • Service • Reliability
Fyrite InTech
Manual
WARRANTY POLICY
Bacharach, Inc. warrants to Buyer that at the time of delivery this product will
be free from defects in material and manufacture and will conform
substantially to Bacharach Inc.’s applicable specifications. Bacharach’s liability
and buyer’s remedy under this warranty are limited to the repair or
replacement, at Bacharach’s option, of this product or parts thereof returned
to seller at the factory of manufacture and shown to Bacharach Inc.’s
reasonable satisfaction to have been defective; provided that written notice of
the defect shall have been given by buyer to Bacharach Inc. within two (2)
years after the date of delivery on Product and CO sensor, and within one (1)
year after the date of delivery on the O
sensor.
2
Bacharach, Inc. warrants to buyer that it will convey good title to this product.
Bacharach’s liability and buyer’s remedy under this warranty of title are limited
to the removal of any title defects or, at the election of Bacharach, to the
replacement of this product or parts thereof that are defective in title.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND ARE GIVEN AND ACCEPTED
IN LIEU OF (I) ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE: AND (II) ANY
OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN CONTRACT OR TORT,
WHETHER OR NOT ARISING FROM BACHARACH’S NEGLIGENCE, ACTUAL OR
IMPLIED. The remedies of the buyer shall be limited to those provided herein
to the exclusion of any and all other remedies including, without limitation
incidental or consequential damages. No agreement varying or extending the
foregoing warranties, remedies or this limitation will be binding upon
Bacharach, Inc. unless in writing, signed by a duly authorized officer of
Bacharach.
Register your warranty by visiting
www.MyBacharach.com
ii 0024-9486 Rev 2
Fyrite InTech
Manual
NOTICE
Product improvements and enhancements are continuous; therefore the
specifications and information contained in this document may change without
notice.
Bacharach, Inc. shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or
use of this material.
No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent of Bacharach, Inc.
Copyright © 2012, Bacharach, Inc., all rights reserved.
BACHARACH, Fyrite, InTech, and B-SMART are registered trademarks of
Bacharach, Inc. All other trademarks, trade names, service marks and logos
referenced herein belong to their respective companies.
0024-9486 Rev 2 iii
Fyrite InTech
Manual
iv 0024-9486 Rev 2
Fyrite InTech
Manual Table of Contents
Table of Contents
Section 1. Overview .................................................................................... 1
1.1. Introduction ............................................................................................ 1
1.2. Conventions............................................................................................. 1
1.3. Safety ....................................................................................................... 1
1.4. Product Overview .................................................................................... 3
1.5. North American (NA) vs. Siegert (S) Combustion Equations ................... 3
1.6. Components ............................................................................................ 5
1.7. Features ................................................................................................... 7
1.8. Combustion Test Process Overview ........................................................ 8
1.9. Fyrite InTech Sales Combinations ...................................................... 9
1.10. Specifications....................................................................................... 11
Section 2. Setup ........................................................................................ 13
2.1. Connecting the Probe and Thermocouple ............................................ 13
2.2. Front Panel Buttons ............................................................................... 14
2.3. Power Options ....................................................................................... 15
2.4. Turning On the Fyrite InTech ............................................................ 16
Section 3. Configuration ........................................................................... 17
3.1. Menu Structure Overview ..................................................................... 17
3.2. The Warm-up Sequence ........................................................................ 17
3.3. Main Menu ............................................................................................ 18
3.4. Select Fuel Menu ................................................................................... 19
3.5. Ambient CO Menu (Siegert Only) .......................................................... 20
3.6. Memory Options Menu ......................................................................... 22
3.7. Setup Menu ........................................................................................... 24
3.8. Calibration Menu ................................................................................... 34
3.9. Diagnostics Menu .................................................................................. 35
3.10. Status Menu ........................................................................................ 37
Section 4. Operation ................................................................................. 38
4.1. Prerequisites ......................................................................................... 38

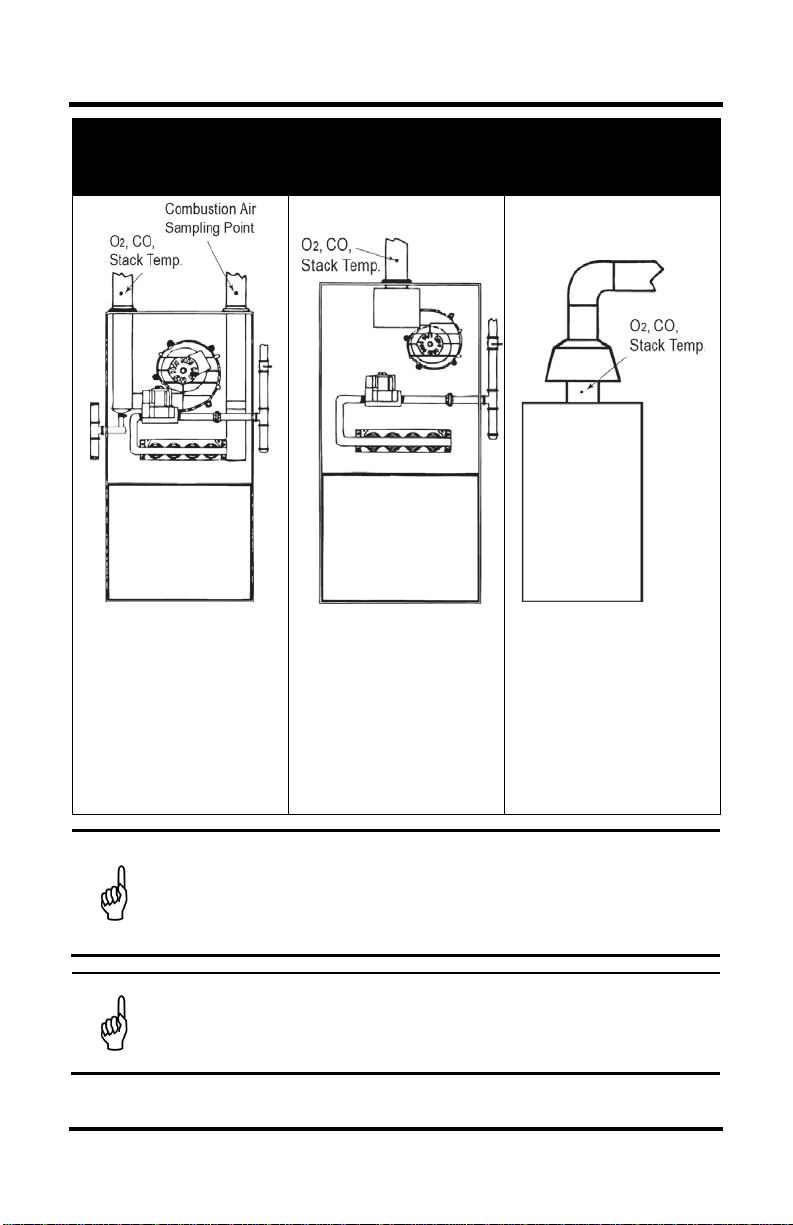

4.2. Sampling Point Examples ...................................................................... 38
4.3. Combustion Testing Process ................................................................. 41
4.4. The RUN Screen ..................................................................................... 42
4.5. Printing Using the Optional IrDA Printer ............................................... 43
4.6. Taking Ambient CO Measurements ...................................................... 46
0024-9486 Rev 2 v
Table of Contents Fyrite InTech
Manual
4.7. PC Interface and Fyrite User Software ................................................ 47
Section 5. Calibration and Maintenance .................................................. 48
5.1. Serviceability ......................................................................................... 48
5.2. Cleaning the Probe ................................................................................ 48
5.2.1. Equipment Required ................................................................. 49
5.2.2. Procedure ................................................................................. 49
5.3. Water Trap and Filter Replacement ...................................................... 50
5.4. O2 and/or CO Sensor Replacement ....................................................... 51
5.4.1. Accessing the Sensors ............................................................... 51
5.4.2. Material Required (As Needed) ................................................ 51
5.4.3. O2 Sensor Replacement Procedure ........................................... 52
5.4.4. CO Sensor Replacement Procedure .......................................... 52
5.4.5. B-SMART CO Sensor Replacement.......................................... 53
5.5. T-Stack Calibration ................................................................................ 54
5.5.1. Materials Required ................................................................... 54
5.5.2. T-Stack Calibration Procedure .................................................. 54
5.6. CO Sensor Calibration ............................................................................ 56
5.6.1. Materials Required ................................................................... 56
5.6.2. CO Manual Zero Procedure ...................................................... 56
5.6.3. CO Sensor Span Procedure ....................................................... 57
5.7. T-Ref Sensor Calibration ........................................................................ 58
Section 6. Troubleshooting ....................................................................... 59
6.1. Error and Warning Messages ................................................................ 59
6.2. Replacement Parts ................................................................................ 60
6.3. Accessories ............................................................................................ 61
6.4. Instrument Identification ...................................................................... 62
6.5. Service Centers ...................................................................................... 62
Declaration of Conformity ................................................................................. 63
∇ ∇ ∇
vi 0024-9486 Rev 2
A warning statement denotes a potential hazard
injury. Caution statements may also be used to alert against
feature, operation, etc. Failure to follow this
, result in improper
Fyrite InTech
Manual Overview
Section 1. Overview
1.1. Introduction
Thank you for investing in a Bacharach Fyrite InTech combustion analyzer.
To assure proper use and operator safety, please read the contents of this
manual for important information on the operation and maintenance of the
analyzer.
1.2. Conventions
WARNING:
associated with the use of this equipment. Failure to follow this
information could result in serious personal injury or death.
CAUTION: A caution statement indicates a potentially hazardous
situation which, if not avoided, may result in minor or moderate
unsafe practices.
IMPORTANT: An important statement provides emphasis of an
important
information could void your warranty
operation, or cause equipment damage.
NOTE: A note statement provides emphasis of a feature,
operation, practice, etc.
1.3. Safety
WARNING: This analyzer is not intended to be used as a safety
device.
WARNING: When testing an appliance, a full visual inspection of
the appliance should be performed to ensure its safe operation.
0024-9486 Rev 2 1
Overview Fyrite InTech
This analyzer is not intended to be used on a
, this
analyzer should only be opened and/or serviced by authorized
This instrument has not been
CAUTION:
Manual
CAUTION:
continuous basis.
CAUTION: Do not store instrument or its sensors with solvents or
products that contain solvents.
CAUTION: Except for sensor and battery replacement
Bacharach personnel. Failure to comply may void the warranty.
HAZARDOUS AREA WARNING:
designed to be intrinsically safe for use in areas classified as
hazardous locations. For your safety,
DO NOT use it in hazardous
(classified) locations.
CAUTION: Do not use flammable or combustible substances (like
carburetor fluid used for cleaning the probe) near an open flame.
When the instrument is used in an inefficient oil-fueled
appliance where there is a high emission of soot, the probe’s
sample filter may become clogged. Before every use check the
filter to confirm it is clean or replace it with a new filter.
To prevent soot intake and a clogged filter, a smoke test should be
performed before operating under such conditions. This ensures
that the furnace or boiler is burning at a level appropriate for the
use of this instrument.
When the CO
level exceeds the allowable threshold, a warning
2
will prompt the user to consider performing a smoke test. This
screen is cleared by pressing the ENTER button. Once the warning
is cleared, it will not be displayed again for that particular test. If a
new test is started (by pressing the HOLD button), the warning will
be displayed again if the limit has been exceeded.
2 0024-9486 Rev 2
Fyrite InTech
Manual Overview
1.4. Product Overview
The Fyrite InTech is a portable hand-held combustion analyzer for use in
residential and light commercial applications. It is intended to be used by:
• HVAC contractors
• home inspectors
• maintenance personnel
• energy auditors
to conduct combustion efficiency analysis on residential and light commercial
furnaces and appliances in the worldwide market.
The instrument is supplied with all of the following components:
• probe and hose assembly
• four disposable “AA” alkaline batteries
• soft or hard carrying case (depending on model)
• factory-calibrated and installed sensor(s) as ordered
and, depending on the model and kit, some or all of the following:
• rubber boot
• spare filters
• Fyrite
• USB cable (type A to mini B)
• Infrared Data Association (IrDA) printer with four disposable “AA”
• printer paper
User Software (FUS)
alkaline batteries
1.5. North American (NA) vs. Siegert (S) Combustion Equations
Though the combustion process is fairly standardized across the globe, a
combustion analyzer intended for worldwide use demands a degree of
flexibility for a few regional preferences. The Fyrite
American configuration and a Siegert configuration (see page
these and other needs, which are contrasted below.
NOTE: Detailed differences between North American and Siegert
configurations are noted where appropriate in this manual.
0024-9486 Rev 2 3
InTech provides a North
32) to address
Overview Fyrite InTech
S
• • • • • • •
Feature North American (NA) versus Siegert (S) Configurations
Countries
Typical North American
(NA) Users
Asia Belgium
Australia Denmark
Latin America France
North America Germany
South America Italy
Netherlands
Poland
Spain
United Kingdom
Heating Values For combustion calculations, Siegert uses the fuel’s lower
heating value; NA uses the higher value.
Fuels Different fuel sets and composition (p 19)
Different RUN
Parameters
EFF (NA) vs. Stack loss and ETA (S)
Excess Air (NA) vs. Lambda (S)
(Lambda is similar to excess air)
Typical
Siegert (S) Users
Manual
Extra Siegert
Parameters
CO/CO2 ratio, boiler temperature, smoke number, and oil
derivative are displayed for Siegert only.
CO2 Max Siegert users can set a CO2 max number for the fuel.
Print Average
Feature
There is a print average feature for Siegert.
NOx Filter A NOx filter is included in-line on the tubing of the gas sample
probe of Siegert units.
Languages 3 languages for North American (NA) configuration.
8 languages for Siegert (S) configuration.
English
French
Spanish
German
Italian
Danish
NA
• • •
•
4 0024-9486 Rev 2
Polish
Dutch
Fyrite InTech
Manual Overview
1.6. Components
0024-9486 Rev 2 5
Overview Fyrite InTech
Manual
6 0024-9486 Rev 2
Fyrite InTech
Manual Overview
1.7. Features
• Sensors (pp 51, 60)
o Field-replaceable electrochemical sensors (O
o Flue gas temperature measurement using a Type K thermocouple
• Fuel codes (p 19)
o Six available fuels (in North American configuration)
o Ten available fuels (in Siegert configuration)
• Power (pp 12, 15)
o 4 AA alkaline batteries (included)
o 4 AA lithium batteries
o 4 AA rechargeable batteries (externally charged)
o Low battery warning
• Testing Features
o Complete test results (10 sets) can be stored, recalled, displayed,
and printed
(p 22).
o Time and date stamping of test results
o Secure calibration function (password protected) (p 34)
o Auto power-off feature with sensor purge feature (p 30)
o Status and diagnostic menus (p 35)
o Manual entry of values (Siegert only) (pp 25, 26)
o Ambient CO (Siegert Only) (p 46)
• User Customizations
o North American and Siegert combustion calculations (pp 32, 43)
o Multi-language interface (p 29)
o Auto/Manual zero functions for the CO sensor (p 32)
o Customized user information (3 lines of 20 characters) (p 44)
o Customized logo on printouts (192 x 384 pixels) (p 46)
o Temperature unit selection (p 24)
• Hardware (p 5)
o Probe/hose assembly for gas transport and temperature input
o Sample pump to provide gas sample delivery
o Backlit monochrome graphic LCD
o Hard or soft carrying case
o USB 2.0 (mini-B connection) for PC interface and communications
• PC Interface (p 47)
o USB cable (Type A to Mini B)
o Fyrite
User Software (FUS) (Windows compatible)
o Updates and instrument configuration
0024-9486 Rev 2 7
and B-SMART CO)
2
Overview Fyrite InTech
Turn On Instrument ................................... 14, 15, 16
56
Set System Parameters .................................... 19, 24
51
56
Filter Replacement ................................................ 50
Collect Data (RUN Button) .................................... 42
42
42
43
42
43
Review All Combustion Data ...................... 14, 42, 43
42
Disconnect Probe .................................................. 41
41
41
1.8. Combustion Test Process Overview
FUNCTION ............................................... PAGES
Connect Probe ...................................................... 13
Verify Power ......................................................... 15
Zero Instrument (Auto/Manual) ................ 17, 32,
Use Menu System ................................................. 17
Set Combustion Test Parameters .......................... 19
Replace Sensor(s) as Needed ........................... 35,
Calibrate as Needed ......................................... 34,
Replace Batteries as Needed................................. 15
Place Probe in Sampling Point ............................... 38
Save Data as Needed (F3) ................................ 14,
Stop Test (HOLD Button) .................................. 14,
Print Data as Needed (F1) .......................... 14, 42,
Manual
8 0024-9486 Rev 2
Save Data (F3) .................................................. 14,
Print Data (F1) (Option) .............................. 14, 42,
Adjust Combustion Equipment As Needed
Save Data (F3) .................................................. 14,
Purge Instrument ............................................. 30,
Turn Off Instrument ......................................... 14,
Clean and Store ..................................................... 41
Fyrite InTech
computes and displays the calculations as long as the measured
computes and displays the calculations as long as the measured
NOTE: The North American (NA) configuration of Fyrite InTech
Manual Overview
oxygen is not above 16% O2 and the stack temperature is not above
650° C (1200° F). The Siegert configuration of the Fyrite
oxygen is not above 18.8% O2 and the stack temperature is not
above 650° C (1200° F).
1.9. Fyrite InTech Sales Combinations
Fuel Equations North American (NA) Siegert (S)
Final Assembly 0024-7340 0024-7341 0024-7342
Kit Type O2 Only Basic Reporting Basic Reporting
Sales Kit P/N 0024-8510 0024-8511 0024-8512 0024-8513 0024-8514
Probe X X X X X
Batteries X X X X X
T-Stack X X X X X
Manual X X X X X
O2 X X X X X
CO X X X X
Fuels 6 6 6 10 10
Soft Case X X X
Hard Case X X
Printer X X
Boot X X
PC Software X X
USB Cable X X
Spare Filters X X
NOx Filter X X
InTech
0024-9486 Rev 2 9
Overview Fyrite InTech
Manual
10 0024-9486 Rev 2
Fyrite InTech
Manual Overview
1.10. Specifications
Specification Description
Temperature
Humidity Storage: 15 to 90% RH, non-condensing
Pressure 1 atmosphere ± 10%
Weight 16 ounces (454 g) with batteries
Dimensions 8.0” x 3.6” x 2.3” (20.3 cm x 9.1 cm x 5.8 cm) (H x W x D)
Warm-up Time Minimum = 30 seconds; Maximum = 60 seconds
Gas Sample Flow
Rate
Sensors O2 Electrochemical (P/N: 0024-0788)
Product Approvals
and Regulatory
Compliance
Case Construction High impact ABS plastic with co-molded rubber.
Display Monochrome with backlight
USB Connector Mini B (USB 2.0)
Memory 10 locations for storing test results
IrDA Port Protocol: IrDA-SIR Data Bits: 8 Stop Bits: 1
Storage: -20° to 50° C ( -4° to 122° F)
0° to 20° C (32° to 68° F ) optimal
Operation: -5° to 45° C (23° to 113° F)
Reference: 20° ± 2° C (68° ± 4° F)
Operation: 15 to 95% RH, non-condensing
Reference: 45 ± 10% RH, non-condensing
300 to 700 cc/min
CO Electrochemical (P/N: 0024-7265)
Temp (Stack) K-Type thermocouple
EN50270: (CE Mark) EMC tested in accordance with
European Directive 2004/108/EC .
EN50379: Standard for portable electrical apparatus
designed to measure combustion flue gas
parameters of heating appliances (Siegert only)
Parts 1 and 3.
RoHS Compliance
Protective rubber boot with molded-in magnets.
Baud Rate: 9600 Parity: None
0024-9486 Rev 2 11
Overview Fyrite InTech
Specification Description
Power Supply
Options
Batteries
(4 AA)
Type: Disposable Alkaline (Included)
Duration: 15 hours min, continuous max draw
Type: Disposable Lithium
Duration: 20 hours, continuous max draw
Type: Rechargeable
Measure
-ment
Range Resolution Accuracy
O2 0 to 20.9 % 0.1% O2
CO 0 to 2000 ppm 1 ppm
Stack
Temp
-20° to 650° C
(-4° to 1202° F)
Calculation Calculation Range
Duration: 8 hours, continuous max draw
±0.3% O
(on flue gas)
2
±10 ppm (0 to 200)
±5% reading (201 to 2000)
1° C
(1° F)
±2° C (0° to 124° C)
±3° C (125° to 249° C)
±4° C (250° to 400° C)
Resolution
NA Siegert
Response
< 20 sec
< 40 sec
< 50 sec
Version
Efficiency (HHV) 0.1 to 100 % 0.1% X X
ETA (LHV) 0 to 115% 0.1% X
Excess Air 1 to 250 % 1% X
Stack Loss 0.1 to 100 % 0.1 % X
Lambda 1 to 9.55 0.01 X
CO2 (dry basis) 0.1 to a fuel-dependent max in % 0.1 % X X
CO Ref to O2 0 to 9999 ppm 1 ppm X X
CO/CO2 Ratio 0.0001 to fuel-dependent max 0.0001 X
∇ ∇ ∇
Manual
Time
(T90)
12 0024-9486 Rev 2
connector in only one orientation. DO NOT force the
Fyrite InTech
Manual Setup
Section 2. Setup
2.1. Connecting the Probe and Thermocouple
A rigid stainless steel probe with handle is connected to a flexible hose with an
integral water-trap/filter used to draw a gas sample into the analyzer from the
room, grilles, diffusers, and furnace flues.
1. Inspect the flue-gas hose for cracks. If a hose is defective, replace the
entire probe assembly.
2. Before using the analyzer, check that the water trap/filter is clean and dry.
If necessary, dry out the trap and replace the filter element.
3. Push the probe’s “sample gas” tubing onto the GAS inlet connector.
4. Push the probe’s thermocouple into the T-STACK connector on the
instrument noting the orientation.
IMPORTANT: The T-STACK connector tabs are keyed to fit into the
thermocouple connector tabs into the T-STACK connector.
0024-9486 Rev 2 13
Setup Fyrite InTech
2.2. Front Panel Buttons
Button Description
Powers the analyzer ON and OFF. Hold this button
•
down for at least 2 seconds to turn the power OFF.
Toggles the backlight ON and OFF while the analyzer is
•
turned ON.
Manual
UP (
•
), DOWN (), LEFT (), and RIGHT () arrows
are context-specific navigation buttons for the menus.
UP (
•
) and DOWN () arrow buttons scroll to menu
options that are hidden from view (when a side scroll
bar is displayed indicating additional information).
UP (
•
) and DOWN () arrow buttons cause the
displayed value to increase or decrease accordingly.
LEFT (
•
) and RIGHT () arrow buttons jump to the
top and bottom of lists, respectively.
LEFT (
•
) and RIGHT () arrow buttons position the
active cursor on specific elements of a value to be
changed.
The ENTER button. Performs the action selected.
•
While in the HOLD screen, turns the sample pump on,
•
displays the RUN screen, and begins a combustion
test.
While in the RUN screen, turns the sample pump off,
•
displays the HOLD screen and the last set of combustion
data.
Displays the HOLD screen while pressing it from most
•
menus.
Returns the display to the HOLD screen while pressing it
•
during the shutdown sequence.
The ESC button cancels most operations and displays the
•
previous screen.
Pressing function keys accepts the corresponding function
•
defined above that key at the bottom of the display (for
example, PRINT, SAVE, MENU, etc.).
14 0024-9486 Rev 2
Fyrite InTech
Manual Setup
2.3. Power Options
You use the PWR button to turn on the Fyrite InTech. Power options
include:
• Disposable AA alkaline batteries (included)
• Disposable AA lithium (Li) batteries
• Externally charged rechargeable NiMH batteries.
Check the Fyrite InTech for sufficient power prior to each use. Replace the
batteries if the low (or replace) battery symbol appears in the upper right
corner of the Fyrite
InTech screen.
Batteries (4 AA, Fresh or Fully Charged)
Alkaline (disposable) 15 hours
Lithium (disposable) 20 hours
Rechargeable 8 hours
Estimated Life Span in Hours
(Continuous, Pump On)
Replace batteries as follows.
1. Remove the battery cover from the back of analyzer.
2. If old batteries are installed, remove them and properly discard them.
3. Observing the polarity markings inside the battery compartment,
install four ‘AA’ disposable (alkaline or lithium) batteries or four fullycharged (externally charged) AA rechargeable NiMH batteries.
4. Replace the battery cover.
NOTE: The Fyrite InTech does NOT charge rechargeable
batteries.
0024-9486 Rev 2 15
Setup Fyrite InTech
will be displayed if the
Manual
NOTE: A Set Clock error message
instrument is without power for an extended period of time.
2.4. Turning On the Fyrite InTech
To turn on the Fyrite InTech, press the PWR button.
NOTE: After turning on the Fyrite InTech, it performs a warm-
up procedure which includes an auto-zero procedure for the
sensors (see pages
the Fyrite
InTech in a clean air environment.
17 and 32). For this reason, be sure to turn on
∇ ∇ ∇
16 0024-9486 Rev 2
configured for North American combustion equations as well as
Siegert combustion equations. Depending on how you have
, the
Fyrite InTech
Manual Configuration
Section 3. Configuration
3.1. Menu Structure Overview
NOTE: The Fyrite InTech may be configured to use either North
American combustion equations or Siegert combustion equations
(see page
configuration. This section shows a mix of screens that have been
configured your instrument, your screens may vary slightly from
those pictured in this section.
Menus and the items contained within them are described in a top-down
fashion, starting from the startup screens and working sequentially through the
menus and menu items.
3.2. The Warm-up Sequence
Boot Screens Description
32). As a result, several parameters are unique to each
Splash screen shows the Bacharach logo with version,
model number, and serial number information. This
screen is displayed for approximately 3 seconds.
A warm-up screen is displayed during which the
instrument is purged and initialized. A countdown
timer is displayed with the current zero setting for the
CO sensor (Auto-Zero or Manual Zero) (see page 32
and page 56).
If any errors are detected during warm-up
corresponding error messages are displayed, after
which the user presses F2 to go to the Menu, or
presses RUN/HOLD to go to the Hold screen. (See
page
59 for a list of error messages.)
0024-9486 Rev 2 17
Configuration Fyrite InTech
Manual
3.3. Main Menu
Display the Main Menu by pressing the F2 key. Note that features and items
displayed in menus are model dependent. Your screens may vary.
Main Menu Function
Access the Select Fuel Menu (see page 19)
• Select combustion fuel
Access the Ambient CO Test Menu (Siegert Only) (see
page 20)
• Initiate a 15-minute CO test
• Get reading every minute and max CO reading
• Print/Save 16 readings and max CO
Access the Memory Options Menu (see page 22).
• Access previously saved test results
• Delete all previously saved test results
Access the Setup Menu (see page 24).
• Edit/view instrument preference
• Edit/view system parameters
• Edit/view combustion test parameters
Access the Calibration Password Screen and the
Calibration Menu (see page 34).
• Calibrate sensors
Access the Diagnostics Menu (see page 35).
• View “run” meters and system diagnostic values
• Check O
sensor life
2
• Fresh air diagnostics
Access the Device Status Menu (see page 37).
• Access the software date, model number, serial
number, and version information
18 0024-9486 Rev 2
Fyrite InTech
Manual Configuration
3.4. Select Fuel Menu
Select Fuel Function
Select the combustion fuel from the fuel list. Use the
UP (
) and DOWN () arrow keys to highlight the
desired fuel and use the ENTER key to select.
NA Fuel List Siegert Fuel List
Natural Gas Natural Gas
Oil 2 KOKS
Oil 6 LEG
Propane Propane
Kerosene Oil 2
B5 Oil 6
Coal
Biofuel
LPG
Butane
0024-9486 Rev 2 19
Configuration Fyrite InTech
3.5. Ambient CO Menu (Siegert Only)
Ambient CO Function
Access the Ambient CO Menu (Siegert only).
When initiated, the Ambient CO feature monitors
CO values continuously and captures a reading
every minute for 15 minutes (a total of 16 readings
from t0 to t15).
Press ENTER to initiate the Ambient CO test. This
begins a 15-minute test cycle, during which a status
screen is displayed. It shows the starting ambient
CO value, the current CO value, and the elapsed
time into the test.
Manual
NOTE: Press the F2 key to cancel
a test in progress.
After the test is complete, the Ambient CO Summary
screen is displayed. This is a scrollable window that
shows the 16 CO “snapshot” readings, as well as the
maximum CO reading that was sampled during the
entire test.
NOTE: The Max CO Reading is the highest
sampled CO reading – even if the reading
was taken in between one of the sample
“snapshot” readings.
20 0024-9486 Rev 2
Fyrite InTech
Ambient CO Function
Manual Configuration
The test results can be printed by pressing F1 and
saved to memory (with a time and date stamp) by
pressing F3. Press F2 to return to the menu.
NOTE: If the ambient CO results are saved
to memory, they are not included as part
of the Print Average feature.
NOTE: Any over-range CO values (e.g., CO
= 2000 ppm) are displayed as “xxx”.
0024-9486 Rev 2 21
Configuration Fyrite InTech
3.6. Memory Options Menu
Memory Options Function
Access the Memory Directory.
This directory contains a numbered list of saved
combustion tests (starting at “1”). “NO DATA” is
displayed if no tests were saved since the last time
that memory was cleared.
To view saved data, use the UP (
arrow keys to highlight the desired test from the list.
Press the ENTER button to display the saved data.
) and DOWN ()
Manual
Prompts user before clearing all saved combustion
tests from memory.
22 0024-9486 Rev 2
Fyrite InTech
Manual Configuration
Memory Options Function
Print Average (Siegert Only) displays the memory
directory with the first 3 samples highlighted. Use the
UP () and DOWN () arrow buttons to move the
scrolling window up and down to select which three
contiguous samples are to be averaged, then press
ENTER.
The average is calculated, displayed, and available for
printing (left). If fewer than 3 samples exist, the
average is not calculated (right).
0024-9486 Rev 2 23
Configuration Fyrite InTech
Press the ENTER button to use the selected
3.7. Setup Menu
Setup Menu Function
Access Temperature Units (°C or °F) to be used by the
instrument and for display and printing purposes.
Use the UP (
highlight the desired choice.
temperature unit. Press ESC to quit without saving.
Smoke Number (Siegert only) is used to calculate and
display an average smoke value based on 3 smoke test
results that are entered by the user. A sample smoke
scale is shown below.
) and DOWN () arrows buttons to
Manual
Perform 3 smoke tests then enter the results in the 3
smoke number parameters shown below.
Use the UP () and DOWN () arrow buttons to
highlight smoke number 1, 2, or 3, then press ENTER.
Use the LEFT () and RIGHT () arrow buttons to set
the smoke number (0-9) that most closely matches the
numerical value on your smoke scale for that sample.
Press ENTER when finished. The average smoke
number is displayed, and will be included on printouts.
24 0024-9486 Rev 2
Fyrite InTech
greater than 1 indicate improper
Setup Menu Function
Manual Configuration
WARNING: DO NOT use the Fyrite
InTech
to sample gas from an oil-based
combustion system without first doing a
smoke test and adjusting your combustion
process as needed. Smoke test results of
combustion, and demonstrate the need
for process adjustment. Only use the
InTech to sample flue gas AFTER
Fyrite
the combustion process is adjusted and
the smoke test indicates a smoke level of 0
or 1.
Oil Derivative (Siegert only) specifies whether or not oil
derivatives were present during the smoke tests (see
page 24).
For incomplete combustion, oil derivatives present in
the sample can be precipitated onto the filter paper,
causing a color change in the smoke spot.
Use the UP () and DOWN () arrow buttons to select
the YES option if oil derivatives were present during
the smoke test. Otherwise select NO and press ENTER.
This information is included on printouts.
0024-9486 Rev 2 25
Configuration Fyrite InTech
information in North
Setup Menu Function
A boiler temperature (Siegert only) can be recorded
manually. Enter the boiler temperature as measured
by an external thermocouple.
Use the LEFT () and RIGHT () arrow buttons to
change position. Use the UP () and DOWN () arrow
buttons to scroll through numerals 0-9 for the selected
position. Press ENTER when finished.
Select Position Change Value
The Clock option provides access to the clock setup
function to set date and time.
Use the LEFT
select the desired field to edit. Then use the UP ()
DOWN () arrow buttons to change the values of
and
the selected field.
Press ENTER to save new date and time. Press ESC to
quit without saving.
() and RIGHT () arrow buttons to
NOTE: See DATE FORMAT option in
SETUP MENU to select either MM/DD/YY
format or DD/MM/YY format (for North
American configurations only).
NOTE: Siegert configurations display time
and date information in DD/MM/YY and
24-hour time format only.
Time and date
American configurations is userselectable (see Date Format setting on
page 31) between:
• MM/DD/YY w/ 12-hr time format or
• DD/MM/YY w/ 24-hr time format.
Manual
26 0024-9486 Rev 2
Fyrite InTech
time format and
. (This also
Similarly, the absence of AM or PM
choice through the Date Format
parameter if North American
Setup Menu Function
Manual Configuration
NOTE: The presence of AM or PM after
the time on the Set Clock display
indicates 12-hour
MM/DD/YY date format
indicates that the instrument must be in
the North American configuration.)
indicates 24-hour time format and the
date is in DD/MM/YY format (either by
default if Siegert configuration, or by
configuration).
The measured value of CO can be referenced to a
specific O
percentage (0% to 15%) as referenced in the
2
equation below.
𝐶𝑂(𝑛) =
20.9 − 𝑂
20.9 − 𝑂
𝑅𝑒𝑓𝑒𝑟𝑒𝑛𝑐𝑒
2
𝑀𝑒𝑎𝑠𝑢𝑟𝑒𝑑
2
× 𝐶𝑂
Use the UP (
enter the O
2
) and
DOWN (
arrow buttons to
)
reference value (n) from 0% to 15%.
Press ENTER to save the selection or ESC to revert to
the previous setting.
0024-9486 Rev 2 27
NOTE: The O
reference has a default
2
value of 0%. CO with respect to a 0% O
reference is also known as CO Air Free or
CO(0).
2
Configuration Fyrite InTech
. Generally, the
Setup Menu Function
Provides an interface for entering user identification
information used on printouts
Username fields contain the HVAC company and
related information.
NOTE: This data can be entered using the
Use the UP () and DOWN () arrow buttons to
choose a row and press ENTER to begin editing the
selected row. Then use the UP () and DOWN ()
arrow buttons to select the desired letter, number, or
special character for the current text position.
/ ! @ # $ & * - ‘ <SPACE> a-z A-Z 0-9
Use the LEFT () and RIGHT () arrow buttons to
move the cursor horizontally on the selected row and
repeat the character selection process for each text
position. When finished, press ENTER to save the
row’s changes. Repeat for all 3 lines. Then select EDIT
COMPLETE and press ENTER to finish.
SELECT MODE EDITING MODE
Fyrite
User Software (FUS).
Manual
28 0024-9486 Rev 2
Fyrite InTech
The number of available
may differ based on the
Setup Menu Function
Manual Configuration
The Language Selection option allows the user to
choose a language for all menus. Use the UP () and
DOWN () arrow buttons to scroll through language
options (varies based on instrument model). Use
ENTER to enable the selected language.
NOTE:
languages
combustion equation setting.
Three languages are available for North American (NA)
configurations and eight languages are available for
Siegert (S) configurations. Refer to the table below and
the SETUP MENU for more information.
English
French
Spanish
German
Italian
Danish
Polish
Dutch
NA
• • •
S
• • • • • • • •
0024-9486 Rev 2 29
Configuration Fyrite InTech
, cancels the
(that is, the
Setup Menu Function
Provides a list from which to select an inactivity (key
press) timeout for automatic shutdown. If no key
presses occur for the time specified, the Fyrite
InTech
Use the UP () and DOWN () arrow buttons to scroll
through Inactivity Timeout options (
20, 30, or 60 minutes
the selected timeout.
initiates an automatic shutdown.
never [default],
). Use the ENTER key to enable
Manual
IMPORTANT: The instrument overrides
the inactivity timeout
automatic shutdown
instrument remains ON), and restarts the
timeout countdown if:
• any key is pressed,
• CO is greater than 50 ppm, or
is less than 18.8 %.
• O
2
Provides a list from which the user may chose a
minimum purge duration time (minimum length of
time that the pump continues to run) after shutdown is
initiated. Use a longer Post-Purge Period if the Fyrite
InTech
has been exposed to large amounts of CO gas.
Use ENTER to enable the selected Post-Purge Period.
“PURGING SENSORS” is displayed on the shutdown
screen if a Post-Purge Period is enabled.
Use the UP () and DOWN () arrow buttons to scroll
through Post-purge Period options.
30 0024-9486 Rev 2
Fyrite InTech
only format available in instruments
equations. This parameter is only
available in North American
Setup Menu Function
Manual Configuration
Date format (North American Configuration only)
Provides a list from which the user may select the
desired date format used by the instrument:
• MM/DD/YY (default for NA configurations)
• DD/MM/YY (standard for Siegert)
NOTE: The DD/MM/YY date format is the
configured with Siegert combustion
configurations.
Use the UP () and DOWN () arrow buttons to
highlight the desired date format. Press ENTER to save
new date format. Press ESC to quit without saving.
0024-9486 Rev 2 31
Configuration Fyrite InTech
Setup Menu Function
Provides a list from which the user may select the
desired method for zeroing the CO sensor.
• Auto-Zero happens automatically at warm-up.
• Manual zero is used to initiate the zeroing process
whenever desired.
Use the UP () and DOWN () arrow buttons to
highlight the desired zeroing method.
Press ENTER to save. Press ESC to quit without saving.
CO AUTO ZERO CO MANUAL ZERO
Manual
By default, the Fyrite InTech automatically zeroes
all sensors on ambient air when the instrument is
turned on.
The Fyrite InTech can be set to perform and store a
manual zero for the CO sensor. The instrument uses
the stored value to indicate background CO values
after warm-up instead of performing an auto-zero on
the background gas.
The COMBUSTION EQUATIONS menu allows the user
to select either Siegert combustion equations or North
American combustion equations.
Use UP () and DOWN () arrow buttons to highlight
the desired option. Press ENTER to select.
32 0024-9486 Rev 2
Fyrite InTech
Setup Menu Function
Manual Configuration
IMPORTANT: Changing this setting resets
several configuration parameters to their
default values. Below is a list of affected
parameters, and those unaffected.
Reset to
Default Values
Unchanged
Temperature units Manual/Auto zero
O2 (Oxygen) reference Calibration data
Fuel User name
Memory erased Clock
0024-9486 Rev 2 33
Configuration Fyrite InTech
3.8. Calibration Menu
Calibration Menu Function
Calibration is performed by applying known values and
accessing the password-protected menu items. When
the Calibration Menu is selected, the user must enter a
4-digit numeric security code in order to proceed to
the calibration options. The default password is 1111.
Use the UP () and DOWN () arrow buttons to scroll
through numerals 0-9 until the desired numeral is
reached. Press ENTER to advance to the next position
of the password. Press ENTER after all four digits are
set. Press ESC to return to the SETUP MENU.
Manual
Refer to Chapter 5 (page 48) for additional screens and
calibration procedures.
NOTE: The calibration password can be
changed through the Fyrite User
Software (FUS).
34 0024-9486 Rev 2
Displays time metrics for pump use and total
of approximately 24
Fyrite InTech
Manual Configuration
3.9. Diagnostics Menu
Diagnostics Menu Function
operation time.
Displays information about the measurement sensors
of the instrument.
Displays the estimated oxygen (O
on:
• the sensor’s 3-digit date code that you enter (from
the label on the sensor)
• the current date that you set
• the typical O
months.
sensor life
2
) sensor life based
2
The Fyrite InTech
needs to be replaced, and an error message is
displayed (see below).
0024-9486 Rev 2 35
will show that the O
sensor
2
Configuration Fyrite InTech
increment and decrement the selected field’s value.
Diagnostics Menu Function
In this case:
• Note the 3-digit date code on the new sensor
• Replace the O
• Press F3 to change and verify sensor date code.
Resetting the Sensor Date Code
Use the LEFT () and RIGHT () arrow buttons to
move the cursor horizontally to select between the
2-digit month code (00-12) and the one digit year code
(0-9 corresponding to the last digit of the manufacture
year) that make up the 3-digit date code.
Use UP () and DOWN () arrow buttons to
When finished, press ENTER to save the changes.
sensor
2
Manual
NOTE: Entering a value of 000 (three
zeros) disables this feature.
Next, verify the current month and year. Use the
arrow keys to edit the current month and year (if
needed) and press ENTER to confirm.
NOTE: Use this feature as a reminder
only. This status is based on:
• the date code on the sensor (that
• the current date (that you enter)
• the typical O
• the output of the sensor
36 0024-9486 Rev 2
you enter)
life span (2 years)
2
up countdown, any
Fyrite InTech
Manual Configuration
Diagnostics Menu Function
NOTE: If either of the entered values is
incorrect, the status of your O2 sensor
life will not be accurate. Actual sensor
life may vary.
Displays fresh air diagnostics similar to the display at
warm-up. After the warmdetected errors are displayed. Otherwise, a “Success”
message is displayed.
3.10. Status Menu
Status Menu Function
This is the device status screen which displays
information about the device. Some of the
information displayed on this screen includes serial
number, firmware version, model number, etc.
∇ ∇ ∇
0024-9486 Rev 2 37
’s documentation for the combustion devices
Fyrite InTech
Manual Operation
Section 4. Operation
4.1. Prerequisites
Before beginning your combustion test, verify the following:
• menu items are properly configured
• the water trap is empty, filter is clean, and arrow is pointing UP
• the probe and thermocouple are attached to the instrument
• the power is ON and sufficient (one of the following):
o four new batteries (AA alkaline)
o four new batteries (AA lithium)
o four fully-charged AA rechargeable batteries
• the warm-up process has completed in fresh air without interruption
or errors.
4.2. Sampling Point Examples
WARNING: The illustrations of combustion devices and sampling
points in this section are examples only. Be sure to consult with
the manufacturer
you are servicing.
The following combustion devices and example sampling points are shown and
explained below:
• Example forced air furnace
• Example hot water tank
• Example 90% efficiency condensing furnace
• Example 80% efficiency fan assist or power vented furnace
• Example atmospheric/gravity vented boiler
0024-9486 Rev 2 38
or gravity
with a clamshell or sectional heat
, test each of the
Fyrite InTech
Manual Operation
Example Forced Air Furnace Example Hot Water Tank
For atmospheric burner
vented, forced air heating equipment
exchanger design
exhaust ports at the top of the heat
exchanger. The probe should be inserted
back into each of the exhaust ports to
obtain a flue gas sample, before any
dilution air is mixed in.
Domestic hot water tanks with the ‘bell’
shaped draft diverter can be accurately
tested by inserting the probe tip directly
into the top of the fire tube below the
diverter.
0024-9486 Rev 2 39
Operation Fyrite InTech
boilers can be tested
the plastic vent pipe
(when allowed by the
or local
furnaces/boilers should
drilled in the vent
immediately above the
top, should be tested
directly below the
diverter through a hole
drilled in the vent
recommendations for the
mpletely and securely seal any
Example 90% Efficiency
Condensing Furnace
Example 80% Efficiency
Fan Assist or Power
Vented Furnace
Example
Atmospheric/Gravity
Vented Boiler
Manual
Condensing furnaces/
through a hole drilled in
manufacturer
authority of jurisdiction)
or taken from the exhaust
termination.
IMPORTANT: Review manufacturer
combustion device being tested, and be aware of accepted
practices of the local jurisdiction before introducing sampling holes
into exhaust pipes or ducts.
CAUTION: To avoid the introduction of dangerous exhaust gases
into the space, be sure to co
40 0024-9486 Rev 2
sampling holes made in the exhaust pipes or ducts.
Combustion testing of fan
assist or power vented,
Boilers, which have a ‘bell’
shaped draft diverter on
be done through a hole
inducer fan.
connector.
is properly configured for your region and
Fyrite InTech
Manual Operation
4.3. Combustion Testing Process
WARNING: The Fyrite InTech calculates combustion parameters
based on North American or Siegert combustion equations. NA or
Siegert configuration is selected in the SETUP MENU. Be sure that
your Fyrite
desired combustion calculations.
NOTE: The recommended time required to achieve a stable
measurement is a minimum of 3 minutes.
Step Example Combustion Testing Procedure
1 Confirm that testing prerequisites have been completed.
2 Based on the sampling point examples and your particular combustion
application, locate and prepare an appropriate sampling point.
3 Insert the probe into the combustion location.
4 Press the RUN/HOLD button to begin sampling gas. You should see the
word RUN in the upper left corner of the display and hear the sample
pump turn on. If you see the word HOLD, press the RUN/HOLD button
again.
5 Monitor the display for combustion data.
6 If desired, turn on your optional IrDA printer, then press the F1 button on
Fyrite
the
7 Press the F3 button as desired to save combustion data for later
retrieval, review, and/or printing.
8 Press the RUN/HOLD button to stop the test. You should see the word
HOLD in the upper left corner of the display and hear the sample pump
turn OFF. If you see the word RUN, press the RUN/HOLD button
again.
9 Remove the probe from the sampling point.
InTech
InTech to print the current combustion data.
CAUTION: The probe may be very hot. Allow it to cool,
then wipe it clean with a dry cloth.
10 Move the instrument to a clean air environment and press the POWER
button to turn off the instrument. The shutdown procedure includes a
0024-9486 Rev 2 41
processes. Be sure to thoroughly evaluate systems and take ALL
Operation Fyrite InTech
Manual
Step Example Combustion Testing Procedure
purge component that clears the sensors of combustion gases.
11 Turn on the instrument to optionally print and/or evaluate saved test
results (based on your local codes and practices for combustion data and
CO levels).
12
To turn off the Fyrite
InTech, press and hold the POWER button until
you see the Shutdown timer. Wait for the purge function to complete
(you will hear the pump stop and the display will shut off).
Use the results of your combustion testing to assist in diagnosing any issues or
potential issues that may exist with the combustion system.
WARNING: CO gas is life-threatening and part of all combustion
appropriate actions to maintain life safety.
4.4. The RUN Screen
42 0024-9486 Rev 2
Fyrite InTech
Manual Operation
Combustion Test Parameters NA Siegert
Oxygen O₂ O₂
Carbon Monoxide CO CO
Excess Air EA Lambda
Efficiency Using Higher Heating Value Eff Eff
Carbon Dioxide CO₂ CO₂
Setting for Maximum Carbon Dioxide in Flue Gas CO₂ Max
Stack Temperature T-STK T-STK
Ambient Air Temperature T-AIR T-AIR
Stack Loss qA
Efficiency Using Lower Heating Value Eta
Carbon Monoxide/Carbon Dioxide Ratio CO/CO₂
CO content referenced to an Oxygen percentage n CO(n) CO(n)
Average of 3 Manually Entered Smoke Numbers AVG SMOKE
Presence of Oil Derivatives (Manually Entered) OIL DERIVE
Boiler Temperature (Manually Entered) BOILER TEMP
4.5. Printing Using the Optional IrDA Printer
The instrument has the ability to store, recall (to the display), and print sets of
time- and date-coded test records. The time and date are set through software
menu selections.
• Displaying stored records is done through the MEMORY DIRECTORY
MENU.
• Press F1 to print displayed test records.
Step Example Printing Procedure Using Optional IrDA Printer
1
Fyrite
InTech should be turned on and displaying a screen with an F1
Print option.
2 Check for a sufficient supply of paper and batteries in the IrDA printer.
3 Turn on the printer (slide switch on side of printer to the ON position)
4 Position the printer within 8 to 16 inches (20 to 41 cm) from the
instrument and at no greater than a 60-degree angle.
5 Press F1 to print.
6 Turn off printer when complete.
Sample Run Screen Printouts for North American (left) and Siegert (right)
0024-9486 Rev 2 43
Operation Fyrite InTech
Combustion Equations are shown below.
Manual
Fyrite InTech provides three lines of 20 characters for user information. This
information will appear with test records when they are printed. User name
and optional information are entered via software menu selections in the
SETUP MENU or via the Fyrite
44 0024-9486 Rev 2
User Software (FUS).
Fyrite InTech
Manual Operation
IR Communications Settings:
Baud Rate: 9600
Data Bits: 8
Stop Bits: 1
Parity: None
Protocol: IRDA-SIR
Distance: 8-16 in (20-41 cm)
Angle: 60° maximum
0024-9486 Rev 2 45
Turn on the InTech in a fresh air environment and wait for
screens, viewing results, saving results to memory, and printing
Operation Fyrite InTech
Manual
Fyrite InTech can be setup to include a custom logo on printouts. Logos are
loaded into the instrument using the Fyrite
User Software (FUS). Logo size is
limited to 192 x 384 pixels (height x width) and must be in one of the following
formats: .BMP, .JPG, .PNG, or .TIFF. For best results, the logo should be saved
in black and white.
4.6. Taking Ambient CO Measurements
This procedure takes approximately 15 minutes to complete and provides a
minute-by-minute snapshot of CO readings, as well as a “Max CO” value that
represents the highest CO reading measured during the entire 15-minute test.
Results can be saved to memory and/or printed. Use the following procedure
to perform an ambient CO measurement.
Step Example Procedure for Taking Ambient CO Measurements
1
initialization to complete.
2
Verify successful initialization (no errors).
3
Check battery status (see page 15). If battery life is questionable,
replace the batteries, as the Ambient CO test takes approximately
15 minutes to complete.
4
Move instrument to target location to be tested.
5
Press F2 to display the Main Menu.
6
Use the down arrow to highlight Ambient CO Test and press the
ENTER button.
7
Follow the on-screen instructions to initiate the test.
8
Refer to page 20 for details on navigating the ambient CO test
results.
46 0024-9486 Rev 2
Fyrite InTech
Manual Operation
4.7. PC Interface and Fyrite User Software
A PC with Fyrite User Software (FUS) installed can set, edit, and transfer the
following:
• instrument time and date
• calibration password
• time meters
• B-SMART
code
• user name
• instrument settings
• customer logo
• firmware updates
• language.
∇ ∇ ∇
0024-9486 Rev 2 47
An analyzer that tests natural gas furnaces normally
Fyrite InTech
Manual Calibration and Maintenance
Section 5. Calibration and Maintenance
5.1. Serviceability
The instrument operator is able to easily replace the following components
without the use of tools:
• probe assembly
• probe filters
• batteries
• printer paper.
Additionally, a technician, with the use of readily available hand tools and
factory-provided instructions, can:
• perform basic diagnostics
• replace sensors
• confirm proper operation
before putting the unit back into service. Field calibration is also possible with
the proper equipment. Refer to the calibration section for more information.
5.2. Cleaning the Probe
The probe tube and gas sample hose will become dirty under normal use.
NOTE: The water trap’s filter element should prevent soot from
reaching the analyzer’s internal components. If the probe is not
kept clean, it could become clogged and restrict the flow of gas
into the analyzer, resulting in incorrect combustion test readings
and calculations.
NOTE:
requires less frequent cleaning than an analyzer used for testing
coal- or oil-fired furnaces.
0024-9486 Rev 2 48
Fyrite InTech
Manual Calibration and Maintenance
5.2.1. Equipment Required
Alcohol
•
Aerosol Can of Automotive Carburetor Cleaner
•
Clean Rag
•
Source of Compressed Air (optional)
•
CAUTION: Do not use flammable or combustible substances (like
carburetor fluid used for cleaning the probe) near an open flame.
5.2.2. Procedure
Step Cleaning the Probe
1 Remove gas sample hose from the top of the water trap.
CAUTION: Carburetor cleaner damages plastic components.
Take precautions not to spray cleaner onto the probe handle or
analyzer.
2 Insert the plastic spray tube of the carburetor cleaner into the gas sample
hose, and then liberally spray carburetor cleaner through the hose and out
the probe tube.
3 After spraying, remove all the residual cleaner by repeatedly flushing the gas
hose and probe tube with alcohol.
4 Wipe off the surfaces of the probe and tubing with a clean cloth.
5 Allow the parts to dry completely. If available, blow compressed air through
the probe to expedite the drying process.
6 Reconnect gas sample hose to top of the water trap.
0024-9486 Rev 2 49
Calibration and Maintenance Fyrite InTech
5.3. Water Trap and Filter Replacement
Manual
50 0024-9486 Rev 2
Fyrite InTech
Manual Calibration and Maintenance
5.4. O2 and/or CO Sensor Replacement
NOTE: The O
life is greater than 3 years.
sensor life is approximately 2 years. The CO sensor
2
5.4.1. Accessing the Sensors
5.4.2. Material Required (As Needed)
Sensor (P/N 0024-0788)
O
•
2
CO Sensor (P/N 0024-7265) or B-Smart
•
sensor (P/N 0024-1467).
0024-9486 Rev 2 51
Calibration and Maintenance Fyrite InTech
cap by twisting counter
the “open” position (12 o’clock) as shown
5.4.3. O2 Sensor Replacement Procedure
Manual
Follow the procedure below for O
sensors.
2
Step O2 Sensor Replacement
1 Remove battery door and connector
tubing from both sensors.
2 Pull O2 sensor from its socket.
3 Remove the O2 cap.
4 Properly dispose of the old sensor.
5 Note 3-digit date code on new sensor.
6 Engage the nub on the new sensor
within the slot on the cap's side and
twist to secure the cap and sensor
together.
7 Install the cap and sensor unit by:
Aligning the ribs on the sides of
•
the sensor with the
corresponding shape in the base.
Inserting the pins into the
•
connectors in the base.
8 Reattach tubing. Close battery door. Turn on instrument.
9 After warm-up completes, enter the 3-digit date code (see page 35).
5.4.4. CO Sensor Replacement Procedure
Follow the procedure below for CO sensor replacement.
Step CO Sensor Replacement Procedure
1 Remove battery door and the connector
tubing from the CO sensor.
2 Remove CO
clockwise.
3 Gently pull CO sensor out of its socket.
4 Properly dispose of the old CO sensor.
5 Plug new CO sensor into its socket.
6 Install the CO cap by aligning it toward
52 0024-9486 Rev 2
Fyrite InTech
Manual Calibration and Maintenance
Step CO Sensor Replacement Procedure
in the diagram below, then twisting the
cap clockwise approximately 40° to the
"closed" position (2 o’clock).
7 Reattach tubing.
8 Calibrate the CO sensor using either the
standard calibration procedure or the B-
SMART
procedure
5.4.5. B-SMART CO Sensor Replacement
Step
B-SMART CO Sensor Replacement
1 Enter the CALIBRATION MENU. Note that this requires password validation
(see page 34).
2 Use the UP () and DOWN () arrow buttons to select B-Smart. Press
ENTER to display the B-Smart code screen.
3 Use the UP () and DOWN () arrow buttons to enter the 10-digit
alphanumeric code supplied with the pre-calibrated B-SMART sensor. Use
the LEFT () and RIGHT () arrow buttons to move the cursor across the
screen. Press ENTER.
NOTE: If the correct code was entered, the analyzer accepts it
and returns to the CALIBRATION MENU. If an incorrect code
was entered, the screen will display "Invalid Code." Check to
make sure the correct code has been entered. If problem
persists, contact your nearest Bacharach Service Provider.
NOTE: B-SMART codes can be entered through the Fyrite
User Software (FUS).
NOTE: Installing a B-SMART sensor forces the instrument to perform a
zero function (either manual or automatic).
0024-9486 Rev 2 53
Program (where available) that allows the
Calibration and Maintenance Fyrite InTech
Manual
NOTE: Bacharach offers a convenient Exchange
customer to regularly receive pre-calibrated
replacement sensors that include a code that can
be entered into the analyzer for a quick convenient
setup. Contact Bacharach customer service for
more details about this program.
5.5. T-Stack Calibration
This procedure first zeroes and then spans stack temperature to known
temperature values.
The use of an electronic thermocouple simulator is the preferred method of
producing the desired calibration temperatures. Alternatively, ice and boiling
water baths can be used.
5.5.1. Materials Required
Thermocouple simulator (K-type)
•
Range: 0 to 600° F (-18 to 316° F)
Accuracy: ± 0.5° F (± 0.3° C)
(Alternatively) ice water, boiling water, thermometer
•
5.5.2. T-Stack Calibration Procedure
Step T-STACK Calibration Procedure
1 Plug the simulator into the T-STACK connector located at the bottom of the
analyzer.
Alternatively: Plug the probe's thermocouple into the T-STACK connector
located at the bottom of the analyzer.
IMPORTANT: DO NOT attach the probe's gas hose to the
analyzer's GAS port; otherwise water will be drawn into the
analyzer!
2 If not already done, turn ON the analyzer and display the CALIBRATION
Menu. Note that this requires password validation (see page 34).
3 Use the UP () and DOWN () arrow buttons to highlight T-Stack, and then
press ENTER to display the CALIBRATE TS-ZERO screen.
54 0024-9486 Rev 2
water bath with a
Fyrite InTech
Manual Calibration and Maintenance
Step T-STACK Calibration Procedure
"Measured" is the current temperature reading. "Applied" is a known
temperature that will be applied for calibration purposes.
4 Set thermocouple simulator to 32° F (0° C), and then use the UP (), DOWN
(), LEFT (), and RIGHT () arrow buttons to enter an Applied value that
exactly equals the setting of the simulator.
Alternatively: Submerge probe tip into an icethermometer, wait several minutes, and then use the UP () and DOWN ()
arrow buttons to enter an Applied value that exactly equals the thermometer
reading.
NOTE: The calibration range is from 32 to 41° F (0 to 5° C). An
attempt to calibrate outside this range will cause the message
“Applied Value High" (or Low) to appear at the bottom of the
screen.
5 Wait until the Measured reading stabilizes, and then press ENTER to calibrate
the TS-Zero Measured value to that of the Applied value, after which the
message “Good Calibration” should briefly appear followed by the CALIBRATE
TS-SPAN screen.
6 Set thermocouple simulator to 572° F (300° C), and then use the UP (),
DOWN (), LEFT (), and RIGHT () arrow buttons to enter an Applied
value that exactly equals the setting of the simulator.
Alternatively: Submerge probe tip into a container of boiling water with a
thermometer, wait several minutes, and then use the arrow buttons to enter
an Applied value that exactly equals the thermometer reading.
NOTE: The calibration range is from 175 to 625° F (80 to
329° C). An attempt to calibrate outside this range will cause
the message “Applied Value High” (or Low) to appear at the
bottom of the screen.
0024-9486 Rev 2 55
Calibration and Maintenance Fyrite InTech
Manual
Step T-STACK Calibration Procedure
7 Wait until the Measured reading stabilizes, and then press ENTER to calibrate
the TS-Span Measured value to that of the “Applied” value, after which the
message “Good Calibration” should briefly appear followed by the
CALIBRATION menu being re-displayed.
5.6. CO Sensor Calibration
5.6.1. Materials Required
Calibration kit, P/N 0024-7059
•
Gas cylinder: 500 ppm CO in air, P/N 0024-0492
•
5.6.2. CO Manual Zero Procedure
The CO zeroing process is done automatically during warm-up or manually
using the manual zero feature (see page 32). To perform a manual zero, follow
the steps below. If your instrument is configured for CO auto zero, then skip
this CO manual zero procedure and go to the CO Sensor Span procedure that
follows.
Step Manual CO Zero Procedure
1 If not already done, turn ON the analyzer and display the Main Menu screen.
2 Use the UP () and DOWN () arrow buttons to select the SETUP menu and
press ENTER.
3 From the Setup Menu, use the UP () and DOWN () arrow buttons to
select the CO Zero Setting parameter then press ENTER.
4 From the CO Zero Setting screen, use the DOWN () arrow button to select
the Manual Zero option then press ENTER. A reminder screen to place the
instrument in fresh air is displayed.
5 Press ENTER and wait for the manual zero to complete.
56 0024-9486 Rev 2
Fyrite InTech
Manual Calibration and Maintenance
Step Manual CO Zero Procedure
5.6.3. CO Sensor Span Procedure
Step CO Span Procedure
1 From the Calibration Menu (see page 34), use the UP () and DOWN ()
arrow buttons to highlight CO, and then press ENTER to display the
CALIBRATE CO screen. Note that this requires password validation (see page
34).
“Measured” is the current CO reading, while “Applied” is a known CO level
that will be applied for calibration purposes.
2 Use the UP (), DOWN (), LEFT (), and RIGHT () arrow buttons to enter
an Applied value that exactly equals the concentration stamped on the CO
cylinder.
NOTE: Bacharach recommends using a 500 ppm calibration gas,
however the calibration range is from 20 to 1,000 ppm. An attempt
to calibrate outside this range will cause the message “Applied
Value High” (or Low) to appear at the bottom of the screen.
3 Attach a 500 ppm CO cylinder to the regulator and connect calibration kit
components as shown below. Apply 500 ppm carbon monoxide in an air
balance calibration gas.
4 Wait until the Measured reading stabilizes and then press ENTER. The
message “Good Calibration” should briefly appear.
If the sensor’s output is low, but still usable, then the message “Good
Calibration WARNING Low Sensor” will appear. The sensor will now be
marked as being Low in the Warm-up screen.
If the sensor’s output is too low to be usable, then the message “Bad
Calibration Sensor End of Life, Entry Not Saved” will appear.
5 Close the regulator and remove the CO cylinder.
0024-9486 Rev 2 57
Calibration and Maintenance Fyrite InTech
Manual
5.7. T-Ref Sensor Calibration
The T-Ref sensor is located inside the instrument. Calibration is done at the
factory and should not need to be done in the field.
∇ ∇ ∇
58 0024-9486 Rev 2
flue gas. Move the probe to fresh air and restart the
Fyrite InTech
Manual Troubleshooting
Section 6. Troubleshooting
6.1. Error and Warning Messages
Message Description
T-STK
The probe thermocouple is not connected to the analyzers
T-Stack connector. Plug the probe thermocouple plug into the
T-Stack connector at the bottom of the instrument.
Check Sensor
O
2
O
sensor output is low, but still usable. Sensor may need to be
2
replaced in the near future. The arrow on the O
Sensor Life
2
screen is in the “replace” segment.
Replace Sensor
O
2
sensor output is low and should be replaced. The arrow on
O
2
the O
Sensor Life screen is beyond the bar graph (typically 2
2
years for the O
sensor).
2
Bad Sensor O2 O2 sensor output is too low and is not usable, or sensor is missing.
Low Sensor CO CO sensor output was low but still usable. Sensor may need to be
replaced in the near future.
Low Battery Battery voltage is low. Replace the batteries.
Applied Value
High/Low
Warm-up
Sensor Error
An attempt was made to calibrate a sensor outside its range—
either above (High) or below (Low) the acceptable range.
• CO sensor was not zeroed at warm-up because of high output.
Run instrument on fresh air then restart instrument to re-zero
sensor. If the message persists, the CO sensor may need to be
replaced.
• Stack or Air temperature sensors are measuring temperature
outside the range of -4° to 212° F at warm-up. Make sure
that the Stack and Air thermocouples are sampling ambient
room air within the temperature range at warm-up.
• The Fyrite
0024-9486 Rev 2 59
InTech was turned on with the probe sampling
Troubleshooting Fyrite InTech
instrument automatically displays the error. The instrument
Message Description
instrument.
• Messages will indicate which sensors are in error.
Set Clock Time and date values need to be set in the instrument.
NOTE: If a “set clock” message occurs, then
the instrument ignores all O
messages except “Bad Sensor.”
X X X Occurs in the number fields of sensors that have achieved over-
range condition.
* * * Occurs in the number fields of sensors. Replaces in-error sensor
values and any calculated values that depend on those sensor
values.
- - - Occurs in the number fields of sensors and indicates that values
were not calculated.
NOTE: If a particular sensor is in error during warm-up, the
continues to operate with the sensor in error, however
information dependent on the sensor in error is not displayed.
Manual
–related
2
6.2. Replacement Parts
Part Number Description
0024-0788 O2 sensor
0204-0004 Battery, AA Alkaline
0024-7265 CO sensor
0024-1504 NOx filter (Siegert only)
0024-1467
0019-7111 Probe and hose assembly (North America version)
0019-7145 Probe and hose assembly (Siegert version)
0019-3265 Water trap
0007-1644 Filter, pkg. of 3
0024-1579 Replacement End Plate
0024-3073 Replacement Pump Assembly
0024-1620 Battery door/sensor cover
0024-1421 O2 Sensor Cap
60 0024-9486 Rev 2
B-Smart CO sensor
Fyrite InTech
Part Number Description
0024-1484 CO Sensor Cap
0024-1458 CO Sensor Base
0024-9486 Instruction manual
0019-3265 Water trap
Manual Troubleshooting
6.3. Accessories
Part Number Optional Accessory
0024-1400 IrDA printer
0024-1310 Printer paper, box of 5 rolls
0021-7006 Smoke kit
0104-1798 Thermocouple (temperature, air), K type (1 inch long)
0104-1797 Thermocouple (temperature, stack), K-type (10 feet long)
0024-7059 CO Calibration kit (no gas)
0024-0492 CO calibration gas, 500 ppm CO
0051-1994 CO calibration gas, 100 ppm CO
0024-1470 PC Software Installer CD
0104-4032 USB cable (A to Mini-B)
0024-1461 Boot , rubber
0024-1505 NOx filter kit
0024-1492 Reporting kit
0024-0865 Hard carrying case
0019-3037 Probe stop
0024-8555 Optional Appliance Kit for Ambient CO Test
0024-9486 Rev 2 61
Email: help@MyBacharach.com
Troubleshooting Fyrite InTech
Manual
6.4. Instrument Identification
A label on the back of the instrument provides the following information that is
useful for service and troubleshooting.
• manufacturer
• country of origin
• certification(s)
• part number
• serial number
North American Label Siegert Label
6.5. Service Centers
Replacement parts and service can be obtained by contacting one of the
following Bacharach Service Centers.
United States
Bacharach, Inc.
621 Hunt Valley Circle
New Kensington, PA 15068
Phone: 724-334-5051
Fax: 724-334-5723
62 0024-9486 Rev 2
Canada
Bacharach of Canada, Inc.
20 Amber Street Unit #7
Markham, Ontario L3R 5P4
Canada
Phone: 905-470-8985
Fax: 905-470-8963
Email: bachcan@idirect.com
∇ ∇ ∇
Fyrite InTech
Bacharach, Inc.
The manufacturer of the products
covered by this declaration:
Year conformity is declared: 2012
Product(s): Combustion Analyzer
Model(s): Fyrite InTech
The undersigned hereby declares that the above referenced product is in conformity
with the provisions of the following standards and is in accordance with the following
directive.
Directive:
2004/108/EC EMC Directive
Standard(s):
EN 50270: 2006
EN 50379-1 Part 1
EN 50379-3 Part 3
Signature:
Name: Doug Keeports
Title: VP of Product Development
Date: November 12, 2012
The technical documenta tion file required by this directive is m aintained at the corporate headquarte rs of Bacharach, Inc.
0024-9486 Rev 2 63
Manual Declaration of Conformity
Declaration of Conformity
621 Hunt Valley Circle
New Kensington, PA 15068
Electromagnetic Compatibility (Immunity): Electrical
Apparatus for the Detection and Measurement of
Combustible Gases, Toxic Gases, or Oxygen
General Requirements and Test Methods: Specifications for
Portable Electrical Apparatus Designed to Measure
Combustion Flue Gas Parameters of Heating Appliances
Performance Requirements: Performance Requirements for
Apparatus Used in Non-Statutory Servicing of Gas-Fired
Heating Appliances
Declaration of Conformity Fyrite InTech
Manual
64 0024-9486 Rev 2
Fyrite InTech
Manual
0024-9486 Rev 2 65
Fyrite InTech
Manual
World Headquarters
621 Hunt Valley Circle, New Kensington, Pennsylvania 15068
Phone: 724-334-5000 • Toll Free: 1-800-736-4666 • Fax: 724-334-5001
Website: www.MyBacharach.com • E-mail: help@MyBacharach.com
0024-9486 Rev 2 66
Loading...
