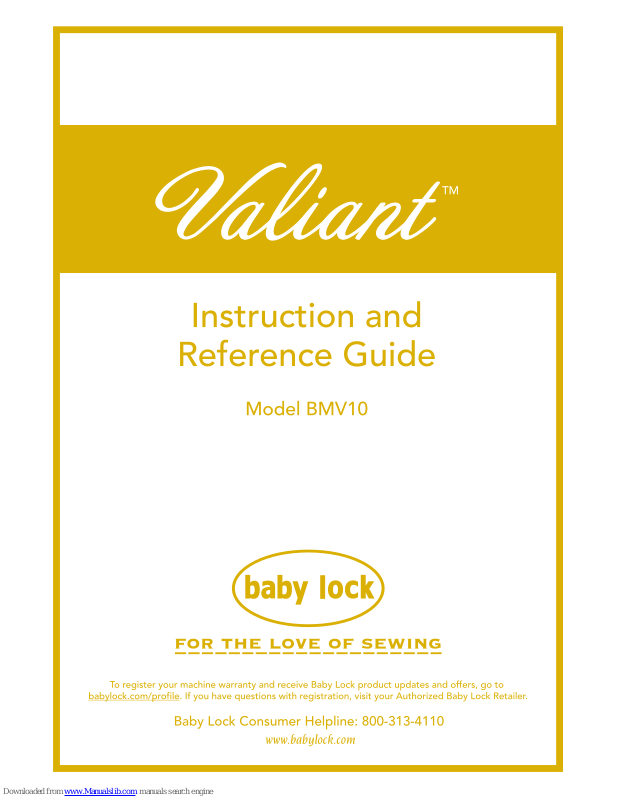

Baby Lock Valiant, BMV10 Instruction And Reference Manual

Page 1

Page 2

Trademarks

IMPORTANT:

READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING. By downloading, copying, installing or using the software you agree to this license. If you do not agree to this license, do not download, install, copy or use the software.

Intel License Agreement For Open Source Computer Vision Library

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistribution’s of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistribution’s in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

• The name of Intel Corporation may not be used to endorse or promote products derived from this software without specific prior written permission.

This software is provided by the copyright holders and contributors “as is” and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall Intel or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.

All information provided related to future Intel products and plans is preliminary and subject to change at any time, without notice.

SD is a registered trademark or a trademark of SD-3C, LLC. CompactFlash is a registered trademark or a trademark of Sandisk Corporation. Memory Stick is a registered trademark or a trademark of Sony Corporation. SmartMedia is a registered trademark or a trademark of Toshiba Corporation. MultiMediaCard (MMC) is a registered trademark or a trademark of Infineon Technologies AG. xD-Picture Card is a registered trademark or a trademark of Fuji Photo Film Co. Ltd. IBM is a registered trademark or a trademark of International Business Machines Corporation. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation.

Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.

All other brands and product names mentioned in this manual are registered trademarks of their respective companies. However, the explanations for markings such as

® and ™ are not clearly described within the text.

Page 3

Thank you for purchasing this embroidery machine. Before using this machine, carefully read the “IMPORTANT SAFETY INSTRUCTIONS”, and then study this manual for the correct operation of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.

Please read these safety instructions before attempting to use the machine.

DANGER - To reduce the risk of electric shock:

1Always unplug the machine from the electrical outlet immediately after using, when cleaning, when making any

user servicing adjustments mentioned in this manual, or if you are leaving the machine unattended.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

2Always unplug the machine from the electrical outlet when lubricating it or when making any other user

servicing adjustments mentioned in the operation manual.

• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp the plug and pull it out of the electrical outlet. Do not pull on the cord.

• Plug the machine directly into the electrical outlet. Do not use an extension cord.

• Always unplug your machine if the power is cut.

3Electrical Hazards:

• This machine should be connected to an AC power source within the range indicated on the rating label. Do not connect it to a DC power source or inverter. If you are not sure what kind of power source you have, contact a qualified electrician.

• This machine is approved for use in the country of purchase only.

4Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped

or damaged, or water is spilled on the unit. Return the machine to the nearest authorized Baby Lock retailer or service center for examination, repair, electrical or mechanical adjustment.

• To avoid electric shock or fire; do not use a damaged power supply plug or loose electrical outlet, and ensure that the power supply plug is fully inserted and secure.

•

While the machine is stored or in use if you notice anything unusual, such as an odor, heat, discoloration or deformation, stop using the machine immediately and unplug the power cord.

• When transporting the machine, be sure to lift it from the bottom positions. Lifting the machine by any other part may damage the machine or result in the machine falling, which could cause injuries.

• When lifting the machine, be careful not to make any sudden or careless movements, otherwise you may injure your back or knees.

• While the machine is being transported, be careful not to touch the operation panel, thread guides or any other part, otherwise injuries may result.

Introduction

IMPORTANT SAFETY INSTRUCTIONS

Page 4

5Always keep your work area clear:

• Never operate the machine with any air openings blocked. Keep ventilation openings of the machine free from the build up of lint, dust, and loose cloth.

• Do not use extension cords. Plug the machine directly into the electrical outlet.

• Never drop or insert any object into any opening.

• Keep fingers out of all machine openings, such as near the carriage, otherwise injuries may result.

• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

• Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine, power cord or garment being sewn may ignite, resulting in fire or an electric shock.

• Do not use this machine near an open flame; the movement of the embroidery frame could cause the garment being sewn to catch fire.

• Do not place this machine on an unstable surface, such as an unsteady or slanted table, otherwise the machine may fall, resulting in injuries.

• While attaching or detaching an embroidery frame or other included accessory or while maintaining the machine, be careful not to hit the machine with your body or any other part of it.

6Special care is required when sewing:

• Always pay close attention to the needle. Do not use bent or damaged needles.

• Keep fingers away from all moving parts. Special care is required around the machine needle.

• While the machine is in operation, keep your hands away from the needle bar case and all moving parts near the needle bar case, otherwise injuries may result.

• Switch the machine to the symbol “O” position to turn it off when making any adjustments in the needle area, such as changing the needle.

• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.

7This machine is not a toy:

• Your close attention is necessary when the machine is used by or near children.

• This machine is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with this machine.

• Do not use the included scissors or seam ripper in any other way than how they are intended. In addition, when opening a hole with the seam ripper, do not place your hands or fingers in the cutting path, otherwise injuries may result if the seam ripper slips.

• The plastic bag that this machine was supplied in should be kept out of the reach of children or disposed of. Never allow children to play with the bag due to the danger of suffocation.

• Do not use outdoors.

8For a longer service life:

• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine near a space heater, iron, halogen lamp, or other hot objects.

• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the case and machine, and should never be used.

• Always consult the operation manual when replacing or installing any assemblies, needle, or other parts to assure correct installation.

Page 5

9For repair or adjustment:

• Do not try to disassemble, repair or alter this machine in any way, otherwise a fire, electric shock or injuries may

result.

• If the light unit is damaged, it must be replaced by an authorized Baby Lock retailer.

• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of

the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local authorized Baby Lock retailer.

Use this machine only for its intended use as described in the manual. Use accessories recommended by the manufacturer as contained in this manual. Use only the interface cable (USB cable) included with this machine. Use only a mouse designed specifically for this machine. The contents of this manual and specifications of this product are subject to change without notice. For additional product information and updates, visit our website at www.babylock.com

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN COUNTRIES EXCEPT EUROPEAN COUNTRIES

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

FOR USERS IN EUROPEAN COUNTRIES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FOR USERS IN THE UK, EIRE, MALTA

AND CYPRUS ONLY

IMPORTANT

• In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark,

rating as marked on plug.

• Always replace the fuse cover. Never use plugs with the fuse cover omitted.

• If the available electrical outlet is not suitable for the plug supplied with this equipment, you should contact your

authorized Baby Lock retailer to obtain the correct lead.

Page 6

Federal Communications Commission (FCC) Declaration of Conformity

(For USA Only)

declares that the product

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your Baby Lock retailer or an experienced radio/TV technician for help.

• The included interface cable should be used in order to ensure compliance with the limits for a Class B digital device.

• Changes or modifications not expressly approved by Tacony Corporation could void the user’s authority to operate the equipment.

Responsible Party: Tacony Corporation

1760 Gilsinn Lane, Fenton, Missouri 63026 USA

Product Name: Baby Lock Embroidery Machine Model Number: BMV10

Page 7

The enclosed machine includes data, software and/or documentation (collectively “CONTENT”) that are proprietary products of Baby Lock, a division of Tacony Corporation (“BABY LOCK”). BY USING THE CONTENT, THE CUSTOMER ACCEPTS THE TERMS AND CONDITIONS OF THIS AGREEMENT. BABY LOCK retains ownership of all rights to CONTENT and to the copies of the CONTENT included in this package. The CONTENT are licensed (not sold) to you (“CUSTOMER”) under the terms and conditions of this Agreement.

CUSTOMER is licensed to:

• Use the CONTENT in combination with an embroidery machine to create embroidery.

• Use the CONTENT in combination with an embroidery machine that CUSTOMER owns or uses, provided that

the CONTENT is not used on more than one embroidery machine at a time.

• Use, sell or otherwise distribute the EMBROIDERY created by use of the CONTENT.

Except as otherwise provided herein, CUSTOMER may not:

• Allow more than one copy of the CONTENT to be available for use at any one time.

• Reproduce, modify, publish, distribute, sell, rent, sublicense or otherwise make available to others CONTENT.

• Distribute, rent, sublicense, lease, sell, transfer or assign the media card or CONTENT.

• Decompile, disassemble or otherwise reverse engineer the CONTENT or assist others to do the same.

• Alter, translate, modify or adapt the CONTENT or any part thereof for business, commercial or industrial

purposes.

BABY LOCK retains all rights not expressly granted to CUSTOMER herein.

Nothing in this agreement constitutes a waiver of the rights of BABY LOCK under any law. This agreement shall be governed by the laws of the United States of America.

Please direct all inquiries concerning this Agreement in writing by regular mail, to Tacony Corporation, 1760 Gilsinn Lane, Fenton, Missouri 63026, Attention: Sewing machine division Sales and Marketing.

License Agreement

Page 8

The following warning labels are on the machine. Be sure to observe the precautions described in the labels.

Warning Labels

Label locations

Please put a drop of oil onto the hook once a day before use.

Page 9

Ten-needle machine embroidering

Your machine has ten needles, each threaded with a different color of thread. It can sew embroidery patterns that contain several colors by automatically selecting the appropriate needle for each color.

The mechanism that moves the needles up and down is called the needle bar, and the needle bars are in the needle bar case. The needle bars are named from right to left: needle bar 1, needle bar 2, needle bar 3, needle bar 4, needle bar 5, needle bar 6, needle bar 7, needle bar 8, needle bar 9 and needle bar 10.

1 Needle bar 1 2 Needle 1 3 Needle bar case

The machine automatically assigns a thread color to each needle. There are two methods for assigning the thread colors. With the automatic method (default method when the machine is purchased), needles that are already threaded with a color that will be used in the next pattern are assigned to the same thread color based on the needle bar assignments from the previous pattern in order to reduce the number of thread spool changes.

For more professional embroidering, using a manual color sequence allows the needle bar assignments to easily be specified manually. Thread color and needle bar combinations can be selected manually to create a menu so that the needle bar assignments can be based on the thread color numbers. (Refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 132.)

The thread colors assigned to the needle bars are listed on the screen. Thread the needle bars as indicated.

1 The threads threaded on the needle bars are

indicated as shown here.

The spool pins, thread tension knobs, thread takeup levers and thread paths, mentioned when threading the upper thread, are different according to their corresponding needle bar number.

Not all ten needles can be used to sew at the same time. Only one needle is moved to the embroidering position at a time. According to the sewing order, the needle bar case is moved to the left and right so that the needle bar and needle thread with the required color can be moved to the embroidering position.

Machine Structure and Features

Memo

• Sewing is not necessarily performed in the order of the needle bar numbers.

Page 10

1 Needle at the embroidering position

The needle is positioned over the hole in the needle plate 2.

When starting the machine, the presser foot is automatically lowered. The embroidery is sewn and thread is pulled away from the material when thread trimming and when changing thread colors (moving to the different needles to be sewn within the embroidery). When sewing is finished, the machine stops. If the pattern uses eleven or more thread colors, the machine will stop when it is necessary for the thread spools to be changed, and the corresponding instructions appear on the LCD.

(However, when “Manual needle bar sequences” is set to “ON”, the machine does not automatically stop when a thread spool must be changed. For details, refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 132.)

Differences from single-needle machines

■ Can sew embroidery patterns using ten or less colors without the need to replace the thread spools

With single-needle machines, the thread spool must be changed and the machine must be threaded each time a different thread color is used. With this machine, it is not necessary to change the thread spool or rethread the machine with embroidery patterns containing ten or less colors. If total colors are less than ten colors, and if total color change is more than eleven times, machine will come back to the needle that the machine is already used and sew the same color again automatically.

■ Automatic sewing reduces sewing time

Except to change the thread spools with patterns containing eleven or more colors, once the machine is started, it continues to operate automatically, from lowering the presser foot to performing the specified operations at the starting and end positions in addition to changing the thread colors. Since the machine can change threads and finish stitching, sewing time is reduced.

■ Automatically pulls and holds the thread tails to the under side of fabric at the beginning and end of stitching

Since the machine automatically pulls the upper thread under the fabric at the beginning of a color, and pulls the upper thread from the fabric at the time of thread trimming, you don’t need to deal with the upper thread tail at all.

■ Automatically moves the embroidery frame to the embroidering position

With a single-needle machine, in most cases, the embroidery pattern is centered in the frame and the fabric must be correctly positioned within the embroidery frame with the center of the desired embroidering position aligned with the center of the embroidery frame. However, with 10 needle embroidery machine, the embroidery frame is moved to determine the embroidering position, making it easier to sew the pattern at any place in the frame. In addition, the embroidering position can be freely determined manually as well as with the camera positioning function after the fabric is hooped and the embroidery frame is attached to the machine, regardless of how the fabric is positioned in the embroidery frame.

Page 11

Other features

■ Quickly combine patterns using the large LCD screen

The machine is equipped with a large 10.1-inch LCD screen, the same as on many tablets. The selected embroidery pattern is displayed on the large LCD screen with the actual needle drop position image. This function allows you to align the patterns easier than before.

■ Link function – for your embroidery business –

You can send embroidery patterns edited in embroidery editing software provided with the Link function, such as Palette 9 or later, from a computer to an embroidery machine. You can connect up to 4 machines to a single computer at a same time. (Refer to “Sending Embroidery Patterns From a Computer to the Machine (Link Function)” on page 169.)

■ Embroider while replacing the thread spool a minimal number of times

Before starting to embroider, touch the thread color

sorting key ( ) to rearrange the embroidery order and sort it by thread colors. For example, when

embroidering after simply arranging the same pattern to be repeated side-by-side, you will need to replace the thread spool multiple times with each pattern. However, by using the thread color sorting function, the thread color order will be rearranged allowing you to embroider the same color at one time, while replacing the thread spool a minimal number of times. The thread color sorting function cannot be used with overlapping patterns.

■ Create more original designs with advanced character input

More types of character patterns are available, and the input method has been improved. New characters can be added in the middle of the text, which was not possible until now, and the smoother and more intuitive operation ensures that there are no longer any obstacles to your imagination.

Page 12

■ Embroidering progress bar

Since numbers for the time and stitches do not always provide the clearest image of the remaining embroidery time, the new embroidering progress bar shows the progress of the entire embroidery at a glance.

■ Safety mechanism

The machine is equipped with a locking mechanism that helps prevent injuries from accidental operation. The machine can only be started after the machine is unlocked. The color of the start/stop button changes to inform you of whether or not the machine is locked.

■ Wide selection of built-in thread color information

The thread color information for manufacturers’ threads is available, making it easy to choose the appropriate thread color.

■ Expanded thread color display feature enables colors to be displayed as realistic true color

The colors and thread color numbers are stored in the machine’s memory. From this thread color library, you can select colors to create your own color thread table. If the pattern colors are changed using this table, the pattern can be displayed with only the thread colors that you have. In addition, the embroidery pattern can be displayed as it would appear after it is embroidered.

Lit in red Flashing in green

The machine is locked.

The machine can be

started.

Page 13

■ Automatic needle-threading mechanism

Using the automatic needle-threading mechanism, threads each needle easily. In addition, you can specify that automatic needle threading be canceled for specific needle bars.

■ USB port available as standard equipment

By connecting a computer to the machine using the included USB cable, embroidery patterns can be transferred to/from the computer. (Refer to “Saving embroidery patterns in the computer” on page 161.)

If the machine is positioned at a distance that prevents the USB cable from reaching the computer, embroidery patterns can be transferred from the computer by temporarily saving them on USB media or an SD card, which is then inserted into the machine. (Refer to “Saving embroidery patterns to USB media/SD card” on page 160.)

■ Moving or threading a selected needle bar at any time

When selecting, editing or embroidering a pattern, any one of the needle bars can be selected at any time to be threaded or moved to the embroidering position.

Touch to open the needle move screen, then select the needle bar number that you want to move or thread. (Refer to “Moving and threading a selected needle bar” on page 62.)

Page 14

Available features

Designs with a maximum size of 200 mm (H) × 360 mm (W) (7-7/8 inches (H) × 14 inches (W)) can be embroidered.

■ Manual color sequence - More professional use of this machine

If you specify the thread colors used with this machine, or if you use DST files frequently, it would be convenient to use the manual color sequence. (Refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 132.)

■ Various built-in patterns

Many built-in character patterns, embroidery patterns and frame patterns enable you to start embroidering right after purchasing this machine.

■ Embroidery pattern editing

Lettering and embroidery patterns can be combined or a text arrangement can be specified to arrange the patterns. The machine can also be set to repeatedly sew the same pattern.

Page 15

This manual is constructed as described below. Before using the machine, check the procedures described with the numbered titles in the title list on the first page of chapter 2. This shows the sequence of these basic operations.

Read before use

Chapter 1: Getting Ready

The setup of the embroidery machine and the various preparations required before starting to sew are described in this chapter.

Chapter 2: Embroidering Tutorial

This chapter describes the basic embroidering operations in order—from turning on the machine and sewing a pattern to finishing sewing. Follow the steps of the tutorial to embroider a pattern and master the operation of this embroidery machine.

Chapter 3: Other Basic Procedures

This chapter provides explanations on operations other than those described in chapter 2, such as sewing a pattern with eleven or more colors, and other necessary operations, for example, changing the needle.

Read when additional information is required

Chapter 4: Embroidering Settings

This chapter contains descriptions on the various embroidering settings, which make editing patterns simple.

Chapter 5: Selecting/Editing/Saving Patterns

This chapter provides details on selecting, editing and saving embroidery patterns.

Chapter 6: Basic Settings and Help Feature

This chapter contains descriptions on the use of the settings key and the machine operations key. Details on changing the basic embroidery machine settings and viewing operations on the LCD will be provided.

Chapter 7: Appendix

This chapter provides descriptions of techniques for various embroidering operations, pointers for creating beautiful embroidery, and details on maintenance procedures and corrective measures that should be taken when a problem occurs.

Searching for information

■ Searching the manual

By title

Check the descriptions at the left for the contents of each chapter, and then check the table of contents.

By keyword

Search the index at the end of this manual. Look for the desired keyword, and then refer to the page that is indicated.

By screen

Descriptions of the keys and other information that appear in the main LCD screens are provided in the tables on pages 70 to 79. For details, refer to the page that is indicated.

By condition

Various possible conditions and the corresponding operations are described on page 80. For details, refer to the page that is indicated.

■ Searching the machine

This machine is equipped with a help feature.

Learning how to perform an operation

Touch the machine operations guide key, and then check for the desired information. (Refer to “Using the Machine Operations Guide Key” on page 235.)

Manual Structure

Page 16

Introduction ......................................................... 1

IMPORTANT SAFETY INSTRUCTIONS ................ 1

License Agreement ............................................... 5

Warning Labels..................................................... 6

Machine Structure and Features ........................... 7

Ten-needle machine embroidering ......................................... 7

Differences from single-needle machines ............................... 8

Other features ........................................................................ 9

Available features................................................................. 12

Manual Structure................................................ 13

Read before use.................................................................... 13

Read when additional information is required...................... 13

Searching for information ..................................................... 13

Chapter1 GETTING READY 17

Names of Machine Parts and Their Functions..... 18

Front view............................................................................ 18

Right-side/rear view.............................................................. 19

Operation panel................................................................... 19

Accessories ......................................................... 20

Included accessories ............................................................ 20

Optional Accessories .......................................... 22

Setting Up the Machine ...................................... 24

Setup and transporting precautions....................................... 24

Setup location ...................................................................... 25

Setting up the machine......................................................... 26

Remove the fixing plates ...................................................... 27

Adjusting the operation panel position ................................. 27

Preparing the thread guide assembly .................................... 28

Preparing the spool stand ..................................................... 29

Attaching the embroidery frame holder ................................ 30

Chapter2 EMBROIDERING TUTORIAL 31

Operating Precautions........................................ 32

Power supply precautions .................................................... 32

Needle precautions .............................................................. 33

Checking the needle............................................................. 33

Bobbin precautions .............................................................. 33

Upper thread recommendations ........................................... 34

Fabric recommendations ...................................................... 34

Display recommendations.................................................... 34

Basic Procedures ................................................ 35

1. Installing the Bobbin....................................... 36

Removing the bobbin case ................................................... 36

Installing the bobbin............................................................. 36

Installing the bobbin case..................................................... 37

2. Turning ON the Machine................................ 38

Setting your machine for the first time .................................. 39

Understanding the screens ................................................... 40

Screen overview................................................................... 41

3. Selecting an Embroidery Pattern..................... 43

Selecting an embroidery pattern ........................................... 44

4. Editing the Embroidery Pattern....................... 45

5. Previewing the Image ..................................... 46

Checking a preview image................................................... 46

Hooping the Fabric in the Embroidery Frame

.... 48

Hooping the fabric in the embroidery frame ......................... 48

Attaching the Embroidery Frame to the Machine

.... 50

Attaching the embroidery frame ........................................... 50

Continuing to the embroidering settings screen .................... 52

8. Specifying Embroidering Setting ..................... 53

9. Checking the Embroidery Area ....................... 54

Temporarily stopping to check the area................................ 54

Continuing to the embroidering screen................................. 54

10. Upper Threading .......................................... 55

Checking the needle bars and thread colors......................... 55

Upper threading .................................................................. 57

Threading the needle........................................................... 61

11. Sewing the Embroidery ................................ 64

Starting embroidering .......................................................... 64

Stopping embroidering ........................................................ 66

12.

Removing the Embroidery Frame and Fabric

.... 68

Removing the embroidery frame.......................................... 68

Removing the fabric............................................................. 68

13. Turning OFF the Machine ............................ 69

Screen Quick Reference Guide .......................... 70

Key displays......................................................................... 70

Understanding the pattern type selection screen .................. 71

Understanding the pattern list screen................................... 72

Understanding the pattern editing screen............................. 73

Understanding the embroidering settings screen.................. 75

Understanding the embroidering screen .............................. 78

When You Have a Question, This May Help You

.... 80

Technical terms: .................................................................. 80

Patterns:............................................................................... 80

Embroidering:...................................................................... 80

Useful external connection functions ................................... 81

USB mouse operation.......................................................... 83

Chapter3 OTHER BASIC PROCEDURES 85

Changing the Needle.......................................... 86

Replacing the needle........................................................... 86

Correctly Using the Embroidery Frames ............ 88

Embroidery frame holders.................................................... 88

When difficult to replace the embroidery frame................... 88

Types of embroidery frames/frame holders and their applications

..... 89

Attaching Iron-On Stabilizer (Backing) to Fabric

.... 92

Hooping the Fabric ............................................ 93

Hooping the fabric in the extra-large and large embroidery

frames.................................................................................. 93

Using the embroidery sheet ................................................. 94

Large/small pieces of fabric.................................................. 95

Embroidery Frame Position and Movement ....... 96

Changing the Embroidering Position .................. 98

Adjusting the angle.............................................................. 99

Aligning the Embroidering Position.................. 102

Displaying the fabric while aligning

the embroidery position ..................................................... 102

Using the built-in camera .................................................. 105

Using the included embroidery positioning sticker ............ 108

Switching the Thread Colors on the Screen ..... 110

Embroidering a Pattern Containing Eleven or

More Colors ..................................................... 112

Checking if thread spool changes are necessary................. 113

Changing the Thread Spools with

Designs of Eleven or More Colors .................... 114

Change thread spools message and spool thread indicators

..... 114

Easily changing the thread spools ...................................... 115

If the Thread Breaks or the Bobbin Thread

Runs Out While Embroidering ......................... 116

If the upper thread breaks.................................................. 116

If the bobbin thread breaks or runs out .............................. 118

Embroidering From the Beginning or

Middle of the Pattern ....................................... 119

Resume Embroidering After Turning Off the

Machine ........................................................... 122

Adjusting the Thread Tension of both

the Bobbin and Upper Thread.......................... 124

Contents

Page 17

Adjusting the tension of the bobbin thread......................... 124

Adjusting the tension of the upper thread........................... 125

Chapter4 EMBROIDERING SETTINGS 127

Basting Embroidery .......................................... 128

Creating an Appliqué Piece .............................. 129

Creating an appliqué piece ................................................ 129

Selecting/Managing Thread Colors for

Each Needle Bar (Manual Color Sequence) ...... 132

Convenience of the manual color sequence....................... 132

Specifying the manual color sequence ............................... 132

Using the manual color sequence ...................................... 133

Precautions on the manual color sequence ........................ 133

Automatic Lock Stitch Setting .......................... 134

Starting/Ending Position Settings ...................... 135

Repeatedly sewing a pattern along a diagonal.................... 136

Embroidering linked characters.......................................... 137

Maximum Sewing Speed Setting ....................... 139

Setting the Machine to Stop at Color Changes

.... 140

Stopping the machine at the next color change .................. 140

Specifying pause locations before embroidering ................ 140

Temporary Needle Bar Setting ......................... 142

Uninterrupted embroidering (monochrome)....................... 142

Reserved Needle Bar and

Sewing Speed Settings ...................................... 143

Chapter5 SELECTING/EDITING/SAVING

PATTERNS 147

Using the Memory Function ............................. 148

Embroidery data precautions.............................................. 148

Concerning USB media...................................................... 149

Selecting an Embroidery Pattern ...................... 150

General pattern selection ................................................... 150

Embroidery patterns ........................................................... 151

Frame patterns ................................................................... 152

Monogram and frame designs ............................................ 153

Alphabet patterns............................................................... 155

Decorative alphabet patterns ............................................. 158

Saving embroidery patterns in the machine’s memory........ 159

Saving embroidery patterns to USB media/SD card............ 160

Saving embroidery patterns in the computer ...................... 161

Connecting the USB using the included USB cord clamps

.... 162

Retrieving patterns from the machine’s memory................. 164

Recalling from USB media/SD card.................................... 164

Recalling from the computer.............................................. 165

Saving embroidery patterns from any memory source

to another memory ............................................................ 167

Sending Embroidery Patterns From a Computer

to the Machine (Link Function) ........................ 169

Operations available with the Link function....................... 169

Embroidering using the Link function................................. 170

Disabling the Link function ................................................ 173

Editing the Embroidery Pattern (Pattern Editing

Screen) ............................................................. 174

Enlarge the pattern image on the screen............................. 174

Combining patterns............................................................ 174

Selecting the pattern to be edited ....................................... 175

Grouping multiple selected patterns ................................... 176

Moving a pattern................................................................ 176

Flipping a pattern horizontally ........................................... 177

Changing the size of a pattern (Normal resizing mode) ...... 178

Changing the pattern size while maintaining the desired

thread density (stitch recalculator)...................................... 179

Rotating a pattern............................................................... 180

Changing the text arrangement of a character .................... 181

Changing the character spacing ......................................... 181

Separating combined character patterns............................. 182

Trimming the threads between characters .......................... 183

Combining the separated character patterns....................... 183

Specifying multi-color text.................................................. 184

Changing the character font ............................................... 184

Changing the font and size of individual characters ............ 184

Changing the thread density (only for selected character

and frame patterns)............................................................. 185

Changing the colors of the pattern...................................... 185

Find new color schemes with the color visualizer function

.... 187

Thread color sorting ........................................................... 190

Designing repeated patterns ............................................... 190

Creating a custom thread table........................................... 195

Choosing a color from the custom thread table .................. 197

Saving and recalling the custom thread table

using USB media................................................................ 198

Duplicating a pattern.......................................................... 199

Deleting a pattern............................................................... 200

Editing the Embroidery Pattern (Embroidering

Settings Screen)................................................ 201

Rotating the entire pattern .................................................. 201

Editing a Combined Pattern ............................. 202

Using the Camera to Connect Patterns ............ 206

Connecting three patterns................................................... 206

Changing the position of a sticker....................................... 212

Connecting rotated patterns................................................ 214

Connecting patterns to be joined along an edge ................. 216

Resume feature................................................................... 218

Chapter6 BASIC SETTINGS AND HELP

FEATURE 219

Using the Settings Key...................................... 220

Understanding the settings screen ...................................... 220

Changing the display guides............................................... 223

Changing the thread color information ............................... 225

Selecting the thread color information

for “PES” format data .......................................................... 226

Changing the background colors of

the embroidery patterns or thumbnails ............................... 227

Specifying jumpstitch trimming /

“DST” jump codes for trimming ......................................... 227

Deleting short stitches ........................................................ 228

Specifying the remaining length of thread........................... 228

Changing the embroidery basting distance ......................... 229

Selecting the “Eco Mode” or “Shutoff Support Mode”......... 229

Changing the screen saver settings ..................................... 229

Setting the opening screen.................................................. 231

Specifying the spool stand LED setting ................................ 231

Adjusting the brightness of the sewing light ........................ 232

Changing the speaker volume ............................................ 232

Specifying thread sensor ..................................................... 233

Changing the pointer shape when a USB mouse is used ..... 233

Changing the units of measurements .................................. 234

Adjusting the brightness of the screen display..................... 234

Changing the language....................................................... 234

Using the Machine Operations Guide Key ....... 235

Viewing the operation guides ............................................. 235

Playing a tutorial video....................................................... 236

Playing MPEG-4 (MP4) videos............................................ 237

Chapter7 APPENDIX 239

Appliqué Sewing .............................................. 240

Sewing appliqué patterns ................................................... 240

Using a frame pattern to create appliqués (1)...................... 241

Using a frame pattern to create appliqués (2)...................... 242

Sewing Large-size (Split) Embroidery Patterns

.... 244

Helpful Tips for the Operation of the Machine

.... 247

Checking the thread tension of built-in patterns.................. 247

Sewing a pattern aligned with a mark on the fabric ............ 248

Color thread table .............................................................. 250

Colors of Tajima (.dst) embroidery data.............................. 250

Creating Beautiful Embroidery ......................... 251

Threads .............................................................................. 251

Stabilizers (backing) ........................................................... 251

Page 18

Hooping techniques ........................................................... 253

Fabric/stabilizer compatibility chart.................................... 254

Embroidery Patterns for the Optional

Jumbo Frame .................................................... 255

Using the Optional Cap Frame ......................... 259

Cap frame and its accessories............................................. 259

Types of caps ..................................................................... 260

Fabric precautions.............................................................. 261

Preparing to use the cap frame........................................... 262

Attaching the cap frame ..................................................... 266

Installing the embroidery frame holder............................... 273

Additional digitizing information........................................ 274

Using the Optional Bobbin Winder .................. 276

Precautions ........................................................................ 276

Optional bobbin winder and its accessories ....................... 276

Setting up the optional bobbin winder................................ 277

Connecting the AC adapter ................................................ 277

Winding the bobbin ........................................................... 278

Maintenance..................................................... 281

Cleaning the LCD............................................................... 281

Cleaning the machine surface ............................................ 281

Cleaning the hook .............................................................. 281

Cleaning around the needle plate ....................................... 282

Cleaning the bobbin case ................................................... 283

Cleaning the thread paths of the upper threads ................... 284

Oiling the machine ............................................................ 285

About the maintenance message ........................................ 286

Troubleshooting................................................ 287

On-screen troubleshooting ................................................. 287

Troubleshooting ................................................................. 288

Error messages.................................................................... 296

If the machine does not respond when a key is pressed ...... 304

Specifications ................................................... 305

Embroidery machine specifications .................................... 305

Upgrading Your Machine’s Software ................ 306

Upgrade procedure using USB media................................. 306

Upgrade procedure using computer ................................... 307

Index ................................................................ 308

Page 19

Chapter 1

GETTING READY

After unpacking the machine, first refer to “Accessories” on page 20, and check that all listed accessories are included. After checking that all accessories are included, the embroidery machine can be set up. The setup of the machine and the various preparations required before starting to sew are described in this chapter.

Names of Machine Parts and Their Functions ......... 18

Front view.................................................................................18

Right-side/rear view..................................................................19

Operation panel........................................................................19

Accessories.............................................................. 20

Included accessories .................................................................20

Optional Accessories............................................... 22

Setting Up the Machine........................................... 24

Setup and transporting precautions ..........................................24

Setup location ...........................................................................25

Setting up the machine .............................................................26

Remove the fixing plates ...........................................................27

Adjusting the operation panel position .....................................27

Preparing the thread guide assembly ........................................28

Preparing the spool stand..........................................................29

Attaching the embroidery frame holder ....................................30

Page 20

The names of the various parts of the sewing machine and their functions are described below. Before using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Front view

1 Thread tension knobs

Adjust the tension of the thread.

2 Needle bar case

Moves to the left and right to move the needle to the embroidering position.

3 Lower thread guide 4 Carriage

Attach the embroidery frame to the carriage. When the machine is turned on or when the machine is embroidering, the carriage moves forward, backward, left and right.

5 Hook cover/Hook

Open the hook cover, and then insert the bobbin case into the hook.

6 Thread guide A 7 Thread guide B 8 Thread guide C 9 Thread guide D 0 Spool stand

Put 10 thread spools to embroider.

A Operation panel B Built-in camera C Embroidery frame holder D Sewing light

The brightness of the sewing light can be adjusted in the settings screen.

E Upper thread guide F Thread guide pins G Middle thread guide H Feet

Use the feet to adjust the height of the legs.

Names of Machine Parts and Their Functions

Page 21

GETTING READY

Right-side/rear view

1 Touch pen holder

Use the touch pen holder to hold the touch pen when not in use.

2 SD card slot

Insert an SD card into the SD card slot in order to import/export embroidery pattern data.

3 USB port for media

In order to send patterns from/to USB media, plug the USB media directly into the USB port.

4 USB port for computer

In order to import/export patterns between a computer and the machine, plug the USB cable into the USB port.

5 Handwheel

Rotate the handwheel to move the needle up and down. Be sure to rotate the handwheel toward the LCD panel (counterclockwise).

6 Power supply plug

Insert the plug on the power supply cord into the power supply plug.

7 Main power switch

Use the main power switch to turn the machine ON (I) and OFF (

{).

Do not turn the power on soon after turning the power off. It is recommended that you wait 5 seconds before turning the power back on.

8 Ventilation slots

Operation panel

1 Start/Stop button

Press the start/stop button to start or stop the machine. The lighting status and color of the button changes depending on the operation condition of the machine.

2 Thread trimming button

Press the thread trimming button to trim both the upper and the bobbin threads.

3 Automatic needle-threading button

Press the automatic needle threading button to thread the needle.

4 Speaker 5 LCD (touch panel)

Touch the keys that appear on the touch panel to select and edit patterns and confirm various information.

Bottom

Lit in red : When the machine cannot start

sewing

Flashing in green : When the machine can start

sewing

Lit in green : While the machine is sewing

Flashing in orange : When the machine can cut the

thread

Off : When the machine is turned off

Page 22

The accessories listed below are included with this machine. Make sure to use the accessories designed for this machine.

Included accessories

After opening the box, check that the following accessories are included. If any item is missing or damaged, contact your authorized Baby Lock retailer.

Accessories

Part Name

Part Code

1. Accessory case

XC6482-051

2. Needle set × 2

XC6469-001

3. Prewound bobbin × 6

XC6368-051

4. Spool net × 10

S34455-000

5. Seam ripper

XF4967-001

6. Scissors

XF2052-001

7. Tweezers

XC6542-051

8. Touch pen

XA9940-051

9. Threader

XE8362-001

10. Needle changing tool

XF0793-001

11. Needle plate spacer × 2

XC6499-151

12. Spacer (on machine)

XF1978-001

13. Phillips screwdriver

XC6543-051

14. Standard screwdriver

X55468-051

15. Allen screwdriver

XC5159-051

16. Offset screwdriver

XC6545-051

17. Disc-shaped screwdriver

XC1074-051

18. Wrench 13 mm × 10 mm

XC6159-051

19. Oiler

XZ0206-051

20. Cleaning brush

X59476-051

21. Weight (L)

XC5974-151

22. USB cord clamp × 2

XE8396-002

23. Spool mat × 10

XC7134-051

24. Spool cap × 10

130012-054

Part Name

Part Code

Page 23

GETTING READY

25. USB cable

XD1851-051

26. Embroidery frame (extra-large) 200 mm (H) × 360 mm (W) (7-7/8 inches (H) × 14 inches (W))

ENF360

27. Embroidery frame (large) 130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

EPF180

28. Embroidery frame (medium) 100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))

EPF100

29. Embroidery frame (small) 40 mm (H) × 60 mm (W) (1-1/2 inches (H) × 2-3/8 inches (W))

EPF60

30. Embroidery sheet (extra large) 200 mm (H) × 360 mm (W) (7-7/8 inches (H) × 14 inches (W))

XE7158-101

31. Embroidery sheet (large) 130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

XC5721-051

32. Embroidery sheet (medium) 100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))

XC5759-051

33. Embroidery sheet (small) 40 mm (H) × 60 mm (W) (1-1/2 inches (H) × 2-3/8 inches (W))

XC5761-051

34. Embroidery positioning sticker sheets

BLSO-EPS

35.

Embroidery frame holder A (with white corner cover)

XE7374-001

36.

Embroidery frame holder B (with light gray corner cover)

XE7376-001

37. Instruction and reference guide

This manual

38. Scan frame

XG5300-001

Part Name

Part Code

39. Magnet × 6

XF9325-001

40. Quick reference guide

XG5987-001

41. Embroidery Design Guide

XG5992-001

42. Power cord

XE7256-001

CAUTION

• Be sure to use the included power cord for this machine. Using any other power cord may result in damage.

Memo

• The included touch pen can be stored in the

touch pen holder on the back of the operation panel. Refer to page 19.

Part Name

Part Code

Page 24

The following are available as optional accessories to be purchased separately.

Optional Accessories

Part Name

Part Code

Wide cap frame set (Refer to page 259.)

ENCFS

2. Wide cap frame

60 mm (H) × 360 mm (W) (2-3/8 inches (H) × 14 inches (W))

ENCF

Advanced cap frame 2 set

EPCF3

4. Advanced cap frame 2

60 mm (H) × 130 mm (W) (2-3/8 inches (H) × 5-1/8 inches (W))

EPCF-B

5. Advanced cap frame

50 mm (H) × 130 mm (W) (2 inches (H) × 5-1/8 inches (W))

EPCF-A

Mounting jig

EPCFJ

Cylinder frame set

BMP-CFS

8. Cylinder frame

80 mm (H) × 90 mm (W) (3 inches (H) × 3-1/2 inches (W))

BMP-CF

9. Quilt frame

200 mm × 200 mm (7-7/8 inches × 7-7/8 inches)

ENF200

10. Border frame

100 mm (H) × 300 mm (W) (4 inches (H) × 11-3/4 inches (W))

ENBF

11. Jumbo frame

360 mm (H) × 360 mm (W) (14 inches (H) × 14 inches (W))

ENJF

12.

Round frame set

ENRFS

13.

Round frame (∅100 mm (4 inches))

ENRF100

14.

Round frame (∅130 mm (5 inches))

ENRF130

15.

Round frame (∅160 mm) (6 inches))

ENRF160

16.

Embroidery frame holder C (with dark gray corner covers)

ENRF-ARMC

17. Flat frame

200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))

BMP-FF

18. Embroidery frame (extra-large) 200

mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))

EPF300

19. Clamp frame S straight set 24mm (H) × 45mm (W) (7/8 inch (H) × 1-3/4 inches (W))

ENCLFS1

20. Clamp frams S L&R set 24 mm (H) × 45 mm (W) (7/8 inch (H) × 1-3/4 inches (W))

ENCLFS2

Part Name

Part Code

Page 25

GETTING READY

21. Clamp frame M set 100mm (H) × 100mm (W) (4 inches (H) × 4 inches (W))

ENCF100

22. Compact frame set 70: 41mm (H) × 70mm (W) (1-5/8 inches (H) × 2-3/4 inches (W)) 50: 50mm (H) × 50mm (W) (2 inches (H) × 2 inches (W)) 44: 38mm (H) × 44mm (W) (1-1/2 inches (H) × 1-3/4 inches (W)) Portrait orientation: 33mm (H) × 75mm (W) (1-5/16 inches (H) × 2-15/16 inches (W))

ENCOMFS

23. Sleeve frame 200mm (H) x 70mm (W) (7-7/8 inches (H) x 2-3/4 inches (W))

ENSF

24. Embroidery table

ENTABLE

25. Embroidery Stand

ALSTAND

26.

Metal bobbin

100376-051

27.

Bobbin winder set (Refer to page 276.)

EPBW1

28.

USB mouse

XE4904-001

29.

Embroidery positioning sticker sheets

BLSO-EPS

Part Name

Part Code

Note

• Visit your nearest authorized Baby Lock retailer for a complete listing of optional accessories and embroidery cards available for your machine.

Memo

• Always use accessories recommended for this machine.

• All specifications are correct at the time of printing. Please be aware that some specifications may change without notice.

Page 26

The procedures for setting up the machine are described below. If the machine is not set up correctly, it may shake or produce loud noises and the embroidery will not be sewn correctly. An optional embroidery stand is also available.

Setup and transporting precautions

Setting Up the Machine

CAUTION

• The temperature of the operating environment should be between 5 °C (40 °F) and 40 °C (104 °F). If the machine is operated in an environment that is either too cold or too hot, the machine may malfunction.

• Do not use the machine in a location where it will be exposed to direct sunlight, otherwise the machine may malfunction.

• Set up the machine with it’s four adjustable feet completely in contact with the desk or table, so that the machine is level.

• Do not put anything under the embroidery machine that could block the ventilation slots found on the rear underside of the machine, in order to avoid the possibility of the machine’s motor overheating, resulting in a fire or in damage to the machine.

• The machine weight is approximately 42.5 kg (94 lb). The transporting or setting up of the embroidery machine should be performed by two people.

• When transporting the machine, be sure to have two people lift the machine from the bottom at the indicated slots (1). Lifting the machine from any other area may damage the machine or result in the machine falling, which could cause injuries.

• When lightning occurs, turn off the machine and unplug the power supply cord. Lightning may cause the machine to malfunction.

• Do not plug in the power supply cord until setup of the machine is completed, otherwise injuries may result if the start/stop button is accidentally pressed and the machine starts sewing.

• When lubricating the machine, wear protective eyeglasses and gloves to prevent the oil or grease from getting into your eyes or on your skin. Do not put the oil or grease into your mouth. Keep the oil and grease out of the reach of children.

• While attaching or detaching an embroidery frame or other included accessory or while maintaining the machine, be careful not to hit the machine with your body or any other part of it.

Page 27

GETTING READY

Setup location

Set up the machine in a location that meets the following requirements.

• Position the machine a minimum of 50 mm (2 inches) away from the wall

• Allow sufficient space around the machine

• Place no objects within the moving range of the embroidery frame

• Set-up machine near an electrical outlet

• Use a level and stable surface, such as a desk or stand.

• Use a surface that can support the weight of the machine (about 42.5 kg (94 lb))

• Allow open space around the ventilation slots found on the rear underside of the machine

785 mm (31 inches)

Minimum of 50 mm (2 inches)

589 mm (23-1/4 inches)

More than 350 mm (13-3/4 inches)

More than 210 mm (8-1/4 inches)

560 mm (22 inches)

More than 220 mm (8-3/4 inches)

CAUTION

• In order to prevent malfunctions or damage, do not set up the machine in a location exposed to the

following conditions.

Liquids, such as water Extreme dust

Direct sunlight

Insufficient space Blocked ventilation slots

Objects within the moving range of the

embroidery frame An unstable surface

Extremely high or extremely low

temperatures. The operating environment

should be between

5 °C (40 °F) and 40 °C (104°F).

Connection to extension cords or multiple adapters

Note

• For your safety: Since the machine weighs approximately 42.5 kg (94 lb), do not set it up on an unstable table or desk.

Page 28

Setting up the machine

When setting up the machine, adjust the legs so that the machine is steady.

Make sure that all packing tape affixed to the machine is peeled off and that all packing material is removed.

Set up the machine while making sure that there is sufficient space around it.

Adjust the legs so that the machine is steady.

Use the included wrench to loosen the lock nut on the leg that you wish to adjust.

1 Lock nut 2 Adjustable foot nut

→ The foot can be turned.

Use the included wrench to turn the adjustable foot nut on the foot.

Turning the nut in direction 1 lengthens the leg; turning the nut in direction 2 shortens the leg.

1 Adjustable foot nut

• Adjust all four legs so that they securely contact the desk or table, and the machine is level.

After adjusting the legs to the desired length, use the included wrench to tighten the nuts.

1 Lock nut

Press down on each corner of the embroidery machine to check that it is stable.

If it is still unstable, perform steps c through e again to adjust the legs.

Minimum of 50 mm (2 inches)

589 mm (23-1/4 inches)

More than 350 mm (13-3/4 inches)

More than 210 mm (8-1/4 inches)

560 mm (22 inches)

More than 220 mm (8-3/4 inches)

Page 29

GETTING READY

Remove the fixing plates

Using the included Phillips screwdriver, remove each of screws on the fixing plates.

1 Screws 2 Fixing plates

Adjusting the operation panel position

Adjust the orientation and angle of the operation panel so it can easily be operated.

Loosen 2 thumb screws to bring the operation panel forward.

1 Thumb screws

Adjust the operation panel to an easy-tooperate position, and then tighten the thumb screws.

Adjust the orientation of the operation panel.

Loosen the thumb screw, adjust the operation panel to an easy-to-view orientation, and then tighten the thumb screw.

1 Thumb screw

CAUTION

• Remove the fixing plates before turning on the machine, otherwise the machine may malfunction.

Memo

• After removing the fixing plates, be sure to

keep them to be used again. Before transporting the machine, consult your authorized Baby Lock retailer.

Page 30

Adjust the angle of the operation panel.

Loosen the 2 thumb screws behind the operation panel, adjust the operation panel to an easy-to-view angle, and then tighten the thumb screws.

1 Thumb screws

Preparing the thread guide assembly

Raise the thread guide assembly.

Loosen the two thumb screws on top of the thread guide assembly support.

1 Turn the screw counterclockwise three or four

times to loosen it.

Grab the grips on the thread guide assembly support and push toward the middle.

(Side view) (Top view)

Note

• Using the disc-shaped screwdriver

included, loosen and firmly tighten the five thumb screws.

CAUTION

• When setting up the thread guide assembly, set it up with the needle bar 6 position selected, otherwise the machine may malfunction. (Refer to “Moving and threading a selected needle bar” on page 62 for moving the needle bar.)

Page 31

GETTING READY

After the thread guide assembly support is extended and the thread guide assembly is raised to its highest position, tighten the two thumb screws to secure the thread guide assembly in place.

1 Thread guide assembly 2 Tighten screw. 3 Thread guide assembly support

Preparing the spool stand

Secure the spool stand in place for embroidering. Use the included disc-shaped screwdriver.

Loosen the thumb screw two or three turns, and then fold out the spool stand.

Rear view

1 Thumb screw 2 Spool stand

After the spool stand is fully opened up, tighten the thumb screw.

Rear view

→ Secure the spool stand in the opened position.

Note

• If the thumb screws are not loosened enough, it may not be easy to move the thread guide assembly support. Do not apply extreme force when moving the thread guide assembly support. Be sure that the thumb screws are loosened well enough before moving the part.

• Be sure to tighten each thumb screw well enough that the thread guide assembly support is secured.

Page 32

Attaching the embroidery frame holder

Attach the embroidery frame holder to the carriage.

Use the embroidery frame holder appropriate for the embroidery frame that you are using. (Refer to page 88 to 91.)

Remove the two thumb screws of the embroidery frame holder.

1 Thumb screws 2 Corner covers

Align the holes in the embroidery frame holder with the pins on the frame-mounting plate of the carriage.

1 Pins on the frame-mounting plate 2 Corner covers 3 Holes in the embroidery frame holder

Secure the embroidery frame holder with the two thumb screws removed in step

1 Thumb screws

This completes the preparation of the machine.

Note

• Each embroidery frame holder has different color of corner cover. Holder A: White corner covers Holder B: Light gray corner covers Holder C: Dark gray corner covers (Optional)

Note

• Using the disc-shaped screwdriver included, firmly tighten the thumb screws.

• Two types of embroidery frame holders are included with this machine. Embroidery frame holder A is used with the four included embroidery frames. (Refer to “Correctly Using the Embroidery Frames” on page 88 for the details.)

Page 33

Chapter 2

EMBROIDERING TUTORIAL

Operating Precautions............................................. 32

Power supply precautions .........................................................32

Needle precautions ...................................................................33

Checking the needle..................................................................33

Bobbin precautions ...................................................................33

Upper thread recommendations ...............................................34

Fabric recommendations...........................................................34

Display recommendations.........................................................34

Basic Procedures..................................................... 35

1. Installing the Bobbin ........................................... 36

Removing the bobbin case ........................................................36

Installing the bobbin .................................................................36

Installing the bobbin case .........................................................37

2. Turning ON the Machine .................................... 38

Setting your machine for the first time......................................39

Understanding the screens........................................................40

Screen overview........................................................................41

3. Selecting an Embroidery Pattern ......................... 43

Selecting an embroidery pattern ...............................................44

4. Editing the Embroidery Pattern............................ 45

5. Previewing the Image.......................................... 46

Checking a preview image ........................................................46

6. Hooping the Fabric in the Embroidery Frame...... 48

Hooping the fabric in the embroidery frame.............................48

Attaching the Embroidery Frame to the Machine

.... 50

Attaching the embroidery frame ...............................................50

Continuing to the embroidering settings screen ........................52

8. Specifying Embroidering Setting.......................... 53

9. Checking the Embroidery Area............................ 54

Temporarily stopping to check the area....................................54

Continuing to the embroidering screen.....................................54

10. Upper Threading............................................... 55

Checking the needle bars and thread colors .............................55

Upper threading........................................................................57

Threading the needle ................................................................61

11. Sewing the Embroidery...................................... 64

Starting embroidering ...............................................................64

Stopping embroidering..............................................................66

12. Removing the Embroidery Frame and Fabric ..... 68

Removing the embroidery frame............................................... 68

Removing the fabric ..................................................................68

13. Turning OFF the Machine ..................................69

Screen Quick Reference Guide ................................ 70

Key displays.............................................................................. 70

Understanding the pattern type selection screen ..................... 71

Understanding the pattern list screen....................................... 72

Understanding the pattern editing screen ................................ 73

Understanding the embroidering settings screen...................... 75

Understanding the embroidering screen .................................. 78

When You Have a Question, This May Help You.....80

Technical terms:....................................................................... 80

Patterns: ................................................................................... 80

Embroidering:........................................................................... 80

Useful external connection functions....................................... 81

USB mouse operation............................................................... 83

Page 34

The necessary points to ensure the correct operation of this machine are described below.

Power supply precautions

Be sure to observe the following precautions concerning the power supply.

Operating Precautions

WARNING

• Use only regular household electricity for the power source. Using other power sources may result in fire, electric shock, or damage to the machine.

• Make sure that the plugs on the power supply cord are firmly inserted into the electrical outlet and the power supply cord receptacle on the machine. Otherwise, a fire or electrical shock may result.

• Do not insert the plug on the power supply cord into an electrical outlet that is in poor condition.

• If any of the following occur, turn off the embroidery machine and unplug the power supply cord, otherwise a fire, an electric shock or damage to the machine may result.

• When you are away from the machine.

• After using the machine.

• If a power outage occurs while the machine is being operated.

• If the machine is not operating properly, for example, when there is a loose or cut connection.

• During electrical storms.

CAUTION

• Use only the power supply cord included with this machine.

• Do not plug this machine in with extension cords or multi-plug adapters with any other appliances plugged into them, otherwise a fire or an electric shock may result.

• Do not plug in or unplug the power supply cord with wet hands, otherwise an electric shock may result.

• When unplugging the power supply cord, be sure to first turn off the machine, and then grasp the plug when unplugging the cord. Pulling on the cord may damage it or result in a fire or an electric shock.

• Do not allow the power supply cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. In addition, do not place heavy objects on the cord or expose it to heat, otherwise damage to the cord, fire or an electric shock may result. If the power supply cord or its plug is damaged, stop using the machine, and then take the machine to your authorized Baby Lock retailer for repairs before continuing use.

• If the machine is not to be used for a long period of time, unplug the power supply cord, otherwise a fire may result.

• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or the plug must be removed from the socket-outlet.

• When servicing the machine or when removing covers, the machine must be unplugged.

•For U.S.A only This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the electrical outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper electrical outlet. Do not modify the plug in any way.

Page 35

EMBROIDERING TUTORIAL

Needle precautions

Be sure to observe the following precautions concerning the correct choice of needle for your machine.

Checking the needle

Sewing with a bent needle is extremely dangerous since the needle may break while the machine is operating.

Place the flat side of the needle on a flat surface and check that the distance between the needle and the flat surface is even. If the needle is bent or the tip of the needle is broken, replace the needle with a new one. (Refer to “Changing the Needle” on page 86.)

Bobbin precautions

Be sure to observe the following precautions concerning the bobbin.

CAUTION

• Your machine is designed to use household embroidery needles. The factory recommended needle is “HAX

130 EBBR” (Organ). Schmetz needles 130/705 H-E may be used as a substitute. Use of any other needles may break the needle or thread or damage the needle-threading mechanism or result in injuries.

• Never use bent needles. Bent needles can easily break, possibly resulting in injuries.

■ Good needle ■ Bad needle

If the distance between the needle and the flat surface is not even, the needle is bent. Do not use a bent needle.

1 Flat side 2 Needle type marking

3 Flat surface

CAUTION

• Only use prewound bobbin (COATS “L” type/TRU-SEW POLYESTER

“Filaments”) or bobbins designed specifically for this machine. Use of any other bobbin may result in injuries or damage to the machine.

• Use a bobbin thread that has been correctly wound, otherwise the needle may

break or the thread tension will be incorrect.

• When winding a bobbin, only use optional bobbin winder (refer to page 276) and metal bobbins (Part

code: 100376-053).

• When winding the bobbin, be sure to use cotton or spun polyester bobbin thread (between 74 dtex/2 and

100 dtex/2).

COATS

Polyester

Page 36

Upper thread recommendations

Be sure to observe the following recommendations concerning the upper thread.

Fabric recommendations

Be sure to observe the following recommendations concerning the fabric.

Display recommendations

Be sure to observe the following recommendations concerning the use of the operation panel display.

Note

• It is recommended that rayon or polyester embroidery thread be used (120 den x 2 / 135 dtex x 2 / 40

weight (in Americas and Europe) / #50 (in Japan)).

Note

• Your machine can embroider fabric that is up to 2 mm (5/64 inch) thick. If thicker fabric is sewn, the

needle may bend or break.

• When embroidering overlapping stitches, it is difficult for the needle to penetrate the fabric, possibly

resulting in the needle bending or breaking.

• Attach stabilizers to thin or stretch fabrics. (Refer to “Attaching Iron-On Stabilizer (Backing) to Fabric”

on page 92 for information.)

• When embroidering large pieces of fabric, make sure that the fabric is not caught in the carriage.

Note

• Only touch the display with your finger or included touch pen. Do not use a mechanical pencil,

screwdriver or any other hard or sharp object. In addition, do not apply extreme pressure to the display screen, otherwise damage to the display screen may result.

Page 37

EMBROIDERING TUTORIAL

Basic embroidering procedures are described below. Check the overall procedure below, before operating the embroidery machine.

The operations to embroider the pattern are described on the following pages. Although embroidering can continue without the pattern being edited or embroidering settings being specified, refer to page 174 for details on editing the patterns, and refer to page 127 for details on specifying embroidering settings. Descriptions of the keys and other information that appear in the main LCD screens are provided in the tables on pages 70 to 79. Use these tables for quick reference.

The various operating precautions that must be observed during the basic procedures are provided on pages 32 to 34. These precautions must be strictly observed in order for the machine to function properly. Make sure to read these precautions.

Basic Procedures

Step

Operation

Tutorial

Reference

Page

Operating

Precaution

Reference

Page

1 Install the bobbin. p. 36 p.33

2 Turn on the machine. p. 38 p.32

3 Select an embroidery pattern. p. 43

4 Edit the embroidery pattern. p. 45

5 Check the previewed image. p. 46

6 Hoop the fabric in the embroidery frame. p. 48 p. 34

7 Attach the embroidery frame to the machine. p. 50

8 Specify the embroidering settings. p. 53

9 Check the embroidery area. p. 54

10 Thread the upper threads. p. 55 p.34

Unlock the machine, then press the start/stop button to start embroidering. (Once embroidering is completed, the machine automatically stops.)

p. 64

Remove the embroidery frame, and then remove the fabric from the frame.

p. 68

13 Turn off the machine. p. 69

Page 38

When the machine is purchased, only the bobbin case is installed in the hook. Insert a bobbin wound with bobbin thread for embroidering. For precautions concerning the bobbin, refer to page 33.

Removing the bobbin case

Open the hook cover.

Pull the hook cover toward you.

Pull the thread picker toward you if it was not pulled toward the front.

1 Thread Picker

To gain access to the bobbin case easily, pull the thread picker toward front.

Grab the bobbin case latch, and remove the bobbin case.

1 Latch

■ Oiling the machine

After removing the bobbin case, apply oil to the machine. The race should be oiled. For details on oiling the machine, refer to “Oiling the machine” on page 285.

Installing the bobbin

Insert the bobbin into the bobbin case.

1. Installing the Bobbin

Note

• The machine does not indicate how much

bobbin thread is remaining. Before starting to embroider make sure that there is enough bobbin thread for the pattern.

• Make sure to clean the bobbin case every

time the bobbin is changed. For details on cleaning the bobbin case, refer to “Cleaning the bobbin case” on page 283.

Memo

• Thread picker is a device that is used to

hold the thread when beginning to sew or when trimming the thread.

CAUTION

• The thread picker can only be moved within a certain range. Do not pull it with extreme force.

Note

• Put a drop of oil onto the hook once a day before use.

Memo

• This embroidery machine is not equipped with a bobbin-winder. Use pre-wound (L type) bobbins.

• The optional bobbin winder (stand-alone type) and optional metal bobbins can also be used. (Refer to page 22, 276.)

Page 39

EMBROIDERING TUTORIAL

Pass the thread through the thread slit and under the tension-adjusting spring.

1 Thread slit 2 Tension-adjusting spring

Pull the thread about 50 mm (2 inches) through the opening in the tensionadjusting spring.

1 About 50 mm (2 inches).

For adjusting the tension of the bobbin thread, refer to “Adjusting the tension of the bobbin thread” on page 124.

Installing the bobbin case

Insert the bobbin case into the hook.

Insert the bobbin case while aligning the tab on the bobbin case with the notch in the hook, as shown in the illustration.

1 Tab 2 Notch

Fully insert the bobbin case until it snaps into place.

Close the hook cover.

Note

• Check that the thread winds off the bobbin clockwise as shown in the illustration. If the bobbin is installed with the thread winding off in the opposite direction, the embroidery will not be sewn correctly.

Page 40

Connect the power supply cord, and then turn on the embroidery machine. For precautions concerning the power supply, refer to page 32.

Plug the power supply cord into the machine.

Insert the plug of the power supply cord into a household electrical outlet.

Switch on the main power switch on the back of the machine to “I”.

→ The LCD screen comes on.

When the machine is turned on, the opening movie is played. Touch anywhere on the screen to display the message below.

Touch .

→ The pattern type selection screen appears, and the

start/stop button lights up in red.

The carriage moves to its initial position.

• If the number 1 needle bar is not already at the embroidering position, the needle bar case moves and the number 1 needle bar moves to the embroidering position.

2. Turning ON the Machine

CAUTION

• Be sure to use the included power cord for this machine. Using any other power cord may result in damage.

CAUTION

• Make sure to keep your hands and other items away from the carriage, in order to prevent any injuries.

Memo

• If the machine is turned off in the middle of

embroidering, the machine will automatically save the design position when turned on again. At that time, you will be asked if you wish to continue embroidering or begin a new operation. (Refer to “Resume Embroidering After Turning Off the Machine” on page 122.)

Page 41

EMBROIDERING TUTORIAL

Setting your machine for the first time

When you first turn on the machine, set the language and time/date to your language and local time/date. Follow the procedure below when the settings screen appears automatically.

Touch or and to set your local language.

Touch .

→ The carriage moves to its initial position.

The message screen, confirming if you want to set time/date, appears. To set the time/ date, touch ; to cancel the setting, touch .

→ The screen to set time/date appears.

1 Touch to display the time on the screen. 2 Set the year (YYYY), month (MM) and date (DD). 3 Select whether 24h or 12h setting to display. 4 Set the current time.

Touch to start using your machine.

Note

• The time/date you set may be cleared, if you don't turn on the machine for an extended period of time.

• Time setting is also available by pressing

on the bottom right of the LCD

screen.

Page 42

Understanding the screens

When the machine is turned on and is touched, the pattern type selection screen appears. The operations described below will be entered using the operation panel. For precautions concerning the use

of the touch panel, refer to page 34.

* The keys in the table above appear and can be used in most of the screens described later in this manual.

No. Display Key Name Function

Reference

Page

1 Home key

Touch this key to cancel all operations previously performed and return to the initial pattern group selection screen.

–

Pattern display

area

This area displays the selected pattern. p. 223

–

Embroidering

area line

Shows the available embroidering area for the attached embroidery frame. The embroidery frame indications, the grid lines and other display settings can be specified from the machine settings screen.

p. 223

Machine

operations guide

key

Touch this key to check a machine operation. p.235

Needle bar/

Frame move key

Touch this key to move or thread a selected needle bar, to position the carriage, or to oil the machine so the embroidery frame can easily be removed or attached.

p.62, 88

6 Clock key Touch this key to set the clock to your local time. p.39

7 Settings key

Touch this key to change the embroidery machine settings.

p. 220

Page 43

EMBROIDERING TUTORIAL

Screen overview

The basic operation flow is shown below.

In the pattern type selection screen, select a pattern type. (Refer to page 43, 71.)

In the pattern list screen, select the pattern. (Refer to page 43, 72.)

1 Touch this key to return to the pattern type

selection screen.

2 Touch this key to continue to the pattern editing

screen.

In the pattern editing screen, edit the pattern. (Refer to page 45, 73.)

1 Touch this key to return to the pattern type

selection screen and add another pattern.

2 Touch this key to continue to the embroidering

settings screen.

In the embroidering settings screen, if it is a combined pattern, edit the entire pattern, specify the embroidering settings and check the embroidery area. (Refer to page 53, 75.)

1 Touch this key to return to the pattern editing

screen.

2 Touch this key to continue to the embroidering

screen.

Page 44

In the embroidering screen, check the thread colors assigned to the needle bars, and then install

the upper threads. Touch to unlock the machine so that the start/stop button starts flashing in green. The embroidery machine is now ready to begin sewing.

1 Touch this key to return to the embroidering

settings screen.

2 Unlock key

After the embroidery pattern is sewn, a “Finished embroidering” message screen appears. Touch

to return to the embroidering settings

screen. (Refer to page 53, 75)

1 2

Page 45

EMBROIDERING TUTORIAL

As an example, we will select the pattern shown at the right.

In the pattern type selection screen, select a pattern category (type).

Pattern type selection screen (For details on the keys and other information on the screen, refer to page 71.)

1 Pattern type keys 2 Touch to retrieve the saved patterns.

In the pattern list screen, search for the desired pattern, and then touch the key for the pattern.

Pattern list screen (For details on the keys and other information on the screen, refer to page 72.)

1 Displays a preview image. 2 Pattern keys

■ Checking a preview image from the pattern list screen

Touch to preview the image prior to selecting.

Touch to return to the pattern list screen.

3. Selecting an Embroidery Pattern

Page 46

Selecting an embroidery pattern

Touch to select the embroidery patterns category.

→ The embroidery pattern categories appear.

• Sub-category keys may appear for some pattern categories. Touch the key for the sub-category containing the desired pattern.

Select an embroidery pattern category.

Touch the desired pattern category.

→ The pattern list screen appears.

Touch the desired pattern.

In this case, touch .

After a pattern is selected, the following appear:

1 Vertical length of the pattern 2 Horizontal width of the pattern 3 Number of thread color changes 4 Thumbnail size selection key

The size of the pattern thumbnails can be set to large, medium or small.

5 These keys can be used to change the pattern size

or to flip the pattern horizontally. The functions may be used differently depending on the type of pattern that is selected.

(Refer to “Flipping a pattern horizontally” on page 177.)

• If the wrong pattern was selected or you wish to select a different pattern, touch the desired pattern.

Touch to display the next screen.

This confirms the pattern selection.

→ The pattern editing screen appears.

Page 47

EMBROIDERING TUTORIAL

From this screen, the pattern can be edited. Pattern editing screen (For details on the keys and other information on the screen, refer to page 73.)

1 Shows the size of the embroidery pattern currently

displayed in the pattern display area. The top value shows the height and the bottom value shows the width. If the embroidery pattern consists of multiple patterns that have been combined, the size of the entire pattern, including all patterns, is shown.

2 Highlights the sizes of embroidery frames that can

be used to sew the currently selected embroidery pattern.

3 Shows the size of the currently selected

embroidery pattern. The top value shows the height and the bottom value shows the width.

4 Touch to edit the pattern. 5 Touch this key to delete the pattern, for example, if

the wrong pattern was selected. No pattern is selected and the pattern type selection screen appears.

6 Displays a preview image. 7 Scans the fabric to align the embroidery position. 8 Touch to change the size of the on screen

embroidery image presentation.

9 Shows the number of thread color changes for the

currently selected embroidery pattern

0 Continues to the next screen.

In this example, we will not edit the pattern. Without performing any editing operations, continue to confirm the pattern.

4. Editing the Embroidery Pattern

Memo

• If the embroidery frame holder is not attached to the machine, the embroidering area will not display the correct frame size. (Refer to page 50.)

Page 48

You can view an image of the completed pattern within the embroidery frame.

Checking a preview image

Display the preview image to check that the embroidery will be sewn as desired.

Touch .

→ The preview image is displayed.

1 Touch to display the pattern enlarged. Touch

to display the pattern reduced.

Touch or to select the type of embroidery frame holder, and then select the embroidery frame you are going to use.

• After determining the type of embroidery frame holder and size of embroidery frame that are best for your embroidery, change the embroidery frame holder and embroidery frame that are installed. The machine will automatically detect the embroidery frame holder and embroidery frame and change the display.

5. Previewing the Image

Memo

• A preview image in a landscape orientation cannot be rotated to a portrait orientation, even if there is space at the top and bottom.

Page 49

EMBROIDERING TUTORIAL

Touch to check the embroidering order.

→ The stitch simulator screen appears.

1 Select the simulation speed. Touch , or

to change the speed. The speed can even be

changed while the simulation is running.

2 Operation keys

: Touch to start the simulation at the set

speed.

: Touch this key while the simulation is

running to pause it. Touch to continue the simulation.

: Touch this key while the simulation is

running or paused to stop it and return to the condition before it was started.

• Touch to return to the embroidery frame holder/ embroidery frame selection screen.

Touch to return to the previous screen.

1 2

Memo

• The embroidery can be sewn while the preview image is displayed in the embroidering screen. If the preview image is displayed in any screen other than the embroidering screen, the embroidery cannot be sewn.

Page 50

After selecting the pattern to be embroidered, check which embroidery frames can be used to sew the pattern. Select the appropriate frame, and hoop the fabric and stabilizer in the embroidery frame. (Refer to “Attaching Iron-On Stabilizer (Backing) to Fabric” on page 92.) For precautions concerning the fabric, refer to page 34.

Hooping the fabric in the embroidery frame

Select an embroidery frame.

From the sizes of embroidery frames indicated in the screen, select the embroidery frame that you wish to use.

Embroidery frames that can be used appear lighter

( ) embroidery frames that cannot be used appear

darker ( ).

■ Embroidery frame types

There are four sizes of embroidery frames included with this machine, which are used with the included embroidery frame holder A. For details on the uses for each frame, refer to “Correctly Using the Embroidery Frames” on page 88.

If you use any of the optional embroidery frames, the following icons appear in the screen.

: Embroidery frame holder B

: Embroidery frame holder C

: Embroidery frame holder D

: Embroidery frame holder E

6. Hooping the Fabric in the Embroidery Frame

Note

• If the fabric is not taut, the pattern may be misaligned or the fabric may pucker. Follow the procedure described below to firmly stretch the fabric in the embroidery frame so that the fabric is not loose. In addition, be sure to work on a level surface when putting the fabric in the embroidery frame.

Memo

• If the embroidery frame holder is not attached to the machine, the embroidering area will not display the correct frame size. (Refer to page 50.)

Icon Name

Embroidering area

Extra-large embroidery frame

200 mm (H) × 360 mm (W)

(7-7/8 inches (H) × 14 inches (W))

Extra-large embroidery frame (optional)

200 mm (H) × 300 mm (W)

(7-7/8 inches (H) × 11-3/4 inches (W))

Large embroidery frame

130 mm (H) × 180 mm (W)

(5-1/8 inches (H) × 7-1/8 inches (W))

Medium embroidery frame

100 mm (H) × 100 mm (W)

(4 inches (H) × 4 inches (W))

Small embroidery frame

40 mm (H) × 60 mm (W)

(1-1/2 inches (H) × 2-3/8 inches (W))

CAUTION

• If embroidery frames other than the four included frames or recommended optional frames are used, the embroidery frame may hit the presser foot and damage the machine, or cause injury to the user. (See “Correctly Using the Embroidery Frames” on page 88 for the details about the embroidery frames.)

Note

• The embroidery frame indicators show all

embroidery frame sizes in which the embroidery pattern can be sewn. Be sure to use an embroidery frame of the most suitable size. If the embroidery frame that is too large is used, the pattern may be misaligned or the fabric may pucker. (Refer to “Correctly Using the Embroidery Frames” on page 88.)

Icon Name

Embroidering area

Page 51

EMBROIDERING TUTORIAL

■ Hooping fabric in the small embroidery frame

The procedure for hooping fabric in the small embroidery frame is described below. The same procedure is used to hoop the fabric in the medium embroidery frame. For details on hooping fabric in the other included embroidery frames, refer to “Hooping the Fabric” on page 93.

Loosen the screw on the outer frame.

1 Screw

Place the fabric with the right side up on top of the outer frame.

• The outer frame does not have a front or back side. Either side can be used as the front.

• In order to prevent shrinkage of the stitching or misaligned patterns, we recommend that iron-on stabilizer (backing) be used for embroidering. (Refer to “Attaching Iron-On Stabilizer (Backing) to Fabric” on page 92.)

Press the inner frame into the outer frame.

• Be sure that there are no wrinkles in the fabric after it is positioned in the embroidery frame.

Lightly tighten the screw, and then pull the edges of the fabric.

Securely tighten the screw, and then check to make sure that the fabric is taut.

• After securing the fabric, lightly tapping it should produce a drum-like sound.

• Firmly clamp together the inner and outer frames so that the bottom of the inner frame is lower than the bottom of the outer frame.

1 Inner frame 2 Outer frame 3 Bottom of inner frame

• Using the included disc-shaped screwdriver, firmly tighten the screw.

1 Disc-shaped screwdriver

The amount that the fabric is stretched and the use of stabilizer material differ depending on the type of fabric being embroidered. Try various methods to achieve the best embroidering results. (Refer to “Hooping techniques” on page 253.)

Page 52

After hooping the fabric in the embroidery frame, attach the frame to the embroidery machine. Embroidery frame holders A and B are included accessories with this machine. Install embroidery frame holder A when an included embroidery frame is to be used. (See “Correctly Using the Embroidery Frames” on page 88 for the details about the embroidery frame holders.)

Attaching the embroidery frame

Adjust the width of the embroidery frame holder to the size of the embroidery frame, and then attach the embroidery frame to the machine. As an example, the procedure for attaching the small embroidery frame is described below.

1 Left arm of embroidery frame holder

Move the arm of the embroidery frame holder to the left or right to adjust it to the size of the embroidery frame.

2 Clip on embroidery frame holder.

Insert the embroidery frame into the clips on the embroidery frame holder.

3 Positioning pin 4 Holes 5 Positioning slots

Loosen the two thumb screws on the embroidery frame holder.

If the screw is too tight, please use the included discshaped screwdriver.

1 Left arm 2 Thumb screws

→ The left arm of the embroidery frame holder can be

moved.

• Only loosen the thumb screws a maximum of 2 turns counterclockwise. Do not remove the screw.

7. Attaching the Embroidery Frame to the Machine

CAUTION

• If the embroidery frame is not correctly attached it may hit the presser foot and damage the machine, or cause injury to the user.

• When attaching the embroidery frame, make sure that the start/stop button is lit in red. If the start/stop button is flashing in green, the embroidery machine may start sewing. If the embroidery machine accidentally starts operating, injuries may result.

• When attaching the embroidery frame, make sure that the embroidery frame does not hit any other part of the embroidery machine.

Note

• Before attaching the embroidery frame, check that there is enough thread in the bobbin.

Page 53

EMBROIDERING TUTORIAL

Move the left arm to align the screw on the right side with the mark for the embroidery frame to be installed, and then tighten the thumb screws.

For this example, align with mark 5.

1 Mark for extra-large embroidery frame

200 mm (H) × 360 mm (W) (7-7/8 inches (H) × 14 inches (W))

2 Mark for extra-large embroidery frame

200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W)) (optional)

3 Mark for large embroidery frame

130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

4 Mark for medium embroidery frame

100 mm (H) × 100 mm (W) (4 inches (H) × 4 inches (W))

5 Mark for small embroidery frame

40 mm (H) × 60 mm (W) (1-1/2 inches (H) × 2-3/8 inches (W))

→ The embroidery frame holder is ready for the

embroidery frame to be attached.

Hold the embroidery frame level, and then simultaneously align both the left and right mounts with the embroidery frame holder clips.

• The inner frame should be on top.

Insert the embroidery frame until it snaps into place.

1 Make sure that the pins on the left and right arms

of the embroidery frame holder fit into the positioning slot and hole on the embroidery frame.

Note

• Please firmly tighten the two thumb screws with included disc-shaped screwdriver. If the thumbscrews are not tightened, any of the following problems may occur.

• The machine will detect the embroidery frame size incorrectly.

• The starting position for the embroidery frame is misaligned.

• The embroidery pattern is misaligned.

Note

• Attach the embroidery frame to place the needle plate under the embroidering area otherwise the embroidery frame hits the needle plate.

1 Needle plate

• If the outer frame is on top, as shown below, the embroidery frame is incorrectly attached.

Page 54

Continuing to the embroidering settings screen

Press .

→ The embroidering settings screen is displayed.

Page 55

EMBROIDERING TUTORIAL

From this screen, the entire pattern can be edited and embroidering settings can be specified. In addition, the embroidering position can be checked and a pattern can be saved for later use. Embroidering settings screen (For details on the keys and other information on the screen, refer to page 75.)

1 Shows the size of the pattern in the pattern display

area.

2 Displays a preview image. 3 The image on fabric hooped in an embroidery

frame can be scanned with the built-in camera and displayed as a background for the pattern. After being scanned, the background image can be hidden, or the image can be saved on external memory.

4 Image on the Design Page shows image size,

rotation, number of thread changes and measured position of image within the embroidery area.

5 Touch for additional editing functions. 6 Returns to the pattern editing screen. 7 Touch to store the pattern in memory. 8 The embroidering area guide in the pattern display

area indicates the size of the embroidery frame that is actually installed.

9 Touch to check the needle drop point on the LCD

screen using the camera function.

0 Touch these keys to specify how the pattern will

be embroidered.

A Continues to the next screen B Touch to check the embroidering area.

In this example, we will not specify any of the embroidering settings. Continue with the next operation.

8. Specifying Embroidering Setting

6 7

Note

• Available keys are not the same if you set “Manual Color Sequence” to “ON” in the settings screen. For details on the keys and other information on the screen, refer to page 77.

Memo

• If the embroidery frame is not positioned correctly when continuing to the embroidering settings screen, the embroidery frame is moved to the correct position at the same time that the embroidering settings screen is displayed. (Refer to “Moving to the correct position” on page 97.)

Page 56

Check the embroidery area to make sure that the embroidery will be sewn in the desired location and will not be misaligned and that the embroidery frame will not hit the presser foot. If the embroidery frame is not correctly positioned, it moves to the correct position, and then the embroidering position is indicated.

Touch .

→ The presser foot is lowered and the embroidery

frame moves to show the embroidery area.

The corners of the octagon showing the embroidery area for the pattern are indicated by changing direction.

Carefully watch the movement of the embroidery frame and check that the embroidery is sewn in the desired location and that the embroidery frame does not hit the presser foot.

Temporarily stopping to check the area

The embroidery frame can be temporarily stopped at a desired position or the checking of the embroidering area can be stopped.

When the embroidery frame moves to the desired position, touch

again.

→ The embroidery frame stops moving, and the next

screen appears.

1 Touch to continue moving the frame. 2 Touch to stop checking the embroidering area.

To continue moving the embroidery frame,

touch . To stop checking the

embroidering area, touch .

Continuing to the embroidering screen

After finishing the necessary operations in the embroidering settings screen, continue to the

embroidering screen.

Touch .

→ The embroidering screen appears.

9. Checking the Embroidery Area

Note

• If you are embroidering a large project such as a jacket or curtains, using the flat, quilt or jumbo frame, your embroidering may be interrupted by the presser feet not in use catching on the fabric outside of the design area. Try to stitch the design as close to the center of the embroidery frame, using needle bars 3 through 7, keeping the head of the machine as centered as possible. (Refer to page 110 or 132 to select the needle bar).

Page 57

EMBROIDERING TUTORIAL

Check the embroidering screen for information on which needle bars should be threaded with which thread colors, and then thread the upper threads.

Checking the needle bars and thread colors

In the embroidering settings screen, touch to display the embroidering screen. Check the thread colors in this screen.

Change thread spools message will appear if the thread spools from the previous embroidery project need to be changed. If you set “Manual Color Sequence” to “ON” in the settings screen, the message does not appear even if the thread spools need to be changed. (Refer to “Selecting/Managing Thread Colors for Each Needle Bar (Manual Color Sequence)” on page 132.)

Embroidering screen (For details on the keys and other information on the screen, refer to page 78.)

1 Thread information for the first to tenth needle

bars

2 If no thread color name is displayed, that needle

bar has not been used. If a thread color had been assigned to the needle bar on a previously sewn design, the needle bar will show the previously assigned color.

3 Change thread spools message. (Refer to

page 114.) This message appears when it is necessary for the

thread spools to be changed. If 4 is not touched to close the message, embroidering

cannot continue.

5 Thread color 6 Needle bar number 7 Thread color name or number

If the thread color number (#123) is selected in the settings screen (Refer to “Changing the thread color information” on page 225), the thread brand will also displayed.

Thread with the color name that appears beside each needle bar number is threaded on that needle bar. For the screen shown

If there is no name beside the needle bar number, that needle bar is not used. For this example, needle bar 10 is not used.

10. Upper Threading

Memo

• The thread information for the thread spool to be changed appears framed in red. When the automatic needle-threading button is pressed, the frame disappears.

1: LIME GREEN 6: WISTERIA VIOLET 2: MOSS GREEN 7: VIOLET 3: CARMINE 8: WHITE 4: RED 9: HARVEST GOLD 5: MAGENTA

Page 58

Touch .

→ The screen indicating that the spools be changed is closed.

• In addition to checking the thread colors, information such as the number of stitches and the sewing time can be checked and various embroidering settings can be specified in the embroidering screen.

1 The embroidering progress is shown by the red

mark in the bar. Touch to display (in the indicator) only the thread color being embroidered.

2 Shows the number of thread color changes, the

number of stitches, the embroidering time and the length of time until the machine will stop.

3 Shows the thread colors, embroidering order and

number of the needle bar assigned to the thread colors. A red triangle appears beside the thread color being embroidered. In addition, the box changes to gray when embroidering is finished.

4 Touch and to view the embroidering order

and needle bar number for thread colors that cannot be seen in the screen.

5 Use these keys to return to the embroidering

settings screen.

6 When starting the machine or cutting the threads,

touch this button to unlock the machine, and then press the start/stop button or thread trimming button.

7 Touch a key to move the selected needle bar to

the sewing position. Use when threading the needle with the automatic needle-threading mechanism.

1 2

Note

• Available keys are not the same if you set “Manual Color Sequence” to “ON” in the settings screen. (Refer to page 78 for details on the keys and other information on the screen.)

CAUTION

• When (unlock key) in the embroidering screen is touched, the start/stop button begins flashing in green and the embroidery machine can start sewing. If the upper threading is being performed or the needle is being threaded, be careful that the embroidery machine is not accidentally started, otherwise injuries may result.

Page 59

EMBROIDERING TUTORIAL

Upper threading

Use machine embroidery thread to thread the needle bars in order, starting with needle bar 1.

On the spool pin, place a spool with the thread color specified for the corresponding needle bar.

• Check that the spool stand has been completely opened.

• When using small spools of thread, be sure to place the included spool mat on the spool pin before placing the spool on the pin.

• Place the thread in the center of the spool stand so that the thread feeds off of the spool correctly and does not get tangled around the spool pin directly under the thread spool.

CAUTION

• When threading the upper thread, carefully follow the instructions. If the upper threading is not performing correctly, the thread may break or become tangled, causing the needle to bend or break.

Note

• It is recommended that rayon or polyester

machine embroidery thread be used (120 den/2, 135 dtex/2, 40 weight (in Americas and Europe), #50 (in Japan)).

Memo

• The path that the embroidery machine

should be threaded is indicated by a line on the machine. Be sure to thread the machine as indicated.

Page 60

• Use spool cap on all spools of thread shorter than the height of the spool pin.

1 Spool mat 2 Small spool 3 Spool cap

The numbers indicate the thread path for each of the numbered needle bars. Be very careful to correctly thread the needle bars.

Pass the thread of a specified color through the holes on the thread guide, making sure that you have the thread color matched to the coordinating needle bar. Pass the thread from spool pins 1, 3, 5, 6, 8 and 10 through the holes in both thread guides A and B. Pass the thread from spool pins 2, 4, 7 and 9 through the hole in thread guide B only.

1 Thread guide A (There are 6 holes in this thread

guide)

2 Thread guide B (There are 10 holes in this thread

guide)

Pass the thread through the hole (with the corresponding needle bar number) in thread guide C, then through the corresponding hole in thread guide D. As an example, the threading for spool pin 1 is shown.

1 Thread guide C 2 Thread tension lever 3 Holes in thread guide C 4 Thread guide D

Note

• Before threading, make sure to slide the thread tension lever to the left so that the holes in thread guide C are fully open.

• After all upper threading is finished, be sure to slide the thread tension lever back to the right. Embroidering with the holes in thread guide C fully open may cause the thread to become tangled or break.

1 Thread tension lever 2 Holes in thread guide C

Page 61

EMBROIDERING TUTORIAL

Pass the thread through the hole in the number 1 upper thread guide and pull the thread toward you.

1 Hole in upper thread guide

Hold the thread with both hands, and then pass it under the guide plate from the right.

1 Upper thread guide plate

Wind the thread clockwise once around the number 1 thread tension disc.

1 Thread tension disc 2 Pass thread in a clockwise direction at this

location on the tension disks.

• Make sure that the thread is securely positioned in the thread tension.

Lead the thread along the thread path and around the correct thread guide pins as indicated on the machine, then slip the thread under the number 1 middle thread guide plate from the right.

1 Thread guide pin 2 Middle thread guide

• The path from the upper thread guide around the thread tension disc and to the middle thread guide (steps

f through g) may differs depending on the

spool number. Passing the thread through the thread guide pins is designed to prevent the thread from becoming tangled. Be sure to follow the thread path indicated on the machine.

Note

• All thread tension discs are threaded in clockwise direction.

Page 62

Pass the thread along the number 1 slot to pass it through the number 1 take-up lever hole from right to left.

1 Thread take-up lever

Pass the thread down through the slot to the lower thread guide, and then through the hole in the number 1 lower thread guide.

1 Hole in lower thread guide

Use the included threader to pass the thread into the number 1 needle bar thread guide.

1 Needle bar thread guide 2 Threader

When all upper threading is complete, be sure to slide the thread tension lever for thread guide C to the right, closing the holes in the thread guide.

1 Thread tension lever 2 Holes in thread guide C

Page 63

EMBROIDERING TUTORIAL

Threading the needle

Use the automatic needle-threading mechanism to thread the needle.

Press the automatic needle-threading button.

→ The hook on the automatic needle-threading

mechanism passes through the eye of the needle.

→ The spool thread indicator is turned off.

Pull out about 150 mm (6 inches) of thread. Allow thread to relax and eliminate any stress on the thread. Then, as shown in the illustration, pass the thread under the fork of the automatic needle-threading mechanism from the right, and then catch the thread with the hook that passes through the eye of the needle.

1 Hook 2 Fork

Pass the thread under the guide on the presser foot.

1 Guide on presser foot 2 Notch in guide on presser foot

• Make sure that the thread securely passes through the notch in the guide on the presser foot.

Securely pass the thread through the groove in the thread cutter, and then lightly pull the thread to cut it.

1 Groove in thread cutter

CAUTION

• If the needle is not fully inserted, the hook of the automatic needle-threading mechanism will not pass through the eye of the needle during automatic needle threading, and the hook may bend or the needle cannot be threaded.

• If the hook of the automatic needle-threading mechanism is bent or damaged, contact your authorized Baby Lock retailer.

• While the hook of the automatic needlethreading mechanism is passed through the eye of the needle, do not rotate the handwheel, otherwise the automatic needlethreading mechanism may be damaged.

Note

• To avoid damage, the automatic needle-

threading mechanism may return to the back position when you turn the handwheel.

• The automatic needle-threading mechanism

can thread one needle at the sewing position. When this mechanism is used, be sure that the needle bar that you want to thread is positioned as the sewing position, otherwise the automatic needle-threading mechanism cannot be used at the particular needle. If the needle bar is not at the sewing position, move it there. (Refer to page 62.)

Note

• When catching the thread with the hook, be careful that the thread does not become loose.

Page 64

Press the automatic needle-threading button.

• The threader moves back away from the needle. The thread is pulled through the needle eye.

• The wiper comes out and catches the thread between the needle and the threader.

• The threader goes back to the original home position.

This completes the upper threading for needle bar 1.

Thread the remaining needle bars in the same way.

■ Moving and threading a selected needle bar

You can move and thread a selected needle bar to the embroidering position at any time.

Touch .

→ The needle bar move screen appears.

Touch the key for the needle bar that you wish to move or thread.

→ The selected needle bar moves to the position of

embroidery.

Note

• If the thread is not correctly passed through the groove in the thread cutter, the message “Wiper error” appears and the needle cannot be threaded. Be sure to securely pass the thread through the groove.

• If enough thread is not pulled out, the thread cannot be pulled through the thread cutter.

Note

• If the needle bar to be threaded is not moved to the embroidering position, the needle cannot be threaded with the automatic needle-threading mechanism. For the remaining needle bars, perform the following operation to move the needle bar to the embroidering position before trying to thread the needle.

Page 65

EMBROIDERING TUTORIAL

Press the automatic needle-threading button while the needle bar move screen appears.

Touch to return to the previous screen.

■ Moving the needle bar to be threaded to the position of embroidery

You can move the needle bar in the embroidering screen.

Touch the key for the needle bar that you wish to thread.

→ The selected needle bar moves to the embroidering

position.

■ Using the spool net

When using metallic thread or any other strong thread, place the included spool net over the spool before sewing. If the spool net is too long, fold it once to match the size of the spool before placing it over the spool. It may be necessary to adjust thread tension when using the spool net.

1 Spool net 2 Thread

Memo

• In the embroidering screen, a blue frame appears around the thread information box of the selected needle bar.

Note

• If the thread is not taut, it may come out of the thread tension disc. After upper threading is finished, check again to make sure that the thread is correctly passed into the thread tension disc. (Refer to step

f on

page 59.)

Memo

• When changing one of the upper thread colors, it is easy to re-thread by cutting the thread currently being used between the spool and the thread guide above the spool. Place the new spool on the spool pin and tie the end of the new thread to the end of the previous thread. Then pull the thread through to the needle. (Refer to page 115.)

Page 66

Now, the embroidery machine is ready to begin sewing. When the machine starts sewing, the presser foot is automatically lowered, the necessary thread trimming operations at the end of stitching are performed, the threads are changed as necessary while the embroidery is sewn, and the machine stops when the end of the stitching is reached.

■ Locking mechanism

For safety reasons, this embroidery machine is equipped with a locking function. Normally, the embroidery machine is locked (it cannot start sewing). Unless the machine is unlocked, it cannot start sewing. If the embroidery machine is not started within 10 seconds after unlocking it, it automatically returns to being locked. The start/stop button shows whether or not the embroidery machine is locked. If the start/stop button lights up in red, the machine is locked. If the start/stop button flashes in green, the machine is unlocked.

Starting embroidering

Touch to unlock the embroidery machine.

→ The start/stop button begins flashing in green and

the embroidery machine can be started.

• If the start/stop button is not pressed within 10 seconds after unlocking the embroidery machine, the machine becomes locked again.

11. Sewing the Embroidery

CAUTION

• For safety reasons, the embroidery machine must not be left unattended while it is sewing.

• While the machine is in operation, pay special attention to the needle location. In addition, keep your hands away from all moving parts such as the needle, needle bar case, thread take-up lever and carriage, otherwise injuries may result.

Note

• Make sure that there are no objects within

the moving area of the embroidery frame. If the embroidery frame hits another object, the pattern may become misaligned.

Page 67

EMBROIDERING TUTORIAL

Press the start/stop button.

Press the start/stop button while it is flashing in green. If the start/stop button returns to being lit in red, perform this procedure again from step a.

→ The start/stop button lights up in green and begins

sewing the first color.

1 The thread color for the needle bar that is currently

being used for sewing or will soon be used for sewing appears at the top of the thread color sequence display. The remaining thread colors are listed in the sewing order, starting from the top.

2 A blue frame appears around the thread

information box of the needle bar currently being selected.

• While the embroidery machine is sewing, the point being sewn is indicated by the green crosshairs in the pattern display area. In addition, the number of stitches and the time count up.

After sewing of the first color is finished, the machine automatically stops and trims the thread. The needle bar case moves to the 2nd color position and sewing of the 2nd color begins.

→ The thread color display in the screen continues to

the second color, and the thread information for the second needle bar is surrounded by the blue frame.

This continues until the last color is sewn, and the embroidery machine automatically stops.

→ The embroidering settings screen reappears.

→ The start/stop button lights up in red.

• No thread trimming operations at the beginning of stitching and at the end of stitching are necessary.

Page 68

■ Continuing embroidering

To sew the same pattern again, touch .

→ The embroidering screen appears so the same

pattern can be sewn again.

To select a new pattern, touch .

→ The pattern type selection screen appears.

Stopping embroidering

The machine can be stopped during sewing.

■ Temporarily pausing

Press the start/stop button.

→ The machine stops and the start/stop button lights up

in red.

• Embroidering can also be stopped by touching an area displaying the pattern.

• The thread is not trimmed.

• To continue sewing, after checking that the upper thread is taut, touch the unlock key, and then press the start/stop button.

Note

• Automatic Lock stitching can be set so that it is sewn at the beginning of the embroidery, when starting to sew after changing thread colors, and when trimming the thread. (Refer to “Automatic Lock Stitch Setting” on page 134.)

• The sewing speed can be changed, even while the pattern is being sewn. (Refer to “Maximum Sewing Speed Setting” on page 139.)

Memo

• If the Reserve Stop key is touched while embroidery is being sewn, the machine stops sewing before the next color begins. (Refer to “Stopping the machine at the next color change” on page 140.)

• Before starting to sew, the machine can be set to stop at any thread color change. (Refer to “Specifying pause locations before embroidering” on page 140.)

Page 69

EMBROIDERING TUTORIAL

■ Resume sewing after the machine was turned off

Press the start/stop button.

→ The embroidery machine stops and the start/stop

button lights up in red.

• The thread is not trimmed.

Touch to unlock the embroidery machine.

Press the thread trimming button.

→ The bobbin and upper threads are trimmed.

• Before turning off the embroidery machine, be sure to trim the threads.

Set the main power switch to “{”.

→ The embroidery machine is turned off and the

display and the start/stop button indicator go off.

• Sewing can resume after the embroidery machine is turned on again. Back up several stitches to overlap the stitching. (Refer to “Resume Embroidering After Turning Off the Machine” on page 122 for details.)

■ If the thread breaks while sewing

If a problem occurs while sewing, such as if the thread breaks, the machine stops automatically. Re-thread the broken thread, back up several stitches, and then continue sewing. (Refer to “If the Thread Breaks or the Bobbin Thread Runs Out While Embroidering” on page 116 for details.)

Memo

• The machine can be stopped at any time, even while it is embroidering; however, if the machine is stopped when the thread color is changed, it is not necessary to go back through the stitching when embroidering is continued. The machine can be set to stop when the thread color is changed. (For details, refer to “Specifying pause locations before embroidering” on page 140.)

Page 70

After sewing is finished, remove the embroidery frame, and then remove the fabric from the frame.

Removing the embroidery frame

With both hands, grab the left and right sides of the arms of the embroidery frame holder, and then slightly lift up the frame.

The pins on the arms of the embroidery frame holder should come out of the holes in the sides of embroidery frame.

Pull off the embroidery frame toward you.

Removing the fabric

Loosen the outer frame screw.

→ If the screw was tightened using a disc-shaped

screwdriver, use the included disc-shaped screwdriver to loosen it.

Remove the outer frame, and then remove the fabric.

12. Removing the Embroidery Frame and Fabric

CAUTION

• When removing the embroidery frame, make sure that the start/stop button is lit in red. If the start/stop button is flashing in green, the machine may start sewing. If the machine accidentally starts operating, injuries may result.

• When removing the embroidery frame, be careful that the embroidery frame does not hit any other part of the machine.

• Do not lift up the embroidery frame holder with extreme force, otherwise it may be damaged.

Page 71

EMBROIDERING TUTORIAL

After all embroidery is finished, turn off the machine.

Set the main power switch to “{”.

→ The embroidery machine is turned off and the

display and the start/stop button indicator goes off.

Unplug the power supply cord from the electrical outlet.

Grasp the plug when unplugging the power supply cord.

If necessary, unplug the power supply cord from the machine.

Store the power supply cord in a safe place.

13. Turning OFF the Machine

Note

• If a power outage occurs while the embroidery machine is being operated, turn off the embroidery machine and unplug the power supply cord. When restarting the embroidery machine, follow the necessary procedure to correctly operate the machine. (Refer to “2. Turning ON the Machine” on page 38.)

Memo

• If the machine is turned off while it is sewing, embroidering can continue when the machine is turned on again. (Refer to “Resume Embroidering After Turning Off the Machine” on page 122.)

Turned off while embroidering

Turned on

After the opening movie

Page 72

Descriptions of the keys and other information that appear in the screens are provided in the tables below.

Key displays

The appearances of the keys have the following meanings.

Screen Quick Reference Guide

(Normal color display) : This key is not selected, but can be selected.

(Dark-colored display) : This key is selected.

(Gray display) : This key cannot be selected.

Page 73

EMBROIDERING TUTORIAL

Understanding the pattern type selection screen

In this screen, select a pattern category (type).

No.

Display

Function Page

Key Name

Built-in patterns

The embroidery pattern for a design can be selected.

p.151

Embroidery pattern key

Monogram designs can be created by combining two or three letters.

p.153

Monogram

and frame key

Uppercase and lowercase letters, numbers, symbols and accented characters from 37 fonts can be selected in small, medium and large sizes. Japanese fonts can be selected in large and small sizes.

p.155

Alphabet key

14 stitch types can be combined with 10 frame shapes, such as a circle and a square.

p.152

Frame pattern

key

Various character patterns, such as floral characters, applique characters and so on, can be selected.

p.158

Decorative

alphabet key

Patterns to learn how to use this machine, which appear in this manual.

p.247

Common

designs key

Recalls patterns from USB media.

p.164

USB media

keys

5 6

By using the included USB cable to connect a computer to the embroidery machine, patterns can be recalled from the computer.

p.165

Computer (USB) key

Recalls patterns from SD cards.

p.164

SD card key

Recalls patterns stored in the machine’s memory.

p.164

Embroidery

patterns

stored in the

machine

memory key

This key is not displayed unless a pattern is selected. Touch this key to quit trying to add another pattern from the pattern type selection screen. Return to the pattern editing screen.

p.174

Return key

No.

Display

Function Page

Key Name

Page 74

Understanding the pattern list screen

In this screen, select the pattern.

* Some patterns cannot be edited with 8, 9, A or

No.

Display

Function Page

Key Name

Shows the size of the embroidery pattern currently displayed in the pattern display area. The top value shows the height and the bottom value shows the width. If the embroidery pattern consists of multiple patterns that have been combined, the size of the entire pattern, including all patterns, is shown.

Size

Shows the size of the pattern selected when its pattern key is touched. The top value shows the height and the bottom value shows the width.

Size

8 0

An image of the pattern appears on the key. Touch the image to select the pattern. Drag your finger up and down in this area to scroll through the pages.

p.150

Pattern keys

Touch to leave the currently selected pattern category and choose a different category. Returns to the pattern type selection screen.

p.150

Return key

Displays an image of the pattern that is to be embroidered so it can be previewed.

p.46

Preview key

Shows the number of thread colors for the currently selected embroidery pattern.

Number of

thread colors

The character information of an entered character pattern can be checked here. Since characters will be entered

after the red cursor, use and to change the input

position.

p.158

Text preview

area

Allows the size of the currently selected embroidery pattern to be changed.

p.156

Size key

Touch to select a left, center or right alignment for a paragraph of a multi-line character pattern.

p.158

Text

alignment key

Touch after selecting the pattern. The selection of the pattern is confirmed and the pattern editing screen appears.

p.151

Set key

Touch this key to change the configuration of a character pattern.

p.158

Array key

The size of the pattern thumbnails can be set to large, medium or small.

p.151

Thumbnail

size selection

key

Touch this key to display the previous page.

p.151

key

Touch this key to display the next page.

p.151

Next page key

Flips the pattern being selected horizontally.

p.177

Horizontal

mirror image

key

No.

Display

Function Page

Key Name

Page 75

EMBROIDERING TUTORIAL

Understanding the pattern editing screen

In the pattern editing screen, patterns can be individually edited. (The entire pattern cannot be edited from this screen.) The pattern selected in the pattern display area can be repositioned, resized, rotated and rearranged, and its color scheme can be changed. In addition, multiple patterns can be selected and combined. Entered character patterns can also be edited in various ways.

No.

Display

Function Page

Key Name

Pattern size

Shows the sizes of embroidery frames that can be used to sew the embroidery pattern currently displayed in the pattern display area.

p.48

Embroidery

frame

indicators

Shows the size of the pattern being edited. The top value shows the height and the bottom value shows the width.

Size

Deletes the pattern. If touched, the pattern being edited is deleted.

p.200

Delete key

Adds a pattern. If touched, the pattern group selection screen appears.

p.174

Add key

Displays an image of the pattern so that it can be previewed.

p.46

Preview key

Shows the vertical distance that the pattern being edited is moved.

p.176

Distance from

center

(vertical)

Shows the horizontal distance that the pattern being edited is moved.

p.176

Distance from

center

(horizontal)

Shows the rotation angle that the pattern being edited is rotated.

p.180

Rotation angle

Shows the total number of thread colors for the pattern that is being edited.

Number of

thread colors

Moves the sewing position of the pattern that is being edited in the direction of the

arrow. (If is touched, the sewing position is moved to

the center of the embroidering area.)

p.176

Positioning

keys

Selects the pattern that is being edited when the embroidery pattern consists of multiple patterns that have been combined.

p.175

Pattern

selection keys

Finish editing and continue to the embroidering settings screen.

p.52

Edit End key

No.

Display

Function Page

Key Name

Page 76

No.

Display

Function Page

Key Name

Scans the fabric to align the embroidery position.

p.102

Fabric scan

key

Select from 100%, 125%, 150% or 200% to adjust how the pattern being edited is displayed.

p.174

Enlarge key

Rotates the pattern that is being edited.

p.180

Rotate key

Changes the size of the pattern that is being edited.

p.178

Size key

Changes the color of the pattern.

p.185

Change

thread color

key

Makes and edits a repeating pattern.

p.190

Border key

7 Duplicates the pattern. p.199

Duplicate key

Touch to change the pattern being edited into an appliqué pattern.

p.129

Embroidery

Appliqué key

Enables the thread color of each character in an alphabet pattern to be changed; can only be used when an alphabet is selected.

p.184

Multi Color

key

Changes the orientation of the characters in the alphabet pattern that is being edited.

p.181

Array key

9 0

Touch to change the font of the character pattern being edited.

p.184

Font Type key

Touch to change the size and font of individual characters in the character pattern being edited.

p.184

Letter Edit key

Flips the pattern being edited horizontally.

p.177

Horizontal

mirror image

key

Changes the density of the pattern that is being edited; can only be used if an alphabet or frame pattern is selected.

p.185

Density key

Touch to group the multiple selected patterns.

p.176

Grouping key

Changes the spacing between the characters in the character pattern that is being edited.

p.181

Spacing key

Automatically trim any excess thread jumps within the letters of alphabet pattern.

p.183

Thread trim

setting key

Touch to select multiple patterns.

p.175

Multiple

selection key

Touch to group the selected character patterns.

p.183

Text

combining

key

Touch to ungroup the selected character pattern.

p.182

Text dividing

key

No.

Display

Function Page

Key Name

Page 77

EMBROIDERING TUTORIAL

Understanding the embroidering settings screen

From this screen, the entire pattern can be edited and embroidering settings can be specified. In addition, the embroidering position can be checked and a pattern can be saved for later use. Keys available in this screen differ when you set “Manual Color Sequence” to “ON” in settings screen. (Refer to page 77 and

132.)

No.

Display

Function Page

Key Name

Pattern size

Shows the sizes of embroidery frames that can be used to sew the embroidery pattern currently displayed in the pattern display area.

p.48

Embroidery

frame

indicators

Shows the vertical distance that the pattern being combined/edited is moved.

p.98

Distance from

center

(vertical)

Shows the horizontal distance that the pattern being combined/edited is moved.

p.98

Distance from

center

(horizontal)

Shows the rotation angle that the pattern being edited is rotated.

p.99,

201

Rotation angle

Touch to view (on the LCD) the image below the needle or display an image of the edited embroidery pattern at the actual embroidering position.

p.105,

108

Camera view

key

Touch to display the image (after touching the camera view key) enlarged to double the size. This key is available even if the camera view key was not touched.

p.106

Camera zoom

key

Shows the total number of thread colors for the pattern that is being edited.

Number of

thread colors

changes

No.

Display

Function Page

Key Name

Page 78

No.

Display

Function Page

Key Name

Scans (with the built-in camera) fabric hooped in an embroidery frame and displays it as a background image for the pattern.

p.102

Fabric scan

key

Saves, onto USB media, the background image scanned in with the built-in camera.

p.103

Save

background

image key

Displays or hides the background image scanned in with the built-in camera.

p.103

Background

image display

key

Touch to set the machine to pause before sewing the specified color.

p.140

Pause key

Start pattern connecting embroidering.

p.206

Pattern

connect key

When stabilizer material is not affixed to the fabric, sew basting stitches along the outline of the pattern to minimize shrinkage of the stitching and misaligned patterns.

p.128

Embroidery basting key

Rotates the entire embroidery pattern when it consists of multiple patterns that have been combined.

p.99,

201

Rotate key

Touch to align the embroidering position using the machine's built-in camera.

p.108

Positioning

key

Specifies that the sewing sequence for multiple patterns that have been combined be rearranged by thread color.

p.190

Color sorting

key

9 0

Specifies that automatic lock stitch is sewn when the thread is trimmed.

p.134

Lock stitching

(end) key

Specifies that automatic lock stitch is sewn at the beginning of the pattern and at the beginning of sewing after thread trimming.

p.134

Lock stitching

(beginning)

key

Touch to return to the pattern editing screen.

Edit key

Save a pattern in the machine’s memory, USB media or a computer.

p.159,

161

Memory key

Displays an image of the pattern that is to be embroidered so it can be previewed.

p.46

Preview key

Moves the sewing position of the whole pattern in the direction of the arrow. (If

is touched, the sewing

position is moved to the center of the embroidering area.)

p.98

Positioning

keys

Selects the speed to move the frame.

Touch to move the

frame by 0.1 mm.

Touch to move the

frame by 0.5 mm.

Keep touching to move

the frame at maximum speed. When viewing the camera image, the frame moves by 2.0 mm.

p.98

Frame

movement

speed keys

Specifies the needle position at the beginning of sewing and at the end.

p.135

Starting/

ending

position key

Finish all operations in the embroidering settings screen and continues to the embroidering screen.

p.54

Embroidery

key

Moves the embroidery frame so that the embroidering position can be checked.

p.54

Trial sewing

key

No.

Display

Function Page

Key Name

Page 79

EMBROIDERING TUTORIAL

■ In the “Manual Color Sequence” mode

No.

Display

Function Page

Key Name

This illustration appears when the sewing machine is in the “Manual Color Sequence” mode.

p.132

Manual color

sequence

mode icon

Touch to change the needle bar color setting. This key appears when you set “Manual Color Sequence” to “ON” in settings screen.

p.133

Manual color

sequence key

Page 80

Understanding the embroidering screen

From this screen, the total number of thread colors and the sewing time can be checked, the needle bar settings can be specified, and the needle placement forward or backward can be done. Keys available in this screen differ when you set “Manual Color Sequence” to “ON” in settings screen. (Refer to page 132.)

No.

Display

Function Page

Key Name

The bottom value shows the total number of thread colors in the pattern and the top value shows the thread colors that is currently being sewn.

Sewing order

Shows the amount of time until the machine will stop. When the last thread spool is being sewn, the number appears in red. If the thread color needs to be changed, this shows the time until the thread spool will need to be changed.

p.113

Time until the

machine stops

Shows the part of the pattern that will be sewn with the thread color shown first in the thread color sequence display.

Region display

Shows the order for the thread color changes. During embroidering, this display scrolls automatically so that the color of the thread currently being sewn appears at the top.

Thread color

sequence

display

This red line indicator shows when the thread spools will need to be changed. The thread spools will need to be changed at the point between the two thread colors where the indicator is displayed.

p.113

Spool change

indicator

Indicates the needle bar number where the thread color at the left is assigned.

Needle bar

number

The bottom value shows the total number of stitches in the pattern and the top value shows how many stitches have already been sewn.

Stitch count

The bottom value shows the total amount of time required to sew the pattern and the top value shows how much time has already passed sewing.

Sewing time

The thread color sequence display shows the first seven thread colors. To check the sequence for the eighth and

later thread colors, touch

or , or touch the scroll bar.

Scroll bar

No.

Display

Function Page

Key Name

Page 81

EMBROIDERING TUTORIAL

No.

Display

Function Page

Key Name

The embroidering progress is shown by the red mark in the

indicator. Touch to display (in the indicator) only the thread color being embroidered.

Progress bar

While sewing embroidery, touch this key for the machine to stop prior to the next color beginning.

p.140

Reserve Stop

key

Change the needle bar settings from the screen without changing the thread spools on the machine.

p.110

Switch spool

key

(Not available

in the

“Manual

Color

Sequence”

mode)

Touch to sew the pattern in the same color, regardless of specified color changes. The entire thread color sequence display will appear in the same color. The progress bar

1 and

thread color setup display 7 will show the original colors.

p.142

Uninterrupted

embroidery

key/

Monochrome

Touch this key to quit sewing and return to the embroidering settings screen.

Return key

Unlocks the machine so it can start sewing within 10 seconds. When this key is touched, the start/stop button flashes in green.

p.64

Unlock key

Touch a key to move the needle bar position to the selected needle bar number. Use when threading the needle with the automatic needle-threading mechanism.

Needle bar

key

Thread color

set up display

Shows the color and the thread color name (number) for the thread on the needle bar indicated on the key. Thread the machine as indicated here.

p.55

Specifies the maximum sewing speed.

p.139

Maximum

sewing speed

key

Moves the needle forward or backward through the stitching. Use this key in the following situations:

• If the thread breaks or runs out while embroidering

• To restart sewing from the beginning

• To continue sewing after the machine was turned off

p.116

Forward/

Backward

stitch key

Enables the needle bar settings to manually be specified.

p.142

Temporary needle bar

settings key

Memo

• The thread color numbers in the thread color sequence display and the thread color set up display can be changed, for example, to the color name or the thread color number for other brands. (Refer to “Changing the thread color information” on page 225.)

No.

Display

Function Page

Key Name

Page 82

Technical terms:

■ DST

This is the extension of Tajima data file (*.dst) that is one of the data formats of embroidery patterns. Tajima data does not contain color information, therefore the embroidery machine automatically assigns colors when a Tajima (.dst) file is loaded. (Refer to page 250.)

■ Needle number

The needles are numbered from right to left. The far right needle is number 1 needle. (Refer to page 7.)

■ Needle at the “embroidering position”

This is the needle that is placed above the needle hole in the needle plate. The needle bar case is moved to position that particular needle with the next thread color to the “embroidering position”. Also when using the needle threader, the needle that is going to be threaded should be moved to the “position of embroidery”. (Refer to page 62 and page 63.)

1 Needle hole in the needle plate 2 Needle

■ Wiper

This is the mechanism for pulling the thread. The wiper pulls the thread when the needle threader is used. The wiper also pulls the thread from the material when the machine trims the thread. This makes trimming threads after embroidering un-necessary. (Refer to page 62.)

Patterns:

Following patterns can be processed by the machine to embroider.

- Use USB media or SD cards to transfer the embroidery data with *.pen, *.pes, *.phc or *.dst format to the machine. Using the USB cable, the data can be transferred from the PC to the machine.

- Optional embroidery cards

- Embroidery patterns created by digitizing software program

- The patterns saved on USB media by the machine

Embroidering:

■ Customize the embroidery colors

- Use the thread color function by selecting either 64 colors or 300 colors, or by setting the custom thread color table on the pattern editing screen. For more details, see page 195 and page 197.

- Use the manual color sequence function in the embroidering settings screen. For more details, see page 132.

- Use the “Temporary needle bar setting” function by selecting the key on the “Embroidering” screen. More details please see the page 142.

■ Resume an unfinished pattern from the last time the machine was switched off.

- The machine remembers the pattern and the

position even after turning off the power. And the machine can resume the embroidery when the machine turns on again. (Refer to “Resume Embroidering After Turning Off the Machine” on page 122.)

When You Have a Question, This May Help You

Page 83

EMBROIDERING TUTORIAL

■ Getting false thread breakage error

- Check that the position of the upper thread is under the upper thread guide plates. (Refer to page 57.)

- Check that the position of the upper thread is around the thread tension disc. (Refer to page 59.)

- Check that no lint or dust has accumulated in the thread tension disc. If it has, remove it. (Refer to “Cleaning the thread paths of the upper threads” on page 284.)

1 Upper thread guide plates 2 Thread tension disc

■ Thread tension changed suddenly

- Thread is caught on a rough edge of the spool of upper thread.

- Upper thread is caught under the spool of thread.

- The thread dust or lint is gathered under the bobbin’s tension spring.

- Check that no lint or dust has accumulated in the thread tension disc. If it has, remove it. (Refer to “Cleaning the thread paths of the upper threads” on page 284.)

■ The embroidery frame becomes separated from the carriage

Make sure that the positioning pins are placed into the frame’s positioning slot and hole. (Refer to page 50.) To insure proper registration of pattern for embroidery, turning off the machine and turning it back on will allow the embroidery arm to reset it’s registration points.

■ Unable to detach the frame from the machine

Touch and to move the carriage, then the frame will be detachable. (Refer to page 88.)

■ Cancel the current design and start again

Select the “Home” key on the upper right of the screen. The pattern and all information will be deleted. (Refer to page 40.)

Useful external connection functions

You can access various patterns by using the machine’s USB port and SD card slot.

1 SD card slot 2 USB port for media (USB 2.0) 3 USB port for computer

■ Using SD cards

When using SD cards to import or export pattern data, insert the card into the SD card slot.

1 SD card slot 2 SD card

Note

• Do not insert anything other than USB media into the USB media port. Otherwise, the USB media drive may be damaged.

Page 84

■ Using USB media

When sending or reading patterns using the USB media, connect the device to the USB port.

1 USB port for media 2 USB media

■ Connecting the machine to the computer

Using the included USB cable, the sewing machine can be connected to your computer.

1 USB port for computer 2 USB cable connector

■ Using a USB mouse

The USB mouse, connected to the sewing machine, can be used to perform a variety of operations in the screens. Connect a USB mouse to the USB port marked with

. You can also connect a USB mouse to the other

USB port.

1 USB port marked with 2 USB mouse

Note

• The processing speed may vary by quantity of data.

• Do not insert anything other than USB media into the USB media port. Otherwise, the USB media drive may be damaged.

Memo

• USB media is widely used, however some USB media may not be usable with this machine. Please visit our website ( www.babylock.com ) for more details.

• Depending on the type of USB media being used, either directly plug the USB device into the machine's USB port or plug the USB media Reader/Writer into the machine's USB port.

Note

• The connectors on the USB cable can only be inserted into a port in one direction. If it is difficult to insert the connector, do not insert it with force. Check the orientation of the connector.

• For details on the position of the USB port on the computer (or USB hub), refer to the instruction manual for the corresponding equipment.

• You can arrange the USB cable using the included USB clamp. (Refer to “Connecting the USB using the included USB cord clamps” on page 162.)

Note

• Do not perform operations with the mouse at the same time that you are touching the screen with your finger or the included touch pen.

• A USB mouse can be connected or disconnected at any time.

• Only the left mouse button and its wheel can be used to perform operations. No other buttons can be used.

• The mouse pointer does not appear in the screen saver.

Page 85

EMBROIDERING TUTORIAL

USB mouse operation

■ Clicking a key

When the mouse is connected, the pointer appears on the screen. Move the mouse to position the pointer over the desired key, and then click the left mouse button.

1 Pointer

■ Changing pages

Rotate the mouse wheel to switch through the tabs of the pattern selection screens.

Memo

• Double-clicking has no effect.

Memo

• If page numbers and a vertical scroll bar for additional pages are displayed, rotate the mouse wheel or click the left mouse button

with the pointer on / to display the previous or next page.

Page 86

■ Changing the size

Refer to “Changing the size of a pattern (Normal resizing mode)” on page 178.

Touch .

Change the size of the pattern.

• Rotate the mouse wheel away from you to shrink the

pattern in the same way as when is touched.

• Rotate the mouse wheel toward you to enlarge the

pattern in the same way as when is touched.

■ Rotating the pattern

Refer to “Adjusting the angle” on page 99 and “Rotating a pattern” on page 180.

Touch .

Rotate the pattern.

• Rotate the mouse wheel away from you to rotate the pattern 10 degrees to the left in the same way as when

is touched.

• Rotate the mouse wheel toward you to rotate the pattern 10 degrees to the right in the same way as

when is touched.

Page 87

Chapter 3

OTHER BASIC PROCEDURES

This chapter provides explanations on operations other than those described in chapter 2, such as sewing a pattern with eleven or more colors, changing the needles and changing thread spools.

Changing the Needle ............................................... 86

Replacing the needle.................................................................86

Correctly Using the Embroidery Frames.................. 88

Embroidery frame holders......................................................... 88

When difficult to replace the embroidery frame .......................88

Types of embroidery frames/frame holders and their applications

....89

Attaching Iron-On Stabilizer (Backing) to Fabric .... 92

Hooping the Fabric.................................................. 93

Hooping the fabric in the extra-large and large embroidery frames

....93

Using the embroidery sheet ......................................................94

Large/small pieces of fabric ......................................................95

Embroidery Frame Position and Movement............. 96

Changing the Embroidering Position ....................... 98

Adjusting the angle ...................................................................99

Aligning the Embroidering Position ....................... 102

Displaying the fabric while aligning the embroidery position

....102

Using the built-in camera........................................................105

Using the included embroidery positioning sticker .................108

Switching the Thread Colors on the Screen........... 110

Embroidering a Pattern Containing Eleven or

More Colors .......................................................... 112

Checking if thread spool changes are necessary......................113

Changing the Thread Spools with Designs of

Eleven or More Colors........................................... 114

Change thread spools message and spool thread indicators ....114

Easily changing the thread spools............................................115

If the Thread Breaks or the Bobbin Thread Runs

Out While Embroidering....................................... 116

If the upper thread breaks.......................................................116

If the bobbin thread breaks or runs out...................................118

Embroidering From the Beginning or Middle of the

Pattern................................................................... 119

Resume Embroidering After Turning Off the Machine

.... 122

Adjusting the Thread Tension of both the Bobbin

and Upper Thread................................................. 124

Adjusting the tension of the bobbin thread .............................124

Adjusting the tension of the upper thread ...............................125

Page 88

If the needle is bent or the tip of the needle is broken, replace the needle with a new one. Use the included Allen screw driver to replace the needle with one that is designed specifically for this machine and that passes the test described in “Checking the needle” on page 33.

Replacing the needle

Turn off the embroidery machine.

Loosen the needle set screw and remove the needle.

Hold the needle with your left hand, and then hold the Allen screw driver in your right hand and turn the needle set screw counterclockwise.

• Do not apply extreme force when loosening or tightening the needle set screw, otherwise the machine may be damaged.

With the flat side of the needle toward the back of the machine, insert the needle all the way up until it touches the needle bar stopper.

Pass the needle through the hole in the presser foot, and then use the needle changing tool to lift up the needle.

1 Needle bar stopper 2 Needle 3 Flat side of needle 4 Needle changing tool

Changing the Needle

CAUTION

• Be sure to turn off the embroidery machine before replacing the needle, otherwise injuries may result if the machine starts sewing.

Note

• Be sure to use the included Allen screw

driver to replace the needle, otherwise too much force may be applied to the needle, causing it to break.

Page 89

OTHER BASIC PROCEDURES

Hold the needle changing tool and press the end of the needle changing tool 1 in to extend the needlemounting clamp 2. Attach the clamp to the needle, and then release the pressed area to clamp the needle. To unclamp the needle, press 1 again.

1 End of the needle changing tool 2 Needle mounting clamp

While holding the needle in place with your left hand, tighten the needle set screw.

Use the Allen screw driver to turn the needle set screw clockwise.

CAUTION

• Be sure to insert the needle in the needle bar

chamber until it reaches the needle bar stopper and securely tighten the needle set screw with the Allen screw driver, otherwise the needle may break or the machine may be damaged.

• If the needle is not fully inserted, the hook of

the automatic needle-threading mechanism will not pass through the eye of the needle during automatic needle threading, and the hook may bend or the needle cannot be threaded.

• If the hook of the automatic needle-threading

mechanism is bent or damaged, contact your authorized Baby Lock retailer.

Page 90

Various types of embroidery frames can be used with this machine to suit your project. In addition to the four included embroidery frames, there are many frames that can be used with this embroidery machine. (Refer to “Optional Accessories” on page 22.)

Embroidery frame holders

Two types of embroidery frame holders (embroidery frame holder A and embroidery frame holder B) are included with this machine.

Embroidery frame holder A is used with the four included embroidery frames. Embroidery frame holder B is used with the optional embroidery frames. In addition, if you purchase optional round frame set, clamp frame set or compact frame set, specified frame holder C, D or E is included. For details on which embroidery frame can be installed on each embroidery frame holder, refer to “Types of embroidery frames/frame holders and their applications” on page 89.

1 Embroidery frame holder A 2 White corner covers 3 Embroidery frame holder B 4 Light gray corner covers 5 Magnet 6 Embroidery frame holder C (optional) 7 Dark gray corner covers 8 Embroidery frame holder D (optional) 9 Embroidery frame holder E (optional)

When difficult to replace the embroidery frame

Depending on the position of the needle bars, it may be difficult to replace the embroidery frame. In that case, follow the procedure described below to move the embroidery frame.

Touch .

→ The needle bar move screen appears.

Touch .

→ The carriage automatically moves to a position

where the embroidery frame can easily be replaced.

• Touch to close the needle bar move screen

and to move the carriage to the previous position.

Correctly Using the Embroidery Frames

CAUTION

• Only use embroidery frames of the sizes indicated in the screen, otherwise the embroidery frame may hit the presser foot, which may result in injuries.

Page 91

OTHER BASIC PROCEDURES

Types of embroidery frames/frame holders and their applications

Embroidery type

Embroidering area

Reference

Usage

Embroidery frame holder A

Extra-large embroidery frame 200 mm (H) × 360 mm (W)

(7-7/8 inches (H) × 14 inches (W))

(Refer to “Hooping the Fabric” on page 93.)

Use when embroidering connecting characters or patterns, combined patterns or large embroidery patterns.

Extra-large embroidery frame (optional)

200 mm (H) × 300 mm (W) (7-7/8 inches (H) × 11-3/4 inches (W))

Use when embroidering connecting characters or patterns, combined patterns or large embroidery patterns.

Flat frame (optional) 200 mm (H) × 300 mm (W)

(7-7/8 inches (H) × 11-3/4 inches (W))

Consult your nearest authorized Baby Lock retailer.

Use when embroidering jackets and other thick garments.

Large embroidery frame 130 mm (H) × 180 mm (W)

(5-1/8 inches (H) × 7-1/8 inches (W))

(Refer to “Hooping the Fabric” on page 93.)

Use when embroidering patterns with a size less than 130 mm (H) × 180 mm (W) (5-1/8 inches (H) × 7-1/8 inches (W))

Medium embroidery frame 100 mm (H) × 100 mm (W)

(4 inches (H) × 4 inches (W))

(Refer to “6. Hooping the Fabric in the Embroidery Frame” on page 48.)

Use when embroidering standard-sized patterns.

Small embroidery frame 40 mm (H) × 60 mm (W)

(1-1/2 inches (H) × 2-3/8 inches (W))

Use when embroidering small-sized patterns, such as nametags.

Page 92

Embroidery

frame holder B

Quilt frame (optional) 200 mm (H) × 200 mm (W) (7-7/8 inches (H) ×

7-7/8 inches (W))

Consult your nearest authorized Baby Lock retailer.

Use when embroidering pieces for quilts.

Border frame (optional) 100 mm (H) × 300 mm (W) (4 inches (H) ×

11-3/4 inches (W))

Use when embroidering a long string of characters or patterns.

Jumbo Frame (optional) 360 mm (H) × 360 (W) mm (14 inches (H) ×

14 inches (W))

Refer to “Embroidery Patterns for the Optional Jumbo Frame” on page 255.

Use when embroidering combined patterns with a size less than 360 mm (H) × 200 mm (W) (14 inches (H) × 7-7/8 inches (W)) or patterns with a maximum size of 350 mm (H) × 350 mm(W) (13-3/4 inches (H) × 13-3/4 inches (W)).

Sleeve frame (optional) 200 mm (H) × 70 mm (W)

(7-7/8 inches (H) × 2-3/4 inches (W))

Consult your nearest authorized Baby Lock retailer.

Use when embroidering long items such as shirt sleeves.

Embroidery

frame holder C

(optional)

Round frame (optional)

∅=diameter

∅100 mm (4 inches) ∅130 mm (5 inches) ∅160 mm (6 inches)

Consult your nearest authorized Baby Lock

retailer. Use when adding a built-in embroidery pattern to a sleeve. Select the frame appropriate for the size of the pattern.

Embroidery

frame holder D

(optional)

Clamp frame S (optional) 24 mm (H) × 45 mm (W)

(7/8 ichines (H) × 1-3/4 ichines (W))

Consult your nearest

authorized Baby Lock

retailer.

Use when embroidering specialty shaped items that cannot be held in normal frames, such as shoes and gloves.

Clamp frame M (optional) 100 mm (W) × 100 mm (H) (4 inches (H) × 4 inches (W))

Use when embroidering specialty shaped items, such as narrow bags.

Embroidery

frame holder E

(optional)

Compact frame (optional) 70: 41 mm (H) × 70 mm (W)

(1-5/8 inches (H) × 2-3/4 mm (W))) 50: 50 mm (H) × 50 mm (W) (2 inches (H) × 2 inches (W)) 44: 38 mm (H) × 44 mm (W) (1-1/2 inches (H) × 1-3/4 inches (W)) Vertical: 33 mm (H) × 75 mm (W) (1-5/16 inches (H) × 2-15/16 inches (W))

Consult your nearest

authorized Baby Lock

retailer.

Use when embroidering logos or embroidery patterns on small items.

Cap frame wide type (optional) 60 mm (H) × 360 mm (W) (2-3/8 inches (H) × 14 inches (W)) (For details on attaching

this frame, refer to “Using

the Optional Cap Frame”

on page 259.)

Use when embroidering caps. Baseball (golf) caps, tulip hats and bucket hats can be embroidered with these frames. These frames cannot be used with hats having a front area of 60 mm (2-3/8inches) or less, such as sun visors and children’s hats. In addition, these cannot be used with hats that have a brim longer than 80 mm (3-1/8 inches).

Embroidery type

Embroidering area

Reference

Usage

Page 93

OTHER BASIC PROCEDURES

Cylinder frame (optional) 80 mm (H) × 90 mm (W)

(3 inches (H) × 3-1/2 inches (W))

Consult your nearest authorized Baby Lock retailer.

Use when embroidering tubular and curved fabric, such as shirt sleeves and turtlenecks.

Note

• The embroidery frame indicators show all embroidery frame sizes in which the embroidery pattern can be sewn. Be sure to use an embroidery frame of the most suitable size. If the embroidery frame that is used is too large, the pattern may be misaligned or the fabric may pucker.

• All genuine embroidery frames that can be used with EMP6, BMP6, BMP8, BMP9 and BMV10 can be installed on this machine.

• When sewing with an optional embroidery frame (jumbo frame, border frame, quilt frame or flat frame), the optional table must be installed onto the machine.

• Due to the weight of the embroidery frame and fabric it is recommended that the optional table be used, to prevent the frame holder from bending, which may result in the distortion of your design or machine damage.

Embroidery type

Embroidering area

Reference

Usage

Page 94

In order to prevent shrinkage of the stitching or misaligned patterns, we recommend that iron-on stabilizer (backing) be used for embroidering.

Using a steam iron, affix the iron-on stabilizer (backing) to the back of the fabric.

1 Adhesive side of iron-on stabilizer (backing) 2 Fabric (wrong side)

• When embroidering fabric that should not be ironed or when embroidering an area that is difficult to iron, hoop a layer of the iron-on stabilizer (backing) under the fabric in the embroidery frame without ironing it.

Attaching Iron-On Stabilizer (Backing) to Fabric

CAUTION

• When embroidering on thin or stretch fabrics, fabrics with a coarse weave or fabrics that easily allow the stitching to shrink, be sure to use iron-on stabilizer (backing) for embroidering. If iron-on stabilizer (backing) is not used while embroidering, the needle may bend or break or the pattern may become misaligned.

Note

• Use a piece of iron-on stabilizer (backing)

that is larger than the embroidery frame. When framing the fabric in the embroidery frame, be sure that the stabilizer (backing) is clamped on all edges in order to prevent wrinkles in the fabric.

1 Area of embroidery frame 2 Iron-on stabilizer (backing)

Memo

• When embroidering thin fabrics, such as organza or lawn, use a water-soluble stabilizer (backing). Water-soluble stabilizers dissolve when washed, allowing you to create beautiful embroidery that is not stiff.

• When embroidering fabric with a nap, such as towels or corduroy, hoop a layer of ironon stabilizer (backing) under the fabric in the embroidery frame without ironing it.

• For other uses of stabilizer (backing), refer to “Stabilizers (backing)” on page 251.

Page 95

OTHER BASIC PROCEDURES

Hooping the fabric in the extra-large and large embroidery frames

Loosen the screw on the outer frame.

1 Screw

Place the fabric with right side up on top of the outer frame.

• The outer frame does not have a front or back side. Either side can be used as the front.

Press the inner frame into the outer frame.

First insert the inner frame at the corner with the screw A, next insert the nearby one corner B, and then insert the opposite corner C. Then insert the opposite corner (non screw) D.

First, align the inner and outer frames at the corner with the screw A. Then, while lightly pulling the fabric in the direction indicated by arrow B so that the fabric is taut, insert the inner frame at corner B. In the same way, lightly pull the fabric in the direction indicated by arrow C and insert corner C, and then lightly pull the fabric in the direction indicated by arrow D and insert corner D.

• Be sure that there are no wrinkles in the fabric after it is stretched in the embroidery frame.

While stretching the fabric even more, securely tighten the screw so that the fabric is taut.

• After stretching the fabric, lightly tapping it should produce a drum-like sound.

• Firmly clamp together the inner and outer frames so that their tops are even.

1 Outer frame 2 Inner frame 3 Right side of fabric 4 Top of inner and outer frames are even

• Using the included disc-shaped screwdriver, firmly tighten the screw.

1 Disc-shaped screwdriver

Hooping the Fabric

Memo

• To correctly frame the fabric in the embroidery frame, we recommend using a flat surface.

• Refer to “Hooping fabric in the small embroidery frame” on page 49 for details on hooping smaller frames.

Page 96

Using the embroidery sheet

In order to hoop the fabric so that the pattern will be sewn in the correct position, use the guidelines on the embroidery sheet to accurately stretch the fabric in the frame.

With a fabric marker, mark the area of the fabric you want to embroider.

Place the embroidery sheet on the inner frame. Align the guidelines on the embroidery sheet with the marks that you drew on the fabric.

1 Guidelines 2 Inner frame

Gently stretch the fabric, so that there are no folds or wrinkles.

Press the inner frame into the outer frame. Remove the embroidery sheet.

Page 97

OTHER BASIC PROCEDURES

Large/small pieces of fabric

This section provides information on embroidering fabric that is either much larger or much smaller than the embroidery frame.

■ Embroidering large pieces of fabric or heavy clothing

When embroidering large pieces of fabric or heavy pieces of clothing, use a clothespin or binder clip to fasten the excess fabric to the embroidery frame so that it does not hang down from the frame. Embroidering with excess fabric hanging down from the embroidery frame may prevent the frame from moving properly and may result in a misaligned pattern.

• Use a clothespin or binder clip to fasten the excess fabric to the embroidery frame.

■ Embroidering small pieces of fabric

When embroidering pieces of fabric that are smaller than the embroidery frame, use spray fabric adhesive to attach the fabric to stabilizer (backing) hooped in the embroidery frame. With fabrics where you do not wish to use spray adhesive, baste the fabric to the stabilizer (backing).

1 Fabric 2 Stabilizer (backing)

■ Embroidering the corner of fabric

When embroidering the corner of a piece of fabric, use spray fabric adhesive to attach the corner of the fabric to stabilizer (backing), and then hoop the stabilizer (backing) in the embroidery frame. With fabrics where you do not wish to use spray adhesive, baste the fabric to the stabilizer (backing).

1 Fabric 2 Stabilizer (backing)

■ Embroidering narrow pieces of fabric, such as ribbon

When embroidering narrow pieces of fabric, use spray fabric adhesive to attach the fabric to stabilizer (backing), and then hoop the stabilizer (backing) in the embroidery frame. With fabrics where you do not wish to use spray adhesive, clamp both ends of the fabric, together with the stabilizer (backing), in the embroidery frame.

1 Ribbon 2 Stabilizer (backing)

Page 98

The following provides information concerning the embroidery frame when operating the embroidery machine.

■ Embroidery frames that cannot be used for embroidering

As explained on page 48, the embroidery frame indicators at the top of the screen show the embroidery frames that can be used to sew the currently selected pattern. Embroidery frames with an embroidering area smaller than the pattern cannot be used. In addition, the embroidery frame cannot be used if the embroidery is smaller than the embroidering area but is positioned so that it extends out of the embroidering area of the frame.

Embroidery frames with an embroidering area smaller than the pattern

Patterns that extend out of the embroidering area of the frame

In either of these cases, a message appears on the embroidery machine, warning that the embroidery frame must be changed.

A message indicating that the embroidery frame be replaced may appear even if no embroidery frame is installed. The embroidery machine detects which embroidery frame is installed according to the position of the left arm of the embroidery frame holder. Therefore, the embroidery frame size is determined by the position of the left arm, even if the embroidery frame is not actually installed. In addition, if the embroidery frame holder is not installed, the embroidery machine determines that the cap frame (optional) is installed.

Embroidery Frame Position and Movement

Page 99

OTHER BASIC PROCEDURES

■ Moving to the correct position

If the center of the embroidery frame is at the needle drop point in the embroidering area, the embroidery frame is correctly positioned, in other words, at the starting position before embroidering. If the embroidery frame is changed, the next frame that is installed will not be correctly positioned. For example, if the extra-large embroidery frame is replaced with the small frame, the following will occur.

1 Center of embroidery frame at the correct position 2 Needle position when the embroidery frame is

replaced

In order to correct the misalignment of this embroidery frame, the embroidery frame automatically moves to the correct position when any of the following are performed.

• The embroidery machine is turned on.

The embroidery frame will move.

• The embroidering settings screen is displayed.

The embroidery frame will not move if it is correctly positioned. If the pattern extends out of the embroidering area for the frame, a message appears, indicating that the embroidery frame should be replaced. Either replace the embroidery frame or return to the pattern editing screen and move the embroidering position.

• The embroidery frame is replaced while the

embroidering settings screen or embroidering screen is displayed, and then the key for checking the embroidering area, for moving the embroidery frame, or for starting embroidering is touched.

The embroidery frame will move. Since the embroidery frame is moved to the correct position and paused, touch the desired key again. If the pattern extends out of the embroidering area for the frame after the frame is moved, a message appears, indicating that the embroidery frame should be replaced. Either replace the embroidery frame or return to the pattern editing screen and adjust the pattern size or embroidering position.

Page 100

When the embroidery machine is purchased, it was adjusted so that the beginning of the stitching was from the center of the pattern. Therefore, move the frame and adjust the embroidering position so that the center of the pattern aligns with the needle drop point at the sewing position. If you need to align the embroidering position to the specific point, follow the procedure described in “Aligning the Embroidering Position” on page 102. In addition, the angle of the entire pattern can be adjusted if the fabric cannot be hooped evenly within the embroidery frame and the pattern is positioned at an angle on the fabric.

Touch , or in the embroidering settings screen to select the speed.

1 Touch to move the frame by 0.1 mm. 2 Touch to move the frame by 0.5 mm. 3 Keep touching to move the frame at maximum

speed. While using the built-in camera (page 104), the frame moves by 2.0 mm using the move key.

4 Move key

Touch , , , , , , and

in the embroidering settings screen.

Move the embroidery frame so that the needle drop point is at the center of the area where you wish to embroider.

→ The embroidery frame moves in the opposite

direction of the arrow.

→ The pattern in the pattern display area moves in the

same direction of the arrow.

1 Shows the vertical distance moved from center 2 Shows the horizontal distance moved from center

• Touch to move the embroidery frame back to its original position (where the center of the embroidery frame is aligned with the needle drop point at the sewing position).

The pattern can also be moved by dragging it. If a USB mouse is connected, move the mouse to position the pointer on the desired pattern, and then while holding in the left mouse button, drag the pattern. The pattern can also be dragged by selecting it directly in the screen with your finger or the touch pen.

Changing the Embroidering Position

3 2

4 1 2

Baby Lock Valiant, BMV10 Instruction And Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
