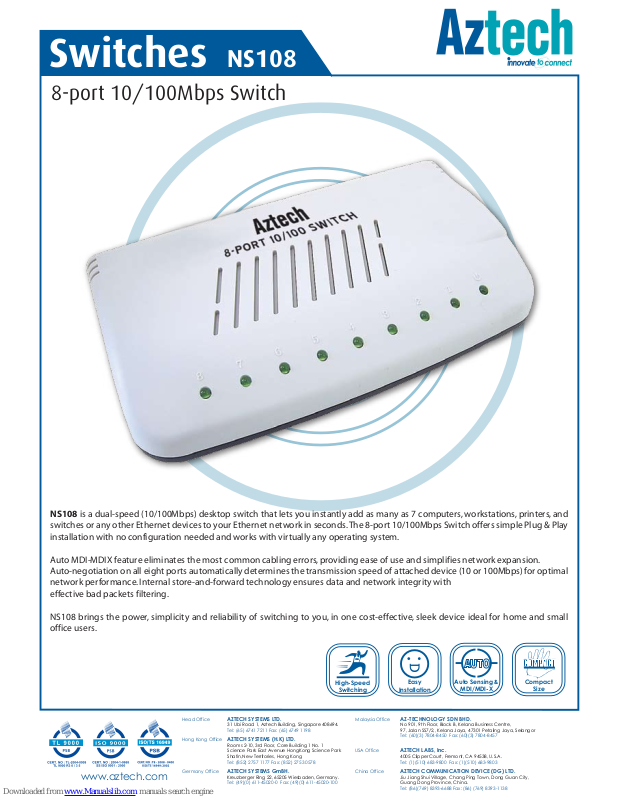

Aztech NS108 Specfications

8-port 10/100Mbps Switch

NS108 is a dual-speed (10/100Mbps) desktop switch that lets you instantly add as many as 7 computers, workstations, printers, and
switches or any other Ethernet devices to your Ethernet network in seconds. The 8-port 10/100Mbps Switch offers simple Plug & Play
installation with no configuration needed and works with virtually any operating system.

Auto MDI-MDIX feature eliminates the most common cabling errors, providing ease of use and simplifies network expansion.
Auto-negotiation on all eight ports automatically determines the transmission speed of attached device (10 or 100Mbps) for optimal
network performance. Internal store-and-forward technology ensures data and network integrity with
effective bad packets filtering.

NS108 brings the power, simplicity and reliability of switching to you, in one cost-effective, sleek device ideal for home and small
office users.

Switches NS108

AZTECH SYSTEMS LTD.

31 Ubi Road 1, Aztech Building, Singapore 408694.

Tel: [phone] Fax: [phone]

Head Office

AZTECH SYSTEMS (H.K) LTD.

Rooms 2-10, 3rd Floor, Core Building 1 No. 1
Science Park East Avenue HongKong Science Park
Shatin,New Territories, Hong Kong

Tel: [phone] Fax: [phone]

Hong Kong Office

AZTECH COMMUNICATION DEVICE (DG) LTD.

Jiu Jiang Shui Village, Chang Ping Town, Dong Guan City,
Guang Dong Province, China.

Tel: [phone] Fax: (86) (769) 8393-1138

China Office

AZTECH LABS, Inc.

4005 Clipper Court, Fremont, CA 94538, U.S.A.

Tel: [phone] Fax: [phone]

USA Office

AZTECH SYSTEMS GmBH.

Kreuzberger Ring 22, 65205 Wiesbaden, Germany.

Tel: [phone] Fax: [phone]

Germany Office

AZ-TECHNOLOGY SDN BHD.

No 901, 9th Floor, Block B, Kelana Business Centre,
97, Jalan SS7/2,, Kelana Jaya, 47301 Petaling Jaya, Selangor

Tel: [phone] Fax: [phone]

Malaysia Office

www.aztech.com

Easy

Installation

High-Speed

Switching

Auto Sensing &

MDI/MDI-X

Compact

Size

COMPACT

- Increases network capacity and reduces network congestion

- Auto negotiation automatically adjusts to either 10 or 100 Mbps speeds

- Auto MDI/MDI-X on all ports to detect and correct common cabling errors

- Receives and transmits traffic at full wire speed on all ports

- Network performance up to 200 Mbps per port

- Store-and-Forward technology instantly eliminates bad packets

- IEEE 802.3u and 802.3 standards compliant

- IEEE 802.3x Flow-Control support for Full-Duplex operation

- Back-Pressure support for Half-Duplex operation

- 1Mbps bits Buffer Memory and up to 1K MAC Address entry table

- LED lights for easy diagnostic and monitoring

Standards

- IEEE 802.3, 10BASE-T

- IEEE 802.3u, 100BASE-TX

- IEEE 802.3x, Flow-control

LED Indicators

- Power

- Link/ Activity - 1 per port

Port

- Eight (8)ports 100BASE-TX/10BASE-T

Media Support

- 10Base-T Category 3, 4, or 5 TP

- 100Base-TX, Category 5 TP

Bandwidth

- 10Base-T/100Base-TX: 10/20/100/200Mbps, via
Auto-Negotiation

Buffer Memory

- 1Mbps Bits

Forwarding/Filtering Rate

- 148,810 packets/second per port @ 100Mbps, max

- 14,881 packets/second per port @ 10Mbps, max

Latency

- 3.1 µsec. @100Mbps minimum

- 14 µsec. @10Mbps minimum

MAC Addresses

- 1K Six (6) Bytes MAC address entries (maximum)

- Self-learning

Duplex Modes

- All ports support Half-Duplex or Full-Duplex
operation

Auto-MDIX

- All ports support Auto-MDIX which can detect and
corrects crossover cables

Power Requirements

- Output 9 V DC, 1Amp

Power Consumption

- 3W maximum

Environment

- Operating Temperature: 0° ~ 45° C (32° ~ 113° F)

- Storage Temperature: -20° ~ 70° C (-4° ~ 158° F)

- Humidity: 10% ~ 90% Non-Condensing

Certifications

- FCC Class B, CE, TUV approved

System Requirements

-

Devices supporting IEEE 802.3 or IEEE 802.3U

Ethernet

- Network Card for each PC

- Network Cable (Cat 5)

Physical Dimensions

- Dimensions: 145(L) x 85(W) x 25(H) mm

Package Includes

- 1 NS108

- 1 Power Adaptor

- 1 User Manual

- 1 Warranty Card
