Azden WHDPRO User Manual

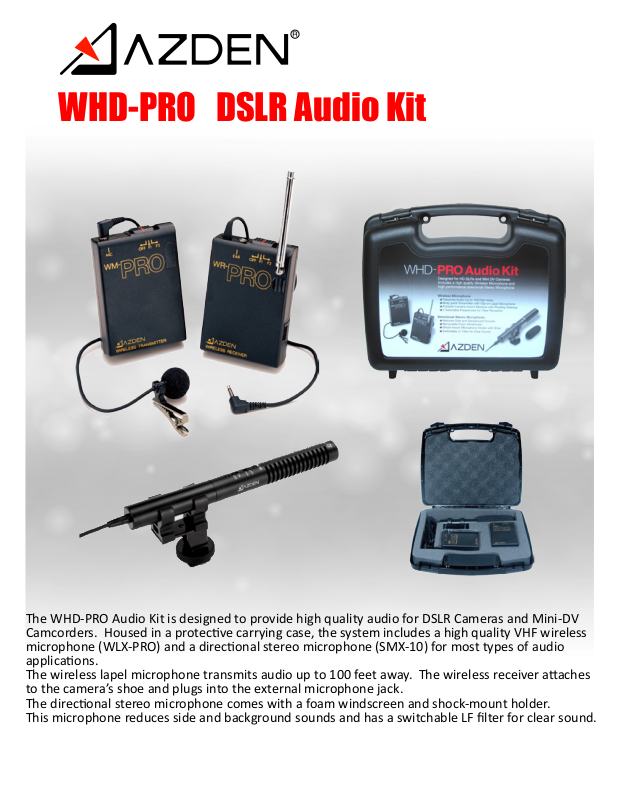

WHD-PRO DSLR Audio Kit

The WHD-PRO Audio Kit is designed to provide high quality audio for DSLR Cameras and Mini-DV

Camcorders. Housed in a protecve carrying case, the system includes a high quality VHF wireless
microphone (WLX-PRO) and a direconal stereo microphone (SMX-10) for most types of audio
applicaons.
The wireless lapel microphone transmits audio up to 100 feet away. The wireless receiver aaches

to the camera’s shoe and plugs into the external microphone jack.

The direconal stereo microphone comes with a foam windscreen and shock-mount holder.
This microphone reduces side and background sounds and has a switchable LF filter for clear sound.

SPECIFICATIONS

WR-Pro Receiver :

Receiver type: Double superheterodyne
Sensitivity: 2mV at S/N of 40dB
Battery: 1-9V Alkaline
Power consumption: 25mA
Monitor output: 1V at 30W, Modulation frequency: 1kHz, Deviation: +/-7kHz
Mic output: 8mV w/10KW load, Modulation frequency: 1kHz, Deviation: +/-7kHz
Mic output impedance: 300W
Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3"x 2.4" x 0.85")
Weight w/battery: 128g (4.5oz)

WM-Pro Transmitter :

Modulation system: FM
Sensitivity: 94dB SPL at +/- 2.5KHz deviation
Battery: 1-9V
Power consumption: 30mA
Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3" x 2.4" x 0.85")
Weight: 98g (3.4oz)

SMX-10:

Type: Stereo Electret Condenser
Frequency Response: 100-18,000Hz
Sensitivity: -40dB at1kHz (1V/Pa)
Output Impedance: 1.5 k ohm at 1kHz
Signal-to-Noise Ratio: 60dB (1kHz at 1Pa)
Dynamic Range: 66dB
Power Supply: 1.5VDC ("AAA" size battery) - not included
Max. SPL: 100dB
Battery Current Drain: 0.5mA
Battery Life: 400 hours with Alkaline battery
Weight w/o battery: 52g
Dimensions: 177mm long - 18.2mm diameter
Output cable: attached with 3.5mm plug
Supplied Accessories: Camera hot-shoe mic holder, windscreen

* Due to constant improvements, specifications are subject to change without notice.

200 Valley Road, Suite 101, Mt. Arlington, NJ 07856, [phone], FAX [phone]
e-mail: [e-mail], web site: www.azdencorp.com
