Page 1
Mini
XLR

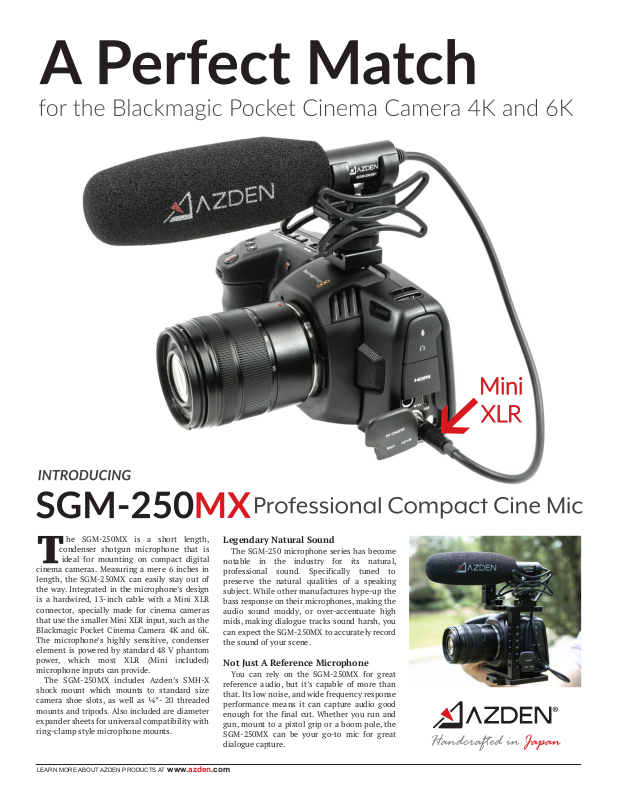

he SGM-250MX is a short length,
condenser shotgun microphone that is
ideal for mounting on compact digital
cinema cameras. Measuring a mere 6 inches in
length, the SGM-250MX can easily stay out of
the way. Integrated in the microphone’s design
is a hardwired, 13-inch cable with a Mini XLR
connector, specially made for cinema cameras
that use the smaller Mini XLR input, such as the
Blackmagic Pocket Cinema Camera 4K and 6K.
The microphone’s highly sensitive, condenser
element is powered by standard 48 V phantom
power, which most XLR (Mini included)
microphone inputs can provide.
The SGM-250MX includes Azden’s SMH-X
shock mount which mounts to standard size
camera shoe slots, as well as ¼”- 20 threaded
mounts and tripods. Also included are diameter
expander sheets for universal compatibility with
ring-clamp style microphone mounts.
LEARN MORE ABOUT AZDEN PRODUCTS AT www.azden.com
Legendary Natural Sound
The SGM-250 microphone series has become
notable in the industry for its natural,
professional sound. Specifically tuned to
preserve the natural qualities of a speaking
subject. While other manufactures hype-up the
bass response on their microphones, making the
audio sound muddy, or over-accentuate high
mids, making dialogue tracks sound harsh, you
can expect the SGM-250MX to accurately record
the sound of your scene.
Not Just A Reference Microphone
You can rely on the SGM-250MX for great
reference audio, but it’s capable of more than
that. Its low noise, and wide frequency response
performance means it can capture audio good
enough for the final cut. Whether you run and
gun, mount to a pistol grip or a boom pole, the
SGM-250MX can be your go-to mic for great
dialogue capture.
Page 2
SGM-250MX Professional Compact Cine Mic
Product Highlights
• Newly developed electret condenser microphone
element delivers the best sensitivity and lowest
noise in its class
• Short length works great for mounting on compact
cinema cameras
• Powered by standard 48 V DC phantom power
• Custom designed acoustic tube with high precision
phase canceling slots produces a flat frequency
response with excellent directionality and wide
dynamic range
• Brass/aluminum alloy case for improved durability
and resistance to ambient RF
• 3-pin Mini XLR output connector with 33 cm wire
extension
• 10-year warranty with online registration
Specifications
Freq. Response: 20 Hz – 20 kHz
Polar Pattern: Supercardioid
Sensitivity: -33 dB at 1 kHz (0 dB = 1 V/Pa)
Dynamic Range: 112 dB
Impedance: 100 Ω (at 1 kHz)
Max Input SPL: 130 dB SPL (1 kHz at 1% T.H.D.)
S/N Ratio: 76 dB (1 kHz at 1 Pa)
Power Requirement: DC 11-50 V Phantom
Output: 3-pin Mini XLR
Dimensions: 153 mm x φ21 mm (6.02” x φ0.83”)
(Length x Diameter)
Cable: φ5 mm x 330 mm
Weight: 85 g (2.99 oz)
Accessories: Shock mount holder, windscreen,
carrying pouch, rubber sheets
Frequency Response
0
90
[dB]
20
10
0
-10
-20
-30
-40
200 Valley Rd STE 101, Mt. Arlington, NJ 07856 • T: +1 973 810 3070 • F: +1 973 810 3076 • email: [email protected]
100 1K 10K [Hz]
180
Polar Pattern
0゜
-10dB
-20dB
90゜ 270゜
180゜
LEARN MORE ABOUT AZDEN PRODUCTS AT www.azden.com
1kHz
250Hz
4kHz
