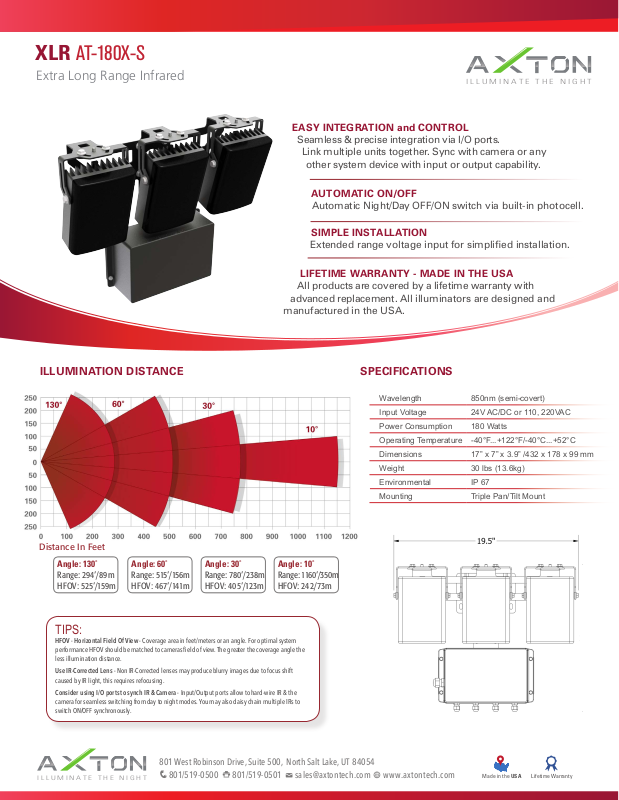

AXTON AT-180X-S Specsheet
XLR AT-180X-S
Extra Long Range Infrared
ILLUMINATE THE NIGHT
EASY INTEGRATION and CONTROL
Seamless & precise integration via I/O ports.
Link multiple units together. Sync with camera or any
other system device with input or output capability.
AUTOMATIC ON/OFF
Automatic Night/Day OFF/ON switch via built-in photocell.
SIMPLE INSTALLATION
Extended range voltage input for simplified installation.
LIFETIME WARRANTY - MADE IN THE USA
All products are covered by a lifetime warranty with
advanced replacement. All illuminators are designed and
manufactured in the USA.
ILLUMINATION DISTANCE
Distance In Feet
Angle: 130˚
Range: 294’/89m
HFOV: 525’/159m
Angle: 60˚
Range: 515’/156m
HFOV: 467’/141m
Angle: 30˚
Range: 780’/238m
HFOV: 405’/123m
TIPS:
HFOV - Horizontal Field Of View - Coverage area in feet/meters or an angle. For optimal system
performance HFOV should be matched to cameras eld of view. The greater the coverage angle the
less illumination distance.
Use IR-Corrected Lens - Non IR-Corrected lenses may produce blurry images due to focus shift
caused by IR light, this requires refocusing.
Consider using I/O ports to synch IR & Camera - Input/Output ports allow to hard-wire IR & the
camera for seamless switching from day to night modes. You may also daisy chain multiple IRs to
switch ON/OFF synchronously.
SPECIFICATIONS
Wavelength 850nm (semi-covert)
Input Voltage 24V AC/DC or 110, 220VAC
Power Consumption 180 Watts
Operating Temperature -40°F...+122°F/-40°C...+52°C
Dimensions 17” x 7” x 3.9” /432 x 178 x 99 mm
Weight 30 lbs (13.6kg)
Environmental IP 67
Mounting Triple Pan/Tilt Mount
Angle: 10˚
Range: 1160’/350m
HFOV: 242/73m
ILLUMINATE THE NIGHT
801 West Robinson Drive, Suite 500, North Salt Lake, UT 84054
q801/519-0500 < 801/519-0501 %sales@axtontech.com w www.axtontech.com
Made in the USA Lifetime Warranty
