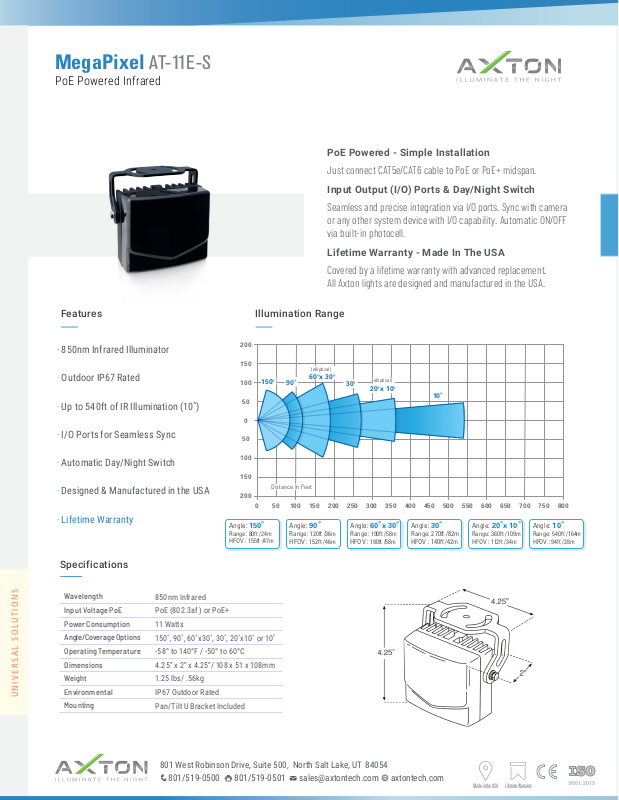

AXTON AT-11XX Specsheet
MegaPixel
Illumination Distance
AT-11E-S
MegaPixel
AT-11E-S
PoE Powered Infrared
Features Illumination Range
PoE Powered - Sim ple Installation
Just connect CAT5e/CAT6 cable to PoE or PoE+ midspan.
Input Output (I/O) Ports & Day/Night Switch
Seamless and precise integration via I/O ports. Sync with camera
or any other system device with I/O capability. Automatic ON/OFF
via built-in photocell.
Lifetime Warranty - Made In The USA
Covered by a lifetime warranty with advanced replacement.
All Axton lights are designed and manufactured in the USA.
· 850nm Infrared Illuminator
· Outdoor IP67 Rated
· Up to 540ft of IR Illumination (10˚)
· I/O Ports for Seamless Sync
· Automatic Day/Night Switch
· Designed & Manufactured in the USA
· Lifetime Warranty
Specifications
Wavelength
Input Voltage PoE
Power Consumption
Angle/Coverage Options
Operating Temperature
Dimensions
Weight
UNIVERSAL SOLUTIONS
Environmental
Mounting
200
150
150
100
50
0
50
100
150
200
0
Angle: 150
Range: 80ft /24m
HFOV : 155ft /47m
850nm Infrared
PoE (802.3af ) or PoE+
11 Wat ts
150˚, 90˚, 60˚x30˚, 30˚, 20˚x10˚ or 10˚
-58° to 140°F / -50° to 60°C
4.25” x 2” x 4.25”/ 108 x 51 x 108mm
1.25 lbs/ .56kg
IP67 Outdoor Rated
Pan/Tilt U Bracket Included
˚
(elliptical)
60˚x 30
90
˚
˚
Distance In Feet
10050 150 250 350 450 550 650 750200 300 400 500 600 700 800
Angle: 90
Range: 120ft /36m
HFOV : 152ft /46m
˚
˚
(elliptical)
30
˚
20˚x 10
Angle: 60
˚
Range: 190ft /58m
HFOV : 190ft /58m
x 30
˚
Angle: 30
˚
Range: 270ft /82m
HFOV : 140ft /42m
10
˚
˚
Angle: 20
Range: 360ft /109m
HFOV : 112ft /34m
x 10
˚
˚
Angle: 10
˚
Range: 540ft /164m
HFOV : 94ft /28m
801 West Robinson Drive, Suite 500, North Salt Lake, UT 84054
q801/519-0500
801/519-0501
<
sales@axtontech.com w axtontech.com
%
Made in t he US A Lifetime Warranty
