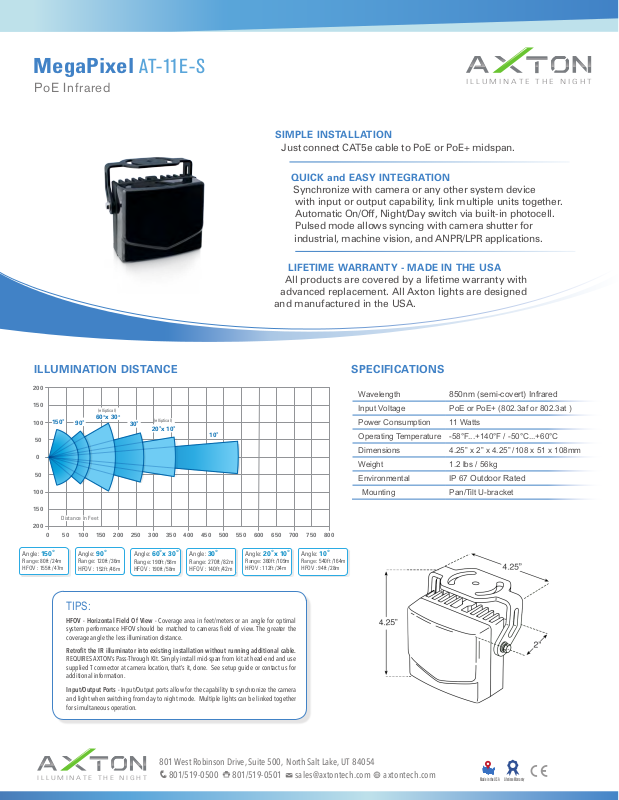

AXTON AT-11E-S Specsheet
MegaPixel
Illumination Distance
AT-11E-S
MegaPixel
PoE Infrared
AT-11E-S
ILLUMINATE THE NIGHT
SIMPLE INSTALLATION
Just connect CAT5e cable to PoE or PoE+ midspan.
QUICK and EASY INTEGRATION
Synchronize with camera or any other system device
with input or output capability, link multiple units together.
Automatic On/Off, Night/Day switch via built-in photocell.
Pulsed mode allows syncing with camera shutter for
industrial, machine vision, and ANPR/LPR applications.
LIFETIME WARRANTY - MADE IN THE USA
All products are covered by a lifetime warranty with
advanced replacement. All Axton lights are designed
and manufactured in the USA.
ILLUMINATION DISTANCE SPECIFICATIONS
200
150
150
0
˚
90
˚
Distance In Feet
10050 150 250 350 450 550 650 750200 300 400 500 600 700 800
Angle: 90
Range: 120ft /36m
HFOV : 152ft /46m
100
50
0
50
100
150
200
Angle: 150
Range: 80ft /24m
HFOV : 155ft /47m
(elliptical)
60˚x 30
˚
˚
˚
(elliptical)
30
˚
20˚x 10
Angle: 60
˚
Range: 190ft /58m
HFOV : 190ft /58m
x 30
˚
Angle: 30
˚
Range: 270ft /82m
HFOV : 140ft /42m
10
˚
˚
Angle: 20
Range: 360ft /109m
HFOV : 112ft /34m
x 10
˚
Angle: 10
˚
Range: 540ft /164m
HFOV : 94ft /28m
˚
Wavelength
Input Voltage PoE or PoE+ (802.3af or 802.3at )
Power Consumption 11 Watts
Operating Temperature -58°F...+140°F / -50°C...+60°C
Dimensions 4.25” x 2” x 4.25” /108 x 51 x 108mm
Weight 1.2 lbs / 56kg
Environmental
Mounting Pan/Tilt U-bracket
TIPS:
HFOV - Horizontal Field Of View - Coverage area in feet/meters or an angle for optimal
system performance HFOV should be matched to cameras eld of view. The greater the
coverage angle the less illumination distance.
Retrot the IR illuminator into existing installation without running additional cable.
REQUIRES AXTON’s Pass-Through KIt. Simply install mid-span from kit at head-end and use
supplied T connector at camera location, that’s it, done. See setup guide or contact us for
additional information.
Input/Output Ports - Input/Output ports allow for the capability to synchronize the camera
and light when switching from day to night mode. Multiple lights can be linked together
for simultaneous operation.
850nm (semi-covert) Infrared
Outdoor Rated
IP 67
ILLUMINATE THE NIGHT
801 West Robinson Drive, Suite 500, North Salt Lake, UT 84054
q801/519-0500 < 801/519-0501 %sales@axtontech.com w axtontech.com
Made in the USA Lifetime Warranty
