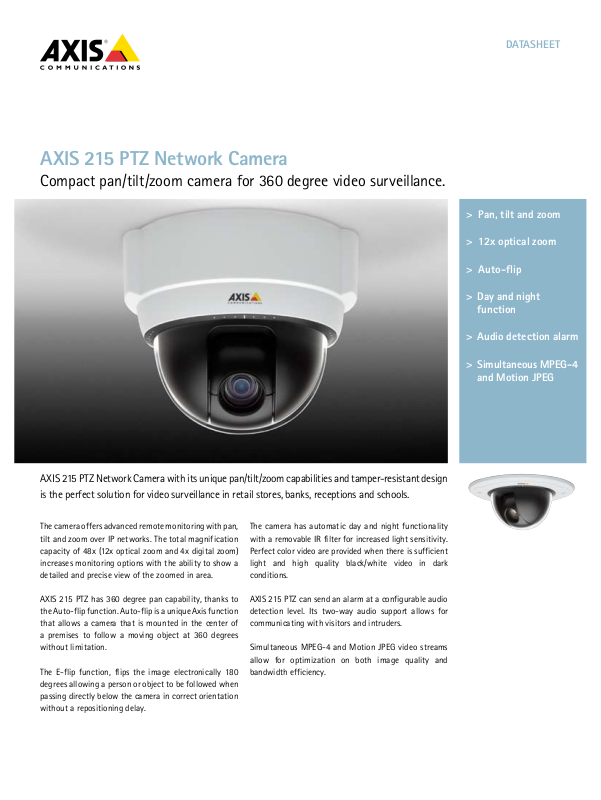

AXIS 215 PTZ Network Camera
Compact pan/tilt/zoom camera for 360 degree video surveillance.
DATASHEET
> Pan, tilt and zoom
> 12x optical zoom
> Auto-flip
> Day and night
function
AXIS 215 PTZ Network Camera with its unique pan/tilt/zoom capabilities and tamper-resistant design
is the perfect solution for video surveillance in retail stores, banks, receptions and schools.
The camera offers advanced remote monitoring with pan,
tilt and zoom over IP networks. The total magnification
capacity of 48x (12x optical zoom and 4x digital zoom)
increases monitoring options with the ability to show a
detailed and precise view of the zoomed in area.
AXIS 215 PTZ has 360 degree pan capability, thanks to
the Auto-flip function. Auto-flip is a unique Axis function
that allows a camera that is mounted in the center of
a premises to follow a moving object at 360 degrees
without limitation.
The E-flip function, flips the image electronically 180
degrees allowing a person or object to be followed when
passing directly below the camera in correct orientation
without a repositioning delay.
The camera has automatic day and night functionality
with a removable IR filter for increased light sensitivity.
Perfect color video are provided when there is sufficient
light and high quality black/white video in dark
conditions.
AXIS 215 PTZ can send an alarm at a configurable audio
detection level. Its two-way audio support allows for
communicating with visitors and intruders.
Simultaneous MPEG-4 and Motion JPEG video streams
allow for optimization on both image quality and
bandwidth efficiency.
> Audio detection alarm
> Simultaneous MPEG-4
and Motion JPEG
www.axis.com
153 mm (6.0”)
128 mm (5.0”)
114 mm (4.5”)
32 mm (1.3”)
162 mm (6.4”)
132 mm (5.2”)
68 mm (2.7”)
200 mm (7.9”)
168 mm (6.6”)
10 - 60 mm (0.4 - 2.4”)
75 mm (2.9”)
10 mm (0.4”)
162 mm (6.4”)
132 mm (5.2”)
68 mm (2.7”)
118 mm (4.7”)
200 mm (7.9”)
168 mm (6.6”)
10 - 60 mm (0.4 - 2.4”)
75 mm (2.9”)
10 mm (0.4”)
200 mm (7.9”)
168 mm (6.6”)
10 - 60 mm (0.4 - 2.4”)
75 mm (2.9”)
118 mm (4.7”)
204 mm (8.0”)
10 mm (0.4”)
Technical specifications – AXIS 215 PTZ Network Camera
328 51/EN/R1/08 09
Camera
Models AXIS 215 PTZ: 50 Hz
AXIS 215 PTZ: 60 Hz
Image sensor
Lens
Minimum
illumination
Shutter time
Pan/Tilt/Zoom
1/4” interlaced CCD
3.8 – 46 mm, F1.6 – F2.7, automatic day/night, autofocus
Angle of view, horizontal: 4.4° – 51.6°
Color: 1 lux at 30 IRE, F1.6
B/W: 0.3 lux at 30 IRE, F1.6
NTSC: 1/50000 – 4/3 s
PAL: 1/50000 – 8/5 s
20 preset positions
Auto-flip, E-flip
±170° (360° via Auto-flip) pan range, 180°/s pan speed
180° tilt range, 140°/s tilt speed
12x optical, 4x digital zoom
Control queue, image freeze, sequence mode
Support Windows compatible joysticks
Designed for operator control
Video
Video
compression
Resolutions
Frame rate
MPEG-4
Frame rate
MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG
176x120 – 704x576
Up to 30/25 (NTSC/PAL) in 2CIF/CIF/QCIF
Up to 26/22 (NTSC/PAL) in 4CIF/2CIFExp
Up to 30/25 (NTSC/PAL) in all resolutions
Motion JPEG
Video streaming
Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4
ISMA compatible
Image settings
Compression, color, brightness, sharpness, white balance, exposure
control, backlight compensation, day/night
Rotation 0 – 100º
Aspect ratio correction
Text and image overlay
De-interlace (4CIF resolution)
Audio
Audio streaming
Audio compression
Audio input/output
Two-way, full or half duplex
G.711 PCM 8 kHz 64kbit/s
G.726 ADPCM 8 kHz 32 or 24 kbit/s
External microphone input or line input, line level output
Network
Security
Suppor ted
protocols
Password protection, IP address filtering, HTTPS encryption,
IEEE 802.1X network access control
IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP,
UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com
Interface
Intelligent video
Alarm triggers
Alarm events
Video motion detection, audio detection
Intelligent video and external input
File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video buffer
9 MB pre-and post alarm
General
Processors and
ETR AX FS, ARTPEC-2, 32 MB RAM, 8 MB Flash
memory
Power
Connec tors
12 V DC ±5%, max 14.5 W
RJ-45 for 10BASE-T/100BASE-TX
Terminal block for 1 alarm input, 1 output and power out for I/O
3.5 mm mic/line in, 3.5 mm line out
Operating
conditions
Approvals
0 – 45 °C (32 – 113 °F)
Humidity 20 – 80% RH (non-condensing)
EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
EN 60950-1, FCC Part 15 Subpart B Class B, ICES-003 Class B,
C-tick AS/NZS 3548
Power supply: UL, CSA, CE
Weight
Included
accessories
730 g (1.6 lb.) incl hard ceiling cover
1260 g (2.8 lb.) incl drop ceiling mounting bracket and cover
Installation Guide, CD with User's Manual, recording software,
installation and management tools, hard ceiling and drop ceiling
mount kits, indoor power supply, transparent and smoked domes,
Windows decoder 1-user license
More information is available at www.axis.com
Dimensions Optional accessories
©200 8 Axis Communications AB. AX IS COMMUNICATIONS, AXIS, ETR AX, ARTPEC and VA PIX are re gistered t rademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and pr oducts are trademarks or registered tr ademark s of their respectiv e companies. We reser ve the right
to introduce modif ications without notice.
Various housings
AXIS 295 Video Surveillance Joystick T90A IR illuminators
For information on A XIS Camera Station and
video management software from
Axis’ Application Development Partners,
see www.axis.com/products/video/software/
