Datasheet
AXISP5655-EPTZDomeNetworkCamera

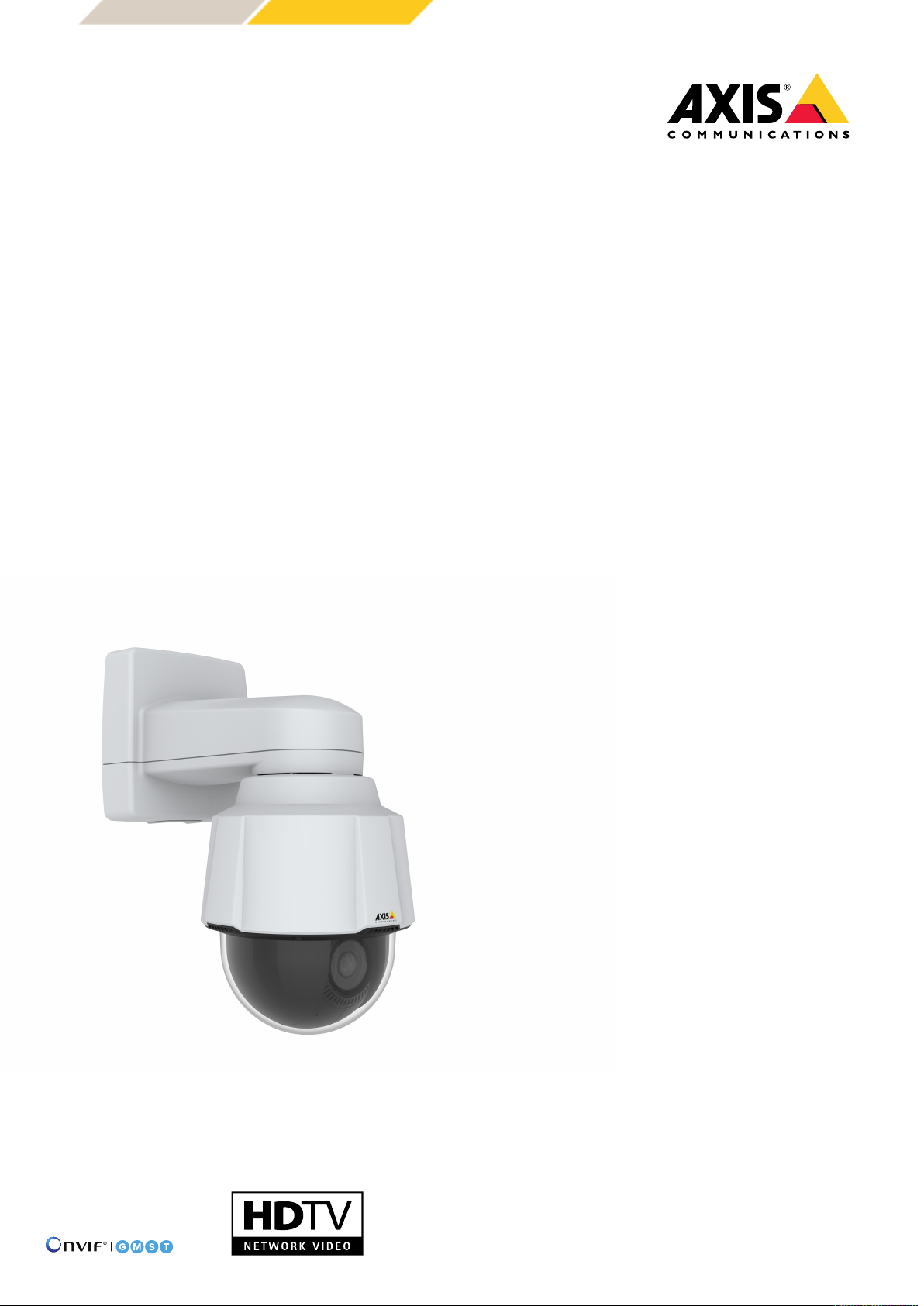

AXIS P5655–E PTZ Network Camera
HDTV 1080p PTZ with 32x zoom and focus recall
AXIS P5655-E PTZ Network Camera is a cost-effective, high performance PTZ with HDTV 1080p and 32x optical zoom. It
features Forensic WDR for clarity even when there’s both dark and light areas in the scene. And, Lightfinder 2.0 to
capture low-light images with more saturated colors and sharper images of moving objects. It offers electronic image
stabilization and enhanced security features including signed firmware and secure boot. With IP66, NEMA 4X and IK10
ratings it’s resistant to both harsh weather conditions and impacts. Plus, you get two-way audio, I/O ports and extended
capabilities for advanced analytics.
> HDTV 1080p with 32x optical zoom
> Forensic WDR and Lightfinder 2.0
> Signed firmware and secure boot
> Focus recall and EIS
> Zipstream with support for H.264 and H.265
Page 2
AXIS P5655–E PTZ Network Camera
Camera
Image sensor
1/2.8” progressive scan RGB CMOS
Lens
Varifocal, 4.3-137.6 mm, F1.4 - 4.0
Horizontal field of view: 58.3°- 2.4°
Vertical field of view: 35.5°- 1.4°
Including EIS, barrel and pincushion distortion
correction
Autofocus and auto-iris
Day and night
Automatically removable infrared-cut filter
Minimum illumination
Color: 0.1 lux at 30 IRE F1.4
B/W: 0.01 lux at 30 IRE F1.4
Shutter speed
1/66500 s to 2 s
Pan/Tilt/Zoom
Pan: 360° endless, 0.1°- 350°/s
Tilt: 180°, 0.1°- 350°/s
Zoom: 32x optical, 12x digital, Total 384x zoom
256 preset positions, nadir flip, limited guard tour,
control queue, on-screen directional indicator, set new
pan 0°, focus window, focus recall
Video
Video compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High
Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution
1920x1080 HDTV 1080p to 320x180
Frame rate
Up to 60/50 fps (60/50 Hz) in all resolutions
Video streaming
Multiple, individually configurable streams in H.264,
H.265 and Motion JPEG
Controllable frame rate and bandwidth
Axis Zipstream technology in H.264 and H.265
VBR/ABR/MBR H.264/H.265
Low latency mode
Image settings
Compression, saturation, brightness, sharpness,
contrast, local contrast, white balance, exposure
control, exposure zones, Forensic WDR: Up to 120 dB
depending on scene, defogging, day/night shift level,
tone mapping, fine tuning of low-light behavior,
rotation: 0°, 180°, text and image overlay, image freeze
on PTZ, electronic image stabilization, scene profiles, 20
individual polygon privacy masks
System on chip (SoC)
Model
ARTPEC-7
Memory
1024 MB RAM, 512 MB Flash
Compute capabilities
Machine learning processing unit (MLPU)
Signal-to-noise ratio
>55 dB
Audio
Audio streaming
Two-way, full duplex
Audio encoding
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM
8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audio input/output
External microphone input or line input, line output
(Requires Axis 10-pin Push-pull System Connector or
Axis Multicable C I/O Audio Power 1 m/5 m, not
included), automatic gain control
Page 3
Network
Analytics
Network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2,
1
HTTPS
, TLS1, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB,
SMTP, mDNS (Bonjour), UPnP
II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/
RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure
syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local
address (ZeroConf)
®
, SNMP v1/v2c/v3 (MIB-
System integration
Application Programming Interface
Open API for software integration, including VAPIX®
and AXIS Camera Application Platform; specifications at
axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S,
and ONVIF® Profile T, specification at onvif.org
Video management systems
Compatible with AXIS Camera Station Edge,
AXIS Camera Station Pro, AXIS Camera Station 5, and
video management software from Axis’ partners
available at axis.com/vms.
Applications
Included
AXIS Object Analytics, AXIS Scene Metadata
AXIS Video Motion Detection, AXIS Motion Guard,
AXIS Fence Guard, AXIS Loitering Guard, audio
detection, advanced gatekeeper, autotracker 2
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/
acap
AXIS Object Analytics
Object classes: humans, vehicles
Scenarios: line crossing, object in area, crossline
counting, time in area
Up to 10 scenarios
Other features: triggered objects visualized with
trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event
AXIS Scene Metadata
Object classes: Classes: humans, faces, vehicles (types:
cars, buses, trucks, bikes), license plates
Confidence, position
Event conditions
Audio: Audio detection
Device status: Above operating temperature, Above or
below operating temperature, Below operating
temperature, Fan failure, IP address removed, Network
lost, New IP address, Shock detected, Storage failure,
System ready, Within operating temperature, Edge
storage, Recording ongoing, Storage disruption
I/O: Digital input, Manual trigger, Virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement: Camera 1, PTZ
preset position reached: Camera 1, PTZ ready
Scheduled and recurring: Scheduled event
Video: Day-night mode, Live stream open
Event actions
Play audio clips, day-night mode, go to preset position,
guard tour, I/O, upload of images or video clips via FTP,
SFTP, HTTP, HTTPS, network share and email,
notification to email, HTTP, HTTPS, TCP and SNMP trap,
overlay text, prioritized text, record video to SD card
and network share, WDR mode
MQTT publish
Approvals
EMC
EN 55032 Class A, IEC 62236-4, EN 61000-3-2,
EN 61000-3-3, EN 55024, EN 61000-6-1
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-003 Class A
Japan: VCCI Class A
Korea: KC KN32 Class A, KC KN35
USA: FCC Part 15 Subpart B Class A
Safety
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30,
EC 60068-2-78, IEC/EN 60529, IP66, IEC/EN 62262,
IK10, NEMA 250 Type 4X
Network
NIST SP500-267, IPv6 USGv6
Built-in installation aids
Pixel counter
1. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software
written by Eric Young ([email protected]).
Page 4
www.axis.com
T10132168/EN/M47.2/202506
Cybersecurity
Edge security
Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 Client
Credential Flow/OpenID Authorization Code Flow for
centralized ADFS account management, password
protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Secure boot
Network security
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)2,
IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS
v1.2/v1.3
2
, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall
2
, TLS
Documentation
AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
AXIS OS Software Bill of Material (SBOM)
To download documents, go to axis.com/support/
cybersecurity/resources
To read more about Axis cybersecurity support, go to
axis.com/cybersecurity
General
Connectors
RJ45 10BASE-T/100BASE-TX PoE
RJ45 push-pull connector (IP66) included
I/O connector for DC or AC input, 4 configurable alarm
Inputs/outputs: mic in/line in, line out (Axis 10-pin
push-pull system connector or Axis multicable C I/O
audio power 1 m/5 m, (not included))
Storage
Support for SD/SDHC/SDXC card
Support for SD card encryption (AES-XTS-Plain64
256bit)
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating conditions
-30 °C to 50 °C (-22 °F to 122 °F)
Maximum intermittent temperature 55 °C
Humidity 10–100% RH (condensing)
Storage conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Dimensions
Height: 217 mm (8.54 in)
ø 188 mm (7.4 in)
Casing
IP66-, NEMA 4X- and IK10-rated
Aluminum casing, polycarbonate (PC) dome
Color: white NCS S 1002-B, repaintable skin cover
For repainting instructions of casing and impact on
warranty, contact your Axis partner.
Sustainability
PVC free
Power
Axis PoE+ midspan 1–port: 100–240 V AC, max 37 W
IEEE 802.3at, Type 2 Class 4
Camera consumption: typical 10.5 W, max 19 W
Multiconnector:
20–28 V DC, typical 10 W, max 18 W
20–24 V AC, typical 15.5 V A, max 26 V A
(PoE+ midspan or power supply not included)
Weight
2.5 kg (5.5 lb)
Included accessories
RJ45 Push-pull Connector (IP66), hard ceiling mount,
spring pipe adaptor, U-profile pipe adaptor, installation
guide, Windows
®
decoder 1-user license
Optional accessories
AXIS T91B mounts, AXIS T94A02L recessed mount,
outdoor RJ45 cable with premounted connector,
AXIS T8133 Midspan 30 W 1-port, repaintable skin
covers, smoked dome, Axis 10-pin push-pull system
connector, Axis multicable C I/O audio power 1 m/5 m
For more accessories, see axis.com
Languages
English, German, French, Spanish, Italian, Russian,
Simplified Chinese, Japanese, Korean, Portuguese,
Traditional Chinese, Dutch, Czech, Swedish, Finnish,
Turkish, Thai, Vietnamese
Warranty
5-year warranty, see axis.com/warranty
2. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software
written by Eric Young ([email protected]).
© 2019 – 2025 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other
trademarks are the property of their respective owners. We reserve the right to introduce modifications without notice.
