Installation Instructions

This document is an addendum to the Camera Housing Operating Instructions and
describes how to connect power to a Axis network camera installed in the housing. Please
read through both instructions before proceeding with the installation.

This description applies to the following articles:

• Verso Cool Outdoor Housing, HPV42K0A017 Housing 0217-141

• VT Outdoor Power Supply OHEGBPS1B Power supply 0217-151

• VT Heater 110/230VAC OHPVH1 Heater 0217-161

• 230V cable Power cable not supplied

• 12V cable Power cable (min. area 0.5mm2) not supplied

• AXIS 210/210A/211/211A Network Camera

•AXIS 221 Network Camera

Important!

High voltage - the apparatus works on 230V AC. Always ensure that the power is discon­nected before starting any work or opening the housing.

This product should be installed by certified electrical technicians in compliance with local
laws and regulations.

Use cable glands and/or cables that are suitable for external use and are in compliance with
local laws and regulations.

Product Description Part number

Installation Instructions

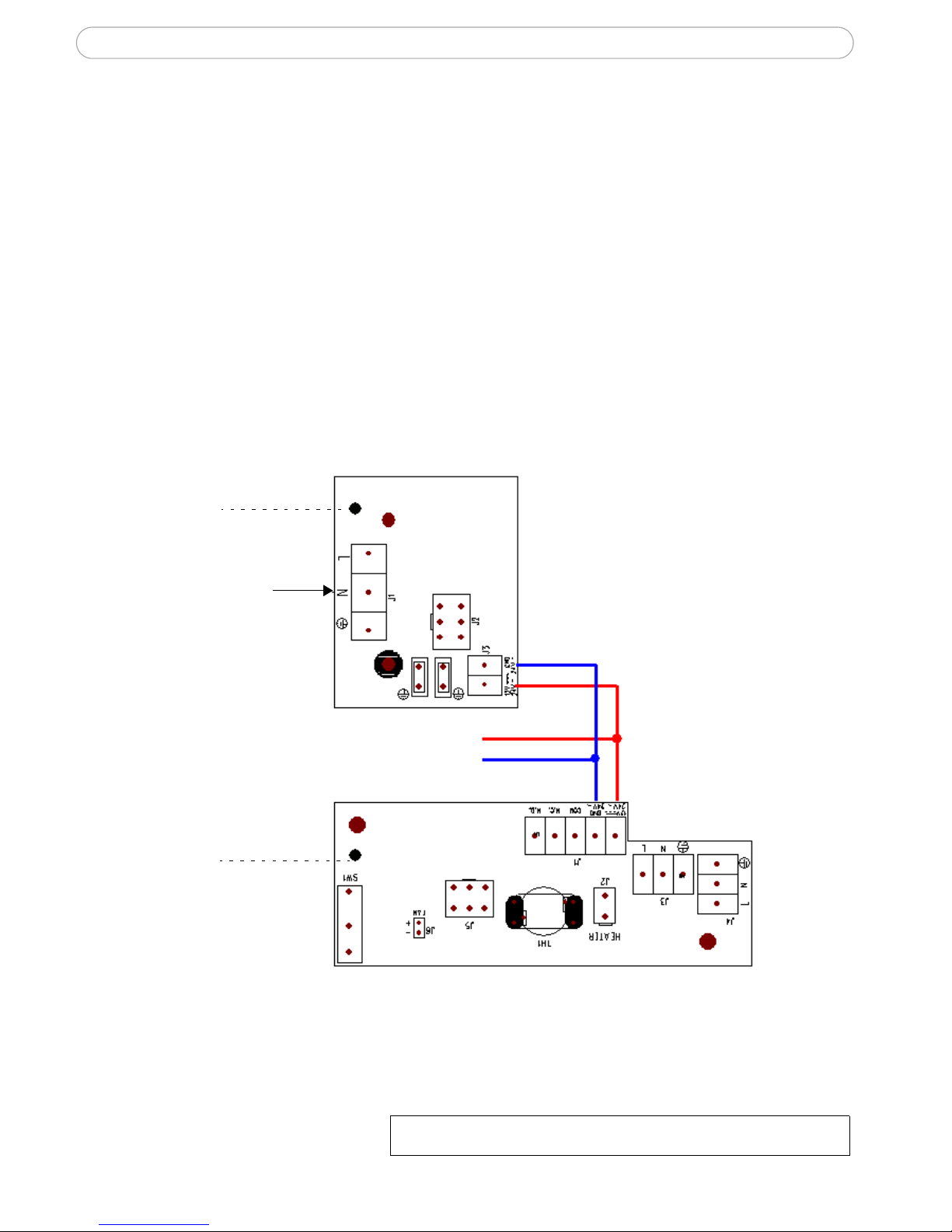

Power supply connectors

Mains power
cable

12V power cable
to housing/camera

A

B

Housing connectors

J4

J3

J2

J1

8

5

6

7

Camera connectors (8)

(-)(+)

(+)(-)

AXIS 221

AXIS 210/210A/211/211A
