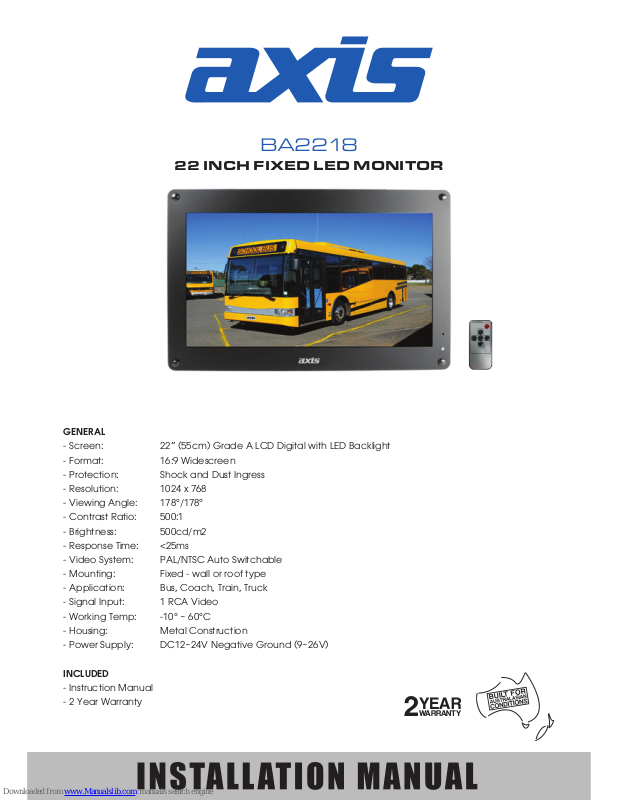

Axis BA2218 Installation Manual

1

2

WARRANTY

YEAR

BA2218

22 INCH FIXED LED MONITOR

GENERAL

- Screen: 22” (55cm) Grade A LCD Digital with LED Backlight

- Format: 16:9 Widescreen

- Protection: Shock and Dust Ingress

- Resolution: 1024 x 768

- Viewing Angle: 178°/178°

- Contrast Ratio: 500:1

- Brightness: 500cd/m2

- Response Time: <25ms

- Video System: PAL/NTSC Auto Switchable

- Mounting: Fixed - wall or roof type

- Application: Bus, Coach, Train, Truck

- Signal Input: 1 RCA Video

- Working Temp: -10° ~ 60°C

- Housing: Metal Construction

- Power Supply: DC12~24V Negative Ground (9~26V)

INCLUDED

- Instruction Manual

- 2 Year Warranty

2

(1) Picture Adjustment

Colour adjustments Menu Items
Press < > keys and MENU keys to enter the following:

1. Brightness: Adjust Black Level

2. Contrast: Adjust White Level

3. Saturation: Colour Intensity

4. Hue: Adjust RGB

5. ESC. Go back to main MENU
Press MENU to select Items

(2) Imaging Adjustment

Imaging adjustments Menu Items

Press < > keys and MENU keys to enter the following:

1. The horizontal position

2. The vertical position

3. Sharpness

4. Phase

5. ESC Go back to main MENU
Press MENU to select Items

(3) MENU Adjustment

1. MENU horizontal position

2. MENU vertical position

3. MENU time

4. MENU transparent

5. ESC. Go back to main MENU

6. Language Select

Press MENU to select Items

(4) Other

1. Signal Selection

2. Imaging Selection

3. Reset

4. Volume

5. ESC. Go back to main MENU

(5) ESC MENU

Go into MENU, Adjust MENU, Select ESC, Press MENU keys, go back
main MENU or Close MENU window.

Use the included remote control to make adjustments on the unit:
