AXEON AT User Manual

Download

Reverse Osmosis

User’s Manual

Model

AT-500, AT-1000

AT-1000 Pictured

THIS PAGE

LEFT BLANK

AT – Series User’s Manual MKTF-205 06/12

Table of Contents

INTRODUCTION .........................................................................................................4

SAFETY....................................................................................................................... 4

FEED WATER AND OPERATION SPECIFICATIONS................................................5

REJECTION, RECOVERY AND FLOW RATES..........................................................5

SYSTEM REQUIREMENTS AND OPERATION GUIDELINES...................................6

MEMBRANE ELEMENTS............................................................................................8

AT-500, AT-1000 SYSTEM IDENTIFICATION ..........................................................13

AT-500 MEMBRANE FLOW DIAGRAM.....................................................................17

AT-1000 MEMBRANE FLOW DIAGRAM................................................................... 18

SYSTEM PURGING ..................................................................................................19

INITIAL START-UP.................................................................................................... 20

DESIGN BASIS FOR AT-500 AND AT-1000.............................................................21

OPERATING DO’s AND DON’Ts...............................................................................22

OPERATION AND MAINTENANCE..........................................................................22

MEMBRANE REMOVAL AND REPLACEMENT .......................................................25

FLUSHING THE SYSTEM......................................................................................... 28

PREPARING UNIT FOR STORAGE OR SHIPMENT................................................28

REVERSE OSMOSIS TROUBLESHOOTING...........................................................30

TEMPERATURE CORRECTION FACTORS FOR MEMBRANE...............................32

OPERATION.............................................................................................................. 34

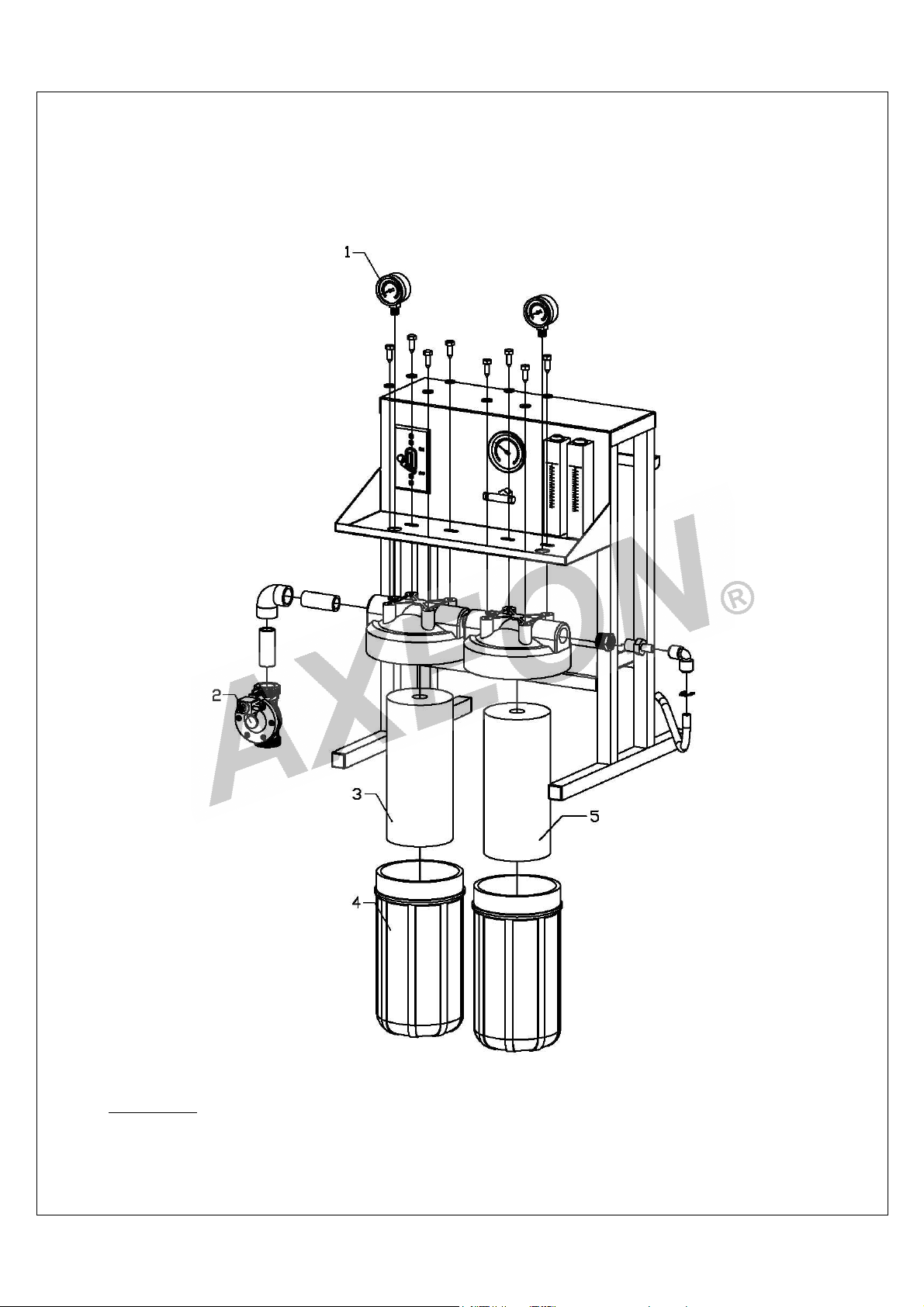

DRAWINGS...............................................................................................................35

AT – Series User’s Manual MKTF-205 06/12

Your AT-Series

system is a durable piece of equipment which, with proper care, will last

for many years. This User’s Manual

troubleshooting details vital to the sustained performance of your system.

The test results which are included with this User’s Manual indicate your system’s

concentrate (

If your system is altered at the s

ease contact your local dealer or distributor to determine the proper recovery for your

NOTE: IN ORDER TO MAINTAIN

OPERATING LOG MUST BE MAINTAINED AND COPIES WILL NEED TO BE SENT TO

YOUR LOCAL DEALER OR DISTRIBUTOR FOR REVIEW.

NOTE: PRIOR TO

SYSTEM, THIS USER’S MANUAL MUST BE READ AND FULLY UNDERSTOOD. KEE

THIS AND OTHER ASSOCIATED INFORMATION FOR FUTURE REFERENCE AND

FOR NEW OPERATORS OR QUALIFIED PERSONNEL NEAR THE SYSTEM

The Safety section of this User’s Manual outlines the various safety headings used

throughout this manual’s text and are enha

NOTE: INDICATES STATEMENTS THAT PROVIDE FURTHER INFORMATION AND

CAUTION: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY

CONDITIONS OR PRACTICES THAT COULD RESULT IN EQUIPMENT OR OTHER

WARNING: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY

CONDITIONS OR PRACTICES THAT COULD RESULT IN INJURY OR LOSS OF LIFE.

FAILURE TO FOLLOW WARNINGS COULD RESULT IN SERIOUS INJURY OR EVEN

, maintenance

or if the feed water conditions

THE MANUFACTURER’S

REVERSE OSMOSIS

INTRODUCTION

outlines installation, operation

and

permeate (product) and

pl application.

SAFETY

waste) test results.

ite of operation

OPERATING OR SERVICING THE

change,

WARRANTY, AN

CLARIFICATION.

PROPERTY DAMAGE.

DEATH.

AT – Series User’s Manual MKTF-205

nced and defined below:

06/12

DO NOT UNDER ANY CIRCUMSTANCE

OR OTHER DESCRIPTIVE LABELS FROM THE SYSTEM.

FEED WATER AND

Nothing has a greater effect on a reverse osmosis system than the feed water quality

NOTE: IT IS VERY IMPORTANT TO MEET THE MINIMUM FEED WATER

REQUIREMENTS.

FAILURE TO DO SO WILL CAUSE THE MEMBRANES TO FOUL

AND VOID THE MANUFACTURER’S WARRANTY.

NOTE: HIGHER TDS AND/OR LOWER TEMPERATURES WILL REDUCE THE

REJECTION, RECOVERY AND

everse osmosis systems

capacities indicated by the suffix in the system’s name under the conditions listed

above. For example, the AT

test conditions.

The amount of total dissolved solids (TDS) rejected by the membrane is expressed as

percentage. For example, a 98.5% rejection rate means that 98.5

OPERATION SPECIFICATIONS

FLOW RATES

are designed to produce permeate

permeate

% of total dissolved

OPERATING LIMITS

REMOVE ANY CA

TION, WARNING,

SYSTEM’S PRODUCTION.

AT-Series r

-500 produces 500 gallons per day of

the listed operating

AT – Series User’s Manual MKTF-205

water at the

water at

06/12

solids do not pass through the membrane. To calculate the % rejection, use the following formula:

% Rejection = [(Feed TDS – Product TDS) / Feed TDS] x 100

Example:

98.5% = [(550-8.25)/550] x 100

NOTE: ALL TDS FIGURES MUST BE EXPRESSED IN THE SAME UNITS,

TYPICALLY PARTS PER MILLION (PPM) OR MILLIGRAMS PER LITER (MG/L).

AT-Series reverse osmosis systems are designed to reject up to 98.5% NaCl, unless computer projections have been provided or stated otherwise.

The amount of permeate water recovered for use is expressed as a percentage. To calculate % recovery, use the following formula:

% Recovery = (Product Water Flow Rate / Feed Water Flow Rate) x 100

Example: 23% = (0.35/1.50) x 100

NOTE: ALL FLOW RATES MUST BE EXPRESSED IN THE SAME UNITS,

TYPICALLY GALLONS PER MINUTE (GPM).

SYSTEM REQUIREMENTS AND OPERATION GUIDELINES

PLUMBING

The membranes and high pressure pumps used on AT-Series systems require a continuous flow of water with a minimum feed pressure of 45 psi, not to exceed 85°F.

FEED WATER CONNECTION

1. Locate the 1” FNPT solenoid valve feed water inlet. (Figure 1A, Page 13)

2. Attach the inlet piping to the 1” FNPT solenoid valve feed water inlet.

3. Be certain that all of the components of the feed water are soluble at the concentrations attained in the system.

AT – Series User’s Manual MKTF-205 06/12

NOTE: FEED LINE MUST BE

PERMEATE (PRODUCT WATER) CONNECTION

labeled permeate and attach to storage tank

permeate water can flow freely

damage to the membrane elements.

with PVC fittings, or other FDA approved materials

material being used does not di

THE PH OF THE REVERSE O

2 POINTS LOWER THAN THE FEED WATER PH. A LOW PH CAN

BE VERY AGGRESSIVE TO SOME PLUMBING MATERIALS SUCH AS COPPER

CONCENTRATE (WASTE WATER) CONNECTION

labeled

to an open drain in a free and unrestricted manner (no backpressure).

CAUTION: ANY RESTRICTIONS OR BLOCKAGE IN THE DRAIN LINE CAN

CAUSE BACKPRESSURE, WHICH WILL

PRESSURE. THIS CAN RESULT IN DAMAGE TO THE SYSTEM’S MEMBRANES AND

in 110/220 Volt 50/60 Hertz 1 P

110V model

nsure that the electrical circuit supplying the system is compatible with the

uirements of the specific AT

MINIMUM 1/2” INCH.

Backpressure can cause

3/8” permeate line

SMOSIS PERMEATE WATER WILL

INCREASE THE SYSTEM’S OPERATING

The motor is

system is equipped with a 5 foot

Locate the 3/8” tubing irreversible

the holding tank

CAUTION

TYPICALLY BE 1-

PIPING.

Locate the 3/8” tubing concentrate line

with no backpressure.

The

ssolve into the permeate water.

concentrate and attach the tubing to

Ensure that the

can be run to

This is so the

drain. Run the

COMPONENTS.

ELECTRICAL

The motor used on the AT electrical cord. E

req

AT – Series User’s Manual MKTF-205

Series systems is a carbonator motor.

hase. Each AT-Series

s are equipped with a plug.

model you are installing.

available

06/12

NOTE: IT’S

RECOMMEND

SYSTEM IN ACCORDANCE WITH LOCAL AND NATIONAL ELECTRICAL CODES

WARNING: TO REDUCE THE RISK OF ELECTRICAL SHOCK, THE

INCOMING POWER SUPPLY MUST INCLUDE A PROTECTIVE EARTH GROUND.

systems are typically controlled with a liquid level switch in a storage tank.

The liquid level switch turns the system on when the water level in the tank drops, and

Liquid level switches can be obtained by your local dealer or

distributor. If a liquid level switch is to be used, install it at this time.

systems are supplied with a 5 micron sediment filter and a 10 micron car

block. Change the cartridge

filters. Ask your local deale

NOTE: THE SYSTEM MUST BE OPERATED ON FILTERED WATER ONLY.

type used on the AT

as an option

If any damage occurs to your system

your local dealer or distributor and inform them of your system

standing system should be bolted down in compliance with local regulation

standards or securely fastened.

everse osmosis systems come pre

High Flow Low Energy membranes, unle

membrane element performance characteristics are listed

THAT A LICENSED ELECTRICIAN WIRE YOUR

15 psi differential e

r or distributor about Pre

ary vane pump

build kit may be available. Contact

and pump model

loaded with Thin Film Composite (TFC)

se specified. General

on the next page.

(NEC).

AT-Series off when the tank is full.

PRE-FILTRATION

AT-Series between the two pre-

systems, if required.

PUMP

The pump pumps are also available

MOUNTING

The free

once a month or when a 10-

-Series systems is brass rot in stainless steel.

’s pump, a re-

bon

xists

-Filtration

s. These

MEMBRANE ELEMENTS

AT-Series r HF1

AT – Series User’s Manual MKTF-205

ss otherwi

06/12

HF1-STANDARD

AT – Series User’s Manual

MKTF-205 06/12

HF4-OPTIONAL

AT – Series User’s Manual

MKTF-205 06/12

NF3-OPTIONAL

AT – Series User’s Manual

MKTF-205 06/12

NF4-OPTIONAL

AT – Series User’s Manual

MKTF-205 06/12

AT-500, AT-1000 SYSTEM IDENTIFICATION

FIGURE 1A

NUMBER IDENTIFICATION

1. Solenoid Valve – Turns On/Off Feed Water

2. 5 Micron Sediment – Removes particulates

3. 10 Micron Carbon Block – Chlorine reduction

4. Pressure Gauge - Measures feed pressure

5. Pressure Gauge - Measures pressure after filters

6. Control Switch - Controls RO system

7. Recycle Valve – Recycles concentrate back to feed (if applicable)

8. Concentrate Valve – Controls flow of concentrate (waste) water to the drain

9. RO Pump - Pressurizes RO system

10.Flow Meter - Measures flow of permeate water

11.Flow Meter - Measures flow of concentrate (waste) water

12.Flow Meter - Measures flow of concentrate recycle water (if applicable)

13.Pressure Gauge – Measures pump discharge pressure

14.Pressure Switch – Turns the pump off at less than 15 PSI feed pressure

15.Permeate Check Valve- Protects membranes from back pressure

16.Pressure Vessels – Houses Membrane Elements

AT – Series User’s Manual MKTF-205 06/12

FIGURE 1B

FIGURE 1C

AT – Series User’s Manual MKTF-205 06/12

FIGURE 1D

FIGURE 1E

AT – Series User’s Manual MKTF-205 06/12

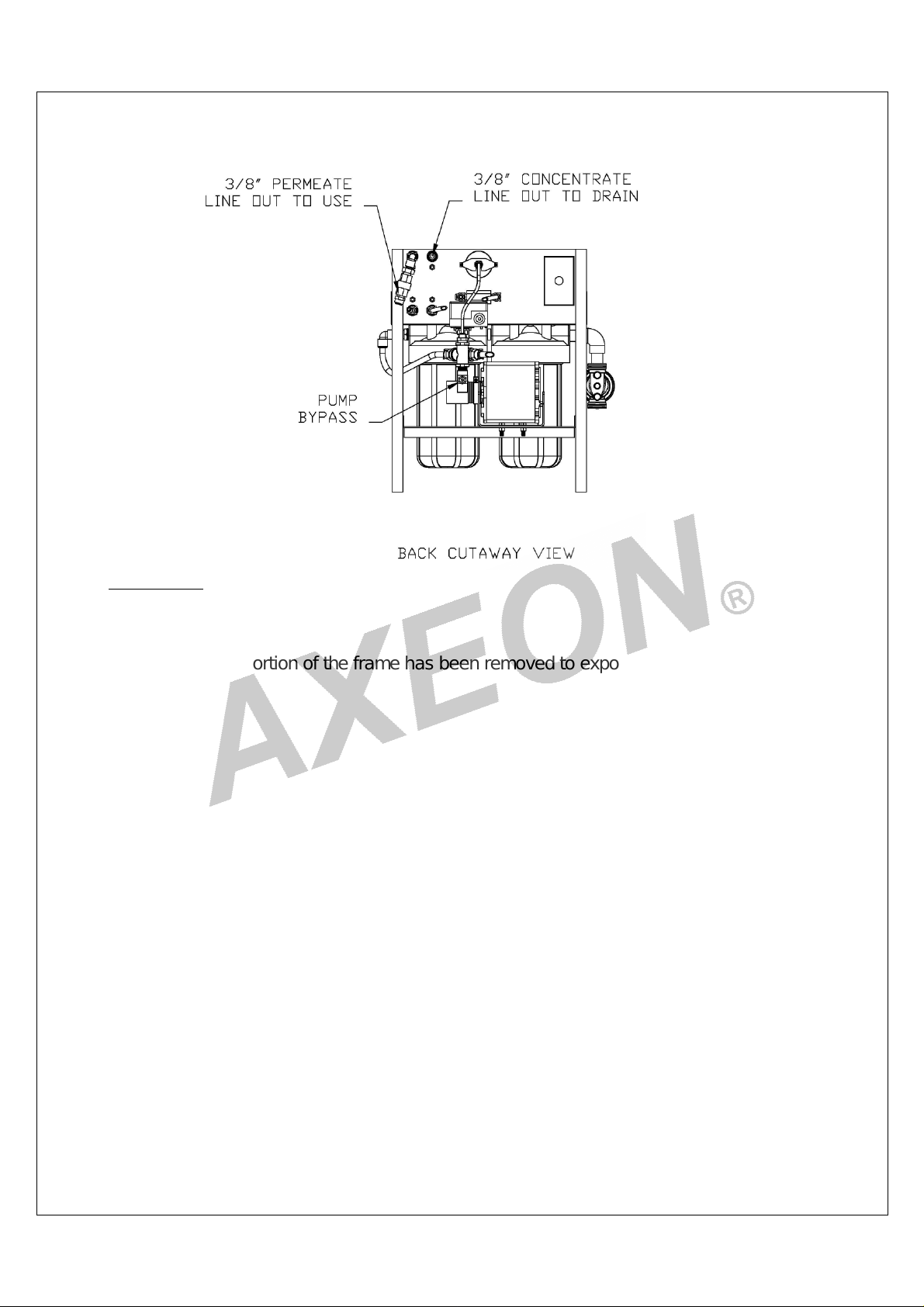

FIGURE 1F

Note: A portion of the frame has been removed to expose components.

AT – Series User’s Manual MKTF-205 06/12

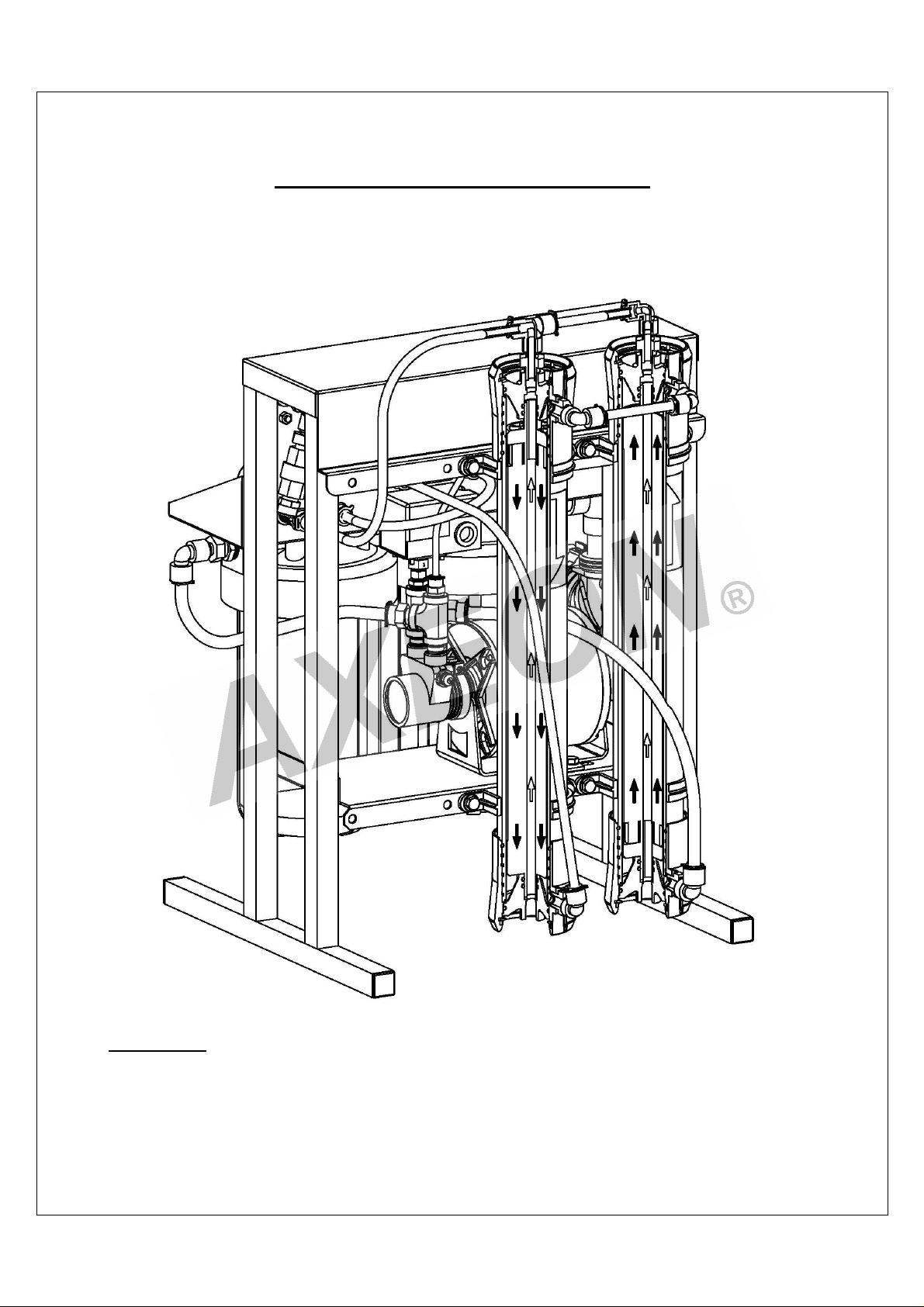

AT-500 MEMBRANE FLOW DIAGRAM

FIGURE 1G Note: Black arrows represent concentrate water and white arrows represent permeate

water.

AT – Series User’s Manual MKTF-205 06/12

AT-1000 MEMBRANE FLOW DIAGRAM

FIGURE 1H

Note: Black arrows represent concentrate water and white arrows represent permeate water.

AT – Series User’s Manual MKTF-205 06/12

SYSTEM PURGING

Carefully inspect your system before initial start-up. Check that all plumbing and electrical connections are not loose or have not come undone during shipment. A user’s manual, test results, and filter housing wrench will accompany your AT-Series reverse osmosis system.

NOTE: LEAVE THE POWER TO THE SYSTEM OFF FOR THIS PROCEDURE.

1. Redirect permeate water to the drain for this procedure.

2. Fully open the concentrate valve #8 (counter clockwise). (Figure 1B, Page 14)

3. Fully close the recycle valve # 7 (clockwise) (if applicable). (Figure 1B, Page 14)

4. Offset the position of the bypass white lever on the solenoid valve #1. (Figure 2, Page 19)

5. Turn the feed water on and let the system purge until no visible bubbles appear from concentrate flow meter #11. (Figure 1B, Page 14)

Lever Inline Lever Offset

Operating Position Bypass Position

FIGURE 2

AT – Series User’s Manual MKTF-205 06/12

INITIAL START-UP

1. Keep the permeate water line to drain for this procedure.

2. Fully open the concentrate valve #8 (counter clockwise). (Figure 1B, Page 14)

3. Fully close the recycle valve # 7(clockwise)(if applicable). (Figure 1B, Page 14)

4. Return position of the bypass white lever inline on the solenoid valve #1. (Figure 2, Page 19)

5. Turn the RO system on #6 and adjust the concentrate (waste) valve #8, recycle valve # 7 (if applicable), and the bypass screw on the pump to the designed flow and pressure. (Figure 3, Page 24)

6. Inspect the system for leaks.

7. Allow the system to run for one hour to flush the preservative solution from the system.

8. After one hour, shut down the system.

9. Re-direct the permeate water back to the tank and then turn the system back on.

10.Record the readings daily for a week. After a week, record the readings once a week.

Adjust the pump bypass valve and concentrate valve until the correct flow

is achieved. For example, AT-500 should be adjusted until it produces about 500

GPD or 0.35 GPM of permeate (product water) at 77˚F. Design flow might be

achieved below 150 PSI. GPM = GPD/1440

Example: .35 =500/1440

AT – Series User’s Manual MKTF-205 06/12

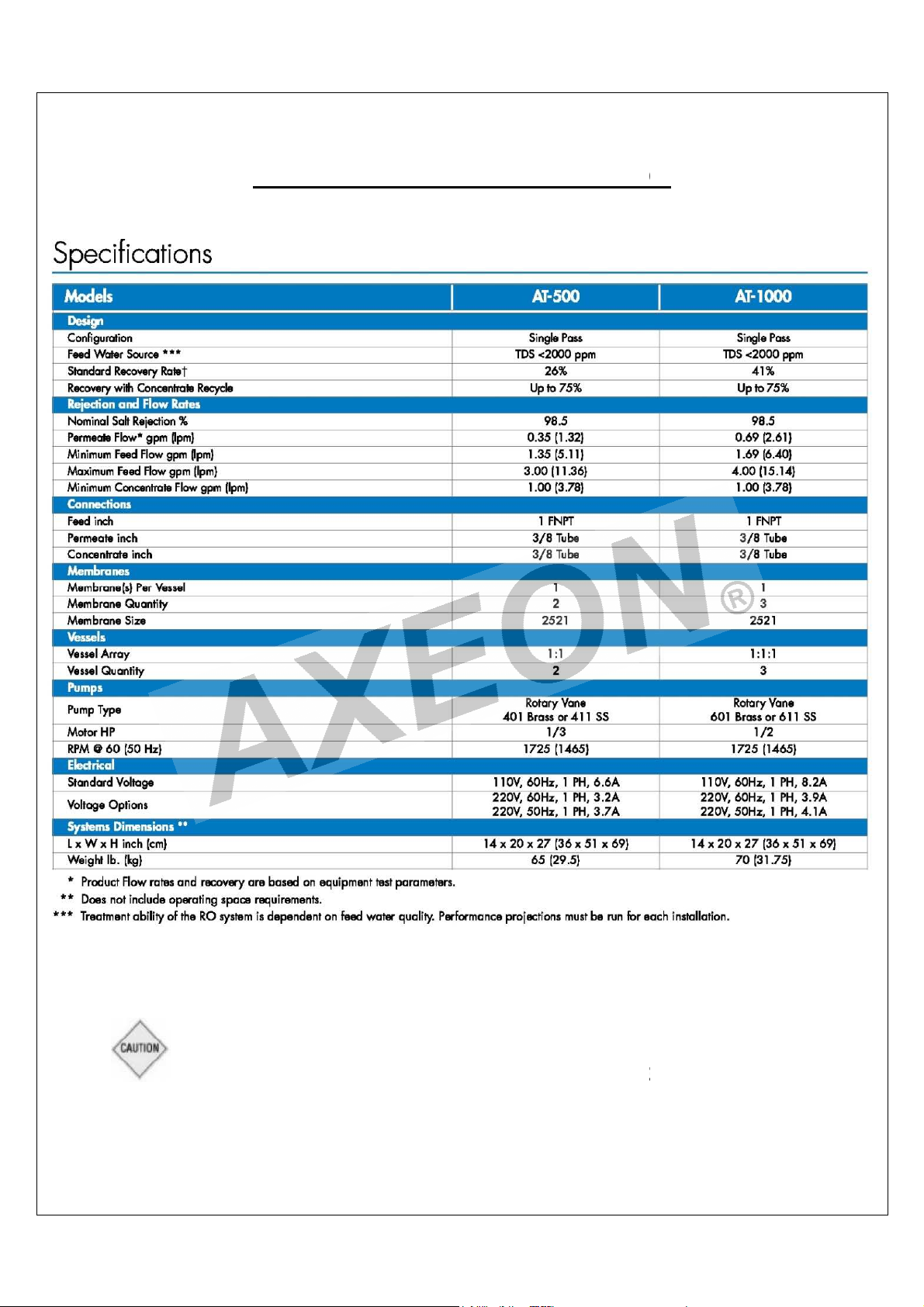

DESIGN

WARNING: NEVER EXCEED THE MAXIMUM PRESSURE

BASIS FOR AT-500 AND AT-

1000

SYSTEM.

AT – Series User’s Manual MKTF-205

RATING OF YOUR

06/12

OPERATING DO’s AND DON’Ts

DO:

 Change the cartridge filters regularly  Monitor the system and keep a daily log  Run the system as much as possible on a continuous basis.  Adjust the system recovery to the recommended value  Always feed the pump with filtered water.

DON’T

 Permit chlorine to enter or be present in the feed water.  Shut down the system for extended periods.  Close the throttle valve completely.  Operate the system with insufficient feed flow.  Operate the pump dry.

OPERATION AND MAINTENANCE

The reverse osmosis process causes the concentration of impurities. The impurities may precipitate (come out of solution) when their concentration reaches saturation levels.

NOTE: PRECIPITATION CAN SCALE OR FOUL MEMBRANES AND MUST

BE PREVENTED.

Check your feed water chemistry and pre-treat the water and/or reduce the system’s recovery as required. If necessary, consult with your local dealer or distributor.

AT – Series User’s Manual MKTF-205 06/12

PRE-FILTER PRESSURE GAUGES

These gauges measure the feed water pressure when it enters and exits the pre-filters. A pressure differential of 10 - 15 psi or more on the two pressure gauges indicates that the pre-filters require servicing. For example, if the inlet pressure is 40 psi, the filter should be changed when the outlet pressure is 30 psi or below.

PERMEATE (PRODUCT) FLOW METER AND CONCENTRATE (WASTE) FLOW METER

These flow meters indicate the flow rates of the permeate and concentrate water. The measurements, when added together, also indicate the feed water flow rate or (total flow rate); if the system is not equipped with a concentrate recycle valve.

CAUTION: EXCESSIVE RECYCLING MAY CAUSE PREMATURE FOULING

OR SCALING OF THE MEMBRANE ELEMENTS.

LOW PRESSURE SWITCH

The low pressure switch shuts off the system when the feed water pressure drops below 15 PSI, preventing damage to the pump. The system restarts automatically when there is a constant pressure of 35 PSI or more.

If you notice the pressure fluctuating, and the system cycling off and on, turn the system off and ensure that proper feed flow and pressure are available to the system.

PUMP BYPASS VALVE

This valve is installed as a standard feature on the AT-Series reverse osmosis systems. It provides an adjustment for pump pressure, which will vary as the required system pressure changes. As the feed water temperature decreases, and/or the feed water TDS increases, the system will require a higher operating pressure to produce the specified permeate flow. An AT system installed in Florida may provide the specified permeate flow of 0.35 gpm at 100 psi; however the same system installed in Maine –

AT – Series User’s Manual MKTF-205 06/12

much colder feed water – may require 150 psi to produce the same amount of permeate. Never exceed 150 psi. Example:

98.5% = [(550-8.25)/550] x 100

% Rejection = (Feed TDS – Product TDS)/ (Feed TDS) x 100

ADJUSTING THE BYPASS VALVE

Use a fat screw driver to increase or decrease the pressure to the bypass valve. To increase the pressure, turn the screw clockwise. To decrease the pressure, turn the screw counter clockwise. (Figure 3, Page 24)

FIGURE 3

AT – Series User’s Manual MKTF-205 06/12

MEM

BRANE

the

proper information and tools at hand. Please refer to the following instructions when

removing and replacing membrane elements:

ALL PRESSURE GAUGES MUST READ ZERO BEFORE

BEFORE ATTEMPTING

SYSTEM AND BLEED ALL WATER PRESSURE FROM

Remove the end caps from the top of the membrane housings. This is

snap ring of the membrane

the membrane bag containing the membrane element from the shipping

WEAR GLOVES FOR

CONTAMINATE THE MEMBRANE.

Cut the bag open as close as possible to the seal at the end of the bag, so the

used if

Make sure that all parts are clean and free fr

permeate tube for nicks or cuts. Replace the O

Flow directions should be observed for installation of each element into each

Page 27

As time progresses, the efficiency of the membrane will be reduced. In general, the salt

rejection does not change significantly until two or three years after installation when

operated on properly pretreated feed water. The

slightly after one year of operation, but can be extended with diligent flushing and

cleaning of the system. A high pH and/or precipitation of hardness can cause

THE MEMBRANE ELEMENT:

REPLACEMENT

pressure vessels is an easy process if you have the

POWER FROM

SYSTEM.

S IN ORDER

om dirt. Examine the brine seal

rings or brine seal if damaged.

permeate flow rate will begin to decline

Replacing membranes in

WARNING:

PROCEEDING.

REMOVAL AND

, DISCONNECT THE

THE

1. removing the white

2. Remove box.

3. bag may be re-

5. housing. (Figure 4,

THE FOLLOWING STEP

necessary.

)

done by

housing.

NOT TO

and

premature loss in rejection

REPLACING

AT – Series User’s Manual MKTF-205

06/12

WARNING: THE BRINE SEAL MUST BE IN THE SAME POSITION FOR

EACH MEMBRANE

ELEMENT HOUSING, SO MARK EACH HOUSING PRIOR TO

THE MEMBRANE

ON ONE SIDE OF THE MEMBRANE AND

MEMBRANE

Remove one membrane

from the top of the housing. L

the old membrane element out of the membrane element housing.

seal

Install the brine seal side

hen the housings have a direction of flow from bottom to top, the brine seal

should be located at the bottom of the housing.

insert

careful not to tear or flip the brine seal.

e element, to ensure

the brine seal if necessary.

With a smooth and constant motion, push the membrane e

the brine seal enters the ho

install the end caps by gently twisting the end cap while pushing it onto the

housing. Ensure that you do not pinc

. Push the end plug on until

with the outer diameter of the membrane housing.

snap ring until

econnect any fittings that may have been disconnected when the membrane

nt housings were disassembled.

p the system,

MEMBRANES ARE SHIPPED IN A PRESERVATIVE

SOLUTION. THE MEMBRANES MUST BE FLUSHED FOR AT LEAST 1 HOUR TO

REMOVE THE PRESERVATIVE FROM THE MEMBRANE. DISCARD ALL OF THE

PERMEATE AND CONCENTRATE, WHICH IS PRODUCED DURING THE FLUSH

ELEMENTS. THE BRINE SEAL IS A RUBBER SEAL

S ALWAYS ON THE

from the membrane element

pliers may be necessary to pull

ant, Silicone DC 111

Figure 4, Page 27

the

slow twisting motion should be used to

the brine seal stays in place.

lement into the

using without coming out of the brine seal

rings while re

the outer diameter of the plug is flush

locking clip if available.

section of this manual

REMOVING THAT PROTRUDES FEED SIDE OF THE

ELEMENT.

1. housings,

2. Lubricate the brine

3. W

4. At a slight angle, insert the membran

5. housing so groove.

6. Re- the end plug

element at a time

ong nose

with non petroleum based lubric

of the membrane element first (

the membrane while slightly rotating

h or fatigue any O-

element being

Re-lube

-installing

7. Insert the

it is fully seated. Install the

8. R eleme

9. To start-u

please refer to the Initial Start-Up

(See Page 20)

CAUTION: WET

PERIOD.

AT – Series User’s Manual MKTF-205

06/12

FIGURE 4

View from the back of AT-500, AT-1000 reverse osmosis system.

AT – Series User’s Manual MKTF-205 06/12

FLUSHING THE SYSTEM

The system should be flushed weekly to remove sediment from the surface of the membranes. To manually flush the system, follow the preceding steps:

1. The system must be operating during the flush procedure.

2. Fully open the concentrate valve. (Figure 1B, Page 14)

3. Allow the system to run for 10 to 20 minutes.

4. After 10 to 20 minutes, close the concentrate valve to its previous setting. Ensure the proper concentrate flow rate is going to the drain.

5. The system is now ready to operate.

PREPARING UNIT FOR STORAGE OR SHIPMENT

Prior to shipping or storing your system, the system should be cleaned with an appropriate cleaner, flushed with water and protected from biological attack with an appropriate solution for membrane elements. The membrane housing(s) and plumbing lines of the system must be completely drained. Any water remaining in the plumbing of a system may freeze, causing serious damage.

Preparing system for storage:

1. Totally immerse the elements in the membrane housing in a solution of 2 % Memstor, venting the air outside of the pressure vessels. Use the overflow technique: circulate the Memstor solution in such a way that the remaining air in the system is minimized after the recirculation is completed. After the pressure vessel is filled, the Memstor solution should be allowed to overflow through an opening located higher than the upper end of the highest pressure vessel being filled.

2. Separate the preservation solution from the air outside by closing all valves. Any contact with oxygen will oxidize the Memstor.

3. Check the pH once a week. When the pH becomes 3 or lower, change the preservation solution.

4. Repeat this process at least once a month.

During the shutdown period, the plant must be kept frost-free, or the temperature must not exceed 113°F (45°C).

AT – Series User’s Manual MKTF-205 06/12

Preparing unit for shipment:

5. Disconnect the inlet, concentrate, pre-filter, and permeate plumbing.

6. Drain all water from the pre-filter cartridge housings by unscrewing the housings, removing the pre-filter cartridges, and drain the water from the housings.

7. Disconnect the tubing from the connectors on the permeate and concentrate inlets and outlets.

8. Fully open the concentrate valve.

9. Drain the flow meters.

10.Allow the system to drain for a minimum of eight hours or until the opened ports quit dripping.

11.After draining is complete, reconnect all of the plumbing.

AT – Series User’s Manual MKTF-205 06/12

REVERSE OSMOSIS TROUBLESHOOTING

temperature

SYMPTOMS POSSIBLE CAUSES CORRECTIVE ACTION

Low supply pressure Increase inlet pressure Cartridge filters plugged Change filters Solenoid valve malfunction Replace sol. valve and/or coil

Low Inlet Pressure

Low Permeate Flow

High permeate flow

Motor may not be drawing correct current Concentrate valve might be damaged

Leaks Fix any visible leaks Low inlet flow Adjust concentrate valve Cold feed water See temperature correction sheet Low operating pressure See low inlet pressure Defective membrane brine seal Inspect and/or replace brine seal Fouled or scaled membrane Clean membranes Damaged product tube o-rings Inspect and/or replace Damaged or oxidized membrane Replace membrane

Exceeding maximumfeed water

Use clamp-on amp meter to check the motor amp draw.

Replace needle valve

See temperature correction sheet

Poor permeate quality

Membrane fouling

Low operating pressure See low inlet pressure Damage product tube o-rings Inspect and/or replace Damaged or oxidized membrane Replace membrane

Metal Oxide Fouling

Colloidal Fouling

Scaling (CaSO4, CaSO3, BaSO4, SiO2)

Biological Fouling

Organic Fouling

Chlorine Oxidation

Abrasion of membrane by Crystalline Material

Improve pretreatment to remove metals. Clean with acid cleaners. Optimize pretreatment for colloid removal. Clean with high pH anionic cleaners. Increase acid addition and antiscalant dosage for CaVO3 and CaCO4. Reduce recovery. Clean with acid cleaners Shock dosage of Sodium Bi-Sulfate. Continuous feed of Sodium BiSulfate at reduced pH. Chlorination and de-chlorination. Replace cartridge filters.

Activated Carbon or other pretreatment. Clean with high pH cleaner.

Check chlorine feed equipment and de-chlorination system.

Improve pretreatment. Check all filters for media leakage.

AT – Series User’s Manual

MKTF-205 06/12

ABNORMAL PERMEATE FLOW

Permeate flow should be within 20% of the rated production, after correcting the feed water temperatures above or below 77°F. Check your permeate flow meter to determine the permeate flow rate.

NOTE: TO DETERMINE THE TEMPERATURE CORRECTION FACTOR, LOCATE THE TEMPERATURE CORRECTION TABLE IN THIS USER’S MANUAL AND FOLLOW THE DIRECTIONS

AT – Series User’s Manual MKTF-205 06/12

TEMPERATURE CORRECTION FACTORS FOR MEMBRANE

Find the temperature correction factor (TCF) from the table below. Divide the rated permeate flow at 77°F by the temperature correction factor. The result is the permeate flow at the desired temperature. (See example on the next page)

AT – Series User’s Manual MKTF-205 06/12

If a system is rated to produce 5 gpm of permeate water @ 77˚ F, the same system will

produce more water at a higher temperature. It will also produce less water at a lower temperature. Use the temperature correction table to obtain the correct flow.

Example:

5 gpm @ 59˚ F (5÷1.42=3.52 gpm)

5 gpm @ 77˚ F (5÷1=5 gpm)

5 gpm @ 84˚ F (5÷0.89=5.62 gpm)

SERVICE ASSISTANCE

If service assistance is required, please complete the following process: Contact your local dealer or distributor. Prior to making the call, have the following information available: system installation date, serial number, daily log sheets, current operating parameters (e.g. flow, operating pressures, pH, etc.) and a detailed description of the problem.

AT – Series User’s Manual MKTF-205 06/12

OPERATION

Company:

Location:

Week Of:

System Serial #: ____________________

Date Time Hour of Operation Filter inlet pressure (psi) Filter outlet Pressure (psi) Concentrate Pressure (psi) Pump Discharge Pressure (psi) Feed Flow (gpm)

Permeate Flow (gpm)

____________________

____________________ ____________________

Date of StartUp: ___________________

Date of Last Cleaning: ___________________

Concentrate Flow (gpm)

Recovery % Feed Temperature Feed TDS (ppm) Permeate TDS (ppm) Rejection % Feed PH Permeate PH Scale Inhibitor Feed (ppm) Iron (mg/L) Free Chlorine (mg/L) Hardness (gpg CaCO3)

AT – Series User’s Manual MKTF-205 06/12

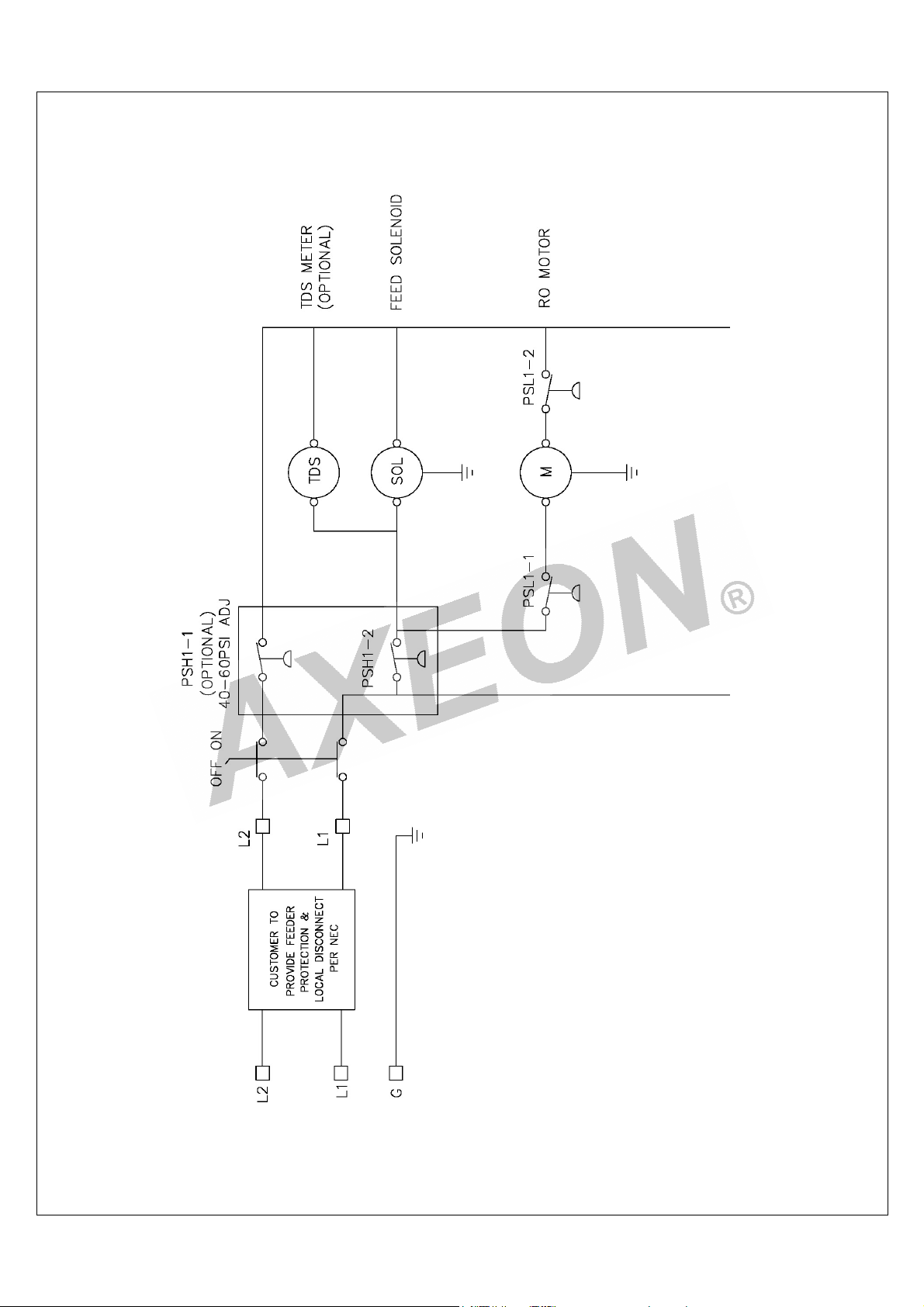

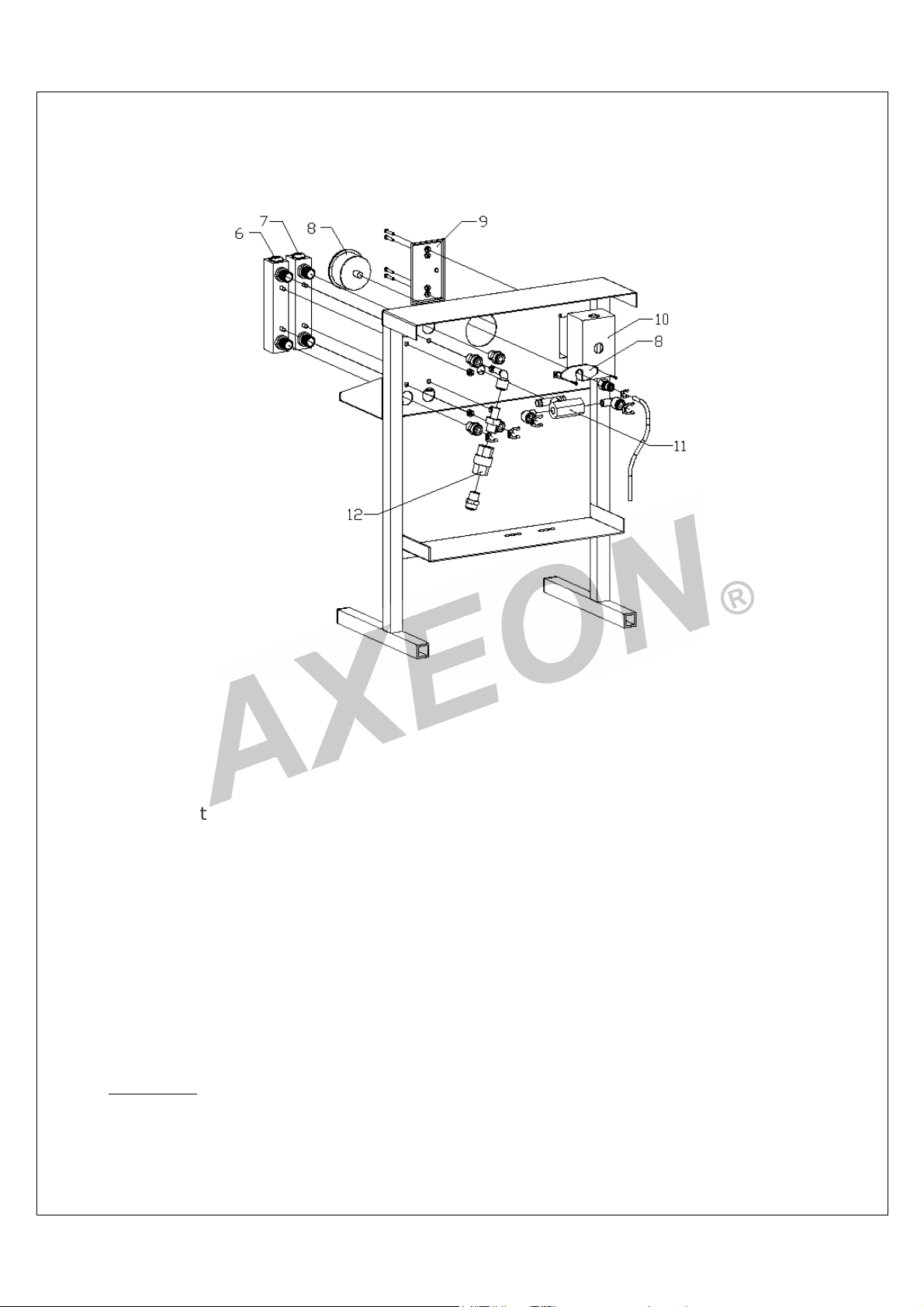

DRAWINGS

FIGURE 5

AT – Series User’s Manual MKTF-205 06/12

Note: A portion of the frame has been removed to expose components.

FIGURE 6

AT – Series User’s Manual MKTF-205 06/12

FIGURE 7

AT – Series User’s Manual

MKTF-205 06/12

FIGURE 8

AT – Series User’s Manual

MKTF-205 06/12

AT-500 SYSTEM PART LIST

Item No. Qty. Part No. Description

1……………2………..200901……GAUGE, BTM, NO FILL, 0-100PSI/BAR, 2” DIA 2……………1………..204913……VALVE, SOLENOID, N/C, UL, 110V, 1” FNPT 3……………1………..200635……CART, SEDIMENT, POLYPRO, 4.5”X10”, 5 MIC 4……………2………..203648……HOUSING, FILTER, BLK/BLU, 4.5”X10”, 1” FNPT 5……………1………..200662……CARTRIDGE, CARBON, BLOCK, 4.5”X10”, 10 MIC 6……………1………..200898……METER, FLOW, PM, 0-5GPM, 1/2” x 1/2” MNPT 7……………1………..200897……METER, FLOW, PM, 0-2GPM, 1/2” x 1/2” MNPT 8……………1………..200904……GAUGE, BKM, FILL, 0-300PSI/BAR, 2.5” DIA 9……………1………..200862……SWITCH, ON/OFF, SINGLE POLE, 110V 10………….1………..200864……BOX, SWITCH, GANG, SINGLE, PROOF, WEATHER 11………….1………..201004……VALVE, NEEDLE, SS 316L, 1/4" FNPT, PUROTECH 12………….1………..200964……VALVE, CHECK, PP, 3/8” FNPT x 3/8” FNPT 13………….1………..200906……SWITCH, PRESSURE, LOW, N/O 15-30, 1/4” FNPT 14………….1………..200809……MOTOR, CARB., 1/2" HP, 110/220V, 50/60 HZ 15………….1………..200781……PUMP, VANE, BRASS, BYPASS, 3GPM, 601 16………….2………..200375……MEM, HF1, 2521, SYSTEMS 17………….2………..200519……MHS, PVC, 2521, 3/8” x 3/8” SP FNPT, SYSTEMS 18………….4………..200593……SNAP RING, DELRIN, 2.5” 19………….2………..200591……END PLUG, OPEN, GTX, 2.5”, 3/8” FNPT 19………….2………..200592……END PLUG, CLOSED, GTX, 2.5”, 3/8” FNPT 20………….4………..200586……CLAMP, SADDLE, NYLON, BLK, 2.5”, PVC

AT – Series User’s Manual MKTF-205 06/12

AT-1000 SYSTEM PART LIST

Item No. Qty. Part No. Description

1……………2………..200901……GAUGE, BTM, NO FILL, 0-100PSI/BAR, 2” DIA 2……………1………..204913……VALVE, SOLENOID, N/C, UL, 110V, 1” FNPT 3……………1………..200635……CART, SEDIMENT, POLYPRO, 4.5”X10”, 5 MIC 4……………2………..203648……HOUSING, FILTER, BLK/BLU, 4.5”X10”, 1” FNPT 5……………1………..200662……CARTRIDGE, CARBON, BLOCK, 4.5”X10”, 10 MIC 6……………1………..200898……METER, FLOW, PM, 0-5GPM, 1/2” x 1/2” MNPT 7……………1………..200897……METER, FLOW, PM, 0-2GPM, 1/2” x 1/2” MNPT 8……………1………..200904……GAUGE, BKM, FILL, 0-300PSI/BAR, 2.5” DIA 9……………1………..200862……SWITCH, ON/OFF, SINGLE POLE, 110V 10………….1………..200864……BOX, SWITCH, GANG, SINGLE, PROOF, WEATHER 11………….1………..201004……VALVE, NEEDLE, SS 316L, 1/4" FNPT, PUROTECH 12………….1………..200964……VALVE, CHECK, PP, 3/8” FNPT x 3/8” FNPT 13………….1………..200906……SWITCH, PRESSURE, LOW, N/O 15-30, 1/4” FNPT 14………….1………..200809……MOTOR, CARB., 1/2" HP, 110/220V, 50/60 HZ 15………….1………..200781……PUMP, VANE, BRASS, BYPASS, 3GPM, 601 16………….3………..200375……MEM, HF1, 2521, SYSTEMS 17………….3………..200519……MHS, PVC, 2521, 3/8” x 3/8” SP FNPT, SYSTEMS 18………….6………..200593……SNAP RING, DELRIN, 2.5” 19………….3………..200591……END PLUG, OPEN, GTX, 2.5”, 3/8” FNPT 19………….3………..200592……END PLUG, CLOSED, GTX, 2.5”, 3/8” FNPT 20………….6………..200586……CLAMP, SADDLE, NYLON, BLK, 2.5”, PVC

AT – Series User’s Manual MKTF-205 06/12
