USER’S MANUAL

NETWORK VIDEO RECORDER

*Please read this manaul carefully for correct use of the product and preserve it for reference purposes

Notes

 Please read this user manual carefully to ensure that you can use the device correctly and

safely.

 There may be several technically incorrect places or printing errors in this manual. The

updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.

 This device should be operated only from the type of power source indicated on the

marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.

 Do not install this device near any heat sources such as radiators, heat registers, stoves or

other devices that produce heat.

 Do not install this device near water. Clean only with a dry cloth.  Do not block any ventilation openings and ensure proper ventilation around the machine.  Do not power off the device at normal recording condition.  This machine is for indoor use only. Do not expose the machine in rain or moist

environment. In case any solid or liquid get inside the machine’s case, please turn off the

device immediately and get it checked by a qualified technician.

 Do not try to repair the device by yourself without technical aid or approval.  When this product is in use, the relevant contents of Microsoft, Apple and Google will be

involved in. The pictures and screenshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos and other intellectual properties related to Microsoft, Apple and Google shall belong to the above-mentioned companies.

 This manual is suitable for many models. All examples and pictures used in the manual are

from one of the models for reference purpose.

NVR User Manual

Contents

Contents .................................................................................................................................................................. i

1 Introduction ............................................................................................................................................. 1

1.1 Summary .................................................................................................................................................. 1

1.2 Features .................................................................................................................................................... 1

1.3 Front Panel Descriptions .......................................................................................................................... 4

1.4 Rear Panel Descriptions ........................................................................................................................... 5

1.5 Connections .............................................................................................................................................. 8

2 Basic Operation Guide .......................................................................................................................... 11

2.1 Startup & Shutdown ............................................................................................................................... 11

2.1.1 Startup ........................................................................................................................................ 11

2.1.2 Shutdown ................................................................................................................................... 11

2.2 Remote Controller .................................................................................................................................. 11

2.3 Mouse Control ........................................................................................................................................ 13

2.4 Text-input Instruction ............................................................................................................................. 13

2.5 Common Button Operation .................................................................................................................... 14

3 Wizard & Main Interface...................................................................................................................... 15

3.1 Startup Wizard ........................................................................................................................................ 15

3.2 Main Interface ........................................................................................................................................ 23

3.2.1 Main Interface Introduction ....................................................................................................... 23

3.2.2 Setup Panel ................................................................................................................................ 24

3.2.3 Main Functions .......................................................................................................................... 26

4 Camera Management ............................................................................................................................ 28

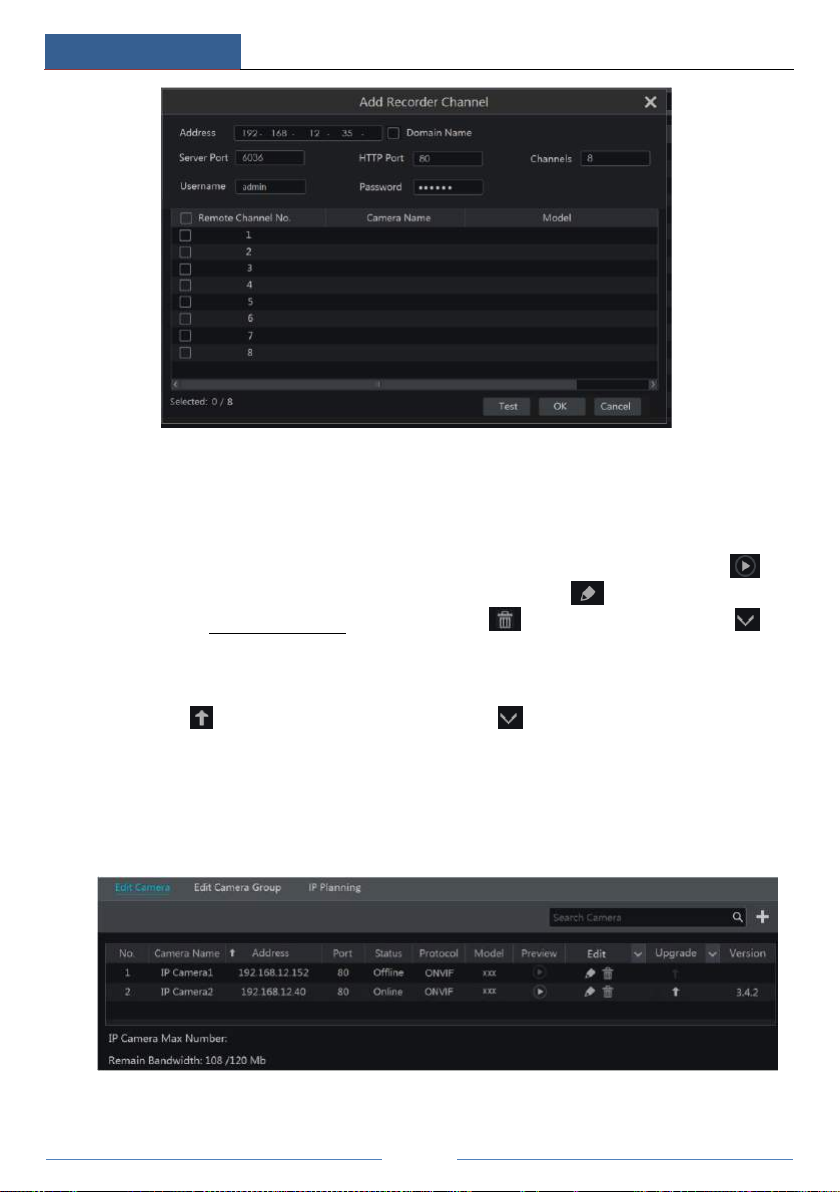

4.1 Add/Edit Camera .................................................................................................................................... 28

4.1.1 Add Camera ............................................................................................................................... 28

4.1.2 Edit Camera ............................................................................................................................... 30

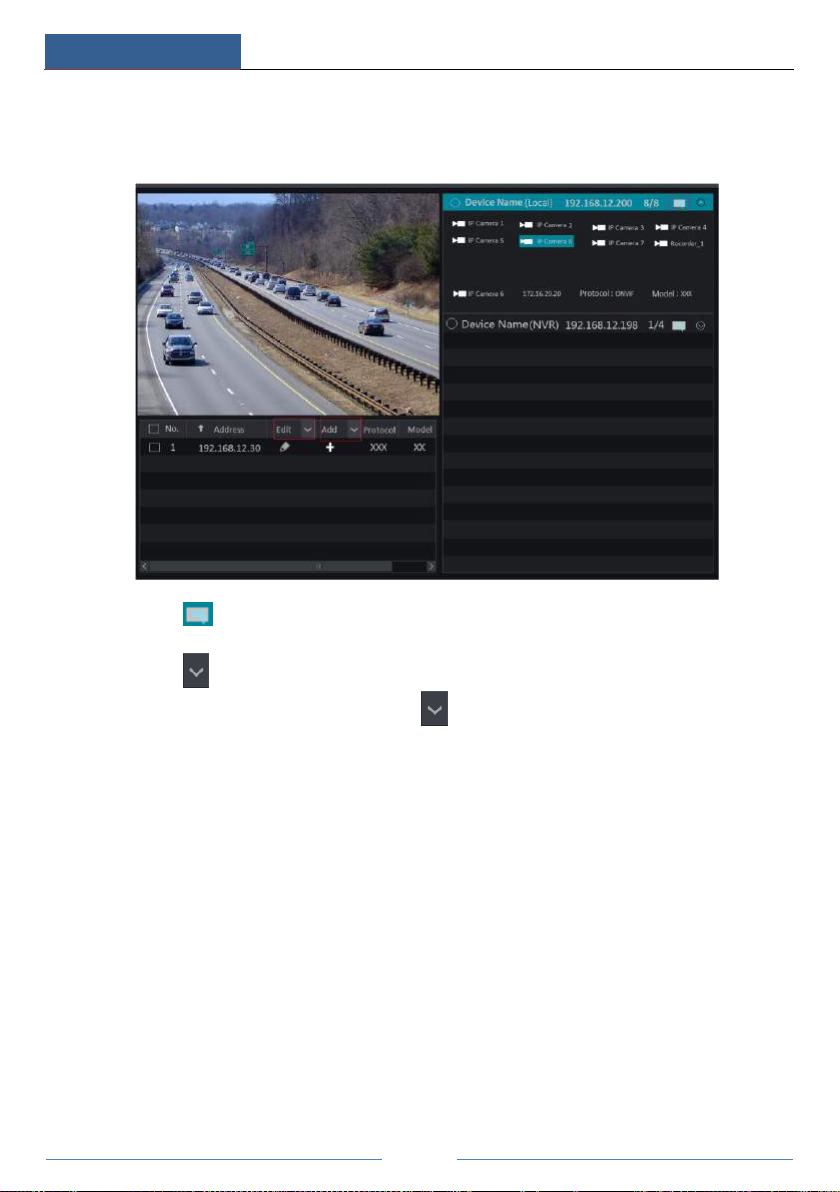

4.2 Add/Edit Camera Group ......................................................................................................................... 31

4.2.1 Add Camera Group .................................................................................................................... 31

4.2.2 Edit Camera Group .................................................................................................................... 32

4.2.3 IP Planning ................................................................................................................................. 32

5 Live Preview Introduction .................................................................................................................... 34

5.1 Preview Interface Introduction ............................................................................................................... 34

5.2 Preview Mode ........................................................................................................................................ 35

5.2.1 Preview By Display Mode ......................................................................................................... 35

5.2.2 Quick Sequence View ................................................................................................................ 37

5.2.3 Camera Group View In Sequence .............................................................................................. 38

5.2.4 Scheme View In Sequence ......................................................................................................... 38

5.3 POS Settings .......................................................................................................................................... 40

5.4 Preview Image Configuration ................................................................................................................. 41

5.4.1 OSD Settings ............................................................................................................................. 41

5.4.2 Image Settings............................................................................................................................ 42

5.4.3 Mask Settings ............................................................................................................................. 42

5.4.4 Image Adjustment ...................................................................................................................... 43

6 PTZ ......................................................................................................................................................... 46

6.1 PTZ Control Interface Introduction ........................................................................................................ 46

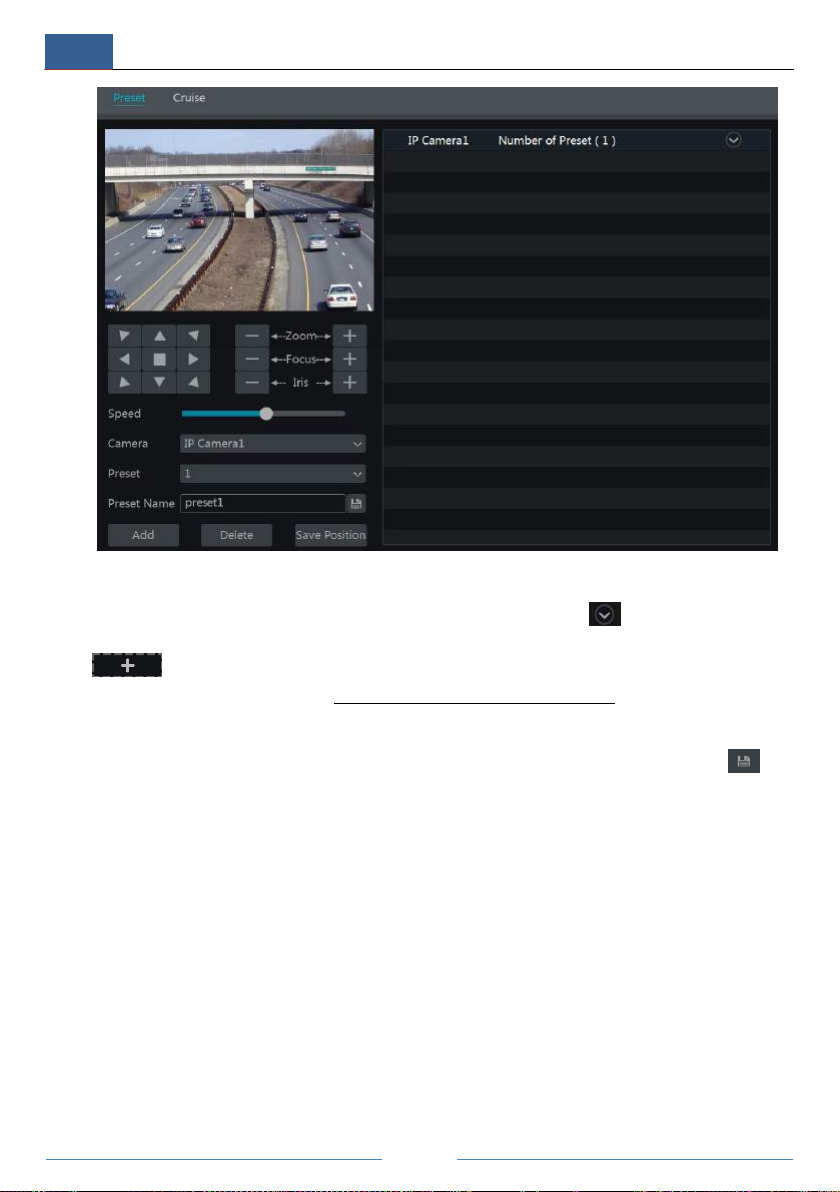

6.2 Preset Setting .......................................................................................................................................... 49

6.3 Cruise Setting ......................................................................................................................................... 50

7 Record & Disk Management ................................................................................................................ 52

7.1 Record Configuration ............................................................................................................................. 52

7.1.1 Mode Configuration ................................................................................................................... 52

Contents

NVR User Manual

7.1.2 Advanced Configuration ............................................................................................................ 54

7.2 Encode Parameters Setting ..................................................................................................................... 54

7.3 Schedule Setting ..................................................................................................................................... 55

7.3.1 Add Schedule ............................................................................................................................. 55

7.3.2 Record Schedule Configuration ................................................................................................. 57

7.4 Record Mode .......................................................................................................................................... 58

7.4.1 Manual Recording ...................................................................................................................... 58

7.4.2 Timing Recording ...................................................................................................................... 58

7.4.3 Motion Based Recording ............................................................................................................ 58

7.4.4 Sensor Based Recording ............................................................................................................ 58

7.4.5 Intelligence Recording ............................................................................................................... 59

7.5 Disk Management .................................................................................................................................. 59

7.5.1 Storage Mode Configuration ...................................................................................................... 59

7.5.2 View Disk and S.M.A.R.T. Information ..................................................................................... 60

8 Playback & Backup ............................................................................................................................... 62

8.1 Instant Playback ..................................................................................................................................... 62

8.2 Playback Interface Introduction .............................................................................................................. 62

8.3 Record Search, Playback & Backup ....................................................................................................... 65

8.3.1 Search, Playback & Backup by Time-sliced Image .................................................................... 65

8.3.2 Search, Playback & Backup by Time ......................................................................................... 67

8.3.3 Search, Playback & Backup by Event ........................................................................................ 67

8.3.4 Search & Playback by Tag ......................................................................................................... 68

8.3.5 Image Management .................................................................................................................... 69

8.3.6 View Backup Status ................................................................................................................... 69

9 Alarm Management ............................................................................................................................... 70

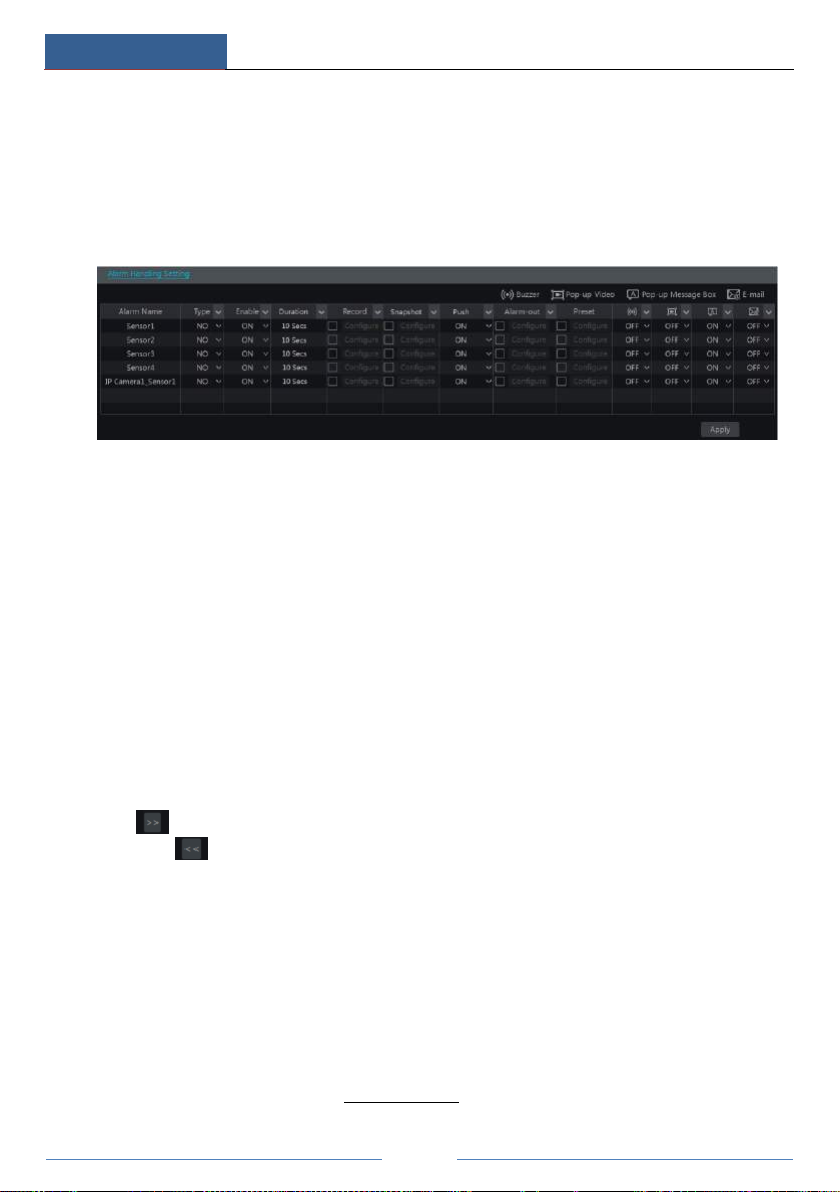

9.1 Sensor Alarm ................................................................................................................................ .......... 70

9.2 Motion Alarm ......................................................................................................................................... 71

9.2.1 Motion Configuration ................................................................................................................ 71

9.2.2 Motion Alarm Handling Configuration ...................................................................................... 72

9.3 Intelligence Alarm .................................................................................................................................. 72

9.3.1 Object Detection ........................................................................................................................ 72

9.3.2 Exception ................................................................................................................................... 74

9.3.3 Tripwire ..................................................................................................................................... 75

9.3.4 Intrusion Detection ..................................................................................................................... 76

9.4 Exception Alarm ..................................................................................................................................... 78

9.4.1 IPC Offline Settings ................................................................................................................... 78

9.4.2 Exception Handling Settings ...................................................................................................... 78

9.5 Alarm Event Notification ....................................................................................................................... 79

9.5.1 Alarm-out ................................ ................................................................ ................................ ... 79

9.5.2 E-mail ........................................................................................................................................ 79

9.5.3 Display ....................................................................................................................................... 79

9.5.4 Buzzer ........................................................................................................................................ 80

9.5.5 Push Message ............................................................................................................................. 80

9.6 Manual Alarm ........................................................................................................................................ 80

9.7 View Alarm Status .................................................................................................................................. 81

10 Account & Permission Management .................................................................................................... 82

10.1 Account Management ........................................................................................................................... 82

10.1.1 Add User .................................................................................................................................. 82

10.1.2 Edit User .................................................................................................................................. 83

10.2 User Login & Logout ........................................................................................................................... 85

10.3 Permission Management ...................................................................................................................... 85

10.3.1 Add Permission Group ............................................................................................................. 85

10.3.2 Edit Permission Group ............................................................................................................. 86

10.4 Black and White List ............................................................................................................................ 86

10.5 Preview On Logout .............................................................................................................................. 87

10.6 View Online User ................................................................................................................................. 87

Contents

NVR User Manual

iii

11 Device Management .............................................................................................................................. 88

11.1 Network Configuration ......................................................................................................................... 88

11.1.1 TCP/IP Configuration ............................................................................................................... 88

11.1.2 Port Configuration .................................................................................................................... 91

11.1.3 PPPoE Configuration ............................................................................................................... 92

11.1.4 DDNS Configuration................................................................................................................ 92

11.1.5 E-mail Configuration................................................................................................................ 95

11.1.6 UPnP Configuration ................................................................................................................. 96

11.1.7 NAT Configuration ................................................................................................................... 97

11.1.8 FTP Configuration .................................................................................................................... 97

11.1.9 View Network Status ................................................................................................................ 97

11.2 Basic Configuration .............................................................................................................................. 98

11.2.1 Common Configuration ............................................................................................................ 98

11.2.2 Date and Time Configuration ................................................................................................... 99

11.3 Factory Default ................................................................................................................................... 100

11.4 Device Software Upgrade ................................................................................................................... 100

11.5 Backup and Restore ............................................................................................................................ 100

11.6 Restart Automatically ......................................................................................................................... 101

11.7 View Log ............................................................................................................................................ 101

11.8 View System Information ................................................................................................................... 102

12 Remote Surveillance ............................................................................................................................ 103

12.1 Mobile Client Surveillance ................................................................................................................. 103

12.2 Web LAN Access ............................................................................................................................... 103

12.3 Web WAN Access ............................................................................................................................... 104

12.4 Web Remote Control .......................................................................................................................... 105

12.4.1 Remote Preview ..................................................................................................................... 106

12.4.2 Remote Playback ................................................................................................................... 109

12.4.3 Remote Backup ...................................................................................................................... 110

12.4.4 Remote Configuration ............................................................................................................ 110

Appendix A FAQ .............................................................................................................................................. 111

Appendix B Calculate Recording Capacity ................................................................................................... 117

Appendix C Compatible Device List .............................................................................................................. 118

Introduction

NVR User Manual

1.1 Summary

Based on the most advanced SOC technology and embedded system in the field, this series of the NVR adopt the new designed human interface and support the smart management of the IP camera and the record search of slice. This series of the NVR which are powerful and easy to use are provided with excellent image quality and stable system. They are centralized monitoring management products with high performance and high quality specially designed for network video monitoring field. This series of the NVR can be widely used to security system of banks at home and abroad, schools, intelligent mansions, traffic, environmental protection, supermarkets, petrol service stations, residential quarters and factories and so on.

1.2 Features

Basic Functions

 Support network device access including IP camera/dome and the third party IP cameras  Some NVRs support the latest H.265 video coding stream and a mixture input of H.265

and H.264 IP cameras

 Support standard ONVIF protocol  Support dual stream recording of each camera  Support IP cameras to be added quickly or manually  Support batch or single configuration of the cameras’ OSD, video parameters, mask,

motion and so on  Support a maximum of 8 user permission groups including Administrator, Advanced and Ordinary which are the default permission groups of the system  Support a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user’s permission control to be enabled or disabled  Support a maximum of 10 web clients login at the same time

Live Preview

 Support 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display

 Support multi-screen modes such as 1/4/6/8/9/13/16/25/36  Support auto adjustment of the camera’s image display proportion  Support audio monitoring of the camera to be enabled or disabled  Support manual snap of the preview camera  Support the sequence of the preview cameras to be adjusted  Support display mode to be added and saved and the saved modes can be called directly  Support quick tool bar operation of the preview window  Support camera group view and scheme view in sequence, quick sequence view and dwell

time setting

 Support motion detection and video mask  Support multiple popular P.T.Z. control protocol and setup of the preset and cruise

1 Introduction

Introduction

NVR User Manual

 Support direct mouse control of the IP dome including rotating, zoom, focusing and so on  Support single camera image to be zoomed by sliding the scroll wheel of the mouse  Support any area of the image to be zoomed in to a maximum of 16 times of the current

size

 Support image and lens adjustment (only available for some cameras)  Support quick camera adding in the camera window of the live preview interface  The live camera sequence of the web client will keep consistent with that of the NVR after

adjusting the live camera sequence of the NVR, but the live camera sequence of the NVR will not be changed if that of the web client is changed

 The NVRs with the 3U case can add a maximum of 16 SATA HDDs; a maximum of 8 SATA HDDs with the 2U case, a maximum of 4 SATA HDDs with the 1.5U case, a maximum of 2 SATA HDDs with the 1U case and a maximum of 1 SATA HDD with the small 1U case

 Each SATA interface of the NVR supports the HDDs with max 8TB storage capacity  Some of the NVRs support record to be backed up by e-SATA HDD  Support disk group configuration and management and each camera can be added into

different disk groups with different storage capacity

 Support disk information and disk working status viewing  Support batch formatting of the disks

 Support main stream and sub stream recording at the same time and batch or single

configuration of the record stream

 Support manual and auto record modes  Support schedule recording, sensor alarm recording and motion detection recording, etc  Support schedule recording and event recording setting with different record streams  Support record schedule setting and recycle recording  Support pre recording and delay recording configuration of the event recording

 Support time scale operation in quick playback and the playback date and time can be set

randomly by scrolling the mouse; the time interval of the time scale can be zoomed

 Support record searching by time slice/time/event/tag  Support time view and camera view in searching by time slice mode  Support time slice searching by month, by day, by hour and by minute and time slice to be

displayed with camera thumbnail

 Support a maximum of 16 cameras to be searched by time  Support event searching by manual/motion/sensor/intelligent events  Support tag searching by the manual added tags  Support instant playback of the selected camera in the live preview interface  Support a maximum of 16 synchronous playback cameras  Support acceleration(maximum 32 times of the normal speed), deceleration (minimum

1/32 times of the normal speed) and 30s’ addition or reduction to current playing time

Disk Management

Record Configuration

Record Playback

Record Backup

Introduction

NVR User Manual

 Support record to be backed up through USB (U disk, mobile HDD) or e-SATA interface  Support record to be backed up by time/event/image searching  Support record cutting for backing up when playing back  Support a maximum of 10 backup tasks in background and backup status viewing

Alarm Management

 Support alarm schedule setting  Support enabling or disabling of the motion detection, external sensor alarm input,

intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable

 Support IPC offline alarm trigger configuration of PTZ, snap, pop-up video, etc.  Support event notification modes of alarm-out, pop-up video, pop-up message box, buzzer,

e-mail and so on

 The snapped images can be attached into the e-mail when alarm linkage is triggered  Support alarm status view of alarm-in, alarm-out, motion detection and exception alarm  Support alarm to be triggered and cleared manually  Support system auto reboot when exception happens

Network Functions

 Support TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on  Support allow and block list function and the allow and block IP address/IP segment/MAC

address can be set  Support multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system  Support remote achievement, configuration, import and export of the NVR parameters and other system maintenance operations including remote upgrading and system restart  Support remote camera configuration of the NVR including video parameters, image quality and so on

 Support remote searching, playback and backup of the NVR  Support manual alarm to be triggered and cleared remotely  The auto-focusing camera can be adjusted through web client (support zoom in/out, but

one key focus is not currently supported)

 Support NVMS or other platform management software to access the NVR and manage it  Support NAT function and QRCode scanning by mobile phone and PAD  Support mobile surveillance by phones or PADs with iOS or Android OS  Support NVR to be accessed remotely through telnet and the telnet function can be

enabled or disabled  If one camera recording is enabled or disabled manually through web client, it will be simultaneously enabled or disabled in the NVR

Other Functions

 The NVR can be controlled and operated by the buttons on the front panel, the remote controller and the mouse  Setting interfaces can be switched to one another conveniently by clicking the main menus

Introduction

NVR User Manual

Name

Descriptions

REC

When recording, the light is blue

Net

When access to network , the light is blue

Power

Power indicator, when connection , the light is blue

No function temporarily

Name

Descriptions

Power

Power Indicator, when connected, the light is blue

HDD

The light turns blue when reading/writing HDD

Net

The light turns blue when it is able to access the network

Backup

The light turns blue when backing up files and data

Play

The light turns blue when playing video

REC

Power Indicator, when connected, the light is blue

AUDIO /+

1. Adjust audio 2. Increase the value in setup

P.T.Z / -

1. Enter PTZ mode 2. Decrease the value in setup

Enter Menu in live

INFO

Check the information of the device

BACKUP

Enter backup mode in live

Enter search mode in live

Exit

Exit the current interface

Manually record

Play/Pause

Speed down

Speed up

on the top of the setting interfaces  Support NVR information viewing including basic, camera status, alarm status, record status, network status, disk and backup status  Support factory restoring, import and export of the system configuration, log view and export and local upgrading by USB mobile device

 Support auto recognition of the displayer’s resolution  You can click the right mouse button at any interface to go back to the upper interface  You can click the middle mouse button at any interface to go to the live view interface  The display language and video format of the NVR will not be changed and the system

logs will be reserved if you reset the NVR to factory default  Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the NVR will display the video at the lowest resolution which the NVR supports

1.3 Front Panel Descriptions

The following descriptions are for reference only. Type I:

Type II:

Introduction

NVR User Manual

Name

Descriptions

1-9

Input digital number and select camera

0/--

Input number 0, the number above 10

Direction Key

Change direction

Multi-Screen Switch

Change the screen mode

Enter

Confirm selection

USB

To connect external USB device like USB mouse or USB flash

No.

Name

Descriptions

ALARM OUT

Relay output; connect to external alarm

GND

Grounding

AUDIO IN

Audio input; connect to audio input device, like microphone, pickup, etc

DC12V

DC12V power input

LAN

Network port

VGA

Connect to monitor

ALARM IN

Alarm inputs for connecting sensors

HDMI

Connect to high definition display device

USB

Connect USB storage device or USB mouse

AUDIO OUT

Audio output; connect to sound box

RS485

Connect to keyboard. A is TX+; B is TX-

1.4 Rear Panel Descriptions

Here we only take a part of real panels for example to introduce their interfaces and connections. The interfaces and locations of the interfaces are only for references. Please take the real object as the standard.

Introduction

NVR User Manual

No.

Name

Descriptions

VGA

Connect to monitor

e-SATA

Connect to HDD with e-SATA interface

RS485 Y/Z interface

Unavailable right now

RS485 A/B interface

Connect to keyboard. A is TX+; B is TX-

AUDIO OUT

Audio output; connect to sound box

LAN

Network port

HDMI

Connect to high definition display device

USB

Connect USB storage device or USB mouse

GND

Grounding

ALARM OUT

Relay output; connect to external alarm

ALARM IN

Alarm inputs for connecting sensors

AUDIO IN

Audio input; connect to audio input device, like microphone, pickup, etc

Power Switch

Press the switch to turn on/off the NVR

Power Supply

Power supply interface

Introduction

NVR User Manual

No.

Name

Descriptions

VGA

Connect to monitor

RS485 Y/Z interface

Unavailable right now

ALARM OUT

Relay output; connect to external alarm

GND

Grounding

AUDIO OUT

Audio output; connect to sound box

e-SATA1/ e-SATA2

Connect to HDD with e-SATA interface

LAN1/LAN2

Network port

HDMI1

Connect to 4K×2K high definition display device

USB3.0/USB

USB3.0 and USB 2.0 interface, connect USB storage device or USB mouse

HDMI2

Connect to 1920×1080 high definition display device

RS485 A/B interface

Connect to keyboard. A is TX+; B is TX-

ALARM IN

Alarm inputs for connecting sensors

AUDIO IN

Audio input; connect to audio input device, like microphone, pickup, etc

Power Switch

Press the switch to turn on/off the NVR

Power Supply

Power supply interface

No.

Name

Descriptions

Power Supply

DC48V power supply interface

PoE port

8 PoE network ports; connect to 8 PoE IP cameras

LAN

Network port

VGA

Connect to monitor

HDMI

Connect to 1920×1080 high definition display device

USB3.0

USB3.0 interface, connect USB storage device or USB mouse

AUDIO IN

Audio input; connect to audio input device, like microphone, pickup, etc

AUDIO OUT

Audio output; connect to sound box

Power Supply

DC12V power supply interface

Introduction

NVR User Manual

No.

Name

Descriptions

e-SATA

Connect to HDD with e-SATA interface

LAN1/LAN2

Network port

HDMI2

Connect to 1920×1080 high definition display device

USB

USB interface, connect USB storage device or USB mouse

HDMI1

Connect to 4K×2K high definition display device

VGA

Connect to monitor

RS485 Y/Z interface

Unavailable right now

RS485 A/B interface

Connect to keyboard. A is TX+; B is TX-

ALARM OUT

Relay output; connect to external alarm

GND

Grounding

ALARM IN

Alarm inputs for connecting sensors

AUDIO IN

Audio input; connect to audio input device, like microphone, pickup, etc

AUDIO OUT

Audio output; connect to sound box

Power Switch

Press the switch to turn on/off the NVR

Power Supply

Power supply interface

1.5 Connections

 Video Connections

Video Output: Supports VGA/HDMI video output. You can connect to monitor through these video output interfaces simultaneously or independently.

 Audio Connections

Audio Input: Connect to microphone, pickup, etc. Audio Output: Connect to headphone, sound box or other audio output devices.

 Alarm Connections

Introduction

NVR User Manual

Some models may support this function. Take 16 CH alarm inputs and 1 CH alarm output for example.

Alarm Input: Alarm IN 1~16 are 16 CH alarm input interfaces. There are no type requirements for sensors. NO type and NC type are both available. The way to connect sensor and the device is as shown below:

The alarm input is an open/closed relay. If the input is not an open/closed relay, please refer to the following connection diagram:

Alarm Output: The way to connect alarm output device: Pull out the green terminal blocks and loosen the screws in the alarm-out port. Then insert the signal wires of the alarm output devices into the port of NO and COM separately. Finally, tighten the screws. Provided that the external alarm output devices need power supply, you can connect the power supply as per the following figures.

Introduction

NVR User Manual

 RS485 Connection

There are two types of RS485 interfaces:

（Type 1）（Type 2）

Type 1: The P/Z interfaces are unavailable temporarily. K/B interfaces are used to connect keyboard. Type 2: The RS485 interfaces are used to connect keyboard. A is TX+; B is TX-.

Basic Operation Guide

NVR User Manual

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the NVR. ② Connect with the mouse and power. The device will boot and the power LED would turn

blue. ③ A WIZARD window will pop up (you should select the display language the first time you use the NVR). Refer to 3.1 Startup Wizard for details.

2.1.2 Shutdown

You can power off the device by using remote controller or mouse.

By remote controller:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking “OK” button. ② Disconnect the power.

By mouse:

① Click StartShutdown to pop up the Shutdown window. Select “Shutdown” in the window. The unit will power off after a while by clicking “OK” button. ② Disconnect the power.

2.2 Remote Controller

① It uses two AAA size batteries. ② Open the battery cover of the remote controller. ③ Place batteries. Please take care the polarity (+ and -). ④ Replace the battery cover.

Key points to check in case the remote doesn’t work.

1. Check batteries polarity.

2. Check the remaining charge in the batteries.

3. Check IR controller sensor for any masking.

If it still doesn’t work, please change a new remote controller to try, or contact your dealers. You can just turn the IR sensor of the remote controller towards the IR receiver of the NVR to control it when you are controlling multiple devices by remote controller. There are two kinds of remote controller. The interface of remote controller is shown as below.

Basic Operation Guide

NVR User Manual

Button

Function

Power Button

Switch off—to stop the device

Record Button

To start recording

-/-- /0-9

Input number or choose camera

Fn1 Button

Unavailable temporarily

Multi Button

To choose multi screen display mode

Next Button

To switch the live image

SEQ

To go to sequence view mode

Audio

To enable audio output in live mode

Switch

No function temporarily

Direction button

To move cursor in setup or pan/title PTZ

Enter Button

To confirm the choice or setup

Menu Button

To go to menu

Exit Button

To exit the current interface

Focus/IRIS/Zoom/PTZ

To control PTZ camera

Preset Button

To enter into preset setting in PTZ mode

Cruise Button

To go to cruise setting in PTZ mode

Track Button

No track function temporarily

Wiper Button

No function temporarily

Light Button

No function temporarily

Clear Button

No function temporarily

Fn2 Button

No function temporarily

Info Button

Get information about the device

To control playback. Play(Pause)/Stop/Previous Frame/Next Frame/Speed Down/Speed Up

Snap Button

To take snapshots manually

Search Button

To go to search mode

Cut Button

No function temporarily

Backup Button

To go to backup mode

Zoom Button

To zoom in the images

PIP Button

No function temporarily

Note: You shall press P.T.Z button to enter PTZ setting mode, choose a channel and press P.T.Z button again to hide the P.T.Z control panel. Then you can press preset, cruise, track, wiper or light button to enable the relevant function.

Basic Operation Guide

NVR User Manual

Button

Function

REC

Record manually

To enter search mode

MEUN

To enter menu

Exit

To exit the current interface

ENTER

To confirm the choice or setup

Direction button

To move cursor in setup

ZOOM

To zoom in

PIP

No function temporarily

To control playback. Play(Pause)/Next Frame/Speed Up/Stop/Previous Frame/Speed Down

Multi

To choose multi screen display mode

To switch the live image

SEQ

To go to sequence view mode

INFO

Get information about the device

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.3 Mouse Control

 Mouse control in Live Display & Playback interface

In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.

In the live display & playback interface, if the interfaces display in full screen, move the mouse to the bottom of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

 Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

2.4 Text-input Instruction

Basic Operation Guide

NVR User Manual

Button

Meaning

Button

Meaning

Backspace key

Switch key of punctuation character

Delete Key

Enter key

Switch key between upper and lower letter

Space key

Switch key of language

Button

Meaning

Click it to show the menu list.

Click it to change the sequence of the list.

Click it to change the camera displaying mode.

Click it to close the current interface.

Click it to go to the earliest date of camera recording.

Click it to go to the latest date of camera recording.

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

2.5 Common Button Operation

Wizard & Main Interface

NVR User Manual

3 Wizard & Main Interface

3.1 Startup Wizard

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk; : unavailable disk; : RW available disk).

You can quickly configure the NVR by wizard setup to make the NVR work normally. You must configure the wizard if you start the NVR for the first time (or click “Skip” to cancel the wizard next time).

Click “Wizard Setup” to start wizard. The setting steps are as follows. ① System Login. Set your own password or use the default when you use the wizard for the first time (the default username of the system is admin and the default password of admin is

123456); select the login username and enter the corresponding password next time.

Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details. Click “Next” to continue or click “Cancel” to exit the wizard.

Wizard & Main Interface

NVR User Manual

② Date and Time Configuration. The date and time of the system need to be set up if you use the wizard for the first time. Refer to the following figure. Set the time zone, system time, date format and time format. The DST will be enabled by default if the time zone selected

includes DST. Click “Next” to continue.

③ Network Settings. Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually input them. Input the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details). Click “Next” to continue.

Wizard & Main Interface

NVR User Manual

Note:

 If you use the NVR with the PoE network ports, the online state of the internal ethernet port will be shown on the interface. Refer to the picture below. Please refer to 11.1.1 TCP/IP Configuration for detail introduction of the internal ethernet port.

Wizard & Main Interface

NVR User Manual

 If the NVR has two network ports or above, you can select the network work pattern as required. Network Fault Tolerance and Multiple Address Setting are available. Refer to the pictures below. Please refer to 11.1.1 TCP/IP Configuration for more detailed information.

Wizard & Main Interface

NVR User Manual

Wizard & Main Interface

NVR User Manual

④ Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click to add the searched camera. Click “Add All” to add all the cameras in the list. Click to delete the added camera. Click “Delete

All” to delete all the added cameras.

Wizard & Main Interface

NVR User Manual

Click to edit the searched IP camera as shown on the below left. Input the new IP address, subnet mask, gateway, username and the password of the camera. You can check “Sync to IPC” to modify the IP address of the IPC via different network segments for being in the same network segment with the NVR. Click “OK” to save the settings.

Click to edit the added camera as shown on the above right. Input the new camera name, IP address, port, username and the password of the camera. You can click “Test” to test the effectiveness of the input information. Click “OK” to save the settings. You can change the IP camera name only when the added camera is online. Click “Next” to continue.

⑤ Disk Settings. You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click “Formatting” to format the disk. Click “Next” to continue.

Wizard & Main Interface

NVR User Manual

⑥ Record Settings. Two record modes are available: auto and manual. Auto: Select one auto mode in the interface as shown below and then click “Next” button to

save the settings. Click “Advanced” to self-define record mode. See 7.1.1 Mode Configuration for details.

Manual: Set the “Sensor Record”, “Motion Record” and “Schedule Record” of each camera. Click “OK” to save the settings. See 7.1.1 Mode Configuration for details.

⑦ QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 11.1.7 NAT Configuration for details). You can scan the QRCode through mobile client which is installed in the mobile phone or PAD to log in the

mobile client instantly. Please refer to 12.1 Mobile Client Surveillance for details. Click“OK” to save the settings.

Wizard & Main Interface

NVR User Manual

3.2 Main Interface

Button

Meaning

Start button. Click it to pop up area ③.

Full screen button. Click it to show full screen; click it again to exit the full screen.

Screen mode button.

Dwell button (see 5.2.2 Quick Sequence View and 5.2.4 Scheme View In Sequence for details).

Click it to enable OSD; click to disable OSD.

Click to set the default playback time before starting instant playback (8.1 Instant Playback) or going to the playback interface for playback operations

(8.2 Playback Interface Introduction); click to go to the playback interface. For instance, if you choose “5 minutes ago” as the default playback time, you can playback the record from the past five minutes.

Manual record button. Click it to enable/disable record.

Manual alarm button. Click it to trigger or clear the alarm-out manually in the popup window.

Record status button. Click it to view the record status.

Alarm status button. Click it to view the alarm status.

3.2.1 Main Interface Introduction

The buttons in area ① are introduced in the table below.

Wizard & Main Interface

NVR User Manual

Button

Meaning

Disk status button. Click it to view the disk status and RAID status.

Network status button. Click it to view the network status.

Information button. Click it to view system information.

Icon / Button

Meaning

It shows the current login user.

Click it to go to record search and backup interface, see 8.3 Record Search, Playback & Backup for details.

Click it to go to playback interface (click on the tool bar at the bottom of the live preview interface to set the default playback time), see 8.2 Playback Interface Introduction for details.

Click it to pop up the setup panel, see 3.2.2 Setup Panel for details.

Click it to log out the system.

Click it and then select “Logout”, “Reboot” or “Shutdown” in the popup window.

Introduction of area ②: Click “Camera” to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window. Click “Single Channel Sequences” to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to 4.2 Add/Edit Camera Group for detail configuration of the camera group). Select one camera window on the left side of the interface and then double click one group in the group list to preview the cameras’ images one by one in the selected window. Click “Customize Display Modes” to view all the display modes in the display mode list (refer to 5.2.1 Preview By Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for previewing.

Introduction of area ③:

3.2.2 Setup Panel

Click StartSettings to pop up the setup panel as shown below.

Wizard & Main Interface

NVR User Manual

The setup panel includes seven modules. Each module provides some function entries with links for convenient operation. Here we take Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligence Analysis” and “PTZ”. Click Camera to go to the camera management interface as shown below.

There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click “Add Camera” to pop up the window as shown below.

Wizard & Main Interface

NVR User Manual

Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to system setup interface by clicking “System” tag.

3.2.3 Main Functions

 Camera

The module covers the functions such as Camera Management (see Chapter 4 Camera Management for details), Image Settings (see 5.3 Preview Image Configuration for details), Motion (see 9.2.1 Motion Configuration for details), and PTZ (see Chapter 6 PTZ for details) and so on.

 Record

The module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.

 Alarm

The module covers the functions such as Sensor and Motion Alarm Handling and Alarm Out Settings. Please see Chapter 9 Alarm Management for details.

 Disk

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.

 Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Configuration for details.

Wizard & Main Interface

NVR User Manual

 Account and Authority

The module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.

 System

The module covers the functions such as Basic Configuration (see 11.2 Basic Configuration for details), Device Information (see 11.8 View System Information for details), Log Information (see 11.7 View Log for details) and Configuration File Import&Export (see 11.5 Backup and Restore for details) and so on.

Camera Management

NVR User Manual

4 Camera Management

4.1 Add/Edit Camera

4.1.1 Add Camera

The network of the NVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details).

Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera” window as shown below. You can quickly add or add the IP camera manually.

 Quickly Add Check the cameras and then click “Add” to add cameras. Click to edit the camera’s IP

address, username and password and so on. Click “Default Password” to set the default username and password of each camera.

Camera Management

NVR User Manual

 Add Manually

Input the IP address or domain name (click in the IP address column to pop up the domain name input window, input the domain name of the IPC in the window and then click “OK” button), port, username and password of the camera and then select the protocol. Click “Test” to test the effectiveness of the input information and then click “Add” button (you can input one camera’s information or above such as IP address, username and password before clicking

“Add” button). Click to delete the camera. Click “Default Password” to set the default username and password of each camera.

Note: Some models may not support this function.

Click StartSettingsSystemBasicGeneral Settings to check “Enable Add IPC by Zero Operation”. If the NVR has unoccupied channels, it can add IPC without any operation by restarting.

 Add Recorder

 Quickly Add：Select the searched NVR/DVR and the click “Add” to add NVR in the

same local network.

 Manually Add：Click “Manual Add” and then input the IP address or domain name,

port, username and password of the NVR/DVR. Check the added remote channel number and click “Test” to test the effectiveness of the input information. Then click “OK” button to return to the previous interface.

Camera Management

NVR User Manual

Note: Only the local NVR has unoccupied channels, may the IPC of other NVR/DVR in the same local network be added. And the added IPC supports previewing and recording.

4.1.2 Edit Camera

Click “Edit Camera” in the setup panel to go to the interface as shown below. Click to view the live image of the camera in the popup window. Click to edit the camera (see Add camera in 3.1 Startup Wizard for details). Click to delete the camera. Click in

the “Operation” header line and then click “Modify IPC Password” to pop up a window(check the IPCs in the window, set the new password and then click “OK” button; only the online IPCs’ passwords can be modified and a batch of IPCs’ passwords can be modified at the same

time). Click to upgrade an online IPC ( or click in the “Upgrade” header line and then click “IPC Batch Upgrade” to upgrade a batch of IPCs), select the device which stores the upgrade file in the “Device Name” item of the popup window and the upgrade file in the list(you should select the upgrade IPC model in the window if a batch of IPCs’ passwords need to be modified) and then click “Upgrade” button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).

Note:

Camera Management

NVR User Manual

If you use the NVR with the PoE network ports, the IP cameras (with PoE function) which directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually.

 The IP camera which directly connects to the PoE port of the NVR through private

protocol will be shown automatically in the camera list.

 One of the two conditions must be met if the IP camera which directly connects to the PoE

port of the NVR through ONVIF protocol should be shown automatically in the camera list.

 The IP camera which directly connects to the PoE port is in the same network segment with the internal ethernet port.  The DHCP (obtain an IP address automatically) of the IP camera which directly connects to the PoE port is enabled.

If the IP camera which connects to the PoE port cannot be displayed automatically in the camera list, please refer to Q6 in Appendix A FAQ for details.

4.2 Add/Edit Camera Group

4.2.1 Add Camera Group

Click “Edit Camera Group” in the above interface to go to the interface as shown below.

Camera Management

NVR User Manual

Click to pop up the window as shown below. Set the group name and dwell time (the dwell time of the camera group sequence view) in the window. Check the cameras and then

click “Add” to add group. Click to view the cameras in the group after adding group.

4.2.2 Edit Camera Group

Click to modify the group information such as group name and dwell time. Click to delete the group.

4.2.3 IP Planning

Some models may not support this function.

Camera Management

NVR User Manual

Click “IP Planning” to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. The user may add the IPC of other NVRs/DVRs into the unoccupied channels of the local NVR.

Click to edit the IP address, user name or password and other information of the

NVRs.

Click behind “Add” button to add the IPC selected and the user may edit the IP

address, user name or password by clicking behind “Edit” button.

Live Preview Introduction

NVR User Manual

Button

Menu List

Meaning

Move tool. Click it to move the tool bar anywhere.

Manually Record On

Click it to start recording.

Instant Playback

Click to playback the record; click “Instant Playback” to select or self-define the instant playback time. See 8.1 Instant Playback for details.

Enable Audio

Click it to enable audio. You can listen to the camera audio by enabling audio.

Snap

Click it to pop up the snap window. Click “Save” in the window to save the image. Click “Export” to export the image.

PTZ Control

Click it to go to PTZ control interface. See Chapter 6 PTZ for details.

5 Live Preview Introduction

5.1 Preview Interface Introduction

You should add camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging. The record symbols with different colors in the live preview window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Live Preview Introduction

NVR User Manual

Button

Menu List

Meaning

Zoom In

Click it to go to single channel amplification interface.

Click it to go to image adjustment interface. Refer to 5.3.4 Image Adjustment for details.

Camera Info

Click it to view the camera information.

The single channel amplification interface is as shown below. Press and drag the blue box to select the zoom in area. Click / to zoom the image. Click the camera selection box

to select other cameras for amplification. Click “Back” to return to the live preview interface.

5.2 Preview Mode

5.2.1 Preview By Display Mode

Set different screen modes and cameras’ display sequences as required and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

Live Preview Introduction

NVR User Manual

 Add Display Mode Method One:

① Click “Customize Display Modes” in the above interface and then set the screen mode. ② Add the cameras and adjust the cameras’ display sequence as required. ③ Click “Save” button under the display mode list and then enter the display mode name in

the popup window, click “OK” button to save the current display mode.

Method Two:

① Click StartSettingsSystemBasicOutput Settings to go to the interface and then set the screen mode.

② Double click the camera or camera group in the list to add them to the selected window. ③ Click to save the current display mode (refer to 5.2.4 Scheme View In Sequence for

detail configurations). The display mode will be saved and displayed in the display mode list in the live preview interface.

 Edit Display Mode

Click “Customize Display Modes” tab in the live preview interface and then select one display mode in the list. Click “Rename” to edit the display mode name; click “Delete” to delete the display mode.

 Corridor Pattern

Some models may not support this function.

Select corridor pattern in display mode. You can change the direction of the video image by using this function. Please refer to User Manual of relevant camera.

Live Preview Introduction

NVR User Manual

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

Go to the live preview interface and then click to pop up a little window. Set the dwell time in the window and then click to view the live group by group according to the

Live Preview Introduction

NVR User Manual

camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click to stop the view.

5.2.3 Camera Group View In Sequence

You can start camera group view in sequence if camera group has been created (see 4.2.1 Add Camera Group for details).

① Go to the live preview interface and then select a camera window.

② Double click one camera group on the right side of the interface. The cameras in the group

will start camera group view one by one in the selected camera window. You can also drag the group directly to any preview window. Right click on the group view window and then click “Close Dwell” button to stop the view.

5.2.4 Scheme View In Sequence

Click StartSettingsSystemBasicOutput Settings to go to the interface as shown below. Area ① displays all the dwell schemes; area ② shows the detailed information of the scheme;

area ③ displays all the cameras and groups; area ④ is the tool bar ( : clear button; : favorite button, click it to pop up a window, enter the display mode name in the window and then click “OK” to save the current display mode; other buttons are screen mode buttons).

Live Preview Introduction

NVR User Manual

 Add Scheme

Click in area ① to create a new scheme. Click on the top right corner of the scheme to delete it.

 Configure Scheme

a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme. b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu “Clear” in area ② to remove a single camera

or click to remove all the cameras. c) Click “Apply” to save the settings.

 Start Sequence View

Go to live preview interface and then click to pop up a window. Set the dwell time in the window and then click to start scheme view in sequence. Double click the sequence view interface to pause the view; double click again to restore the view. Click to stop the view.

Note:

You can set the adjuvant output preview if the NVR has dual outputs. Refer to the interface as shown below. Check “Dwell” and then set scheme view in sequence of the adjuvant output. The setting steps are similar to that of the main output.

Set quick sequence view if “Dwell” is not checked. The setting steps are as follows:

① Set screen mode by clicking the relevant buttons on the tool bar.

Live Preview Introduction

NVR User Manual

② Select one window and then double click one camera or group in the list. ③ Click “Apply” button to save the settings after adding cameras or groups to the windows.

5.3 POS Settings

Some models may not support this function.

① Click StartSettingsBasicPOS Settings to go to the interface. ② Enable POS and click configure under “Connection Settings” to add POS via IP address.

③ Click configure under “Display Settings” to configure display position.

Live Preview Introduction

NVR User Manual

④ Check “Trigger Camera” and click configure under it to bind POS to the camera. One POS

can be bound to more than one channel, but one channel can only bind one POS.

⑤ Click “Apply” to save the settings and then the trade information will be displayed on the

preview image in real-time.

5.4 Preview Image Configuration

5.4.1 OSD Settings

Click StartSettingsCameraImageOSD Settings to go to the interface as shown below. Select the camera, input the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs’ display position) and select the date and time formats. Click “Apply” to save the settings.

Live Preview Introduction

NVR User Manual

5.4.2 Image Settings

Click StartSettingsCameraImageImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click

“Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust” interface and then set the relevant setting items. Please refer to 5.3.4 Image

Adjustment for detailed introductions of these items. You can click “Default” button to restore the image settings to the default factory settings.

5.4.3 Mask Settings

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click StartSettingsCameraImageMask Settings to go to the interface as shown below. Select the camera and enable the mask. Click “Draw” button and then drag the mouse on the image area to set the mask area; click “Delete” button to delete the mask areas;

Live Preview Introduction

NVR User Manual

click “Apply” to save the settings.

5.4.4 Image Adjustment

Go to live preview interface and then click button on the tool bar under the camera window to go to the image adjustment interface.

 Image Adjustment

Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue

Live Preview Introduction

NVR User Manual

Parameter

Meaning

Brightness

It is the brightness level of the camera’s image.

Contrast

It is the color difference between the brightest and darkest parts.

Saturation

It is the degree of color purity. The color is purer, the image is brighter.

Hue

It relates to the total color degree of the image.

Sharpen

It relates to the resolution level of the image plane and the sharpness level of the image edge.

Wide Dynamic

The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.

Denoise

Adopt the noise reduction technology to decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.

White Balance

White balance is the white rendition function of the camera to adjust the color temperature according to the environment automatically.

Image Mirror

Reverse the current video image right and left.

Image Flip

Turn the current video image upside down.

value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click “Default” button to set these parameters to default values. The introductions of these parameters are as follows:

 Lens Control

Select the camera and then click “Lens Control” to go to lens control tab. Click or to adjust the zoom and focus parameters of the camera’s lens. Click “Save” to save the settings.

Live Preview Introduction

NVR User Manual

Button/Parameter

Meaning

Click / to zoom in/out the image.

Focus Mode

If manual mode is selected, focus button & “One Key Focus” & “Day/night mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.

Click / to increase/decrease the focal length.

Click it to focus instantly.

Day/night mode switch autofocus

If checked, the lens will focus automatically when the camera is switching day/night mode.

Time Interval

It is the time interval when camera lens is auto-focusing. The interval can be set in the drop-down list.

Note: This function is only available for the models with auto varifocal lens, or the settings here are ineffective.

The introductions of these parameters and buttons are as follows:

PTZ

NVR User Manual

Button

Meaning

Click / / / / / / / to rotate the dome. Click to stop rotating the dome.

Click / to zoom in / out the camera image.

Click / to increase / decrease the focal length.

Click / to increase / decrease the iris of the dome.

Drag the slider to adjust the rotating speed of the dome.

Click / to start / stop recording.

Click / to hide / show the analog joystick.

Click it to return to the live preview interface.

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control. Click on the tool bar at the bottom of the live preview window to go to the PTZ control

interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control.

Introductions of the buttons on the bottom right of the interface:

PTZ

NVR User Manual

 Analog Joystick Control

The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you stop dragging the analog joystick.

 3D Control

Click the camera image on any area and then the image will be centered on the clicked point. Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

PTZ

NVR User Manual

 Advanced 3D Control

Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point. Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image. Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.

 Preset Setting

Click “Preset” to go to preset operation tab and then click “Add” button to pop up a window as shown below. Select the preset and then input the preset name in the window; finally click “OK” button to save the settings. You can add 255 presets for each dome at most.

Adjust the dome’s direction and then click “Save Position” to save the current preset position (you can also click another preset in the preset list and then save the preset position after

PTZ

NVR User Manual

adjusting the dome’s direction); click in the preset list to call the preset; click “Delete” button to delete the selected preset. You can also go to preset setting interface for preset setting, see 6.2 Preset Setting for details.

 Cruise Setting

Click “Cruise” to go to cruise operation tab and then click “Add” button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

① Input the cruise name in the “Add Cruise” window and then click “Add preset” to pop up the “Add Preset” window (Before adding preset to the cruise, please add preset of the dome first). ② In the “Add Preset” window, select the preset name, preset time and preset speed and then click “OK” button.

③ In the “Add Cruise” window, you can click to reselect the preset, then change the preset time and speed. Click to delete the preset. Click “Add” button to save the cruise.

Click to start the cruise and click to stop the cruise in the cruise list of the cruise operation tab; click “Delete” button to delete the selected cruise. You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.

6.2 Preset Setting

Click StartSettingsCameraPTZPreset to go to the interface as shown below.

PTZ

NVR User Manual

 Add preset

Select camera and then click “Add” button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click

to add preset. The operations of the “Add Preset” window are similar to that of the

PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

 Edit preset

Select camera and preset. You can input the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click “Save Position” to save the preset.

 Delete Preset

Select camera and preset and then click “Delete” to delete the preset.

6.3 Cruise Setting

Click StartSettingsCameraPTZCruise to go to the interface as shown below.

PTZ

NVR User Manual

 Add Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the “Add Cruise”

window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

 Edit Cruise

Select the camera and cruise in the “Cruise” interface. Input the new cruise name and then click

to save the cruise name. Click “Add Preset” to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. Click one preset in the preset list and then click to move down the preset and click to move up the preset. Click to start the cruise and click to stop it.

 Delete Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click on the top right corner of the cruise to delete the cruise.

Record & Disk Management

NVR User Manual

7 Record & Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click StartSettingsRecordMode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings” and then click “Apply” button to save the settings. There are two record modes: auto mode and manual mode.

 Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens. Sensor Record: Sensor alarm record will be enabled when sensor alarm happens. Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when

motion/sensor alarm happens. Always(24ⅹ7) Record+Motion Record: Normal record is enabled all the time; motion alarm

record will be started when motion alarm happens. Always(24ⅹ7) Record+Sensor Record: Normal record is enabled all the time; sensor alarm

record will be started when sensor alarm happens. Always(24ⅹ7) Record+Motion Record+Sensor Record: Normal record is enabled all the time;

motion/sensor alarm record will be enabled when motion/sensor alarm happens.

You can add more auto modes on intelligence record. Click “Advanced” button to pop up a window as shown below. Check the modes in the window and then click “Add” button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you shall check “Intelligence Record”).

Record & Disk Management

NVR User Manual

Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK” to save the settings. Please adjust the parameters according to the actual condition.

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only.

GOP: group of pictures. Resolution: the higher the resolution is, the clearer the image is. FPS: the higher the frame rate is, the more fluency the video is. However, more storage room

will be taken up. Bitrate Type: CBR and VBR are optional. CBR means that no matter how changeable the video resources are, the compression bitrate keeps constant. This will not only facilitate the image quality better in a constant bitrate but also help to calculate the capacity of the recording. VBR means that the compression bitrate can be adjustable according to the change of the video resources. This will help to optimize the network bandwidth. Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required. Max Bitrate: 32Kbps ~10240Kbps are optional.

 Manual Mode

If the manual mode is selected, you need to set the encode parameters and record schedules of each camera. See 7.2 Encode Parameters Setting and 7.3 Schedule Setting for details.

Record & Disk Management

NVR User Manual

7.1.2 Advanced Configuration

Click StartSettingsRecordAdvanced to go to the following interface. Enable or disable cycle record (cycle record: the earliest record data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click “Apply” to save the settings.

Pre-alarm Record Time: set the time to record before the actual recording begins. Post-alarm Record Time: set the time to record after the actual recording is finished. Expiration Time: set the expiration time for recorded video. If the set date is overdue, the

recorded data will be deleted automatically.

7.2 Encode Parameters Setting

Click StartSettingsRecordEncode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, GOP, bitrate type, quality, max bitrate and audio of main stream for each camera in “Event Recording Settings” and “Schedule Recording Settings” interfaces. Click “Apply” to save the settings. You can set the record stream of each camera one by one or batch set them for all cameras.

Click StartSettingsRecordStream Settings to go to “Sub-stream” interface. Set the encode, resolution, FPS, GOP, bitrate type, quality and max bitrate of sub-stream for each camera in the interface and then click “Apply” to save the settings.

Record & Disk Management

NVR User Manual

7.3 Schedule Setting

7.3.1 Add Schedule

Click StartSettingsRecordRecord ScheduleEdit Schedules to go to the interface as shown below. “24ⅹ7”, “24ⅹ5” and “24ⅹ2” are the default schedules; you cannot edit or

delete “24ⅹ7” while “24ⅹ5” and “24ⅹ2” can be edited and deleted. Click the schedule name to display the detailed schedule information on the left side of the interface. The seven rows

stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

Click to add a new schedule. Refer to the picture below.

Record & Disk Management

NVR User Manual

Set the schedule name and schedule time and then click “Add” to save the schedule. You can set day schedule or week schedule. : add button; : delete button.

 Set Day Schedule

Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click or and then click “Manual” on each day to pop up a window as shown below. Set the start and end time in the window and then click “OK” to save the settings.

Record & Disk Management

NVR User Manual

Click “All” to set all day recording; click “Reverse” to swap the selected and unselected time in a day; click “Clear All” to clear all the selected area in a day. Click “Copy To” to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click “OK” to save the settings.

 Set Week Schedule

Click or and then click “Manual” beside to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click “OK” to save the settings.

Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a week; click “Clear All” to clear all the selected area in a week.

7.3.2 Record Schedule Configuration

Click StartSettingsRecordRecord ScheduleSchedule Configuration to go to the interface as shown below. Set the schedule of sensor record, motion record, timed record and intelligence record. Click “None” in the drop-down menu to clear the schedule. Click “Apply” to save the settings.

Record & Disk Management

NVR User Manual

Note: Click StartSettingsRecordMode Settings and then set the manual record time in the interface. Click “Apply” to save the settings.

Go to “Edit Schedules” interface and then click to edit the schedule. The settings of “Edit Schedule” are similar to that of the “Add Schedule”. Click to delete the schedule.

7.4 Record Mode

7.4.1 Manual Recording

Method One: Click on the tool bar at the bottom of the live preview interface to enable

recording of the camera. Method Two: Go to live preview interface and then click the right-click menu “Manually

Record On” in the camera window or click on the tool bar under the camera window to start recording.

7.4.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule.

Set the timing record schedule of each camera. See 7.3 Schedule Setting for details.

7.4.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion

object appears in the setup schedule. The setup steps are as follows: ① Set the motion based recording schedule of each camera. See 7.3 Schedule Setting for details. ② Enable the motion and set the motion area of each camera. See 9.2.1 Motion Configuration for details. The camera will start motion based recording once you finish the above settings.

7.4.4 Sensor Based Recording

① Set the sensor based recording schedule of each camera. See 7.3 Schedule Setting for details. ② Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the “Record”. See 9.1 Sensor Alarm for details.

Record & Disk Management

NVR User Manual

Note: 1. The new HDD should be formatted for normal use.

2. For normal use of the HDD which has been used in other NVR, if the NVR is of the same model with the new NVR, please import the configuration file of the NVR to the new NVR or format the HDD; if the models of the two NVRs are different, please format the HDD.

7.4.5 Intelligence Recording

① Set the intelligence recording schedule of each IP camera. See 7.3 Schedule Setting for details. ② Enable the intelligence detection (object detection, exception, line crossing or intrusion detection) and draw alert surface or warning area of each IP camera. See 9.3 Intelligence Alarm for details. The camera will start intelligence recording once you finish the above settings. This function is only available for some IPCs.

7.5 Disk Management

Click StartSettingsDiskDisk Management to go to disk management interface. You can view the NVR’s disk number and disk status and so on in the interface. Click “Formatting” button to format the HDD.

7.5.1 Storage Mode Configuration

Click StartSettingsDiskStorage Mode to go to the interface as shown below.

Record & Disk Management

NVR User Manual

There are all four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automatically. The disks and cameras in the groups can be deleted except group one (select a disk group and then click

on the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automatically.

Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click in the disk or camera

row to pop up a window. Check the disks or cameras in the window and then click “Add”.

7.5.2 View Disk and S.M.A.R.T. Information

Click StartSettingsDiskView Disk Information to view the HDD information; click “S.M.A.R.T. Information” to view the working status of the HDD. Refer to the picture below.

Record & Disk Management

NVR User Manual

Playback & Backup

NVR User Manual

8 Playback & Backup

8.1 Instant Playback

Click on the tool bar at the bottom of the preview camera window to play back the record (click on the tool bar at the bottom of the live preview interface to set the default playback

time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu “Instant Playback” in the camera window and then set the instant playback time to play back the record.

8.2 Playback Interface Introduction

Click on the tool bar at the bottom of the live preview interface or click StartPlayback to go to the playback interface as shown below (click on the tool bar at the bottom of the

live preview interface to set the default playback time).

Playback & Backup

NVR User Manual

Button

Meaning

Start button. Click it to pop up area ②.

Full screen button. Click it to show full screen; click it again to exit the full screen.

Screen mode button.

OSD ON button. Click it to enable OSD; click to disable OSD.

Stop button.

Rewind button. Click it to play video backward.

Play button. Click it to play video forward.

Pause button.

Deceleration button. Click it to decrease the playing speed.

Acceleration button. Click it to increase the playing speed.

Previous frame button. It works only when the forward playing is paused in single screen mode.

Next frame button. It works only when the forward playing is paused in single screen mode.

Click to step backward 30s and click to step forward 30s.

Event list/tag button. Click it to view the event record of manual/schedule/sensor/ motion and the tag information.

Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.

Backup status button. Click it to view the backup status.

Back button. Click it to return.

Button

Meaning

Click it to go to record search and backup interface; see 8.3 Record Search, Playback & Backup for details.

Click it to go to live preview interface; see Chapter 5 Live Preview Introduction for details.

The added cameras will playback their records in the playback interface automatically. You can also add the playback camera manually. Click in the playback window to pop up the “Add Camera” window. Check the cameras in the window and then click “Add” to add playback camera. The system supports a maximum of 16 synchronous playback cameras.

The buttons on the tool bar (area ①) at the bottom of the playback interface are introduced in the table below.

Introduction of area ②:

Click on the playback window to show the tool bar as shown in area ③; right click on the window to show the menu list. The tool bar and menu list are introduced in the table below.

Playback & Backup

NVR User Manual

Button

Menu List

Meaning

Move tool. Click it to move the tool bar anywhere.

Enable Audio

Click it to enable audio. You can listen to the camera audio by enabling audio.

Snap

Click it to snap.

Zoom In

Click it to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live preview interface.

Click to pause the record playing; click to play the record. When the record is paused in forward playing mode, you

can click to view the previous frame and click to view the next frame.

Add Tag

Click it to add tag. You can play back the record by searching the added tag. Click it and then input the tag name in the popup window. Click “Add” to add tag.

Switch Camera

Click it to switch the playback camera. Click it and then check the camera in the popup window. Click “OK” to change the camera.

Close Camera

Click it to close the playback camera.

Introduction of area ④: Click to set the date; click to set the time and then the playback camera will play the

record from the time you set. You can check the record type as required for record playback; first you should click on the tool bar at the bottom of the interface to clear all the playback camera, then check the record type ( : manual record; : sensor based record; : motion based record; : schedule record; : intelligence record) and finally click in the

playback window to add camera for playback (the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤): A tool bar will appear after moving the mouse to the record time scale. Click / to zoom the timeline; click to recover the timeline to 24 hours’ ratio. Drag the timeline or

slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also click to show the hidden time on the top of the timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at

the bottom of the time scale to show the hidden playback cameras. The record time scale shows different record types with different colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for motion based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the time and then the playback camera will play the record from the time you set. Drag the color block on the time scale to select the backup area and then right click the area or

click to pop up a backup information window. Click “Backup” button in the window to pop up the backup window. Select the device, backup path a nd backup format and then click “Backup” button to start the backup.

Playback & Backup

NVR User Manual

8.3 Record Search, Playback & Backup

The record data and the snapped pictures can be backed up through network, USB (U disk or USB mobile HDD) or e-SATA (only available for some models). The file system of the backup devices should be FAT32 format.

8.3.1 Search, Playback & Backup by Time-sliced Image

① Click StartSearch and BackupBy Time-sliced Image to go to “By Time-sliced Image” tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.

② Select one camera in the interface and then click “Open” button. ③ Click the image box to play the record in the small playback box on the left side of the

interface (the box which has image inside indicates that the record data exist). ④ Refer to the picture below. Drag the color blocks on the time scale to select the record data and then click “Backup” button to pop up the “Record Backup” window as shown below. Select the device name, backup format and path and then click “Backup” button to start the backup.

Playback & Backup

NVR User Manual

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click “Playback” button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details). Click “Close” to close the interface.

Time Slice Mode Selecting: Method One: Click “Year”, “Month” or “Day” button under the record time scale to select the

Playback & Backup

NVR User Manual

time slice mode. In “Day” mode, click / on the left/right side of the time scale to view the record of the last/next day; click “Minute” in the “Picture” option under the time scale to select “Minute” mode (in “Minute” mode, click the time scale to change the time of the 60 display windows) and click “Hour” to select “Hour” mode. Method Two: Click beside “Camera Thumbnail” on the left top corner of the interface to select the time slice mode. Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface.

8.3.2 Search, Playback & Backup by Time

① Click StartSearch and BackupBy Time to go to “By Time” tab as shown below. ② Click on the bottom of the interface to add playback camera. A maximum of 16

cameras can be added for playback. Click “Modify” on the top right corner of the camera window to change the camera and click “Clear” to remove the camera. ③ Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as

required and click the time scale or click under the time scale to set the time. The camera window will play the record according to the time and event type you set. ④ Drag the color blocks on the time scale to select the record data (or click “Set Backup Time” button on the bottom left corner of the interface to set the backup start time and end time) and then click “Backup” button for record backup. Click “Playback” button to play the record in the playback interface.

8.3.3 Search, Playback & Backup by Event

Some models may support searching POS event.

① Click StartSearch and BackupBy Event to go to “By Event” tab as shown below.

Playback & Backup

NVR User Manual

② Check the event type in the interface as required. ③ Click to set the start time and end time on the top left of the interface.

④ Check cameras on the left side of the interface or check “All” to select all the cameras and

then click to search the record. The searched record will be displayed in the list. ⑤ Click in the list to play back the record in the popup window. Click to back up

one record data or check multiple record data in the list and then click “Backup” button for record batch backup. ⑥ Select one record data in the list and then click “Playback” button to play the record in the playback interface.

8.3.4 Search & Playback by Tag

Only if you add the tags can you play the record by tag search. Click StartPlayback to go to the playback interface and then click on the bottom of the camera window to add tag

when you want to mark the playback time point of the selected camera. Click StartSearch and BackupTag Management to go to “Tag Management” tab.

Playback & Backup

NVR User Manual

Click in the interface to play the record. Click to edit the tag name. Click to delete the tag.

8.3.5 Image Management

Click StartSearch and BackupImage Management to go to “Image Management” tab. The system will display all the snapped images automatically in the list.

Click to delete the image. Click to pop up the “Export” window. Select the device name and save path in the window and then click “Save” button.

Click to pop up the “View Image” window. Click to export the image. Click to view the previous image; click to view the next image; click to delete the image; click to play all the images.

8.3.6 View Backup Status

Click StartSearch and BackupBackup Status or click on the tool bar at the bottom of the playback interface to view the backup status.

Alarm Management

NVR User Manual

9 Alarm Management

9.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

① Click StartSettingsAlarmSensor Alarm to go to the following interface.

② Select the alarm type (NO or NC) according to trigger type of the sensor. ③ Enable the sensor alarm of each camera. ④ Check the “Duration”, “Record”, “Snapshot”, “Push”, “Alarm-out” and “Preset” and

enable or disable the “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail” as required. ⑤ Click “Apply” to save the settings.

The configuration steps of the above mentioned alarm linkages are as follows. Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion. Record: check it and then the “Trigger Record” window will pop up automatically (you can also click “Configure” button to pop up the window). Select camera on the left side and then

click to set the camera as the trigger camera. Select trigger camera on the right side and then click to cancel the trigger camera. Click “OK” button to save the settings. The

trigger cameras will record automatically when the sensor alarm is triggered. Snapshot: check it and then the “Trigger Snapshot” window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will snap automatically when the sensor alarm is triggered. Push: check it and choose NO or OFF. If it is ON, the system will send messages when the sensor alarm is triggered. Alarm-out: check it and then the “Trigger Alarm-out” window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when the sensor alarm is triggered. You need to set the delay time and the schedule of the alarm outputs. See 9.5.1 Alarm-out for details. Preset: check it and then the “Trigger Preset” window will pop up automatically. Configure the

Alarm Management

NVR User Manual

trigger preset of each camera. To add presets, please see 6.2 Preset Setting for details. Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay time of the buzzer, please see 9.5.4 Buzzer for details. Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 9.5.3 Display for details. Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 9.5.3 Display for details. E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please configure the recipient’s e-mail address first (see 11.1.5 E-mail Configuration for details).

9.2 Motion Alarm

Motion Alarm: when the motion object appears in the specified area, it will trigger the alarm. You should enable the motion of each camera first and then set the alarm handling of the camera to complete the whole configuration of the motion alarm.

9.2.1 Motion Configuration

① Click StartSettingsCameraMotion to go to the following interface.

② Select the camera, enable the motion and set the sensitivity and duration of the camera.

Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

Alarm Management

NVR User Manual

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

③ Drag the camera image to set the motion area. You can set more than one motion area. Click “All” to set the whole camera image as the motion area. Click “Reverse” to swap the motion area and the non-motion area. Click “Clear” to clear all the motion areas. ④ Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of the motion alarm.

9.2.2 Motion Alarm Handling Configuration

① Click StartSettingsAlarmMotion Alarm to go to the following interface.

② Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”,

“Pop-up Video” and “E-mail”. The alarm handling setting of motion alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion configuration interface.

9.3 Intelligence Alarm

9.3.1 Object Detection

Object Detection Configuration:

① Click StartSettingsCameraIntelligent DetectionObject Detection to go to the following interface. ② Select the camera, enable the object detection and set the duration and detect type. There are two detect types: Abandon object and missing object. Abandon object: The relevant alarms will be triggered if there are articles left in the detection area drew by the users. Missing object: The relevant alarms will be triggered if there are articles missing in the detection area drew by the users.

③ Select the warning area and input the area name. You can add 4 warning areas at most. ④ Draw the warning area of the object detection. Refer to the interface as shown above.

Alarm Management

NVR User Manual

Check “Draw Area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw Warning Area” if you finish the drawing. Click “Clear” button to delete the warning area.

⑤ Click “Apply” to save the settings. ⑥ Click “Processing Mode” to go to the alarm handling configuration interface of object

detection.

Object Detection Alarm Handling Configuration: ① Click StartSettingsAlarmIntelligence AlarmObject Detection to go to the following interface.

② Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings. You can click “Article Protect Config” to go to the object detection configuration interface.

Alarm Management

NVR User Manual

9.3.2 Exception

Exception Configuration:

① Click StartSettingsCameraIntelligent DetectionException to go to the following interface.

② Select the camera and enable the relevant detection as required. Scene Change: The relevant alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: The relevant alarms will be triggered if the monitor video is blurred. Video Color Cast: The relevant alarms will be triggered if color cast happens to the monitor

video. ③ Set the duration and drag the slider to set the sensitivity of the exception detection. The sensitivity value of Scene Change Detection: the bigger the value is, the more sensitive the system responds to the amplitude of the scene change. The sensitivity value of Video Blur Detection: the bigger the value is, the more sensitive the system responds to the defocus of the device image. You should just the value according to the real situation. The sensitivity value of Video Color Cast Detection: the bigger the value is, the more sensitive the system responds to the color cast of the device image. You should also consider other factors.

④ Click “Apply” to save the settings. ⑤ Click “Processing Mode” to go to the alarm handling configuration interface of exception

detection.

Exception Alarm Handling Configuration: ① Click StartSettingsAlarmIntelligence AlarmException to go to the interface.

Alarm Management

NVR User Manual

② Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of exception detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings. You can click “Exception Config” to go to the exception detection configuration interface.

9.3.3 Tripwire

Line Crossing Configuration:

The relevant alarms will be triggered if someone or something crosses the alert line drew by the users. ① Click StartSettingsCameraIntelligent DetectionTripwire to go to the following interface.

② Select the camera, enable the tripwire detection and set the duration.

Alarm Management

NVR User Manual

③ Select the line and direction. You can add 4 lines at most. Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alert line. A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the intruder crosses over the alert line from A to B. A<-B: the alarm triggers when the intruder crosses over the alert line from B to A.

④ Draw the alert surface. Refer to the interface as shown above. Check “Draw line” and then drag the mouse in the image to draw an alert line. Uncheck the “Draw line” if you finish the drawing. Click “Clear” button to delete the alert line.

⑤ Click “Apply” to save the settings. ⑥ Click “Processing Mode” to go to the alarm handling configuration interface of line

crossing detection.

Line Crossing Alarm Handling Configuration: ① Click StartSettingsAlarmIntelligence AlarmTripwire to go to the following interface.

② Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings. You can click “Crossing Config” to go to the line crossing configuration interface.

9.3.4 Intrusion Detection

Intrusion Configuration:

The relevant alarms will be triggered if someone or something intrudes into the warning areas or moves in the warning areas drew by the users. ① Click StartSettingsCameraIntelligent DetectionIntrusion to go to the following interface.

② Select the camera, enable the intrusion detection and set the duration. ③ Select the warning area. You can add 4 warning areas at most. ④ Draw the warning area of the intrusion detection. Refer to the interface as shown below.

Alarm Management

NVR User Manual

Check “Draw area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw area” if you finish the drawing. Click “Clear” button to delete the warning area.

⑤ Click “Apply” to save the settings. ⑥ Click “Processing Mode” to go to the alarm handling configuration interface of intrusion

detection.

Intrusion Detection Alarm Handling Configuration: ① Click StartSettingsAlarmIntelligence AlarmIntrusion to go to the following interface.

② Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of intrusion detection alarm is similar to that of the

Alarm Management

NVR User Manual

sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings. You can click “Regional Invasion Config” to go to the intrusion detection configuration interface.

9.4 Exception Alarm

9.4.1 IPC Offline Settings

① Click StartSettingsAlarmExceptionIPC Offline Settings to go to the interface as shown below.

② Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The IPC Offline Settings are similar to that of the sensor

alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings.

9.4.2 Exception Handling Settings

① Click StartSettingsAlarmExceptionException Handling Settings to go to the interface as shown below. ② Enable or disable “Push”, “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”. The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings.

Alarm Management

NVR User Manual

9.5 Alarm Event Notification

9.5.1 Alarm-out

① Click StartSettingsAlarmEvent Notification to go to the following interface.

② Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to

edit the schedules (see 7.3.1 Add Schedule for details). ③ Click “Apply” to save the settings. You can click “Test” to test the alarm output.

9.5.2 E-mail

Click StartSettingsAlarmEvent NotificationE-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See 11.1.5 E-mail Configuration for details.

9.5.3 Display

Click StartSettingsAlarmEvent NotificationDisplay to go to the display configuration interface. Set the duration time of the pop-up video and the pop-up message box. Click “Apply” to save the settings.

Alarm Management

NVR User Manual

9.5.4 Buzzer

Click StartSettingsAlarmEvent NotificationBuzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click “Apply” to save the setting. You can click “Test” to test the buzzer.

9.5.5 Push Message

Click StartSettingsAlarmEvent NotificationPush Message to go to the interface as shown below. Check “Enable” and then click “Apply” button to save the settings. If Push Server is online, it will push messages to the mobile clients.

9.6 Manual Alarm

Click on the tool bar at the bottom of the live preview interface to pop up a window. Click “Trigger” to start alarm. Click “Clear” to stop alarm.

Alarm Management

NVR User Manual

9.7 View Alarm Status

Click StartSettingsAlarmAlarm Status or click on the tool bar at the bottom of the live preview interface to view the alarm status.

Click “Clear” button to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below.

If the exception information is more than one page, you can input the number in the box and then click to jump to the specified page. Click / to view the exception alarm information in the previous/next page. Click to play the alarm record.

Account & Permission Management

NVR User Manual

10 Account & Permission Management

10.1 Account Management

Click StartSettingsAccount and AuthorityAccountEdit User to go to the interface as shown below.

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①. There are three default permission groups (“Administrator”, “Advanced” and “Common”) available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group for details). Only admin and the users that have the “Account and Authority” permission can manage the system’s accounts. Group “Administrator” owns all the permissions displayed in area ① except “Account and Authority” and its permissions cannot be changed while the permissions of “Advanced” and “Common” can be changed.

10.1.1 Add User

① Click StartSettingsAccount and AuthorityAccountAdd User or click beside the search box to pop up the window as shown below.

Account & Permission Management

NVR User Manual

② Set the username, password and group. User can also set the graphical lock here. The e-mail address and MAC address are optional (input the MAC address after you check it). Click “Add” to add the user.

10.1.2 Edit User

Click StartSettingsAccount and AuthorityAccountEdit User and then click in the user list or double click the user to edit the user information. Click to delete the user

(the user admin cannot be deleted).

 Edit Security Question

You can set password security only for admin. Click “Edit Security Question” and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the “Account and Authority” permission.

 Modify Password

Account & Permission Management

NVR User Manual

Only the password of admin can be modified. Click “Modify Password” to pop up a window. Input the current password and then set new password. Click “OK” to save the settings.

 Modify Graphical Lock

Some models may not support this function. Click “Modify Graphical Lock” to pop up a window.

Input current password and then check “Enable” to input graphical lock.

 Recover Password

Click “Recover Password” to reset the password to 123456.

 Edit User

Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click “OK” to save the settings.

Account & Permission Management

NVR User Manual

10.2 User Login & Logout

Login: Click StartLogin or directly click the preview interface and then select username and enter the password in the popup window. Click “Login” button to log in the system. Logout: Click StartLogout or click StartShutdown to pop up the “Shutdown” window. Select “Logout” in the window and then click “OK” button to log out the system.

10.3 Permission Management

10.3.1 Add Permission Group

Click StartSettingsAccount and AuthorityAccountEdit Permission Group to go to the interface as shown below.

Click to add permission group. Set the group name, check the permissions as required and then set the “Local” and “Remote” permissions. Click “Add” to save the settings.

Account & Permission Management

NVR User Manual

10.3.2 Edit Permission Group

Go to “Edit Permission Group” interface and then click in the group list to edit the permission group (the operations of the “Edit Permission Group” are similar to that of the “Add

Permission Group”, please see 10.3.1 Add Permission Group for details). Click to save the group as another group. Click to delete the permission group. The three default

permission groups (“Administrator”, “Advanced” and “Common”) cannot be deleted.

10.4 Black and White List

① Click StartSettingsAccount and AuthoritySecurity to go to the following interface.

Account & Permission Management

NVR User Manual

② Check “Enable” and then choose “Enable Allow List” or “Enable Block List” (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot). ③ Add IP/IP segment/MAC. Click “Add IP” or “Add MAC” button and then check “Enable” in the popup window (only if you check it can the IP/IP segment/MAC you add be effective).

Enter the IP/IP segment/MAC and then click “OK” button. In the above interface, click to edit IP/IP segment/MAC, click to delete it. Click “Apply” to save the settings.

10.5 Preview On Logout

Click StartSettingsAccount and AuthoritySecurityPreview On Logout to go to the following interface. Set a camera and then enable or disable the preview permission on logout as required. If a camera’s preview permission on logout is “ON”, you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

10.6 View Online User

Click StartSettingsAccount and AuthorityUser Status to view the online user information (you can view the online user name, login type, IP address and login time; click

to pop up a window showing the preview occupied channel number and playback occupied

channel number).

Device Management

NVR User Manual

11 Device Management

11.1 Network Configuration

11.1.1 TCP/IP Configuration

Click StartSettingsNetworkTCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click “Apply” to save the settings.

Note:

 Internal Ethernet Port

If you use the NVR with the PoE network ports, click “Internal Ethernet Port” to go to the following interface. The internal ethernet port is the port which connects all the PoE ports with the NVR system. The PoE ports are available if the internal ethernet port is online; if it is offline, all the PoE ports will be unavailable, may be the internal ethernet port is broken. The network addresses of the internal ethernet port can be changed to make the port in the same network segment with the IP cameras which directly connect to the PoE ports of the NVR (it is not recommended to change the network addresses of the internal ethernet port).

Device Management

NVR User Manual

 Multiple Ethernet Ports Setting

If the NVR has two network ports or above, you can select the network work pattern as required. Network Fault Tolerance and Multiple Address Setting are available.

Network Fault Tolerance:

The two network ports will be bound to one IP address if you select the “Network Fault Tolerance” pattern. There are many advantages of this work pattern: 1. increase the bandwidth;

2. form a network redundant array to share the load. When a failure happens to one network port, the other port will take over the entire load immediately. The takeover process is seamless and the network service will not be broken off.

Refer to the figure as shown below. If “Network Fault Tolerance” is selected, check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses; select one Ethernet port as the primary card and then click “Apply” button to save the settings.

Device Management

NVR User Manual

Multiple Address Setting:

If “Multiple Address Setting” is selected, the IP addresses of the two Ethernet ports should be set respectively. Refer to the picture as shown below. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses; select one Ethernet port as the default route and then click “Apply” button to save the settings.

Device Management

NVR User Manual

11.1.2 Port Configuration

Click StartSettingsNetworkPort to go to the interface as shown below. Input the HTTP port, HTTPS Port, server port and RTSP port of the NVR, enable “Anonymous” as required and then click “Apply” button to save the settings.

HTTP Port: the default HTTP port of the NVR is 80. The port number can be changed to others like 81. The port is mainly used to IE remote access. If you want to access the NVR

Device Management

NVR User Manual

Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN.

through IE, you should input IP address plus HTTP port in the IE address bar like http://192.168.11.61:81.

HTTPS Port: the default HTTP port of the NVR is 443. Server Port: the default server port of the NVR is 6036. The server port number can be

changed as required. The port is mainly used in network video management system. RTSP Port: RTSP real-time stream protocol can be used to control the sending of real-time data. By media player which supports the RTSP real-time stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as required.

11.1.3 PPPoE Configuration

Click StartSettingsNetworkPPPoE to go to the interface as shown below. Check “Enable” in “PPPoE Settings” and then input the username and password obtained from the dealer. Click “Apply” to save the settings.

11.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. You can access to the NVR easily if the DDNS is enabled and configured. Click StartSettingsNetworkDDNS to go to the interface as shown below.

Device Management

NVR User Manual

Check “Enable” and then select the DDNS type. Input the server address, domain name, username and password according to the selected DDNS type. Click “Test” to test the effectiveness of the input information. Click “Apply” to save the settings.

You will have to input the server address and domain name if some DDNS types are selected. Go to the relative DNS website to register domain name and then input the registered domain information here). Now we take www.dvrdydns.com for example.

① Input www.dvrdydns.com in the IE address bar to visit its DNS website.

② Click Registration button to go to the interface as shown below. Set the DDNS account

information (username, password and so on) and then click Submit button to save the account.

Device Management

NVR User Manual

③ Create domain name and then click Request Domain.

④ After you successfully request your domain name, you will see your domain name

information in the list.

Device Management

NVR User Manual

⑤ Click StartSettingsNetworkDDNS to go to DDNS setting interface. Enable DDNS and then select the www.dvrdydns.com DDNS type. Input the registered username, password and domain name and then click “Apply”. ⑥ Map the IP address and HTTP port in the router (you can skip this step if UPnP function is enabled). ⑦ Input the registered domain name plus HTTP port like http://www.xxx.dvrdydns.com:81 in the IE address bar and then press Enter key to go to the IE client.

11.1.5 E-mail Configuration

Click StartSettingsNetworkE-mail to go to the following interface. Input the sender’s name, e-mail address, SMTP server and SMTP port (you can click “Default” to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image. Select the username (the username list will be updated automatically according to the email address you input) and input the password of the sender and then click “Apply” to save the settings (you don’t have to input the username and password if “Anonymous Login” is enabled). Click “Test” to pop up a window. Input the e-mail address of the recipient in the window and then click “OK” button. The e-mail address of the sender will send an e-mail to the recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender is configured correctly.
