Owner’s Manual_V1.0
XFM070
Important Safety Instructions
Owner’s Manual_V1.0
There are no user-serviceable components inside the device so please do not
take apart or repair the unit by yourself.
The device repair must be done by qualified specialists only.
Do not expose this product to direct sunlight, heat or humid conditions.
Please use a sun shade outdoors if necessary.
WARNING! To avoid possible malfunctions the device must not be
exposed to rain or moisture. Prevent water or other liquids from
getting inside the device.
Do not use any damaged or leaking batteries and please replace the battery
immediately if its working life becomes significantly short
Keep away from strong light while using this product so as to obtain the
clearest and the most colorful picture.
Please use the supplied power sources.
Do not use chemical solutions to clean this unit. Simply wipe with a
clean soft cloth to remove fingerprints or smudges.
Please avoid heavy impact or drop on the ground.
Please do not cover the vents and holes on the device to ensure good
ventilation. Otherwise it will lead to overheating and reduces the service life.
FCC (Federal Communications Commission)
This equipment has been tested and found to comply with the limits for class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interface when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential to correct the interference at his own expense
CAUTION: Change or modifications not expressly approved by the manufacturer responsible
for compliance could void the user’s authority to operate the equipment.
AVtec LCD Monitors Page: 2/17
XFM070
Owner’s Manual_V1.0
1. Overview
Thank you for purchasing the AVtec XFM070 Full HD On-camera monitor. This
7” color LCD monitor is a great tool for focusing, composing, and viewing
images/video clips directly from your digital camera/video camera. It has
advanced integrated digital signal processing circuits and a IPS LED Panel
which makes it high brightness with low power consumption, stable
performance and low radiation. It is conveniently sized for easy
transportation, and it is perfect for difficult shooting situations. To obtain the
best results with your new XFM070, please take the time to read this manual.
2. Features
• Ultra Thin 7” IPS LCD Panel in Aluminum housing
• 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz)
• 1920x1080 HD screen, PAL/NTSC color system
• Supports 4K UHD HDMI input
• Built-in speaker & integrated jack port for headphones
• Firmware upgradable through USB
• Supports a variety of battery types (F970/ LP-E6/ U60)
• AC/DC Adapter with EU, UK, US & AU plugs included
• Detachable sun hood attachment & foldable sun hood
• Four assignable function buttons
• Focus Assist, Center Marker, Safe Frames, Check Field
• Image Freeze, Image Flip & Pixel-to-Pixel
• Histogram, Exposure (Zebras) & False Colors
• Analog stereo L/R, Embedded Audio Display
• Image Zoom function, Image Nine Grid and Anamorphic Mode
• Brightness, Contrast, Tint, Saturation and Color Temperature adjust
AVtec LCD Monitors Page: 3/17
XFM070
Owner’s Manual_V1.0
3. Included in this box
1x AVtec XFM070 Full HD Monitor
3x Battery bracket for NP-F, BP-U & LP-E6 batteries
1x AC/DC Combi adapter with EU, US, UK & AU plugs
1x Sun hood attachment & detachable sun hood
1x Ball head with 1/4" camera screw
1x HDMI cable
1x Owner’s Manual
AVtec LCD Monitors Page: 4/17
XFM070
Owner’s Manual_V1.0
3.1 Battery brackets & AC/DC Adapter
Battery brackets
The battery bracket for Sony NP-F batteries is installed on the monitor.
You can easily change the battery bracket by unscrewing the 4 small screws
on the back of the battery bracket. Unplug the bracket connector from the
slot, plug in the connector of the bracket you would like to install and fasten
the 4 screws.
The following table will give you an idea which brackets you are able to use
for the Sony and Canon battery types.
Item: For use with:
NP-F bracket
BP-U bracket Sony BP-U30, BP-U60 & BP-U90
LP-E6 bracket Canon LP-E6
Sony NP-F970, NP-F960, NP-F950, NP-F930, NP-F770, NPF750, NP-F730, NP-F570, NP-F550, NP-F530, NP-QM91D,
NP-QM91, NP-QM90D, NP-QM90, NP-QM71D, NP-QM71,
NP-QM70D, NP-QM70, NP-QM51D, NP-QM51, NP-FM71 &
NP-FM70 series.
NOTE: Please remove the battery from the bracket before changing the
battery bracket itself.
AVtec LCD Monitors Page: 5/17
XFM070
Owner’s Manual_V1.0
AC/DC Combi adapter
The supplied AC/DC combi adapter (100-240V~) supports AC or DC power
and uses wall, vehicle, or airplane power outlets to power your device. Four
power plugs are supplied for EU, US, UK and AU. Slide the selected plug on to
the adapter until you hear a soft click.
AVtec LCD Monitors Page: 6/17
XFM070
Owner’s Manual_V1.0
3.2 Other included accessories
Sun hood
The firm but flexible plastic sun hood is designed to protect your screen and
reduces strong light reflection. It mounts to the monitor with a strong easy-oneasy-off construction with hook and loop fasteners.
Ball head
The ball and socket joint of the supplied ball head allows movement on all
axes at the same time and has a single locking screw for easy fixation to your
device. Slide the ball head into a hot shoe and fasten it by turning the wheel
on the bottom of the ball head to the right.
AVtec LCD Monitors Page: 7/17
XFM070
F4
F3
▲/F2
/F1
MENU
◄
MODE
Owner’s Manual_V1.0
4. Front panel & Controls
Item: Description:
1 Power Indicator light
when power on/standby, it turns red; when signal in, it turns green.
2
3
4
5
6 ▼
7
8
9
Power on/off button
Function button, enter secondary menu item F (self-defined
button), then self-define the function that user need
Function button enter secondary menu item F (self-defined
button), then self-define the function that user need
Menu control button / F2: Function button to navigate into the
menu or when not in menu for use of function button
Menu control button / F1: Function button
to navigate into the menu or when not in menu for use of function
button
To enter or exit the menu
► Volume up / increase the value of selected menu item
Volume down / decrease the value of selected menu item
10
11 LCD display
AVtec LCD Monitors Page: 8/17
To switch signal mode
XFM070
Owner’s Manual_V1.0
5. Rear panel
Item: Description:
1 USB Upgrade port
2 OSD Controller port
3 Headphone Jack port
4 AV port
5 HDMI-in port
6 DC Power input (12V)
7 Battery Bracket
8 Built-in speaker
AVtec LCD Monitors Page: 9/17
XFM070
Owner’s Manual_V1.0
6. Operation instructions
After correctly connecting to the power supply, the indicator will turn (Red),
press to turn on monitor power, the indicator will be Yellow, and then input
AV or HDMI signals, the indicator will turn from Yellow to Green.
1. Press MENU button in the front of the panel to enter the main menu, and
press ◄ or ► button to go through the contents of the menu and
secondary menu functions.
2. Then press ▼/F1 button to enter secondary menu (cursor moves to
secondary menu position). If you need to go through or select the items in
the secondary menu, then press ▼/F1 or ▲/F2 button to move the cursor.
3. After selecting the items in the secondary menu, then press ◄ or ► button
to adjust the item parameters.
4. Press ▼/F1 or ▲/F2 button to choose another parameter adjustment after
confirming the item adjustment.
5. Press MENU button to exit the menu.
AVtec LCD Monitors Page: 10/17
XFM070
Owner’s Manual_V1.0
7. Menu instructions
Image Color menu
Use one of the ▼/F1 button to enter the Image Color menu. Press ▲/F2 or
▼/F1 to navigate through the settings. Once the desired setting is highlighted,
use the ◄ or ►buttons to navigate through the sub-menu functions. Press the
MENU button to activate the function.
Menu item: Description:
Pic. Mode Standard, Dynamic, Mild, User
Select “user” to adjust the image of Brightness,
Contrast, Saturation, Sharpness” according to
the practical situation.
Brightness To adjust the monitors brightness.
Contrast To adjust the contrast.
Saturation To adjust color concentration.
Sharpness Also called “Resolution”, an indicator for the
image plane definition and image edge
sharpness.
Color Temp. 6500 K, 9300 K or User. The User option allows
you to adjust Red, Green & Blue.
Tint On NTSC video mode, the image color tint
difference is adjusted by tint.
AVtec LCD Monitors Page: 11/17
XFM070
To change the display ratio to: Panorama,
Automatic, Just Scan, Zoom 1, Zoom 2, 16:9, 4:3.
Owner’s Manual_V1.0
Settings menu
Use one of the ▼/F1 button to enter the Settings menu. Press ▲/F2 or ▼/F1 to
navigate through the settings. Once the desired setting is highlighted, use the
◄ or ►buttons to navigate through the sub-menu functions. Press the MENU
button to activate the function.
Menu item: Description:
Language To change the menu language.
Aspect Ratio
No Signal To select screen color when no signal. Black
(recommended), White, Red, Green or Blue
Screen.
OSD Trans. Menu transparency. Off, Low, Medium or High.
OSD H To adjust the horizontal position of the menu.
OSD V To adjust the vertical position of the menu.
Camera Mode Mode Off, 480p, 1080i
Zoom All
OSD Time Adjust the menu time. Off, 10s, 20s, 30s
U/D Zoom
Image Zoom. Use ◄ or ► to zoom.
Use ◄ or ►, to adjust the proportion of the image
Up and Down to Zoom In or Zoom Out.
L/R Zoom
Use ◄ or ►, to adjust the proportion of the image
Left and Right to Zoom In or Zoom Out.
Backlight To adjust the brightness of screen backlight
Power On Manual or Auto setting
USB Upgrade To update the firmware via USB. Please check the
firmware page on AVtec.tv.
Reset
Restore factory settings by pressing ► button.
AVtec LCD Monitors Page: 12/17
XFM070
Owner’s Manual_V1.0
Function menu
Use one of the ▼/F1 button to enter the Function menu. Press ▲/F2 or ▼/F1 to
navigate through the settings. Once the desired setting is highlighted, use the
◄ or ►buttons to navigate through the sub-menu functions. Press the MENU
button to activate the function.
AVtec LCD Monitors Page: 13/17
XFM070
MENU
Owner’s Manual_V1.0
Menu Item: Description:
Center Marker To set center mark (cross mark) display.
Safe Frames To select screen markers; 96%, 93%, 90%, 85%,
80%, 2.35:1 or Off.
Image Freeze To capture the current picture.
Image Flip Flip the image, horizontally, vertically or in both
directions.
Check Field Color overlay; Red, Green, Blue, Mono or Off.
P2P (Pixel-to-Pixel)
(Not in 4K mode)
The display mode that made the resolution of the
image consistent with display of the physical
resolution.
Histogram Turns on the Histogram in the right corner of the
screen. To check the picture brightness.
False Colors Turns on False Colors to show scene lighting
levels. Red areas are overexposed, blue areas
are insufficient lighting, green areas are good
lighting levels.
Zoom
(Not in 4K mode)
Anamorphic
(Not in 4K mode)
Image zoom settings; Off, 4x, 9x, 16x
Restore the real proportions of the scene; Off,
1.3x, 2.0x, 2.0x MAG
Focus Assist Turns on the Focus Assist function that makes it
easier to focus.
Peaking Color The edge line color can be chosen according to
the situation; Red, Green and Blue
Exposure (Zebras) Over Exposure can be turned On and Off. Shows
red stripes to check what is overexposed.
Settings from 1~100 IRE
Embedded Audio The audio meter is green, and will turn yellow
when it exceeds -20dB, and turn red when it
exceeds -9dB.
Nine Grid
(Not in 4K mode)
Ratio Marker
(Not in 4K mode)
Open it to set the image Nine Grid and select ◄
or ► button to choose an image, and then press
▼/F1 or ▲/F2 button to zoom the image to full
screen, press
button to exit.
Image display ratio marker; Off, 4:3, 13:9, 14:9,
15:9, 16:9, 1.85:1, 2.35:1
Marker Color To select the above high contrast mark color
according to different image; Red, Green, Blue,
Black, White.
Mark Width To select the above mark color display width; 1~7
Modified Marker Adjust the brightness of the image outside tag
line to highlight the inside tag line of the image;
0~6
AVtec LCD Monitors Page: 14/17
XFM070
F1 F2 F3 F4
MENU
Owner’s Manual_V1.0

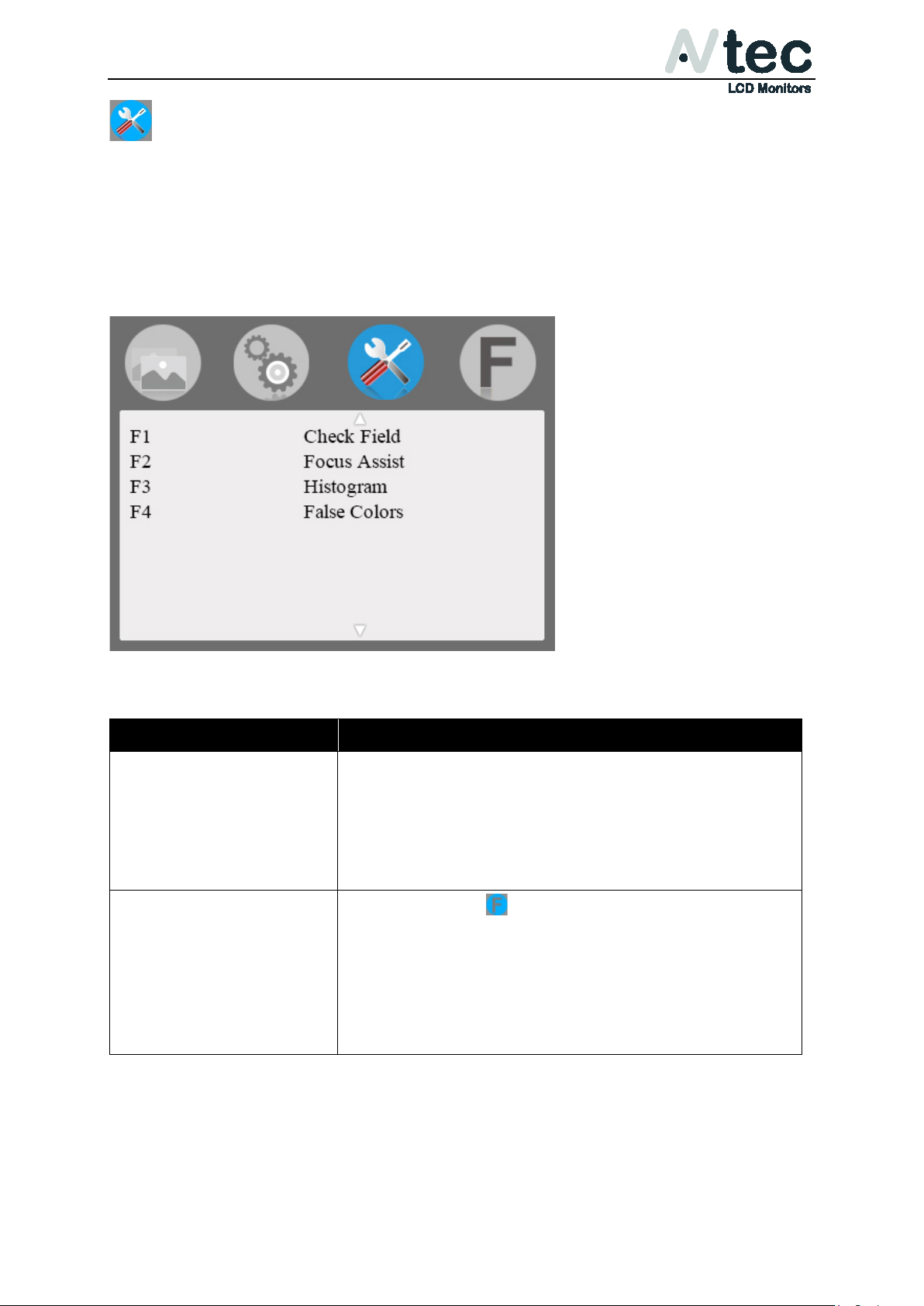

Custom Buttons Setting
Use one of the ▼/F1 button to enter the Function buttons menu. Press ▲/F2 or
▼/F1 to navigate through the settings. Once the desired setting is highlighted,
use the ◄ or ►buttons to navigate through the sub-menu functions. Press the
MENU button to activate the function to save it under the specific function
button.
Menu Item: Description:
For example:
To set the 4 shortcut custom buttons on the front
panel; Center Marker, Safe Frames, Check Field,
Focus Assist, Aspect Ratio, Camera Mode, Image
Flip, P2P, Image Freeze, Histogram, False Colors,
Over Exposure, Embedded Audio, Nine Grid,
Zoom, Anamorphic
When in menu “ ”, press ▼/F1 button and then
select F1, press ► button to pop-up function
items and select one of them, such as “Focus
Assist”, and press
So when you exit OSD menu, you could press F1
directly on the front of panel to turn on “Focus
Assist” function. Same settings for F2, F3 and F4
button to confirm.
AVtec LCD Monitors Page: 15/17
XFM070
Owner’s Manual_V1.0
8. Technical Specifications
Panel Size 7.0 inch
Panel Type IPS LCD
Resolution 1920x1080
Backlight LED
Dot Pitch 0.07875 (W) x 0.07875 (H) mm
Aspect Ratio 16:9
Brightness 450cd/m2
Contrast Ratio 1200:1
Viewing Angle 80°/80° (Left/Right) 80°/80° (Up/Down)
Input Signal Video / Audio / HDMI
Video Color System NTSC 3.58 / PAL 4.43
HDMI Support Format 480i /480p /576i /576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p
(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 3840x2160p (30/29.97/25/24/23.98 Hz)
4096x2160p (24 Hz)
Headphone Output Stereo 3.5mm
Input Voltage DC:7.4~24V
Power Consumption ≦8W
Unit Size (LxWxH) 180 x 140 x 17 mm
7.09 x 5.51 x 0.67 inch
Unit Weight 490/520g (with F970 battery plate) 17.28/18.34 oz
Installation Method 1/4 inch bracket screw hole, can be easily
connected to the hot shoe mount, tripod fixed
installation
Working Temperature -20°C~55°C / -4°F~131°F
Storage Temperature -30°C~65°C / -22°F~149°F
AVtec LCD Monitors Page: 16/17
XFM070
Owner’s Manual_V1.0
9. Trouble shooting
Problem 1. Only black and white or monochrome picture:
① Check saturation, brightness & contrast adjustment.
② Check if "Check Field" is in black and white or monochrome image or other
condition.
Problem 2. No Image after switching on power
① Check if signal cable connections are in good condition and whether the
monitor is synchronized with the input signal, then press the MODE button
and try again.
② Check signal cable connection and make sure to use the standard adapter
to connect the monitor. If power is supplied by battery, please check if the
battery is fully charged.
3. No sound
① Check Volume control; press the volume button, and try to increase the
volume.
② Check the AUDIO input and ensure there is AUDIO signal.
If other issues with the device may occur, please contact us.
http://www.AVtec.tv
AVtec LCD Monitors Page: 17/17
Loading...
