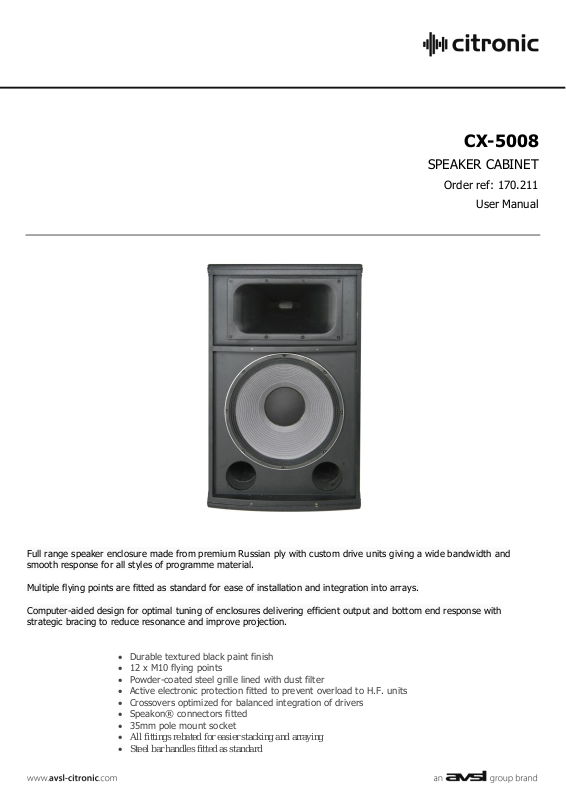

Page 1
CX-5008
SPEAKER CABINET
Order ref: 170.211
User Manual
Full range speaker enclosure made from premium Russian ply with custom drive units giving a wide bandwidth and
smooth response for all styles of programme material.
Multiple flying points are fitted as standard for ease of installation and integration into arrays.
Computer-aided design for optimal tuning of enclosures delivering efficient output and bottom end response with
strategic bracing to reduce resonance and improve projection.
Durable textured black paint finish
12 x M10 flying points
Powder-coated steel grille lined with dust filter
Active electronic protection fitted to prevent overload to H.F. units
Crossovers optimized for balanced integration of drivers
Speakon® connectors fitted
35mm pole mount socket
All fittings rebated for easier stacking and arraying
Steel bar handles fitted as standard
Page 2
Specifications
Power RMS
500W
Power Max
800W (5 minutes max)
LF driver
380mmØ (15”)
HF driver
Compression driver with 72mmØ titanium diaphragm
Impedance
8Ω
Frequency response (-3dB)
45Hz - 18KHz
Frequency response (-10dB)
40Hz - 20KHz
Sensitivity (1W/1m)
97dB
Dispersion (H x V)
90 x 40
Connectors
2 x Speakon® (NL 4)
Dimensions
805 x 500 x 500mm
Weight
43.5kg
Technical drawings
Technical Diagrams
Frequency response - Magnitude Impedance - Magnitude
Distortion - Magnitude Combination - Magnitude
Errors and omissions excepted.
Copyright© 2012. AVSL Group Ltd.
