Frequency Range
470 – 862MHz
Channels
21 - 69
Gain
9 – 13dB
Beam Width H/V
H:38° / V:55°
Front to Back Ratio
15-20dB
Impedence
75Ω
Fully Opened Dimension
540 x 520 x 620(antenna length) mm
CAUHF-P13
CAUHF-P13
EASY INSTALL 24 ELEMENTS
Item ref: 130.010UK
User Manual
UHF AERIAL
○A – Triple boom main body
○B – Dipole box
○C – Reflectors
○D – Pole mast
SPECIFICATION:
INTRODUCTION:
Thank you for choosing Mercury antenna. This antenna has an easy install design, which allows tool free
quick installation. The simple push and click design make this product ideal for both DIY and professional
installation. Please follow the steps below for assembly.
Step 1:
Pull the upper and lower beam on the main body outward fully until they click to lock in position.
Step 2:
Ensure the guide pin on the dipole box is facing the guide hole on the main body correctly and push the
dipole box on to the main body until it clicks to the lock on position.
Step 3:
Guide the reflectors into the reflector housing and push them into the housing until they click into the lock
in position.
Step 4:

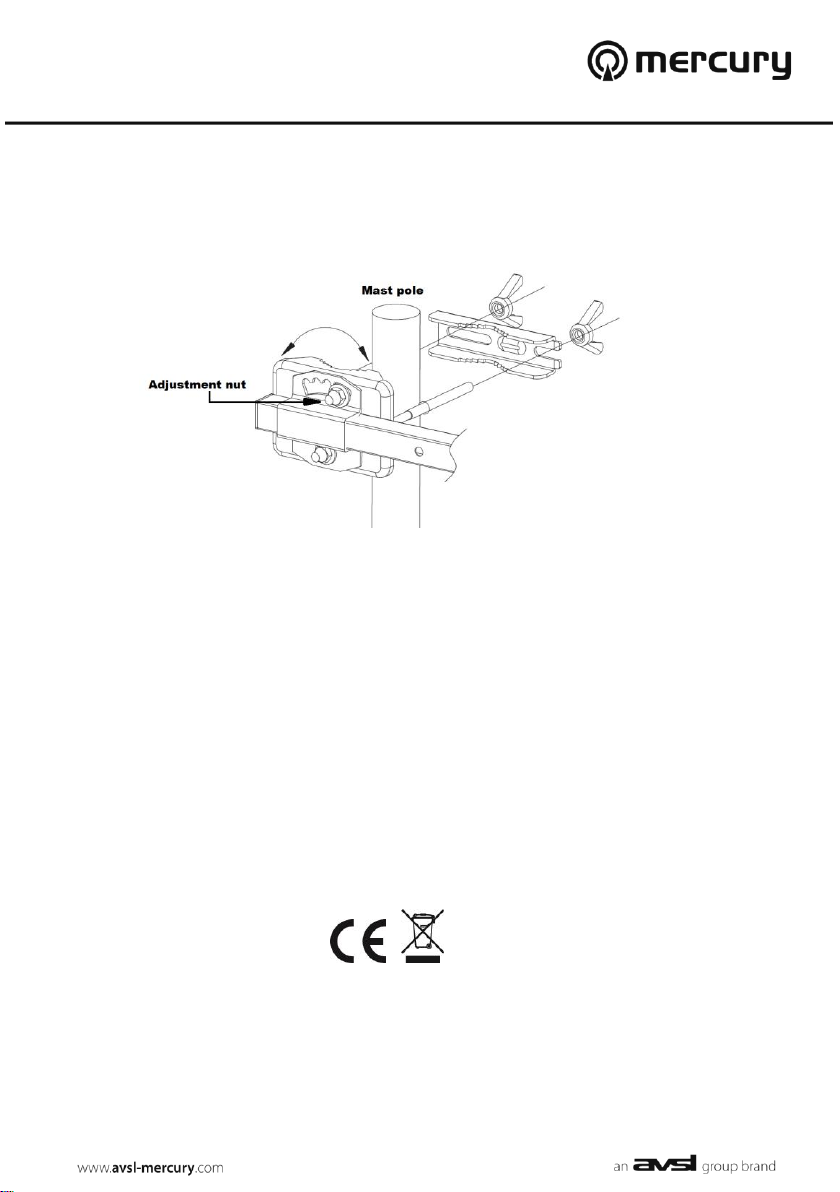

Loosen the mast clamp until the mast pole can fit through it, ensure the tip of the antenna is facing
directly toward the signal transmitter you wish to receive on and tighten up the wing nuts until the aerial
is securely mounted on the mast pole. Loosen the adjustment nuts and adjust the aerial closest to
horizontal level and tighten it again to lock it in position.
Please note, for best reception. Position antenna at the highest possible location, as blockage in line of
sight between antenna and transmission tower may cause signal loss, having the antenna installed at
highest possible location will minimize the chance of signal blockage.
The design of triple boom antenna reception is directional, this allows the antenna to receive the signal
that comes from a forward direction only and minimise the noise pick up from all other surrounding
directions. Therefore when positioning the antenna please ensure the tip of the antenna is pointing
directly to the signal transmission tower that you wish to receive on.
This product is classed as Electrical or Electronic equipment and should not be disposed
with other household or commercial waste at the end of its useful life. The goods must be disposed of
according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2013. AVSL Group Ltd
