AVSL BPV User Manual
BP3V
75mm (3”), 60Wmax
White
952.810
Black
952.811
BP4V
100mm (4”), 70Wmax
White
952.812
Black
952.813
BP5V
130mm (5.25”), 90Wmax
White
952.814
Black
952.815
BP6V
165mm (6.5”), 120Wmax
White
952.816
Black
952.817
BPV-SERIES
100V Outdoor Speakers
User Manual
Introduction
Thank you for choosing the BPV-series outdoor speakers. These weatherproof speakers have been
designed to offer high quality sound for 100V line or low impedance installations. Please read and follow
the instructions in this manual to achieve the best results and avoid damage through misuse.
Installation
The BPV-series speakers are each supplied with a wall-mounting bracket which
allows 90° lateral adjustment. When fixing to a wall or ceiling, use the bracket to
mark out the fixing points and use appropriate fixings for the substrate that the
speaker will be attached to, ensuring that the fixing is strong enough to bear the
weight load.
Once the bracket is fitted, support the speaker in position and attach top and bottom using the supplied
M6 screw caps and adjust to the required angle. Further M6 mounting points are available at the rear of
the speaker, should it be preferred to use different mounting methods (e.g. 129.130 – 129.124UK)
Connection
Model
BP3V
BP4V
BP5V
BP6V
Woofer
75mmØ (3“)
100mmØ (4”)
130mmØ (5.25”)
165mmØ (6.5”)
Tweeter
50mmØ (2“)
25mmØ (1”)
25mmØ (1”)
25mmØ (1”)
Freq response
120Hz - 20kHz
110Hz - 20kHz
100Hz - 20kHz
90Hz - 20kHz
Power max : 8Ω
60W
70W
90W
120W
Power rms : 8Ω
30W
35W
45W
60W
Tappings
1.5/3/6W, 8Ω
2.5/5/10/20W, 8Ω
5/10/20/30W, 8Ω
5/10/20/40W, 8Ω

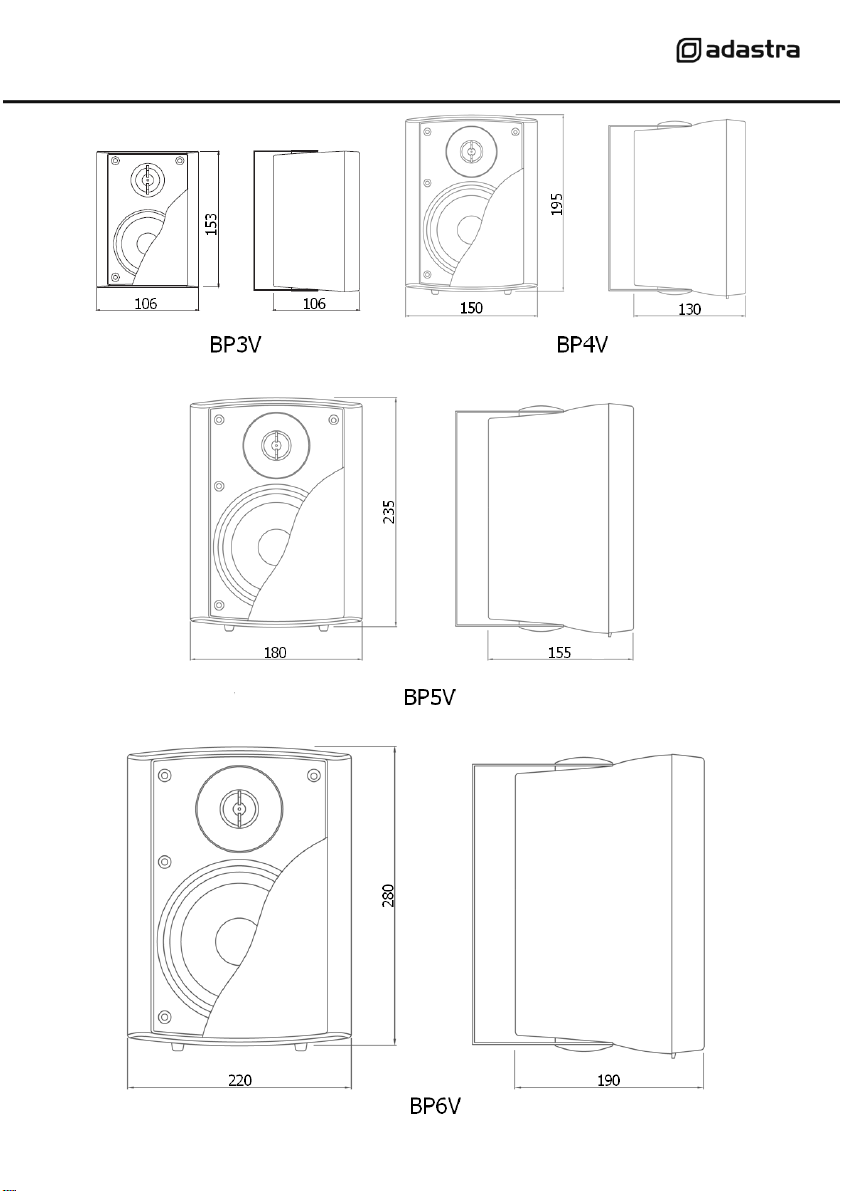

Dimensions (mm)
106 x 153 x 106
150 x 195 x 150
180 x 240 x 180
220 x 280 x 220
Weight
900g
1.63kg
2.38kg
3.08kg
SPL @ 1W/1m
88dB
88dB
88dB
89dB
BPV-series speakers are connected via a hard-wired cable from the rear
of the enclosure. For 100V operation, use double insulated cable rated to
the total maximum current, calculated as total max tapped power divided
by 100V. With the amplifier switched off, strip the speaker wire ends and
connect 100V or “+” to the white wire and connect Common or “-” to the
black wire. Insulate any connecting joints adequately and seal from
moisture if connected outdoors. Each model has a 100V transformer with
various volume settings or “tappings” available via a rotary switch at the
rear (BP6V example shown).
When used with a 100V line amplifier, select the required maximum
wattage that the speaker should demand from the amplifier. Ensure that
the sum of the wattages of all the speakers attached to the amplifier
does not exceed the recommended output of the amplifier.
When used with a standard (non-100V) amplifier, select the “8Ω” setting and refer to the amplifier
manufacturer’s manual to ensure that total speaker impedance (Ω) is not less than recommended for the
amplifier. It is imperative that the amplifier does not deliver more power than can be handled by the BCV
speaker. Refer to the amplifier manual and specifications below to calculate this. Normally, it is
recommended that the amplifier is capable of the RMS power rating of the speaker but cannot ever
exceed the Max power rating.

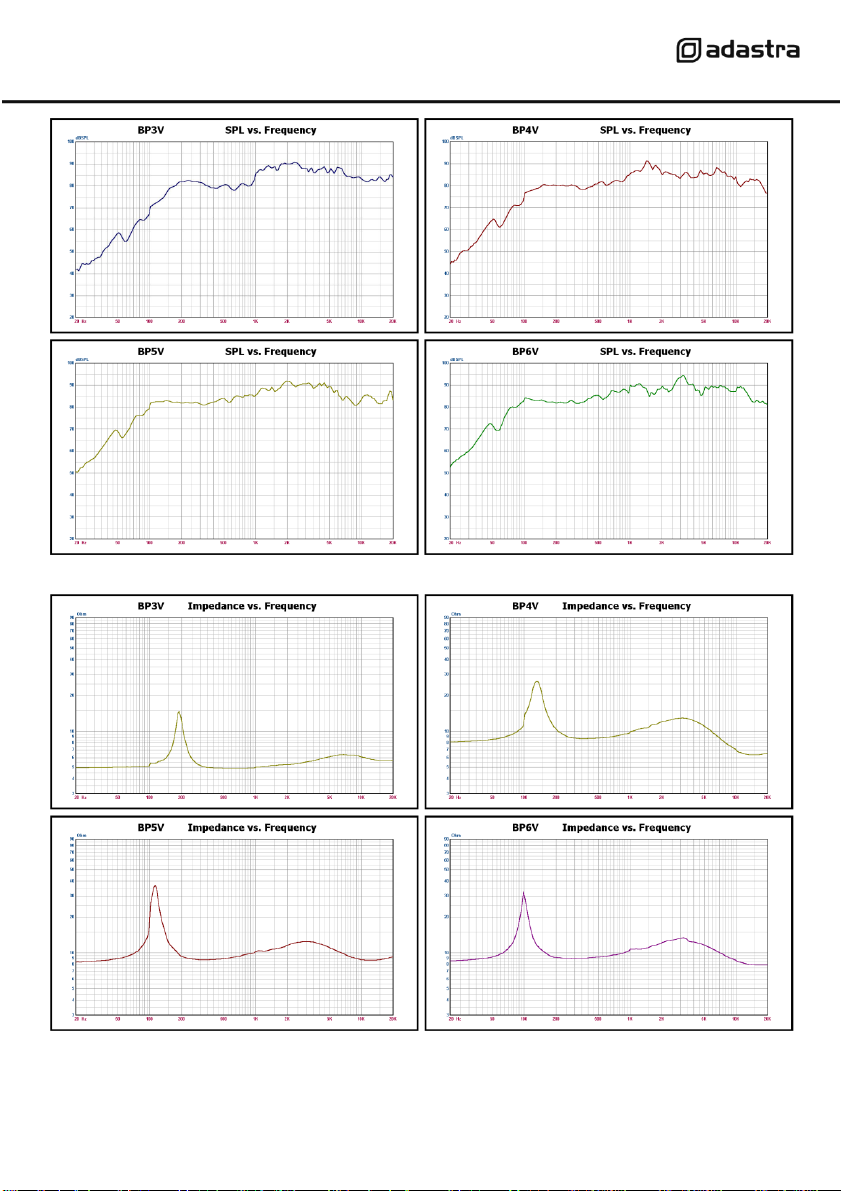

Specifications
Caution
BPV-series speakers are weatherproof IP54 rated. Avoid immersion or direct water jets to the speaker.
Avoid excess heat and exposure to direct sunlight.
Take care not to overload speakers. HF drivers are especially prone to damage through overload.
For 100V installation, take proper care to insulate any contacts within reach of users.
Seal any outdoor speaker connections from moisture ingress.
