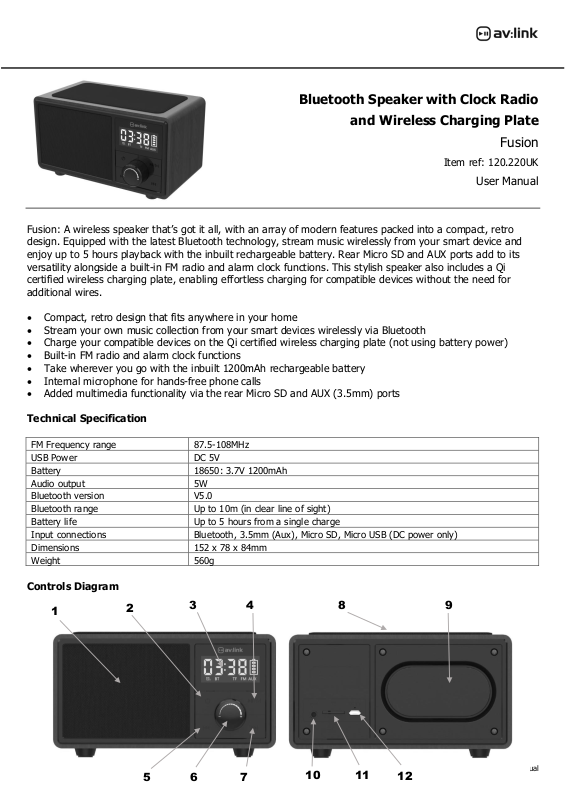

AVSL Bluetooth Speaker with Clock Radio User Manual

120.220UK User Manual
Bluetooth Speaker with Clock Radio
and Wireless Charging Plate
Fusion
Item ref: 120.220UK
Fusion: A wireless speaker that’s got it all, with an array of modern features packed into a compact, retro design. Equipped with the latest Bluetooth technology, stream music wirelessly from your smart device and enjoy up to 5 hours playback with the inbuilt rechargeable battery. Rear Micro SD and AUX ports add to its versatility alongside a built-in FM radio and alarm clock functions. This stylish speaker also includes a Qi certified wireless charging plate, enabling effortless charging for compatible devices without the need for additional wires.
Compact, retro design that fits anywhere in your home
Stream your own music collection from your smart devices wirelessly via Bluetooth
Charge your compatible devices on the Qi certified wireless charging plate (not using battery power)
Built-in FM radio and alarm clock functions
Take wherever you go with the inbuilt 1200mAh rechargeable battery
Internal microphone for hands-free phone calls
Added multimedia functionality via the rear Micro SD and AUX (3.5mm) ports
Technical Specification
FM Frequency range
87.5-108MHz
USB Power
DC 5V
Battery
18650: 3.7V 1200mAh
Audio output
5W
Bluetooth version
V5.0
Bluetooth range
Up to 10m (in clear line of sight)
Battery life
Up to 5 hours from a single charge
Input connections
Bluetooth, 3.5mm (Aux), Micro SD, Micro USB (DC power only)
Dimensions
152 x 78 x 84mm
Weight
560g
Controls Diagram
1
2 3 4 5 6
7
8
9
10
11
12
120.220UK User Manual
Unit Controls and Features
Hands Free
Bluetooth Mode TF Mode FM Mode AUX Mode Standby Clock Alarm Clock Coming Call
1. SPEAKER GRILLE
Short Press Cancel alarm clock
Long Press
Double Click Redial the latest call
3. LED SCREEN
Short Press Play/Pause Play/Pause Silence Silence
Set snooze time from OFF/30/60/90 minutes
Answer call / reject call
Long Press Alarm clock setting Reject call
Double Click
Connect/disconnect
bluetooth
NC Memorize FM stations NC
Standard time
setting
Short Press Previous song Previous song Previous FM station NC
Long Press NC Fast backward
Automatic search previous station
NC
Double Click NC NC NC
Turn Right
Number value
up
Turn Left
Number value
down
Short Press Next song Next song Next FM station NC
Long Press NC Fast forward Automatic search next station NC
Double Click NC NC NC
8. WIRELESS CHARGING PLATE
9. BASS APERATURE
10. AUX IN PORT
11. TF SLOT
12. CHARGING SLOT
Basic audio output
Charge your compatible devices by placing on the wireless charging plate (only works when connected to USB power)
Enhances the audio output
Playing Mode
Time and Alarm Clock
Standby clock interface to show time
Power On/Off
NC
Switch BT/TF/FM/AUX Mode
Continuous volume up
Continuous volume down
Show standard time, existing playing mode status
Connect to a compatible audio device using a 3.5mm cable (not supplied)
Play MP3 and WAV files directly by inserting a compatible TF (MicroSD) card
5V 2A (Connect the charging cable supplied to a compatible USB charging socket. NOTE for wireless charging operation the socket should be a minumum of 2A output
Key Function Name
2. POWER ON/OFF
4. PLAY/MODE
7. NEXT
5. PREV
6. VOLUME KNOB
Operation
Number value up/down, snooze time selection, alarm on/off selection,alarm time selection, alarm tone modes selection
General Usage
Charging the battery: Fully charge the Fusions internal battery before first use. Use the USB cable
provided and only connect to a suitable 5V USB power supply. To check the battery capacity at any time,
view the battery level indicator on the side of the LED display. During charging, the battery level
indicator will flash, changing to constant when fully charged.
Setting the time: On first use, you need to set the Fusions internal clock to the correct time. To do this,
first switch the unit on by long pressing the Power button (2), the Fusion will enter Bluetooth mode. Next short press the Power button again to enter Standby/clock mode. Double press the Play/mode button (4) and the hour digits will flash on the LED display. Use the Volume knob (6) to select the correct time then press the Play/mode button again to store and move to the minute digits. Repeat the process again for the minute setting then press the Power button to store the correct time.
Bluetooth Pairing and playback: Press and hold the Power button (2) and the Fusion will turn on and
enter Bluetooth pairing mode. Ensure your device is in range and Bluetooth is enabled, then search in the device list for “AV:Link-Fusion” and select to connect. If your device asks for a pairing code, enter 0000 to connect. Once connected, you can use the track buttons (4,5&7) on the Fusion to control your music. To disconnect from your device at any time and connect to a different device, double click the Play/mode button (4).
TF card media playback: With the Fusion switched on, insert a compatible TF (MicroSD) card into the
port on the back of the unit (11). The inbuilt media player will detect any compatible files on the card and automatically play the first track. You can now use the track buttons (4,5&7) on the Fusion to control your music. NOTE: Ensure the TF card is formatted to FAT32 standard and is no larger than 64MB in size.
